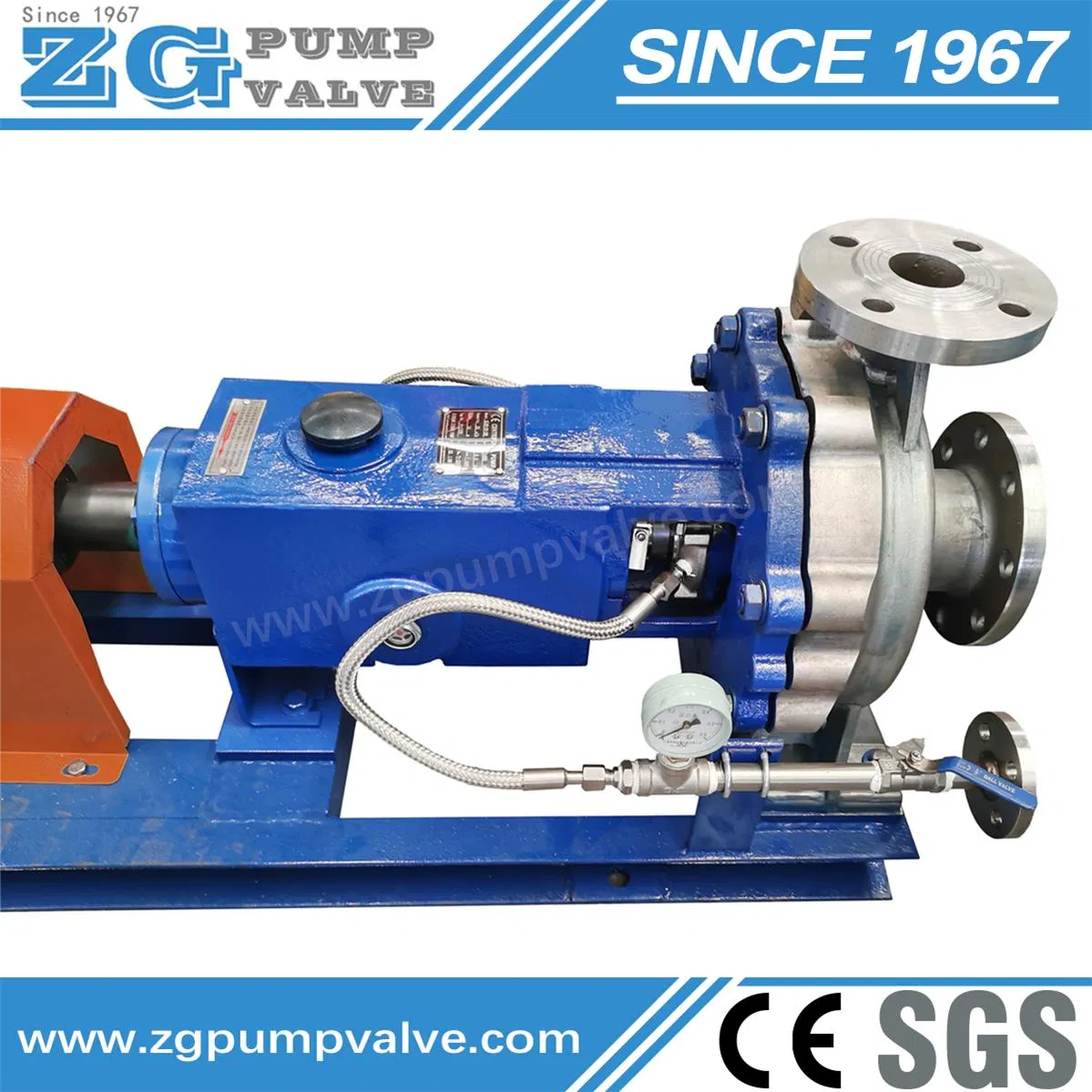

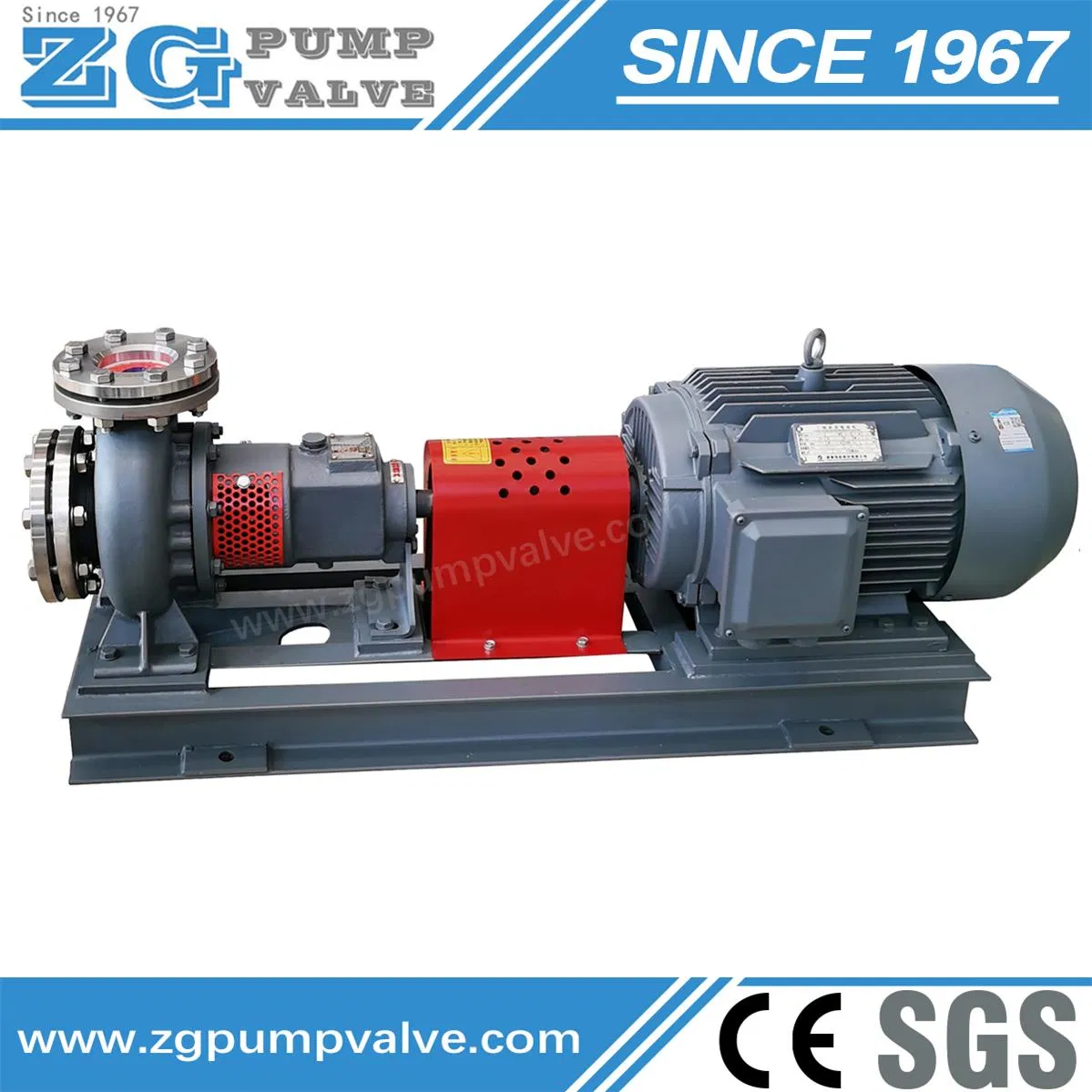

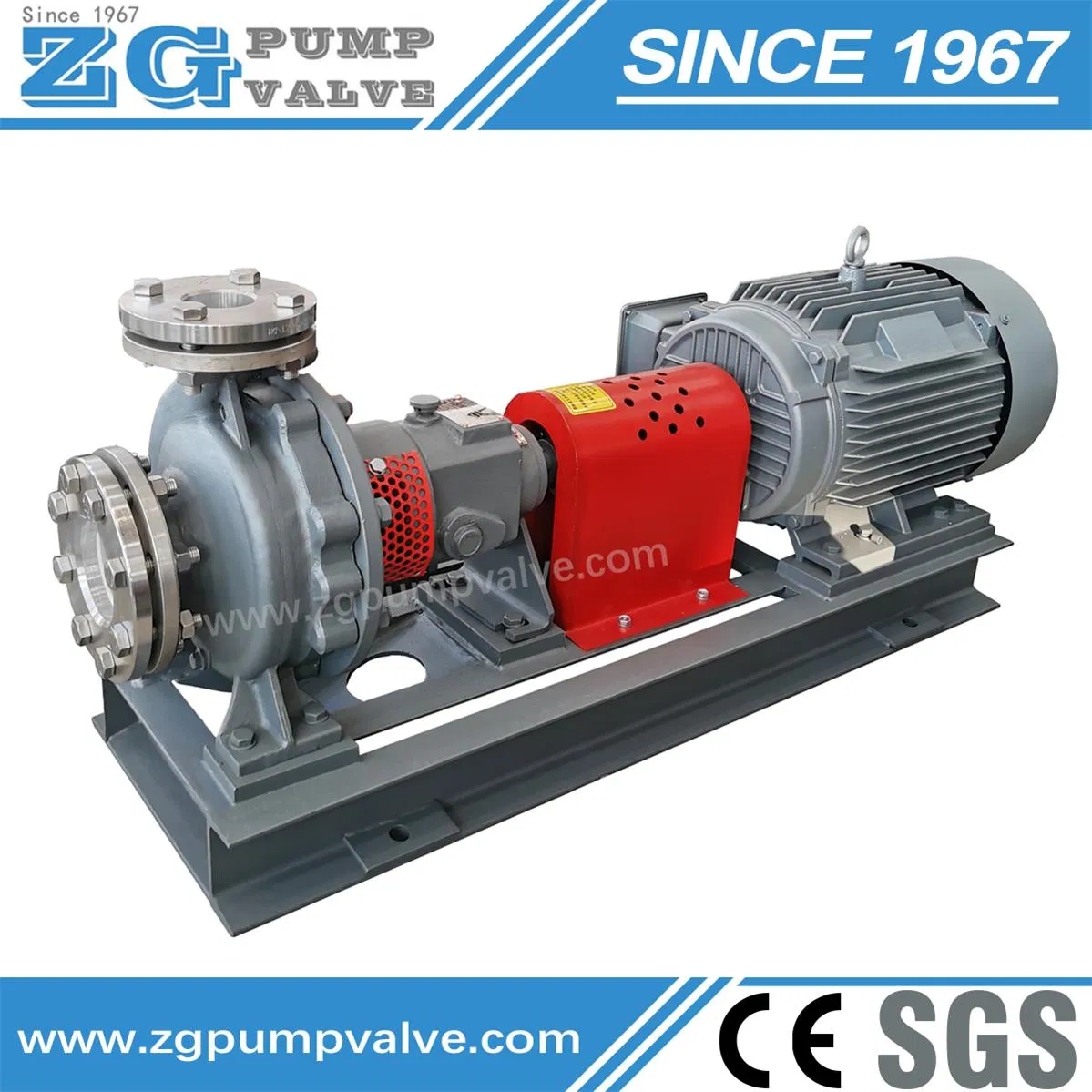

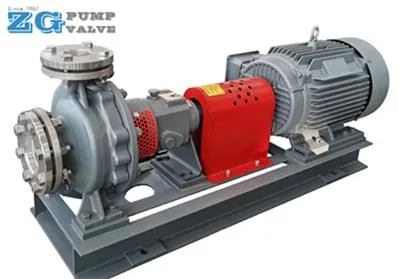

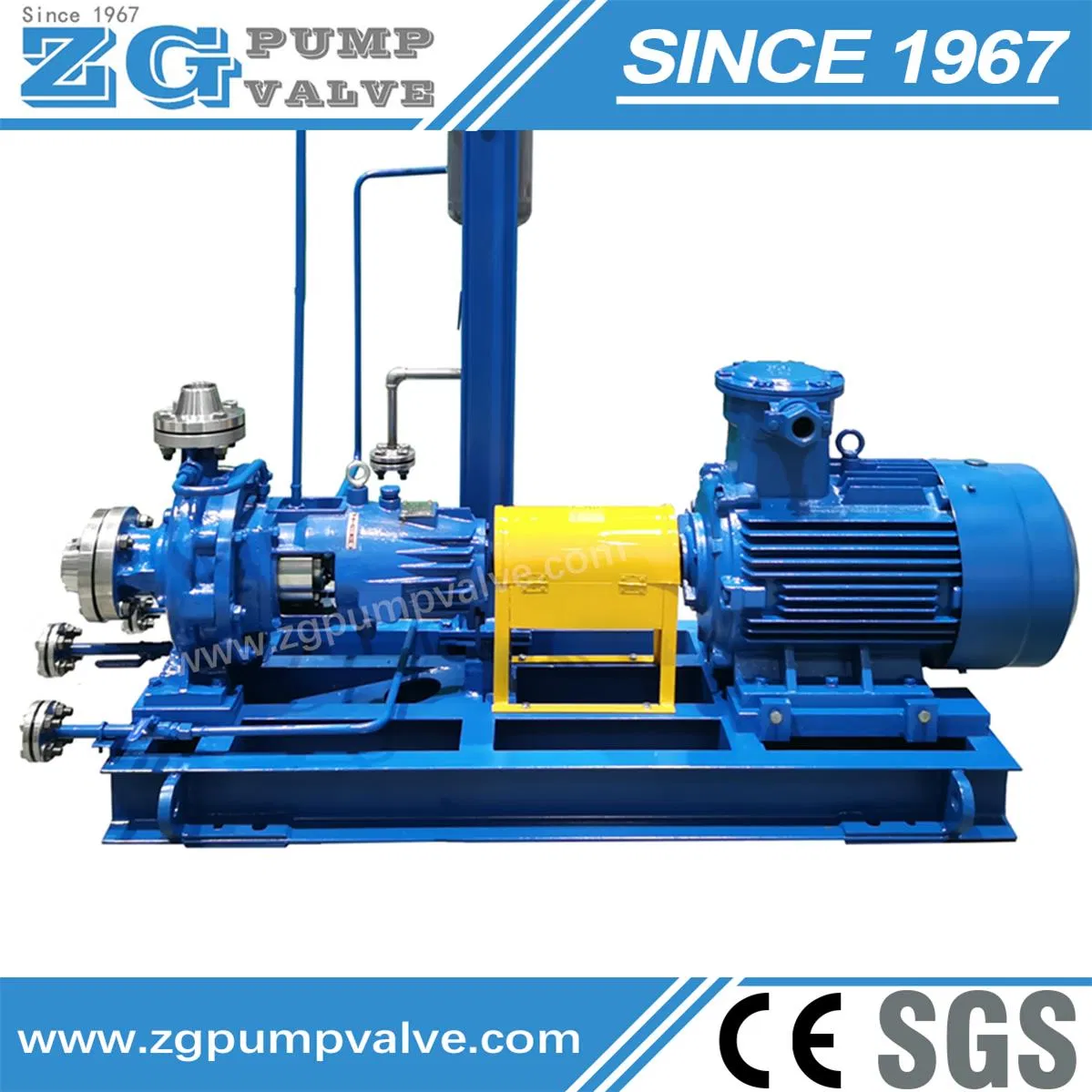

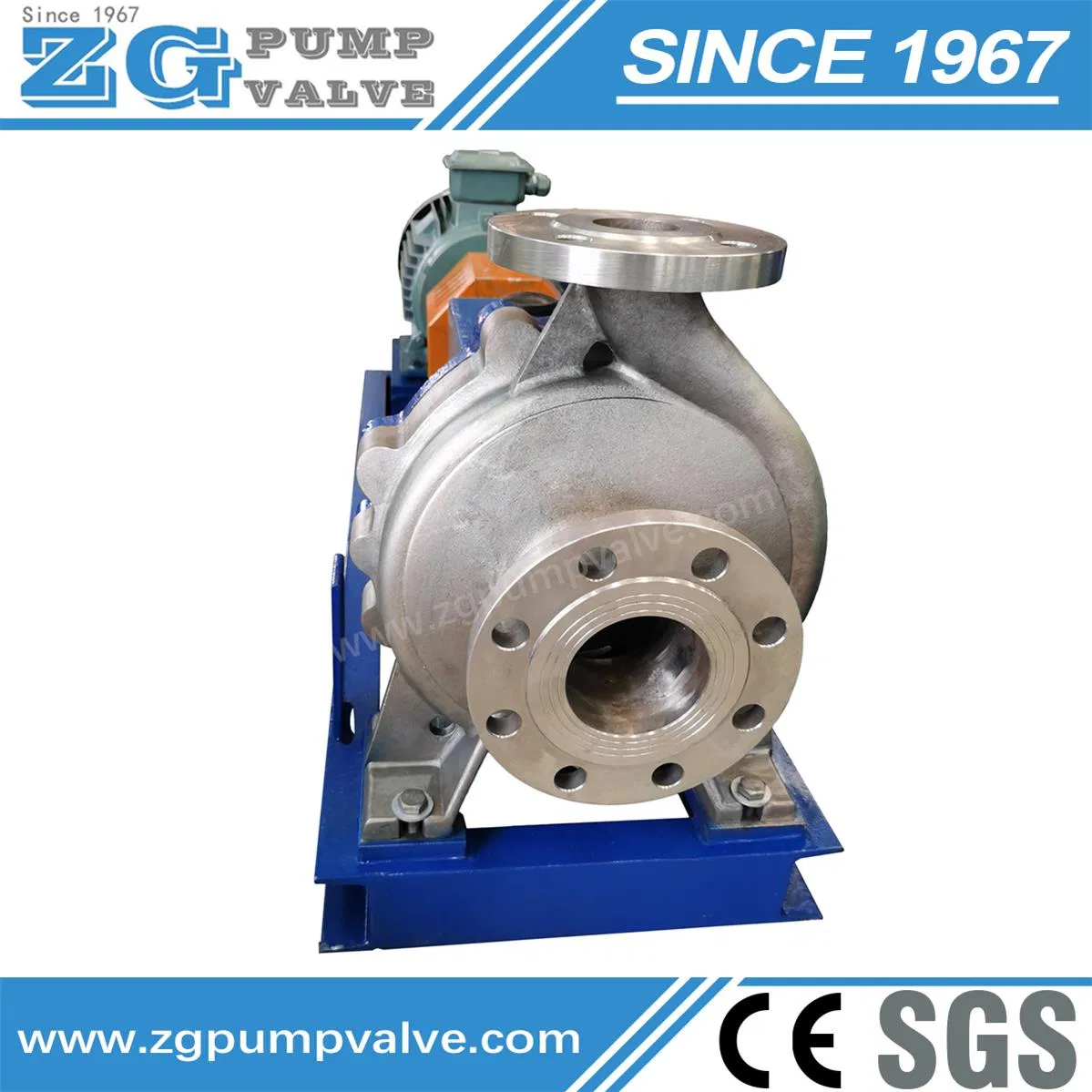

High Temperature High Pressure Self-Priming Sea Water Mixed Flow Chemical Process Centrifugal Pump by Duplex Stainless Steel, Titanium, Nickel, Monel, Hastelloy

The Chemical Process Pump is a horizontal, single-stage, single-suction, volute casing centrifugal pump. Its performance parameters conform to ISO2858 and technical requirements conform to ISO5199. It is designed to transfer clean or medium containing small particles, easy to crystallize or precipitate. Large channel open impeller versions have a strong capacity to convey fibers and particles.

To guarantee reliable performance in extreme conditions, we offer high-grade materials including Stainless Steel (304, 316, 316L, 904L), Duplex Stainless Steel (CD4MCu, 2205, 2507), Titanium, Nickel, Monel, Hastelloy, and 20# alloy. These materials withstand high temperatures, high pressure, and harsh corrosion or abrasion.

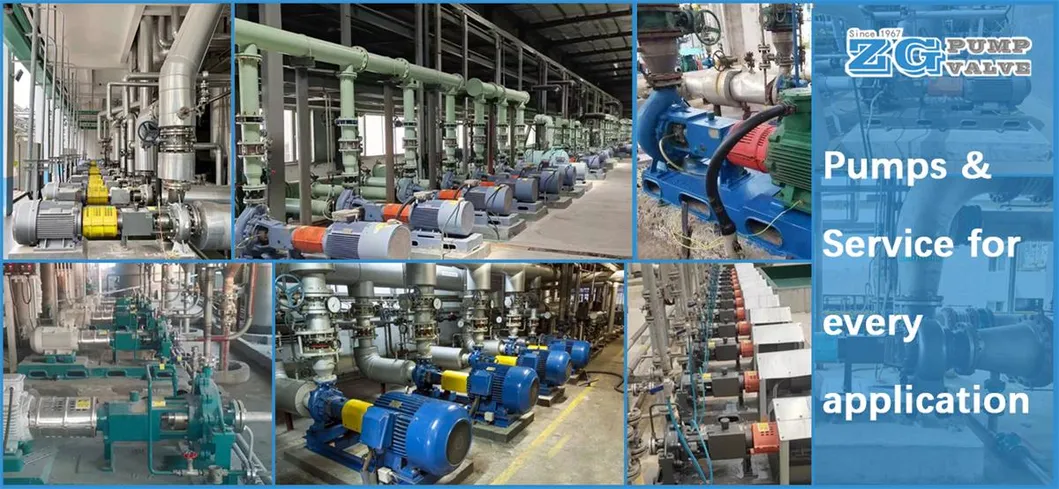

• Chemical and process industry
• Soda, caustic soda, soda ash, chlor-alkali
• High-concentration nitric, chromic, sulphuric, and phosphoric acids
• Salt extraction and brine processing
• Petrochemical industry and Refinery
• Textile, pulp, paper, and board industries
• Mining industry and Coal extraction
• Flue gas desulphurisation in thermal power plants
• Waste water treatment and Offshore engineering

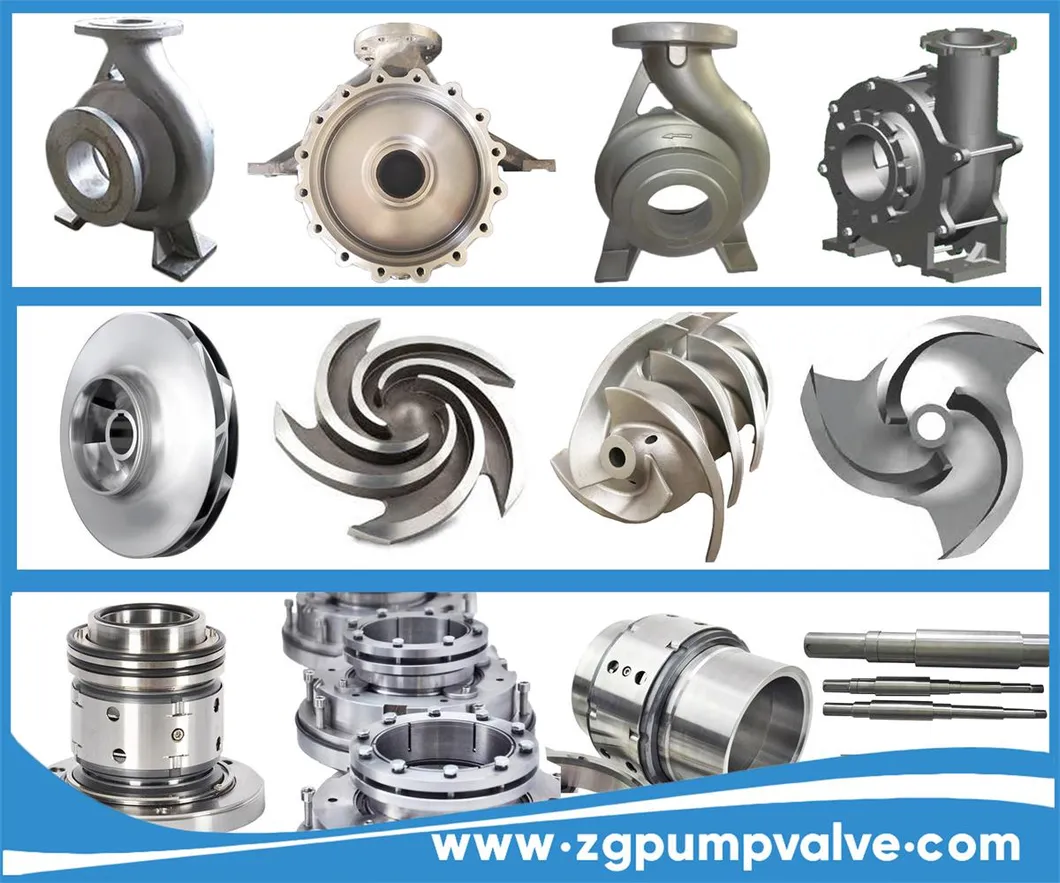

1. PUMP CASING: Precision casting with number milling for accurate profiles and dense material.
2. IMPELLER NUT: Self-locking design eliminates loosening risks.
3. IMPELLER: Optimized design for high efficiency across a wide range.
4. PUMP COVER: Back pull-out design for quick servicing access.
5. MECHANICAL SEAL: Configurable based on specific working conditions.
6. SHAFT: Heavy-duty thickened shaft for maximum stiffness and stability.
7. BEARING HOUSING: Reliable unit to extend lifecycle and reduce maintenance costs.

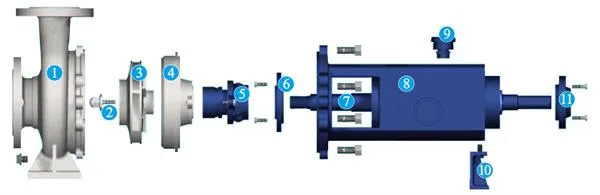

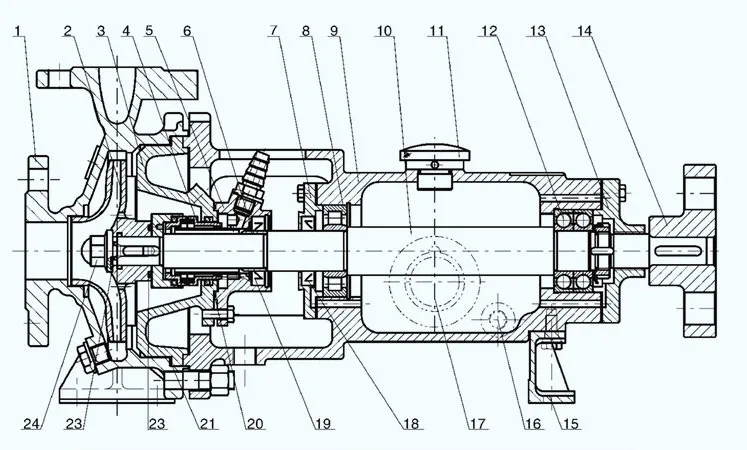

1. Casing	9. Housing	17. Standard
2. Impeller	10. Shaft	18. Oil Seal
3. Cover	11. Vent	19. Oil Seal
4. Seal	12. Bearing	20. O-Ring

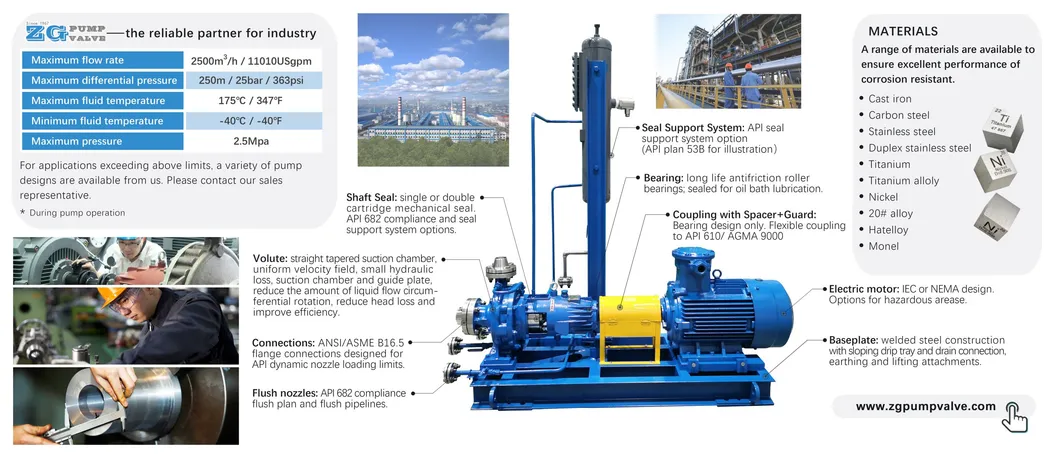

The optimized hydraulic design delivers superior performance through high efficiency impellers and volute casings, contributing to low energy consumption and lower total cost of ownership. Drawing on over 70 years of manufacturing experience, these products meet the continuously rising demands for high-performance fluid transport.

• Conforms to ISO2858(GB5662) and ISO5199 (GB/T5656) standards.
• Heavy shaft of increased diameter increases bearing capacity by 75~160%.
• Forced internal cooling cartridge mechanical seal reduces breakdown possibilities.
• Easy adjustment method for the pump rotor maintain low pressure in the sealing chamber.
• High interchangeability of parts reduces spare part inventory costs.

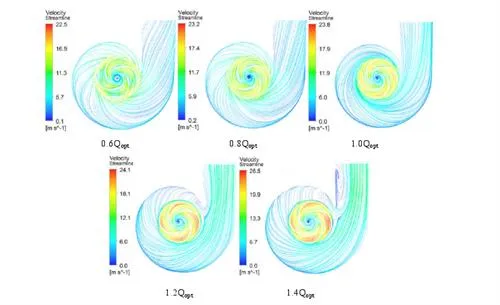

• Advanced CFD technology used to optimize hydraulic performance.

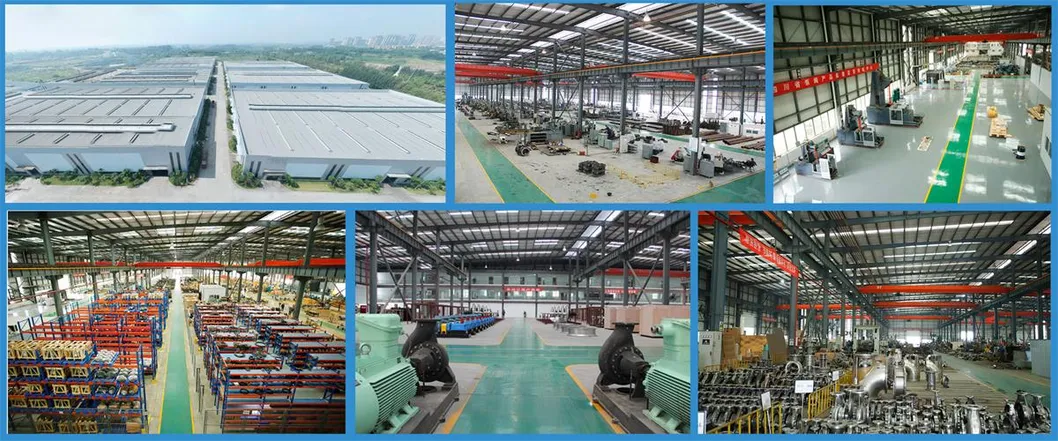

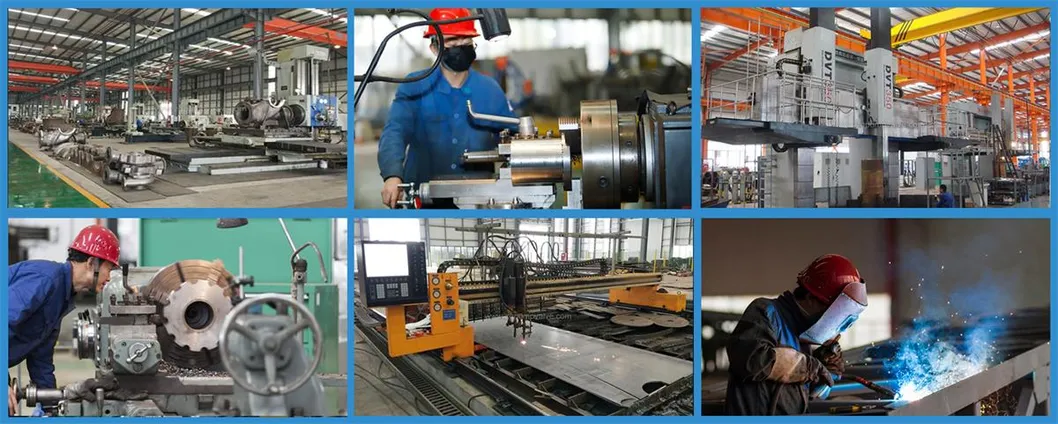

Our facility includes eight modernized workshops covering 12,000 square meters, with an annual production capacity of 18,000 units. The factory integrates foundry, finish-machining, welding, assembly, and a testing center. With AOD refining furnaces and spectrum analyzers, we ensure precise control of alloy quality.

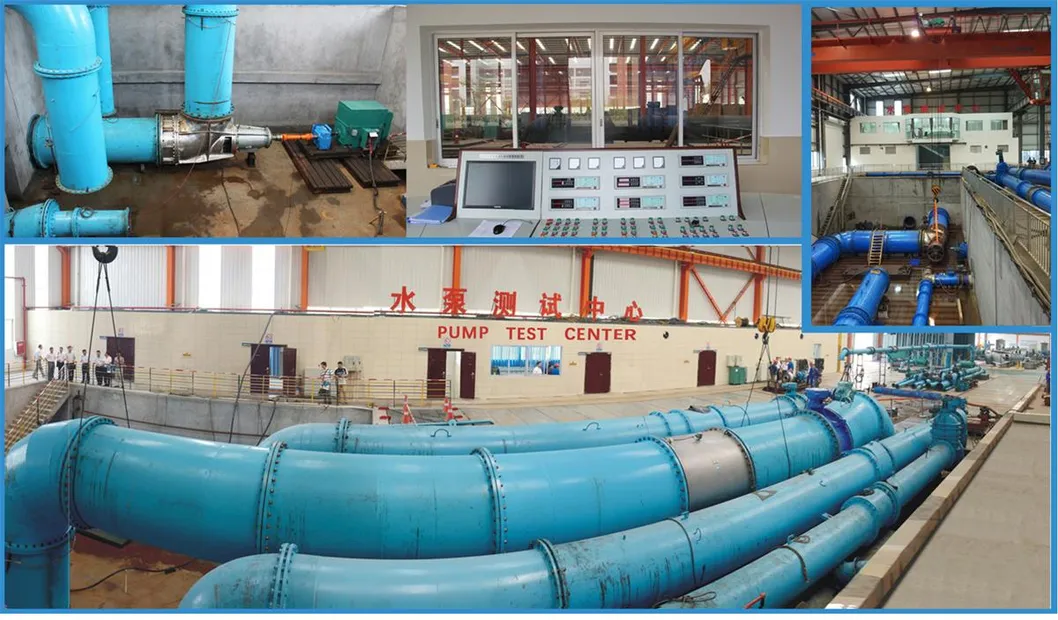

Our comprehensive testing center ensures quality control through material inspection, component checks, and performance tests.

Products are packaged in plywood boxes according to international regulations and customer requirements.
