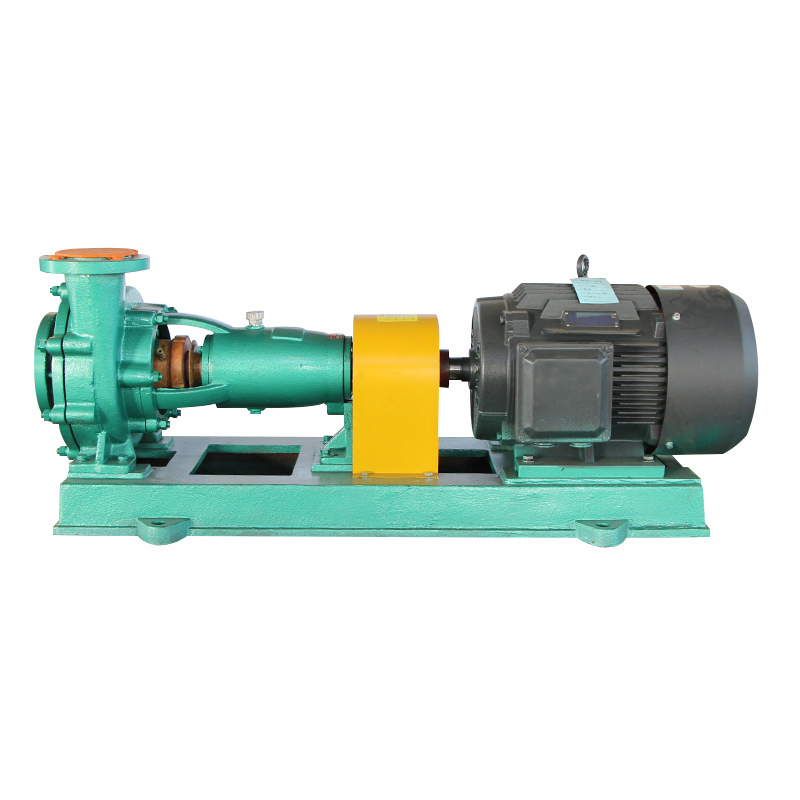

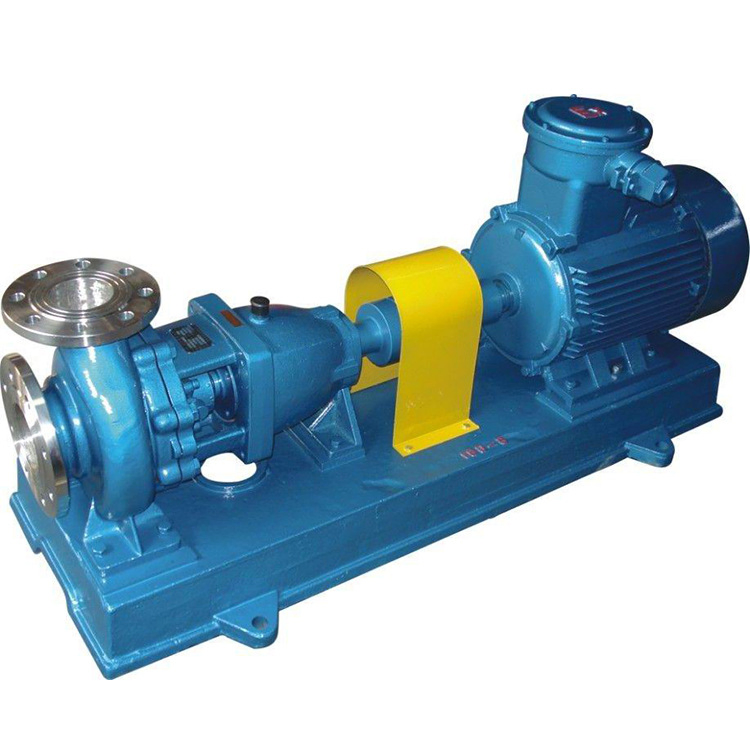

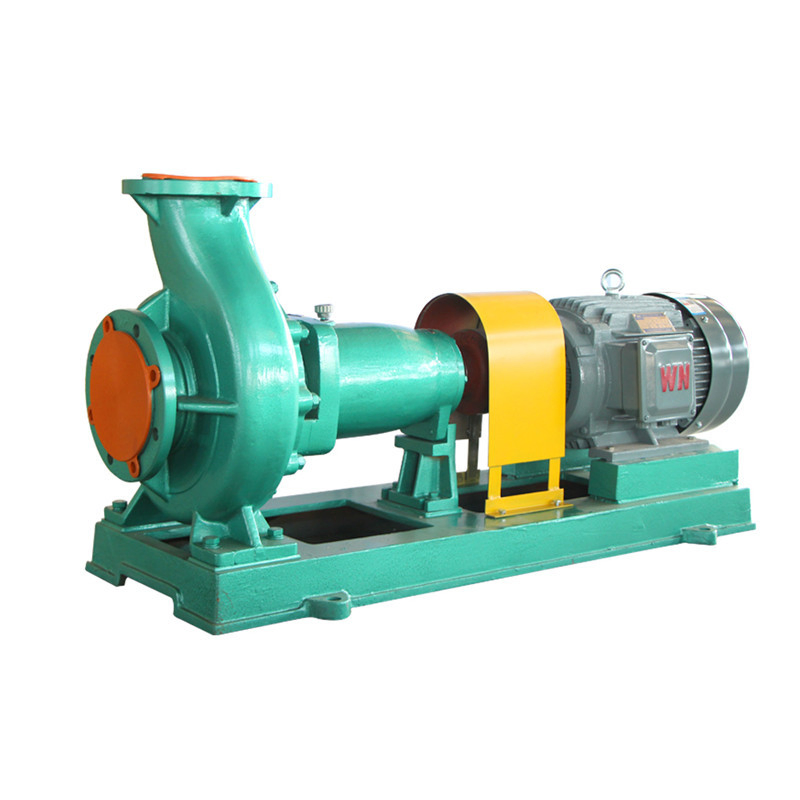

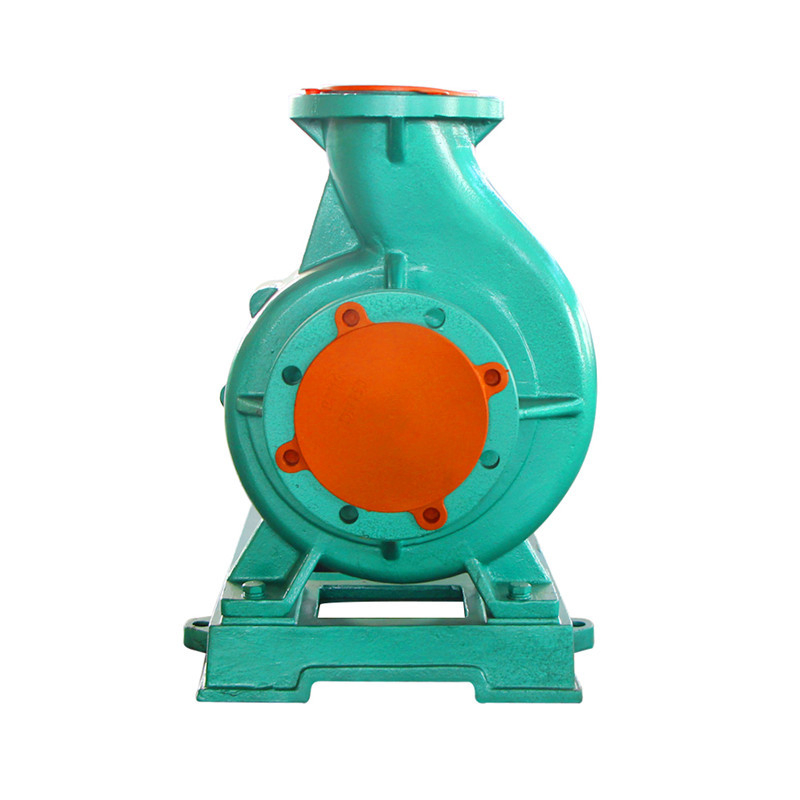

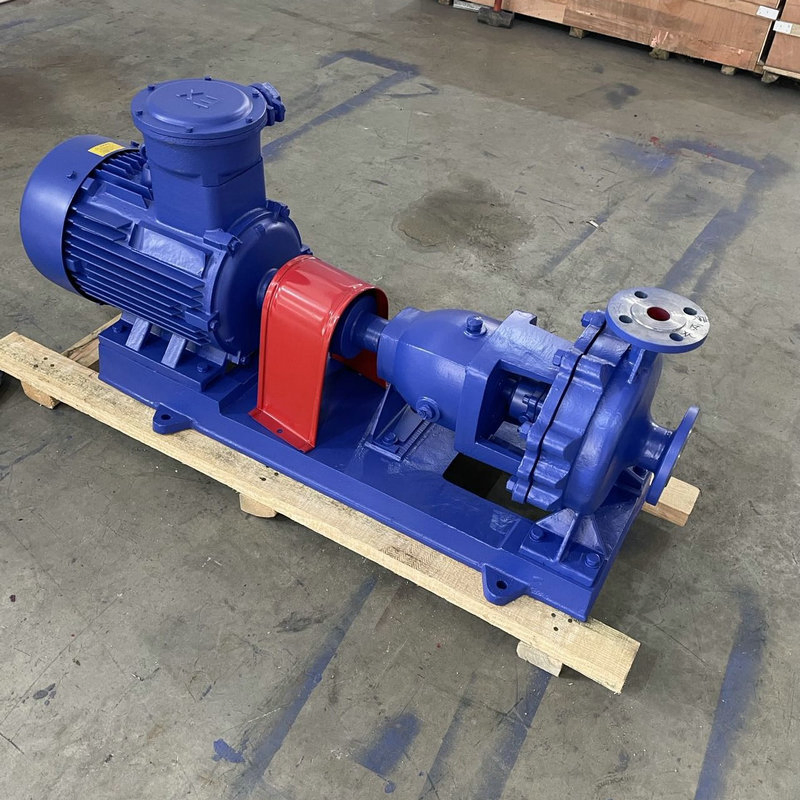

IH series chemical pumps are horizontal single-stage single-suction corrosion-resistant centrifugal pumps. They are widely used for transporting corrosive liquids that do not contain solid particles and have a viscosity similar to water.
| Model | Power (kW) | Capacity (m³/h) | Head (m) | Speed (r/min) | Inlet (mm) | Outlet (mm) |
|---|---|---|---|---|---|---|
| IH50 | 0.55-11 | 5.4-15 | 4-82 | 1450/2900 | 50 | 32 |
| IH65 | 0.55-30 | 10.8-30 | 4-127 | 1450/2900 | 65 | 50/40 |
| IH80 | 0.55-37 | 21.7-60 | 4-125 | 1450/2900 | 80 | 65/50 |
| IH100 | 1.1-75 | 42.9-120 | 4-133 | 1450/2900 | 100 | 80/65 |
| IH125 | 3-100 | 60-240 | 8-132.5 | 1450/2900 | 125 | 100 |
| IH200 | 22-90 | 240-460 | 15-55 | 1450 | 200 | 150 |

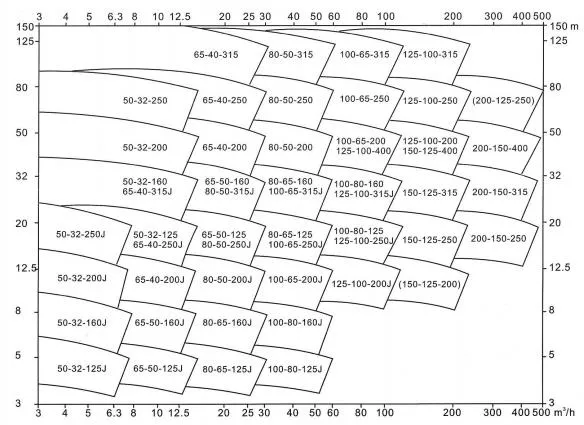

Performance Chart:
Petroleum
Electric Power
Metallurgy
Papermaking
Chemical Industry
Pharmacy
Professional packaging process including boxing, nailing, and secure loading. We support freight, air, sea, and express transportation methods to provide global service.
Business Type: Manufacturer and exporter
Main Products: Slurry pumps, clean water pumps, sewage pumps, chemical pumps, multistage pumps, split case pumps, booster pumps, self-priming pumps, and diesel water pumps.
