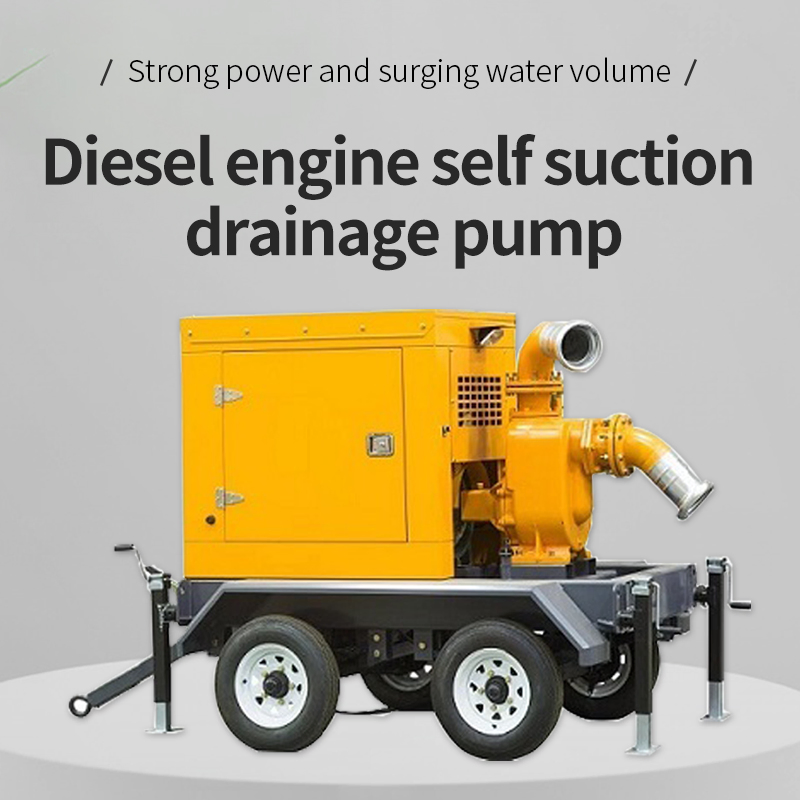

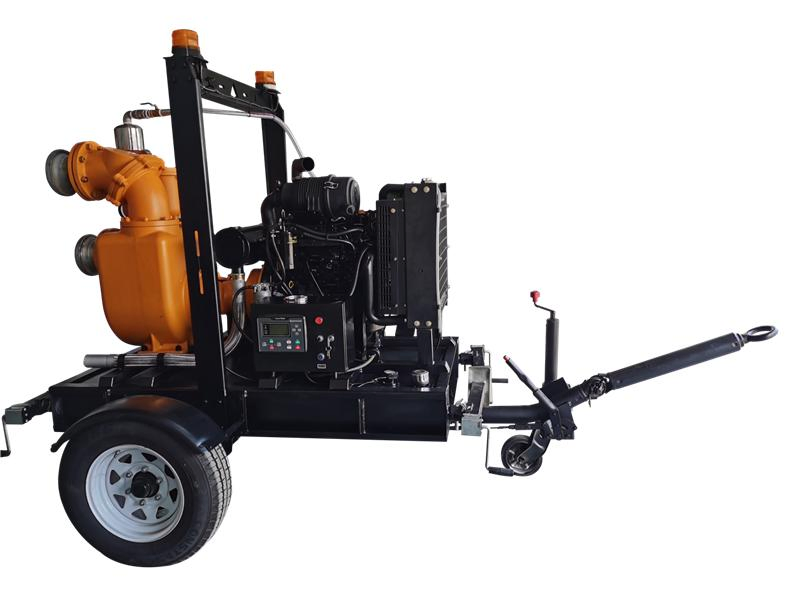

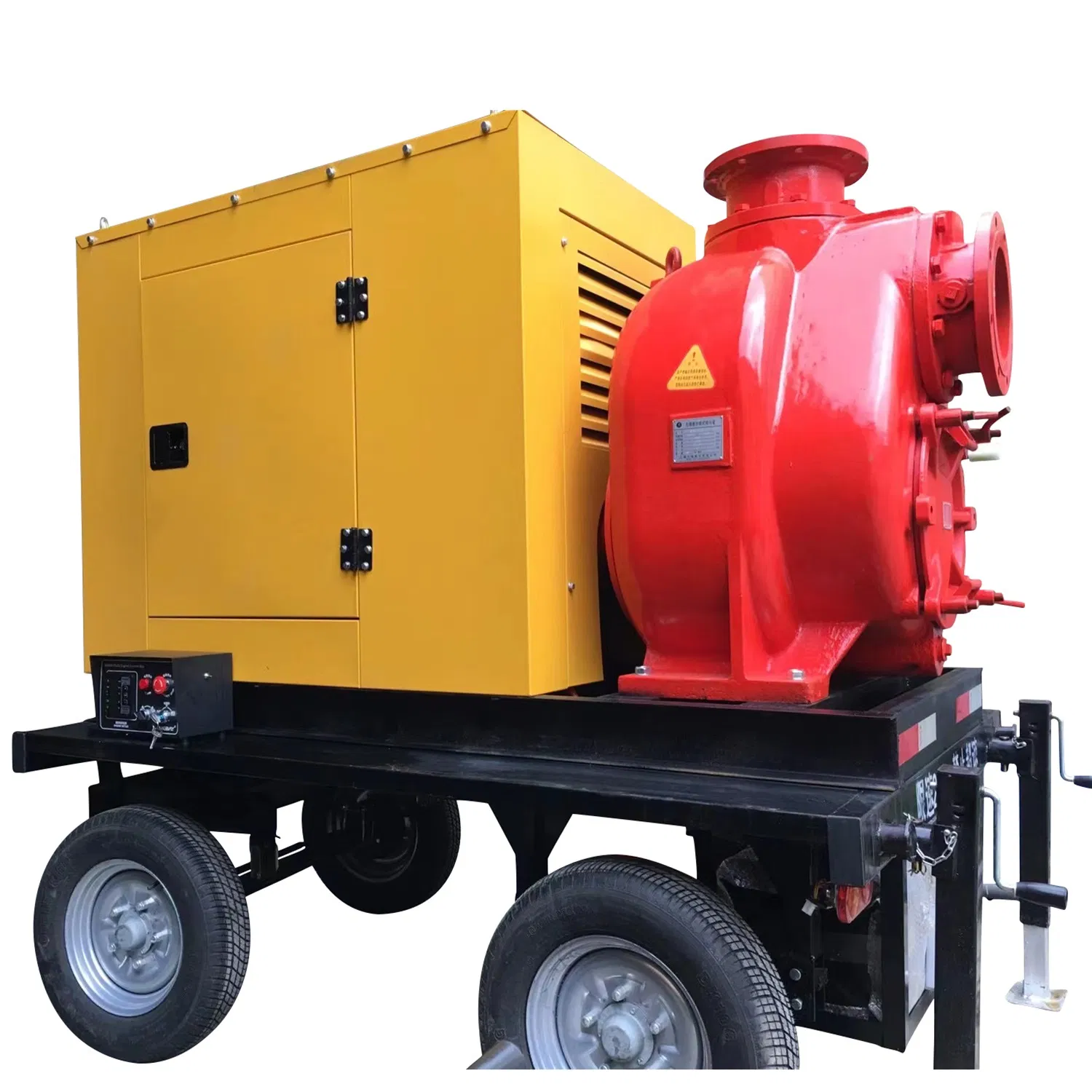

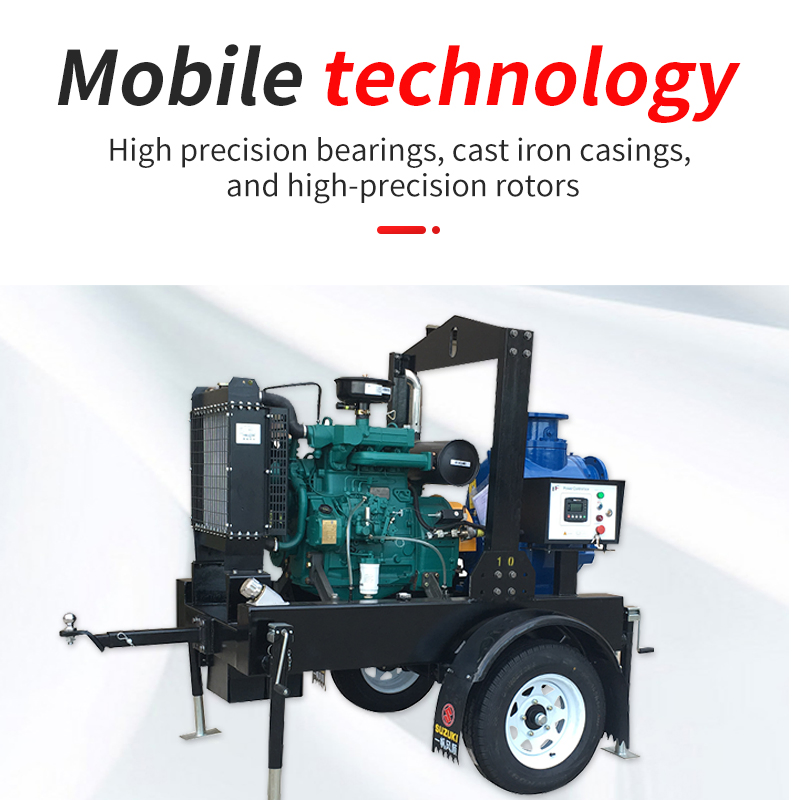

High Suction Flood Control Irrigation Mobile Trailer Diesel Engine Self-Priming Centrifugal Water Pump

Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year

Product Description

Basic Info.

Model NO.
SCP-6
Max.Head
10-30m
Max.Capacity
>400 L/min
Driving Type
Motor
Material
Cast Iron
Structure
Single-stage Pump
Assembly
Booster Pump
Power
Solar Energy
Start Up
Electric Pump
Type
Blade Pump
Application
Sewage Pump
Industry
Mechanical Pump
Media
Sewage Pumps
Performance
Explosion-Proof Pumps
Theory
Centrifugal Pump
Max.Flow
400 M³/H
Axis Power
29 Kw
Suction Lift
7.6 M
Weight
1500 Kg
Origin
China
HS Code
8413200000

Product Description

The flood control mobile drainage pump truck can suck and discharge liquids containing large solid particles and long fiber impurities, and can be widely used in municipal sewage and flood control projects, agricultural irrigation, etc. The pump unit has the characteristics of a simple structure, good self-priming performance, strong sewage discharge capacity, high efficiency and energy saving, easy use and maintenance, and integrated or outdoor movable design. This product is more convenient and flexible than a fixed diesel engine pump and is easy to move to suit different places. High-quality domestic or imported diesel engines can be selected according to different working conditions and matched with high-quality and efficient self-priming (or vacuum water diversion device) centrifugal pumps.
Flood Control Mobile Drainage Pump

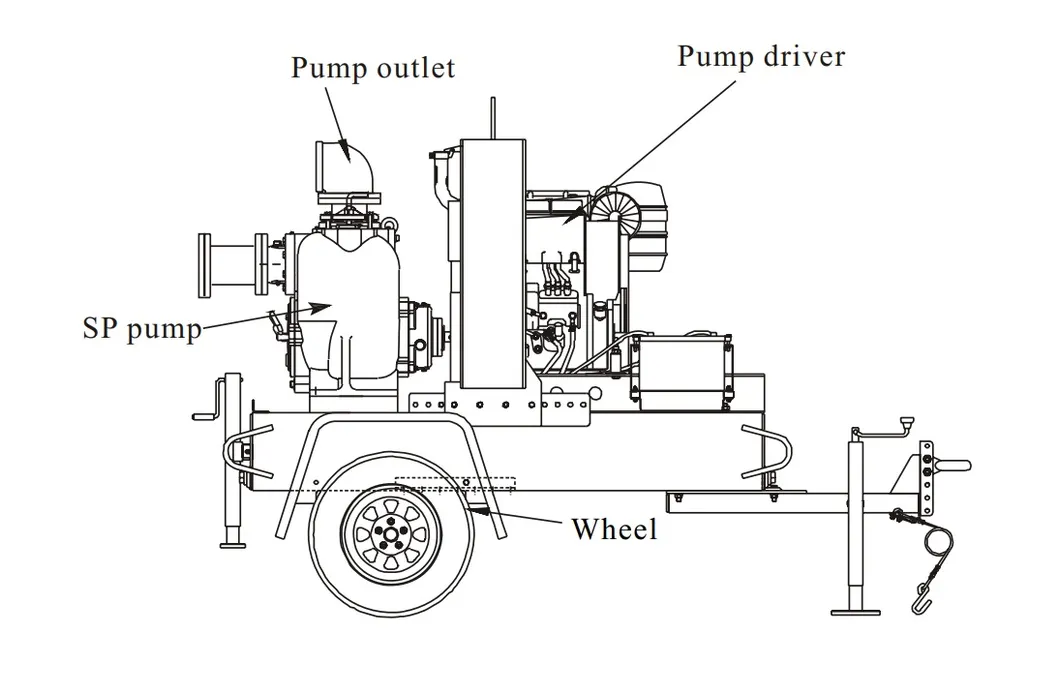

Structure chart

Structure chart

Product Parameters

Pump Information Pump Model: SCP-6
Pump Type: Portable diesel engine pump
Inlet*outlet size: 6 inch *6inch DN150
Material of Construction Pump Casing: Cast iron
Impeller: Iron
Shaft: 45# steel
Seal Type: Mechanical seal
Pump Performance Max Flow Rate: 350m3/h
Max Head: 30m
Operating point: 300m3/h @ 18 m
Self priming: 7.6 m
Max solids: 76.2 mm
Driving motor Brand: SP-6
Prime Power: 42kw @ 1500 rpm
Displacement: 3.12L
Fuel Cum: 258g/kw.h
Configuration Bare Pump + Diesel engine + High elastic coupling + Control panel + Two wheels trailer + raining cover + Steel base plate with 60 liters fuel tank
Packing info with polywood case,
Each case measureis 3.8*1.6*1.6m,
Each case gross weight is 1100kg

Detailed Photos

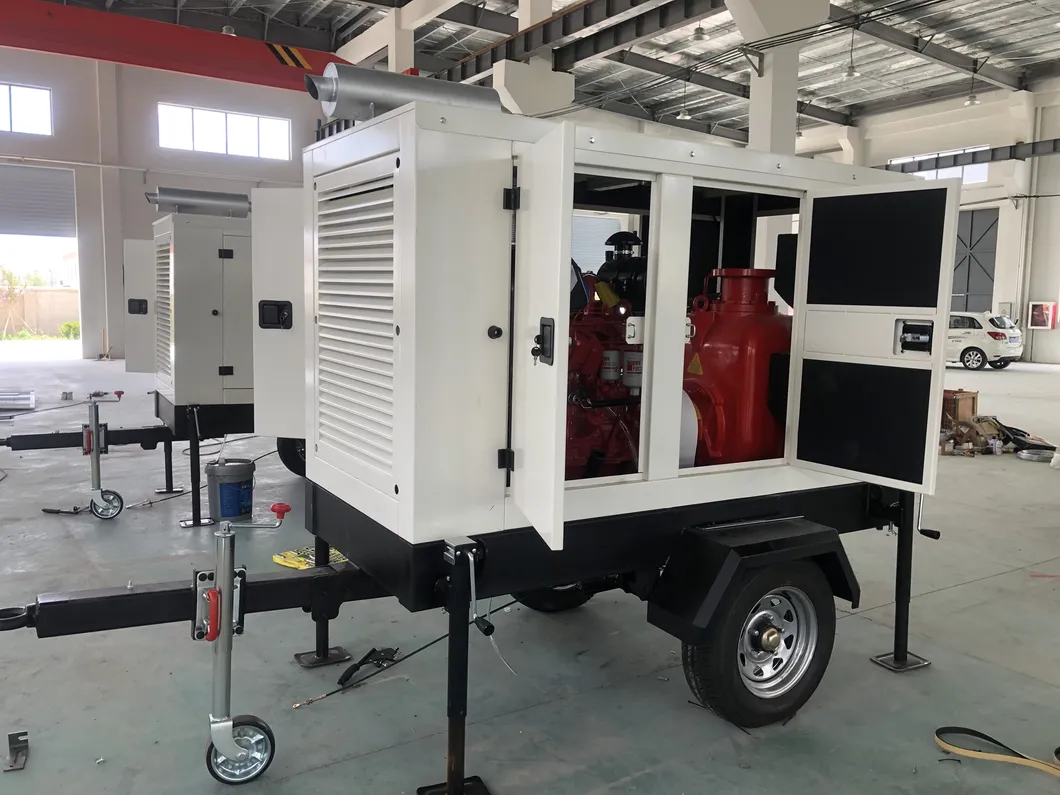

Detailed Photo 1

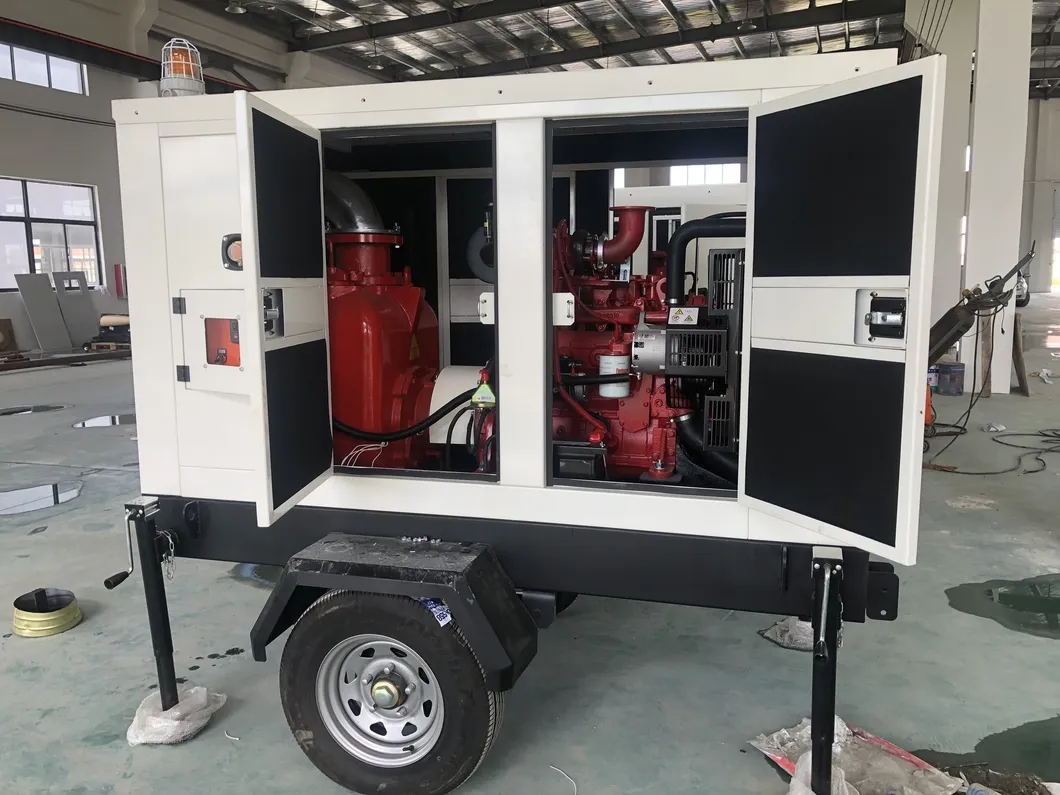

Detailed Photo 2

Packaging & Shipping

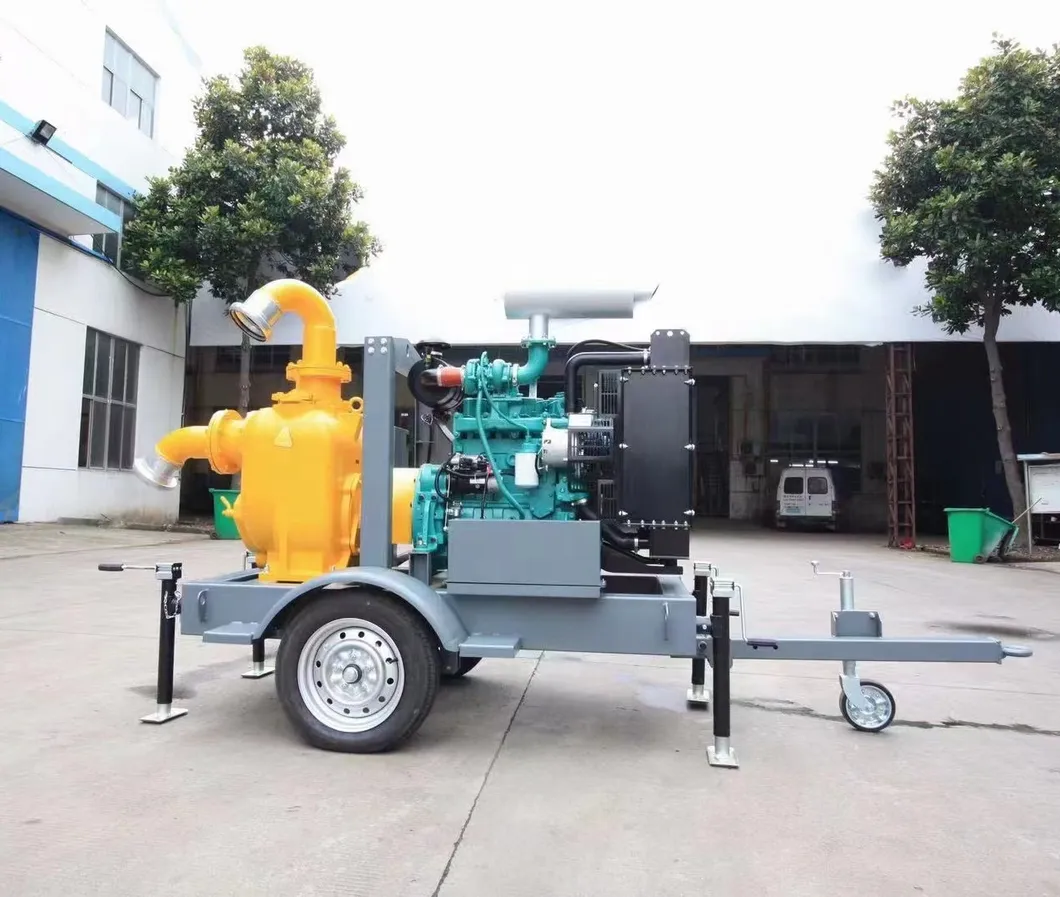

Packaging 1

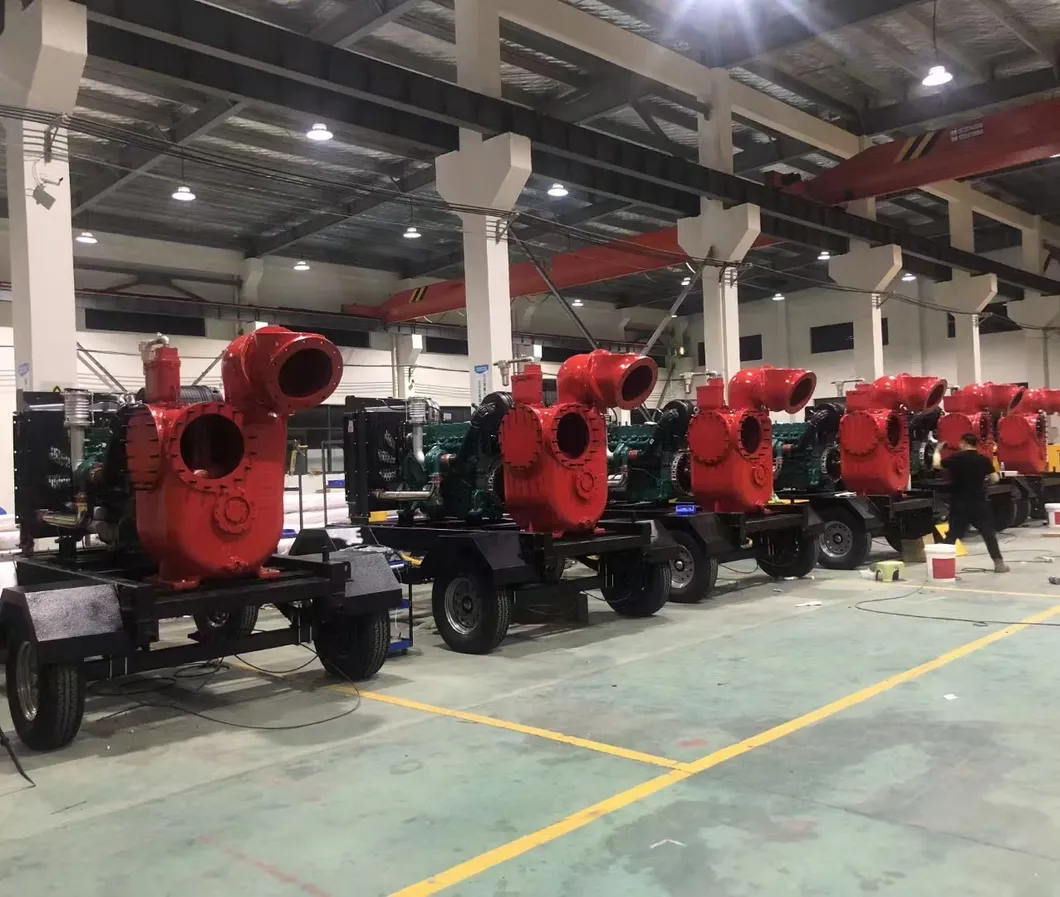

Packaging 2

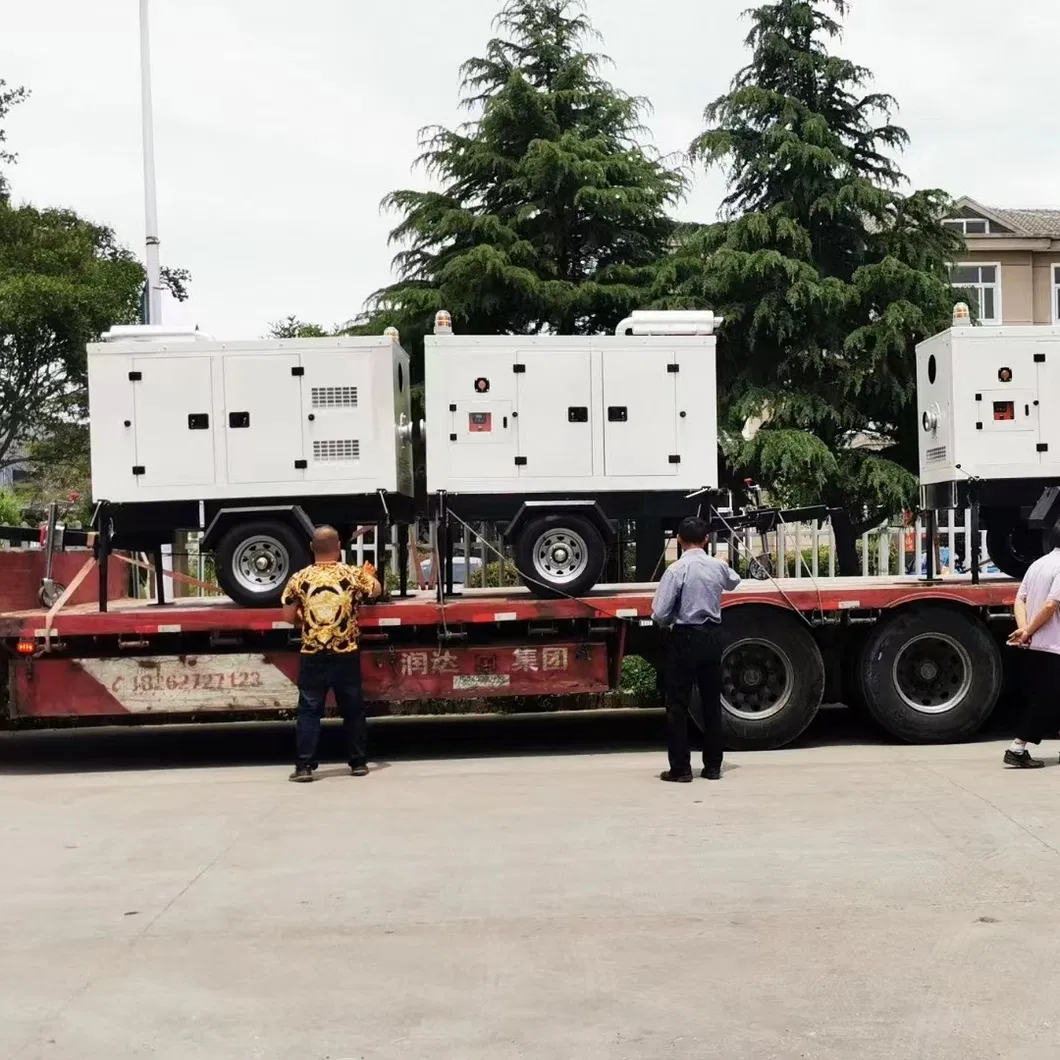

Shipping 1

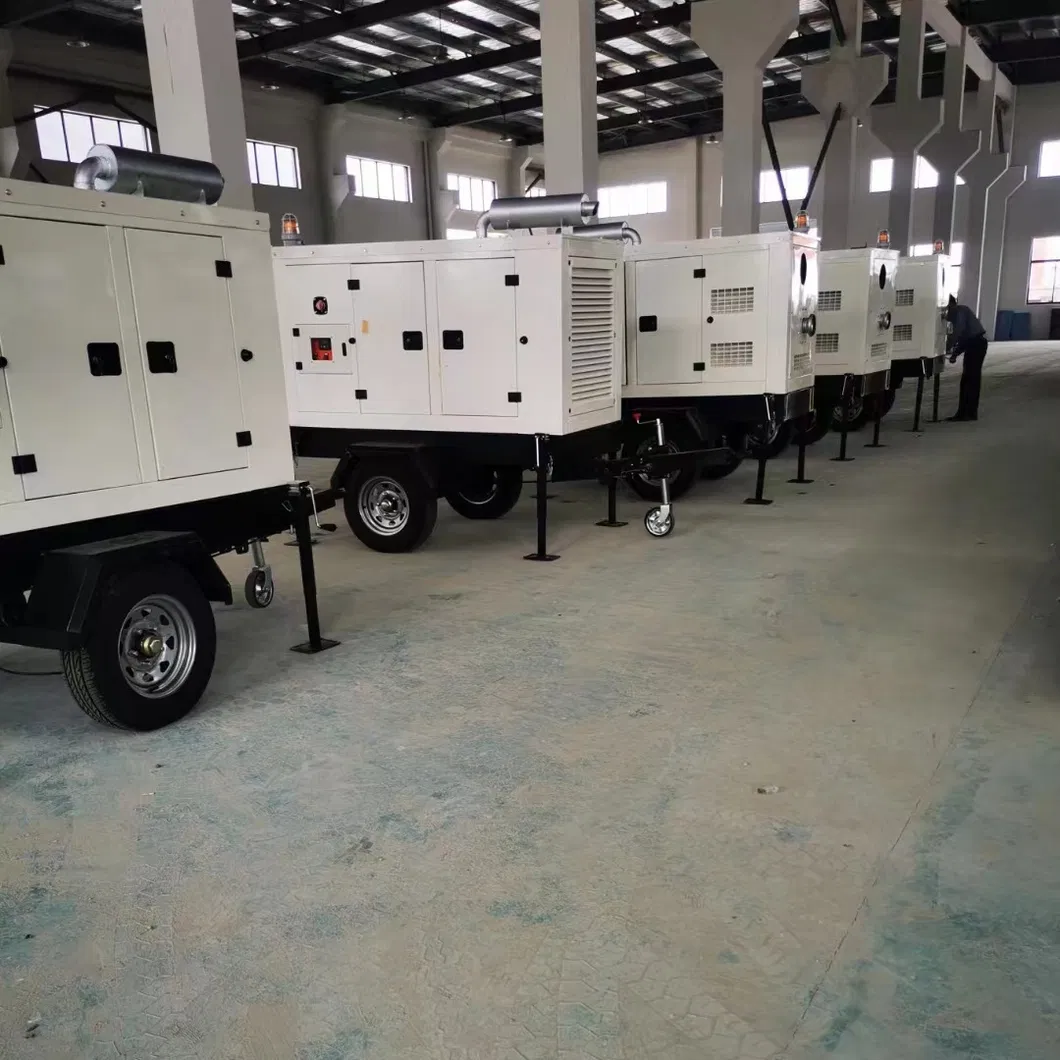

Shipping 2
Shipping 3

Exhibition

Exhibition

Frequently Asked Questions

1. What are the primary applications for this mobile drainage pump?
This pump is widely used for municipal sewage projects, flood control, agricultural irrigation, and emergency water supply.
2. Can this pump handle liquids with solid particles?
Yes, it is specifically designed to suck and discharge liquids containing large solid particles (up to 76.2 mm) and long fiber impurities.
3. What is the maximum suction lift performance?
The pump offers excellent self-priming performance with a maximum suction lift of up to 7.6 meters.
4. Is the pump unit easy to transport to different locations?
Yes, the integrated outdoor movable design features a two-wheel trailer, making it highly flexible and easy to move compared to fixed installations.
5. What materials are used in the construction of the pump?
The pump casing is made of durable cast iron, the impeller is iron, and the shaft is constructed from high-strength 45# steel.
6. Does the unit come with a fuel tank?
Yes, the configuration includes a steel base plate equipped with a 60-liter fuel tank for extended operation.
