High Quality Stainless Steel Single Stage Multistage Centrifugal Pump Water Pump

Customization:	Available
After-sales Service:	12 Months
Warranty:	12 Months

Basic Specifications

Model NO.:KLX

Max. Head:50-80m

Max. Capacity:>400 L/min

Driving Type:Motor

Impeller Number:Single-Stage Pump

Working Pressure:Low Pressure Pump

Pump Shaft Position:Horizontal Pump

Flow Rate:1t/H - 140t/H

Pump Type:Centrifugal Type

Transport Package:Plywood Case

HS Code:8413709990

Media:Similar to Water

Product Description

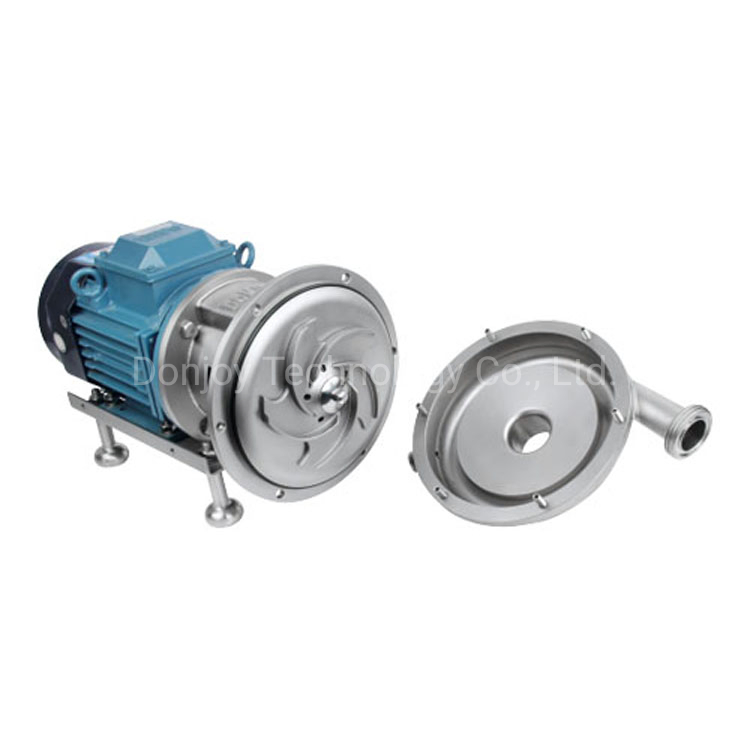

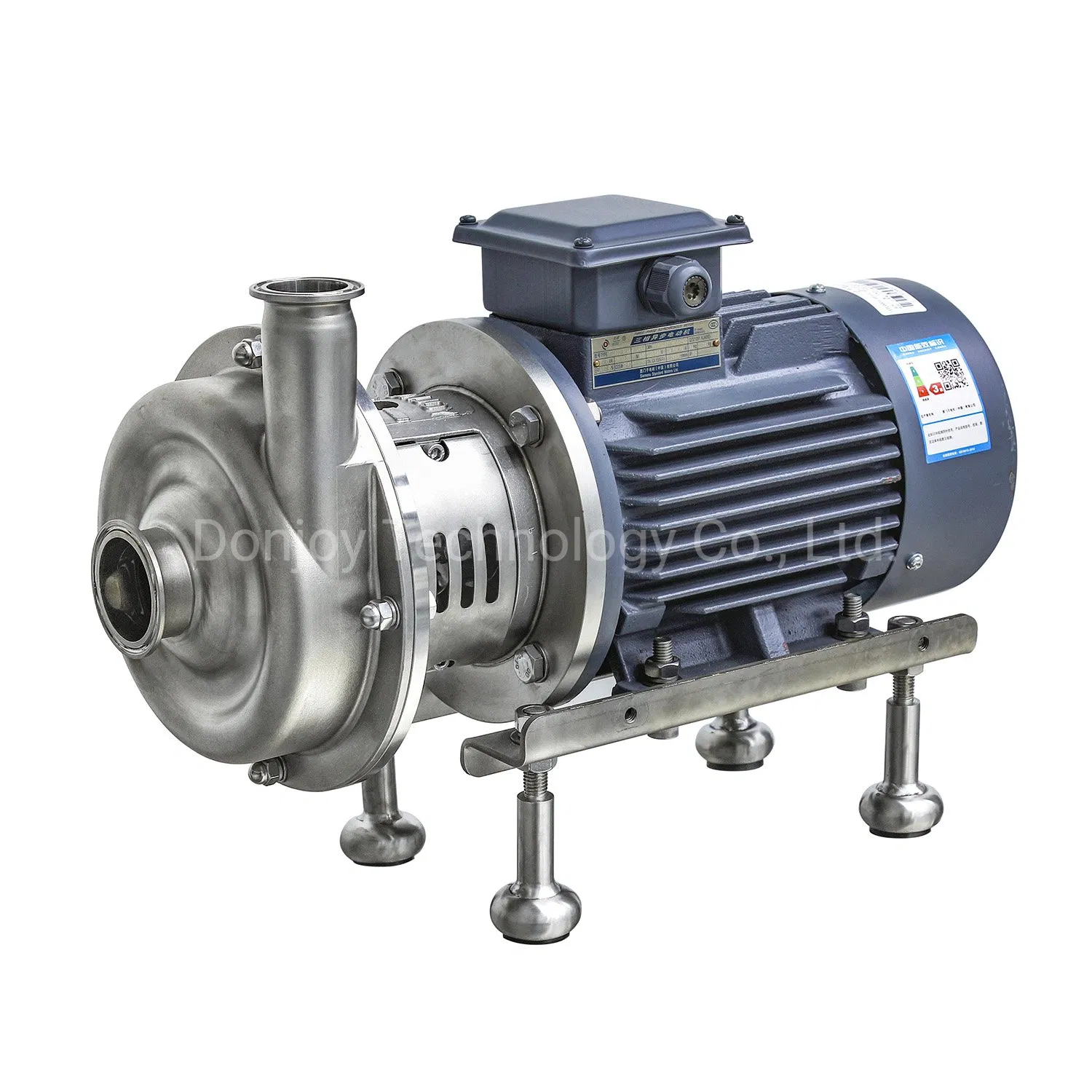

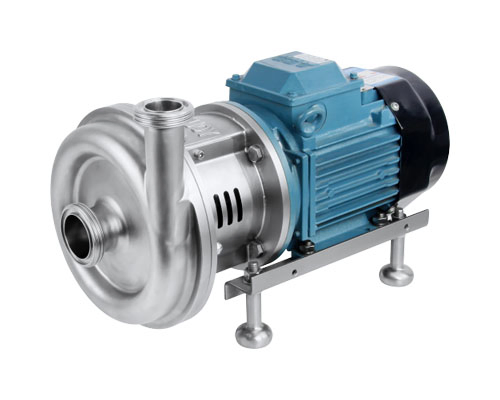

Stainless Steel Impeller Centrifugal Pump With Motor For Dairy

This pump is forged with a stainless steel motor cover. Featuring a sanitary and cost-effective design, it is ideal for dairy, beverage, food processing, pharmaceutical, and fine chemical industries.

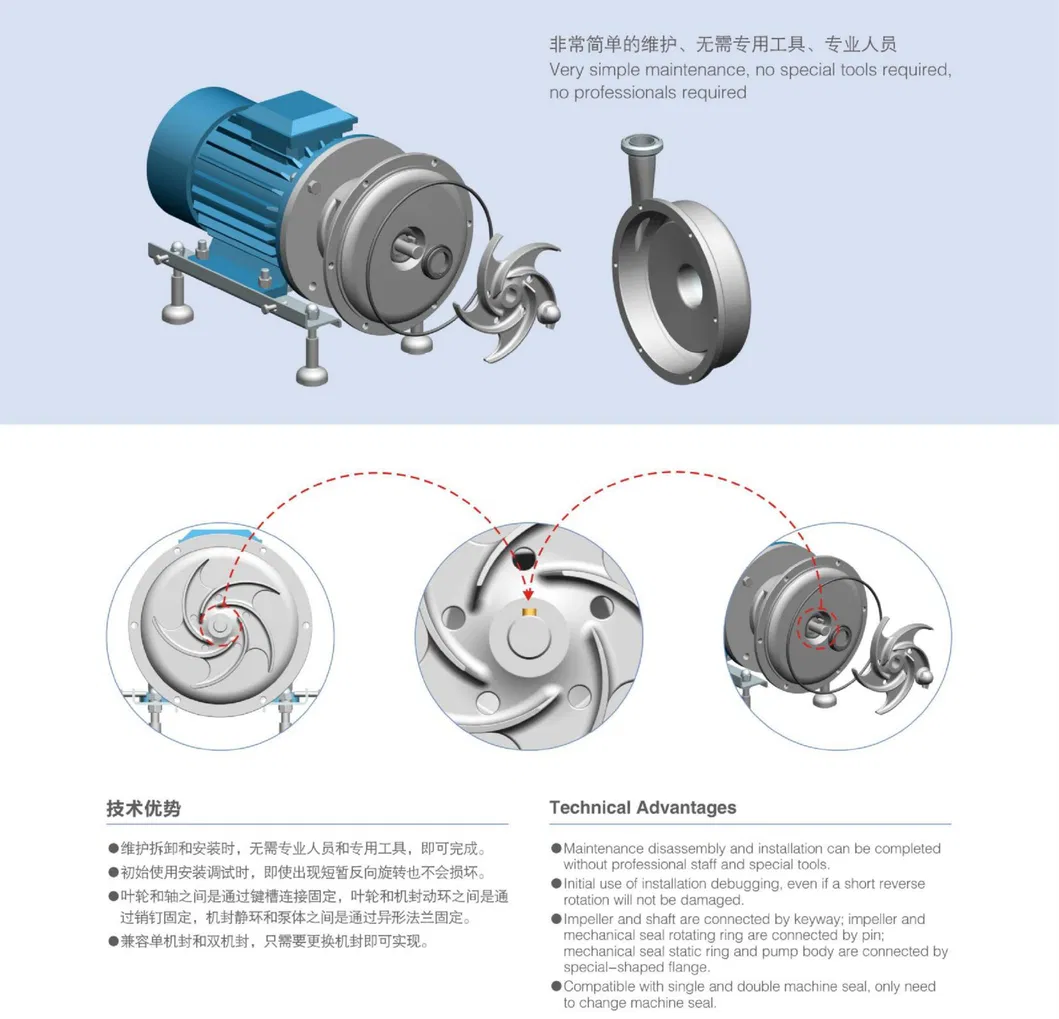

Impeller Type

Available in both Open impeller and Close impeller configurations.

Main Parameters

Max. Flow: 150 m3/h
Max. Lift: 70H(m)
Max. Pressure: 7bar/99PSI
Max. Temperature: 150C/248. F
Max. Speed: 3600 min-1

Configuration & Materials

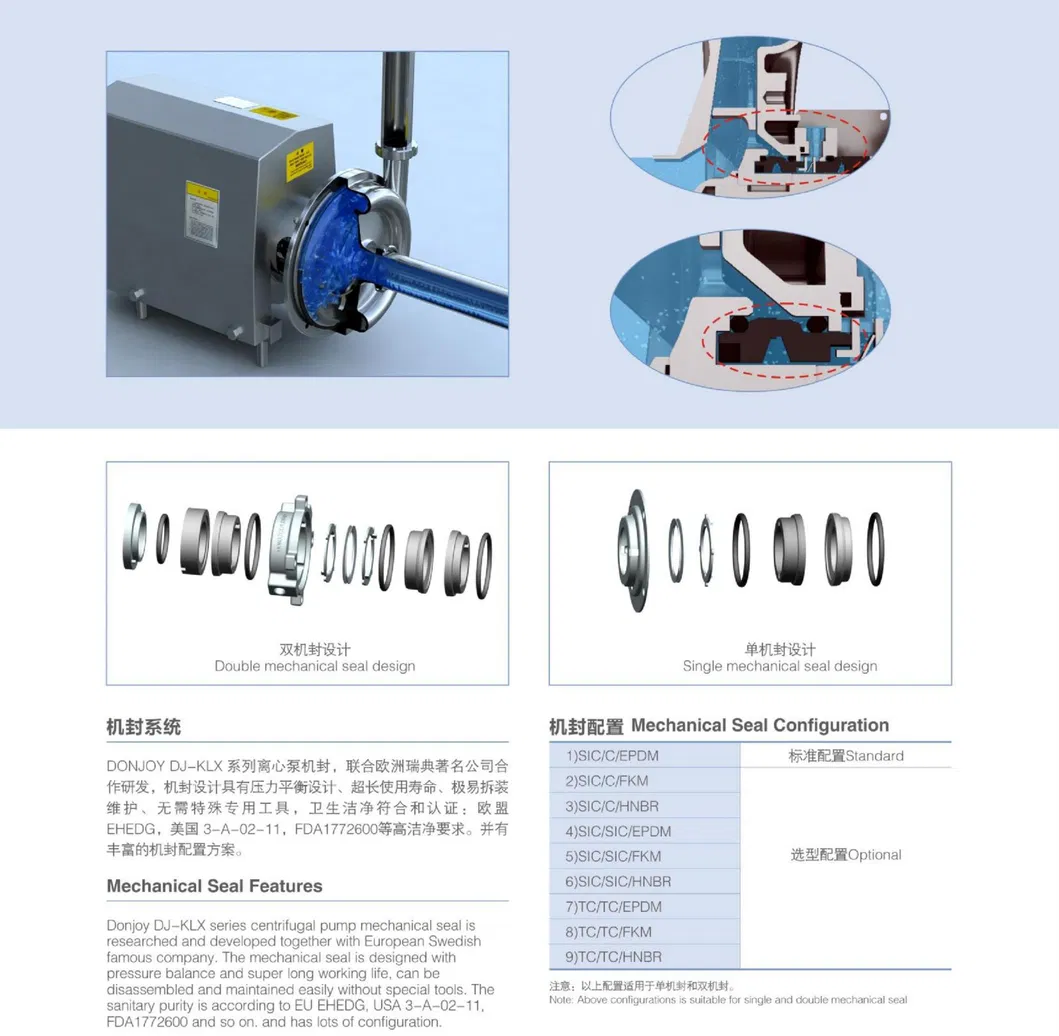

Mechanical Seal: C/SIC and SIC/SIC (single or double)
Gaskets: EPDM (FDA approval)

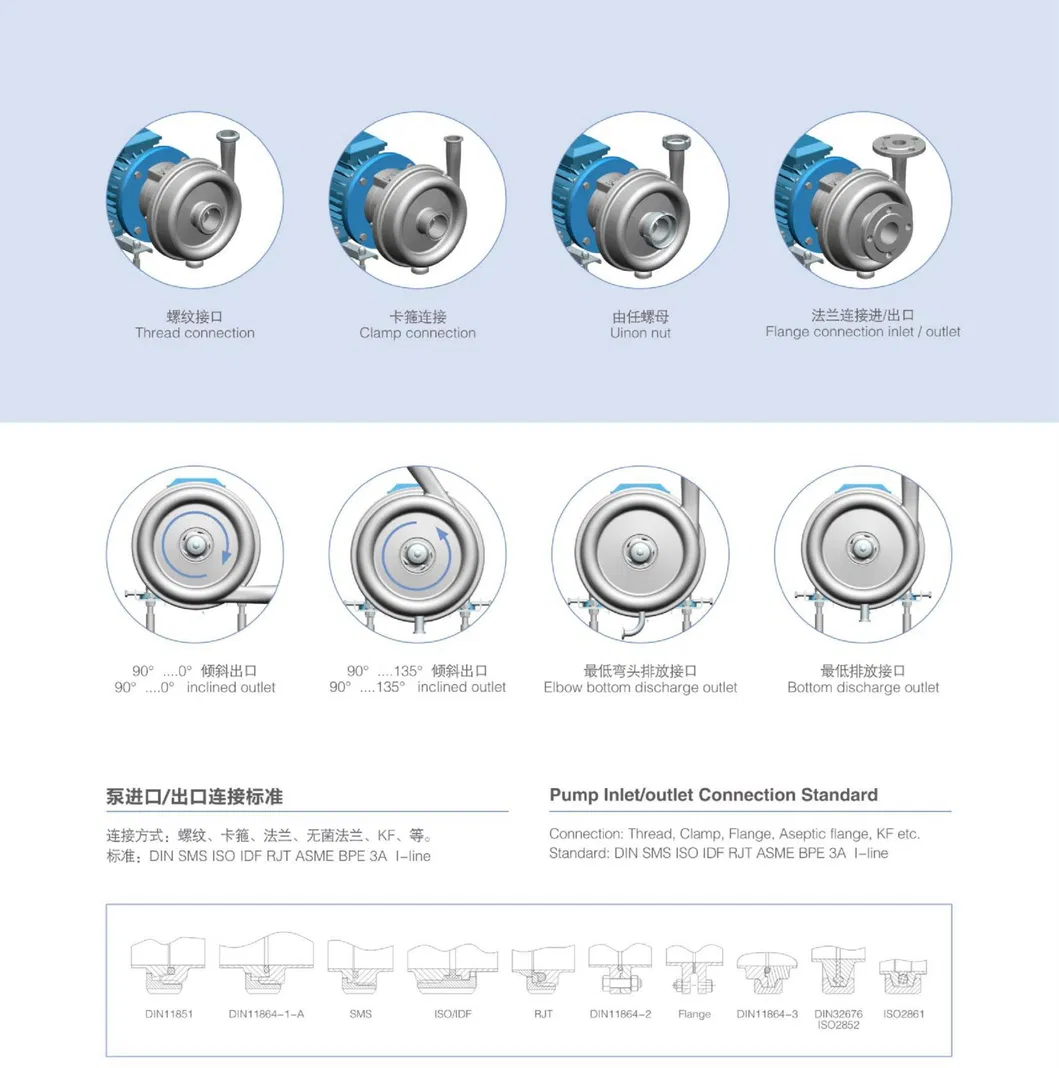

Connections: Clamped, male, flanged, DIN, SMS, RJT, IDF
Motor Options: 2900, 1450, 3600 rev. /min. (50HZ/60HZ)
Media Contact Parts: AISI 316L / AISI 304

Surface Treatment

Inside surface finishing: Ra ≤ 0.8 um
Outside surface finishing: Sandblast or Mirror polished

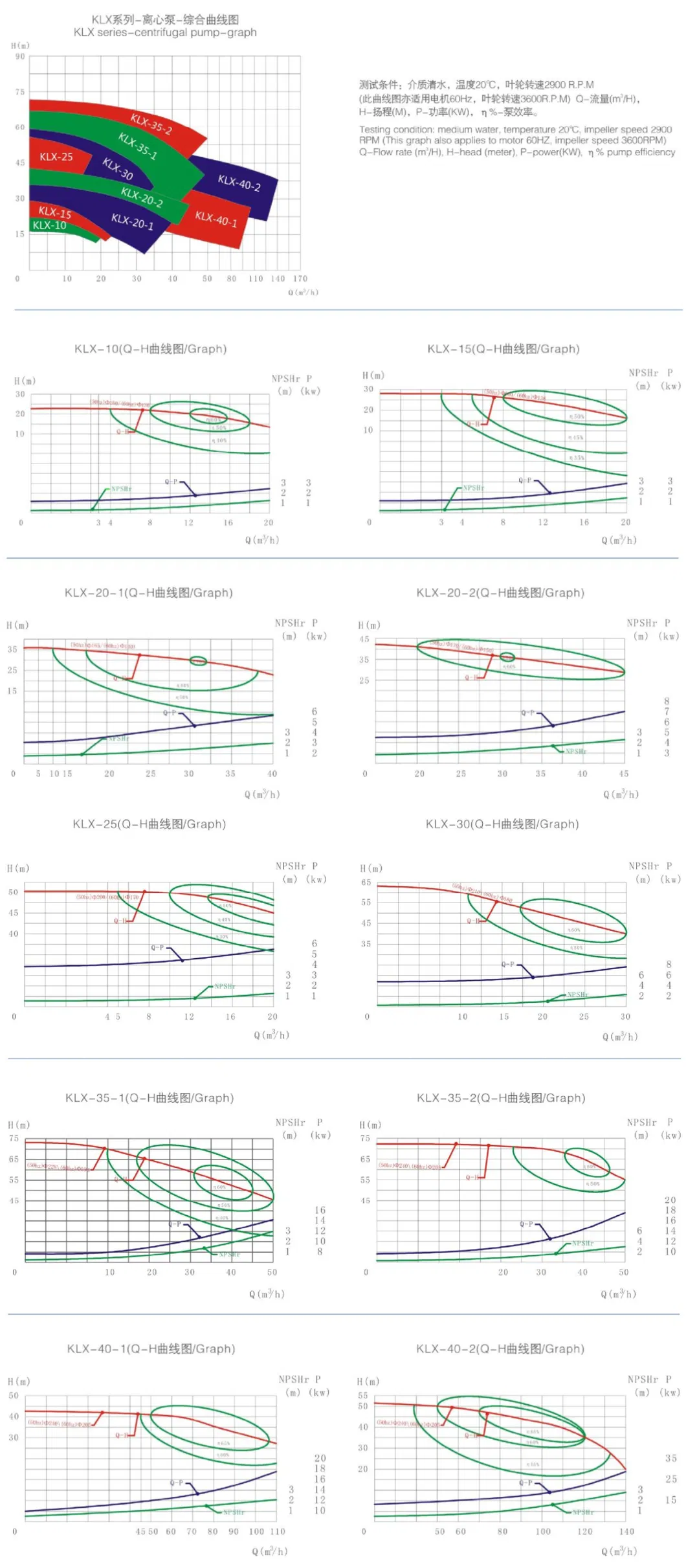

Model Selection Reference

Model	20 T/24 M	30 T/24 M	40 T/36 M
Flow	20 T	30 T	40 T
Total Head	24 m	24 m	36 m
Suction Stroke	5-6 m	5-6 m	5-6 m
Impeller Diameter	192 mm	192 mm	215 mm
Inlet/Outlet Dia.	63.5/63.5 mm	76.5/63.5 mm	76/76 mm
Power	5.5kw	7.5kw	11kw
Dimensions (LWH)	760320475	760320475	1006360600

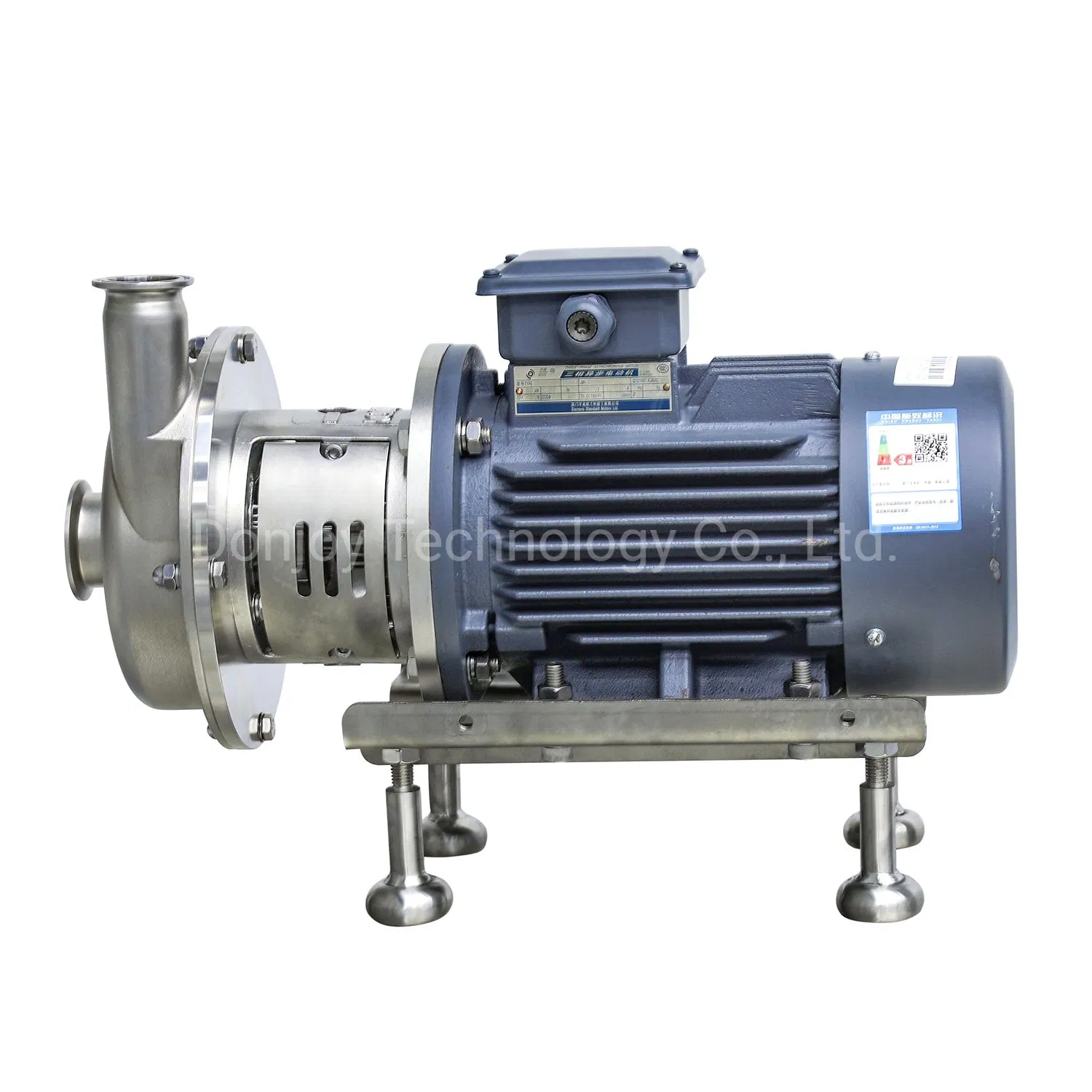

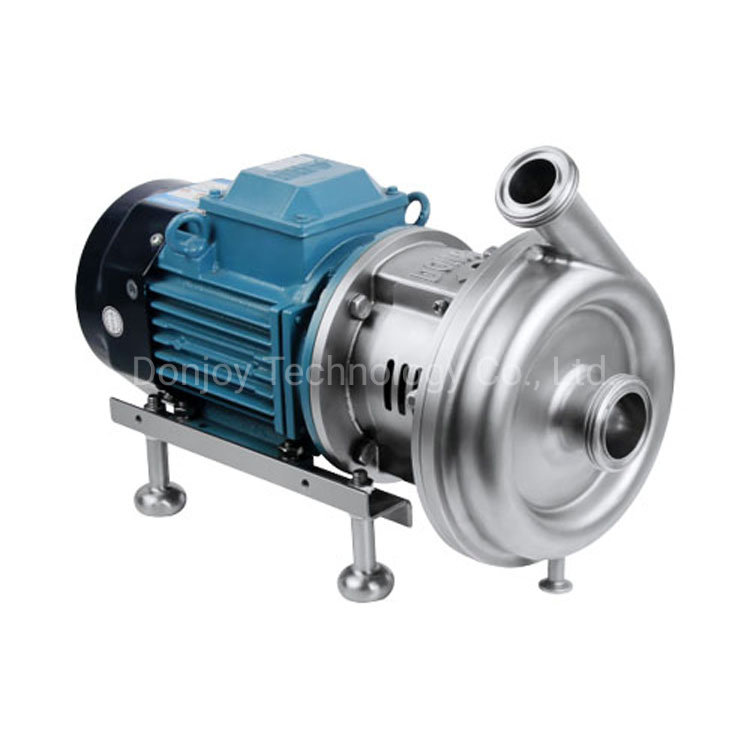

Product Display

Frequently Asked Questions

Q1: What are the primary applications for this centrifugal pump? A: It is specifically designed for sanitary industries, including dairy, beverage, food processing, pharmaceutical, and fine chemical sectors.

Q2: What materials are used for parts that come into contact with the product? A: All parts in contact with media are made from high-quality AISI 316L or AISI 304 stainless steel to ensure hygiene and durability.

Q3: Can this pump handle high-temperature fluids? A: Yes, the pump can handle a maximum temperature of up to 150°C (248°F), making it suitable for hot media processing.

Q4: What types of connection standards are available? A: We offer multiple connection types including Clamped, Male, Flanged, DIN, SMS, RJT, and IDF to meet various international standards.

Q5: What is the surface finish quality of the internal parts? A: The inside surface finishing reaches Ra ≤ 0.8 um, ensuring a smooth, easy-to-clean sanitary surface.

Q6: Are there different impeller options? A: Yes, you can choose between an Open impeller or a Close impeller based on your specific flow and media requirements.
