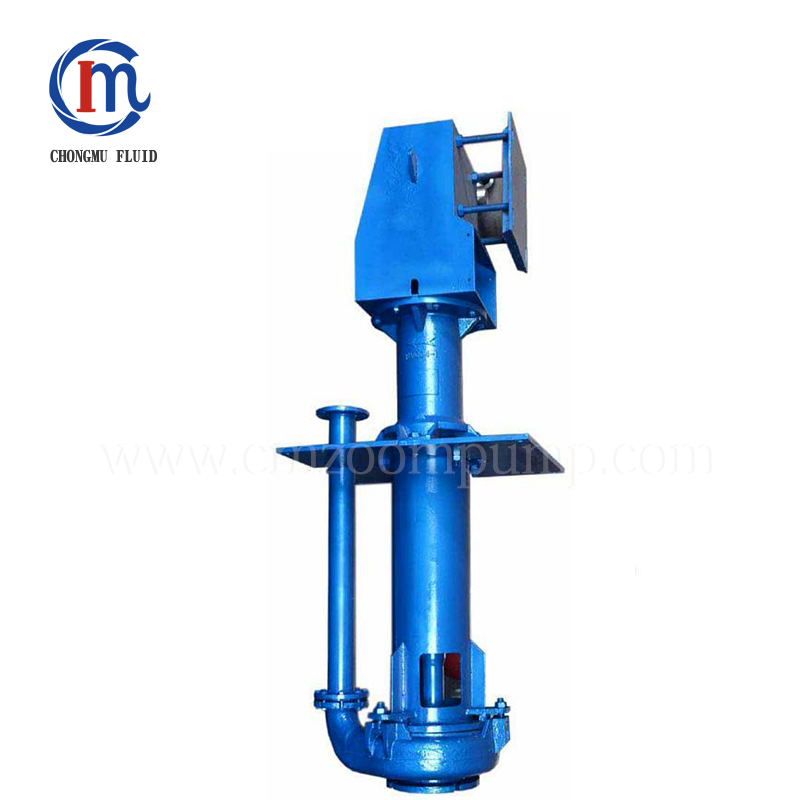

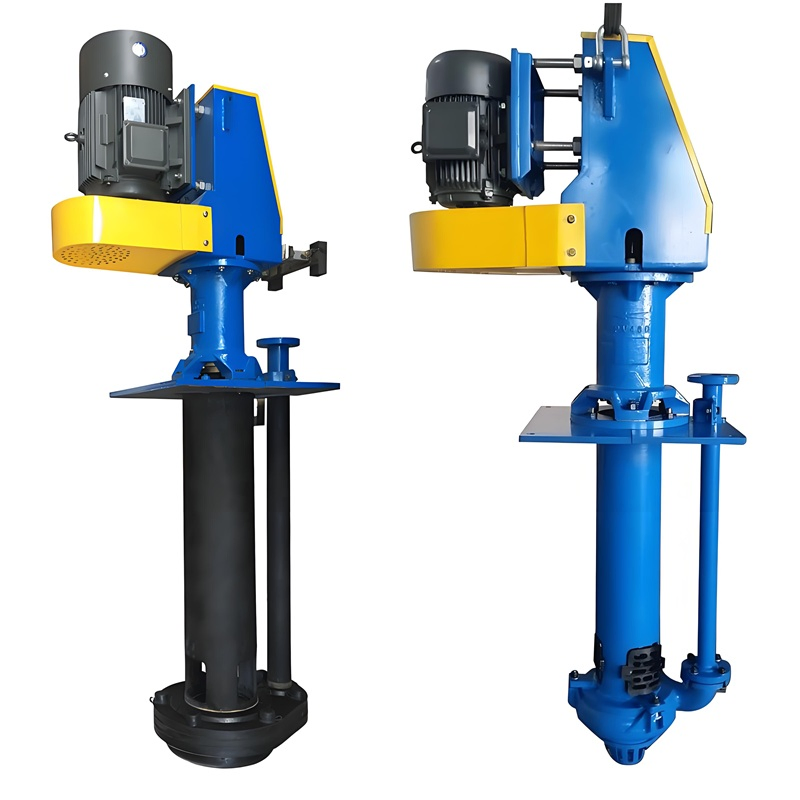

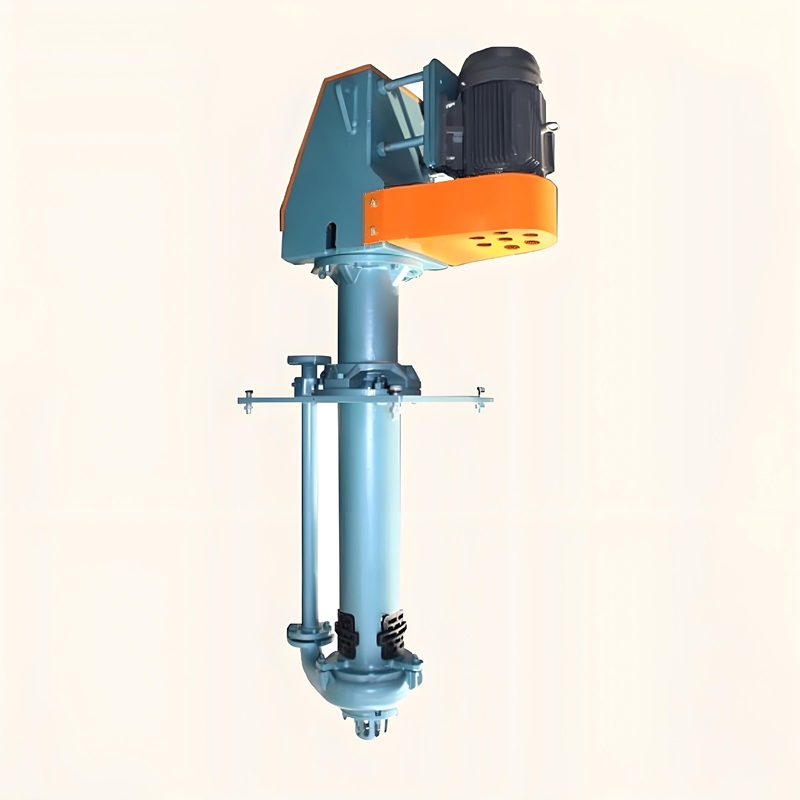

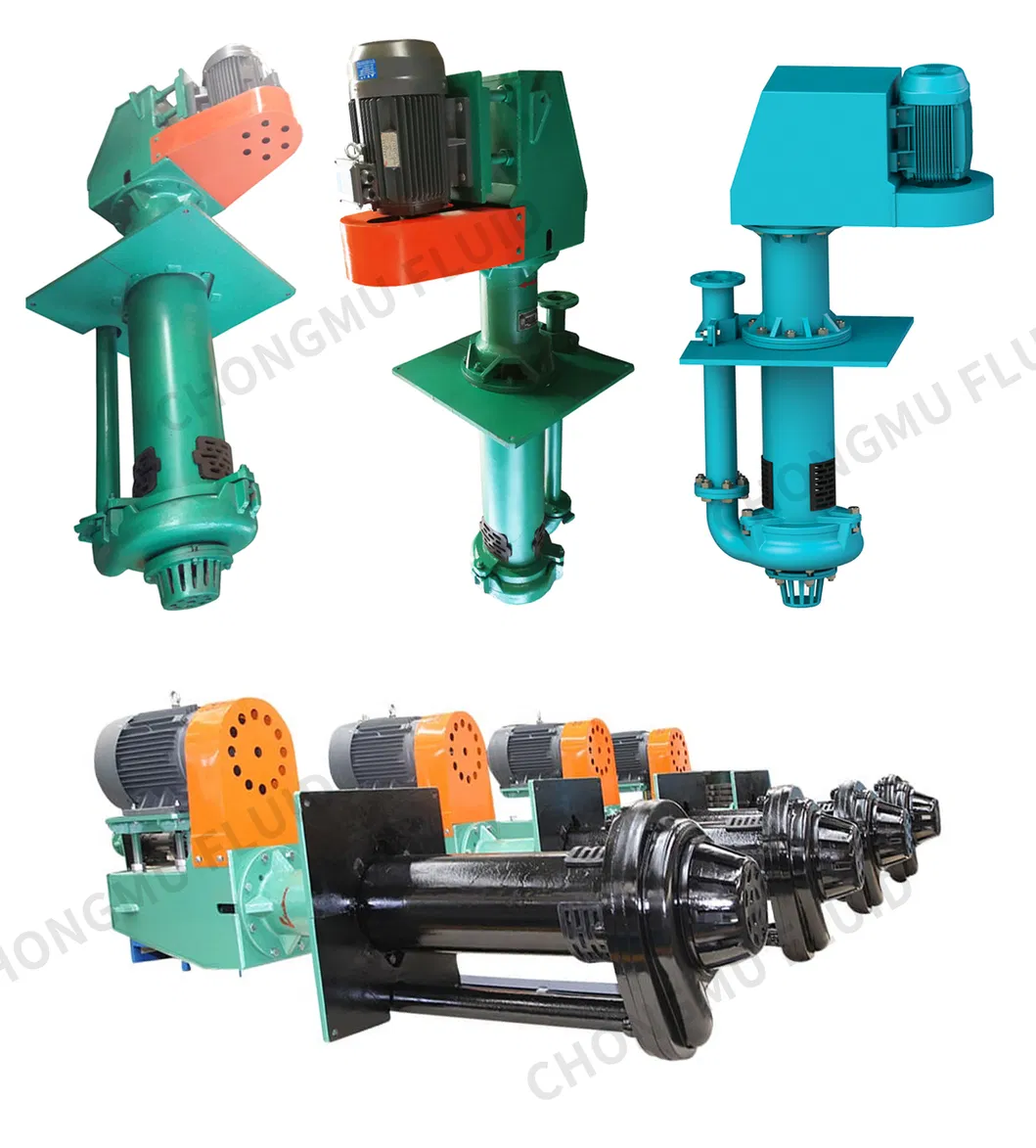

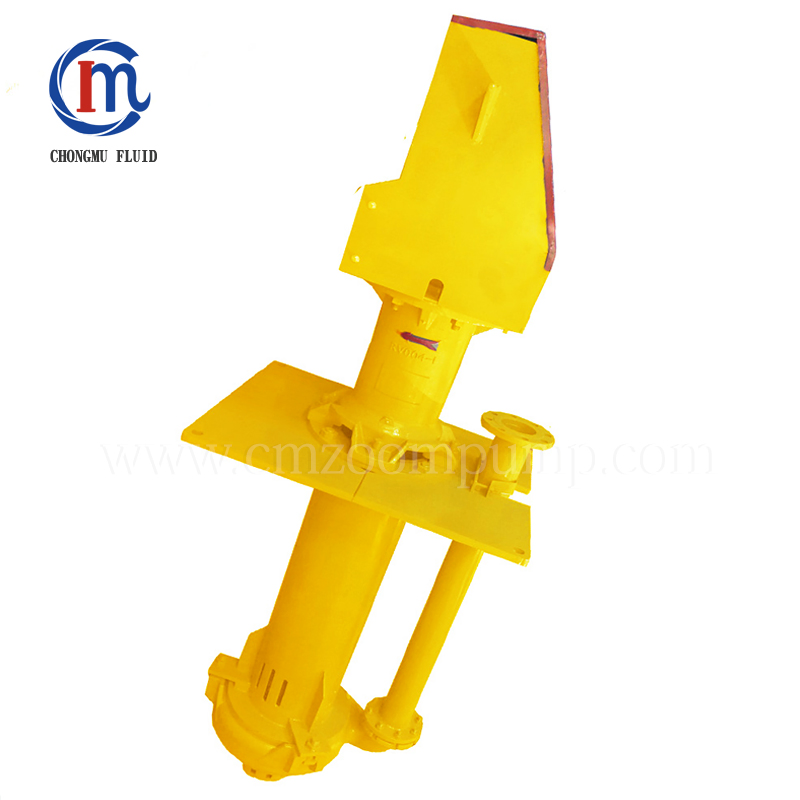

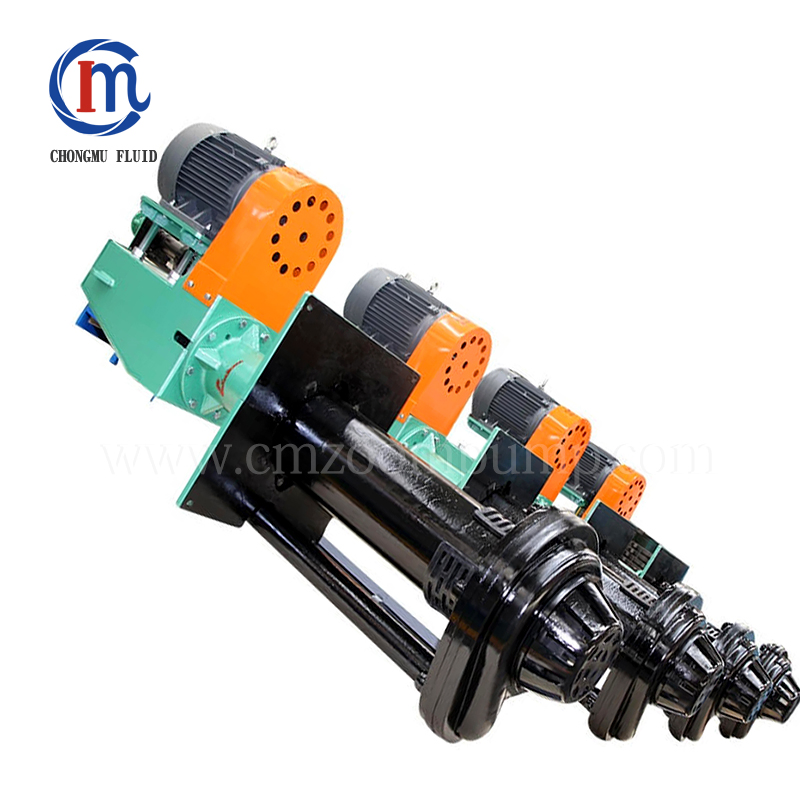

High Quality Electric Industrial Semi Submersible Vertical Sump Sewage Pump Heavy Duty Sp Spindle Sand Mud Gravel Slurry Centrifugal Water Pump for Mining
The CSP(R) sump pump is a vertical centrifugal slurry pump, immersed in the liquid. The pump inlet is vertically downward, and the outlet is vertically upward on the other side of the pump.

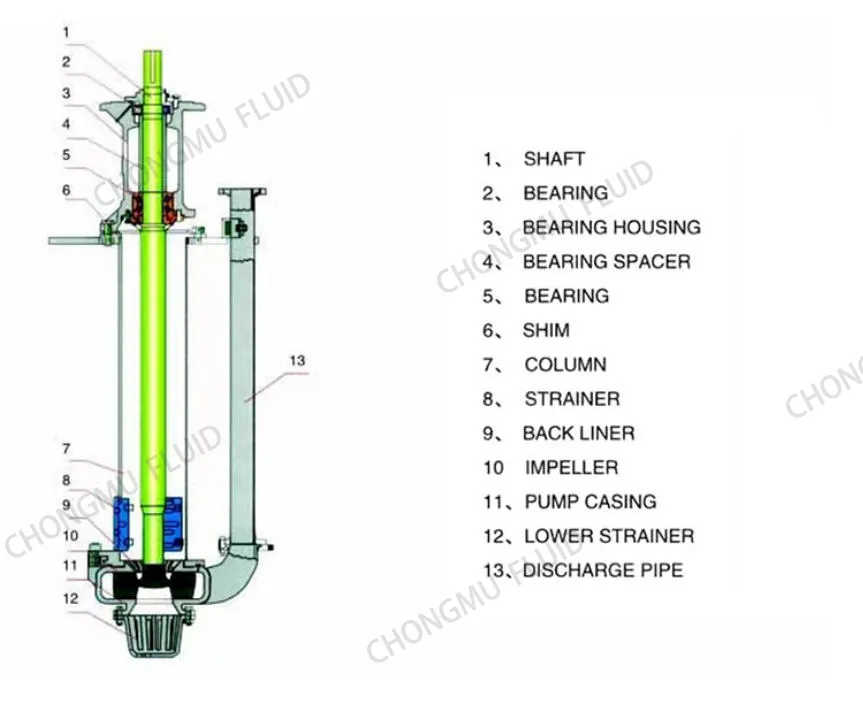

The pump is mainly composed of lower filter screen, pump body, impeller, shaft, guard plate, bracket and other parts. The upper part of the pump is supported by a bearing; the pump is installed under the liquid without any shaft seal and shaft seal water, and it can work normally under conditions of insufficient suction.
The flow parts are made of wear-resistant materials, which are used to transport abrasive, coarse particles, and high-concentration slurry. It is widely used in metallurgy, mining, coal, electric power, building materials, environmental protection and other departments.
| Type | Max Power (Kw) | Capacity (m³/hr) | Head (m) | Speed (rpm) | Max Efficiency | Vanes | Diameter (mm) |
|---|---|---|---|---|---|---|---|
| 40PV-CSP | 15 | 19.44-43.2 | 4.5-28.5 | 1000-2200 | 40% | 5 | 188 |
| 65QV-CSP | 30 | 23.4-111 | 5-29.5 | 700-1500 | 50% | 5 | 280 |
| 100RV-CSP | 75 | 54-289 | 5-35 | 500-1200 | 56% | 5 | 370 |
| 150SV-CSP | 110 | 108-479.16 | 8.5-40 | 500-1000 | 52% | 5 | 450 |
| 200SV-CSP | 110 | 189-891 | 6.5-37 | 400-850 | 64% | 5 | 520 |
| 250TV-CSP | 200 | 261-1089 | 7.5-33.5 | 400-750 | 60% | 5 | 575 |
| 300TV-CSP | 200 | 288-1267 | 6.5-33 | 350-700 | 50% | 5 | 610 |
