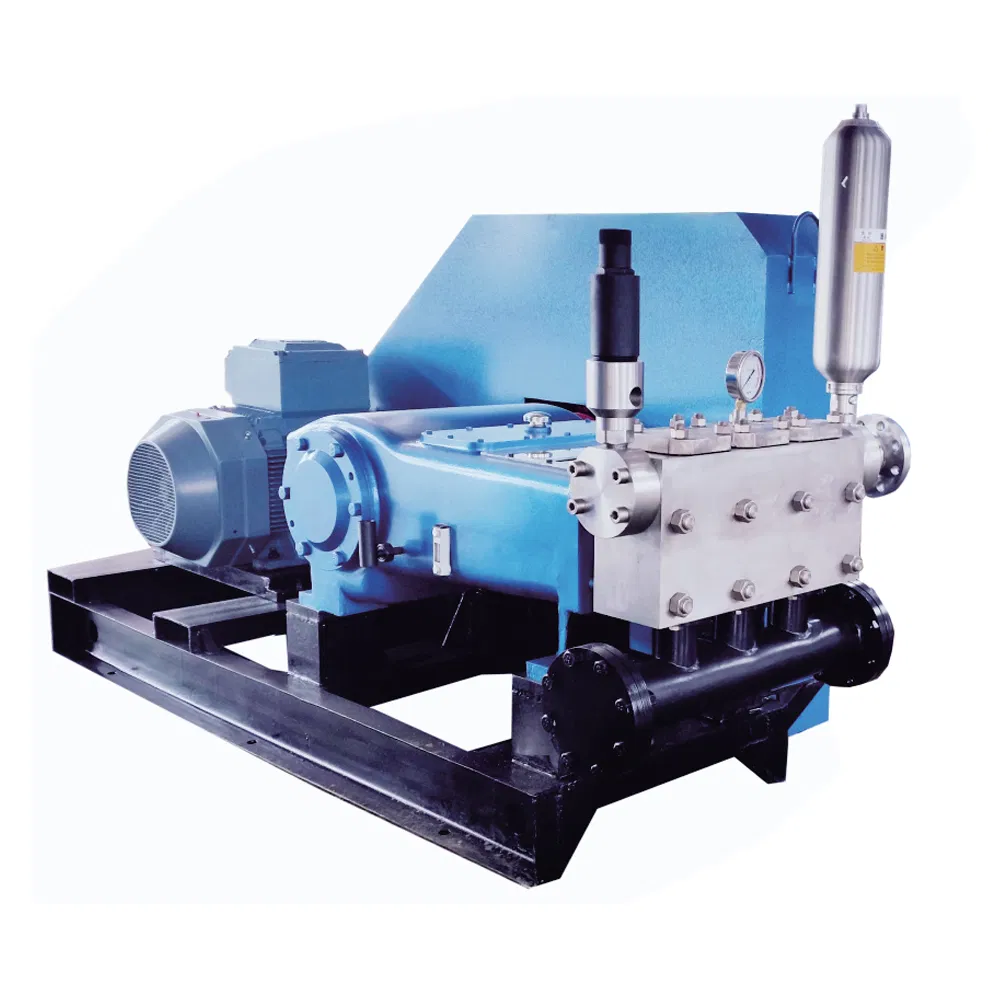

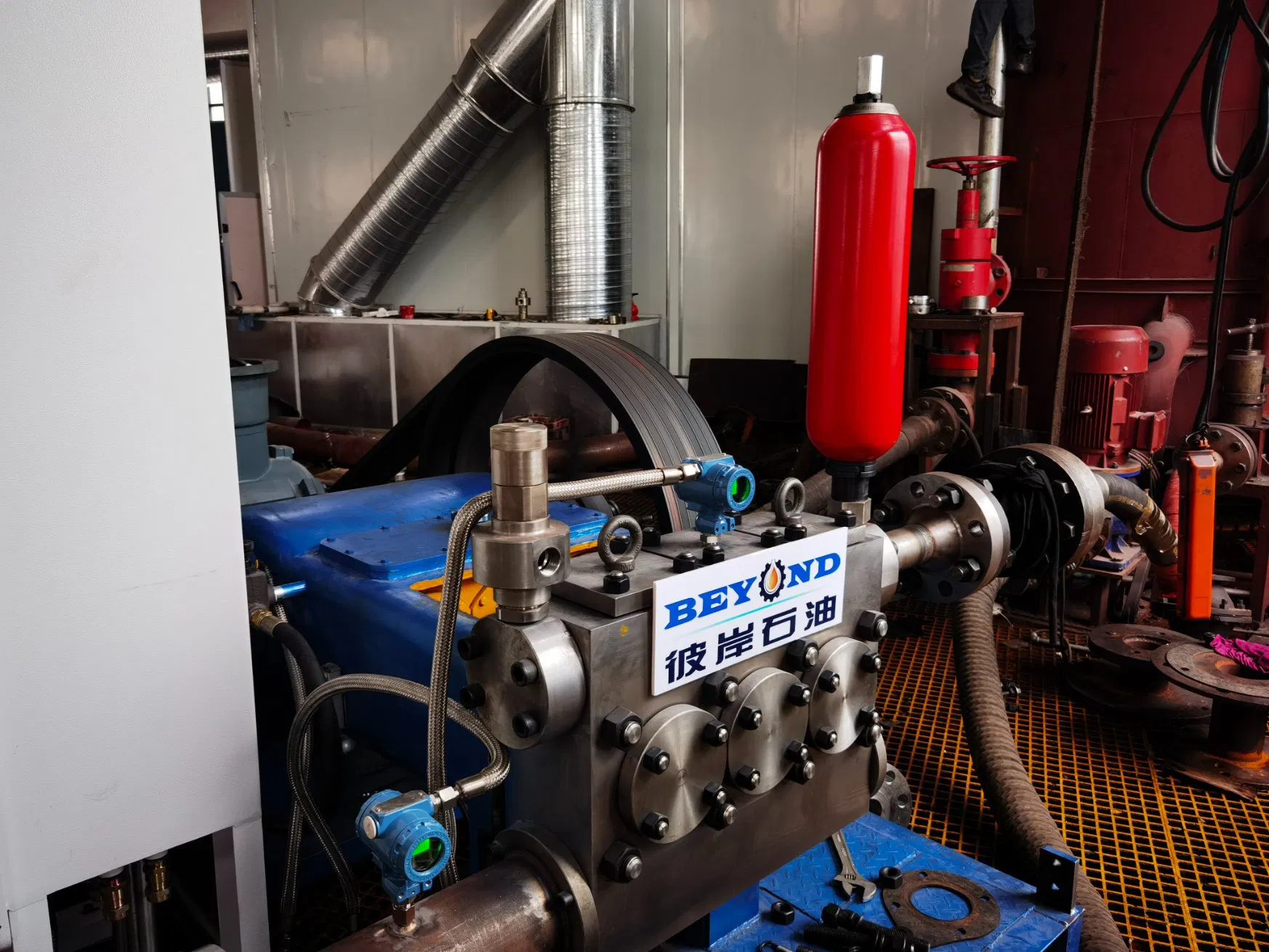

High Pressure Triplex Single Acting Piston Plunger Crude Oil Transfer Mud Pump for Oilfield T210
High Pressure Triplex Single Acting Piston Plunger Crude Oil Transfer Mud Pump for Oilfield T210
High Pressure Triplex Single Acting Piston Plunger Crude Oil Transfer Mud Pump for Oilfield T210
High Pressure Triplex Single Acting Piston Plunger Crude Oil Transfer Mud Pump for Oilfield T210
High Pressure Triplex Single Acting Piston Plunger Crude Oil Transfer Mud Pump for Oilfield T210
1 / 5
High Pressure Triplex Single Acting Piston Plunger Crude Oil Transfer Mud Pump for Oilfield T210
High Pressure Triplex Single Acting Piston Plunger Crude Oil Transfer Mud Pump for Oilfield T210
High Pressure Triplex Single Acting Piston Plunger Crude Oil Transfer Mud Pump for Oilfield T210
High Pressure Triplex Single Acting Piston Plunger Crude Oil Transfer Mud Pump for Oilfield T210
High Pressure Triplex Single Acting Piston Plunger Crude Oil Transfer Mud Pump for Oilfield T210

High Pressure Triplex Single Acting Piston Plunger Crude Oil Transfer Mud Pump for Oilfield T210

Customization: Available
After-sales Service: Online, Engineer
Warranty: 1 Year
Send Inquiry

Product Description

📋

Basic Specifications

Model NO.
T210
Cylinder Number
Multi Cylinder
Drive Mode
Mechanically Driven Pump
Pump Shaft Position
Horizontal
Type
V Type
Power
Electric
Stroke Length
100 mm
Rated Rod Load
17637 Lb
Oil Capacity
11.1 gal
Max. Fluid Temp
284 °F
Rated Bhp
210HP
Production Capacity
2000 sets/Year
🚀

Product Description

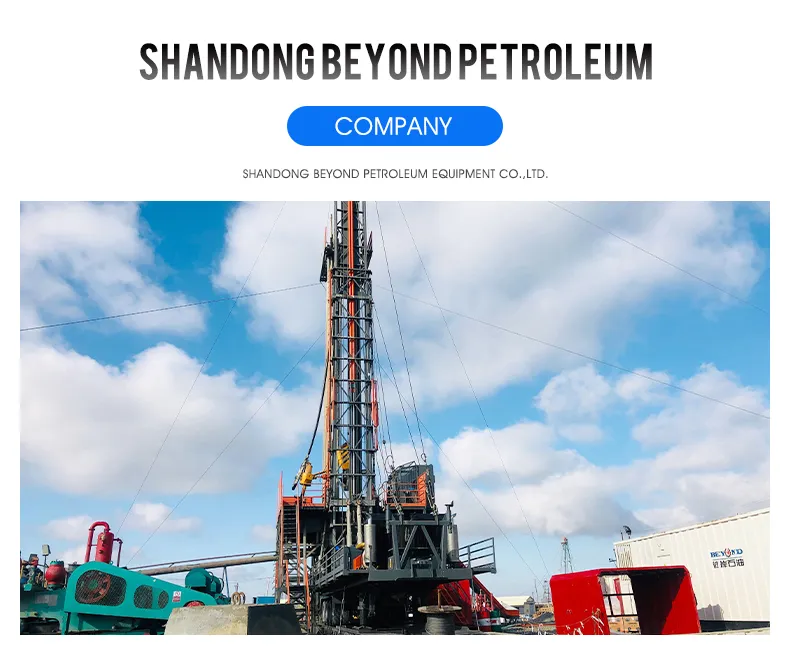

Mud Pump Overview
Our primary reciprocating pump offerings are the T Series and Q Series horizontal reciprocating pumps, available in triplex or quintuplex configurations. These pumps are designed as plunger pumps, with many also available as piston pumps. Engineered for durability, they feature conservative pressure ratings and operate at slow speeds to ensure a long service life and cost-effectiveness.

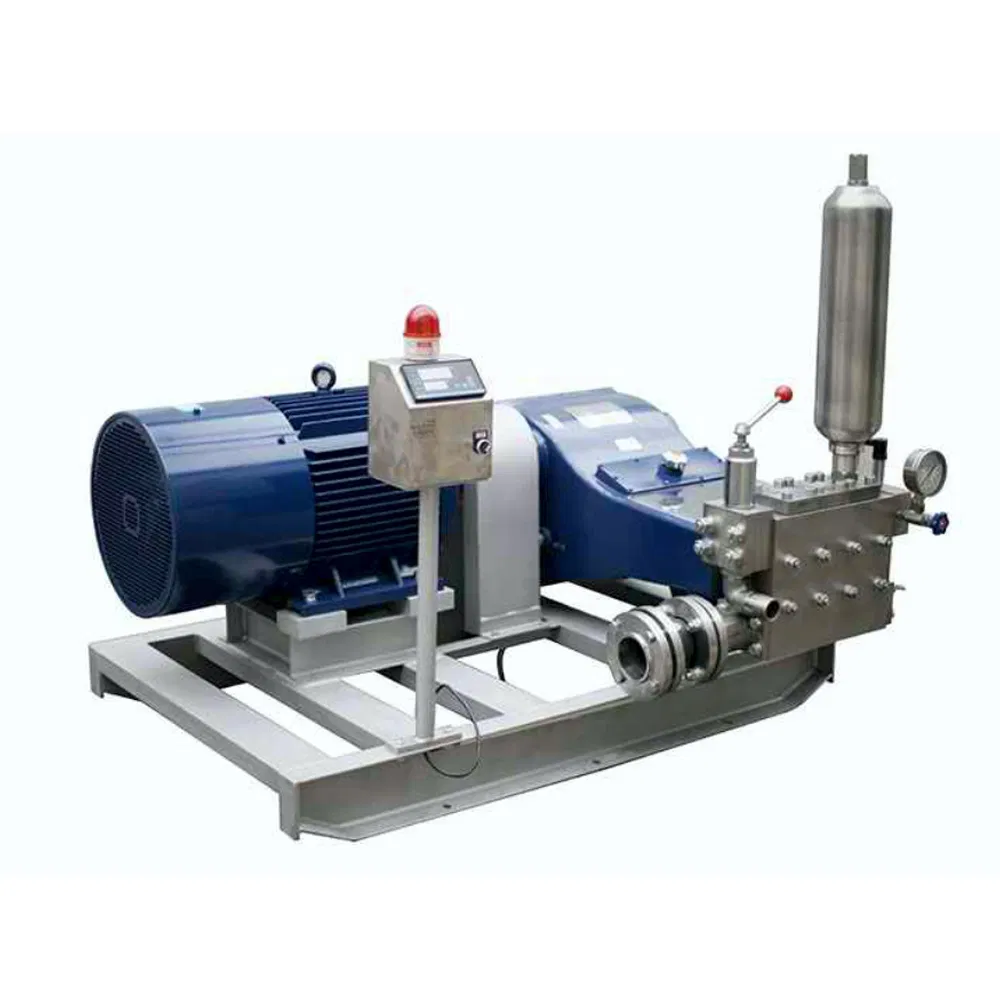

Pump Detail 1
These high-pressure reciprocating pumps encompass 24 types with over 800 specifications. With a maximum output pressure of 280 MPa and a theoretical flow rate ranging from 0.2 to 210 m³/h, these pumps are versatile for various industrial applications including oil field water injection, CO2 supercritical extraction, high-pressure mud pumping, and reverse osmosis desalination.

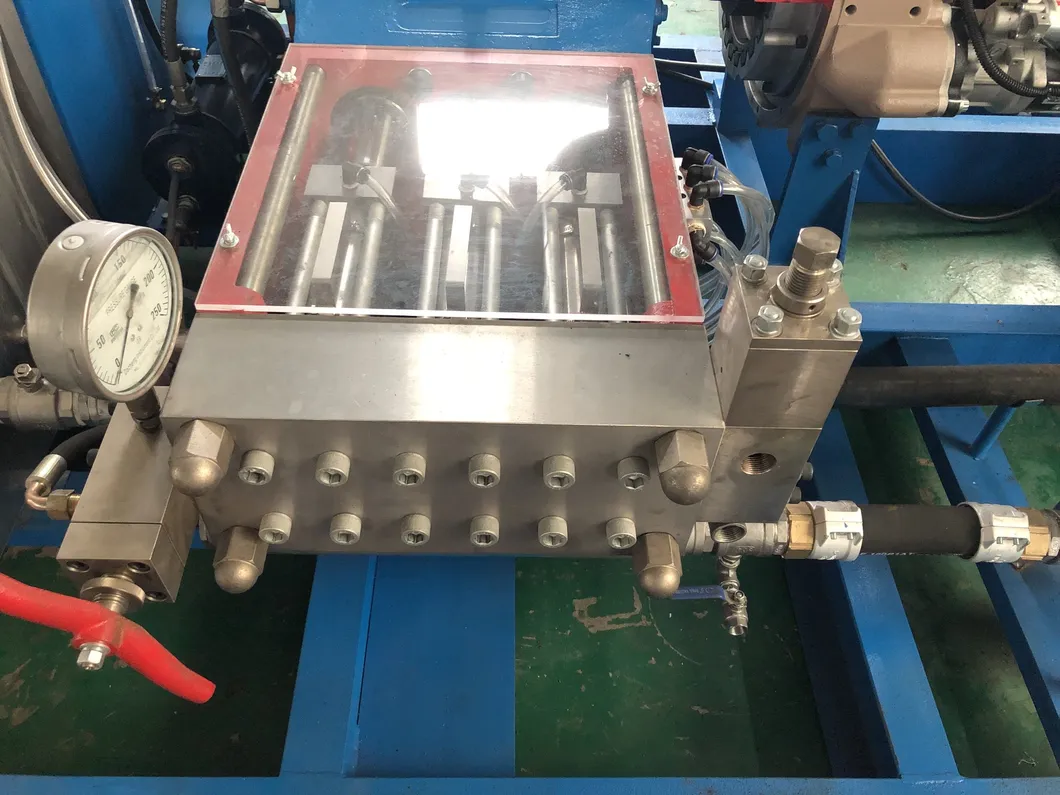

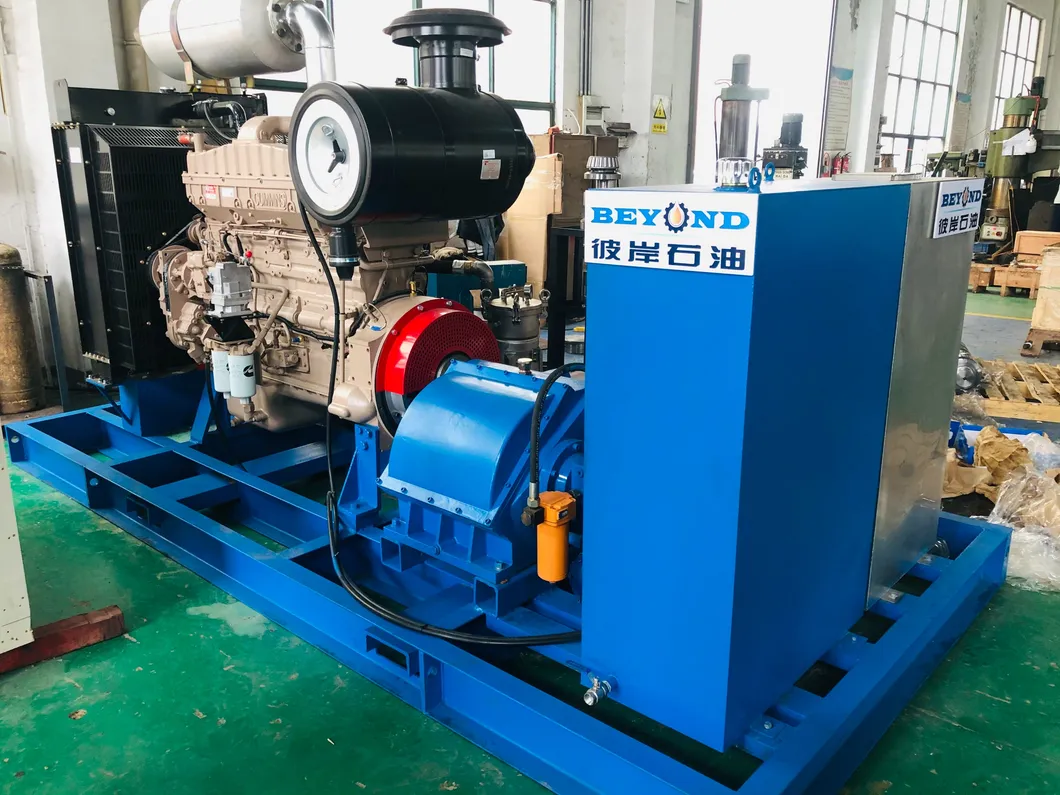

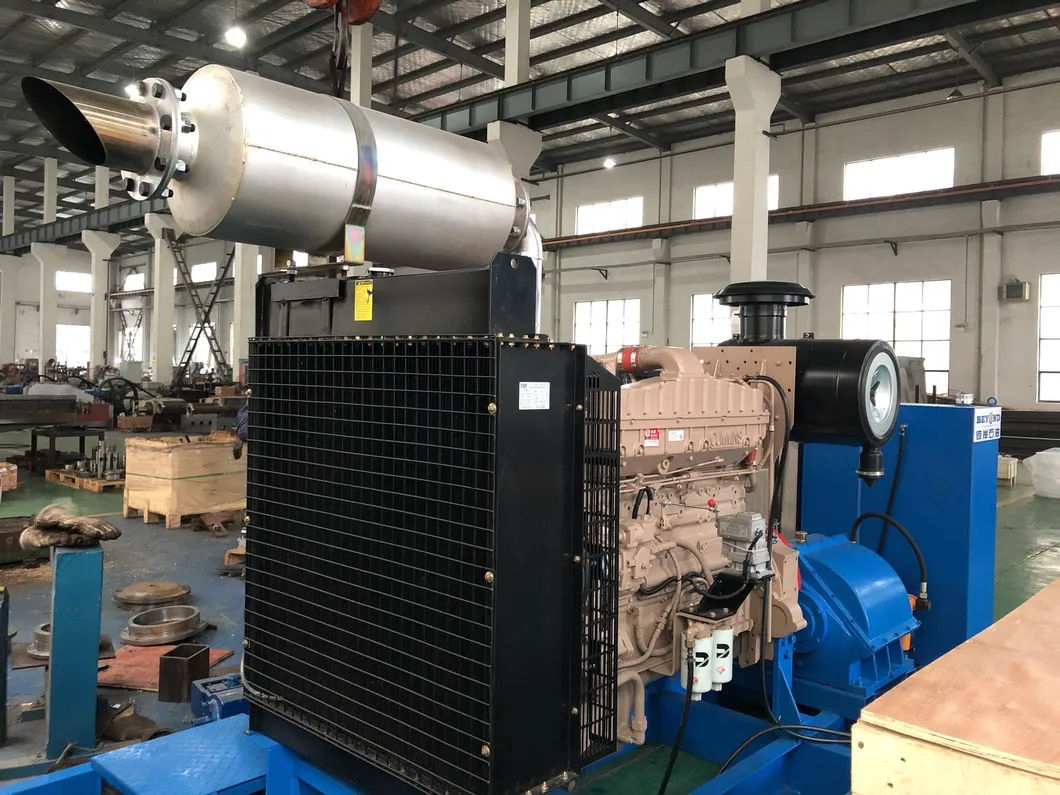

Pump Detail 2 Pump Detail 3 Pump Detail 4
Performance Ratings
Plunger Dia. L/RPM Gal/RPM Max. Press. 90 RPM 150 RPM 250 RPM
mm in Mpa Psi LPM GPM M³/h LPM GPM M³/h LPM GPM M³/h
351.380.2880.07680.01160026.06.91.643.311.42.672.119.14.3
401.570.3770.10063.0913533.99.02.056.514.93.494.224.95.7
451.770.4770.12650.0725042.911.32.671.518.94.3119.231.57.2
501.970.5890.15640.0580053.014.03.288.323.35.3147.238.98.8
632.480.9350.24725.0362584.122.25.0140.237.08.4233.761.714.0
🛠️

Technical Advantages

Manufacturing Pump Components 1 Pump Components 2 Pump Components 3 Our Advantage
Frequently Asked Questions
What is the maximum pressure these pumps can achieve?
The T Series and Q Series reciprocating pumps can reach a maximum output pressure of up to 280 MPa depending on the specific model and plunger diameter.
What fluids are compatible with the T210 series?
These pumps are suitable for a wide range of fluids including crude oil, mud, water, liquid CO2, polymer solutions, and seawater.
In which industries are these reciprocating pumps typically used?
They are widely used in oilfield drilling, metallurgical cleaning, boiler feed water, reverse osmosis desalination, and supercritical extraction industries.
What is the advantage of horizontal reciprocating design?
The horizontal configuration allows for easier maintenance access, stable operation at slower speeds, and enhanced durability for high-pressure continuous tasks.
Are different configurations available for flow rate requirements?
Yes, we offer both triplex (3 plungers) and quintuplex (5 plungers) configurations to meet theoretical flow rates ranging from 0.2 to 210 m³/h.
What is the maximum fluid temperature the pump can handle?
The T210 model is rated to handle fluid temperatures up to 284 °F (140 °C), making it suitable for demanding thermal environments.
