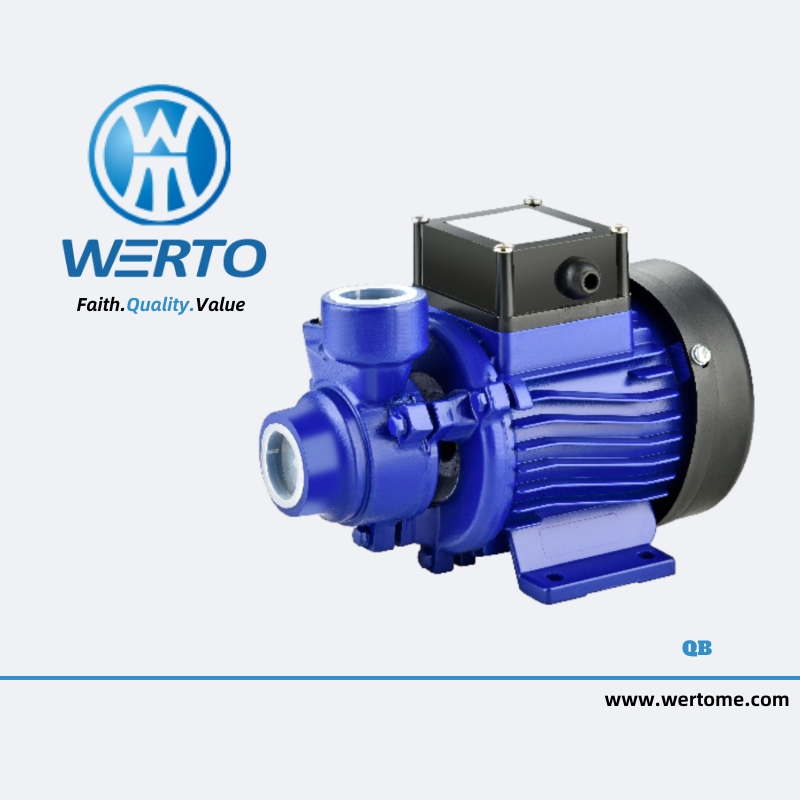

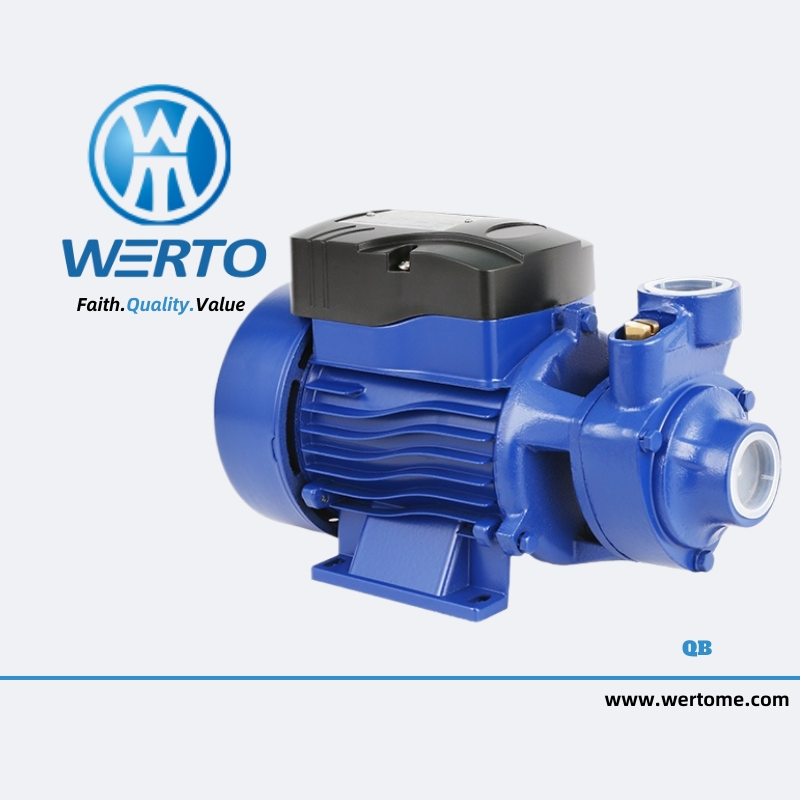

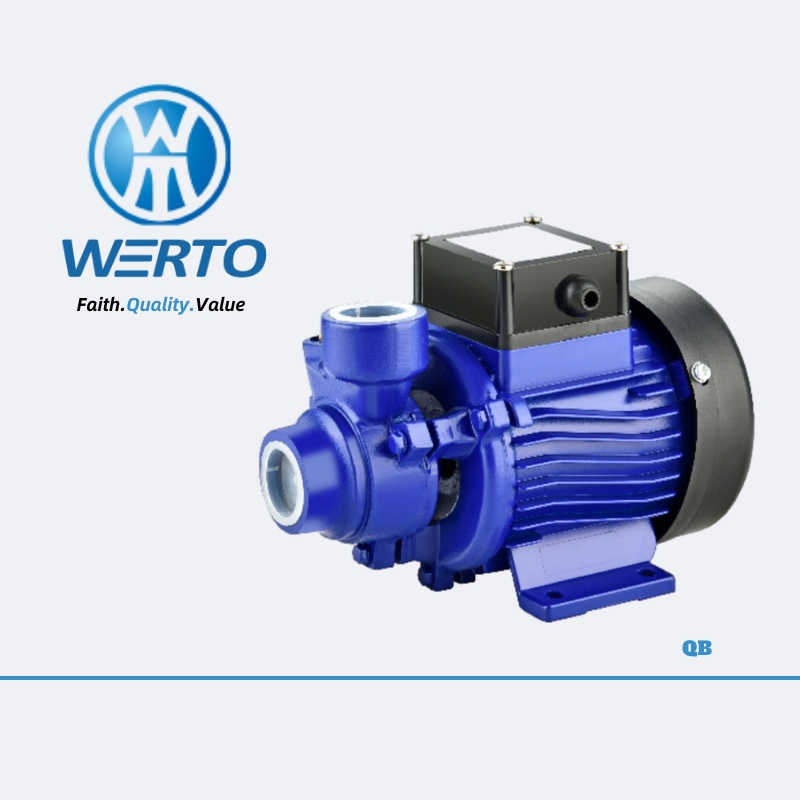

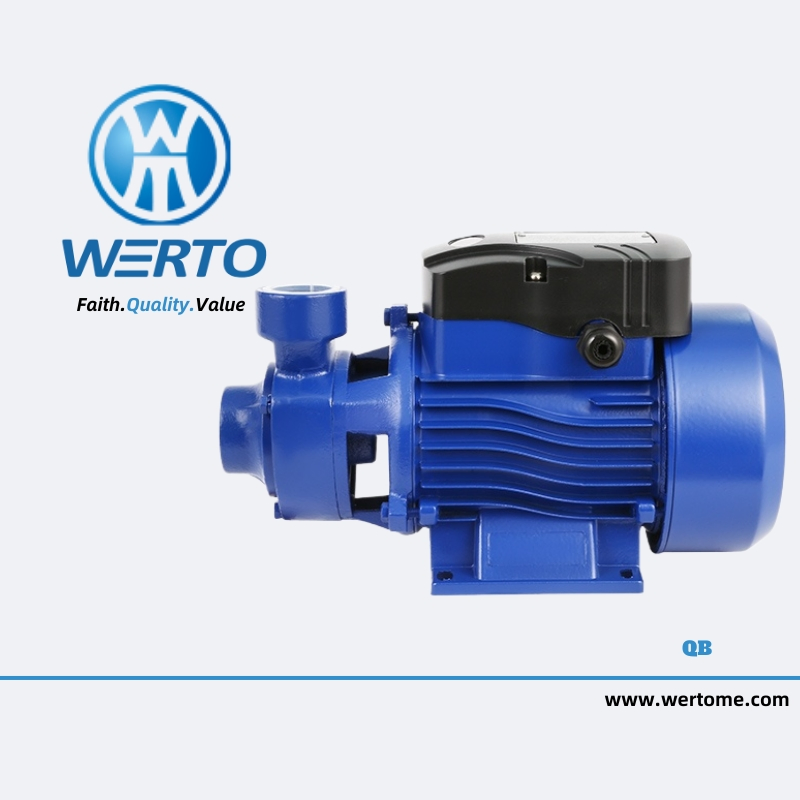

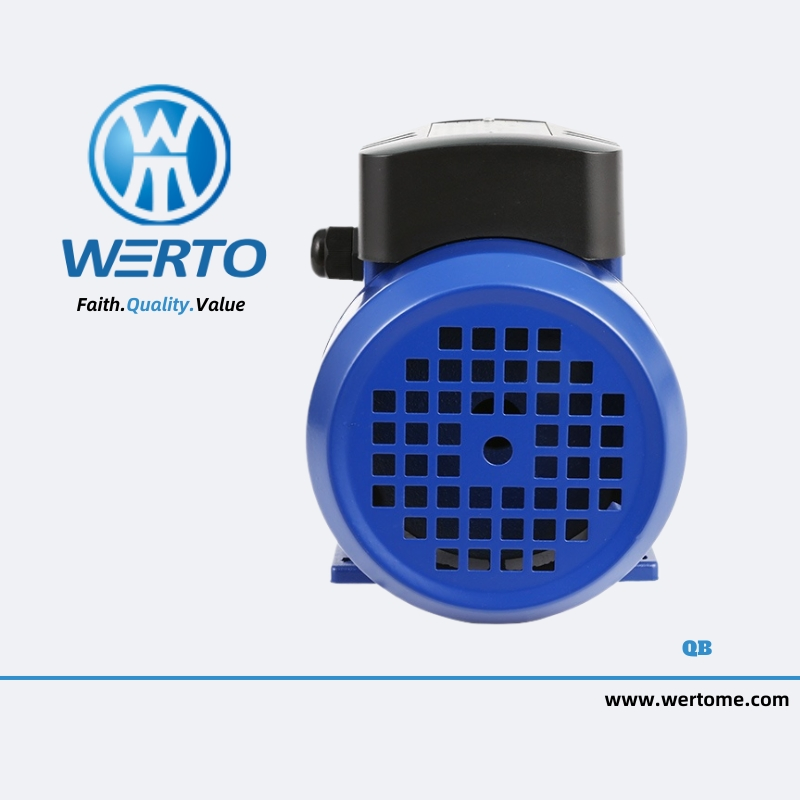

High Pressure Qb50 Booster Cast Iron Electric Water Pump Irrigation System

1 / 5

High Pressure Qb50 Booster Cast Iron Electric Water Pump Irrigation System

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.QB50

Max. Head30-50m

Max. Capacity<50 L/min

MaterialCast Iron

PowerElectric

Voltage220V

Frequency50Hz/60Hz

Motor HousingAluminium

Motor Winding100% Copper Wire

ImpellerBrass

ProtectionIP44

InsulationClass B

✓

Product Description

Suitable for use with clean water that does not contain abrasive particles and liquids that are not chemically aggressive towards the materials from which the pump is made.

They are easy to use and economical; they are ideal for domestic use and in particular for distributing water in combination with small pressure sets and for the irrigation of gardens and allotments.

The pump should be installed in an enclosed environment, or sheltered from inclement weather.

⚙

Motor Features & Operating Conditions

Technical Standards:

Insulation Class B
Protection IP44
Thermal protector included
Continuous service S1
Two-pole induction motor

Operating Limits:

Suction lift up to 8m
Liquid temperature up to 60°C
Ambient temperature up to 40°C

⚒

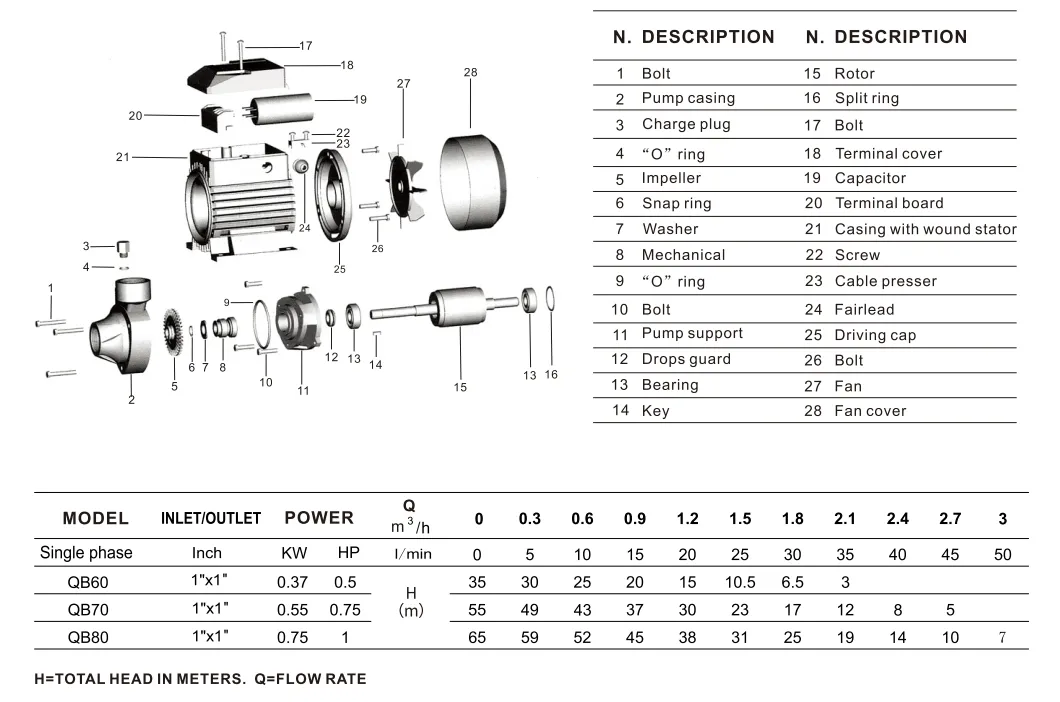

Construction Characteristics

COMPONENT	CONSTRUCTION CHARACTERISTICS
PUMP BODY	Cast iron, with AISI304 SS sheet insert on request (Anti-blocking)
PUMP SUPPORT	Cast iron, with AISI304 SS sheet insert on request (Anti-blocking)
MOTOR HOUSING	Aluminum
IMPELLER	Brass
MOTOR SHAFT	Carbon steel, AISI304 SS on request
MECHANICAL SEAL	Ceramic/Graphite
BEARINGS	6201 RZ/6201 RZ(0.5HP), 6202 RZ/6202 RZ(0.75HP&1HP)
