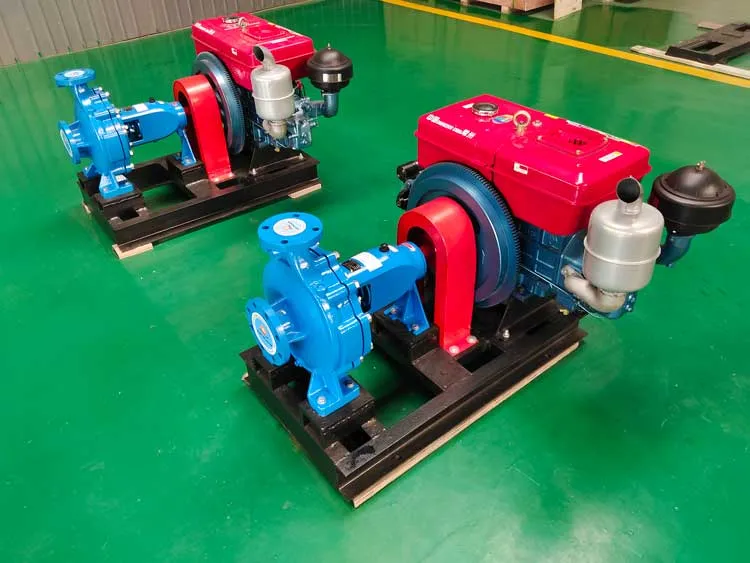

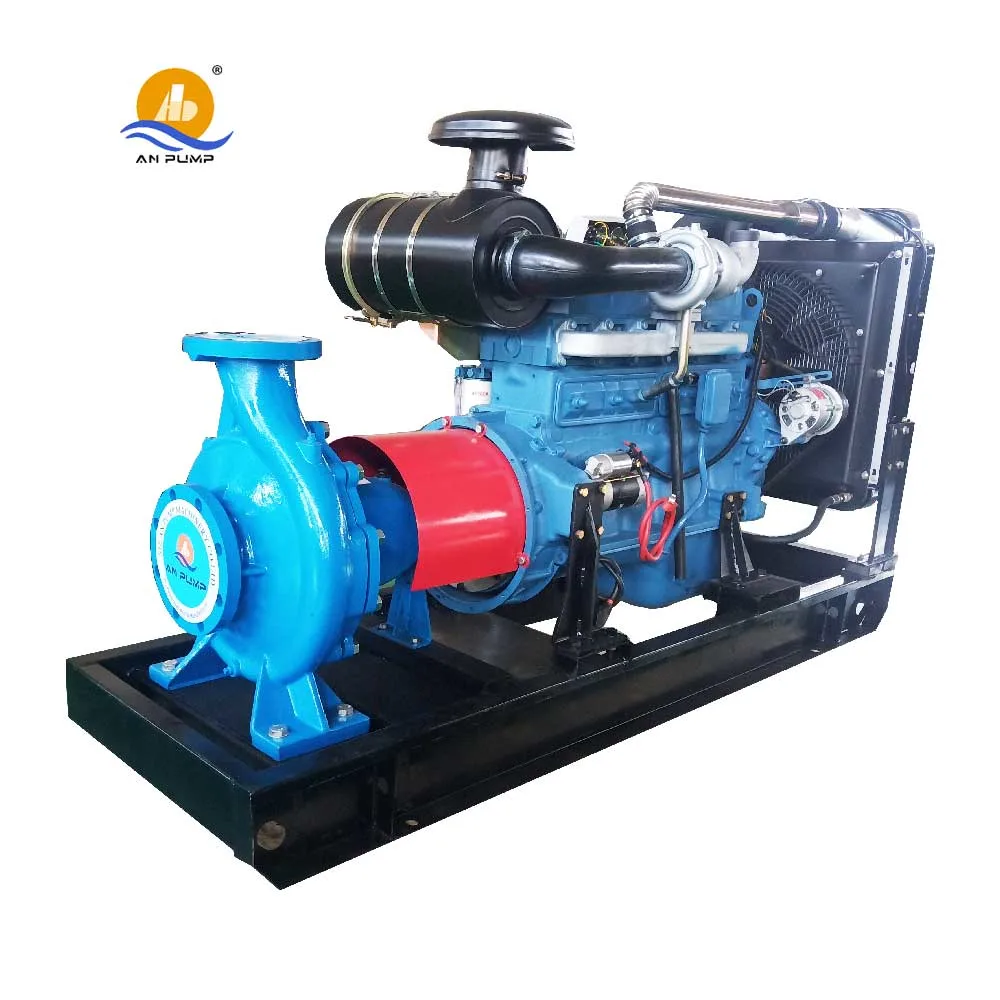

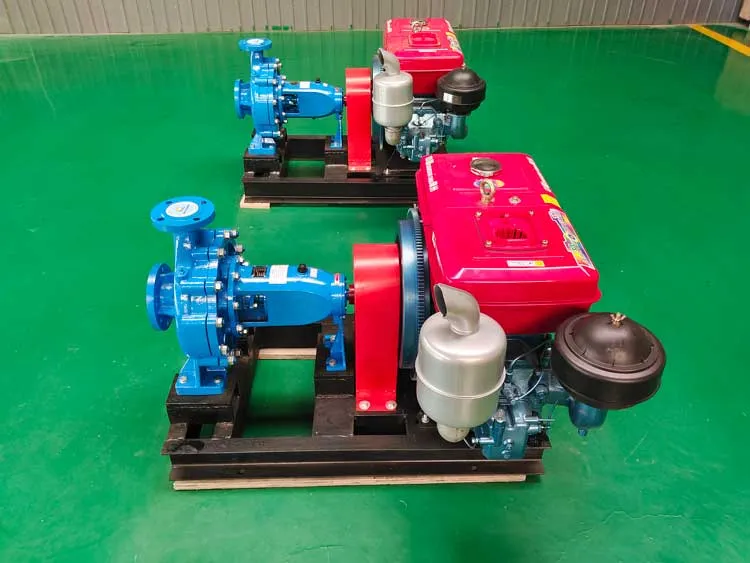

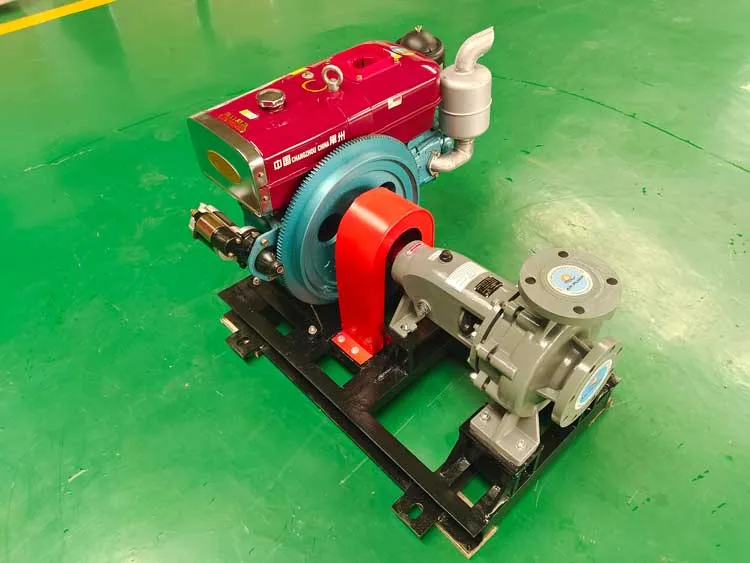

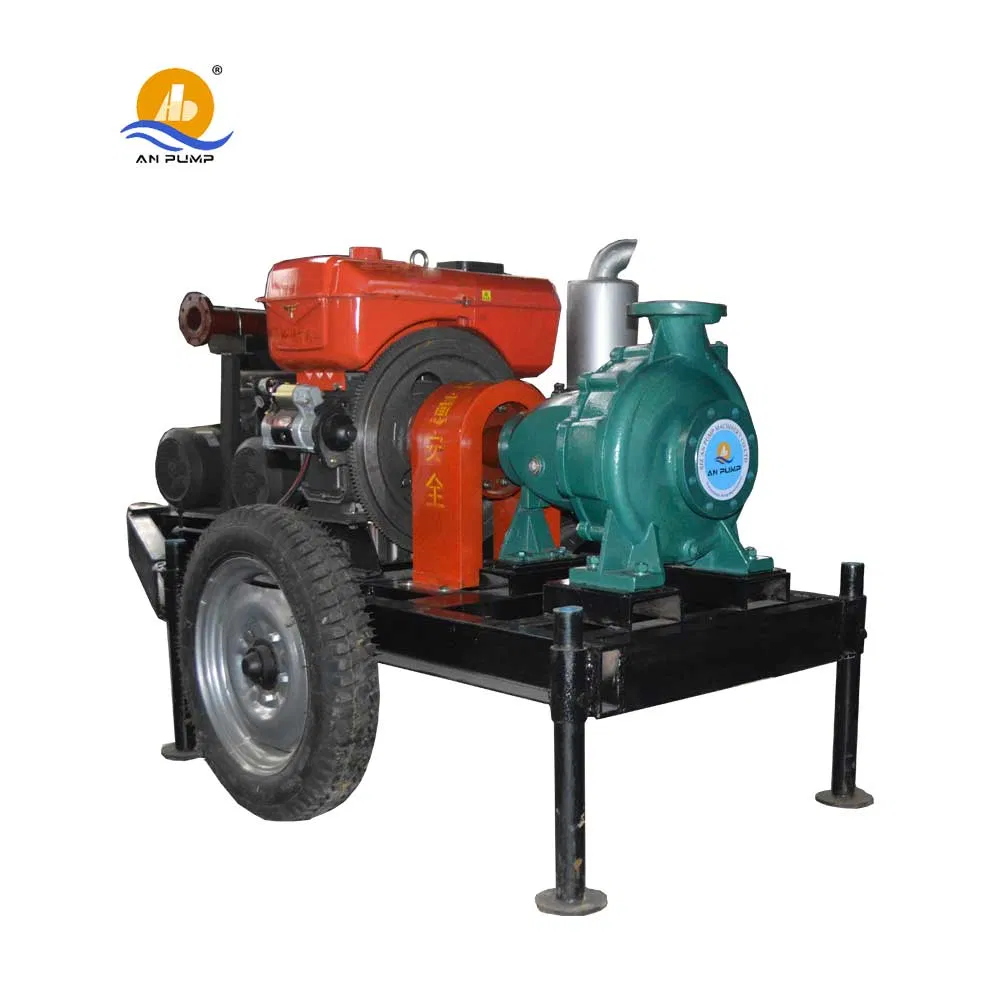

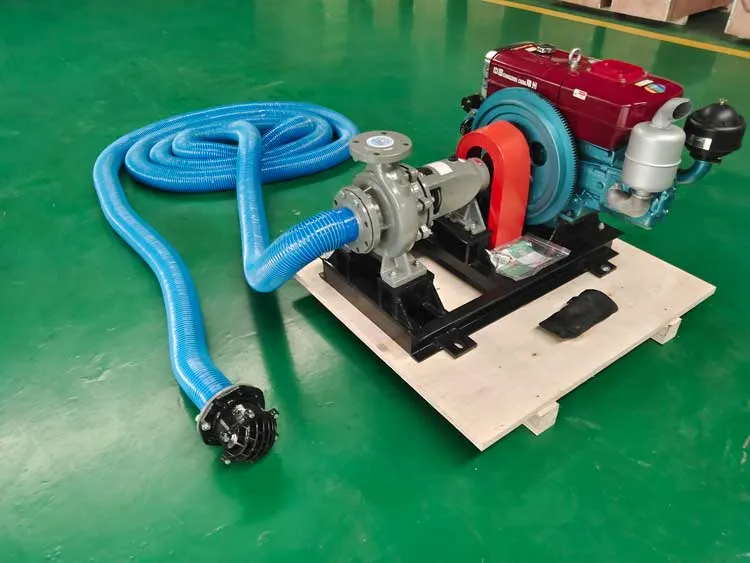

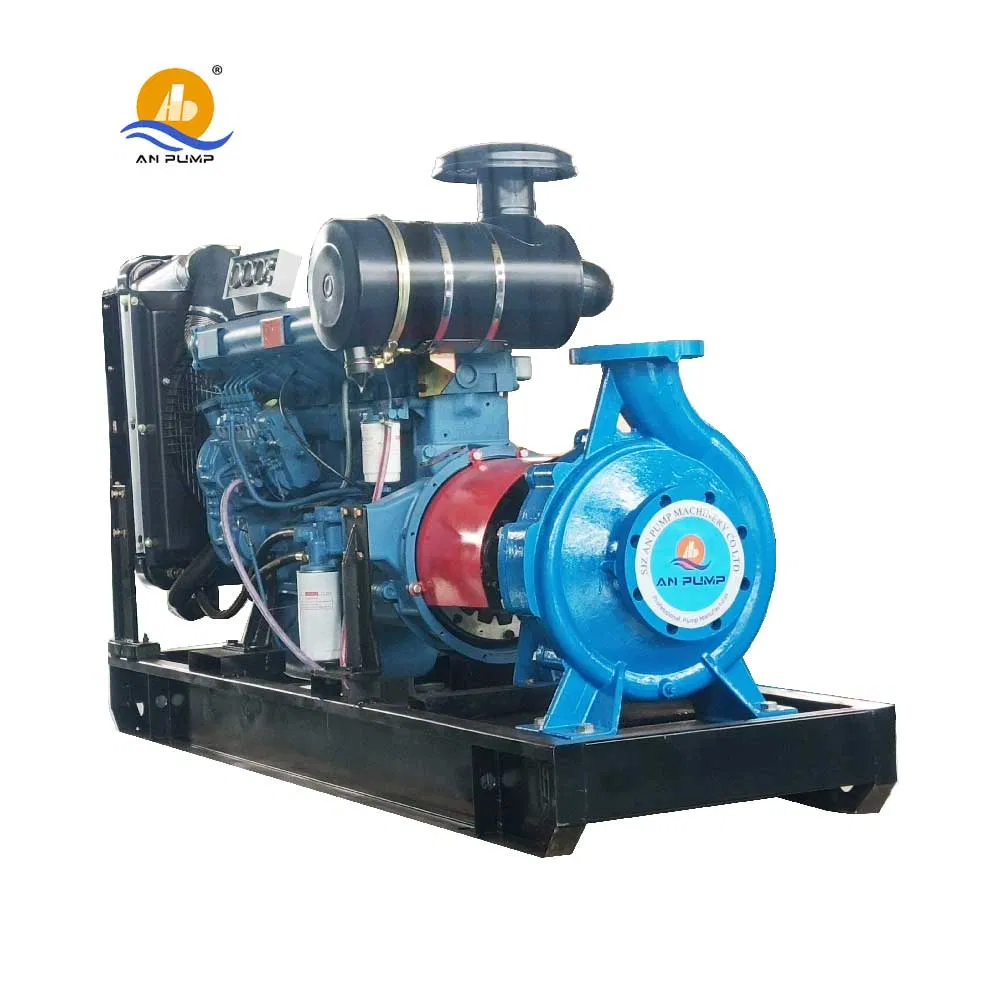

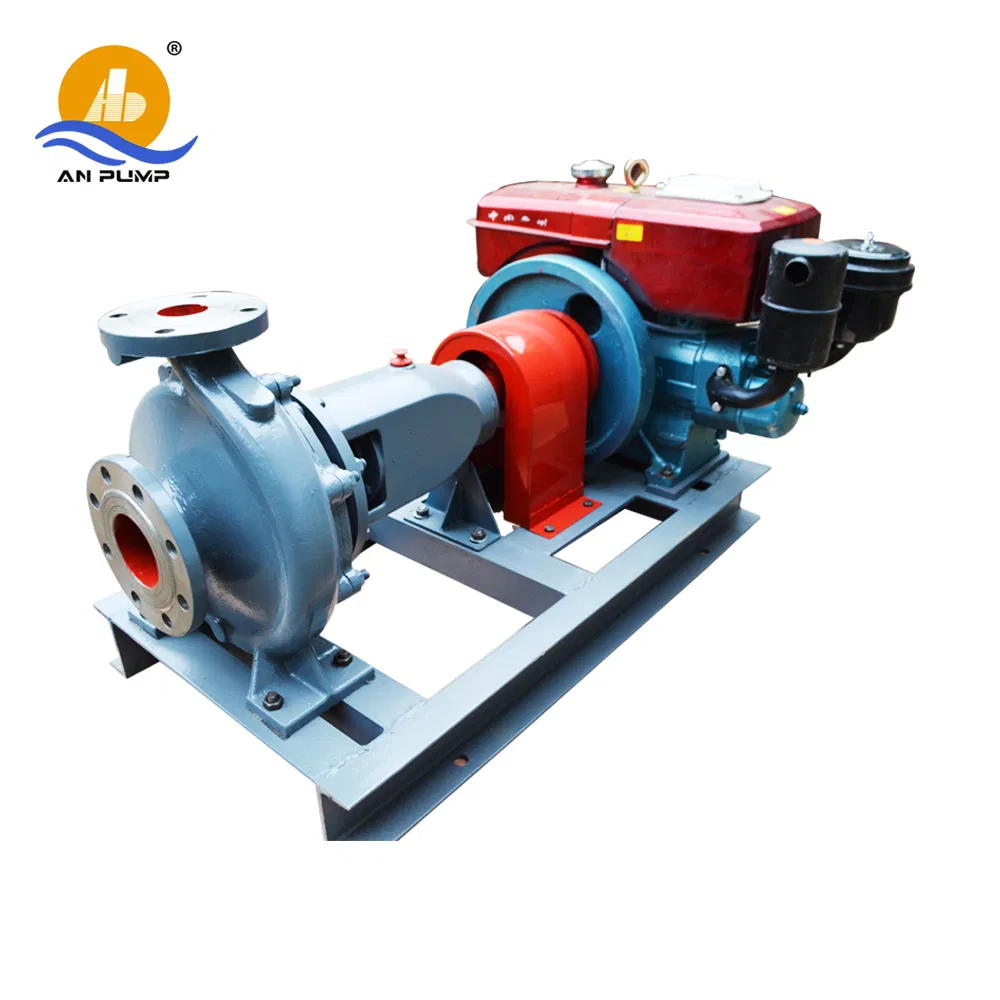

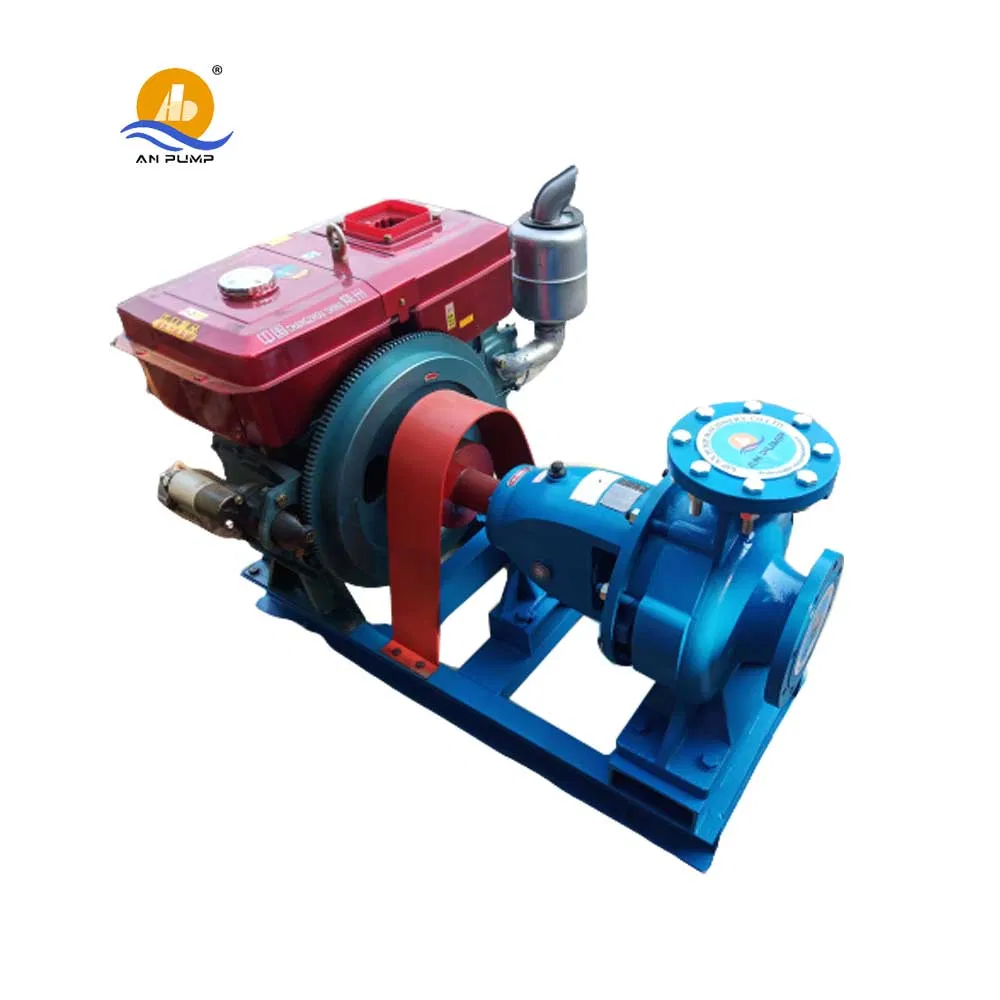

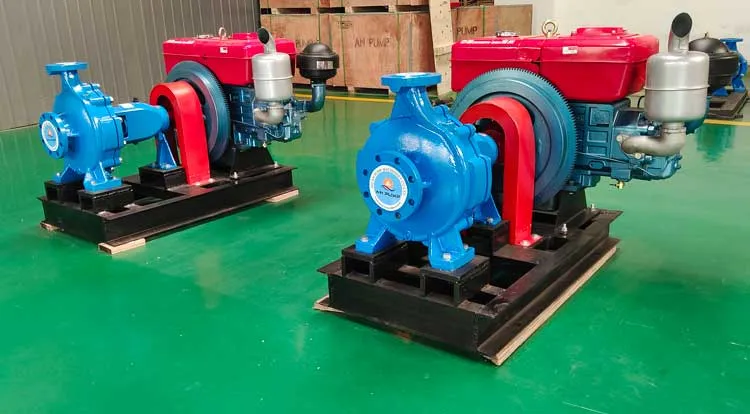

QI(R) Centrifugal end suction engine pump is a single stage, single suction pump for pumping clean water and the other liquids physically and chemically similar to the clean water. This pump is suitable for public water supply and drainage duties in industries and land irrigation also in agriculture and fire fighting equipment.
QI(R) pump is designed as back pull out construction, which can help the end user maintenance much easier. QIR types are mainly used in the hot water circulation, which allowed the medium to 150C. It also has many different materials design for meeting different working conditions water pumps.
| Pump Type | Capacity (m3/h) | Head (m) | Motor Power (kw) |
|---|---|---|---|
| QI 50 | 3.1 - 14 | 3.7-82 | 0.55-11 |
| QI 65 | 6.1 - 30 | 3.8-115.4 | 0.55-30 |
| QI 80 | 12 - 60 | 3.6-128 | 0.55-37 |
| QI 100 | 24.3 - 120 | 3.7-133 | 1.1-75 |
| QI 125 | 51.4 - 240 | 8.4-133 | 4-110 |
| QI 150 | 104 - 240 | 13-53 | 11-45 |
| QI 200 | 194-460 | 13.1-55 | 22-90 |
| QI 250 | 320-760 | 22.6-52 | 75-132 |
| QI 300 | 530-1200 | 21.9-38 | 90-132 |
