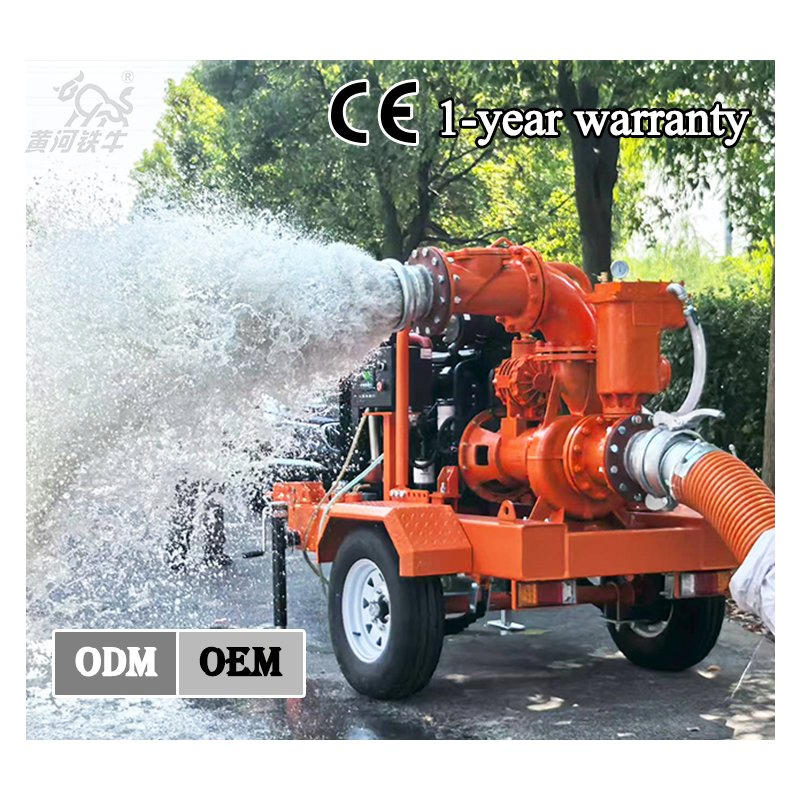

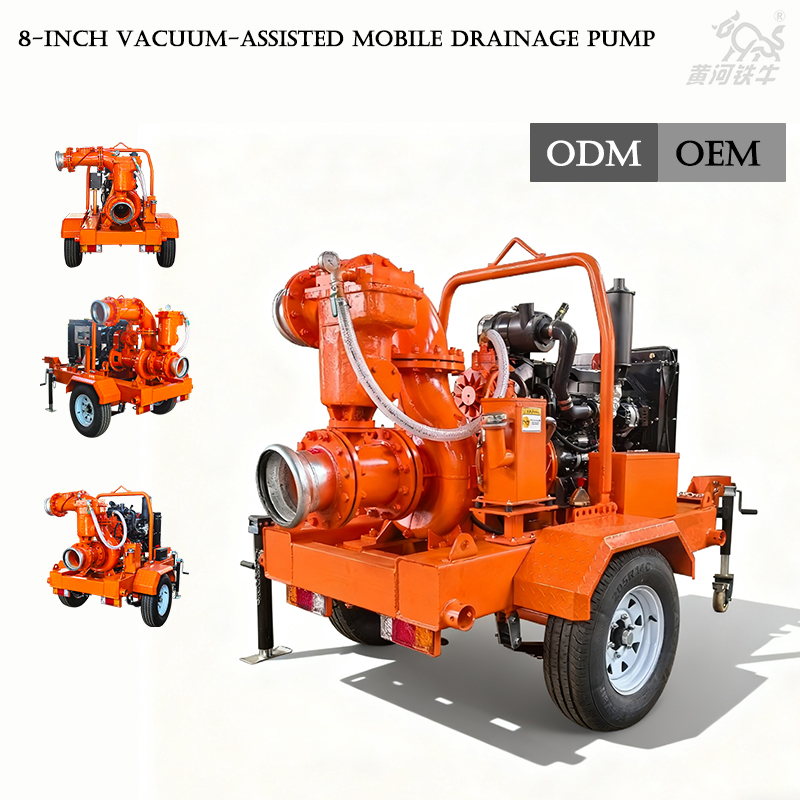

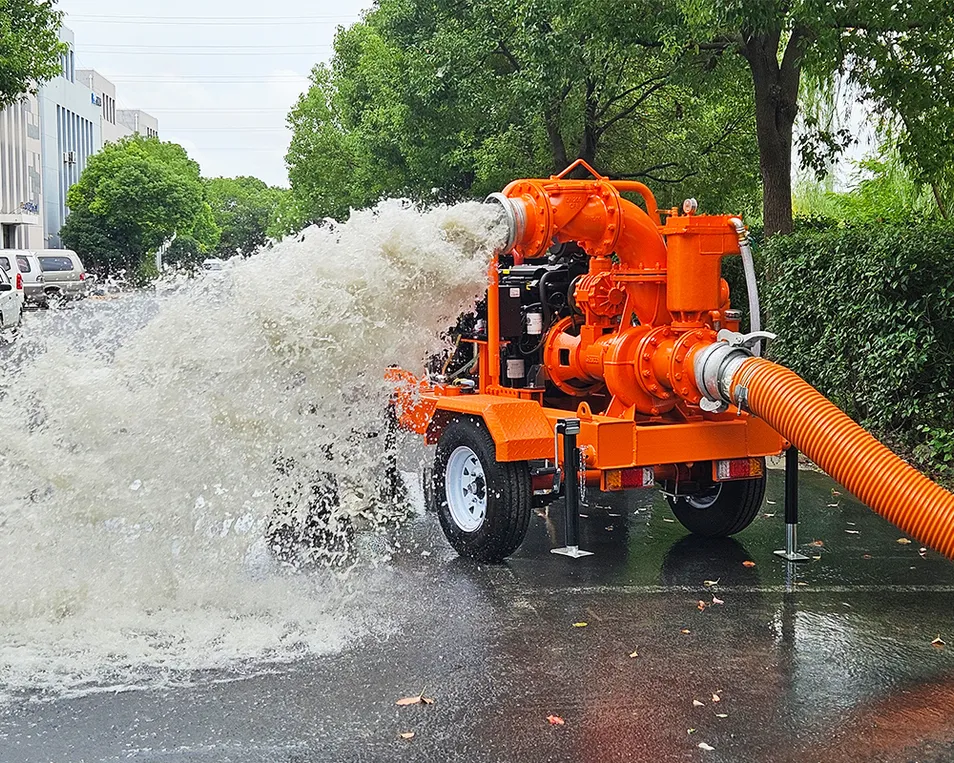

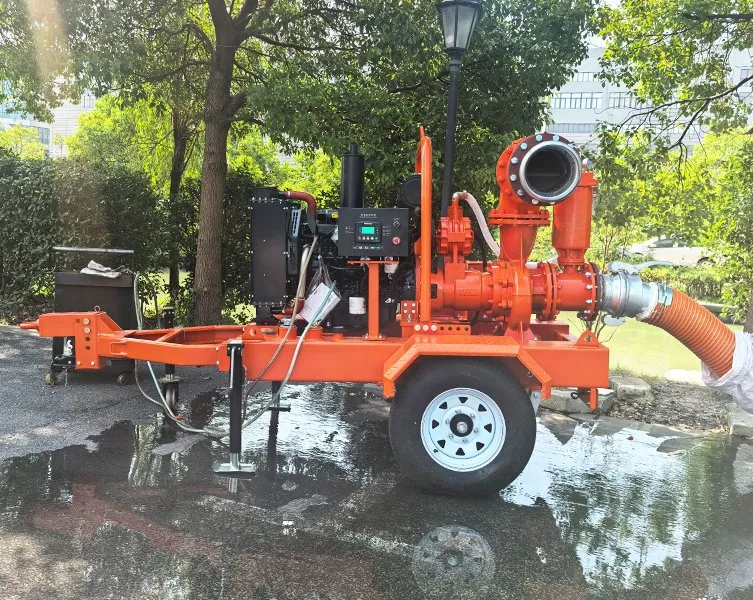

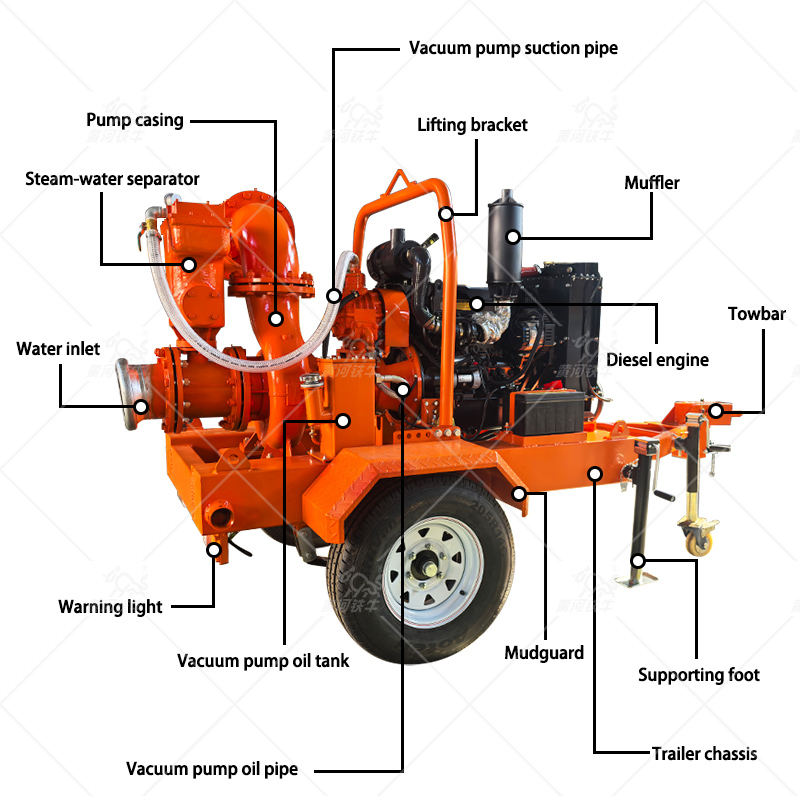

8 inch high vacuum diesel engine water pump: This trailer-mounted diesel engine pump truck is an efficient and portable emergency drainage device, featuring a compact design for easy towing and mobility, allowing single-person transportation and operation to significantly enhance flexibility.

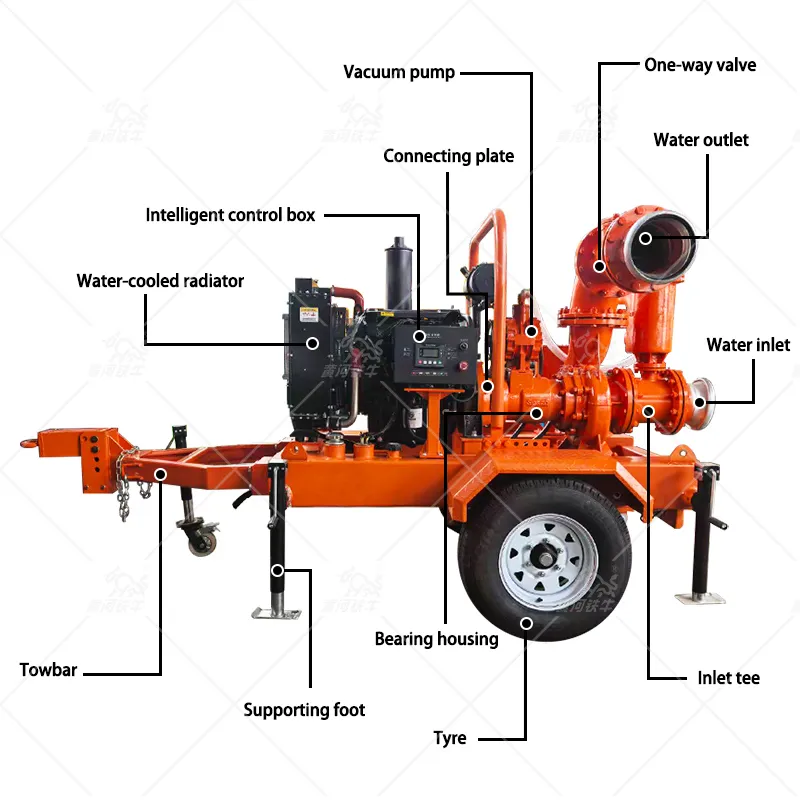

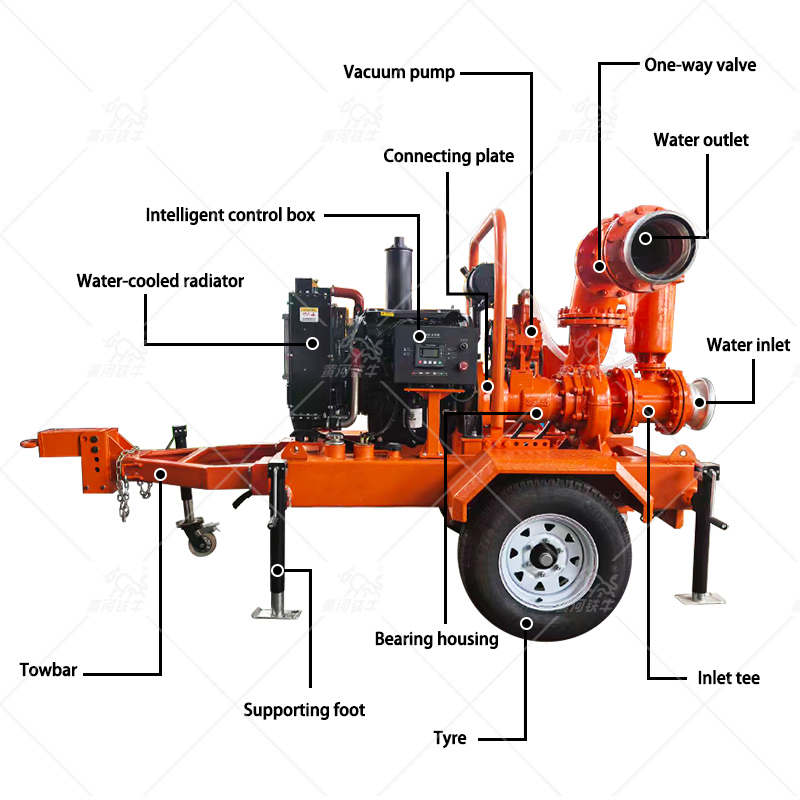

Our high vacuum system has patent certification. High-performance Oil-circulated Vacuum System with a maximum vacuum of -0.099MPa and 100 m³/h exhaust capacity. Built-in cooling system ensures stable operation without oil overheating. The air-water separator prevents water from entering the oil tank, maintaining efficiency.
| Machine Performance | |
| Type | Trailer mounted, stationery, closed, open type |
| Max Flow | 800 m3/h |
| Max Head | 45m |
| Suction Height | >8.5m |
| Diesel Engine Parameters | |
| Engine Power | >45kw |
| Speed | 1500~2000rpm |
| Cooling Method | Air cooled or water cooled |
| Pump Parameters | |
| Inlet / Outlet | 8 inch |
| Pump Case | Cast Iron |
| Impeller | Cast iron / Stainless steel |
| Max Particle Size | 76mm |
