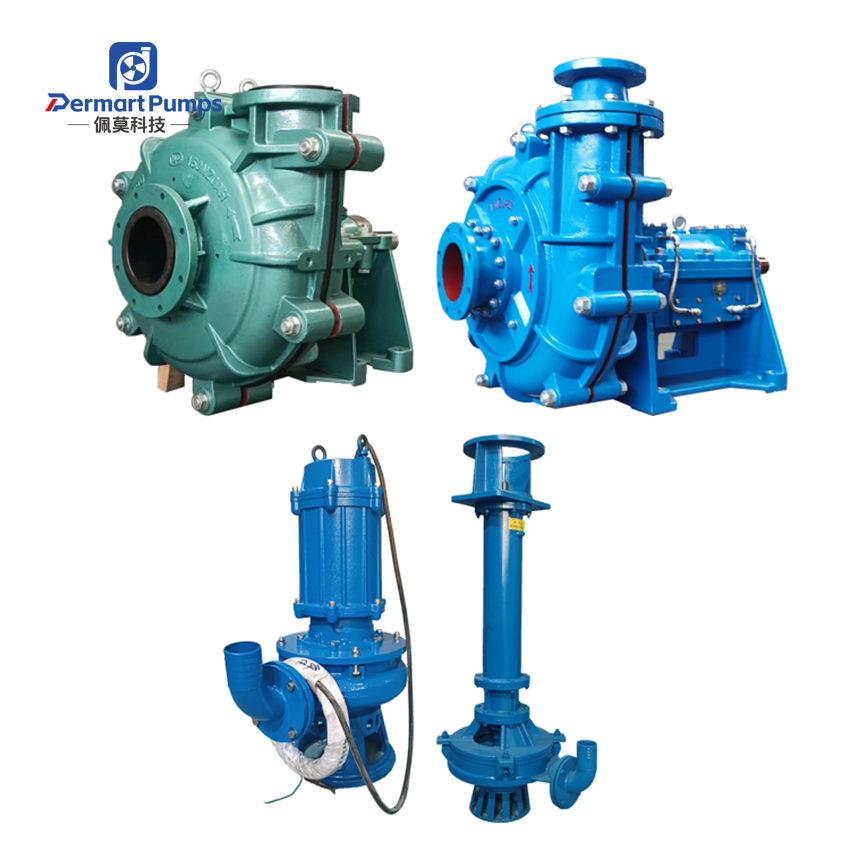

Centrifugal mining slurry pumps are widely used in the mining, electrical power, metallurgy, coal, and building materials industries for transporting abrasive or corrosive slurry containing solid particles. This category includes mud pumps, sand pumps, dredge pumps, and sludge pumps.

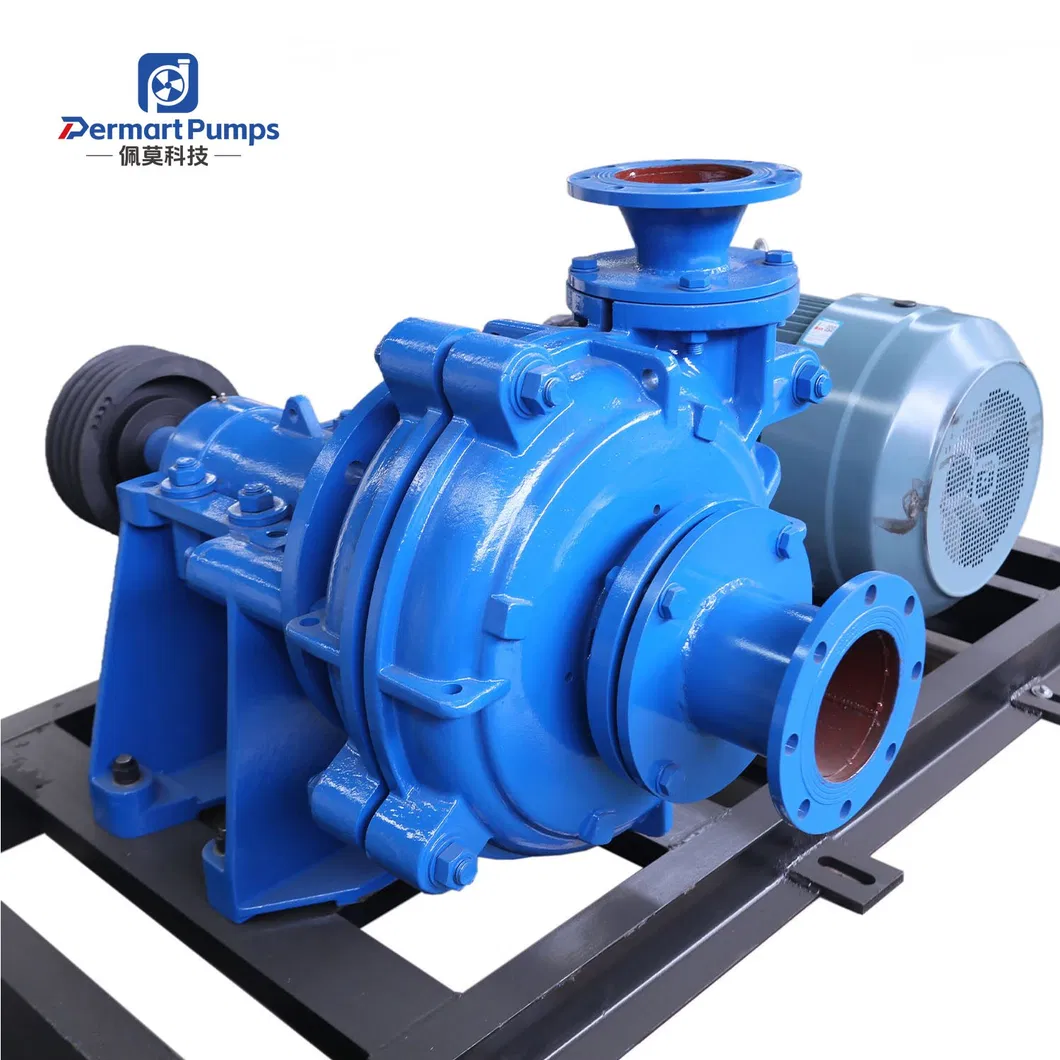

| Model | Power (kw) | Capacity (m³/h) | Head (m) | Speed (r/min) | Efficiency (%) | NPSH (m) |
|---|---|---|---|---|---|---|
| 1.5/1-AHH | 1.5-15 | 3.6-28.8 | 5-69 | 1200-3800 | 20-40 | 2-4 |
| 4/3-AHH | 5.5-60 | 28.8-198 | 5-53 | 800-2200 | 50-74 | 2-6 |
| 8/6-AHH | 11-560 | 126-1274.4 | 5-118 | 400-1140 | 50-72 | 2-10 |
| 14/12-AHH | 55-560 | 540-2772 | 13-63 | 300-600 | 60-79 | 2-13 |
| 20/18-AHH | 1200 | 2520-5400 | 13-57 | 200-400 | 85 | 5-10 |

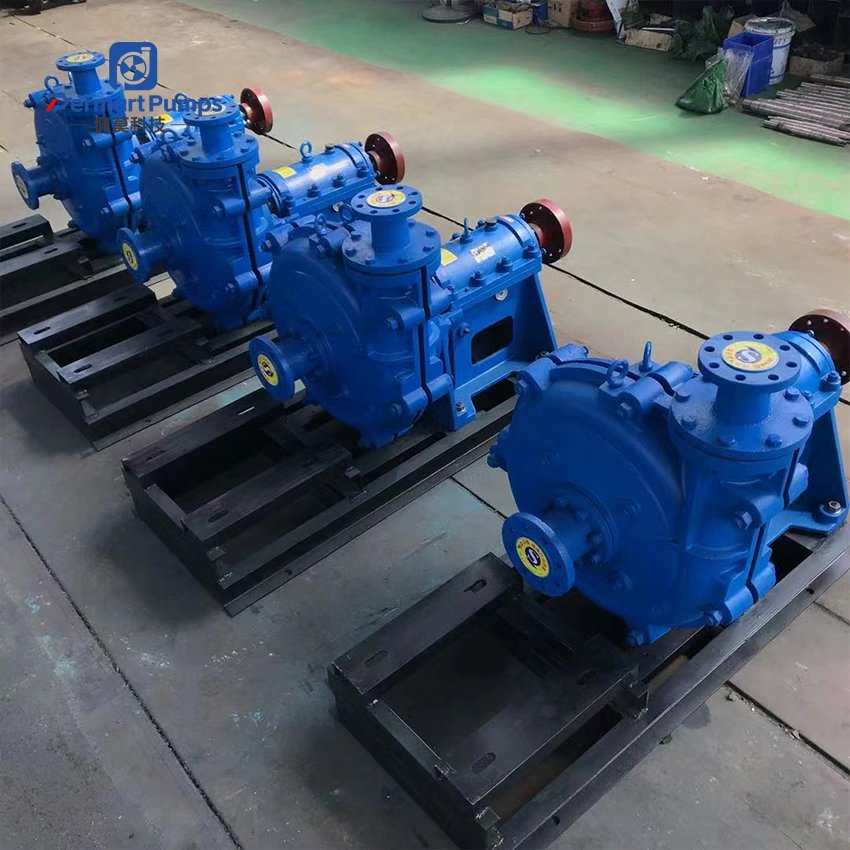

Features: Designed for strong abrasion and high concentration slurry. Features a replaceable wear-resistant high chromium alloy or rubber lining. The outlet position can be rotated at eight different angles at 45° intervals.

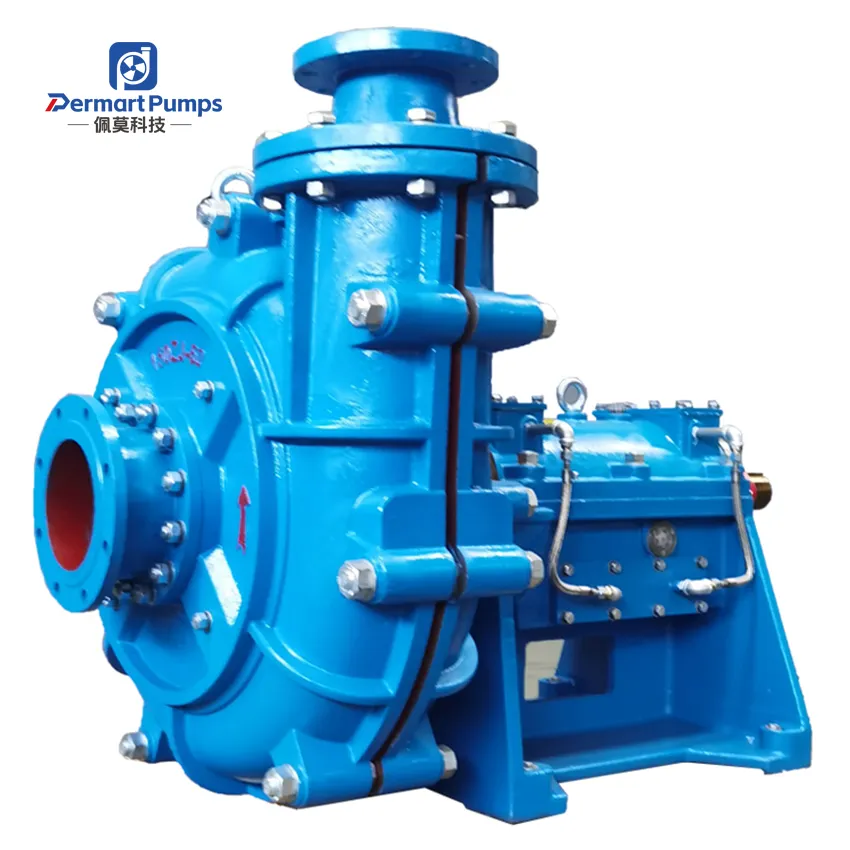

Features: High efficiency and energy conservation. The concentration of solid-liquid mixture handled is up to 45% for mortar and 60% for mineral slurry. Uses an inner and outer double-layer metal structure.

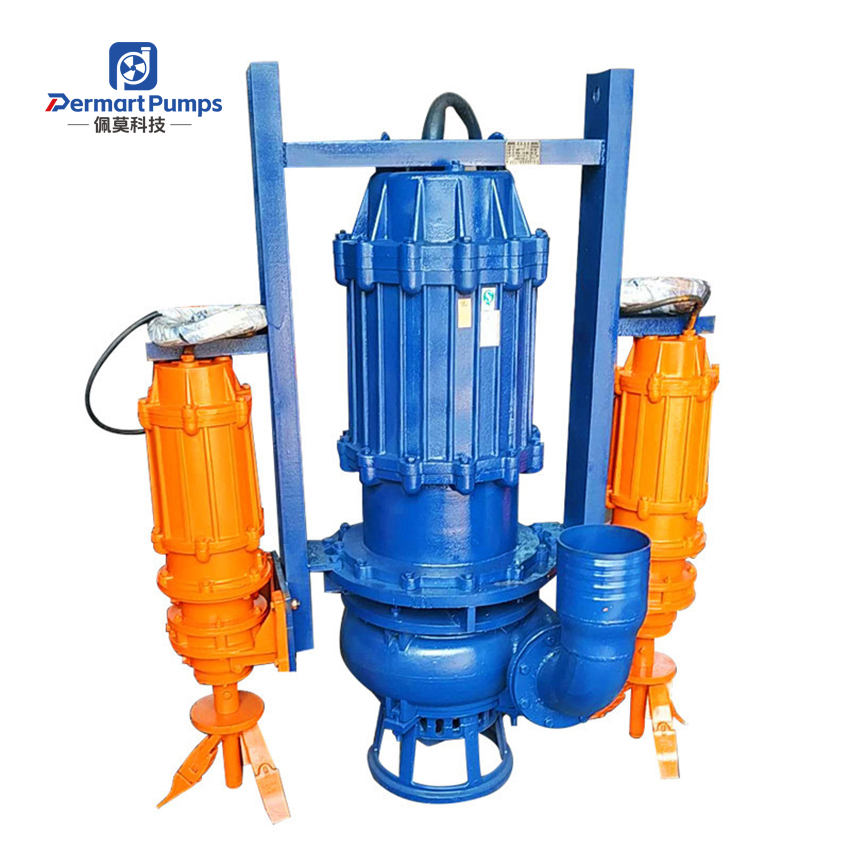

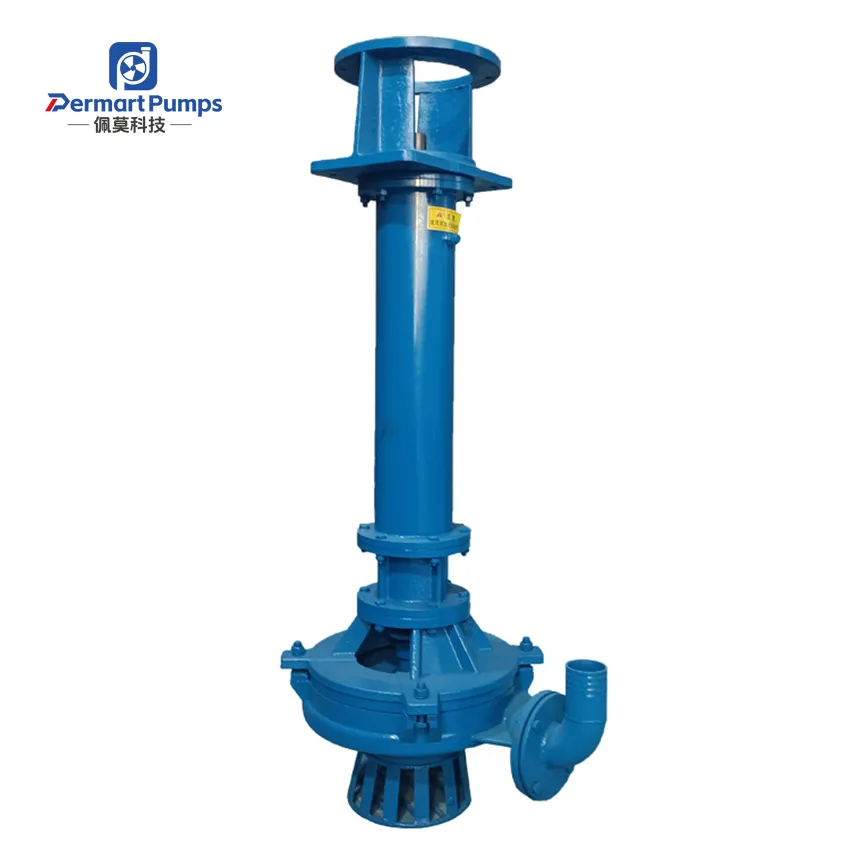

Features: Submerges underwater, eliminating the need for complex pump rooms. Includes a stirring impeller at the bottom to achieve high concentration transportation without auxiliary devices.

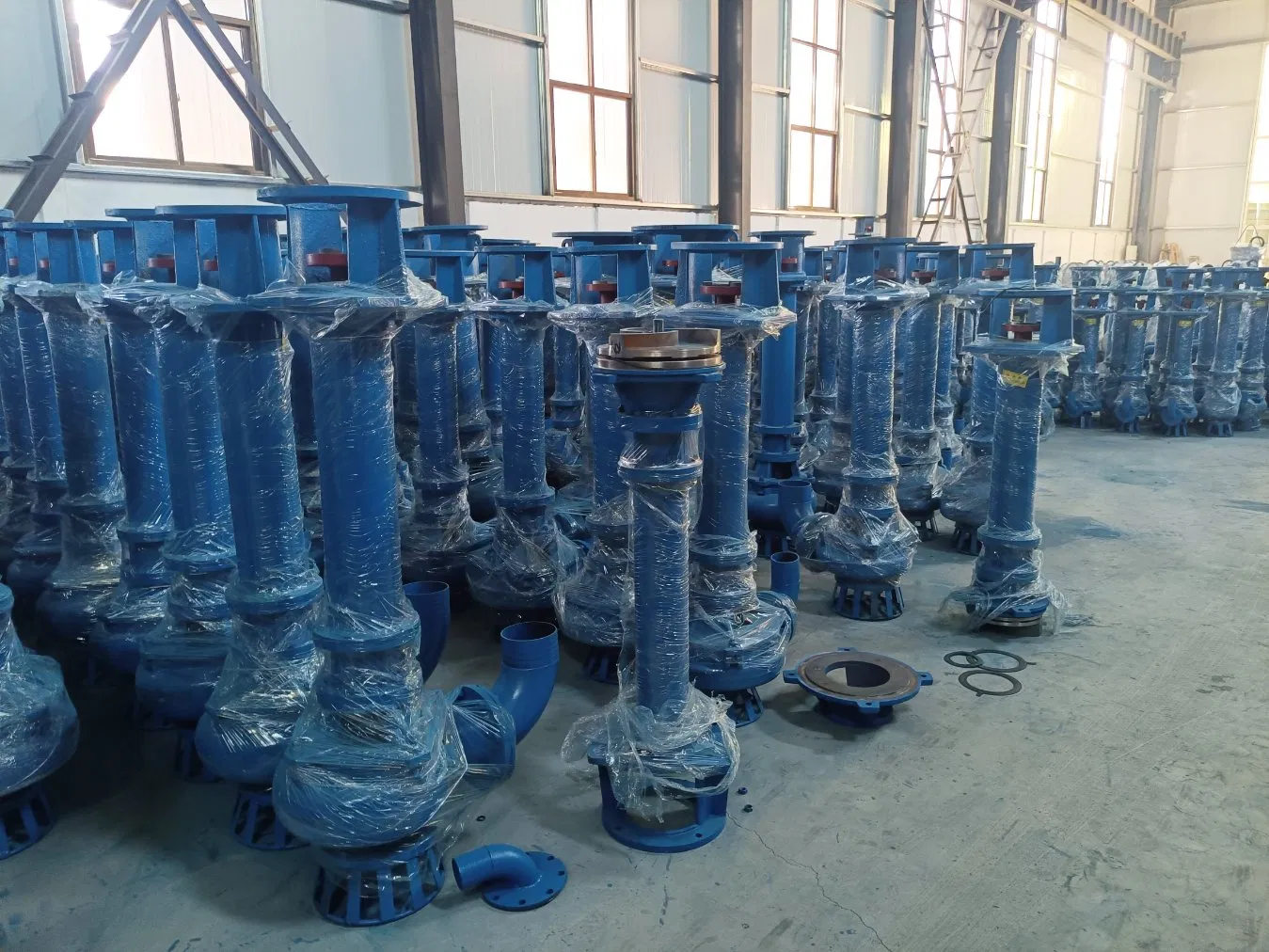

Features: Maintenance-free design with no bearings between the fixed plate and impeller. Ideal for media containing high concentrations of solid particles like sand and coal slag.
We provide professional packaging, boxing, and loading services. Supports various transportation methods including freight, air, sea, and express delivery to ensure products arrive safely at the destination.
| Standard | Certificate No. |
|---|---|

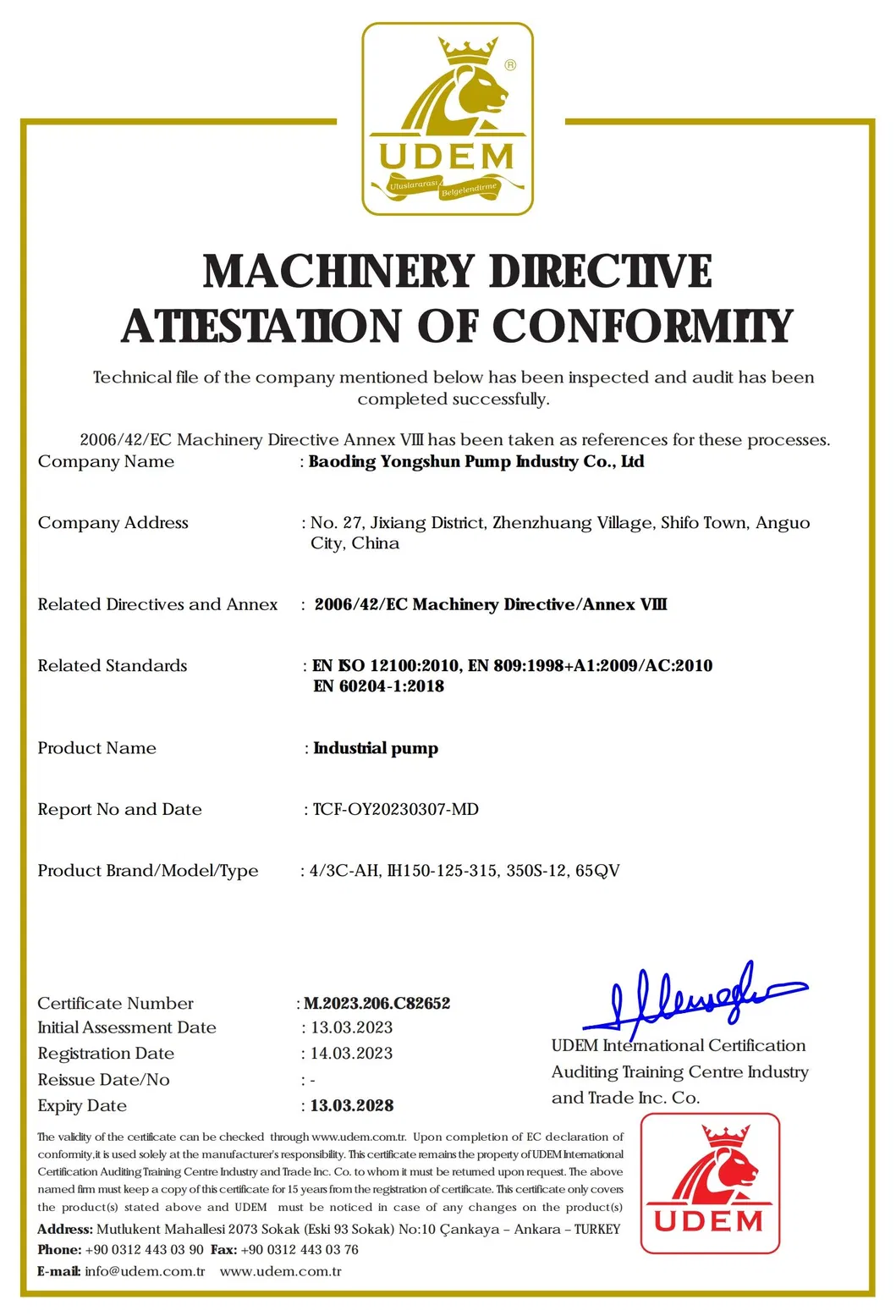

| 2006/42/EC (CE) | M.2023.206.C82652 |
| ISO9001 | 626018Q12046R6S |

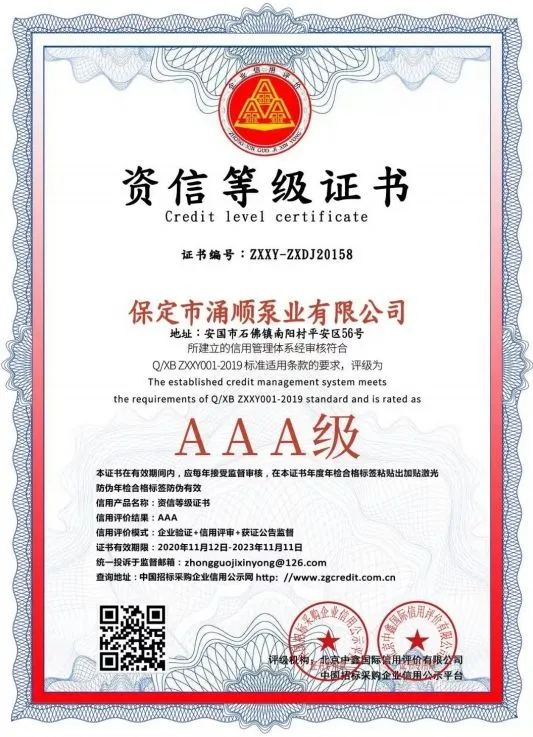

| Credit Level | ZXXY-ZXDJ20158 |
