Valve Body Type
Pump Head Nylon, Membrane EPDM / PTFE, Valve EPDM
Function
Electronic Type, Field Bus, Industrial Pressure and Vacuum Applications
Features
Oil-Free, Compact Size, Corrosion-resistant
Lifetime
3000 - 15000 hours
Motor
DC Brush, Brushless, Coreless Brushless
Working Way
Continuous or Intermittent Work

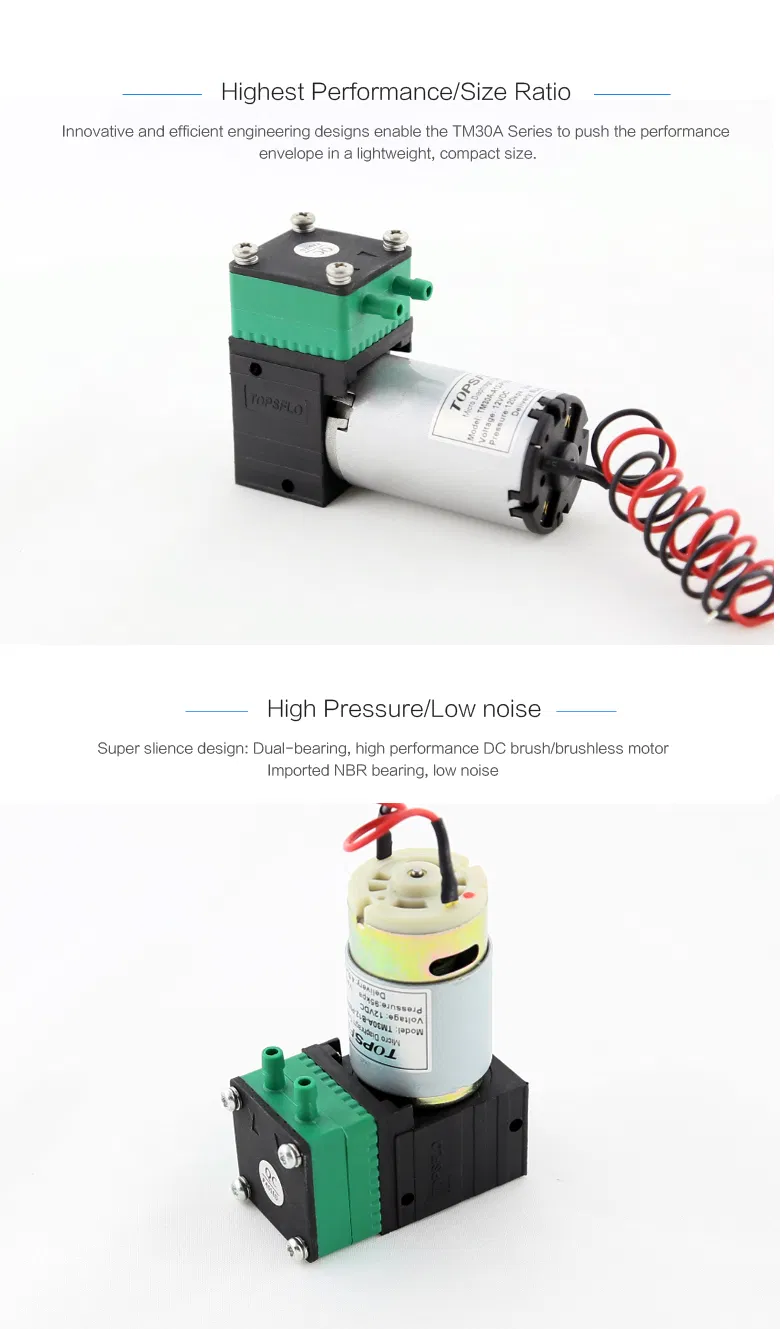

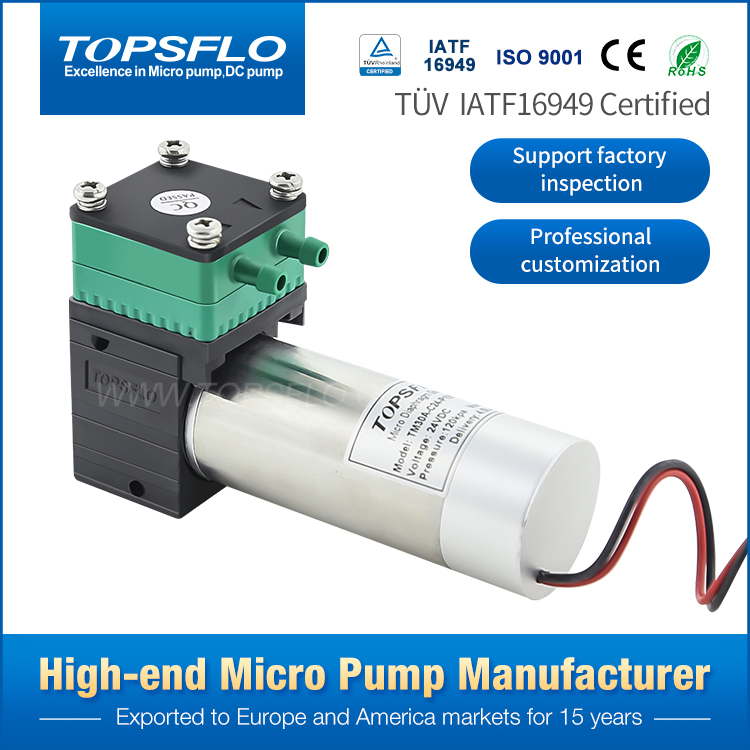

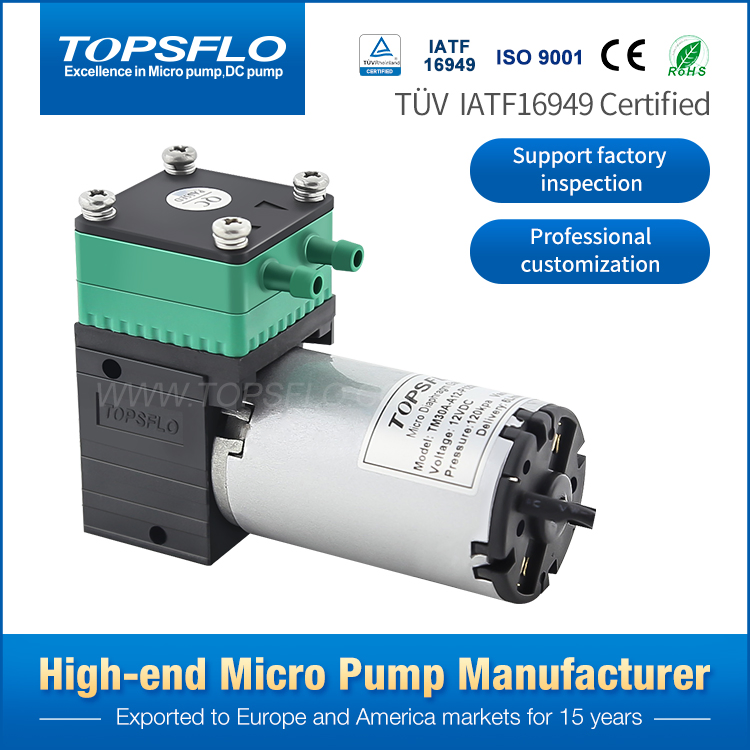

High Performance Micro Vacuum Pump

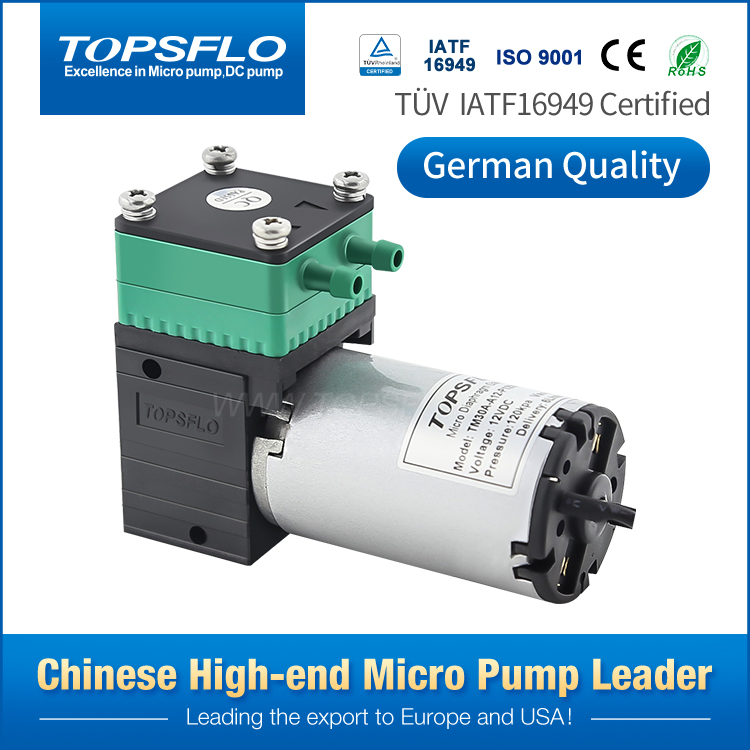

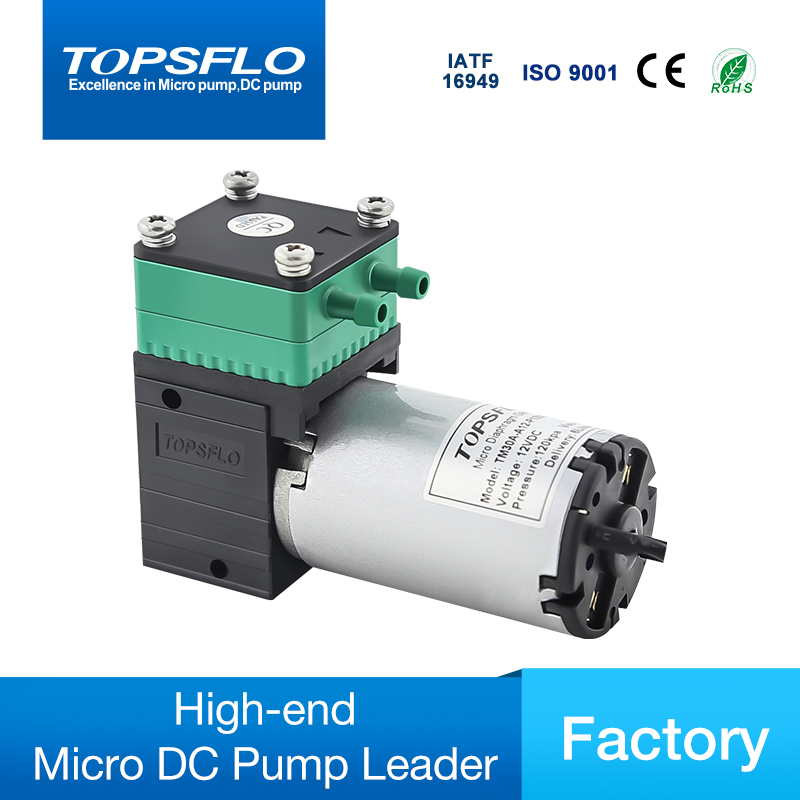

High performance DC Diaphragm Pressure Vacuum Pump and Mini Compressor Air Pump designed for industrial and medical applications.
- 16000M2 Modern Factory: ESD anti-static control dust-free workshop.
- Precision Technology: 100+ sets of professional imported equipment.
- Quality Standards: Laboratories meet national accreditation standards.
- Certified Excellence: Passed CE, ROHS, REACH, WRAS, and Food Grade certifications.
- Strong R&D: More than 50 patents in the micro pump industry.

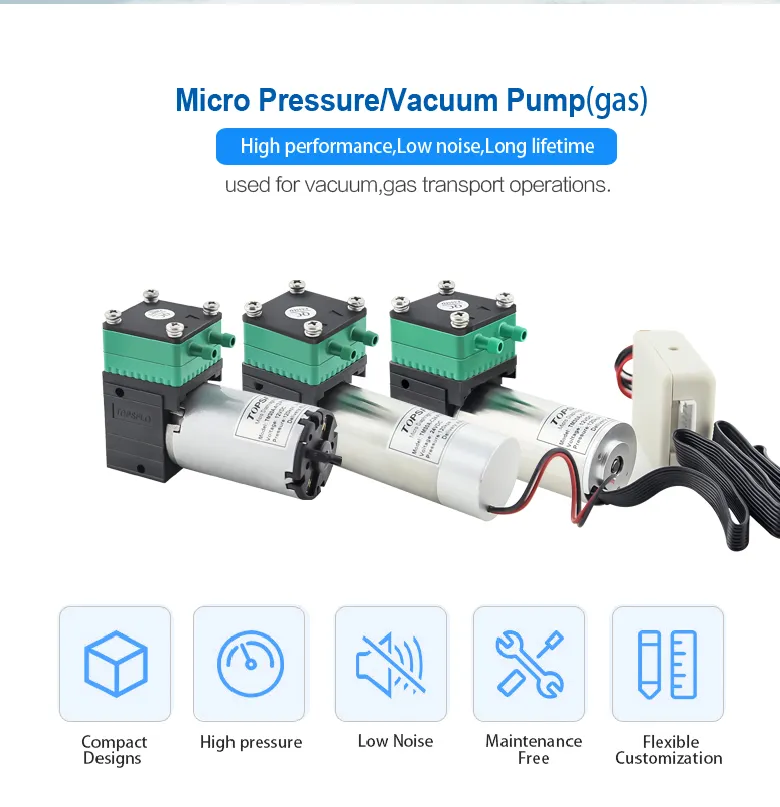

Drive Motor Options
A - Premium Duty Brush DC Motor: Lifetime 3,000 hours, superior endurance compared to standard DC pumps.
B - Economical Brush DC Motor: Lifetime: 1,500 hours.
C - Coreless Brushless DC Motor: Integrated electronics, vibration and spark-free operation, extremely durable with a 15,000-hour lifetime.

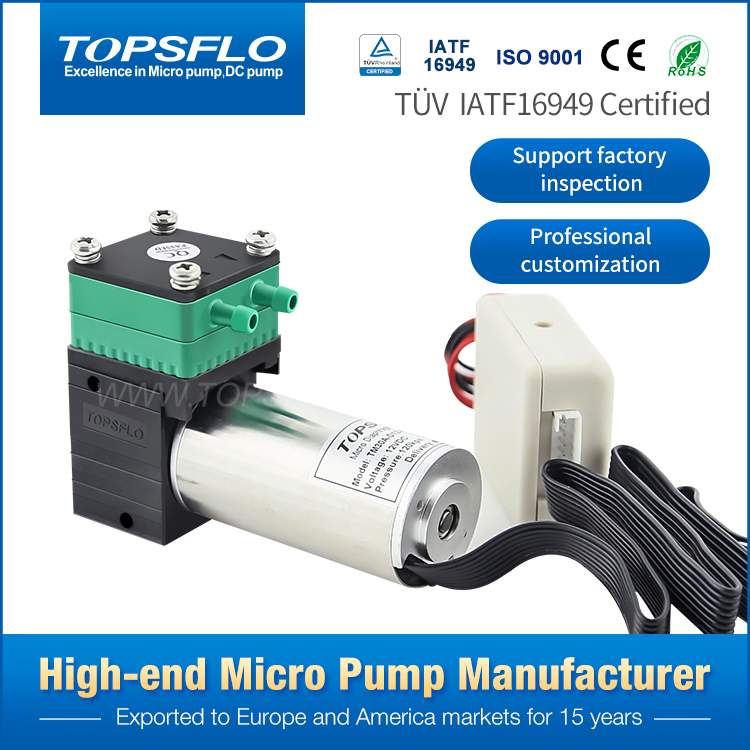

D - Coreless Brushless DC Motor with Outer Controller: Supports PWM or 0-5V speed adjustment, brake, and instant starting.
H - Brushless DC Motor: Long lifetime of 10,000 hours.
Product Specifications
| Model |
TM30A-A |
TM30A-B |
TM30A-C |
TM30A-D |
| Motor Type |
High Performance Brush |
Brush Motor |
Brushless Motor |
Brushless Motor |
| Rated Life |
3000h |
1000h |
15000h |
15000h |
| Gas Flow |
6L/min |
4.5L/min |
4.5L/min |
4L/min |
| Rated Voltage |
12V |
6/12/24V |
6/12/24V |
6/12/24V |
| Max Pressure |
120kpa |
| Max Vacuum |
-70kpa |
| Materials |
Nylon/EPDM |
Nylon, EPDM/PTFE, EPDM/FPM |
Key Advantages
- High pneumatic performance with compact size.
- Uncontaminated flow via oil-free operation.

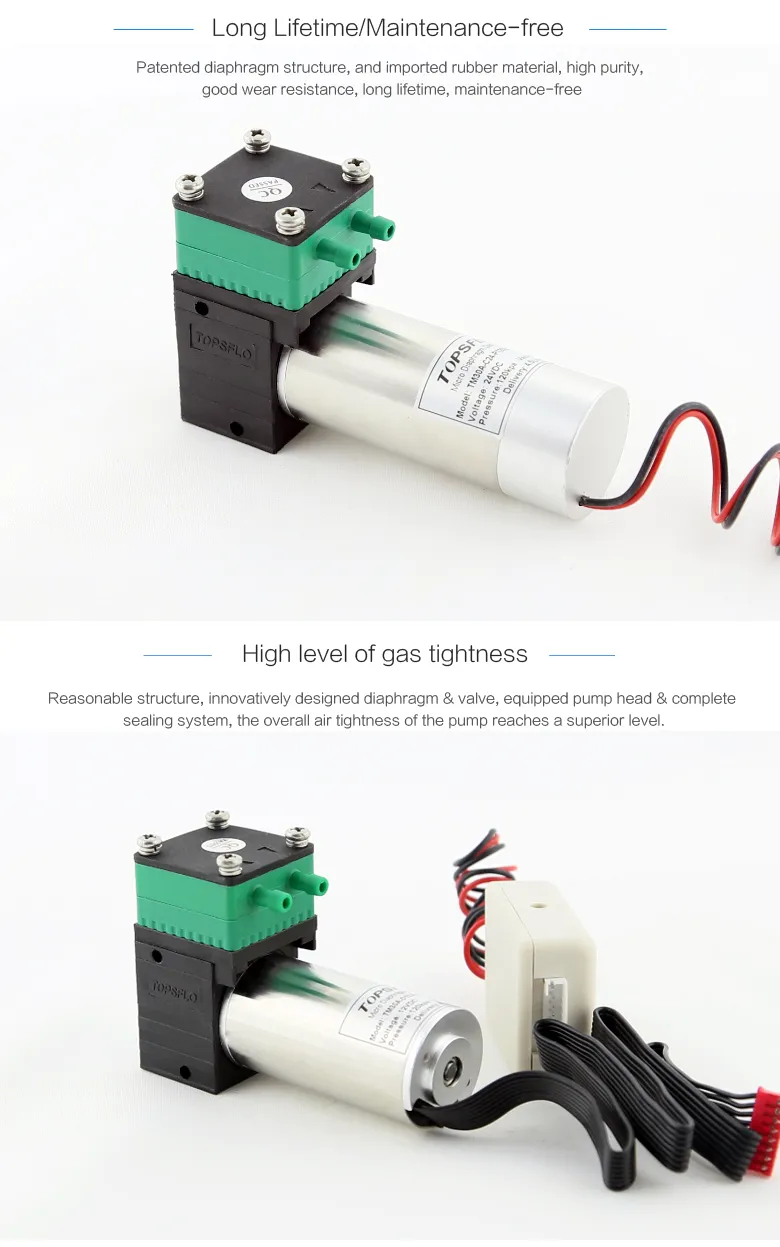

- Maintenance-free and long product life.
- Low sound level and power consumption.
- Flexible installation - can operate in any orientation.
Typical Applications
The versatility of these pumps covers a wide field of applications:
- Industrial pressure and vacuum applications
- Portable Analytical Instruments
- Medical Equipment
- Air Quality Sampling Monitors
- Respiration Monitors
- Gas or Odor Leak Detectors

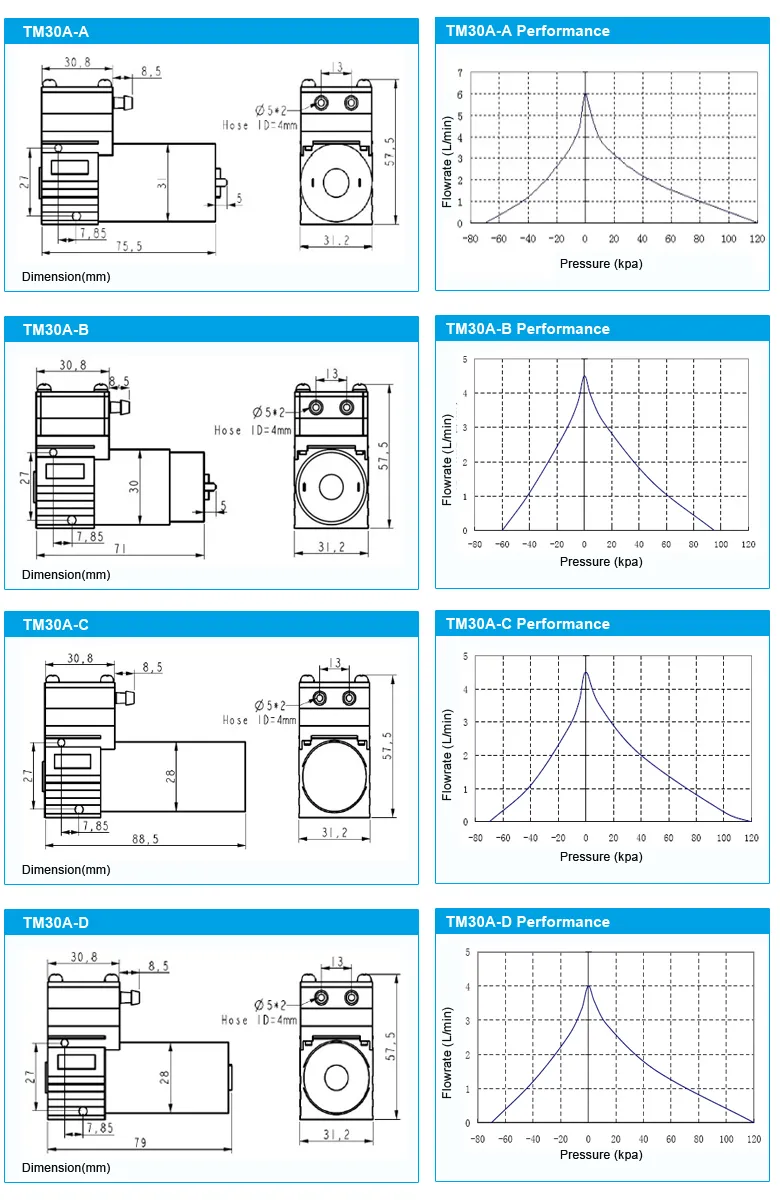

Performance Curve
Frequently Asked Questions (FAQ)
1. What is the maximum lifetime of these micro pumps?
Depending on the motor type selected, the lifetime ranges from 1,000 hours for economical brush motors to 15,000 hours for premium coreless brushless DC motors.
2. Are the pumps resistant to corrosive gases?
Yes, we offer optional wetted materials such as PTFE for membranes and FPM for valves, which are suitable for corrosive media like acid, alkali air, and ozone.
3. Can the pump be mounted in any position?
Yes, the compact design and diaphragm technology allow the pump to operate efficiently in any orientation.
4. Is the air flow contaminated by oil?
No, these pumps feature an oil-free design, ensuring an uncontaminated flow of media, which is essential for analytical and medical equipment.
5. Do these pumps require regular maintenance?
These micro diaphragm pumps are designed to be maintenance-free throughout their operational life.
6. What control functions are available for the brushless models?
Models with outer controllers support PWM or 0-5V speed adjustment, braking functions, and instant-start capabilities.
