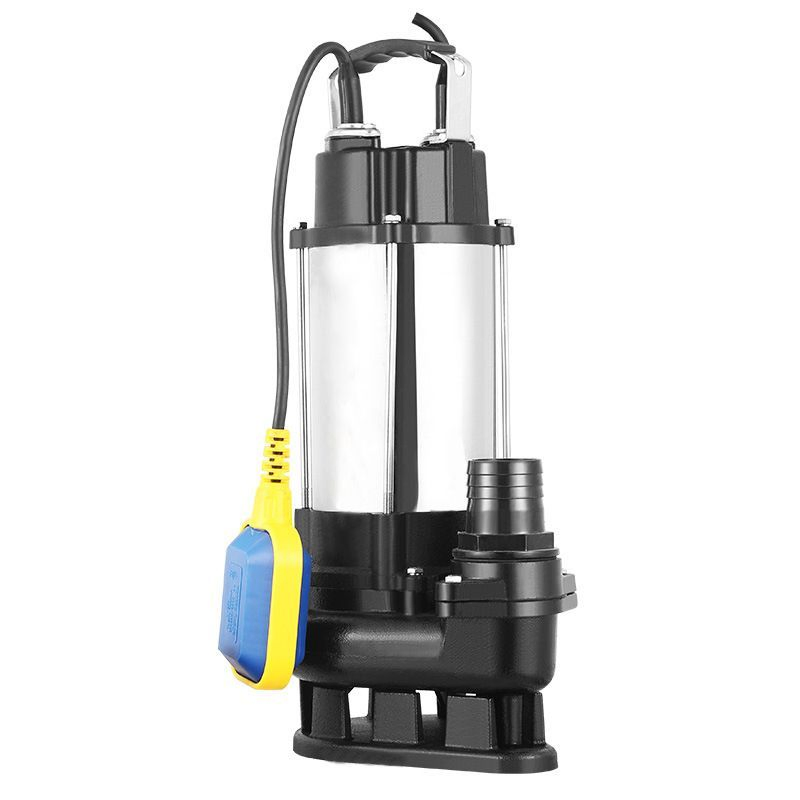

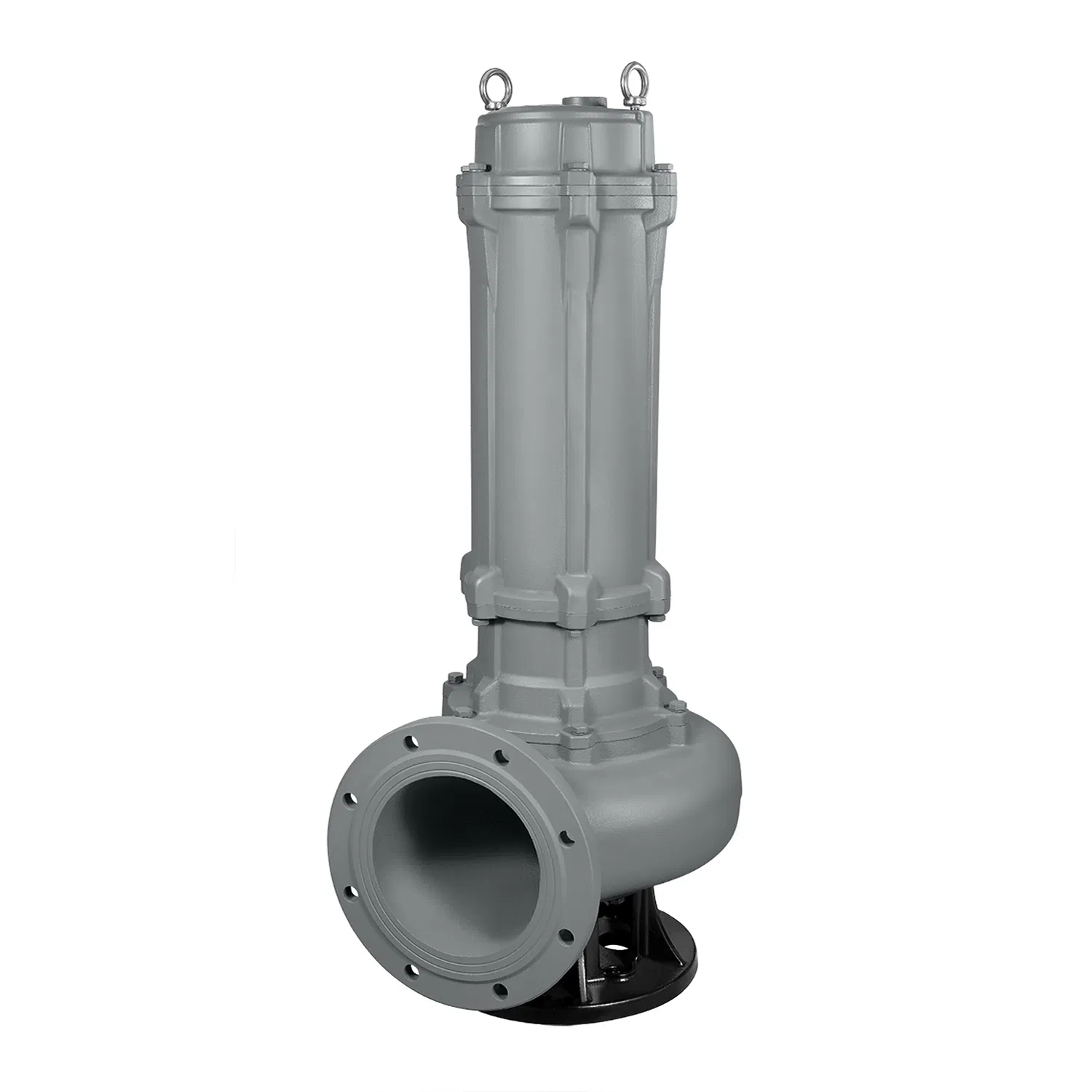

Big Flow High Head 304 Irrigation Wqd Series Single Phase Durable Submersible Pump with Stainless Steel Construction for Home Clean Dirty Sewage Water Pump

Customization:	Available
Max.Head:	<10m
Max.Capacity:	50-100 L/min

i

Basic Information

Model NO.

WQDS3-7-0.25

Driving Type

Motor

Material

Cast Iron

Structure

Single-stage Pump

Assembly

Electric Water Pump

Power

Electric

Start Up

Electric Pump

Type

Blade Pump

Application

Submersible Pump, Sewage Pump

Industry

Mechanical Pump

Media

Submersible Pump

Performance

Automatic Pump

Theory

Electromagnetic Pump

Color

OEM

Voltage

220 V

Frequency

50Hz /60Hz

Outlet

1.2"

Impeller

Iron

Cable

8 M

Transport Package

1 PCS/ Ctns

Specification

carton box /honey box packing

Production Capacity

50000PCS/Year

!

Product Description

Application

For water supply from wells or reservoirs
For domestic use, civil and industrial applications
For garden use and irrigation

Product Introduction

These submersible pumps consist of a water pump, seals, and a single-phase or three-phase asynchronous submersible motor. The pump offers advantages such as small size, light weight, easy removal, convenient installation, high efficiency, and energy-saving reliability.

Component Construction

Pump body: Cast Iron
Motor housing: Stainless Steel
Impeller: Cast Iron
Motor shaft: Carbon steel (304ss if request)
Mechanical seal: Ceramic / Graphite
Cable: 8m cable with plug

Operating Conditions

Liquid Temperature up to 60 ºC
Ambient Temperature up to 40 ºC
5m maximum immersion depth

Motor Specifications

Single Phase 220V /50Hz, 110V /60Hz if request
Insulation Class B
Protection: IP68
With Thermal Protector
Continuous Work S1

P

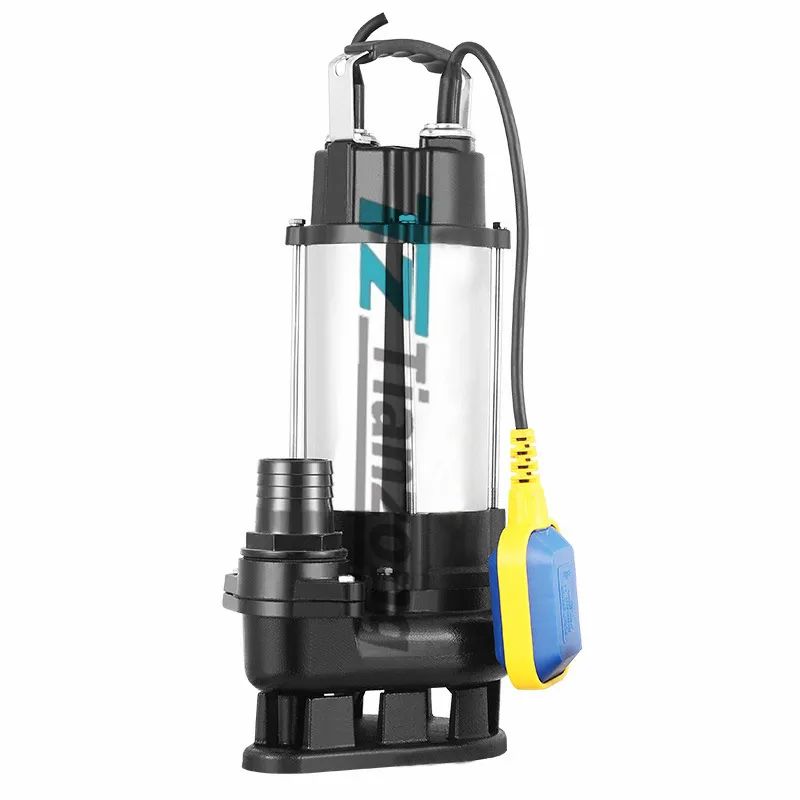

Detailed Photos

S

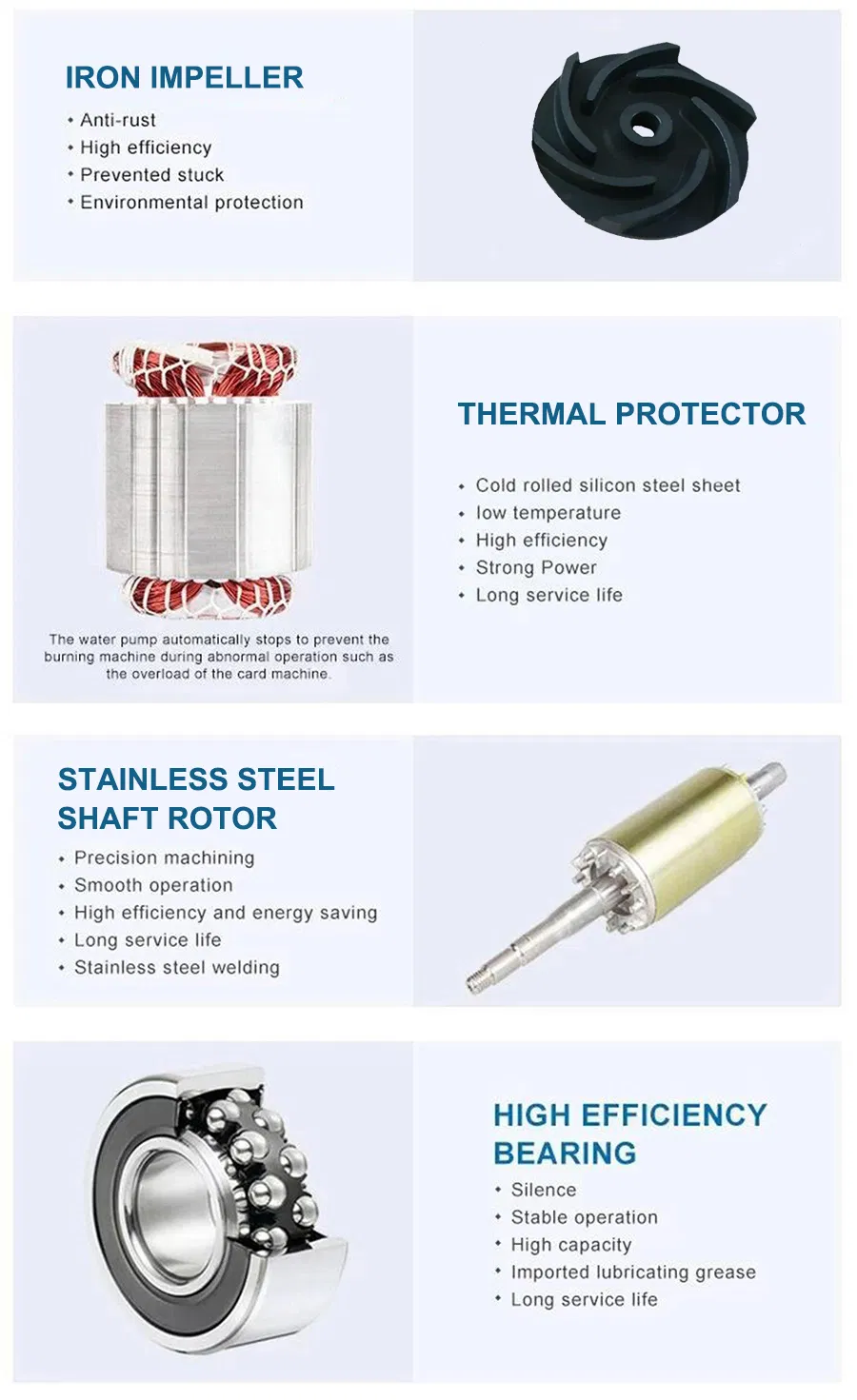

Spare Parts

T

Product Parameters

NO	Model	Power		Outlet (inch)	Max. Flow (m³/h)	Max. Head (m)
NO	Model	Kw	Hp	Outlet (inch)	Max. Flow (m³/h)	Max. Head (m)
1	WQDS3-7-0.25	0.25	0.34	1.2"	3	7
2	WQDS5-7-0.37	0.37	0.5	1.2"	5	7
3	WQDS7-7-0.55	0.55	0.75	2"	7	7
4	WQDS7-10-0.75	0.75	1	2"	7	10
5	WQDS9-15-1.1	1.1	1.5	2"	9	15
6	WQDS10-15-1.5	1.5	2	2"	10	15
7	WQDS26-10-2.2	2.2	3	3"	26	10

C

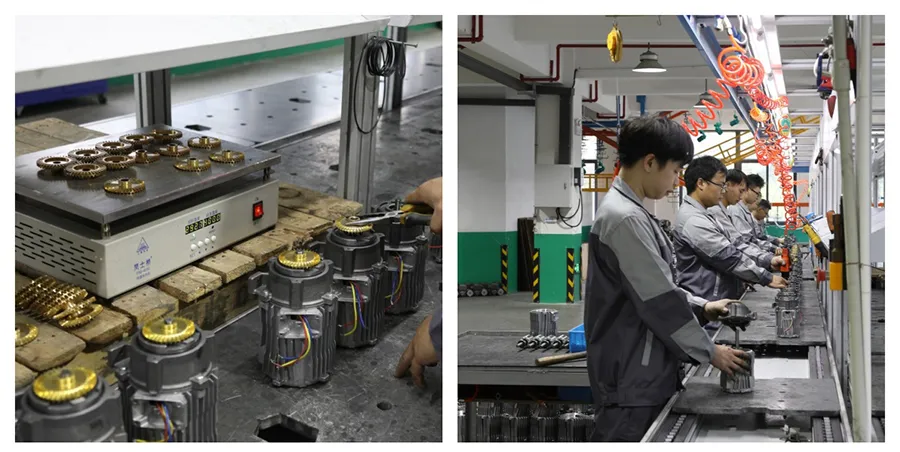

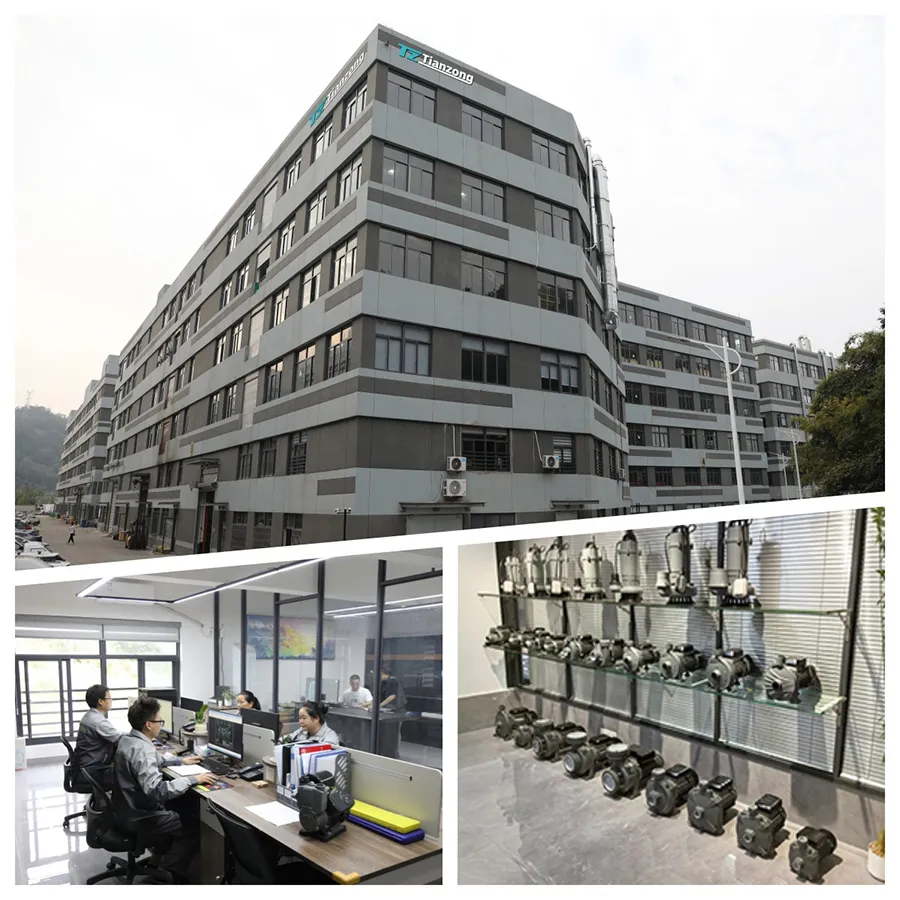

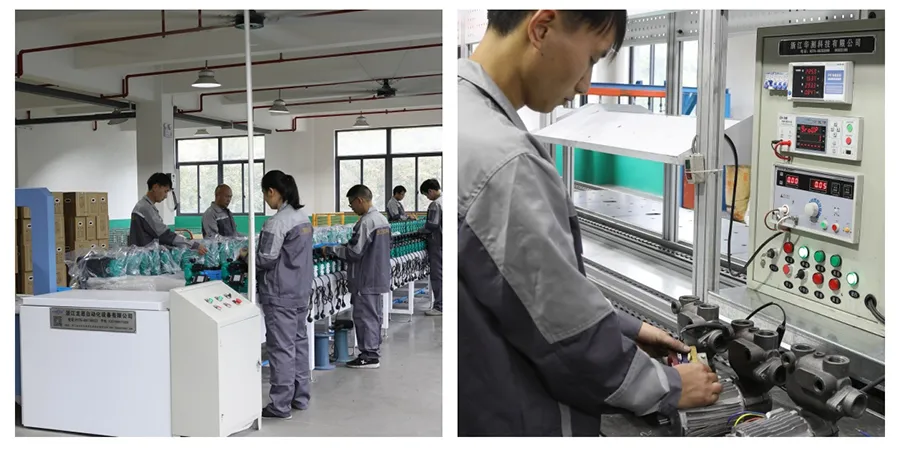

Company Profile & Advantages

L

Packaging & Shipping

?

Frequently Asked Questions

Q1. Are you a factory? A. Yes, we are a professional manufacturer.

Q2. Is OEM and ODM service available? A. Of course. We have many years of experience in providing OEM & ODM services.

Q3. How about your warranty? A. We offer a 1-year product life guarantee and a generous 1-year warranty on all purchases starting from the bill of lading date.

Q4. Can you provide competitive pricing if I buy from another supplier? A. We always strive to provide the best service and competitive prices. We would be happy to personalize a competitive quote for your requirements.

Q5. What's the minimum order quantity (MOQ) for this product? A. Our minimum order quantity is one full 20ft container. For first-time cooperation, customers can place a trial order to check the quality.

Q6. How do I get more details about trial orders? A. Please consult our customer service team for specific details regarding trial order procedures.
