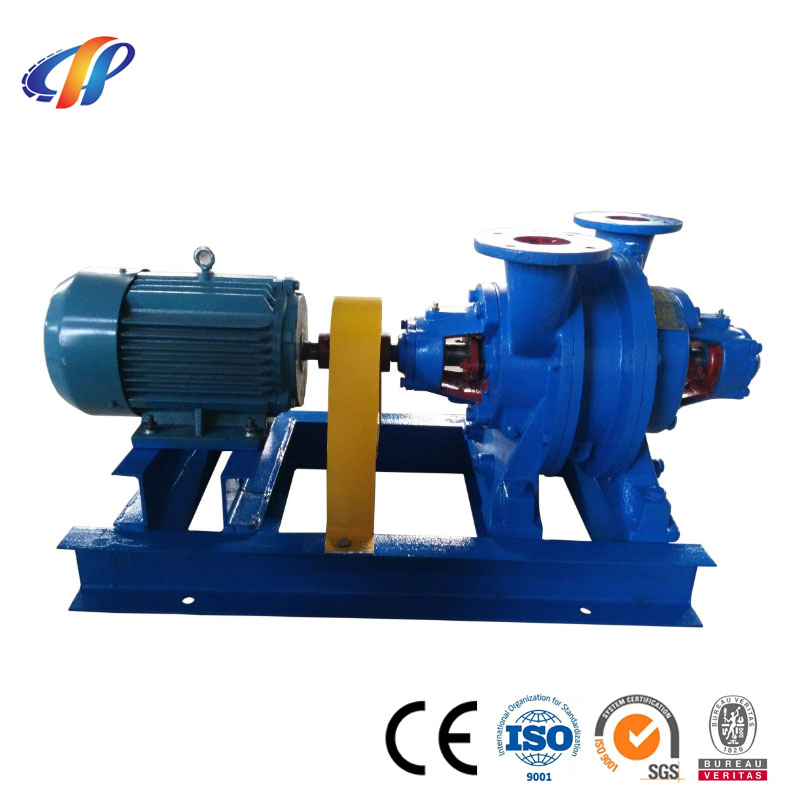

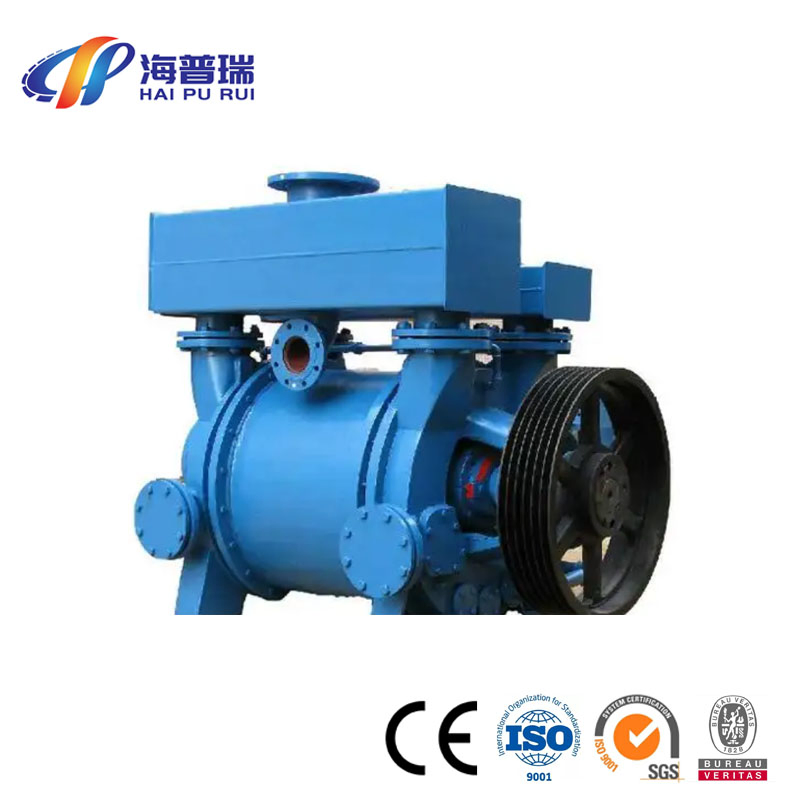

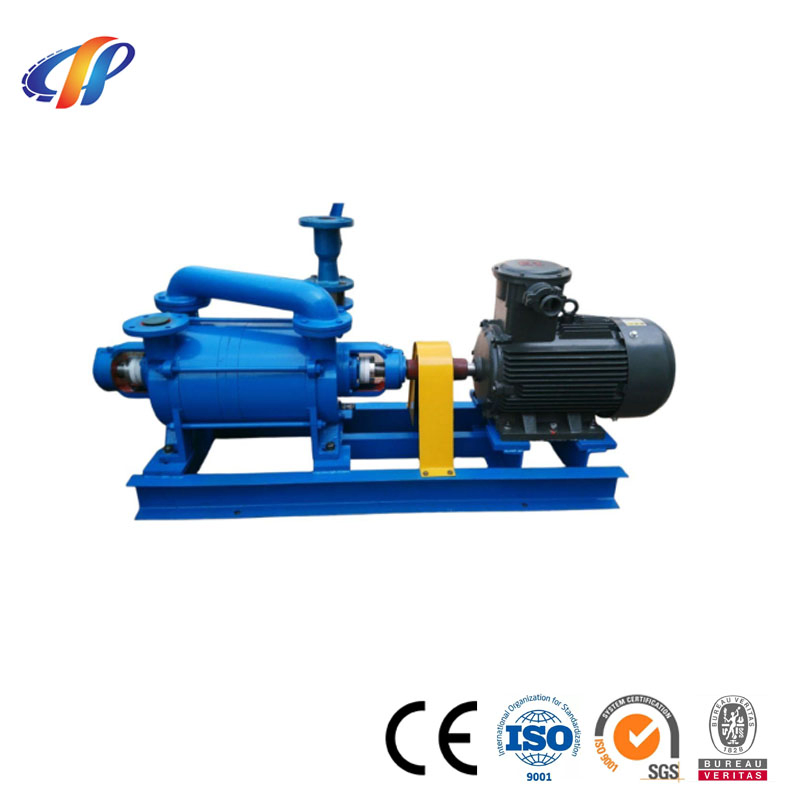

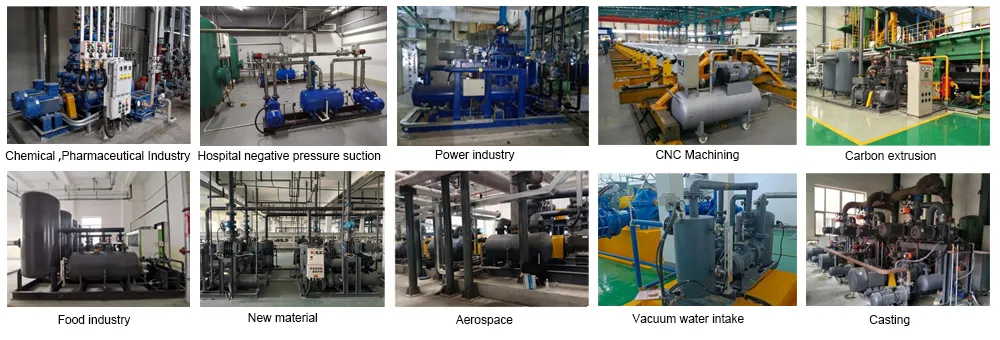

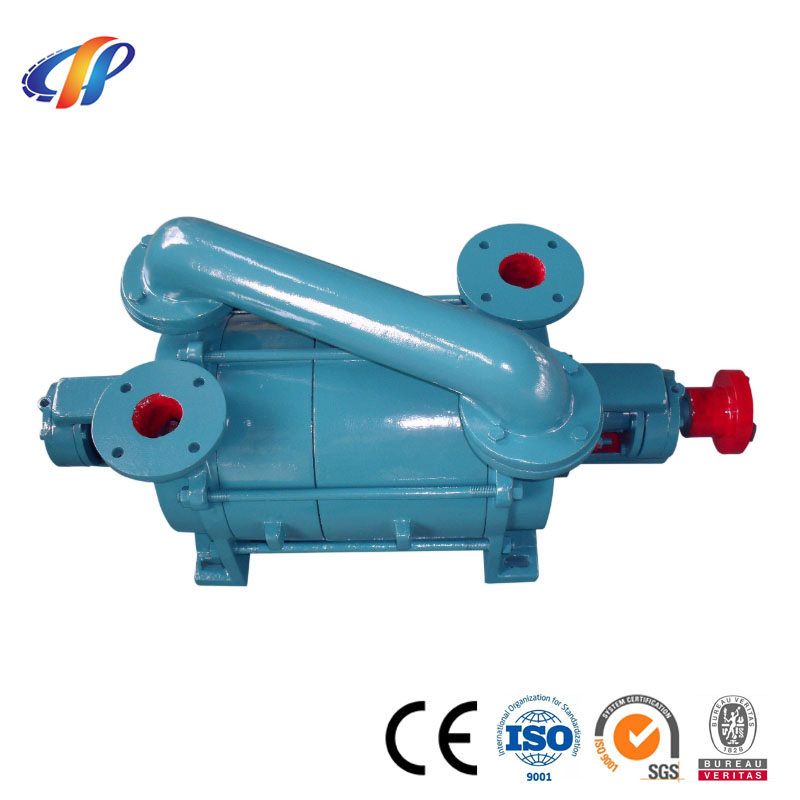

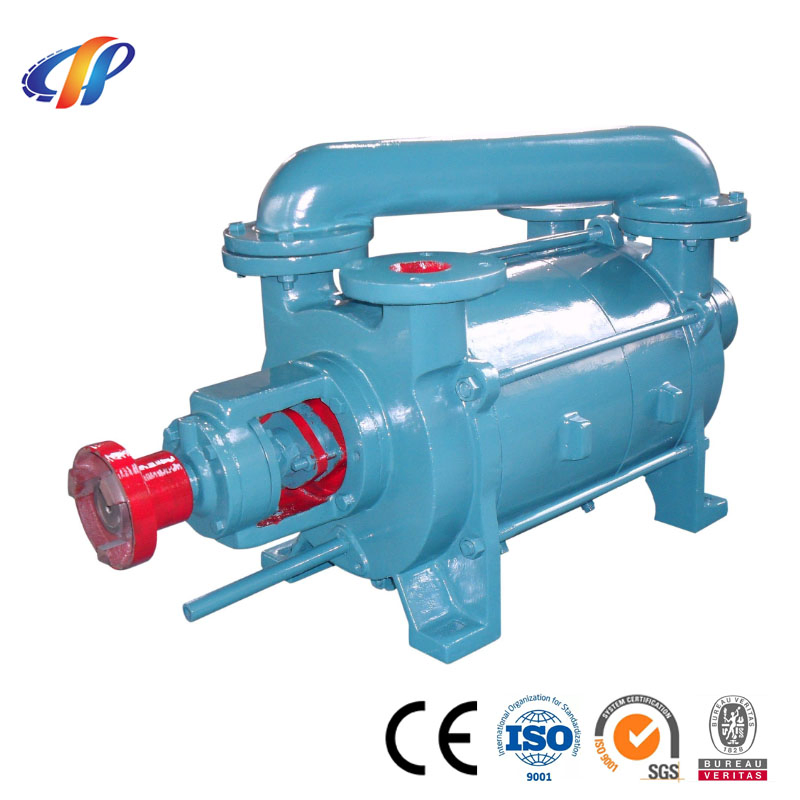

The 2SK series water ring vacuum pump is engineered to extract air or gases that are insoluble in water and free of solid particles. This high-performance equipment is ideal for demanding industries including textiles, food processing, metallurgy, and chemical engineering.
Key Applications: Vacuum evaporation, concentration, moisture regain, drying, and smelting processes. Due to its two-stage compression, it maintains exceptional pumping capacity at high vacuum levels (-0.085 to -0.095 MPa).
Extraction volume: 1.5~30m³/min | Power: 4KW~75KW
| Model | Extreme Pressure (hPa) | Max Gas Capacity (m³/min) | Speed (r/min) | Motor Power (Kw) | Suction/Exhaust Dia (mm) | Pump Weight (Kg) | |
|---|---|---|---|---|---|---|---|
| Vacuum Pump | Compressor | ||||||
| SK-1.5 | -0.094 | 1.5 | 1440 | 4 | 4 | 70 | 200 |
| SK-3A | -0.094 | 3 | 1440 | 5.5 | 7.5 | 70 | 320 |
| SK-6A | -0.094 | 6 | 1440 | 11 | 15 | 80 | 460 |
| SK-12A | -0.094 | 12 | 970 | 18.5 | 30 | 80 | 750 |
| SK-30A | -0.094 | 30 | 740 | 55 | 75 | 150 | 2300 |

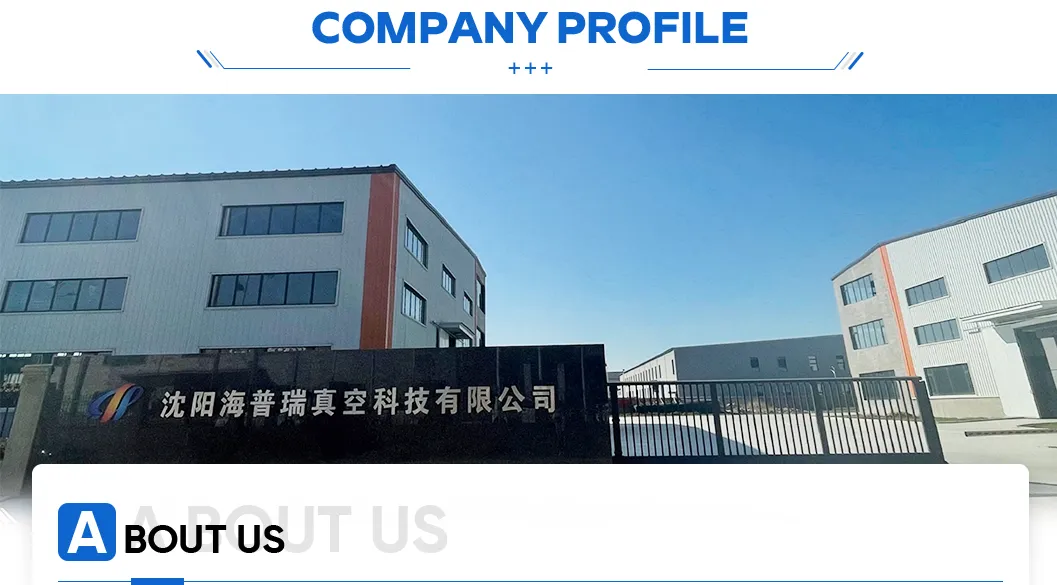

The enterprise is a high-tech entity dedicated to research, design, and manufacturing of professional vacuum equipment. With ISO9001 certification and numerous patents, the focus remains on providing optimized solutions for complex industrial applications.
