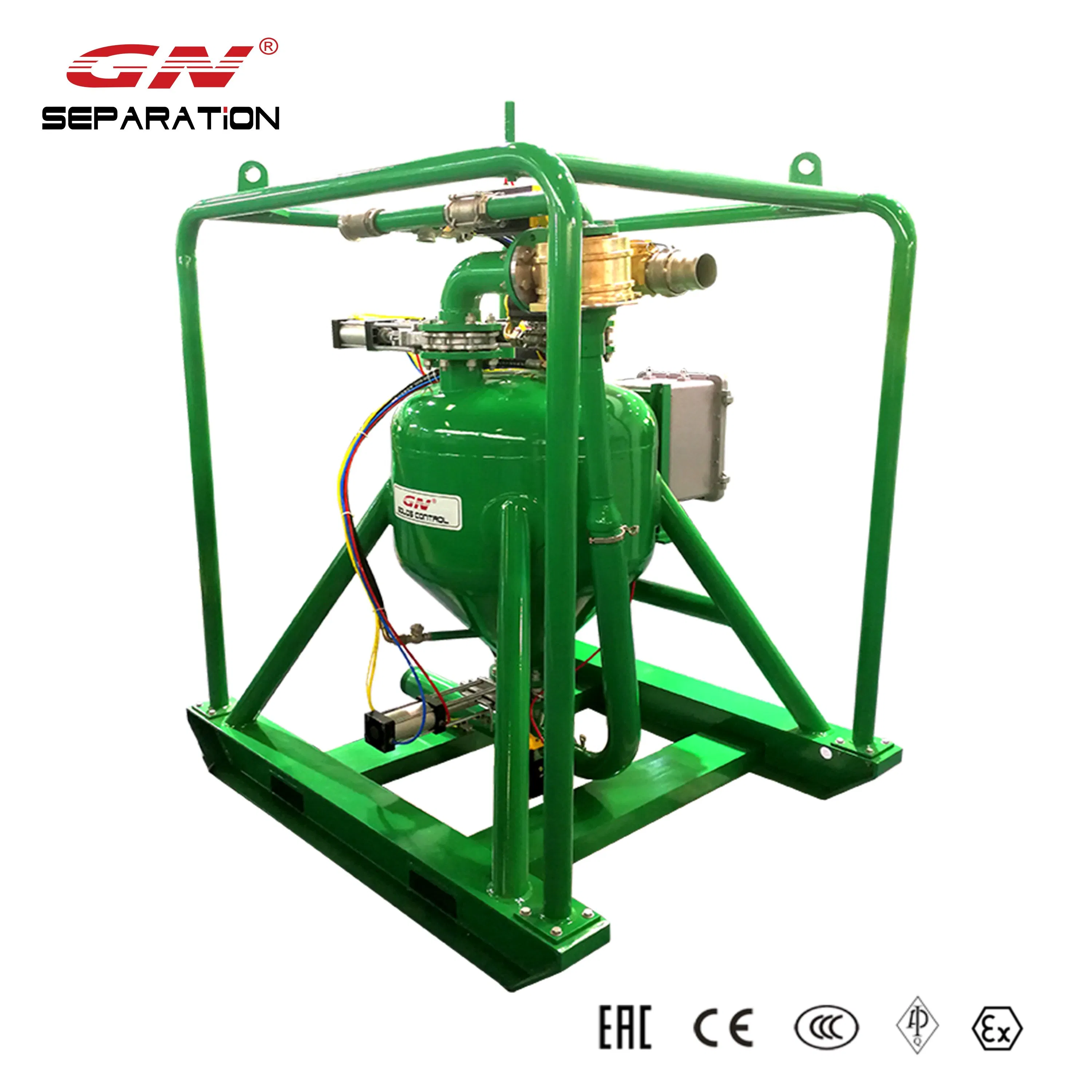

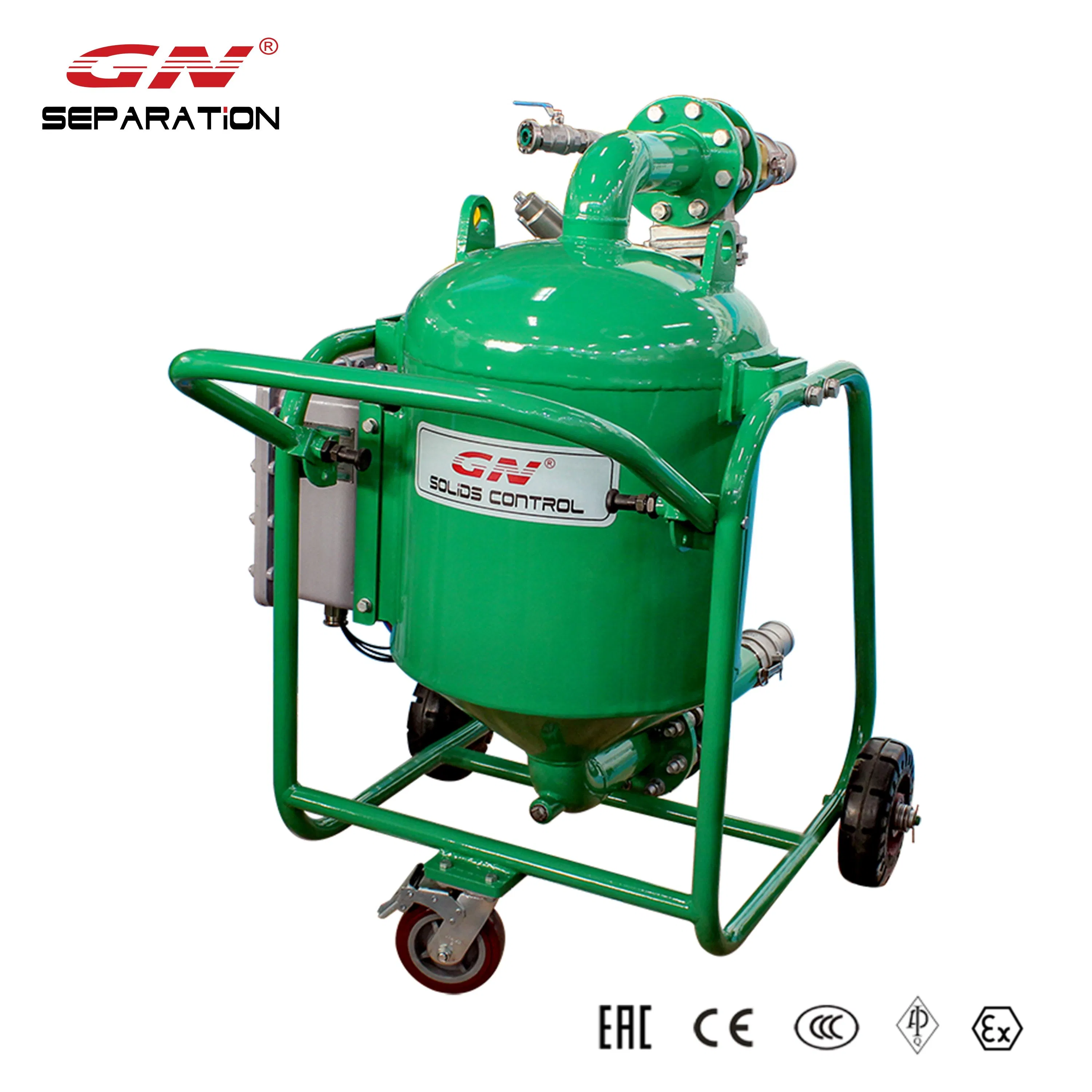

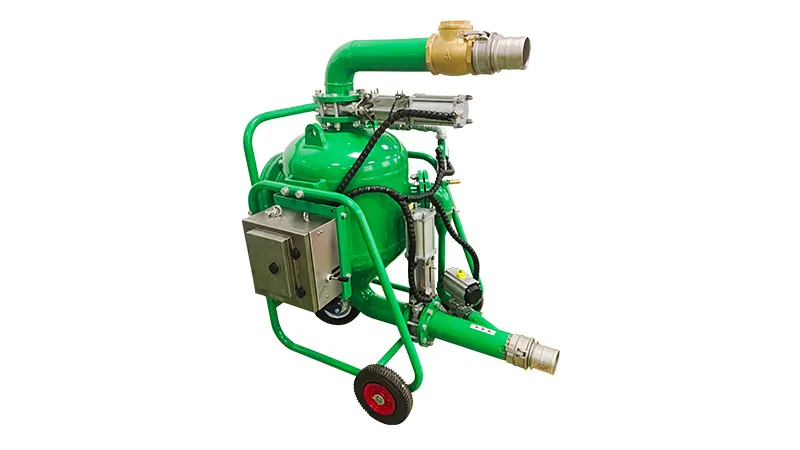

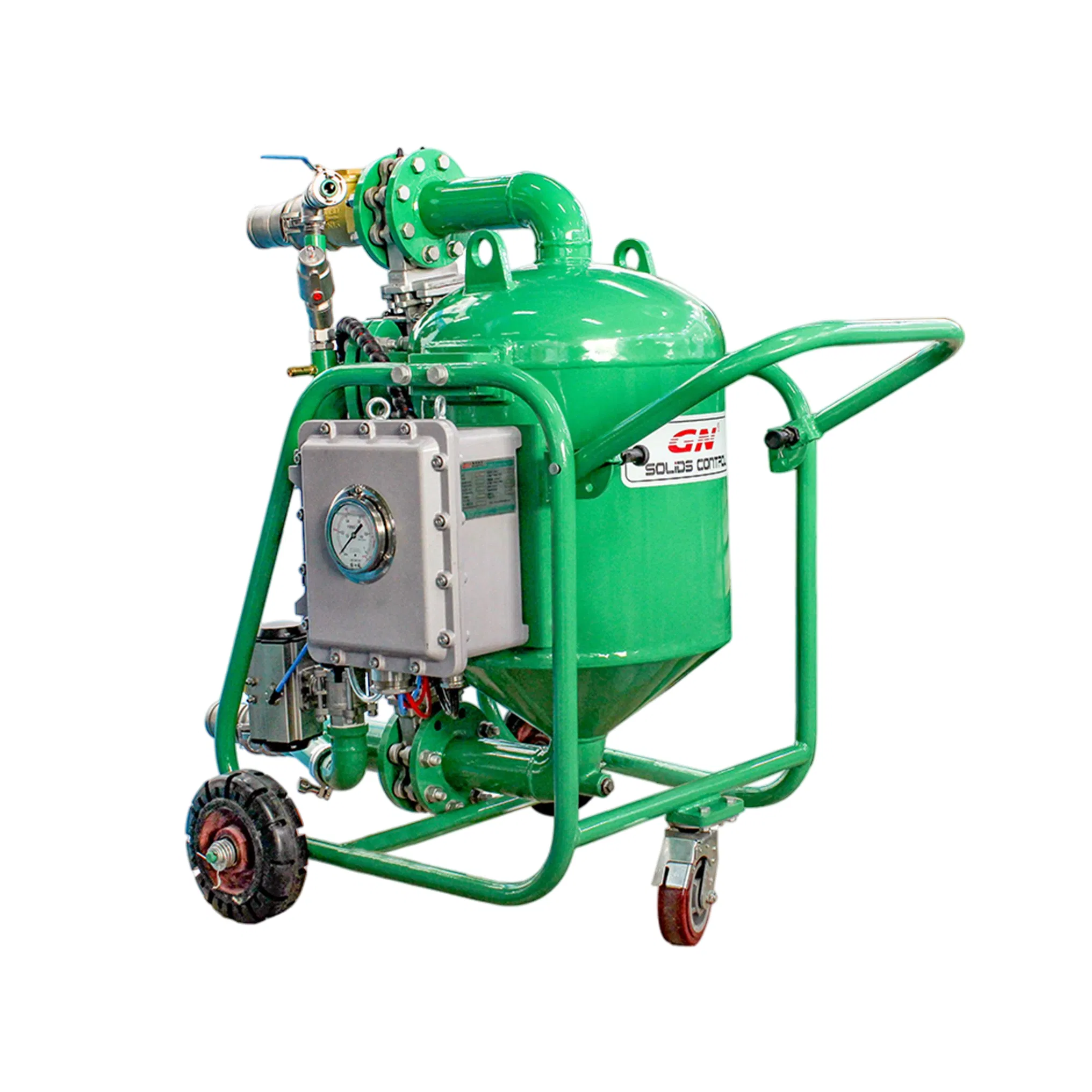

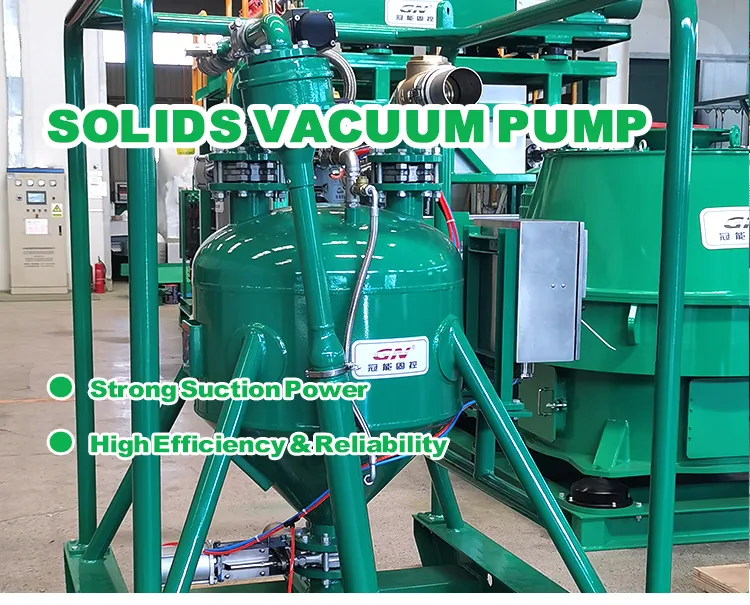

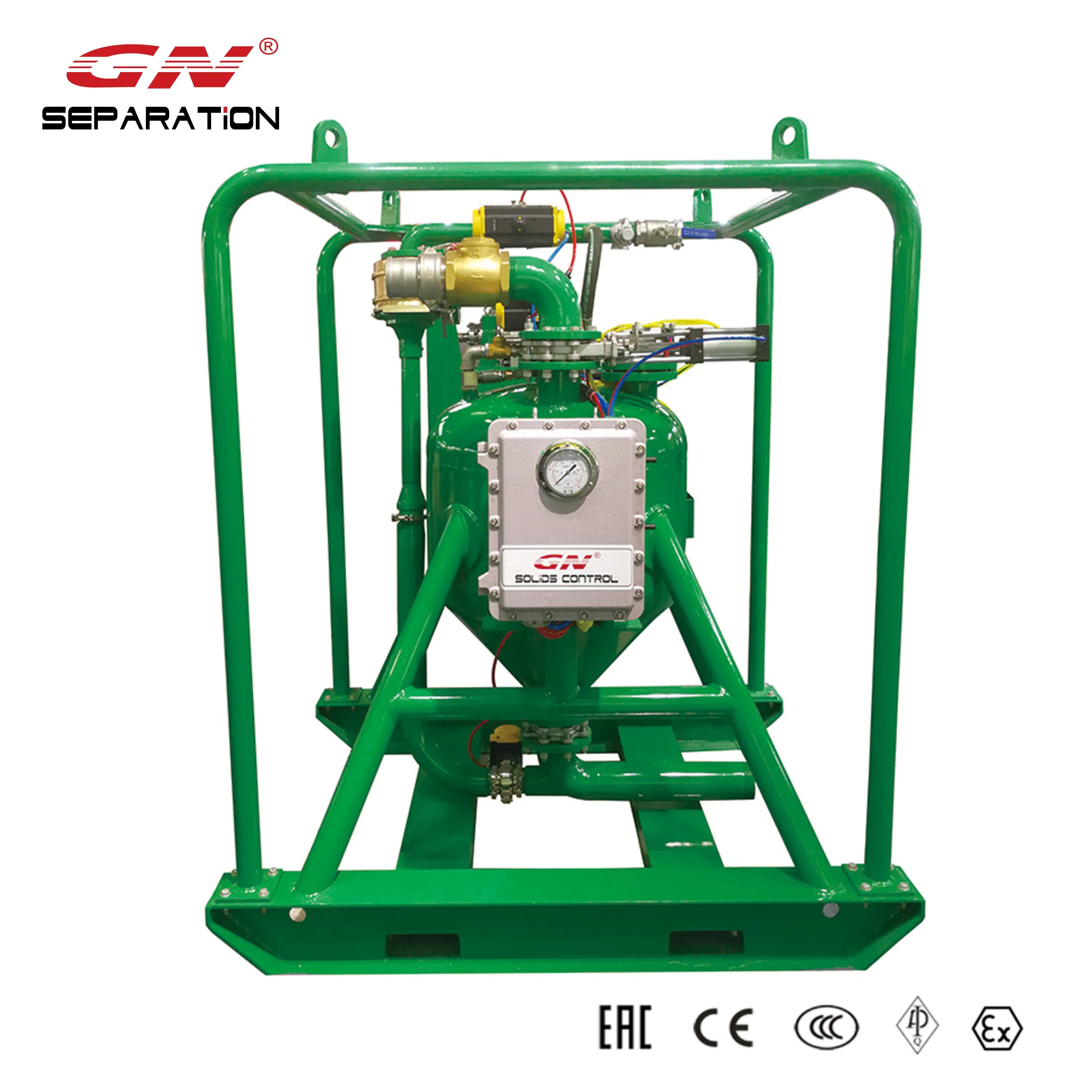

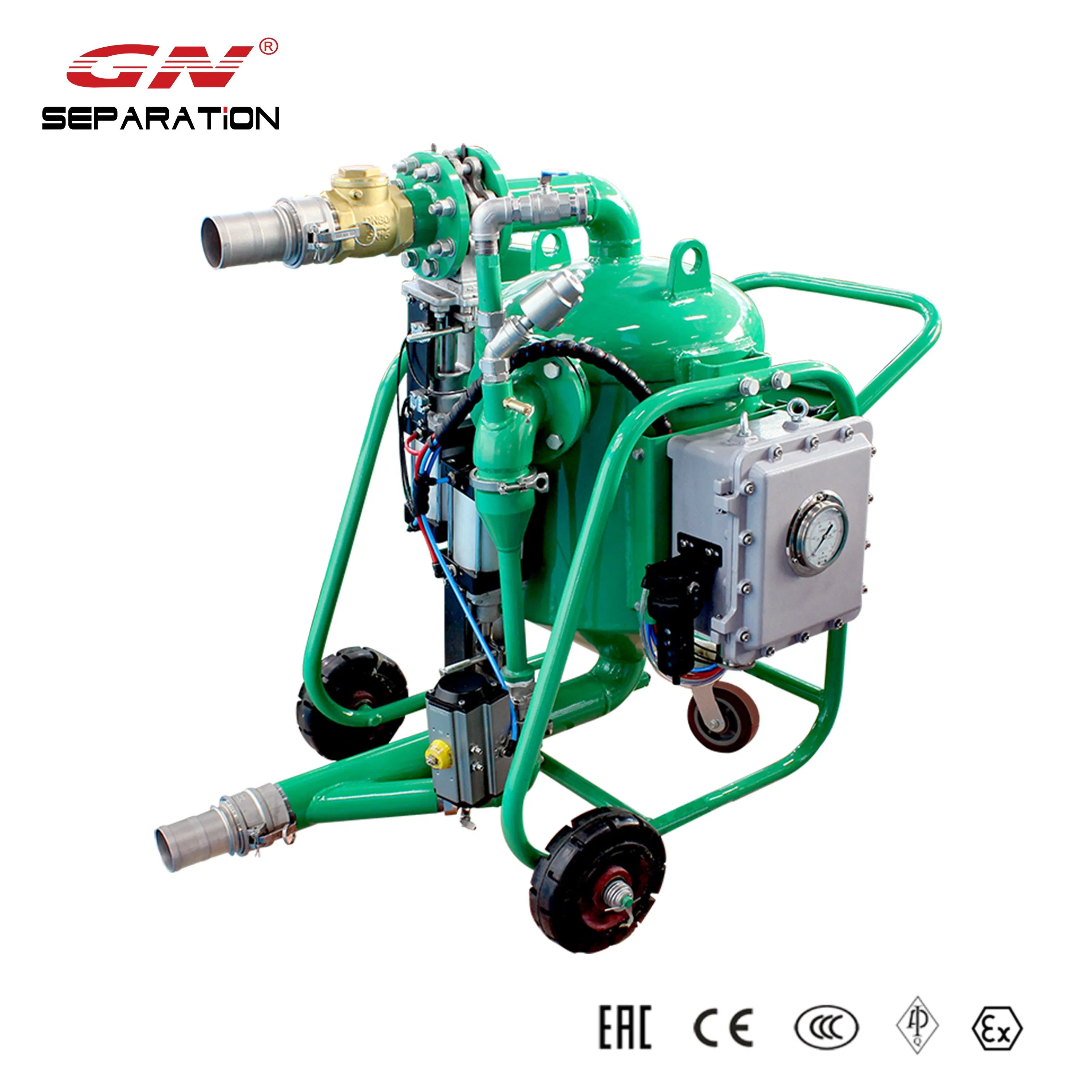

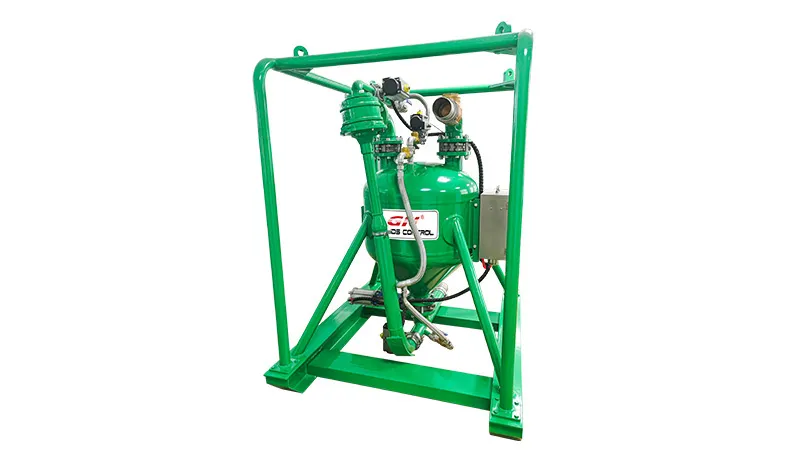

Solids vacuum pump, also named as solids transfer pump. It is a type of pneumatic pump that sucks the material with vacuum produced by air operation, and then converts to positive pressure for discharging. Most of the solids, sludge and liquid could be transferred by using this pump.
With special structure design of no rotating parts in the cavity, it can be used at tough environmental with high working performance and less maintenance. The pump can transfer material with high gravity and high density, solids content max up to 80%. It features a high efficiency venturi device producing vacuum up to 25 inch HG (85Kpa). The structure is simple and compact, with almost no wear parts, and transfer distances can reach up to 500-1000 meters.
| Model | GNSP-40B | GNSP-20B | GNSP-10B |
|---|---|---|---|
| Max Capacity(m³/h) | 40m³/h | 20m³/h | 10m³/h |
| Inlet/Outlet Size(Inch) | 4"(114mm) | 4"(114mm) | 3"(89mm) |
| Vacuum Degree | 85Kpa/25 inch HG | ||
| Max Suction Distance(m) | 50m | ||
| Max Discharge Distance(m) | 1000m | 500m | 500m |
| Max Solids Content | 80% | ||
| Max Solids Size(mm) | 75mm | 50mm | 50mm |
| Pressure Request | 550Kpa-785Kpa | 550Kpa-690Kpa | |
| Air Demand | 17m³/min | 8m³/min | 4.3 m³/min |
| Weight(kg) | 892kg | 386kg | 320kg |
