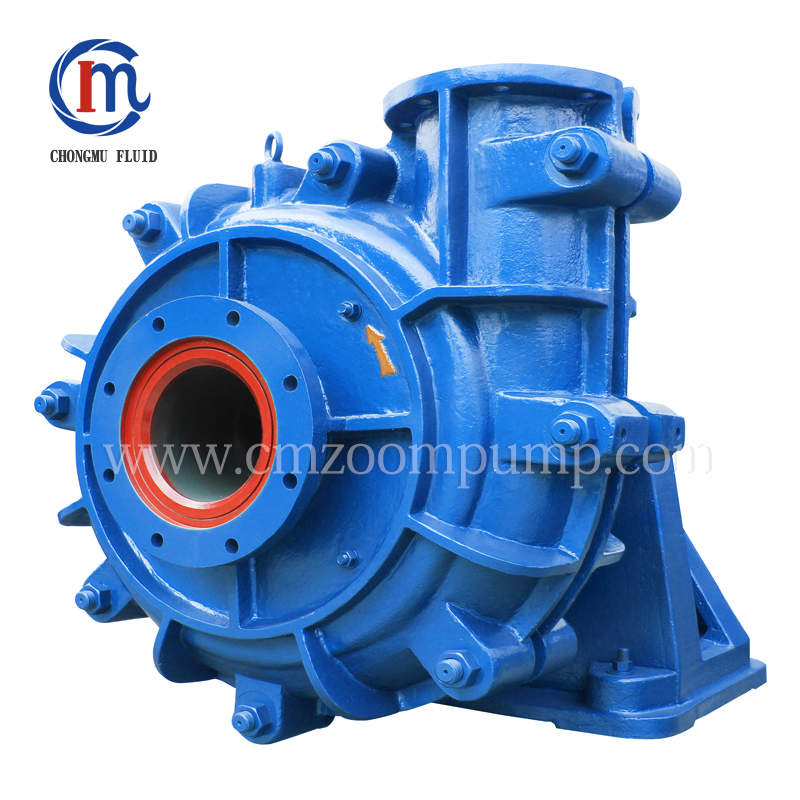

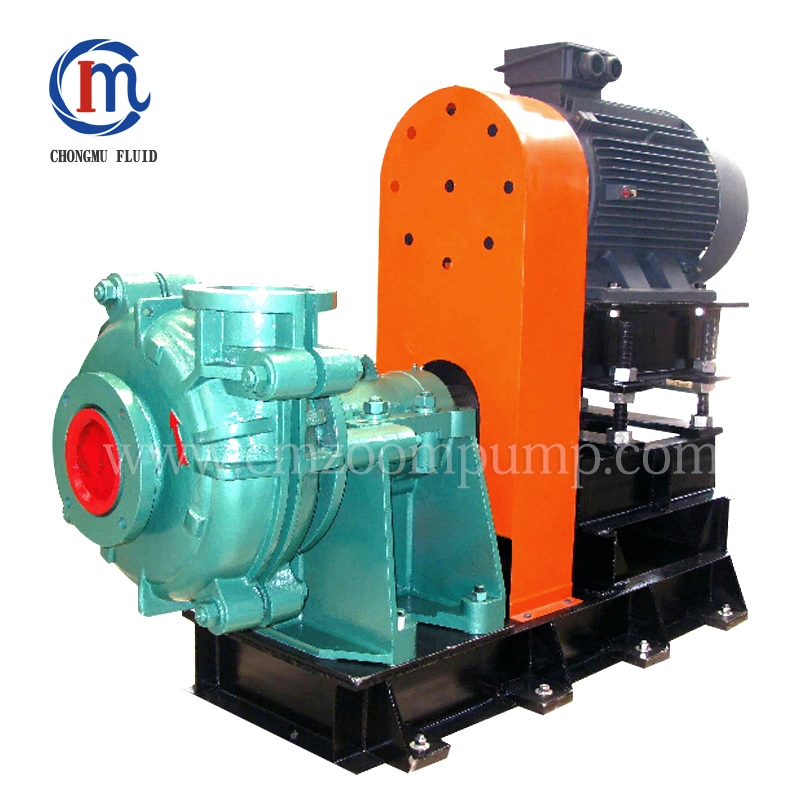

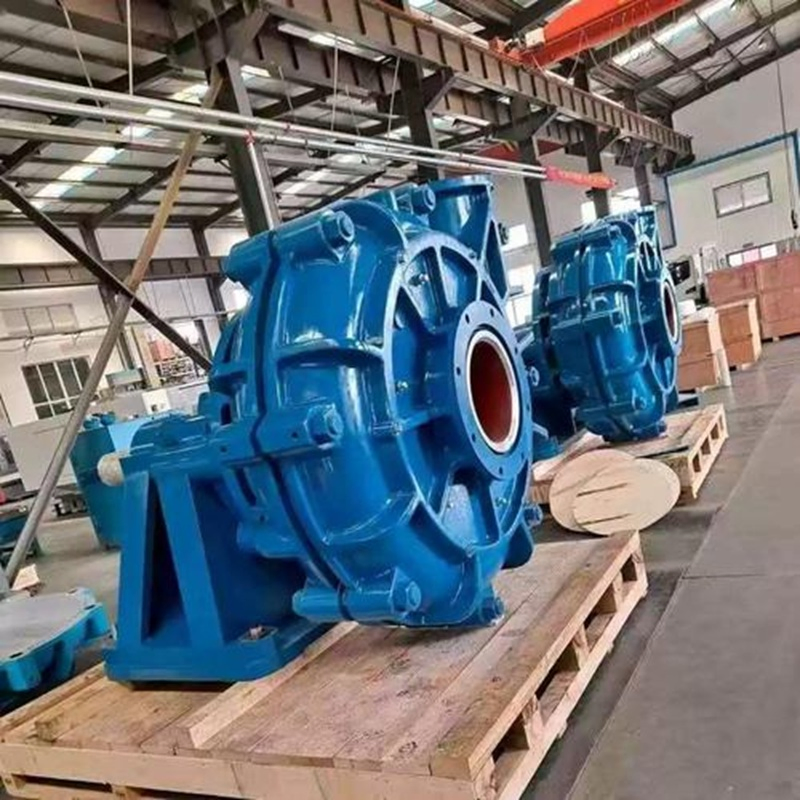

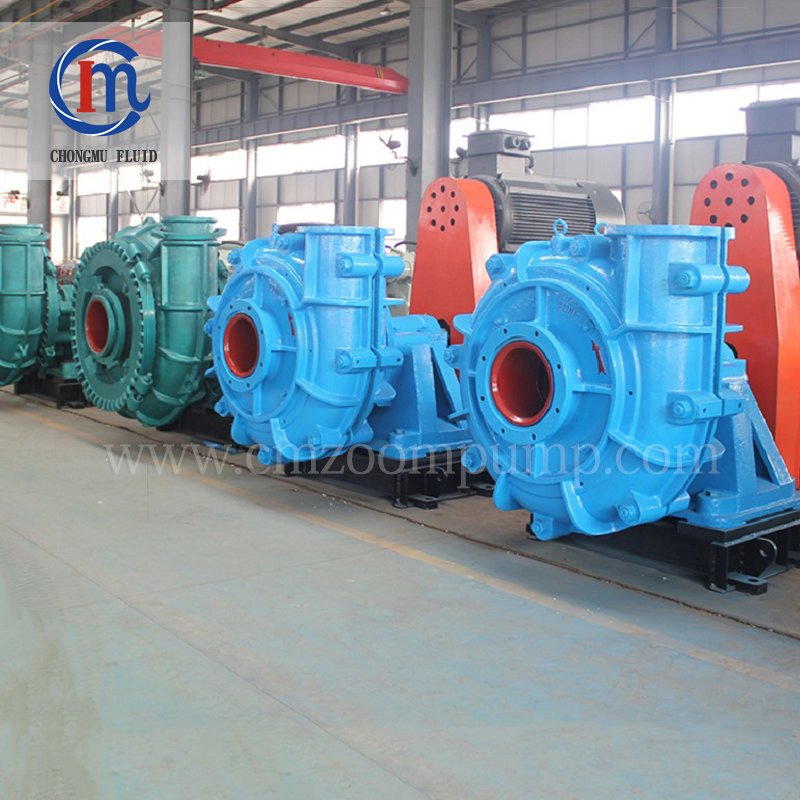

Heavy Duty Industrial Centrifugal Horizontal Mining Mineral Processing Slurry Pump

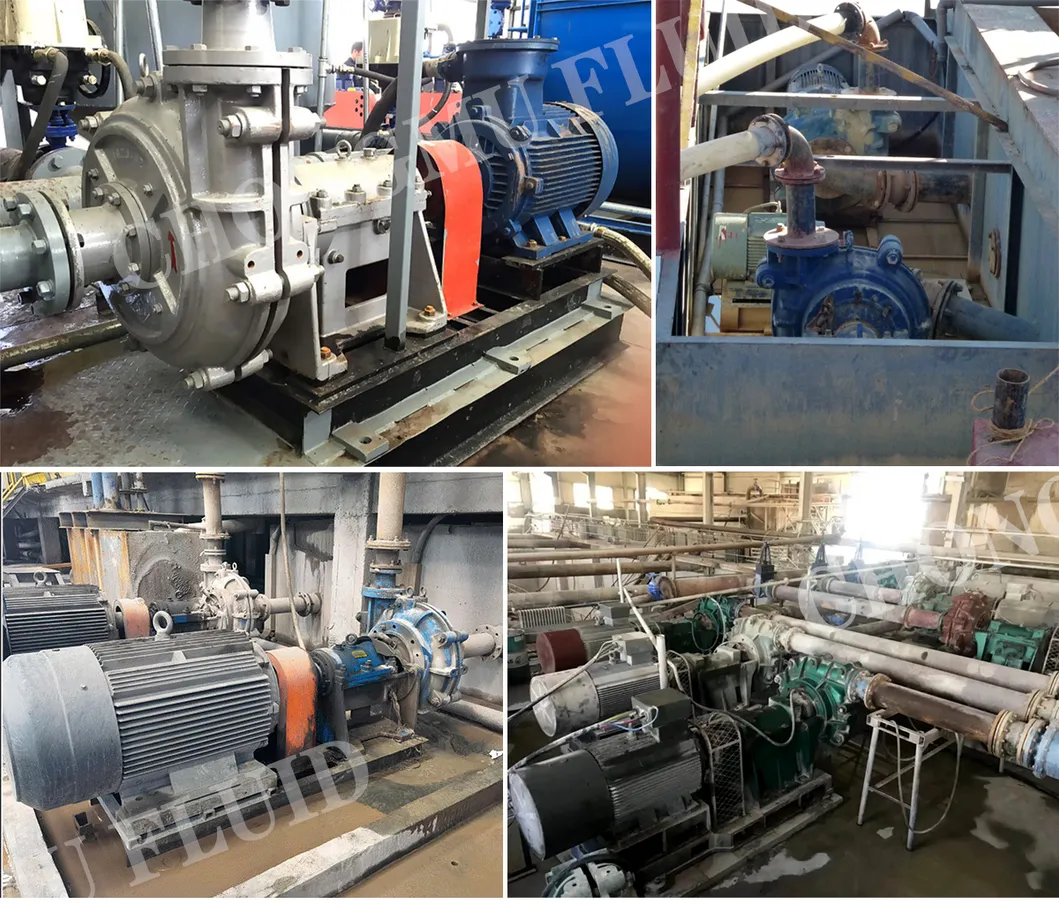

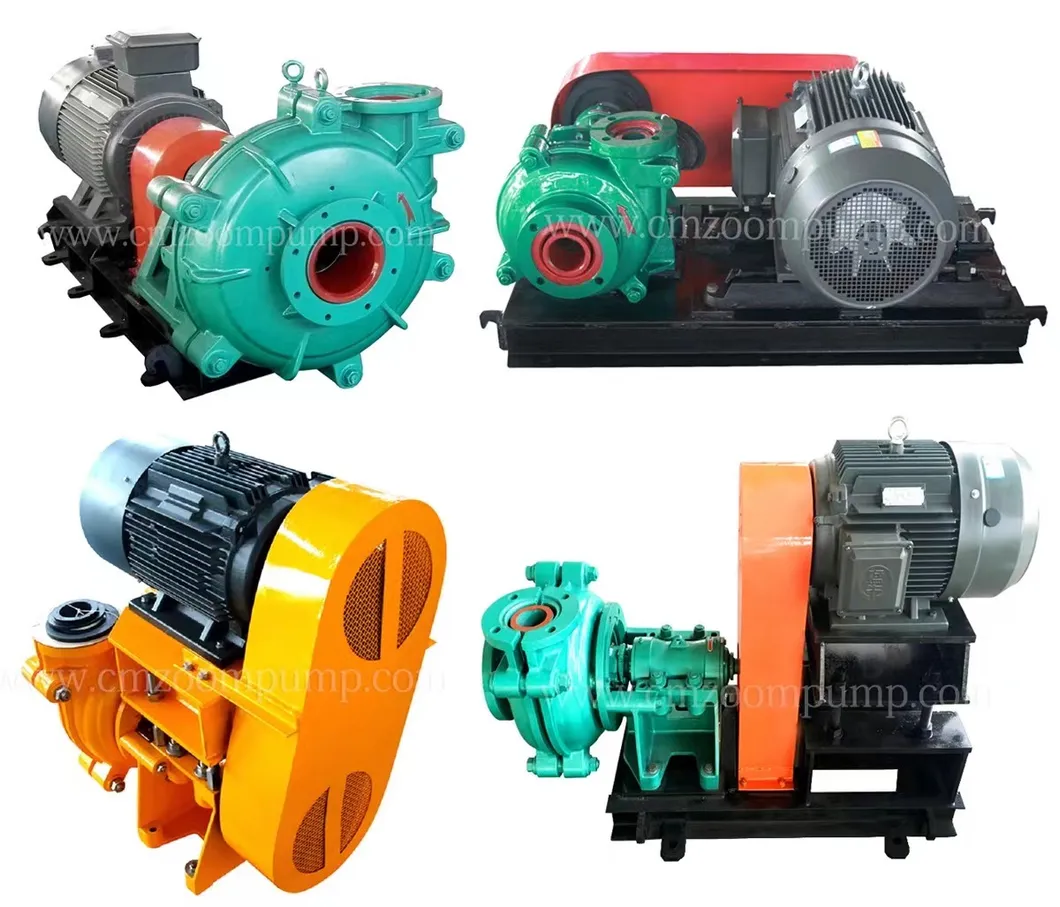

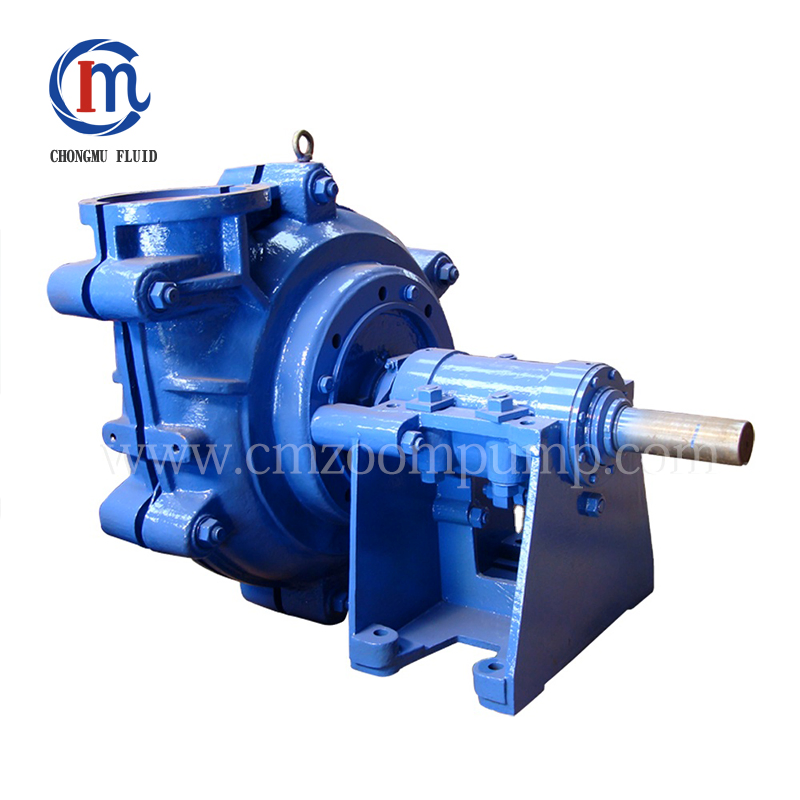

The CH(R) type pump is a horizontal cantilever centrifugal slurry pump, suitable for conveying solid-liquid mixtures containing suspended solid particles (such as ore, ash, coal slime, silt and gravel, etc.). It is widely used in metallurgy, mining, coal, electric power, and building materials industries.
| Type | Max. Power(KW) | Capacity (m³/H) | Head (M) | Speed (RPM) | Max Efficiency | NPSH (M) | Impeller (mm) |
|---|---|---|---|---|---|---|---|
| 1.5/1-CH | 15 | 12.6~28.8 | 6~68 | 1200~3800 | 40% | 2~4 | 152 |
| 2/1.5-CH | 15 | 32.4~72 | 6~58 | 1200~3200 | 45% | 3.5~8 | 184 |
| 3/2-CH | 30 | 39.6~86.4 | 12~64 | 1300~2700 | 55% | 4~6 | 214 |
| 4/3-CH | 30 | 86.4~198 | 9~52 | 1000~2200 | 71% | 4~6 | 245 |
| 6/4-CH | 60 | 162~360 | 12~56 | 800~1550 | 65% | 5~8 | 365 |
| 8/6-CH | 300 | 360~828 | 10~61 | 500~1140 | 72% | 2~9 | 510 |
| 10/8-CH | 560 | 612~1368 | 11~61 | 400~850 | 71% | 4~10 | 686 |
| 12/10-CH | 560 | 936~1980 | 7~68 | 300~800 | 82% | 6 | 762 |
| 14/12-CH | 560 | 1260~2772 | 13~63 | 300~600 | 77% | 3~10 | 965 |
| 16/14-CH | 1200 | 1368~3060 | 11~63 | 250~550 | 79% | 4~10 | 1067 |
| 20/18-CH | 1200 | 2520~5400 | 13~57 | 200~400 | 85% | 5~10 | 1370 |
