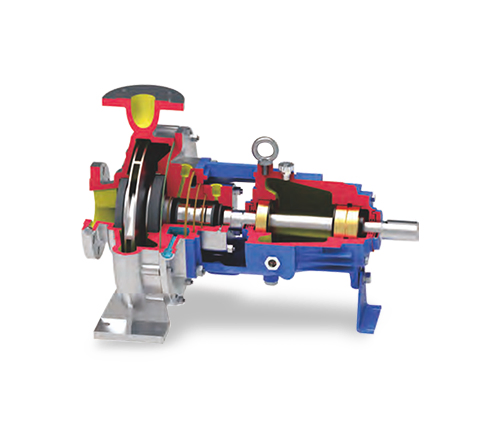

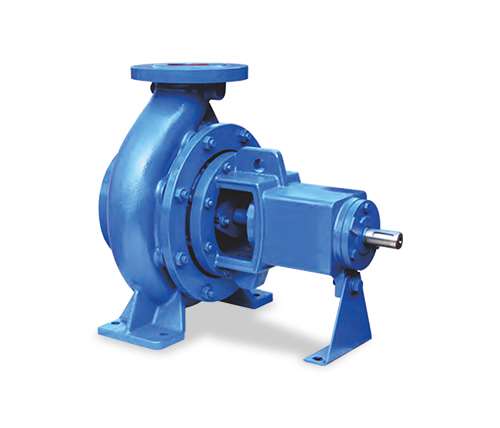

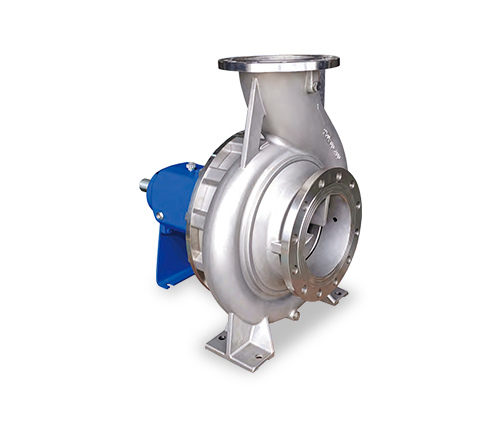

Electric Submersible Sewage Water Deep Well Solar Industrial End Suction Centrifugal Pump
Electric Submersible Sewage Water Deep Well Solar Industrial End Suction Centrifugal Pump
Electric Submersible Sewage Water Deep Well Solar Industrial End Suction Centrifugal Pump
Electric Submersible Sewage Water Deep Well Solar Industrial End Suction Centrifugal Pump
Electric Submersible Sewage Water Deep Well Solar Industrial End Suction Centrifugal Pump
1 / 5
Electric Submersible Sewage Water Deep Well Solar Industrial End Suction Centrifugal Pump
Electric Submersible Sewage Water Deep Well Solar Industrial End Suction Centrifugal Pump
Electric Submersible Sewage Water Deep Well Solar Industrial End Suction Centrifugal Pump
Electric Submersible Sewage Water Deep Well Solar Industrial End Suction Centrifugal Pump
Electric Submersible Sewage Water Deep Well Solar Industrial End Suction Centrifugal Pump

Electric Submersible Sewage Water Deep Well Solar Industrial End Suction Centrifugal Pump

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
EPS
Max.Head
>150m
Max.Capacity
>400 L/min
Driving Type
Motor
Material
Stainless Steel
Structure
Single-stage Pump
Assembly
Booster Pump
Power
Electric
Start Up
Electric Pump
Type
Blade Pump
Application
Chemical Pump
Industry
Mechanical Pump
Media
Sea Water Pump
Performance
No Leakage Pump
Theory
Centrifugal Pump
Transport Package
Wooden Box
Specification
solid particle
Origin
China
Product Description

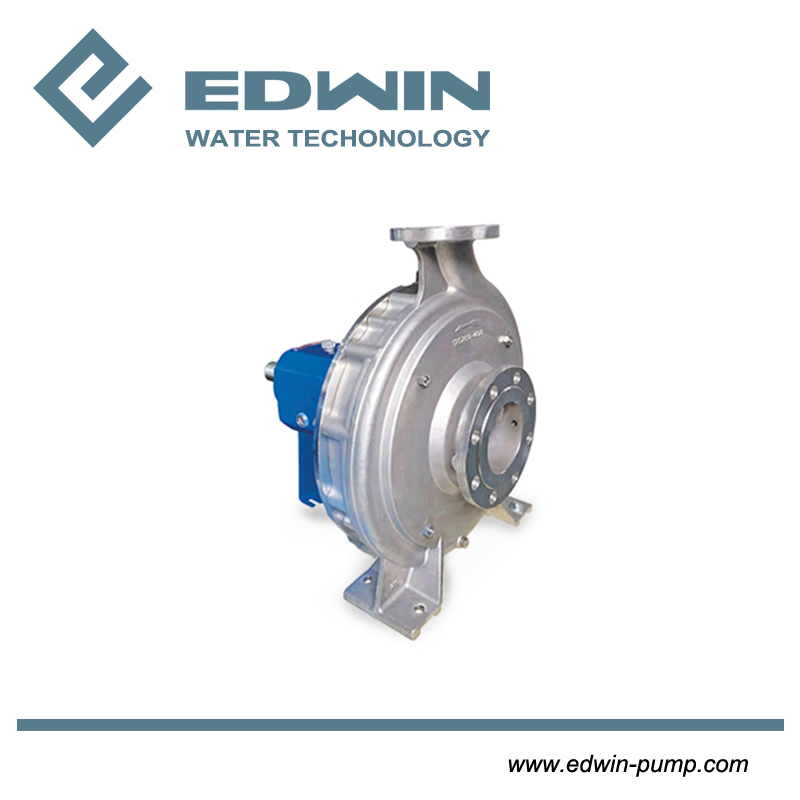

EAC Close-Coupled Direct Connection End Suction Centrifugal Pump is a type of centrifugal pump designed for efficient fluid transport. It is widely used in industrial applications for moving liquids such as water, chemicals, or other fluids.

Motor Power Standards

As standard, EAC pumps are equipped with IM B35 electric motors. To determine the drive power, we recommend the following safety margins:

  • Up to 4 kw: +25%
  • From 4 to 7.5 kw: +20%
  • From 7.5 to 37kw: +15%
  • Above 37 kw: +10%
Primary Applications
  • Chemical and Petrochemical Industry
  • Oil refining plants
  • Pulp and Paper making industry
  • Waste water treatment
  • Pharmaceutical
  • Food Industry (e.g. sugar)
Components and Materials
Impeller: Optimized Hydraulic design with semi-open impeller diameter up to 547mm.
Bearings: Heavy duty tough cylindrical roller and angular contact ball bearings (25,000h life).
Shaft: Sturdy design ensures minimum deflection and low vibration.
Wear Plate: Two wear plates to protect the pump casing.
Sealing: Single/Double mechanical seal, cartridge seal, or gland packing available.
Components Materials
Pump bodyCast iron/ Stainless steel
ImpellerCast iron/ Stainless steel
ShaftStainless steel
Shaft sealMechanical Seal
Bearing lubricationOil lubrication
Bearing BrandHeavy Duty NTN

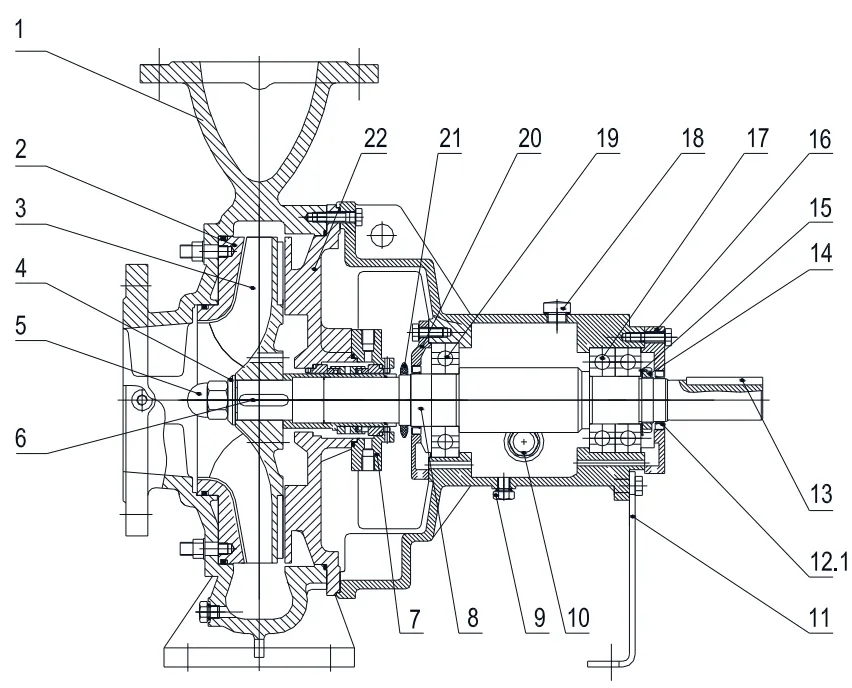

Centrifugal Pump Component

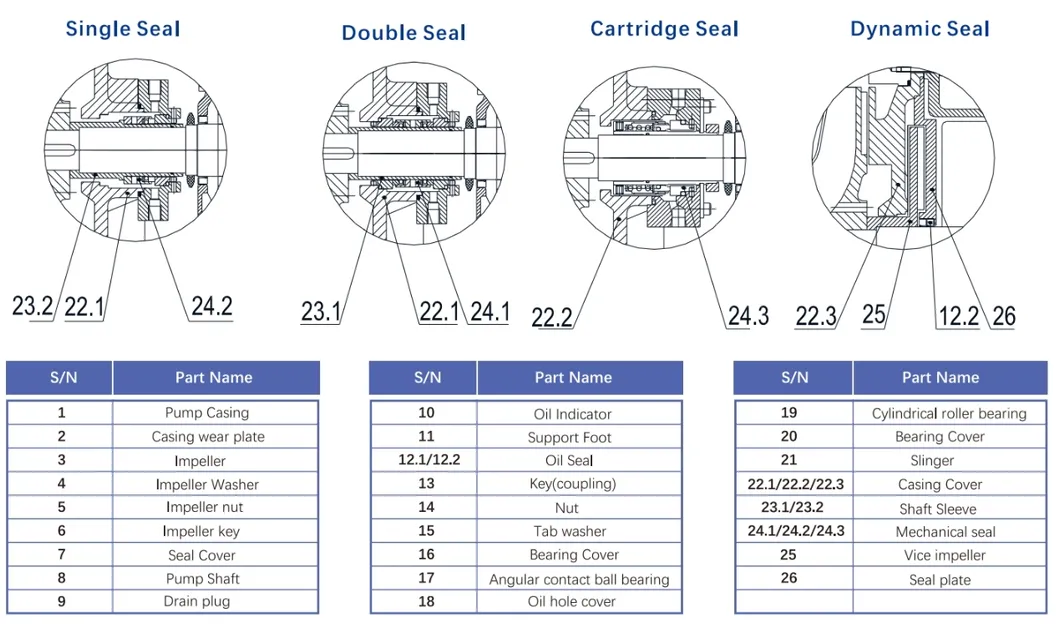

Pump Material View
Performance Curves
Performance Curve 1

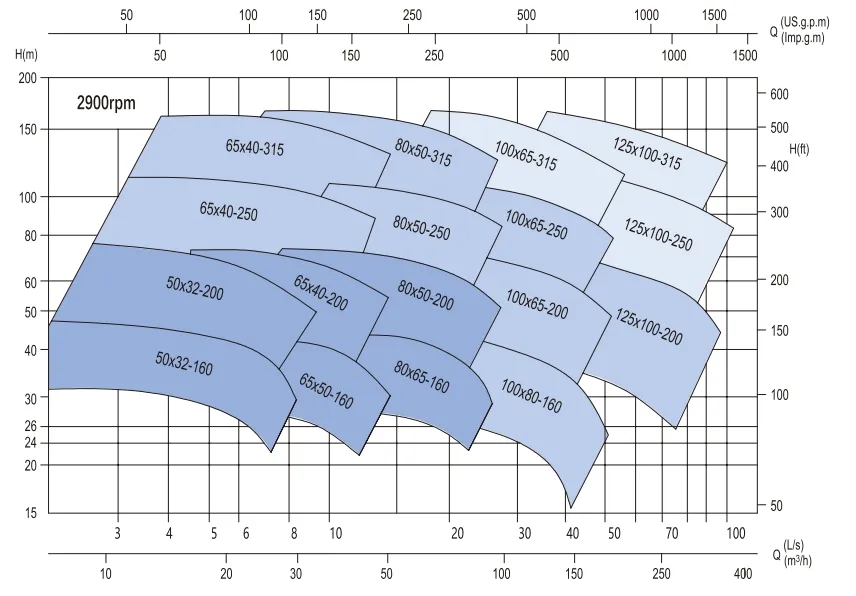

Performance Curve 2

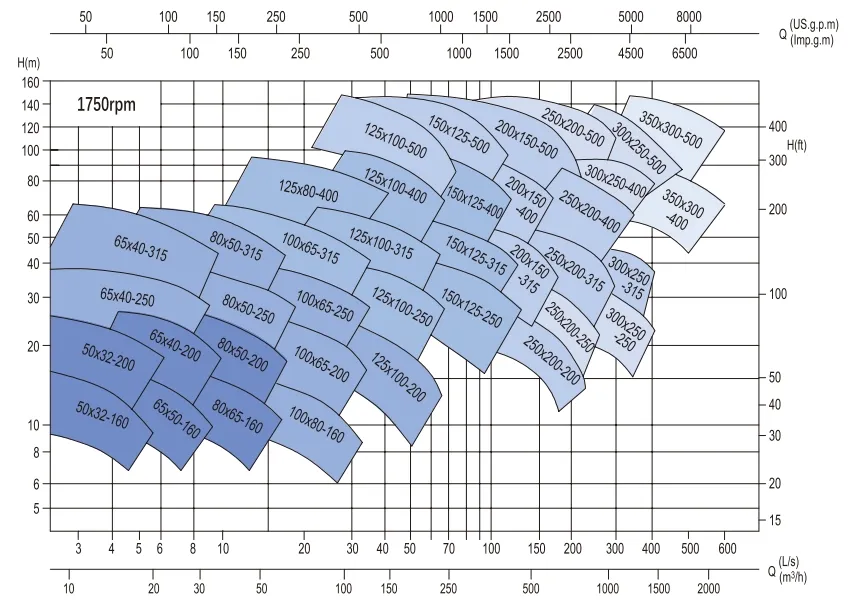

Performance Curve 3

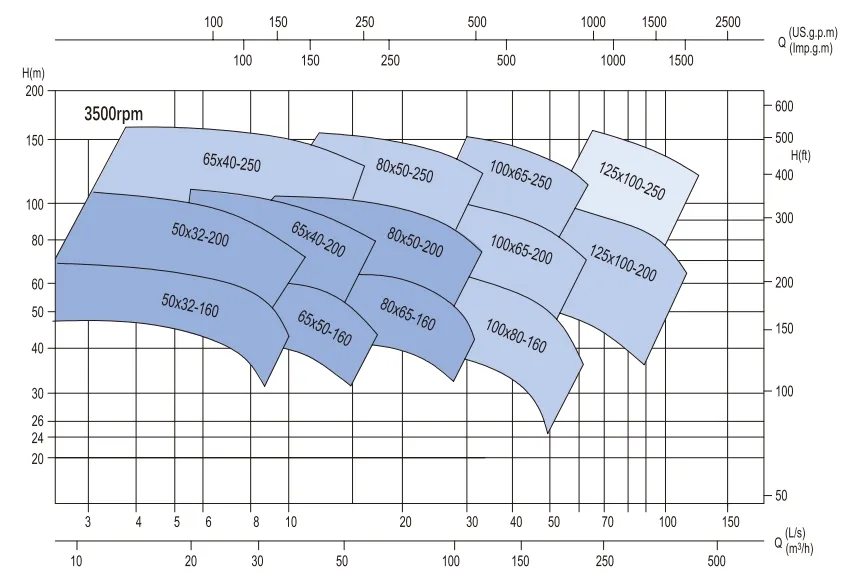

Performance Curve 4
Technical Data
Parameter Range
Pump Size32mm to 350mm
Max. Flow2000m³/h
Max. Head160m
Max. Temperature175ºC
Max. Speed3600rpm
Max. Pressure24Bar
Certifications
Certifications Display
Product Line

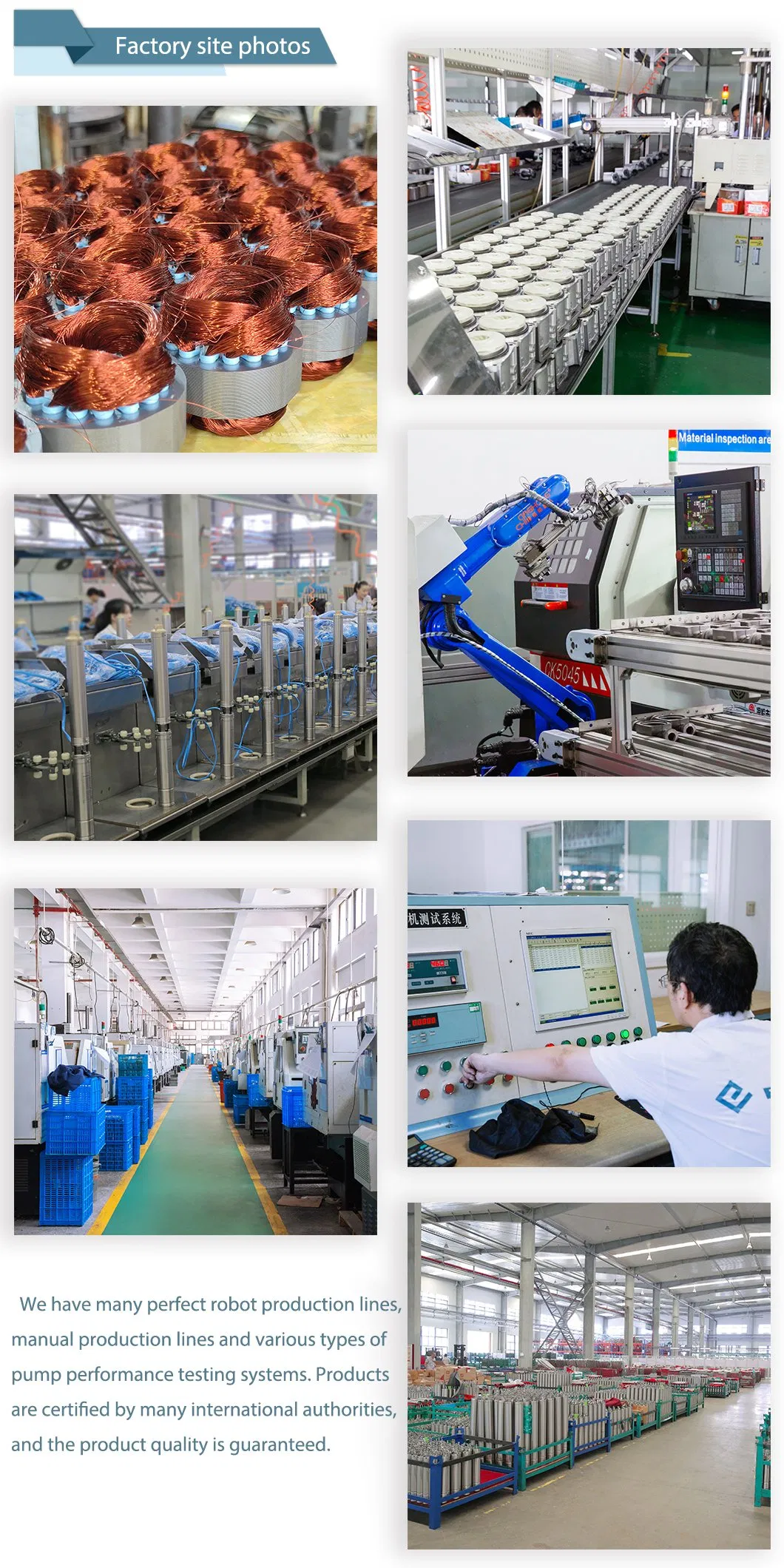

Production 1

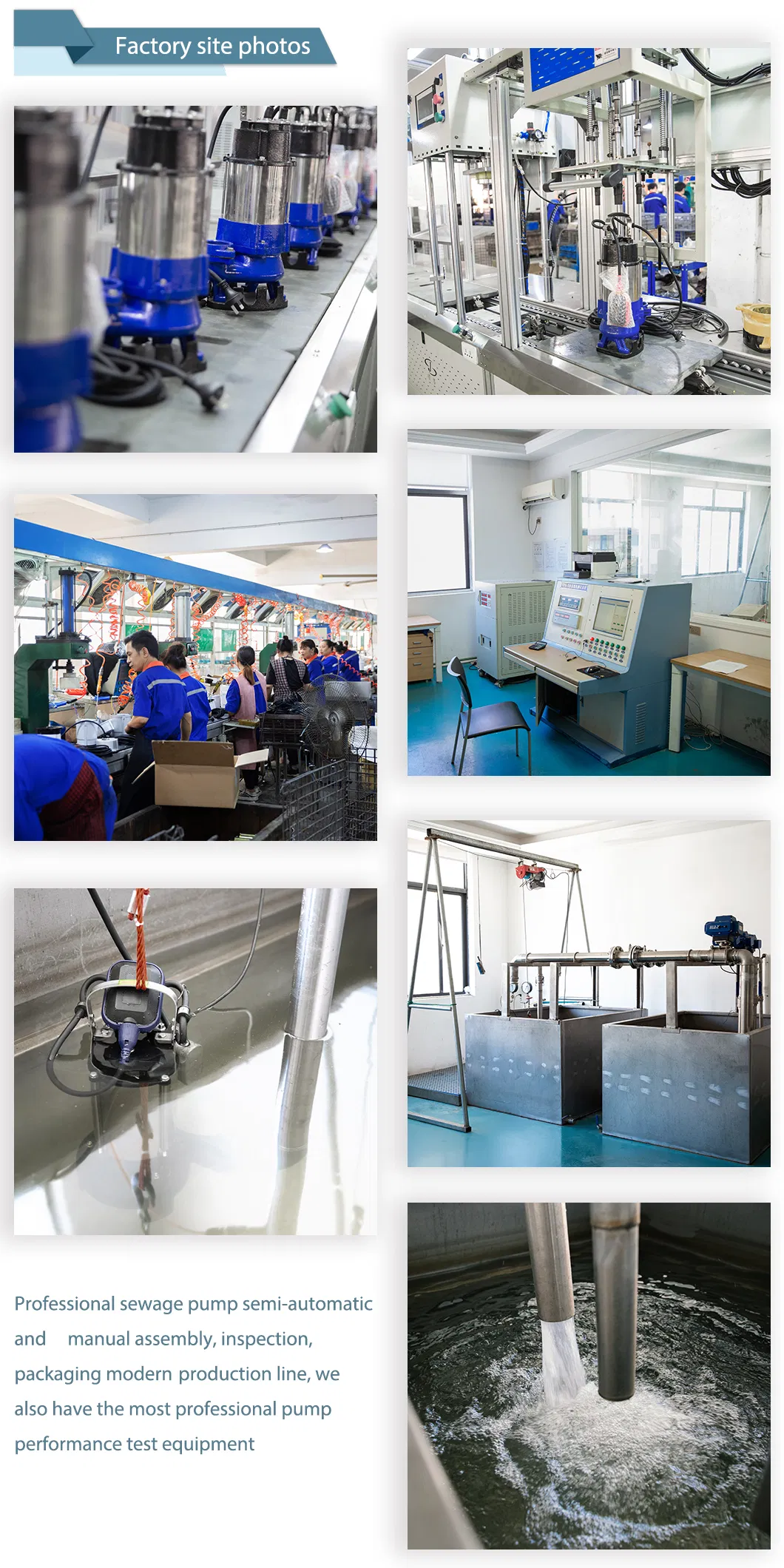

Production 2

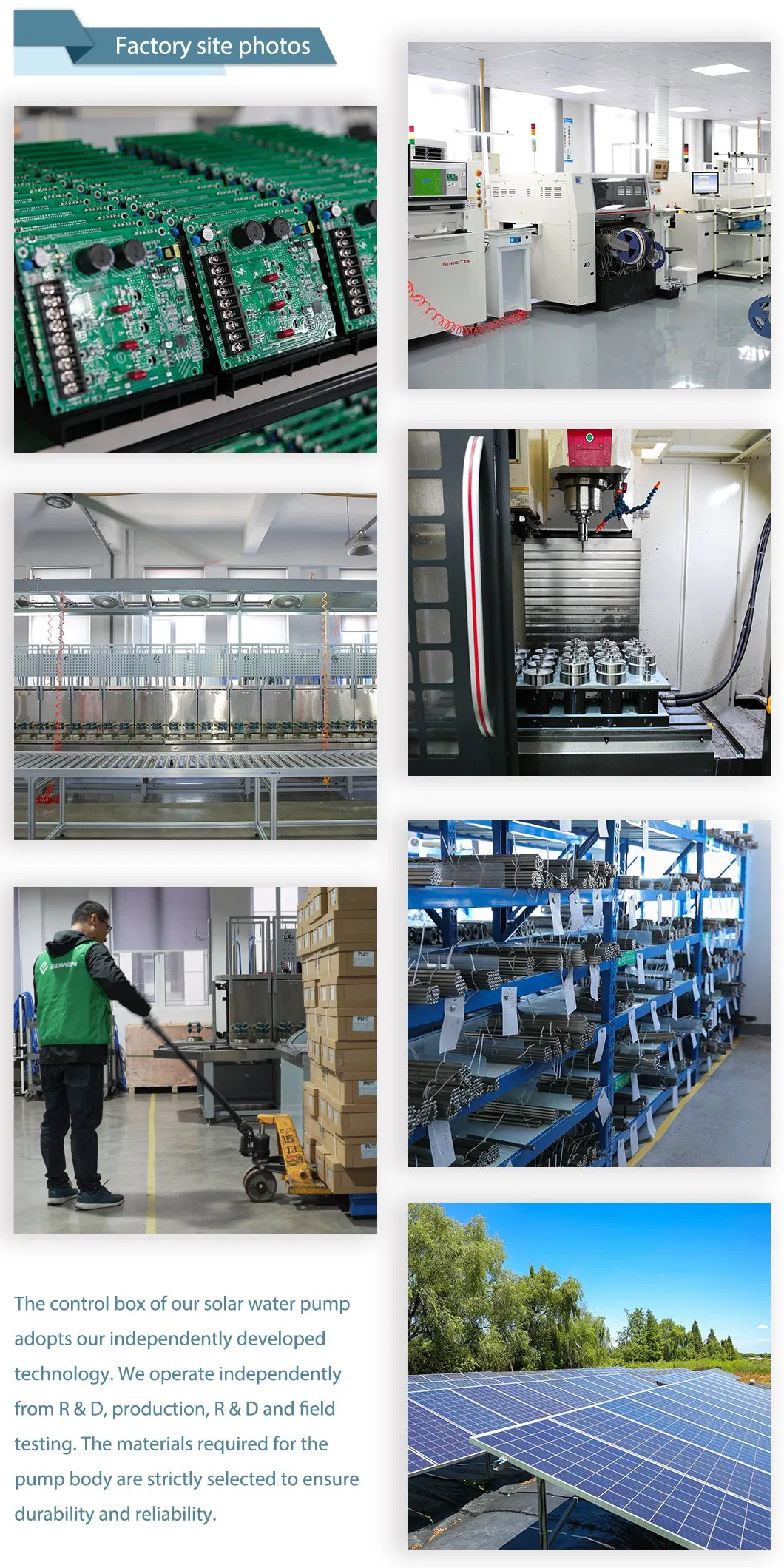

Production 3

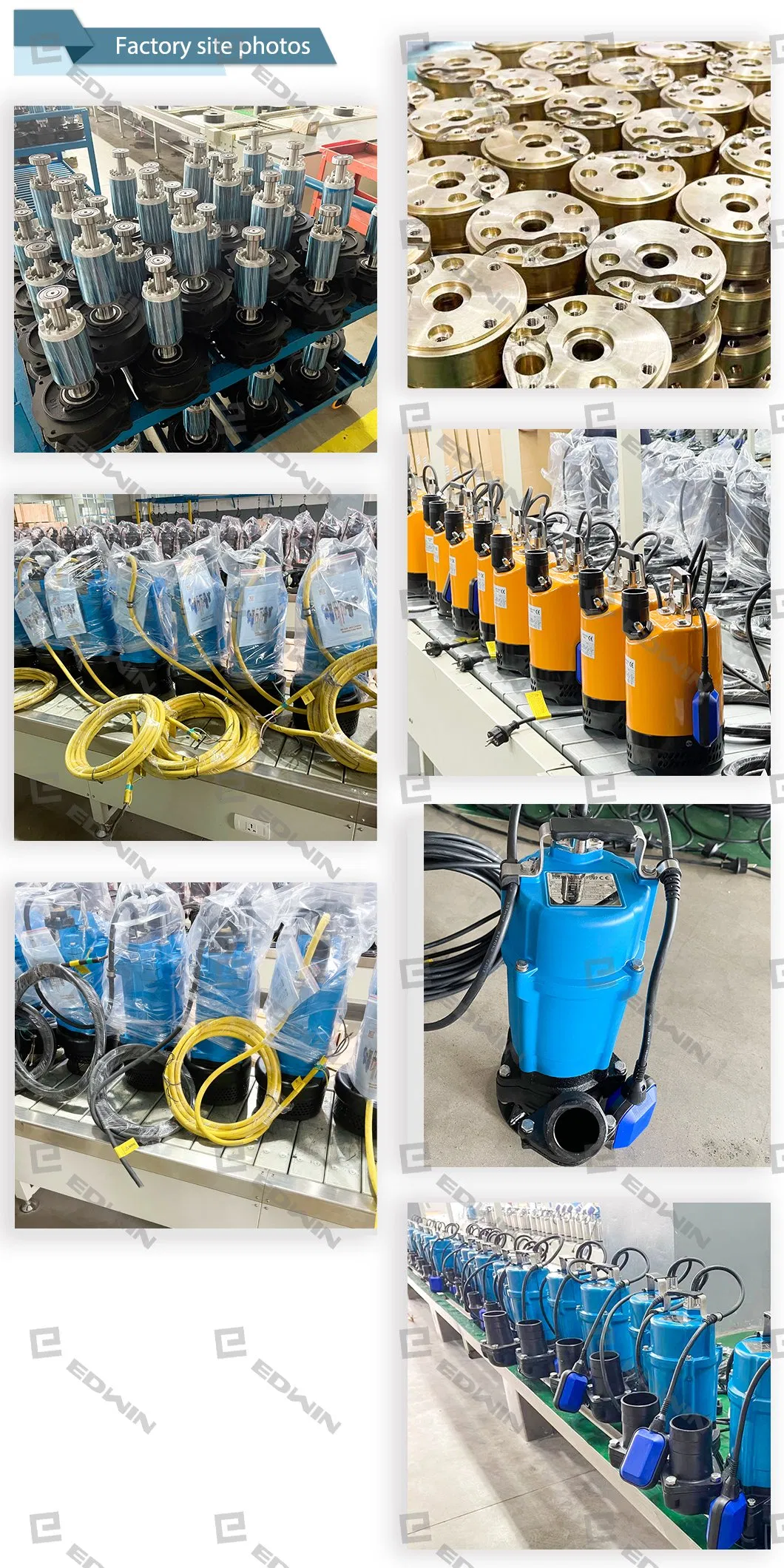

Production 4

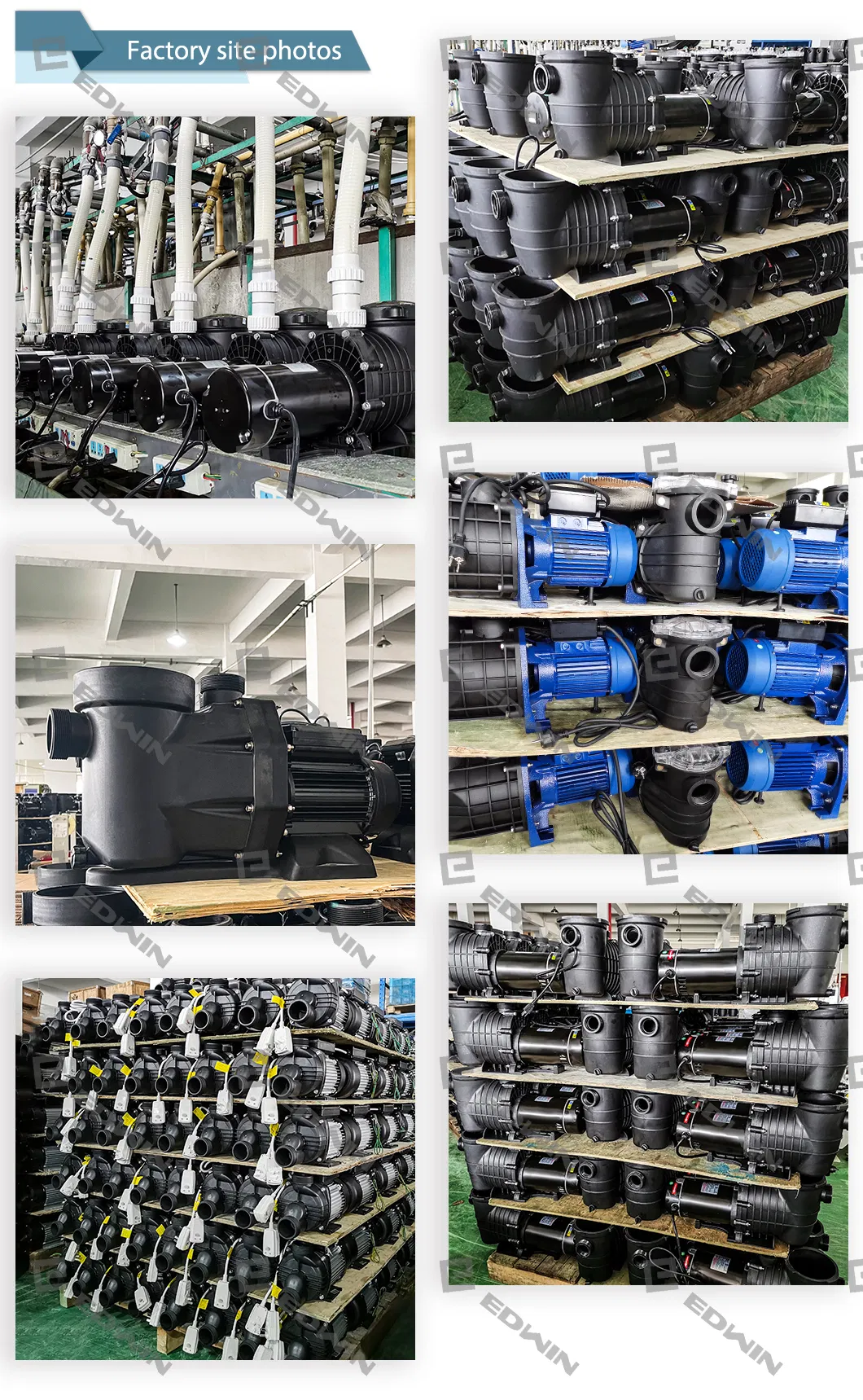

Production 5

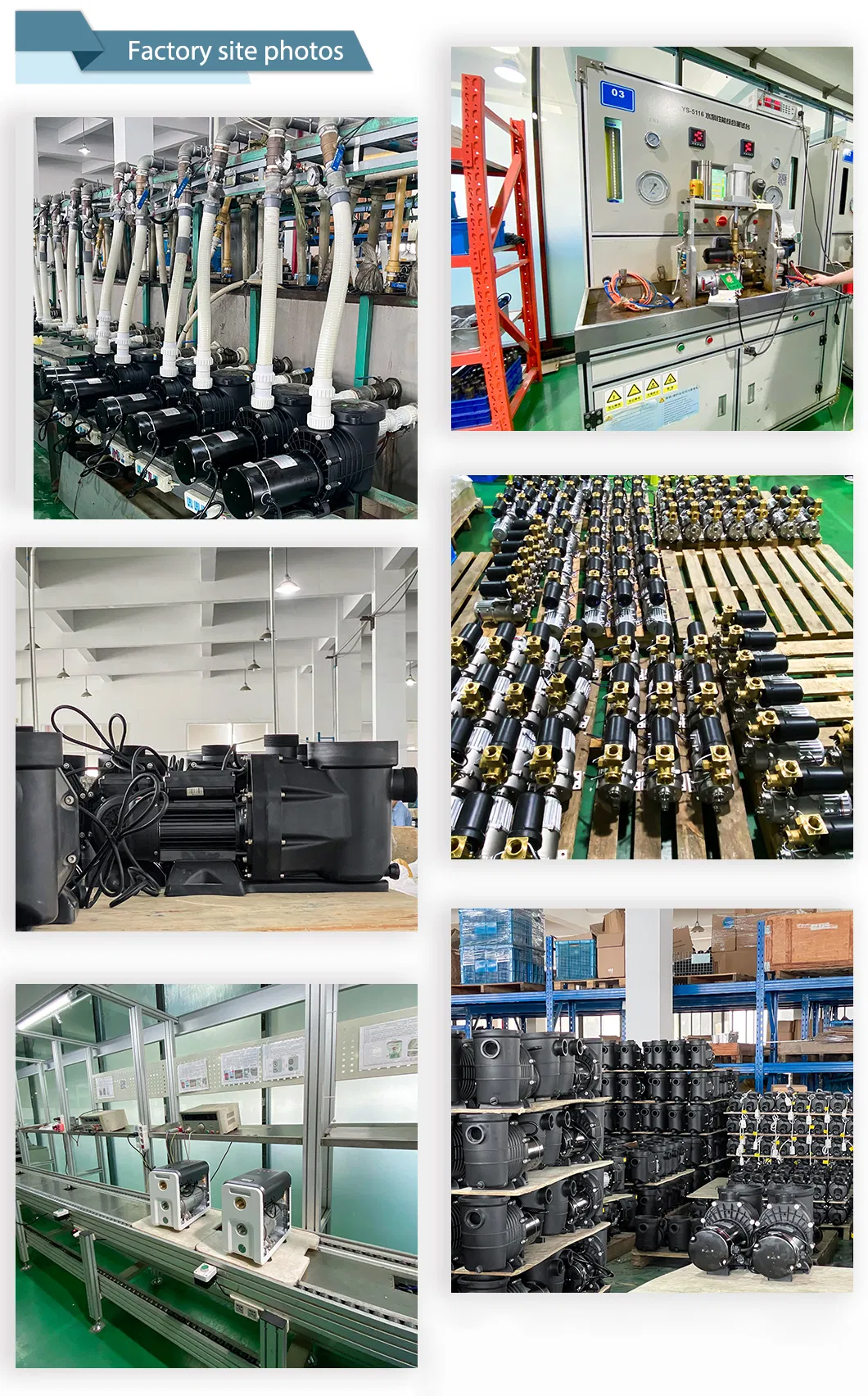

Production 6

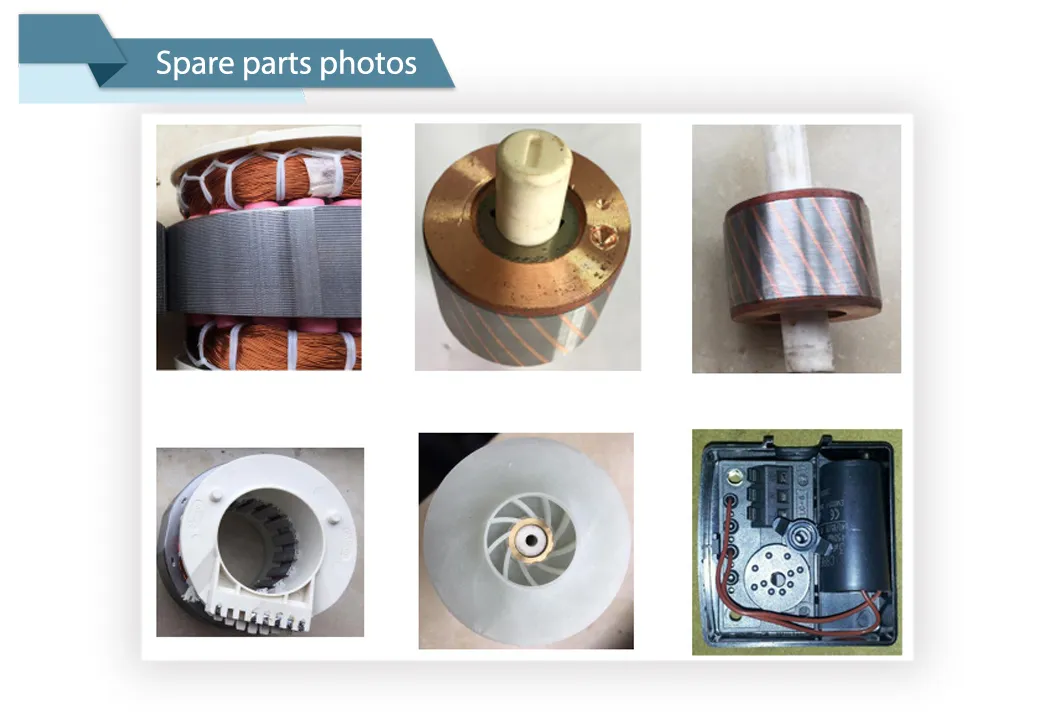

Production 7
Exhibition
Exhibition Presence
Frequently Asked Questions
What is an EAC Close-Coupled Centrifugal Pump?
It is a direct-connection end suction pump designed for efficient fluid transport in industrial settings, featuring a compact design that saves space and reduces alignment issues.
What is the maximum temperature these pumps can handle?
The EAC series technical data specifies a maximum operating temperature of up to 175ºC, making it suitable for high-temperature industrial processes.
Which materials are available for the pump body and impeller?
We offer both Cast Iron and Stainless Steel options for the pump body and impeller to accommodate various media, including corrosive chemicals and seawater.
How long is the expected bearing life?
The heavy-duty bearings are designed for a service life of up to 25,000 hours, ensuring long-term reliability and lower maintenance costs.
What types of shaft seals are available?
Standard units come with a single mechanical seal. However, double mechanical seals, cartridge seals, and gland packing are also available upon request.
Are the flange dimensions standardized?
Yes, flange dimensions comply with ISO 7005-1:1992 PN16 as standard. Other options, including ANSI flanges, can be provided on request.
