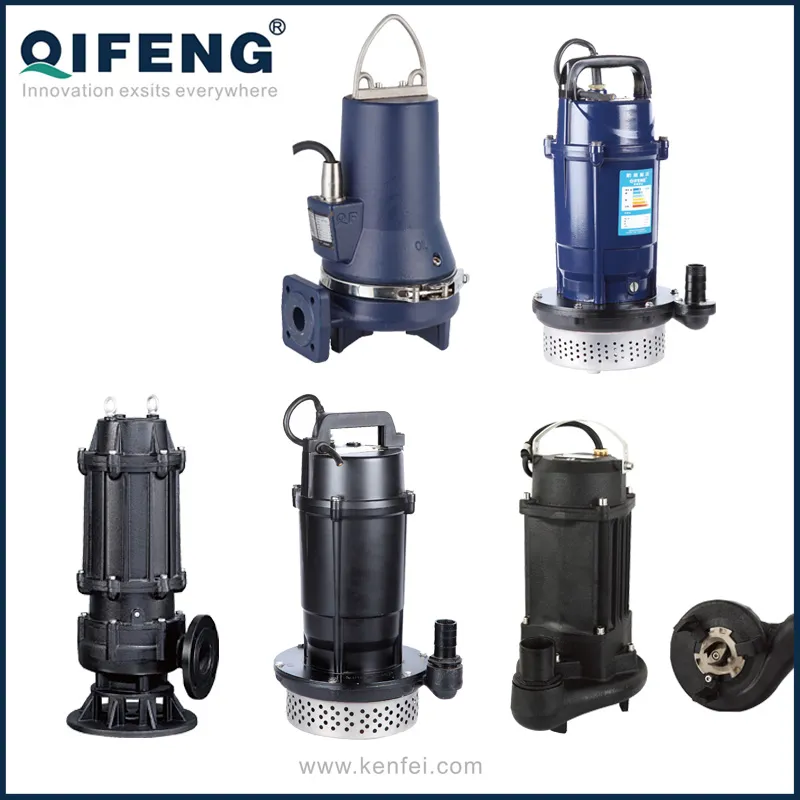

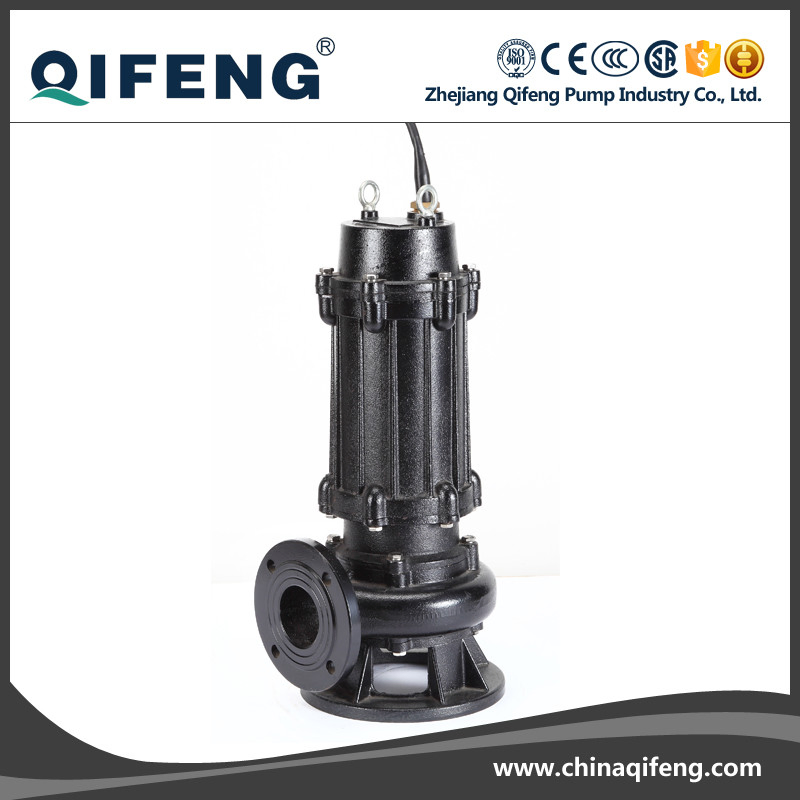

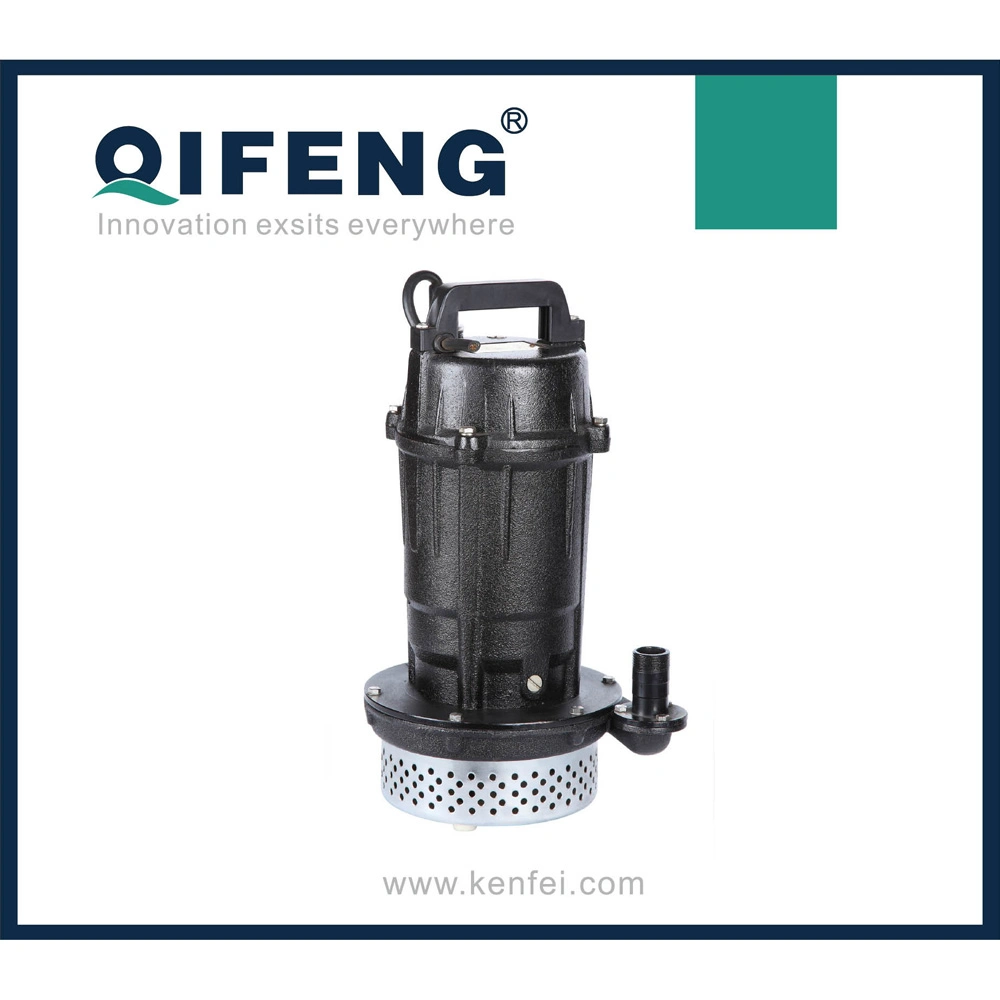

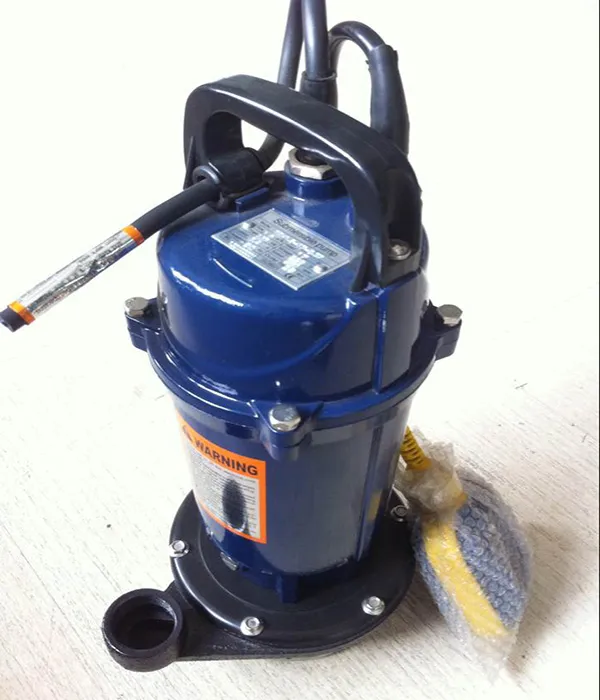

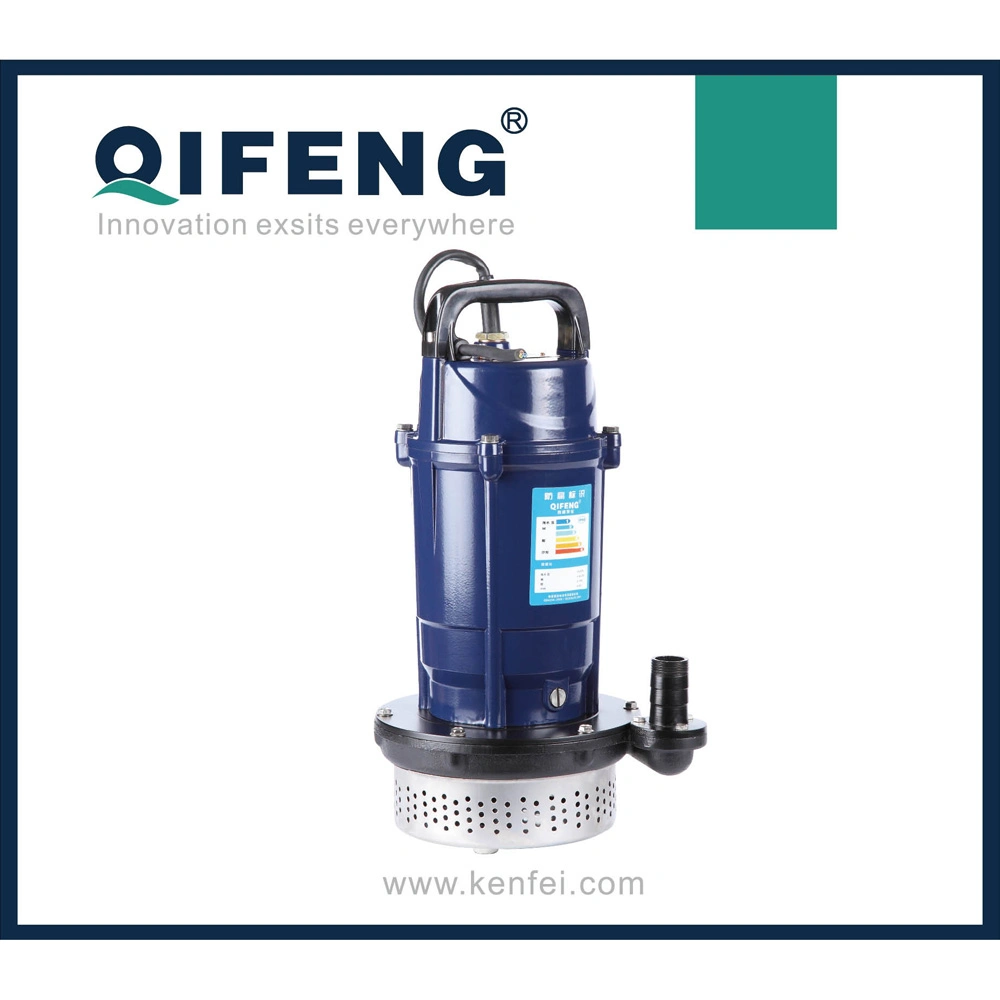

High Quality Submersible Clean Water Pump
The QDX and QX type submersible motor pumps are engineered systems consisting of a high-performance pump, mechanical seals, and a robust motor. The pump unit is located at the bottom and utilizes a centrifugal impeller for efficient water movement.
The motor is situated at the upper section and is available as either a single-phase or three-phase asynchronous motor. A double-end mechanical seal is positioned between the pump and motor, with "O" rings applied to all static joints to ensure complete submersion reliability. An integrated inner protector prevents damage from abnormal power conditions, clogging, or overloading.
Application Areas: Suitable for clean water without abrasive particles. Primarily used for well pumping, river pumping, rainwater collection, and draining water from cellars, garages, or basements. Also widely used in the breeding industry for water supply and drainage.
| MODEL | FLOW (m³/h) | HEAD (m) | POWER (KW) | VOLT/FREQ | OUTLET (MM) |
|---|---|---|---|---|---|
| QDX1.5-17-0.37 | 1.5 | 17 | 0.37 | 220V/50Hz | 25 |
| QDX1.5-25-0.55 | 1.5 | 25 | 0.55 | 220V/50Hz | 25 |
| QDX3-18-0.55 | 3 | 18 | 0.55 | 220V/50Hz | 32 |
| QDX10-12-0.55 | 10 | 12 | 0.55 | 220V/50Hz | 40 |
| QDX3-28-0.75 | 3 | 28 | 0.75 | 220V/50Hz | 25 |
| QDX45-9-1.5 | 45 | 9 | 1.5 | 220V/50Hz | 80 |
