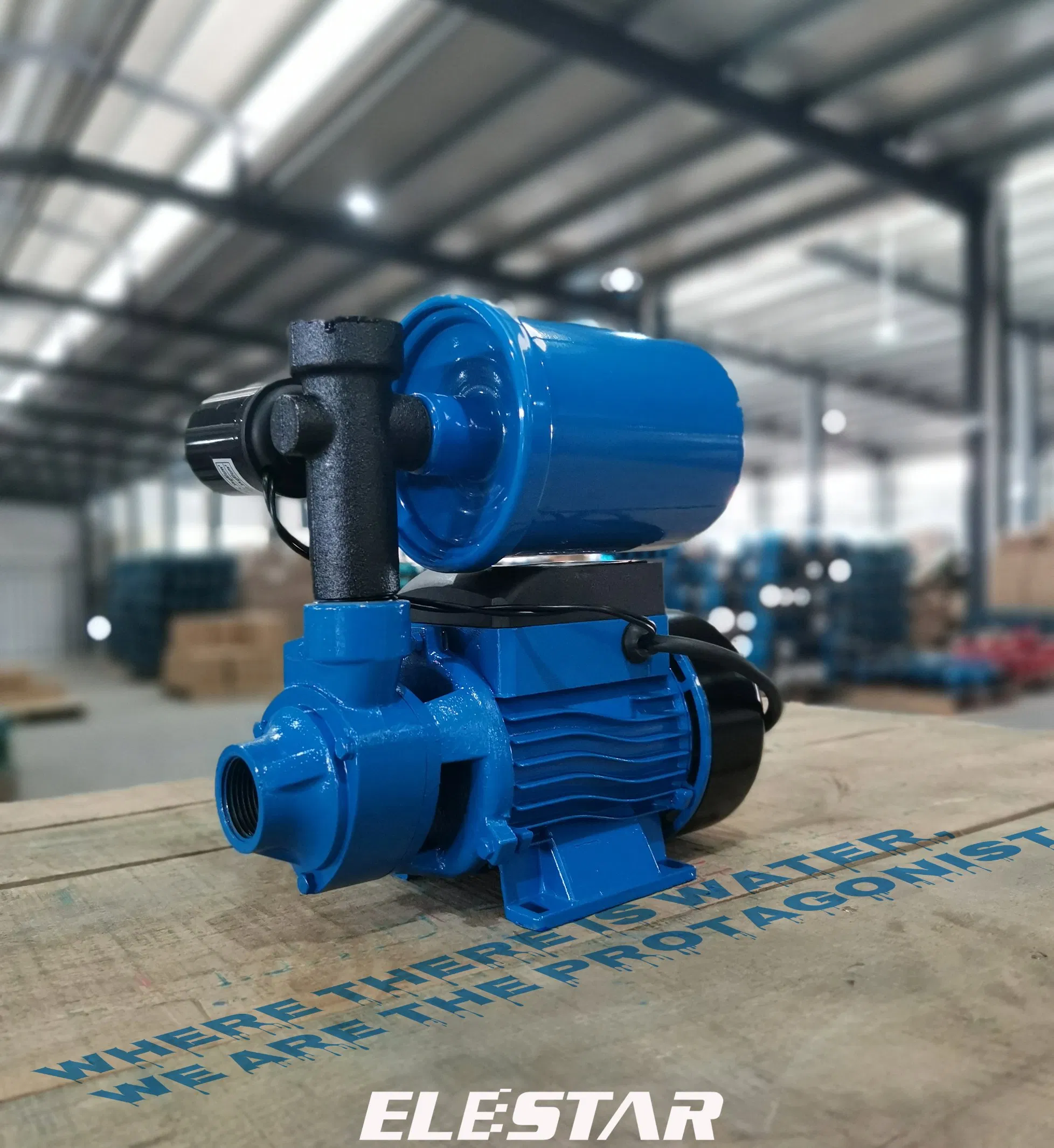

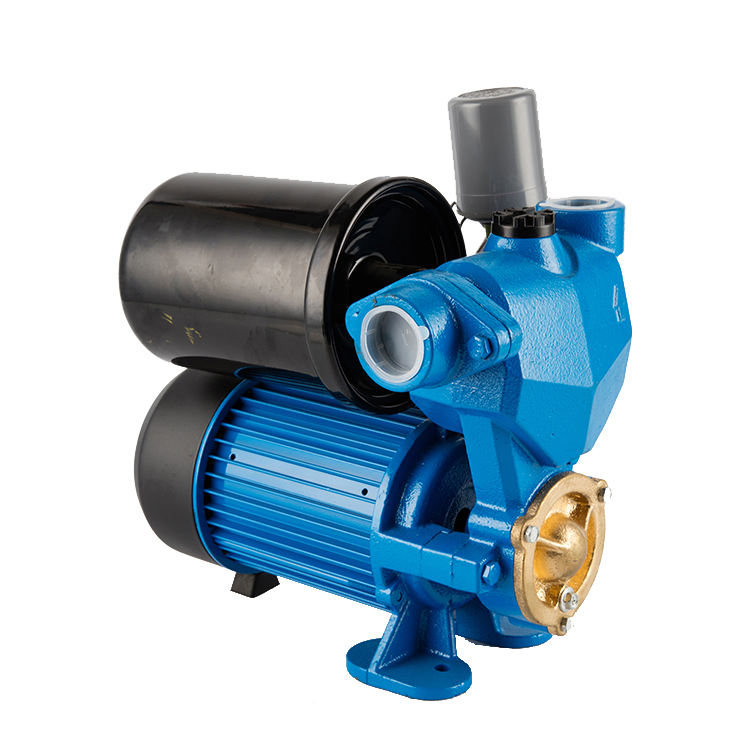

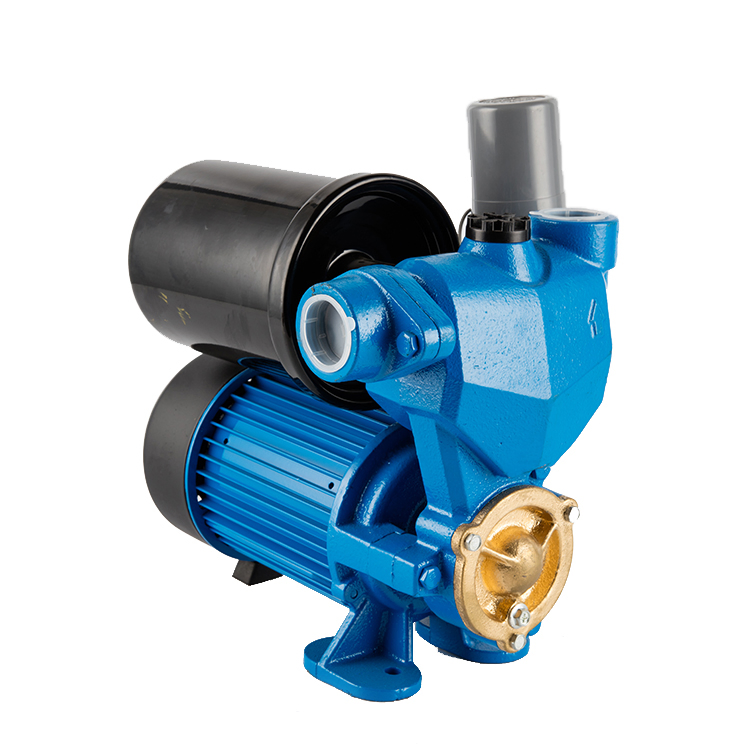

WZB series electric pumps are a new design domestic pump, featuring high efficiency and low consumption. They are widely used in domestic water supply, well water intake, pressure rising for city water, garden irrigation, and vegetable greenhouse water supply.
They are specifically suitable for pipeline pressure rising for water heaters when water pressure is insufficient to ensure stable temperatures.
| Single phase | Heavy duty continuous work (S1) |
| Motor housing: aluminium alloy | Shaft: Carbon Steel/ Stainless Steel |
| Insulation: class B/ class F | Protection: IP44/IP54 |
| Cooling: external ventilation | Pump body: Cast Iron |
| Impeller: brass/stainless steel | Mechanical seal: SIC/Ceramic/Graphite |

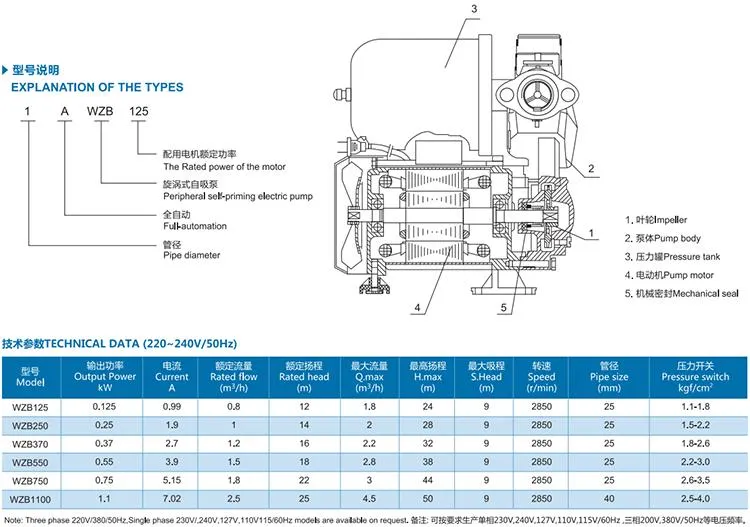

| Model | Output Power (kW) | Current | Rated Flow (m³/h) | Rated Head | Q.Max (m³/h) | H.Max (m) | S.Head (m) | Speed (r/min) |
|---|---|---|---|---|---|---|---|---|
| WZB125 | 0.125 | 0.99 | 0.8 | 12 | 1.8 | 24 | 9 | 2850 |

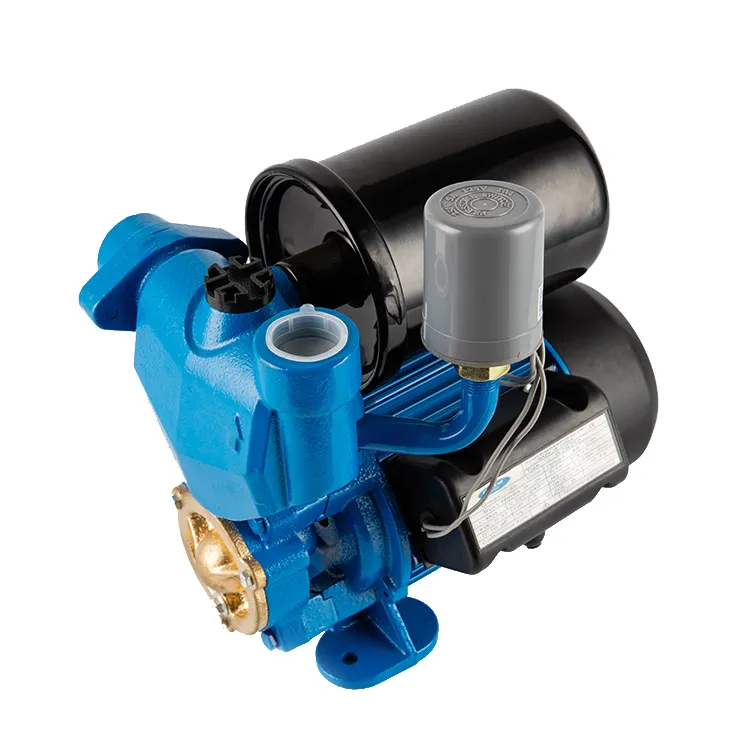

| WZB250 | 0.25 | 1.9 | 1 | 14 | 2 | 28 | 9 | 2850 |
| WZB370 | 0.37 | 2.7 | 1.2 | 16 | 2.2 | 32 | 9 | 2850 |
| WZB550 | 0.55 | 3.9 | 1.5 | 18 | 2.8 | 38 | 9 | 2850 |
| WZB750 | 0.75 | 5.15 | 1.8 | 22 | 3 | 44 | 9 | 2850 |
| WZB1100 | 1.1 | 7.02 | 2.5 | 25 | 4.5 | 50 | 9 | 2850 |
We support OEM customized packing based on your requirements. Simply provide the design files prior to production.
Note: Minimum order for customized cartons is 500pcs; otherwise, additional costs may apply from the supplier.

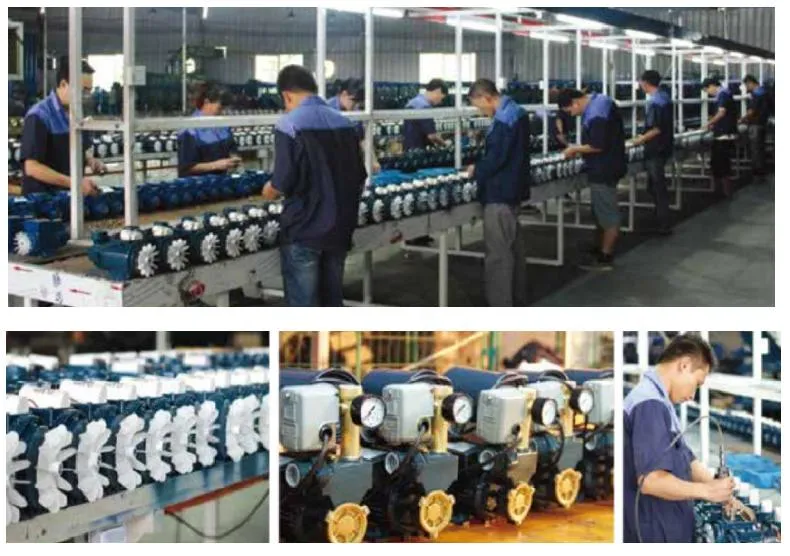

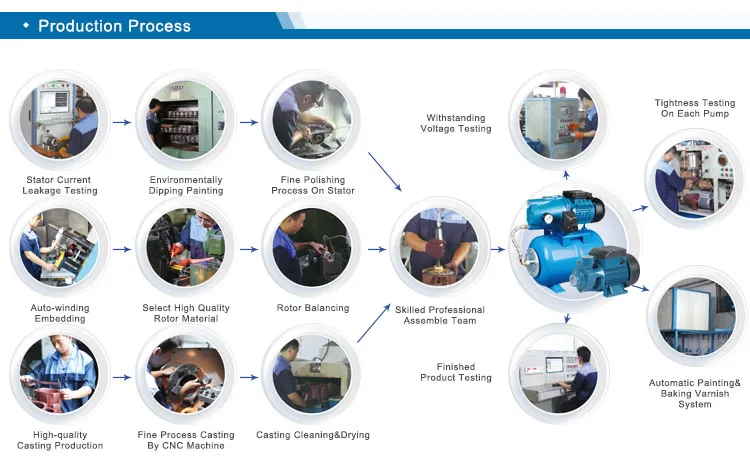

Established in 2005, we are a professional manufacturer of water pumps integrating R&D, production, and sales. With over 10 years of experience in exporting, 90% of our products are delivered worldwide, predominantly to EU and North American markets.
