📊 Basic Info.
Driving Type
Electric Motor
Impeller Number
Single-Stage Pump
Working Pressure
High Pressure Pump
Position of Pump Shaft
Vertical Pump
📝 Product Description
ISG Series Products Introduction:

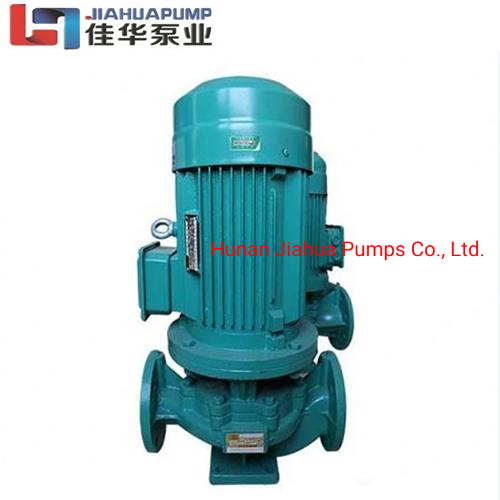

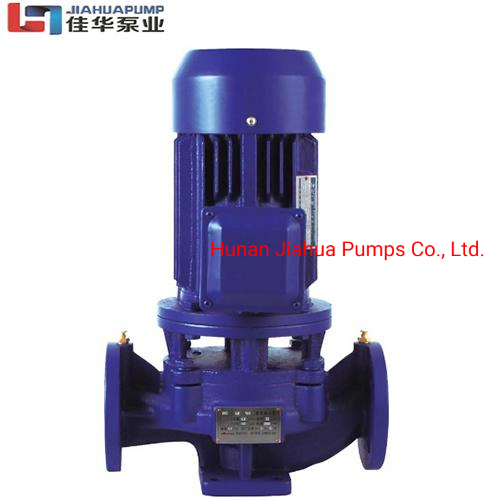

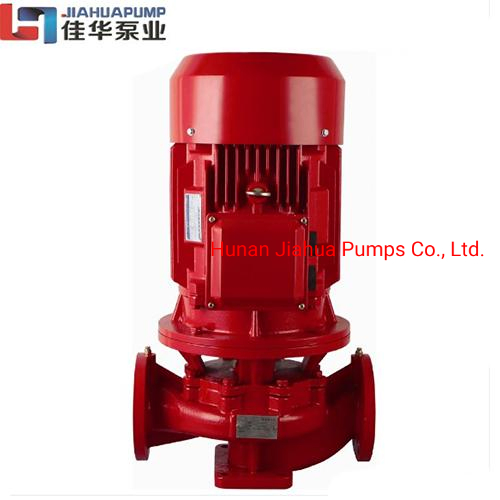

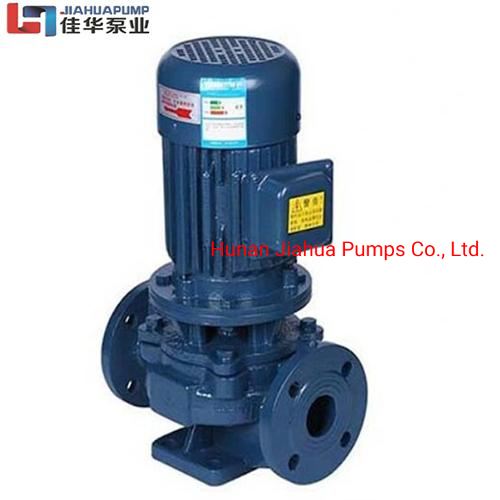

Vertical Centrifugal Pump for conveying water and other liquids with physical properties similar to water. Medium temperature below 80 ºC. Suitable for industrial and urban water supply and drainage, high-rise building pressurized water supply, garden sprinkler irrigation, fire pressurization, long distance water delivery, heating, bathroom heating and cooling supercharger and equipment support.

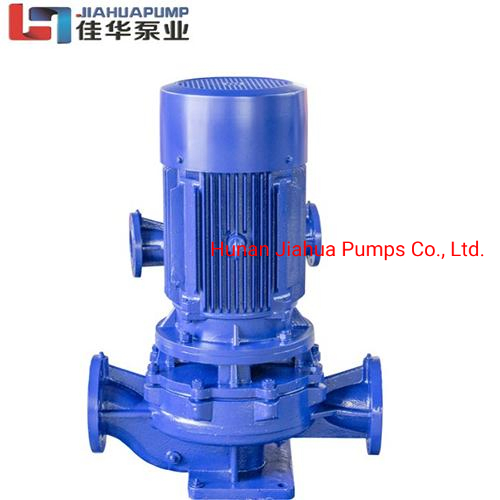

IRG Series Products Introduction:
1. Suction pressure less than 1.0MPA, or the maximum working pressure of the system less than 1.6Mp. Pump suction inlet pressure + pump head less than 1.6Mpa. The static pressure of the pump was 2.5MP.
2. Environmental temperature less than 40C. Relative humidity less than 95%.
3. Piping Pump volume of solid particles in the medium is not exceeding 0.1 percent of the unit volume, particle size less than 0.2mm.

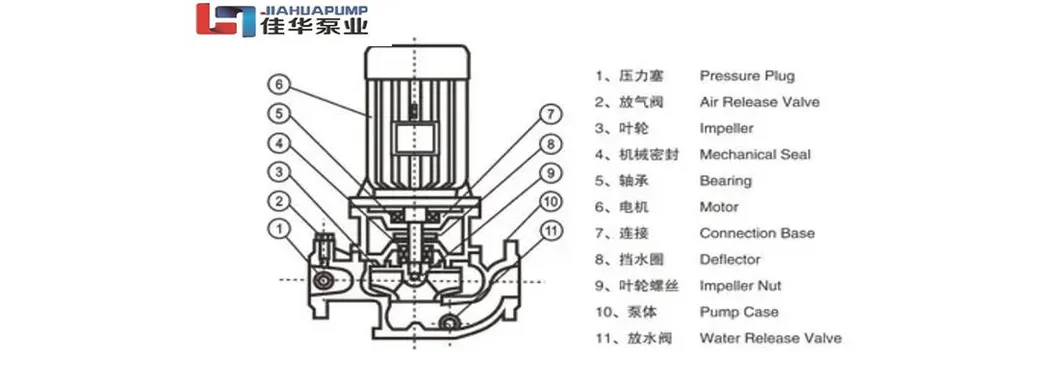

⚙️ ISG Structure Chart
| Model |
Flow (m3/h) |
Flow (L/S) |
Head (m) |
Motor Power (KW) |
Speed (r/min) |
Voltage (V) |
Efficiency (%) |
NPSHr |
| 15-80 | 1.2 | 0.42 | 8 | 0.18 | 2800 | 220 | 34 | 2.5 |
| 20-110 | 2.5 | 0.69 | 15 | 0.37 | 200 | 220 | 34 | 2.5 |
| 20-160 | 2.5 | 0.69 | 32 | 0.75 | 2900 | 220/380 | 25 | 2.5 |
| 25-110 | 4 | 1.11 | 15 | 0.55 | 2900 | 220/380 | 42 | 2.5 |
| 25-125 | 4 | 1.11 | 20 | 0.75 | 2900 | 220/380 | 36 | 2.5 |
| 25-160 | 4 | 1.11 | 32 | 1.5 | 2900 | 380 | 32 | 2.5 |
| 32-100 | 4.5 | 1.25 | 12.8 | 0.55 | 2900 | 220/380 | 44 | 2 |
| 32-125 | 5 | 1.39 | 20 | 0.75 | 2900 | 220/380 | 38 | 2.5 |
| 40-100 | 6.3 | 1.75 | 12.5 | 0.55 | 2900 | 220/380 | 54 | 2.5 |
| 40-125 | 6.3 | 1.75 | 20 | 1.1 | 2900 | 220/380 | 46 | 2.5 |

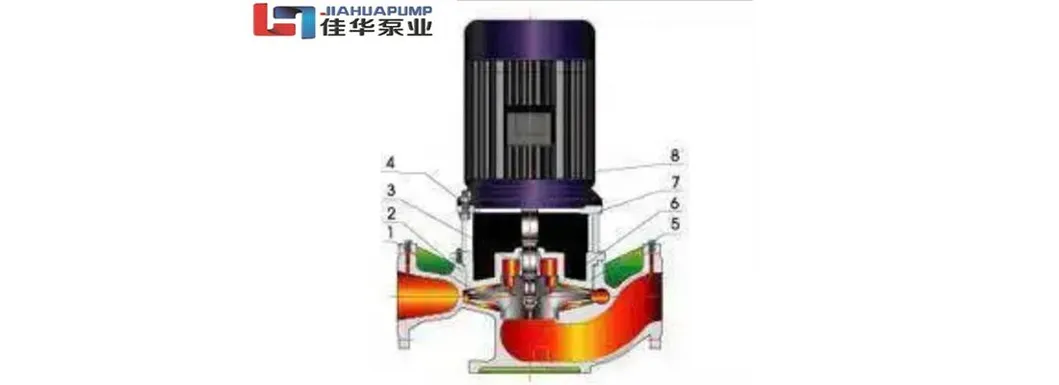

🏗️ IRG Structure & Models

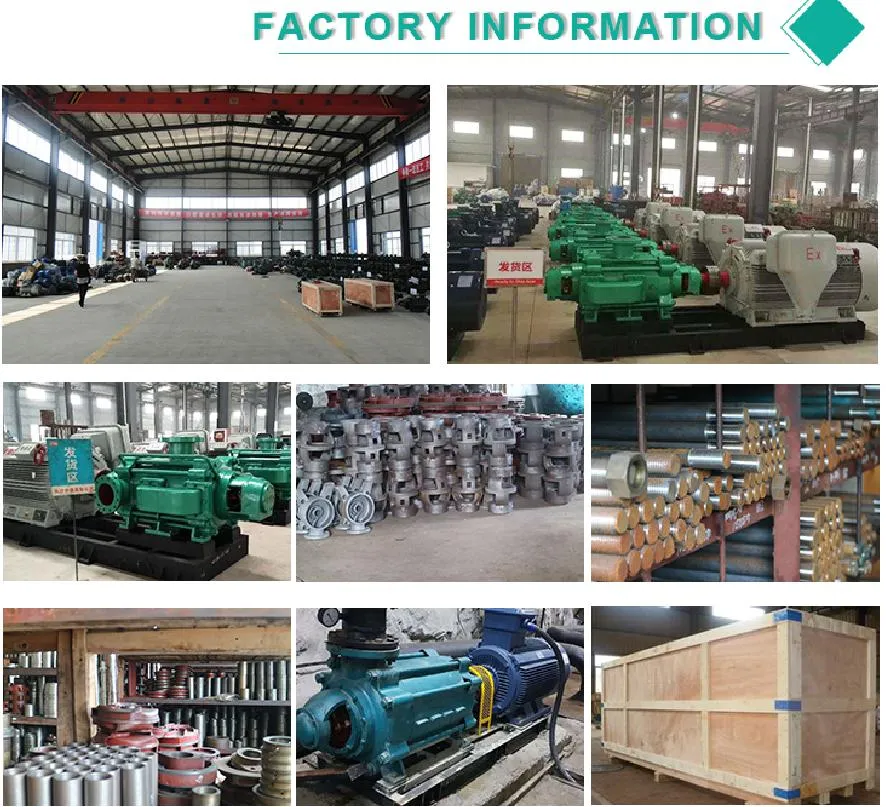

🏢 Profile & Workshop
A professional manufacturer with many years of experience in mining, power generation, dredging, hydraulic, irrigation, slurry transportation, construction, seawater, oil and gas transportation, solar energy system and other industries.
Our Services:
1. Processing with supplied drawing / samples.
2. Produce all kinds of anti-abrasive spare parts.
3. Lifetime product support for flow parts replacement.
📜 Certificates & Application
❓ FAQ
1. What's the Minimum Order Quantity (MOQ)?
1 set for regular products; special requirements need to be discussed.
2. What are your payment terms?
For small orders (< $4000), 100% T/T. For larger orders, 30% T/T in advance and 70% before shipment.
3. How long is the delivery time?
Stock orders are immediate. Non-stock: 7 days for bare pumps, 25 days for electric/diesel pump sets.
4. What type of packaging is used?
Standard export plywood cases are used for all shipments.
5. How are the pumps delivered?
Urgent orders can be shipped by air. Large orders via sea, vehicle, or multi-modal transport.
6. How long is the warranty period?
According to international standards, 1 year for the pump in standard operation and 3 months for spare parts.
