| Model NO. | KWSP40 | Exhauster Method | Positive Displacement Pump |
|---|---|---|---|
| Vacuum Degree | High Vacuum | Work Function | Pre-Suction Pump |
| Working Conditions | Dry | Max. Capacity | 40 M3/H |
| Inlet/Outlet | 4' (114mm) | Vacuum | 25'hg (Mercury Column) |
| Max Suction Distance | 50M | Max. Discharge Distance | 1000M |
| Max. Solids Content | 80% | Max Solids Size | 75mm |
| Working Pressure | 550kpa-785kpa | Air Demand | 17m³/Min (600cfm) |
| Weight | 892 Kg | Dimension | 1690×1468×1983 mm |
| Type Pump | Pneumatic | Electrical | Without |

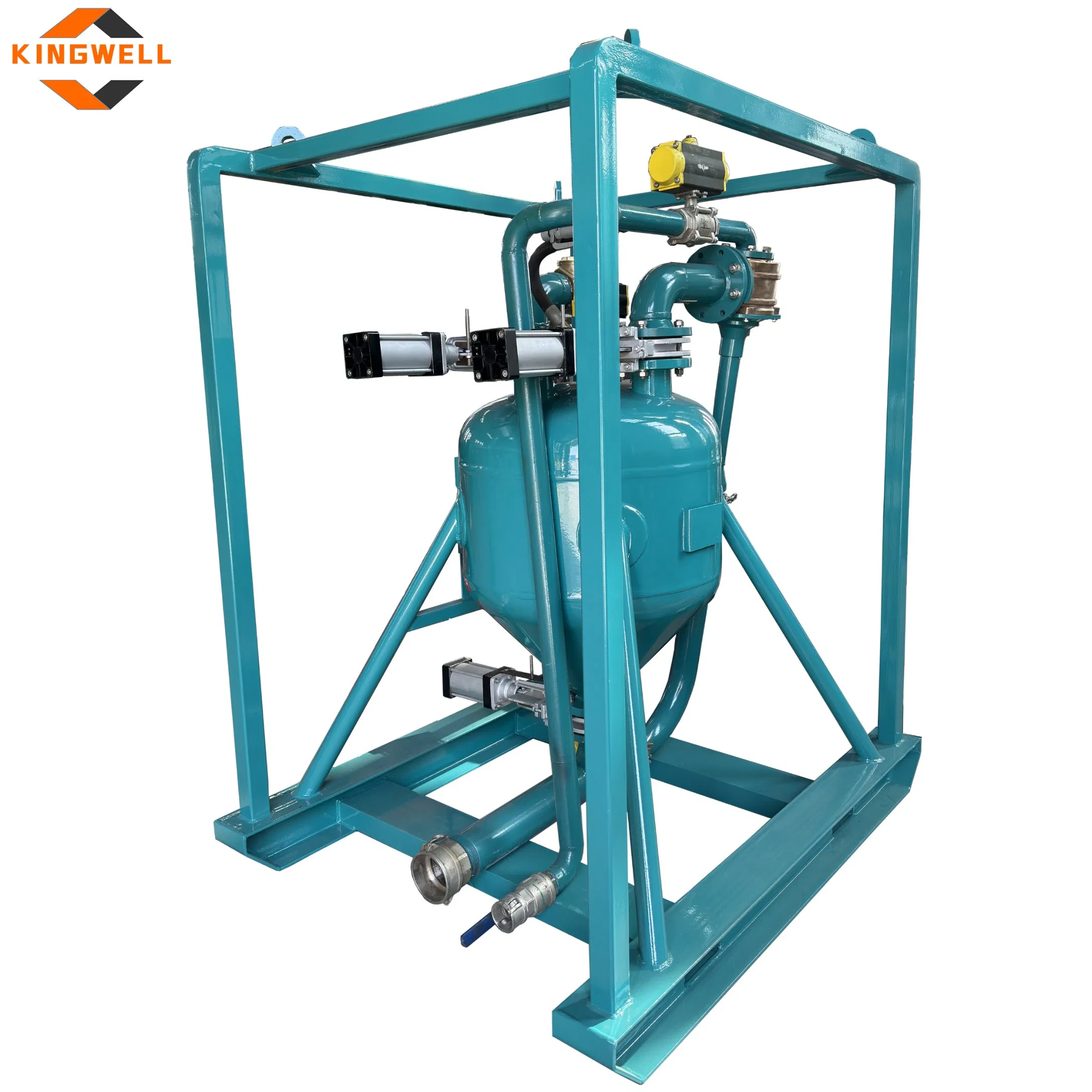

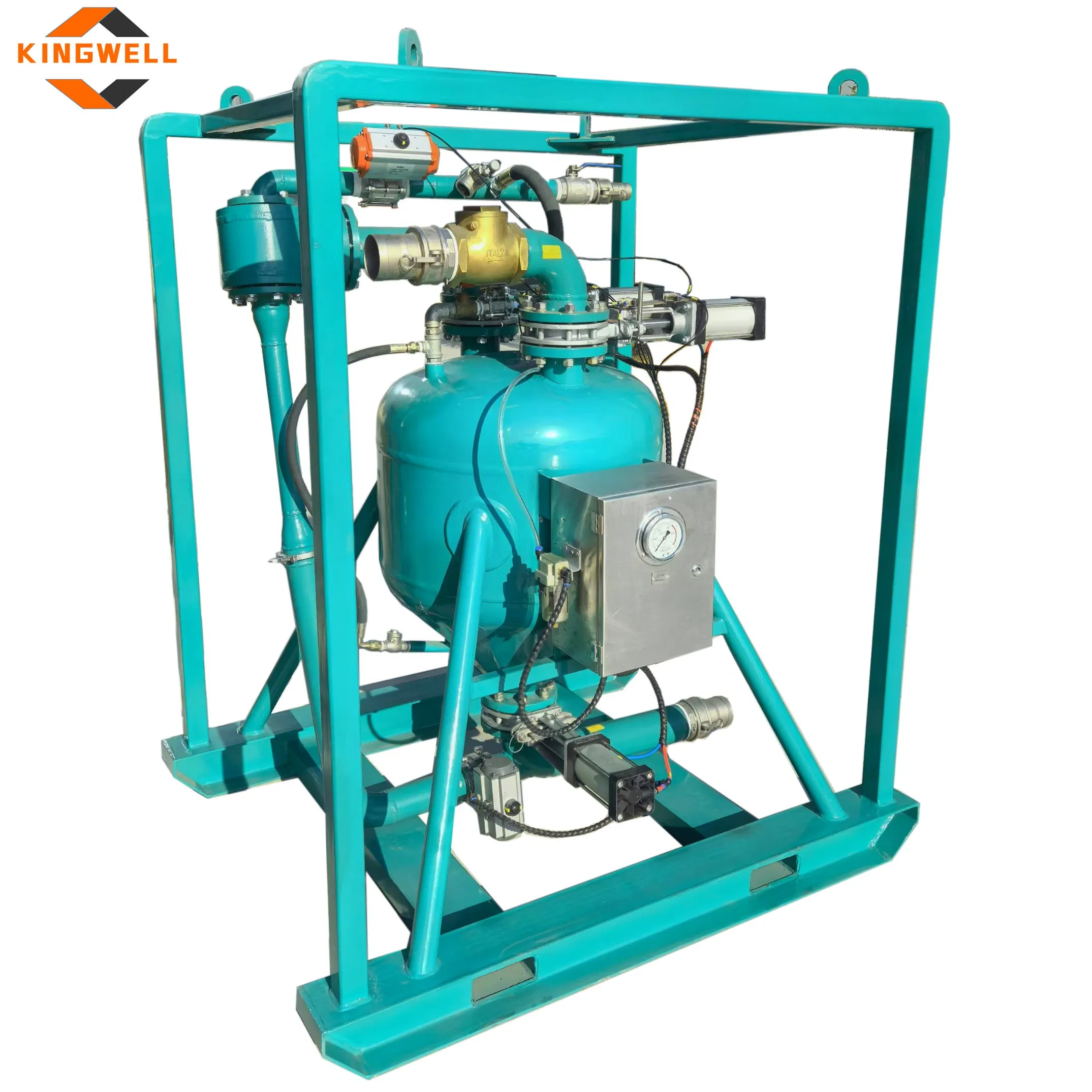

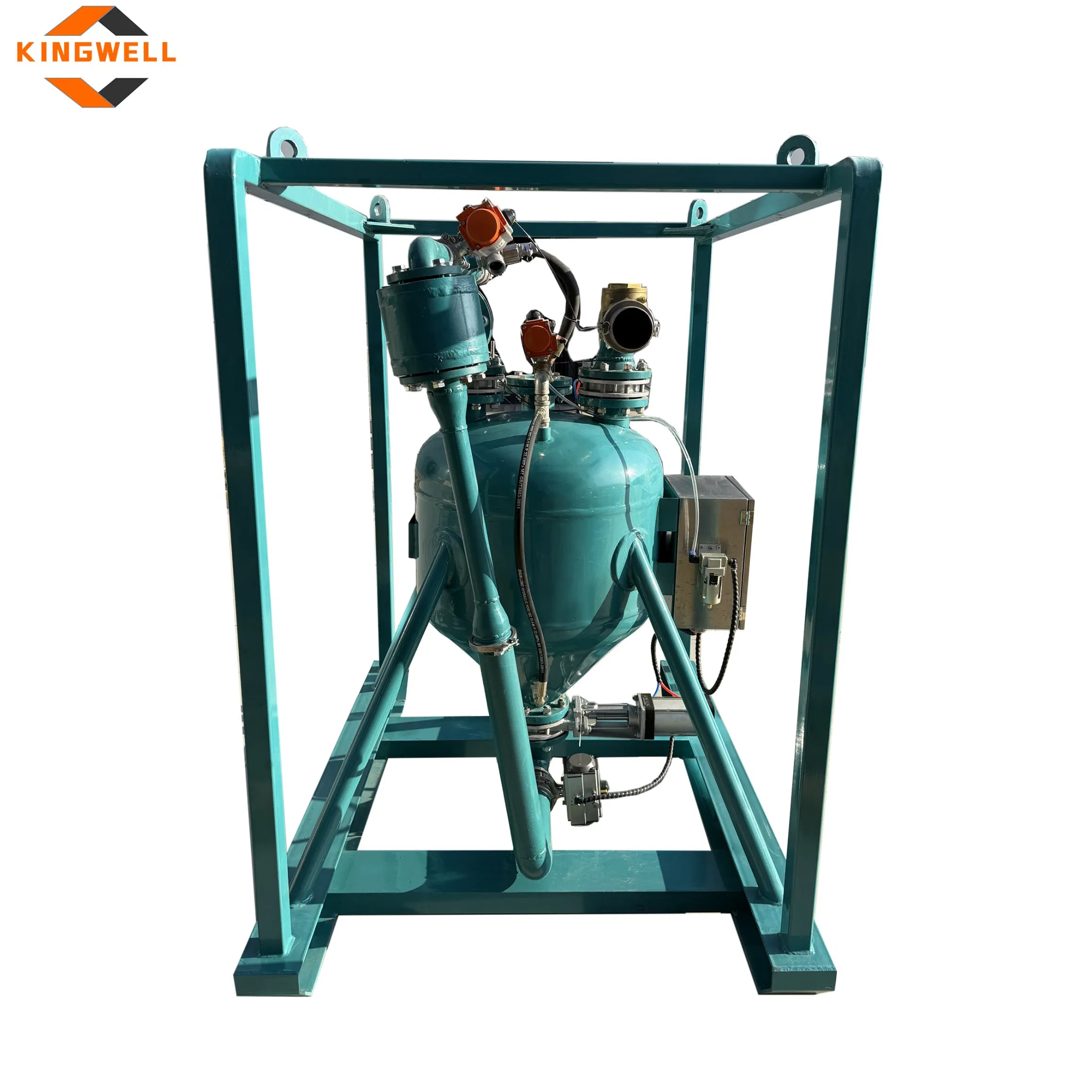

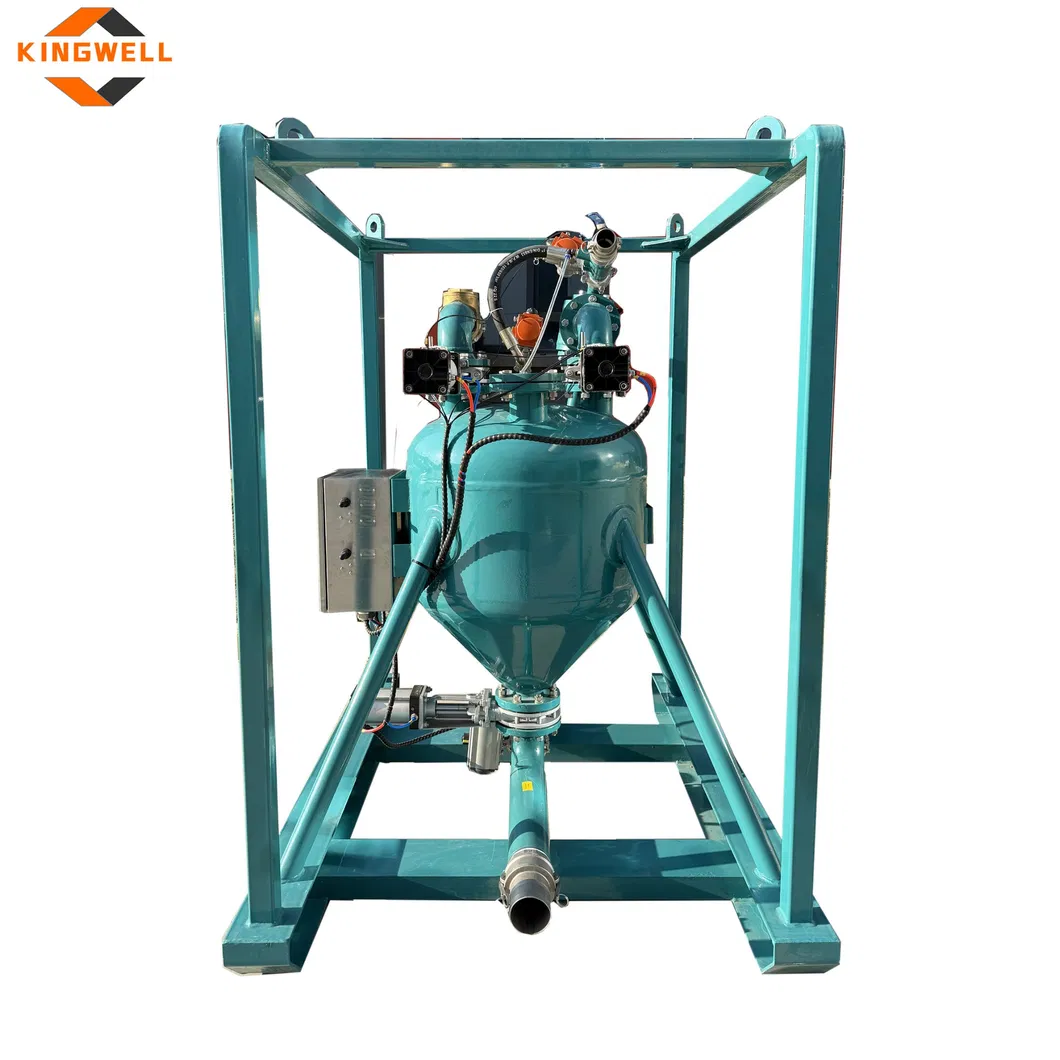

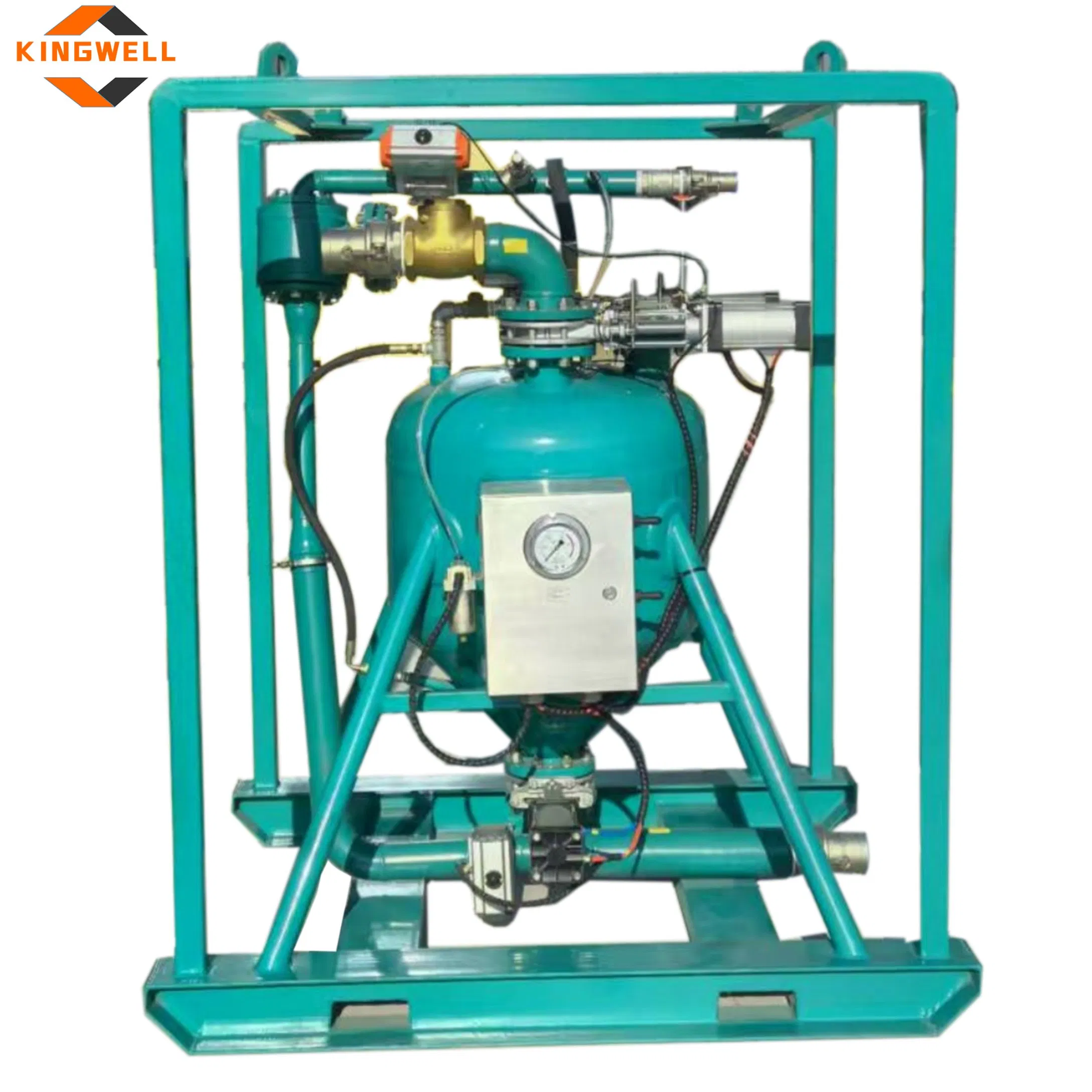

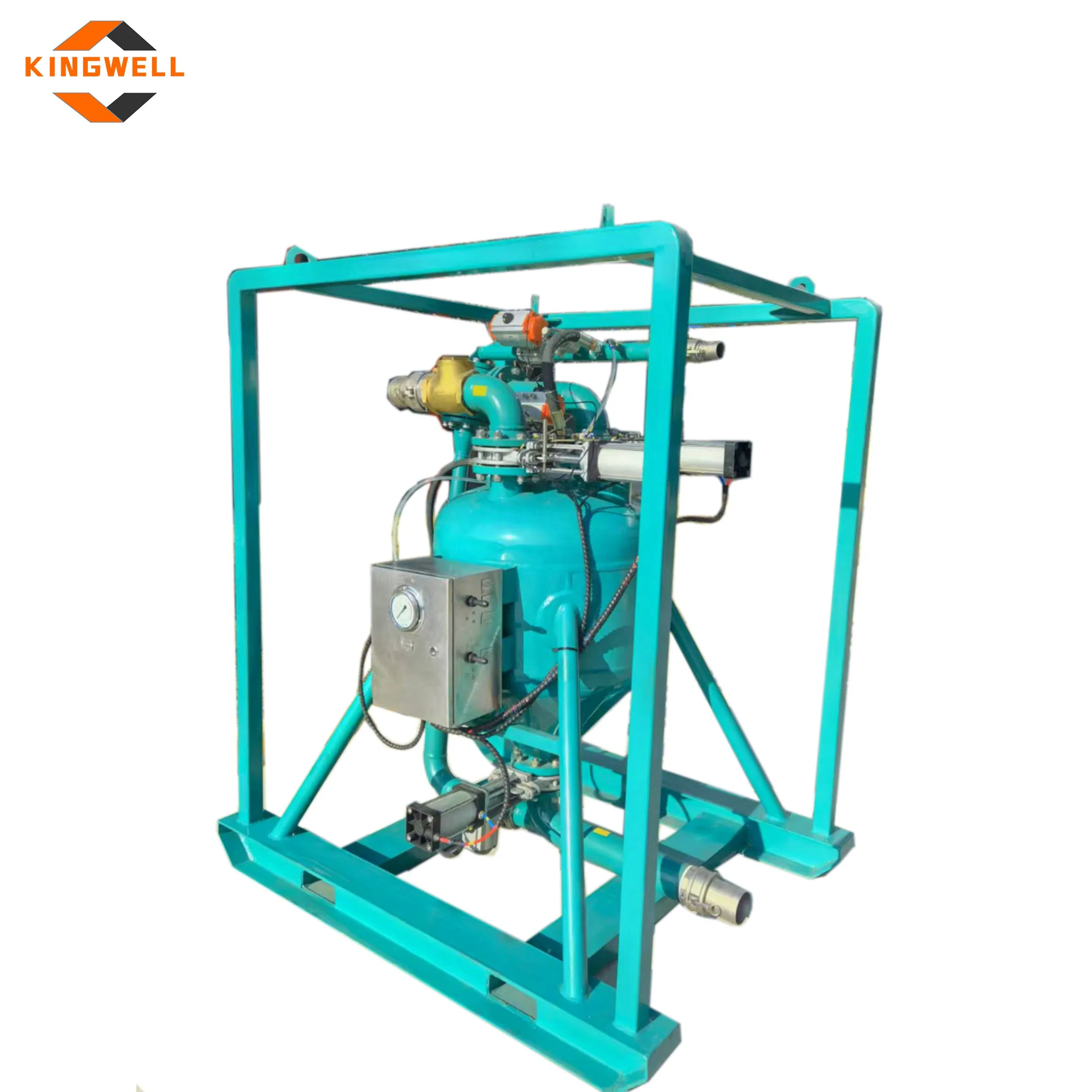

The sludge vacuum pump is a high-load and strong suction capacity vacuum transferring pump, also known as a solids transferring pump or cuttings transfer pump. The unique structure design enables it to work in extremely tough circumstances with minimal maintenance. It is ideal for transferring sludge with high solid content (up to 80%) and high specific gravity materials.
The high-efficiency Venturi device can produce a vacuum up to 10 meters water column for material suction under high air flow circumstances. Designed with a compact structure and virtually no wearing parts, it excels at high-density material transferring like cuttings and oily sludge.
| Model | KWSP40 | KWSP20 | KWSP10 |
|---|---|---|---|
| Max. Capacity (m3/h) | 40 | 20 | 10 |
| Inlet/Outlet (Inch) | 4" (114mm) | 4" (114mm) | 3" (89mm) |
| Vacuum Degree | 25"HG | 25"HG | 25"HG |
| Max Suction Distance (m) | 50 | 50 | 50 |
| Max Discharge Distance (m) | 1000 | 500 | 500 |
| Max Solids Content | 80% | 80% | 80% |
| Max Solids Size (mm) | 75 | 50 | 50 |
| Air Demand | 17 m³/min | 8 m³/min | 4.3 m³/min |
| Weight (kg) | 892 | 386 | 320 |
Fully pneumatic operation with no electrical power requirements.
Safe operation in hazardous areas and difficult environments.
Internal cavity contains no rotating parts, reducing wear and tear.
Produces 25" HG vacuum (up to 10m water column).
