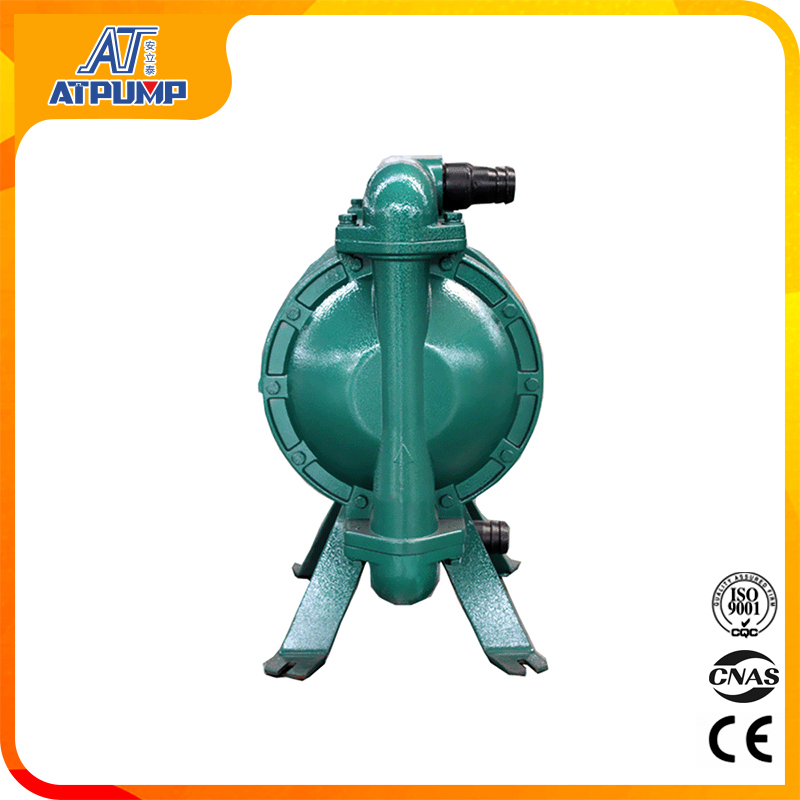

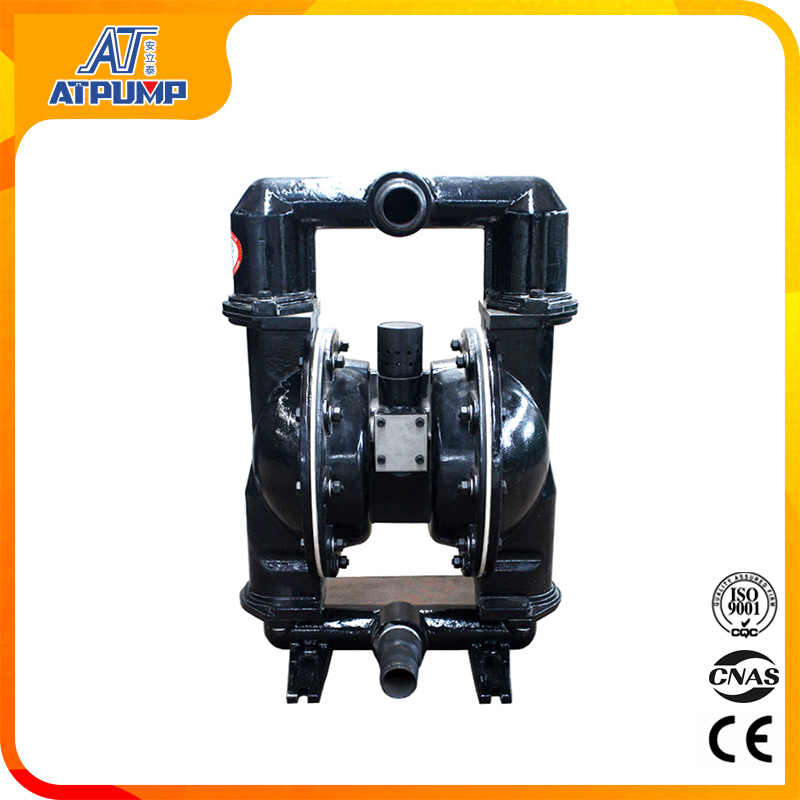

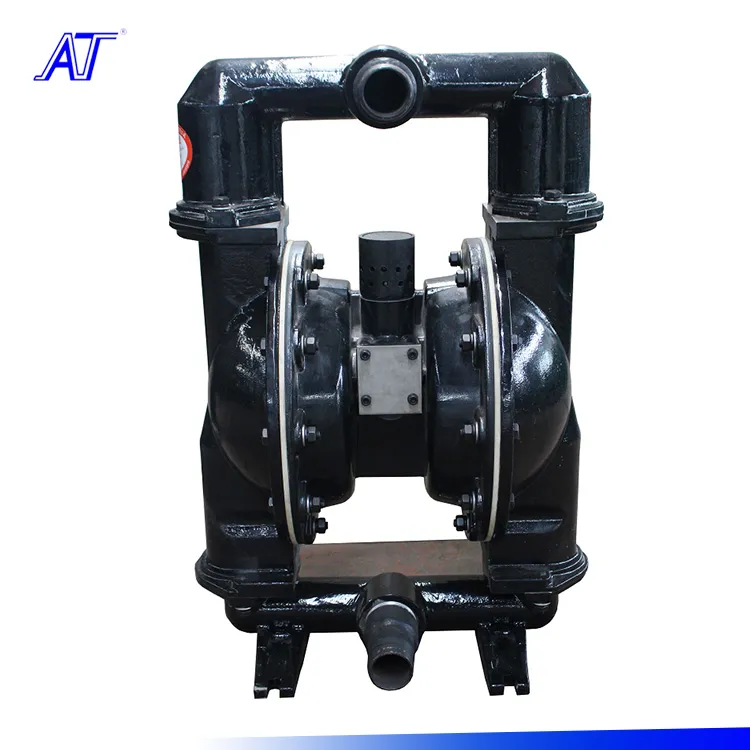

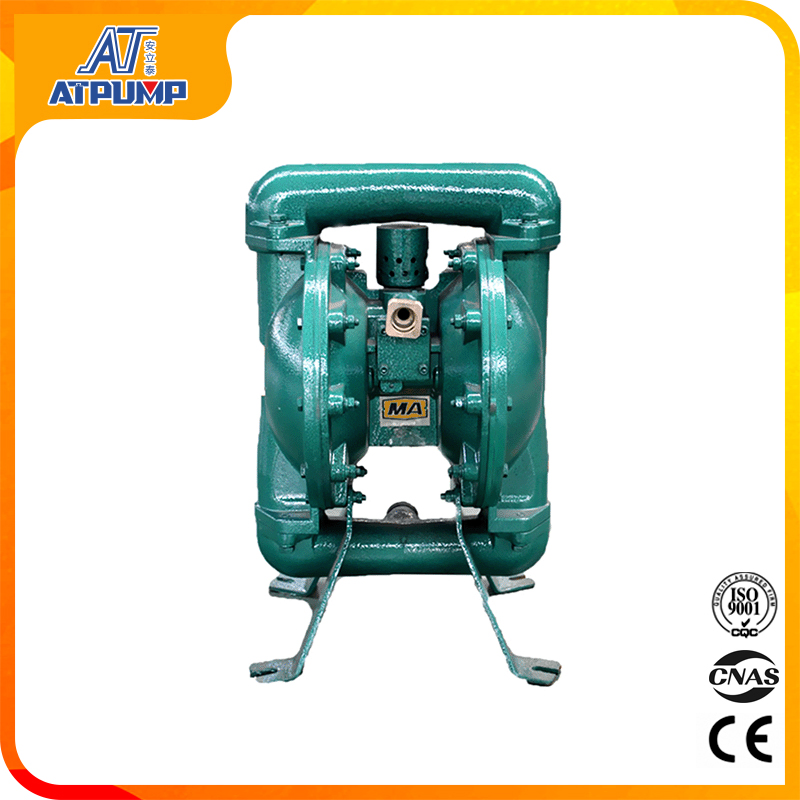

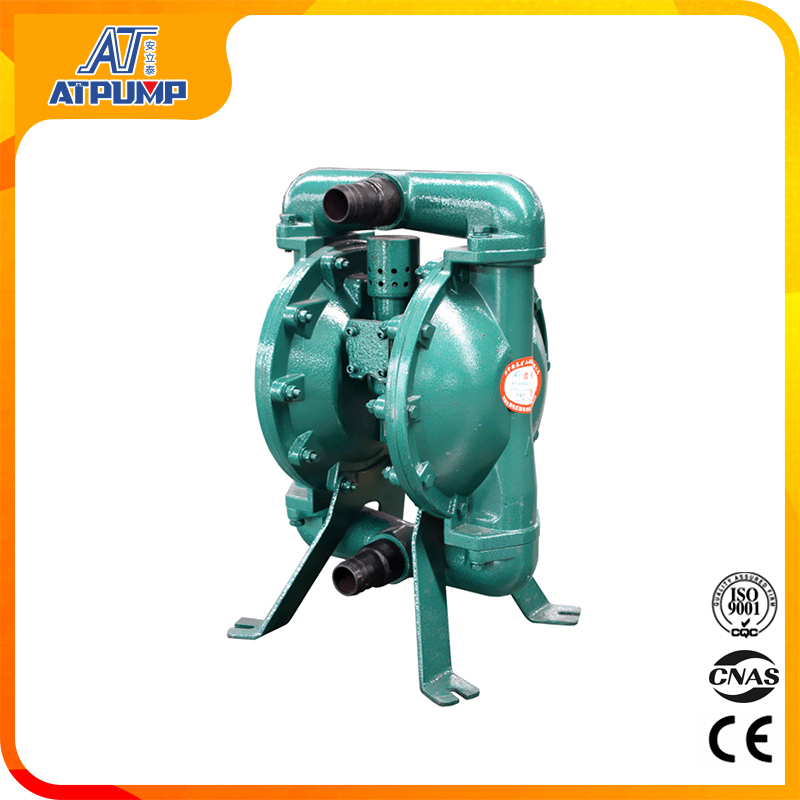

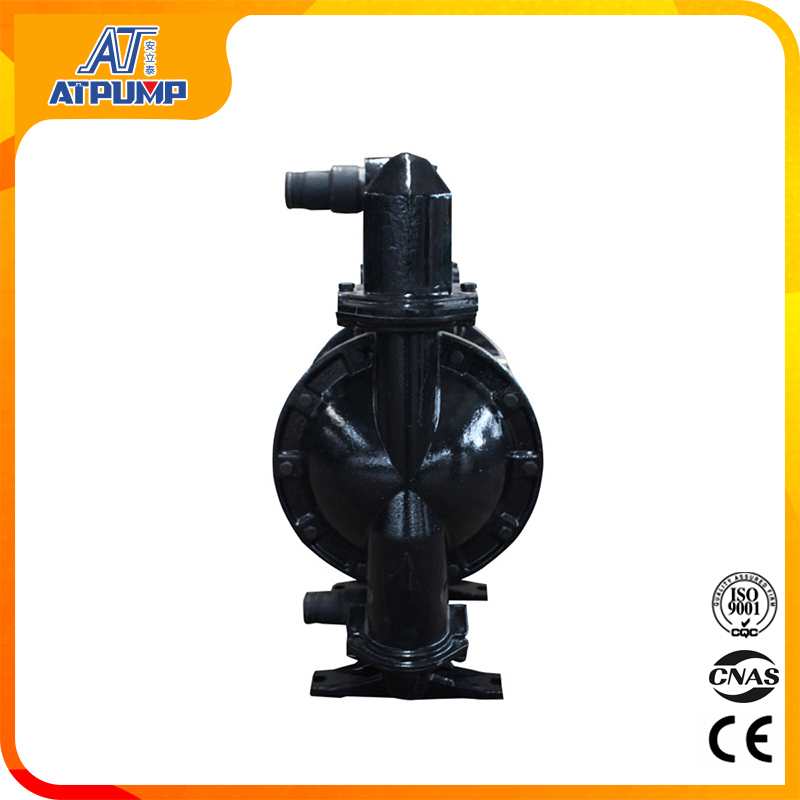

The BQG series mining pneumatic diaphragm pump is a high-quality, forward-displacement, self-suction pump. It utilizes compressed air, common in industrial and mining enterprises, as its power source. By using pressure difference in the air chamber alternatively, it produces suction liquid pressure and positive liquid pressure, with a one-way control ball valve ensuring forward flow.
Key parts are made of aluminum alloy casting, with diaphragms and ball seats crafted from international advanced materials. This ensures small size, light weight, low noise, and reliable operation. It is wear-resistant, corrosion-resistant, fire-preventative, and explosion-proof, making it ideal for mines, tunnels, petroleum, and chemical industries.
| Model | Flow (l/min) | Outlet Pressure (MPa) | Gas Consumption (m³/h) | Rated Air Pressure (MPa) | Weight (kg) | Dimensions (mm) | Pipe Dia (inch) |
|---|---|---|---|---|---|---|---|
| BQG100/0.4 | 100 | 0.4 | 0.5-1.5 | 0.6 | 32 | 490×400×340 | 1.5 |
| BQG140/0.3 | 140 | 0.3 | 0.5-1.5 | 0.6 | 32 | 490×400×340 | 1.5 |
| BQG230/0.25 | 230 | 0.25 | 0.5-1.5 | 0.6 | 32 | 490×400×340 | 1.5 |
| BQG125/0.45 | 125 | 0.45 | 1.2-2.0 | 0.6 | 40 | 644×438×390 | 2.0 |
| BQG350/0.2 | 350 | 0.2 | 1.2-2.0 | 0.6 | 40 | 644×438×390 | 2.0 |
| BQG200/0.4 | 200 | 0.4 | 1.5-2.5 | 0.6 | 58 | 890×538×477 | 3.0 |
| BQG500/0.2 | 500 | 0.2 | 1.5-2.5 | 0.6 | 58 | 890×538×477 | 3.0 |
Our products are exported globally to regions including Russia, India, and Southeast Asia. We use advanced technology and reliable quality control to ensure customer satisfaction.
Export Standard Wooden Case

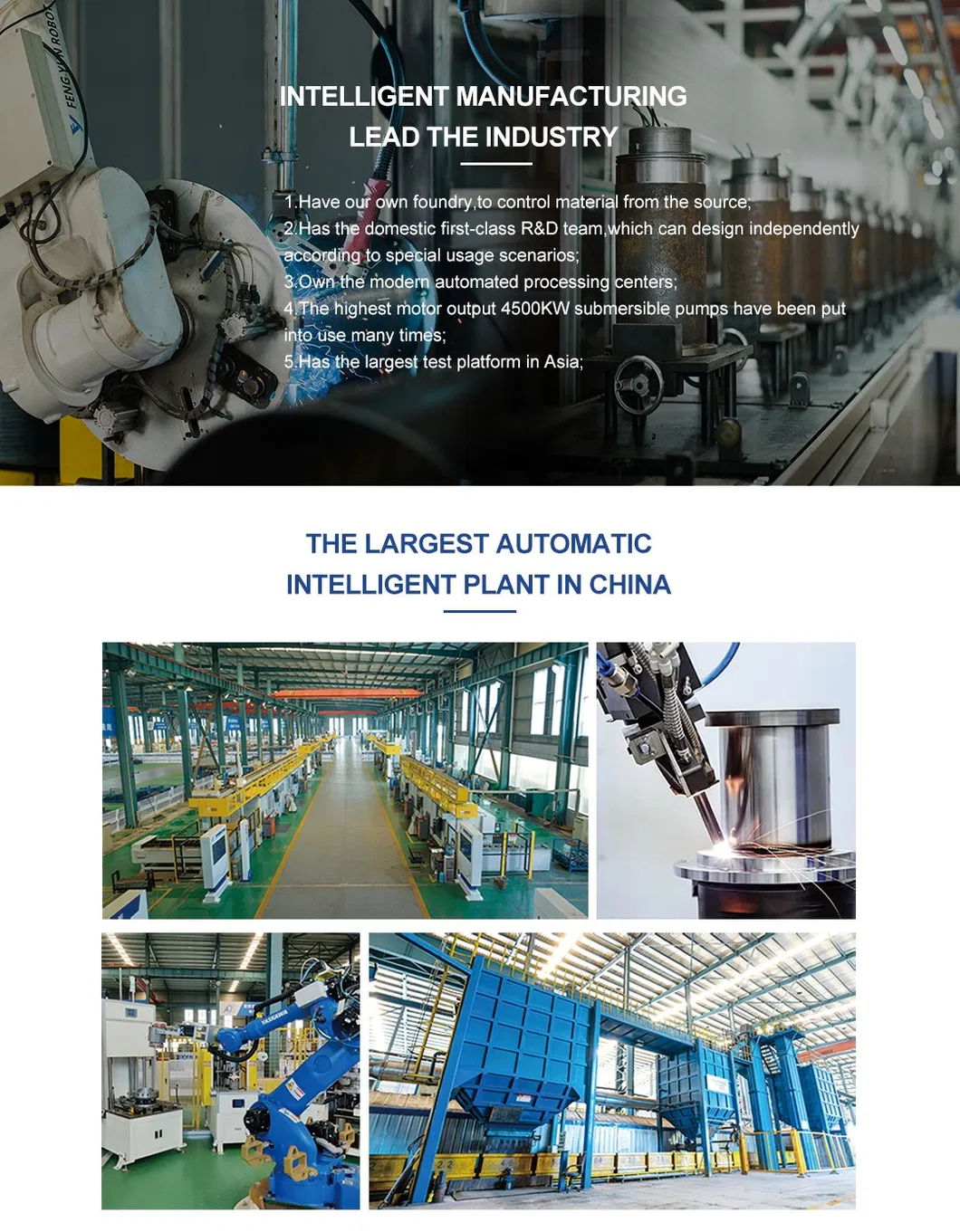

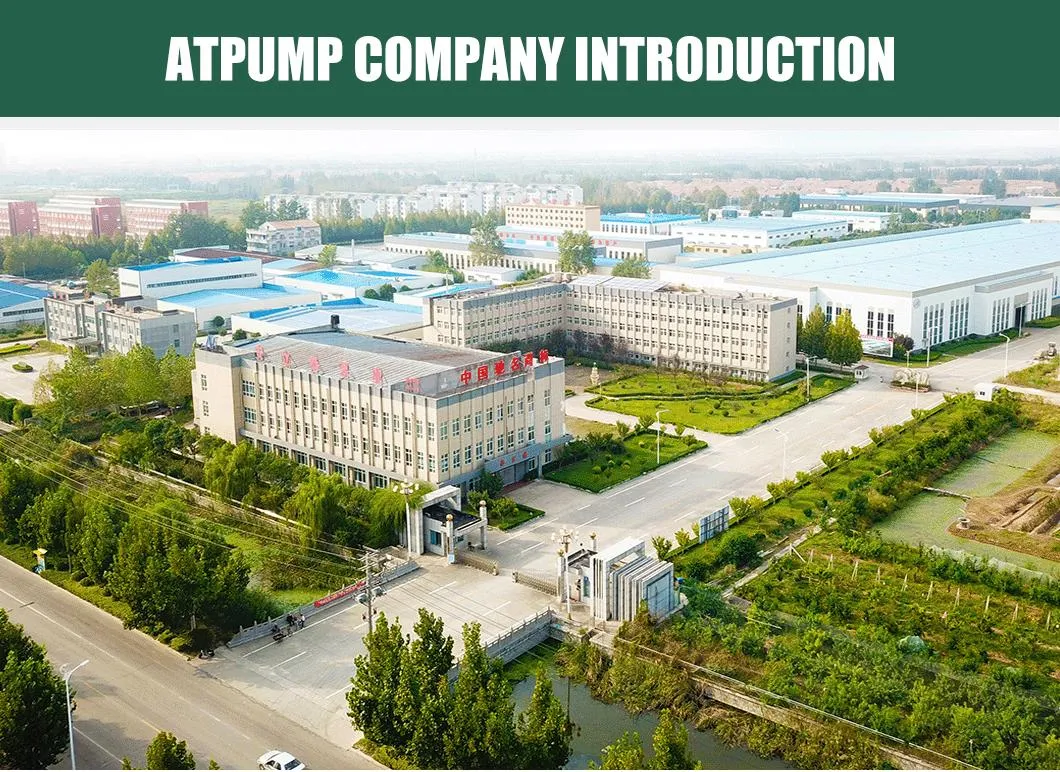

Established in June 2005, our company is a national high-tech enterprise integrating R&D, manufacturing, marketing, and service. We are a renowned professional manufacturer of submersible pumps, covering an area of more than 200,000 square meters.

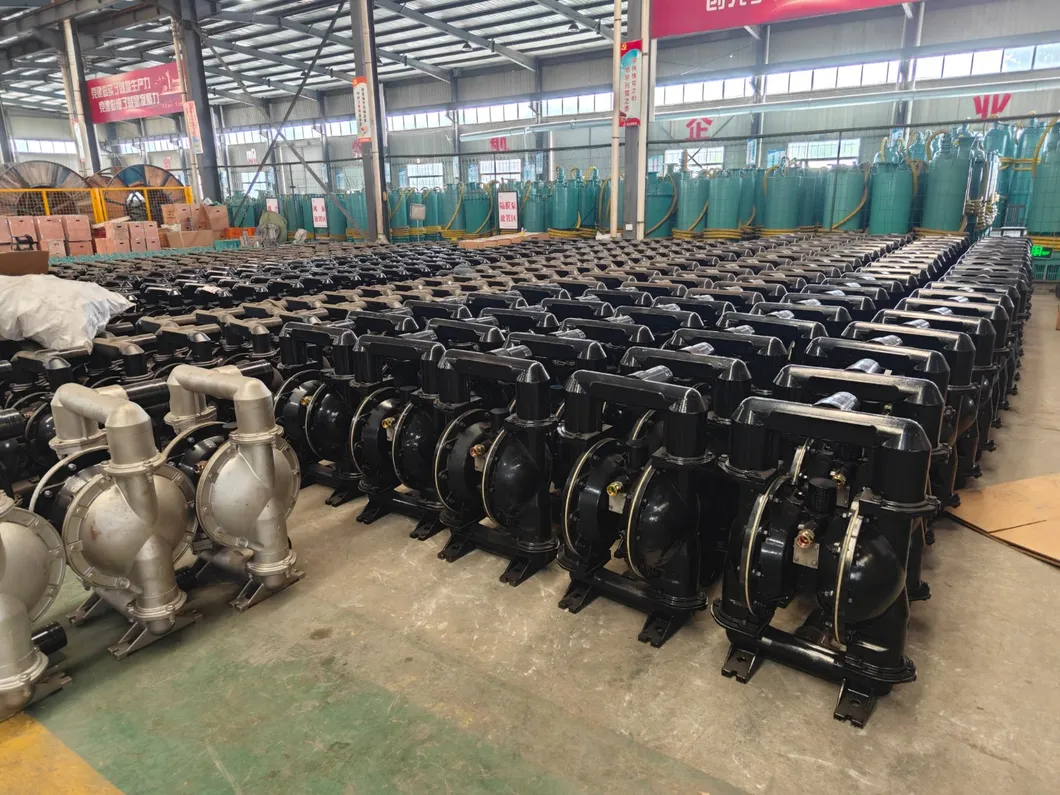

With an annual production capacity of over 100,000 sets, our product line includes explosion-proof submersible drainage pumps, high-voltage pumps, pneumatic desilting pumps, and pneumatic diaphragm pumps. We hold 56 invention patents and have achieved certifications such as ISO9001, ISO14001, OHSAS18001, and CE.
