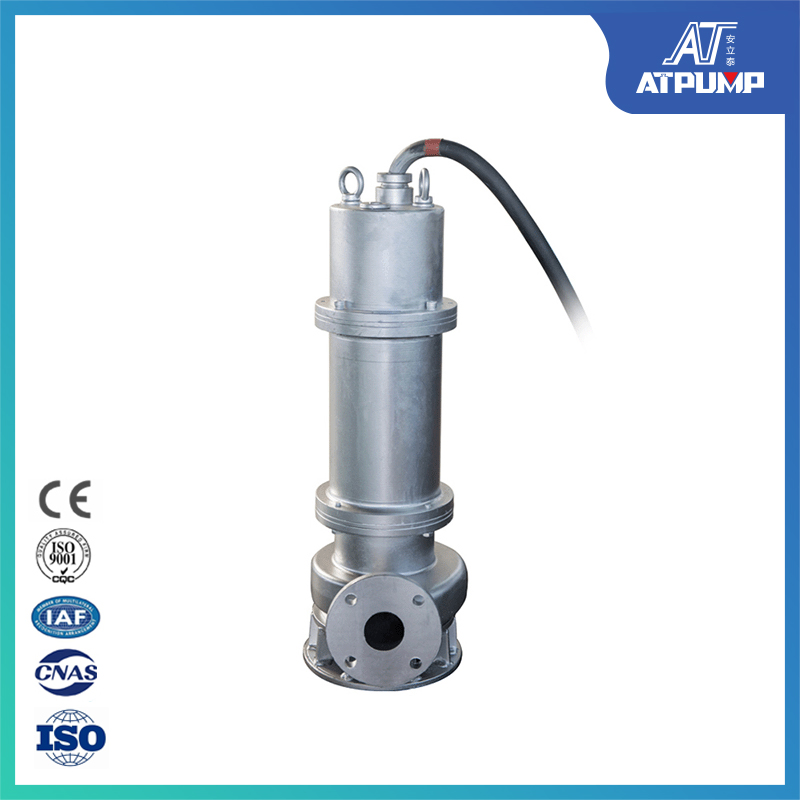

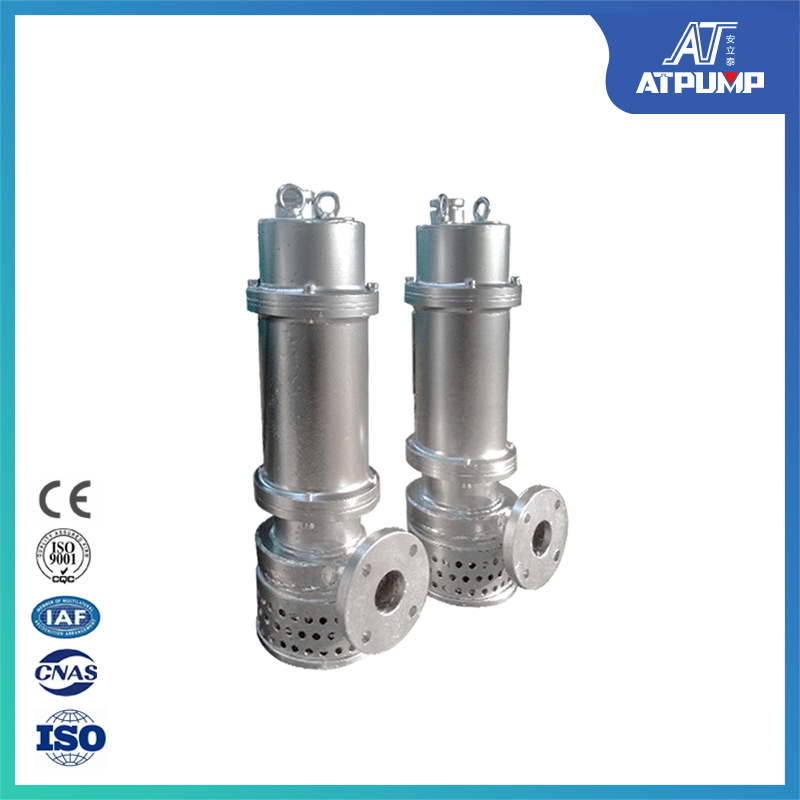

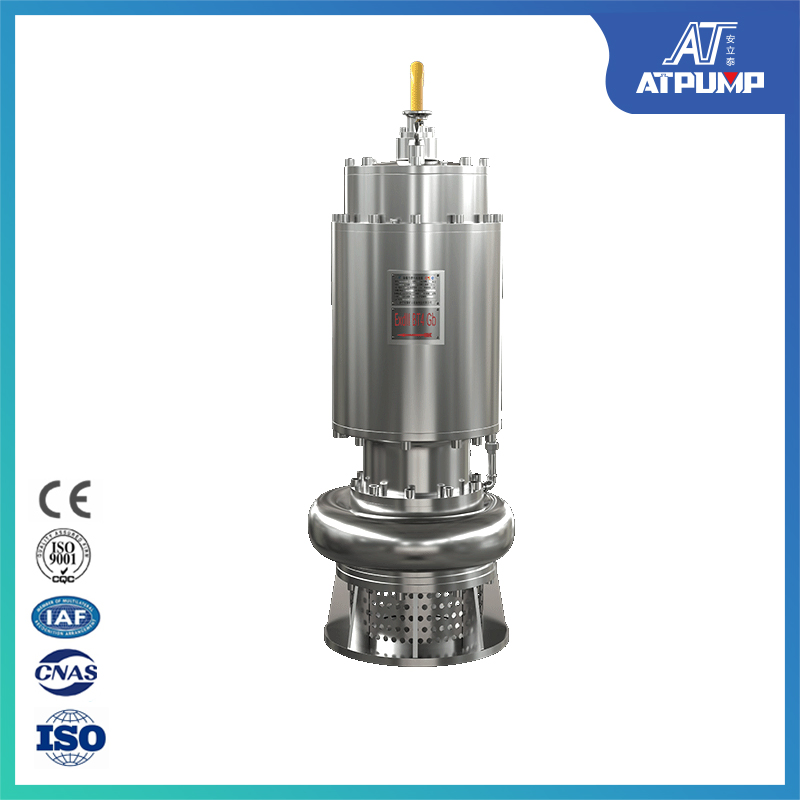

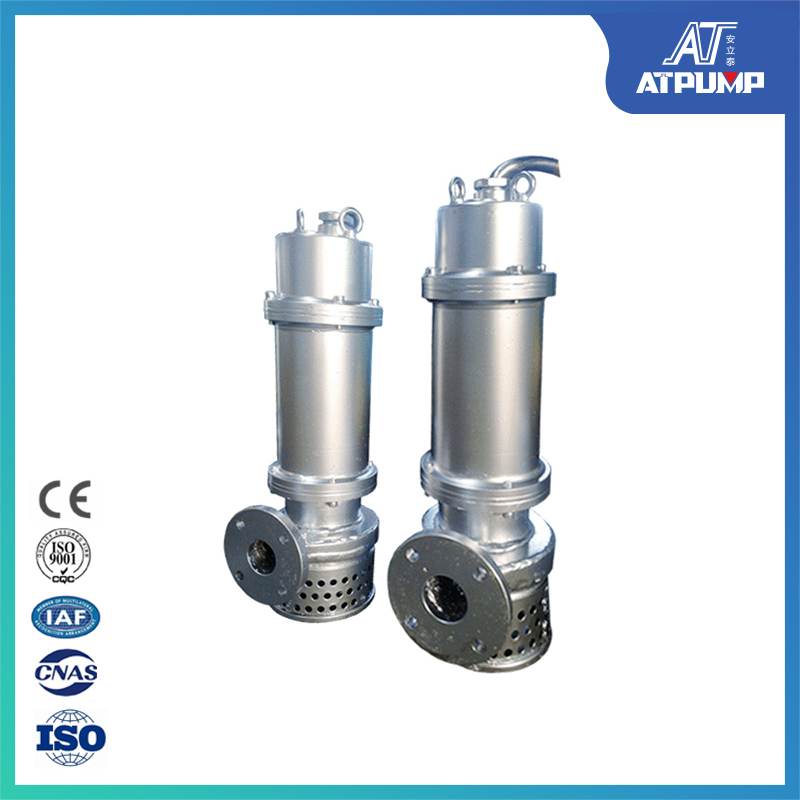

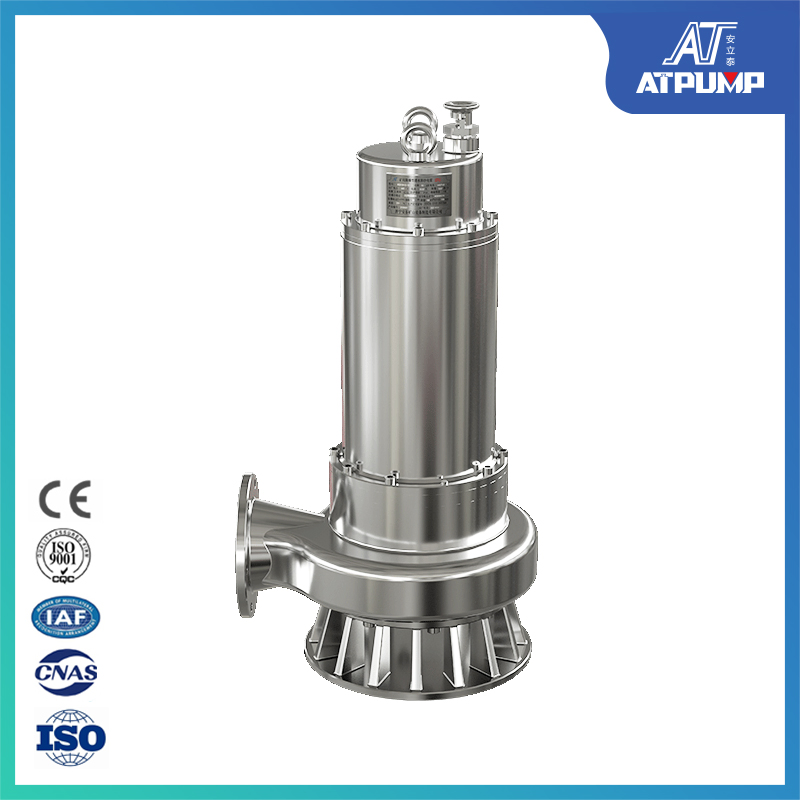

1.5kw-90kw Duplex Stainless Steel Custom Industrial Submersible Sewage Pump Submersible Pump SS304 SS316 SS316L Electric Industrial High Pressure Water Pump

1 / 5

1.5kw-90kw Duplex Stainless Steel Custom Industrial Submersible Sewage Pump Submersible Pump SS304 SS316 SS316L Electric Industrial High Pressure Water Pump

Customization:	Available
After-sales Service:	12 Months
Warranty:	12 Months

Send Inquiry

Product Description

Basic Information

Model NO.

Stainless Steel Pump

Max. Head

7-240m

Max. Capacity

900m³/H

Driving Type

Motor

Material

Stainless Steel

Structure

Double Suction Pump

Power Source

Electric

Rated Power

2.2kw-90kw

Rated Flow

10-900m³/H

Rated Voltage

380/660 or 660/1140 or Customizable

Pump Material

304/316/316L/Duplex Stainless Steel

Outlet Diameter

40-300mm

Installation

Vertical/Horizontal/Inclined

Safety Sensors

Overheating & Water Leakage Sensors

Certificate

ISO9001, CE, Ma, etc

Origin

China

Product Description

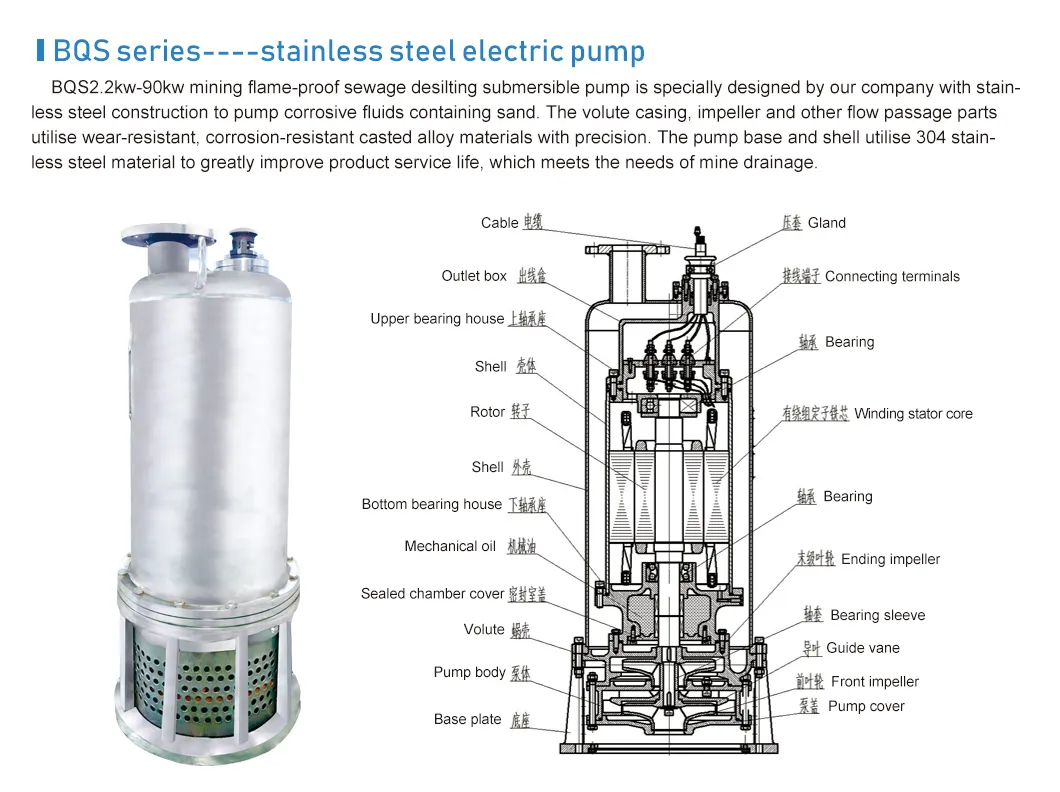

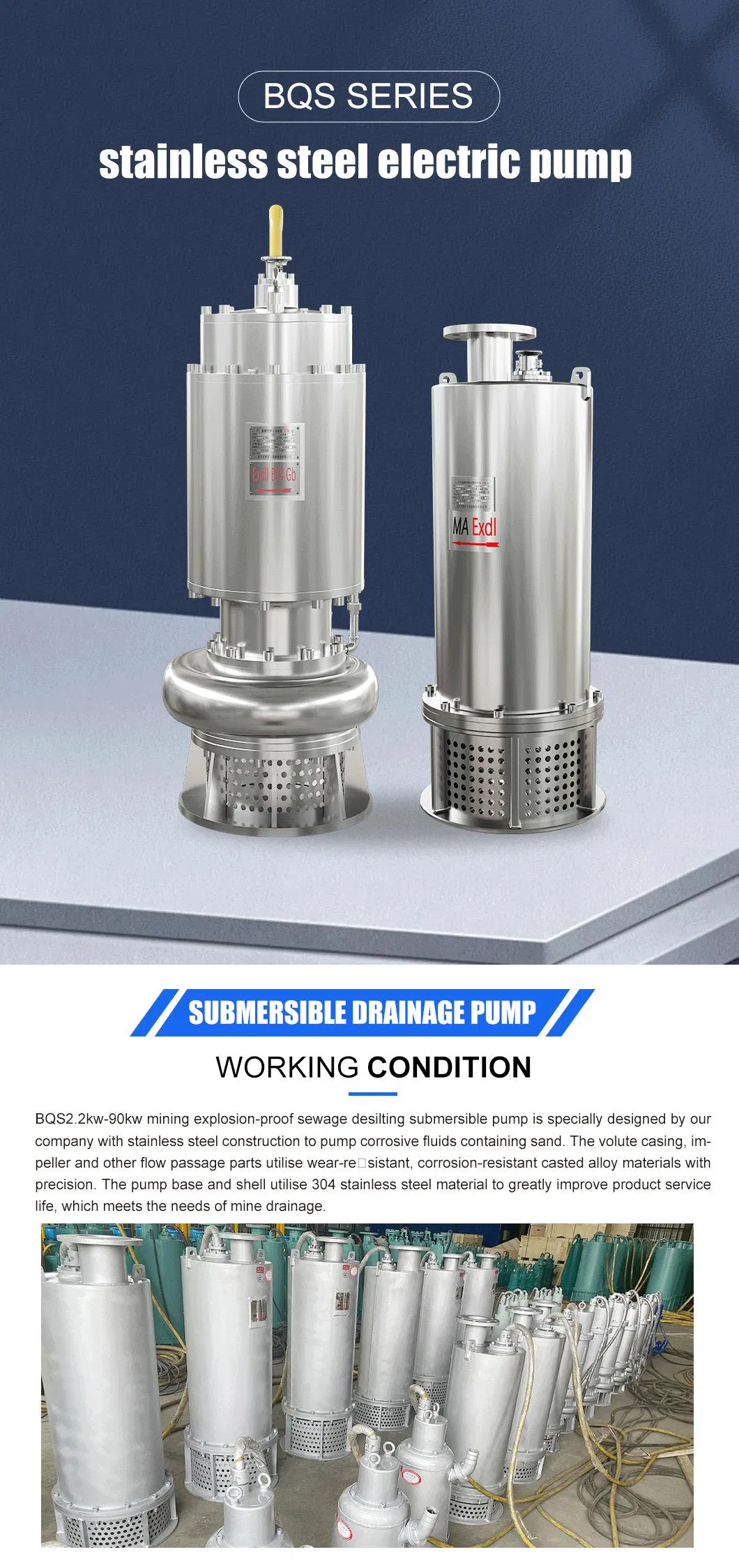

A flameproof stainless steel sewage pump has been developed for the specific characteristics of underground coal mine mediums, which are typically corrosive and contain high sand content.

Pump Body Material: 304/316/316L stainless steel, duplex stainless steel.
Flow-through Parts: 304/316/316L stainless steel, duplex stainless steel, high chromium alloy.
Power Range: 2.2kW-90kW.
Installation Method: Internal, external, or semi-internal.

Customized materials are manufactured according to different needs to significantly improve product life and meet mining drainage requirements. The design utilizes core "full head output without overload" technology. Components like the impeller, sealing ring, and guide vane can be crafted from high chromium alloy for superior resistance to sand wear and corrosion.

Rated Power (kW)	Rated Head (m)	Rated Flow (m³/h)	Rated Voltage (V)	Outlet Diameter (mm)
2.2-90kW	7-240m	10-900m³/h	380/660 or 660/1140	40-300mm

Packaging & Delivery

Package Size

100.00cm * 100.00cm * 100.00cm

Package Gross Weight

30.000kg

Transport Package

Export Standard Wooden Case

Frequently Asked Questions

What materials are available for the pump body? The pump body can be manufactured using 304, 316, or 316L stainless steel, as well as duplex stainless steel to suit various corrosive environments.

Is this pump suitable for high-sand content media? Yes, the flow-through parts such as the impeller and guide vane can be made of high chromium alloy material, providing strong resistance to sand wear.

What safety features are integrated into the pump? The pump is equipped with both overheating sensors and water leakage sensors to ensure safe and stable operation in demanding industrial conditions.

What are the available installation options? The pump supports multiple installation methods, including vertical, horizontal, and inclined positions, with internal, external, or semi-internal configurations.

Can the voltage be customized for international projects? Yes, while standard options include 380/660V and 660/1140V, the rated voltage can be fully customized according to specific project requirements.

Does the pump design prevent overloading? The pump utilizes a "full head output without overload" core design technology, ensuring efficient performance across its entire operating range.
