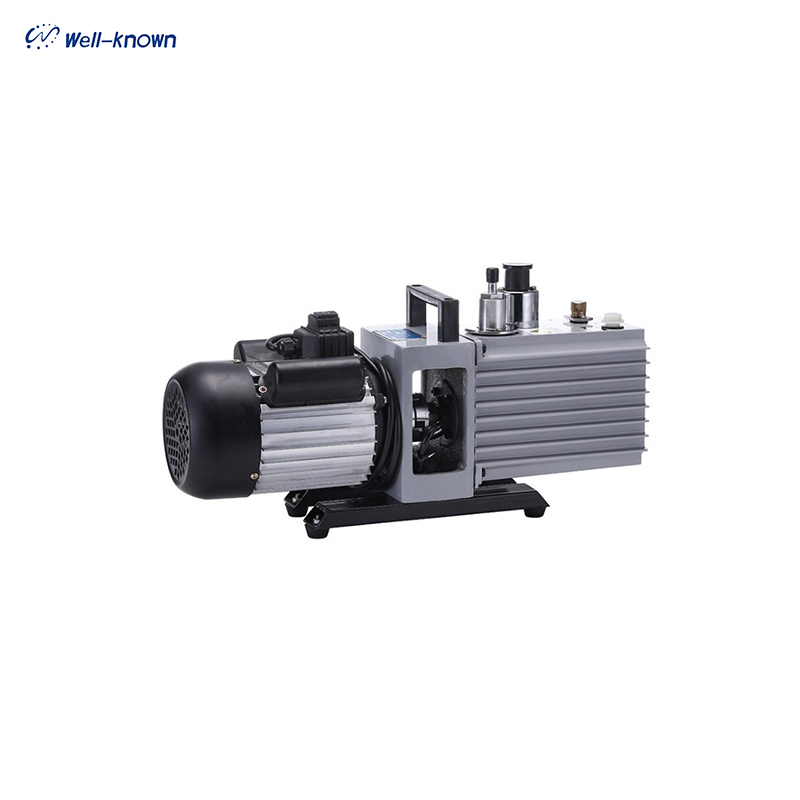

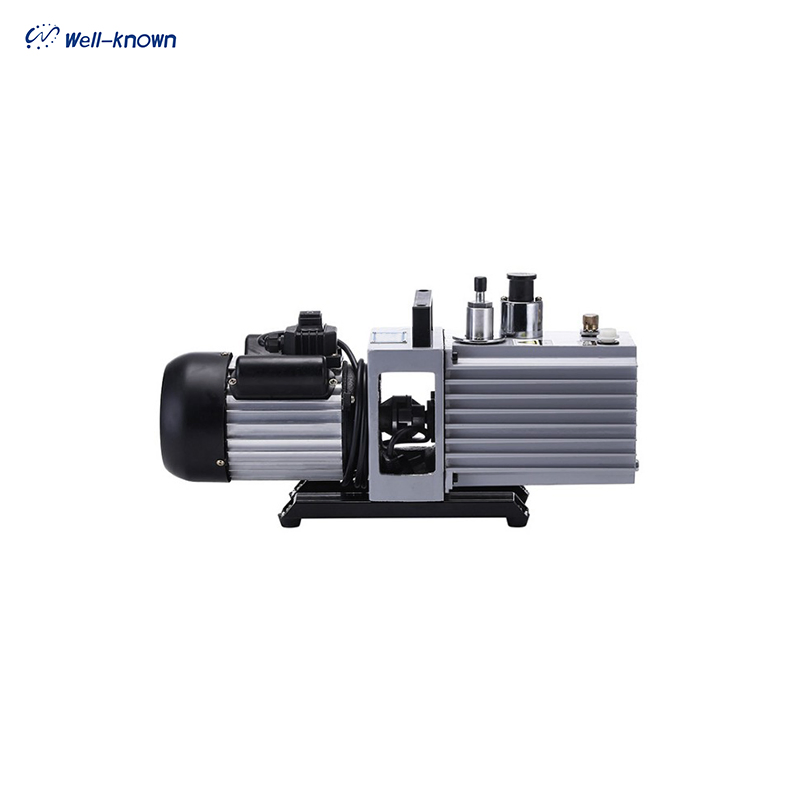

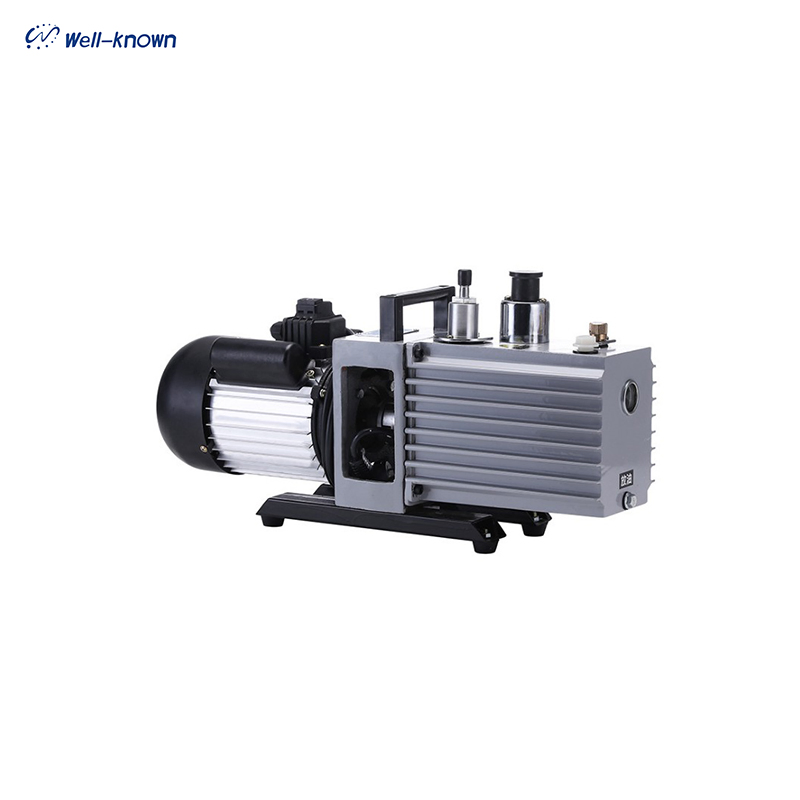

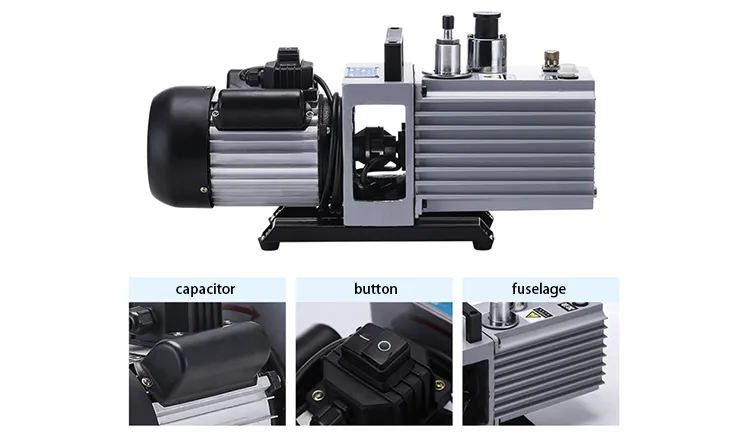

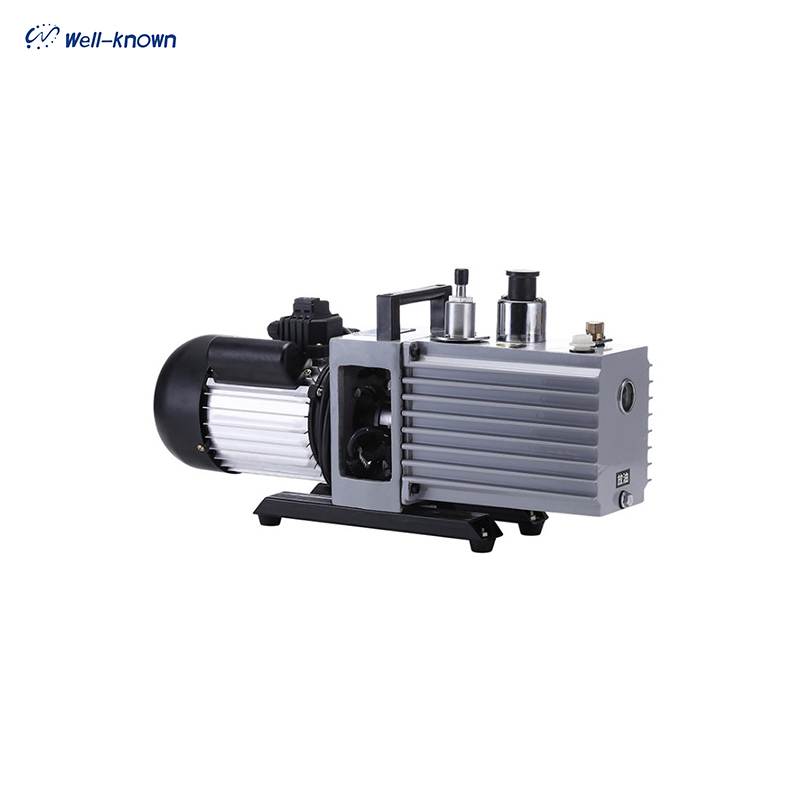

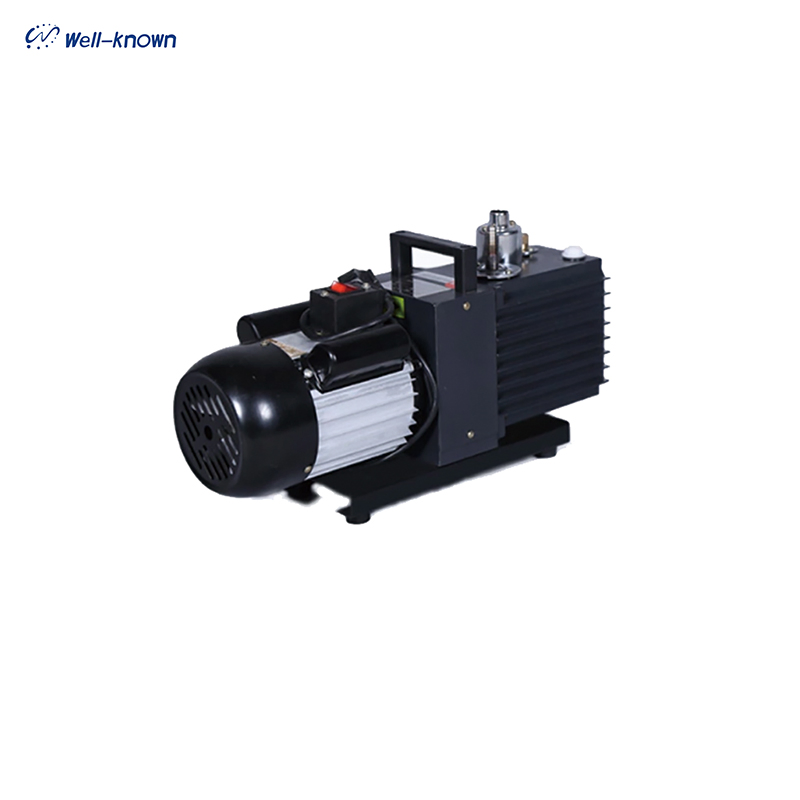

2XZ-series industrial grade dual-stage vacuum pumps are designed for reliable long time continuous operation. They have a balance between low cost and high performance.

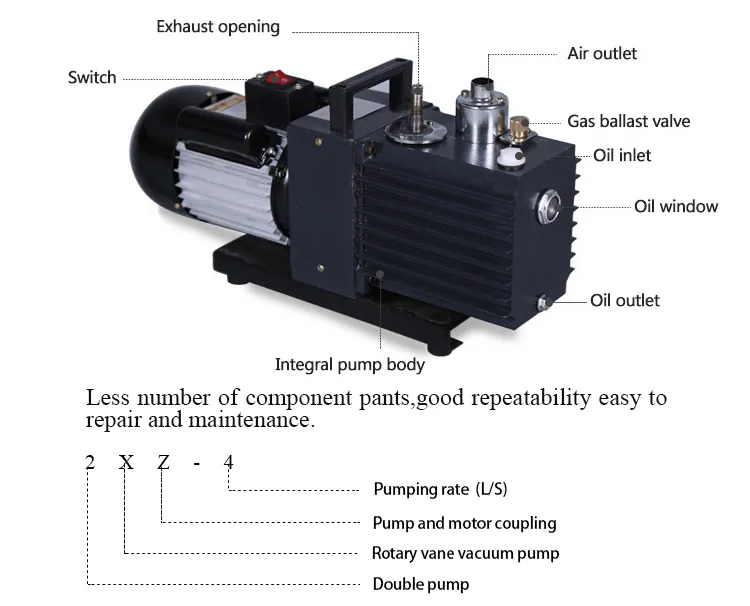

They come with gas ballast, which is designed to allow purposefully pull a less deep and slower vacuum by opening the gas ballast. This allows dry air to go directly into the pump and diluting the vacuum pull, helping keep moisture, solvent, and other contaminants from getting stuck in the pump. The built-in check valve prevents pump oil back flow.
| Model | 2XZ-0.5 | 2XZ-1 | 2XZ-2 | 2XZ-4 |
|---|---|---|---|---|
| Exhausting speed(L/S) | 0.5 | 1 | 2 | 4 |
| Working voltage(V) | 220 | 220/380 | 220/380 | 220/380 |
| Motor power(KW) | 0.18 | 0.25 | 0.37 | 0.55 |
| Inlet dia.(mm) | Φ16 | Φ16 | Φ25 | Φ25 |
| Oil capacity(L) | 0.5 | 0.55 | 0.8 | 1 |
| Size(mm) | 445x130x254 | 467x130x254 | 488x145x280 | 528x145x280 |
| Weight(KG) | 13.5 | 15 | 20 | 23 |
Packaging: The mainbody portion will be packed in wooden cases. Both neutral and customized packaging can be available.
Shipping: We ship via International Express (DHL, UPS, TNT, EMS) or you can choose your own shipping agent based on your timeline and budget.
