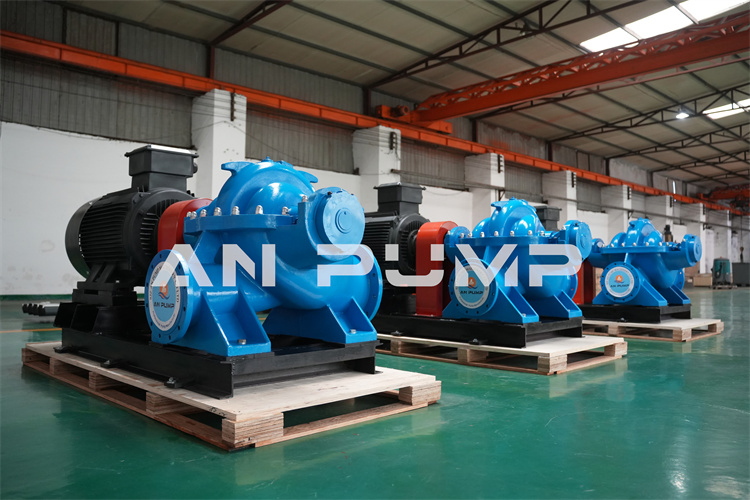

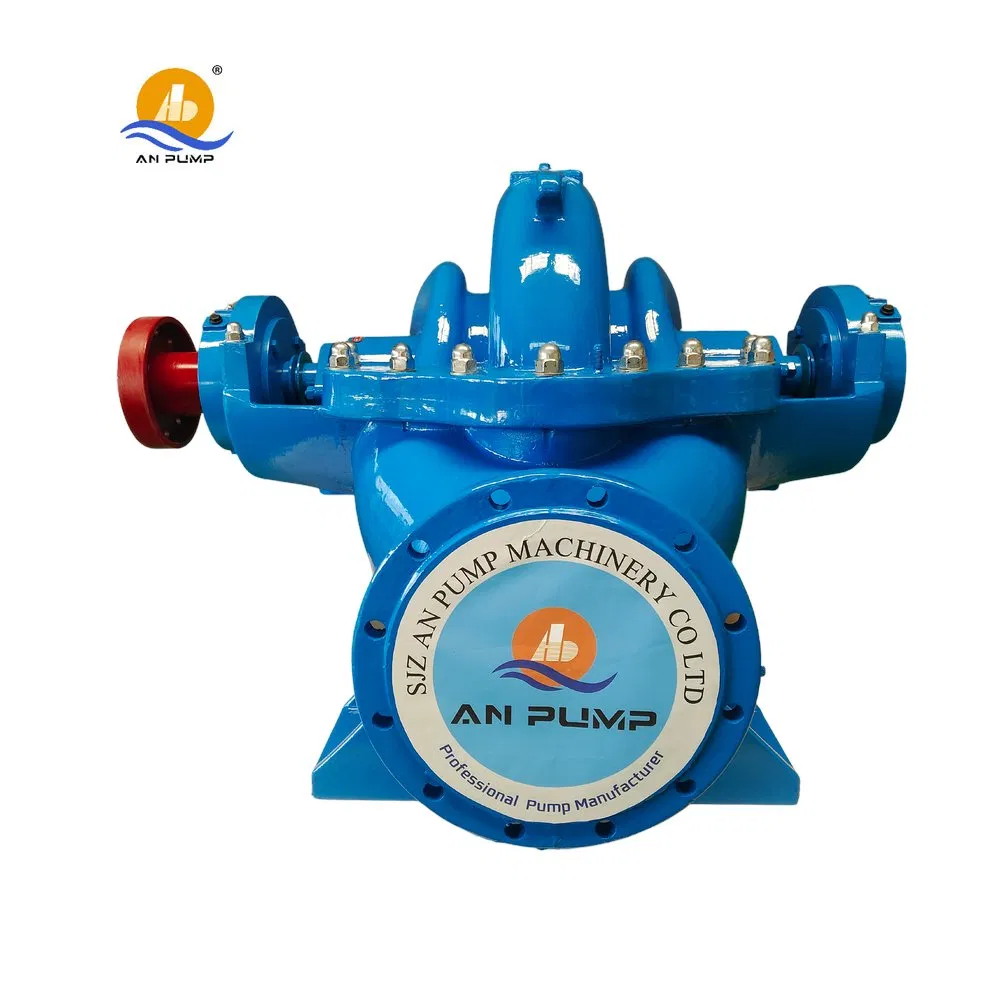

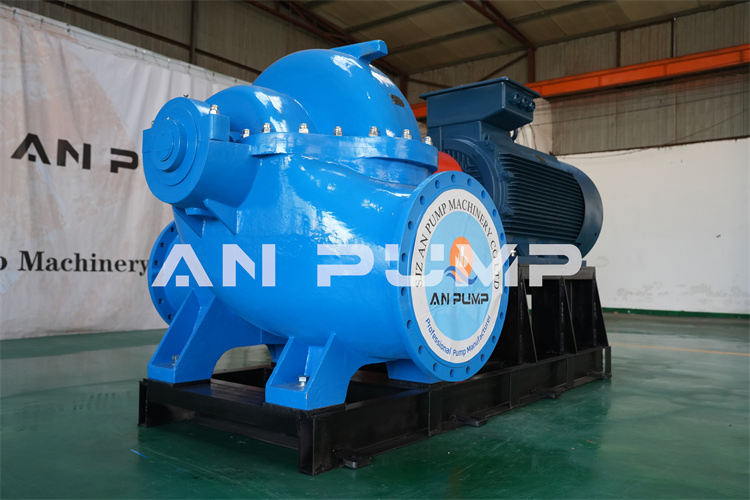

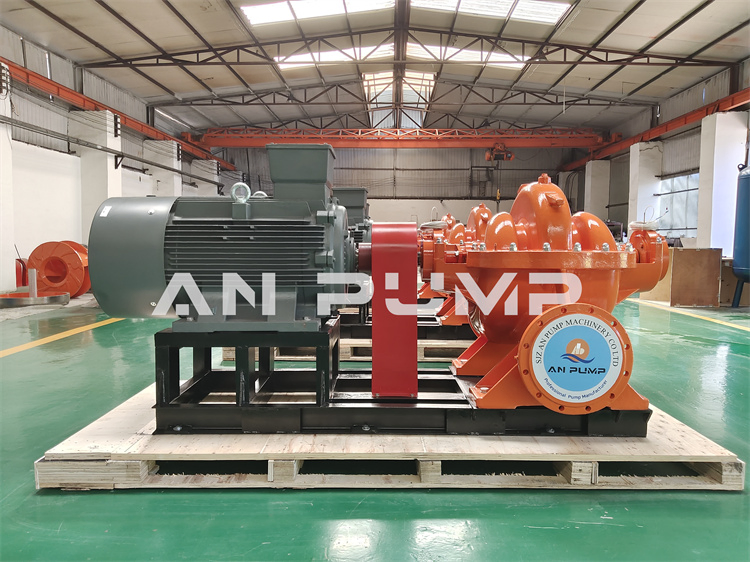

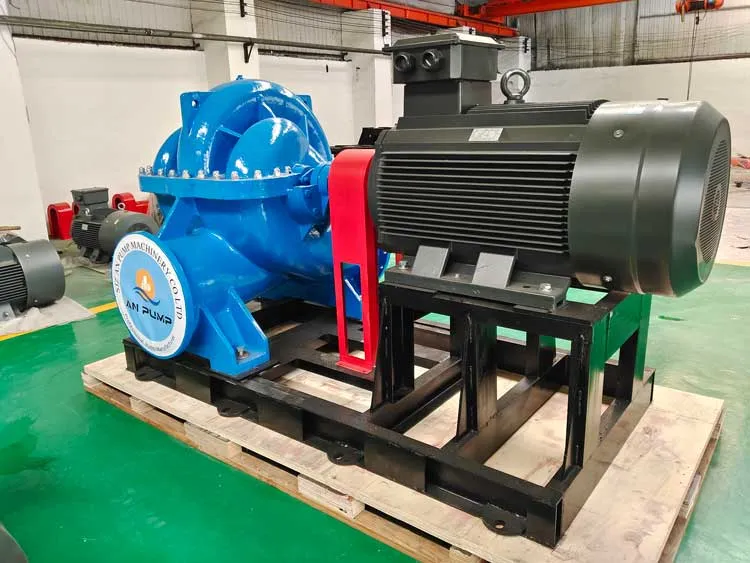

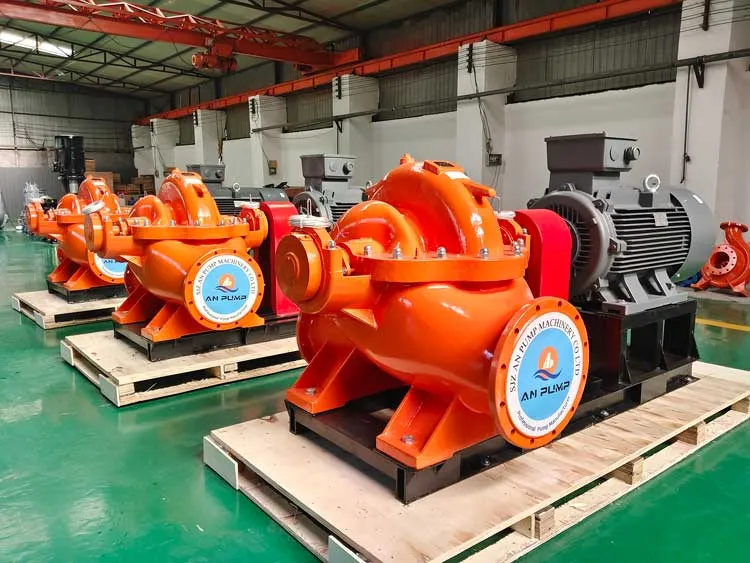

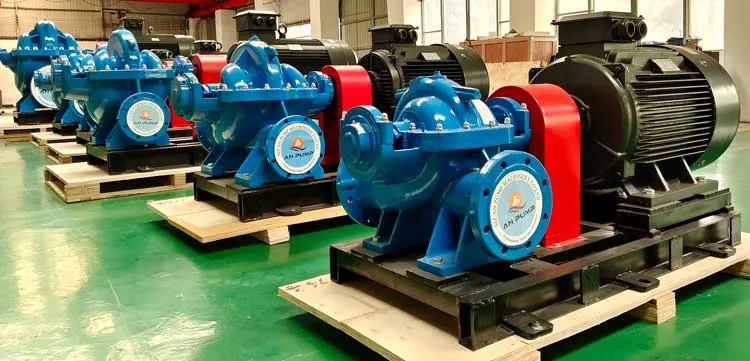

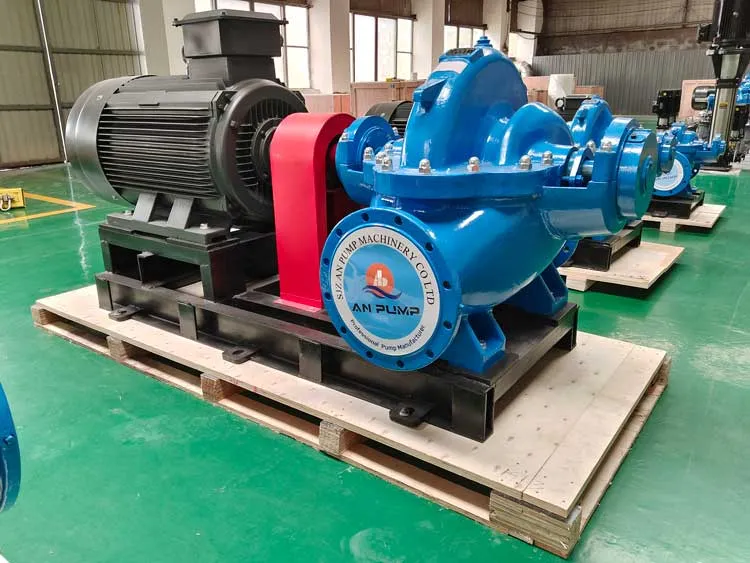

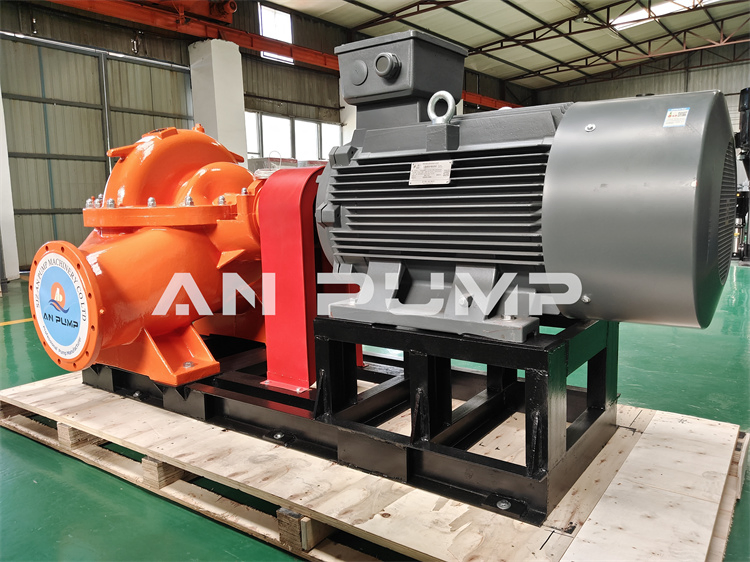

Split Case Centrifugal Double Suction Pump

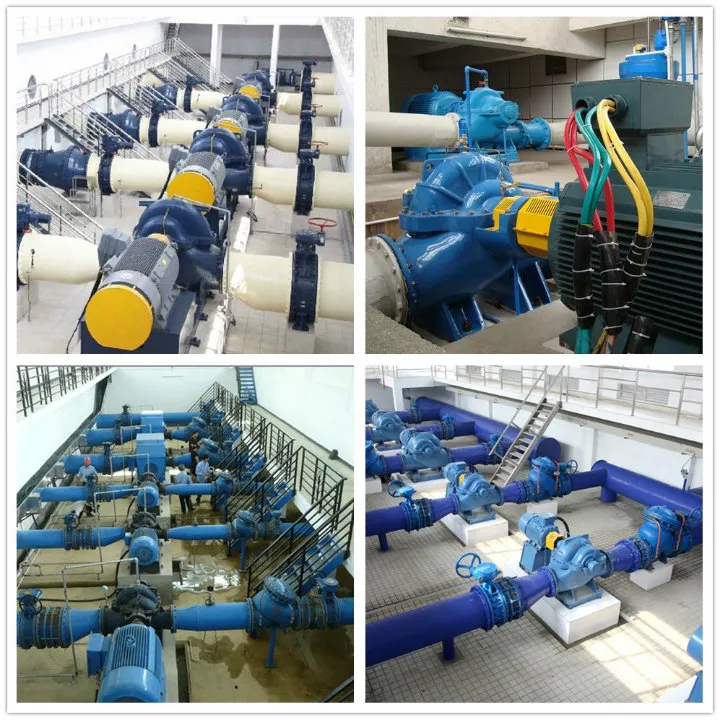

The Model QS agricultural irrigation Split Casing Pump is a single-stage double-suction horizontal split centrifugal pump. It is designed to transport pure water and liquids with physical and chemical properties similar to water. It is ideal for water supply and drainage in factories, mines, cities, and electric stations, as well as irrigation and various hydraulic projects.
| Model (QS) | Flow Rate (m³/h) | Head (m) | Speed (rpm) | Power (KW) | Efficiency (%) | Impeller (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| QS150 | 110~220 | 35~84 | 2900 | 30~55 | 67~80 | 186~250 | 145~150 |
| QS200 | 160~351 | 31~100 | 2900 | 37~110 | 61~85 | 193~284 | 219~265 |
| QS250 | 324~612 | 8.6~71 | 1450 | 22~132 | 72~86 | 224~460 | 405~565 |
| QS300 | 504~972 | 8~98 | 1450 | 30~300 | 70~84 | 225~540 | 845~660 |
| QS350 | 745~1663 | 10~140 | 1450 | 55~680 | 70~88 | 270~655 | 760~1580 |
| QS400 | 900~1620 | 32~98 | 980~1480 | 155~500 | 71.5~84 | 510~535 | 1910 |
| QS500 | 1150~2450 | 10.6~108 | 740~970 | 110~800 | 70~89 | 390~860 | 2000~4330 |
| QS600 | 2304~4000 | 13~80 | 730~970 | 185~900 | 70~91 | 450~830 | 2500~4300 |
