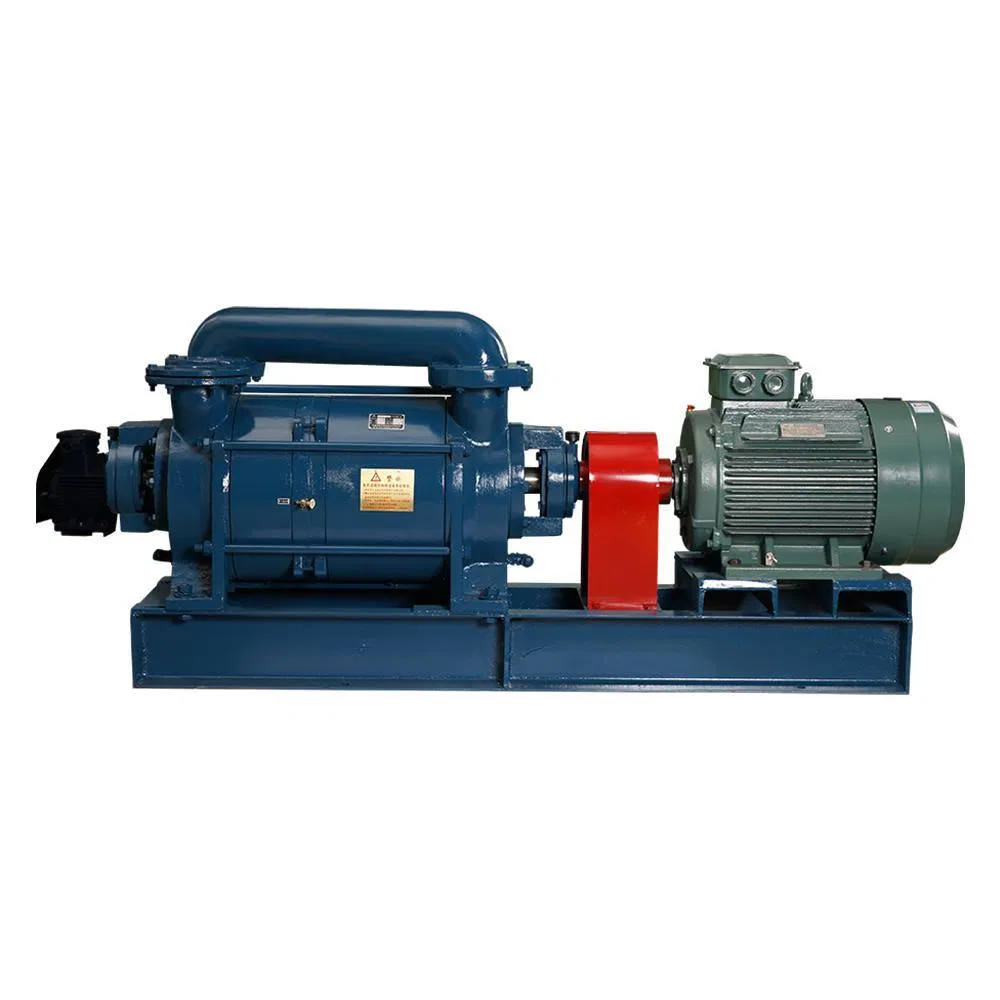

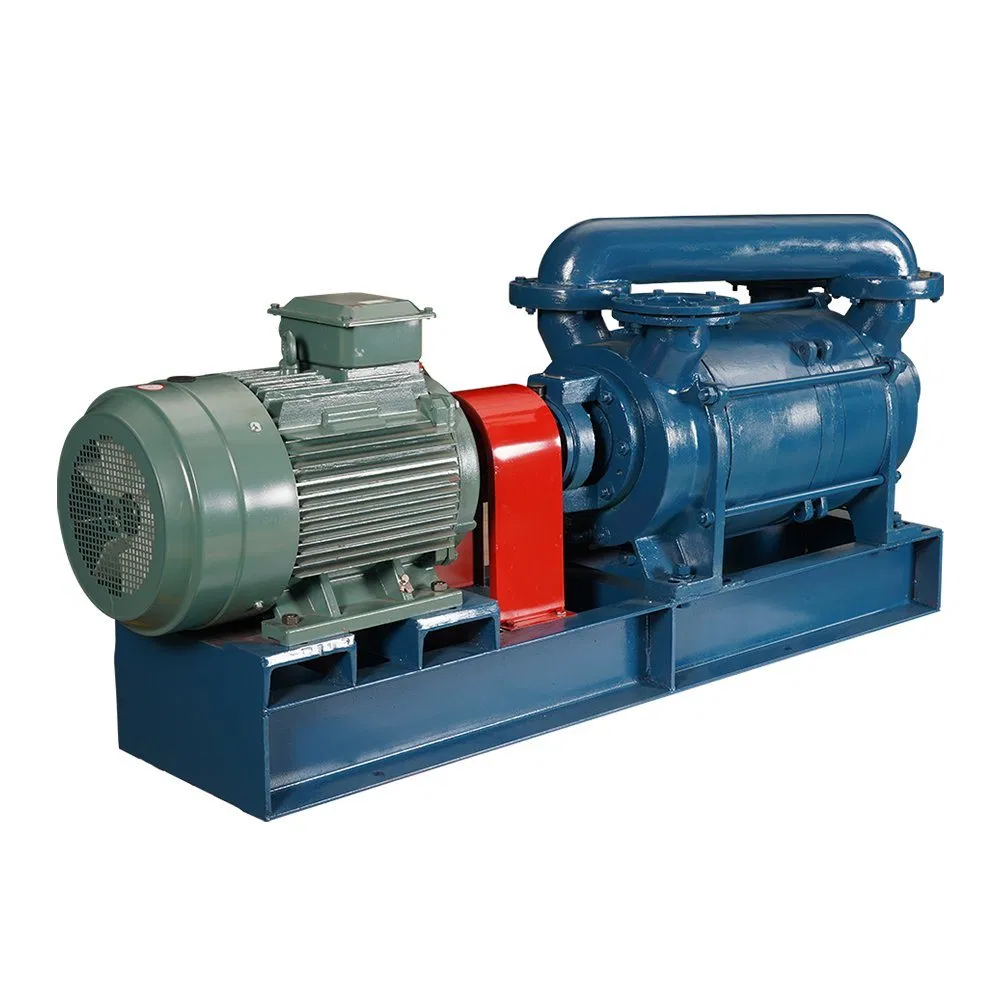

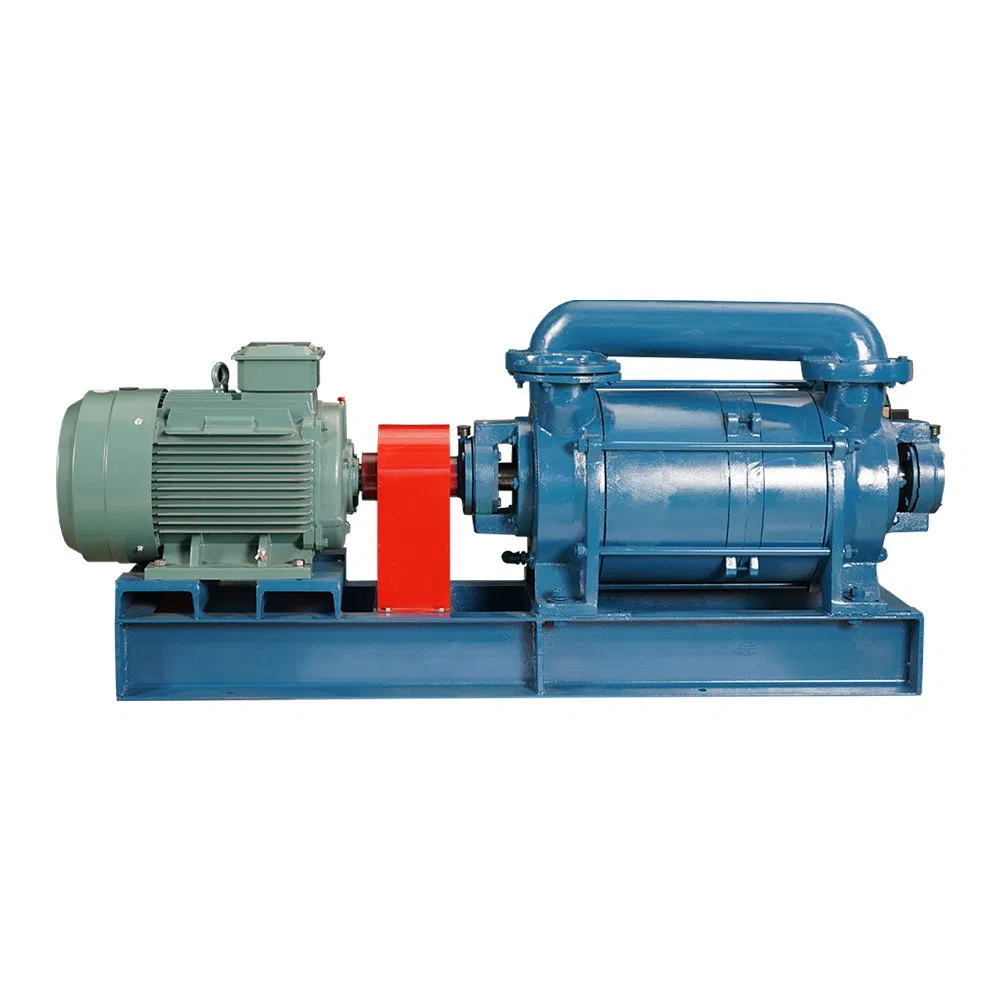

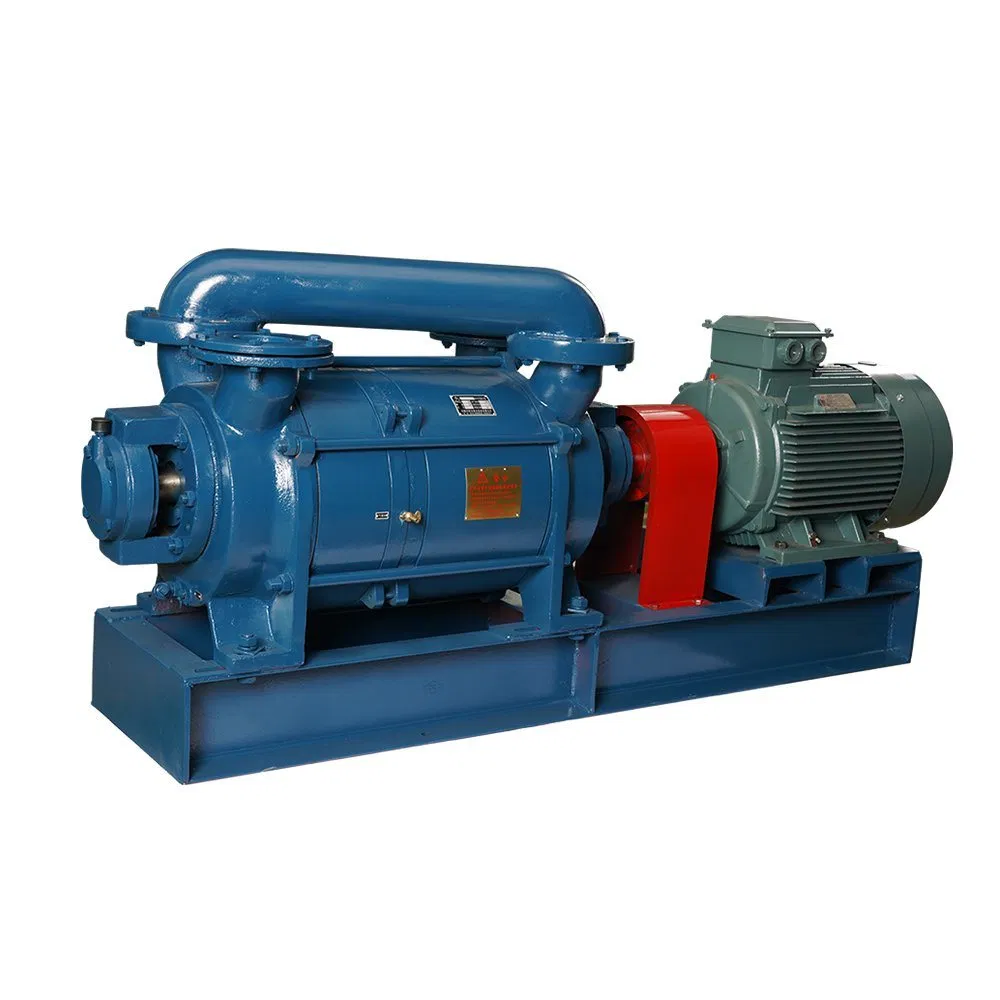

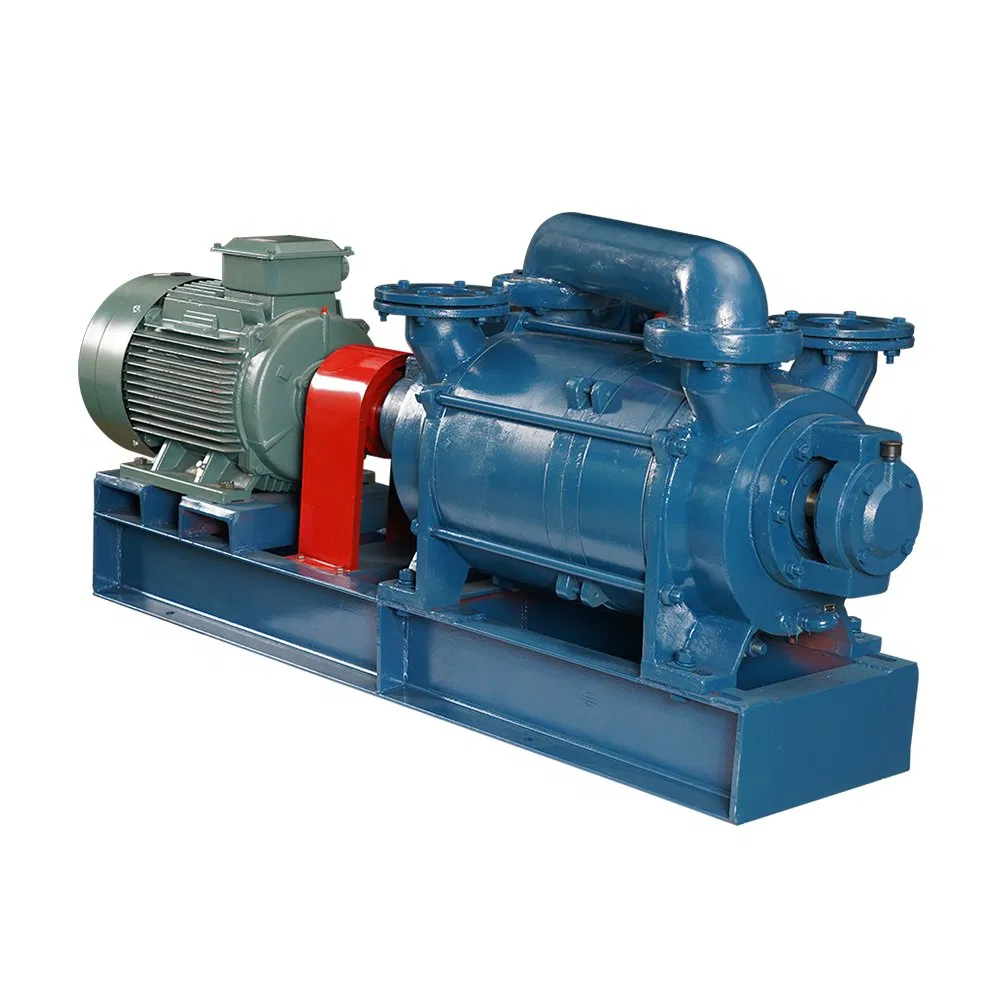

Custom 2SK Stainless Steel Oil Circulating Water Liquid Ring Vacuum Pump
The 2SK water ring vacuum pump is widely used in industries such as chemical machinery, light industry, medicine, and food to extract air or other gases that are insoluble in water, do not contain solid particles, and are non-corrosive. It is designed to form a certain degree of vacuum in closed systems, commonly used in vacuum evaporation, concentration, drying, filtration, and feeding processes.
| Model | 2SK-1.5 | 2SK-3 | 2SK-6 | 2SK-12 | 2SK-20 |
|---|---|---|---|---|---|
| Pumping Speed (m³/min) | 1.5 | 3 | 6 | 12 | 20 |
| Motor Power (Kw) | 4 | 7.5 | 15 | 22 | 37 |
| Motor Speed (rpm) | 1430 | 1450 | 1460 | 980 | 740 |
| Weight (kg) | 200 | 295 | 480 | 1000 | 2100 |

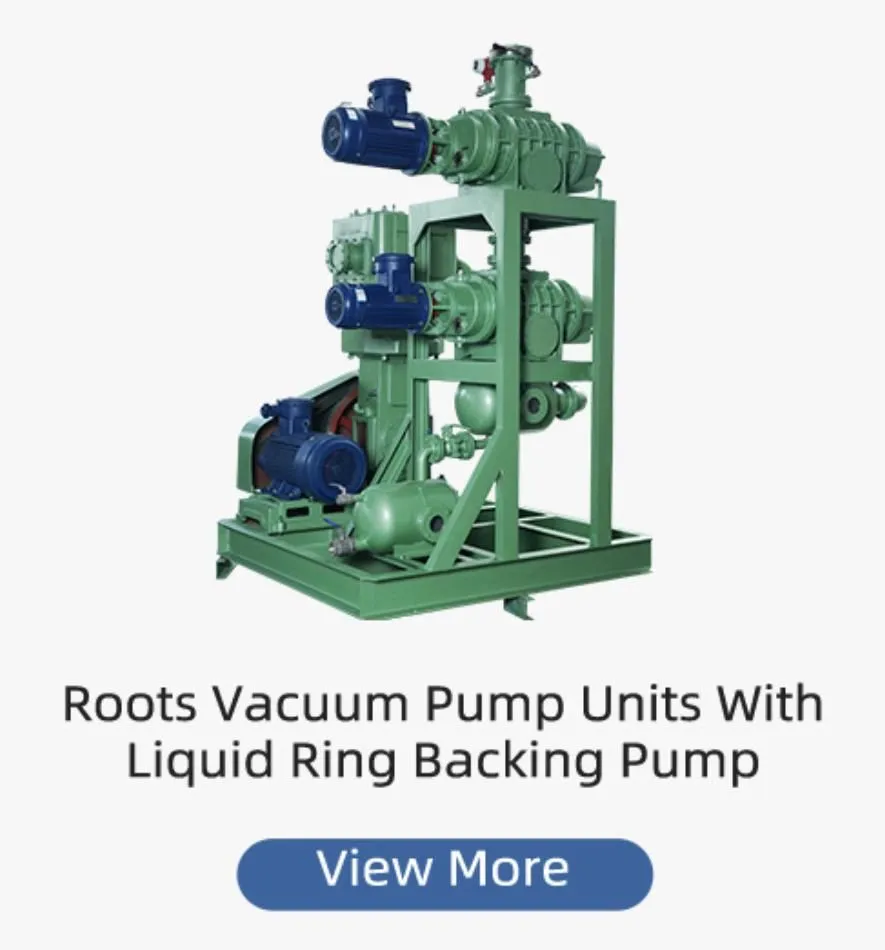

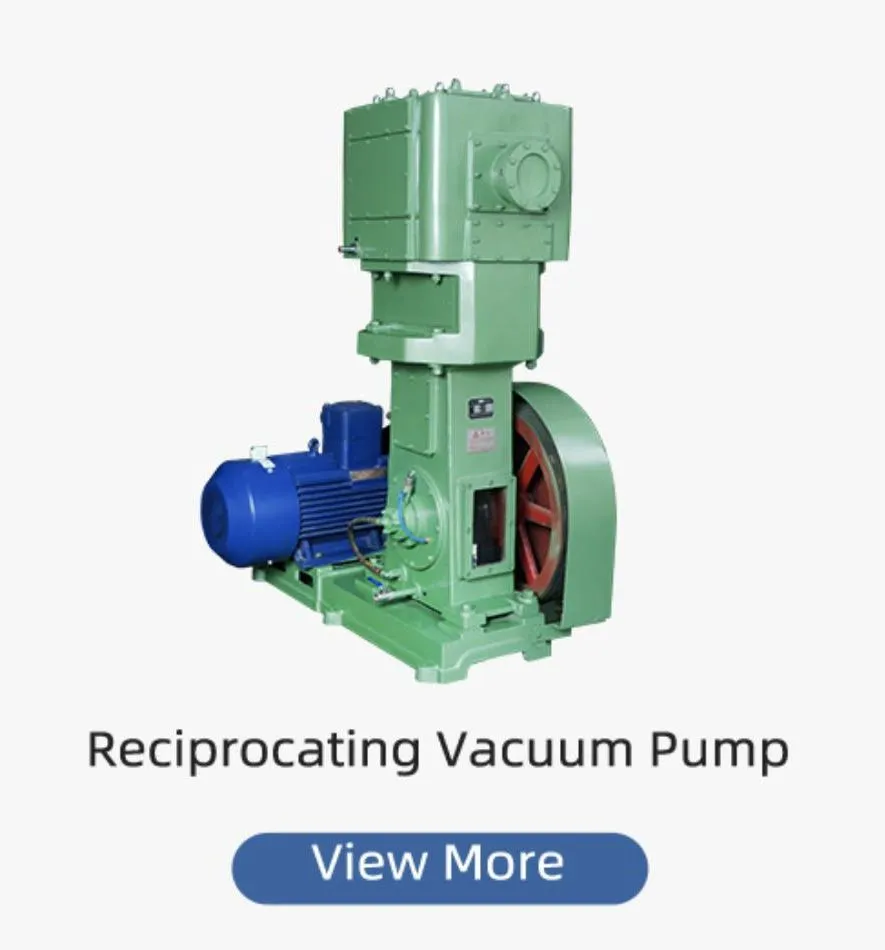

We are a professional vacuum equipment manufacturer specializing in vacuum pumps, furnaces, and systems for diverse industrial applications. Our product range includes rotary vane pumps, water ring pumps, reciprocating pumps, and roots vacuum units, as well as specialized vacuum heat treatment and sintering furnaces.
Equipped with automatic CNC machinery and multi-function testing equipment, our R&D department provides strong technical support for OEM and ODM projects. With an annual production capacity of over 3,000 sets, our innovative, energy-efficient equipment serves customers in over 40 countries across Europe, the Americas, and Asia.
