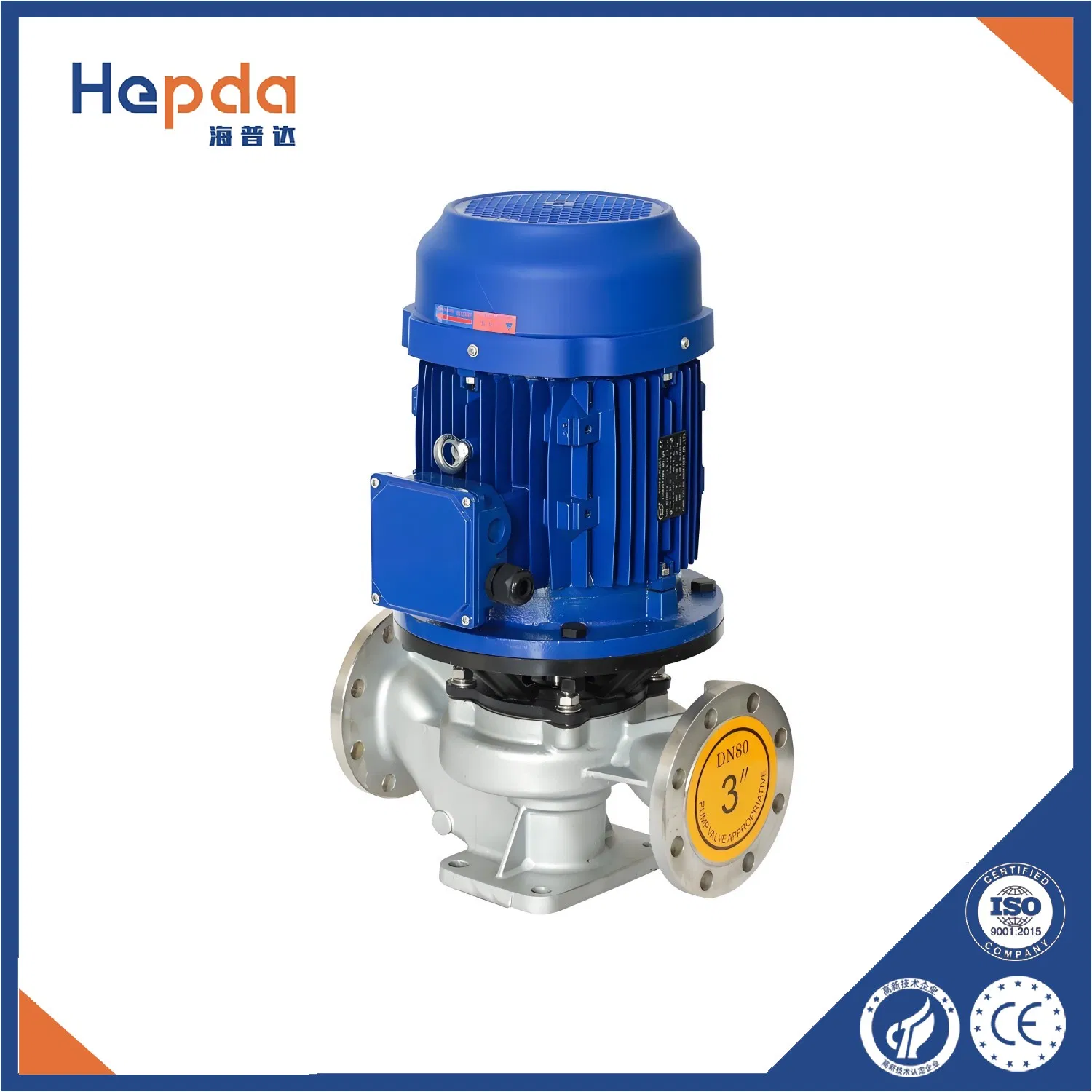

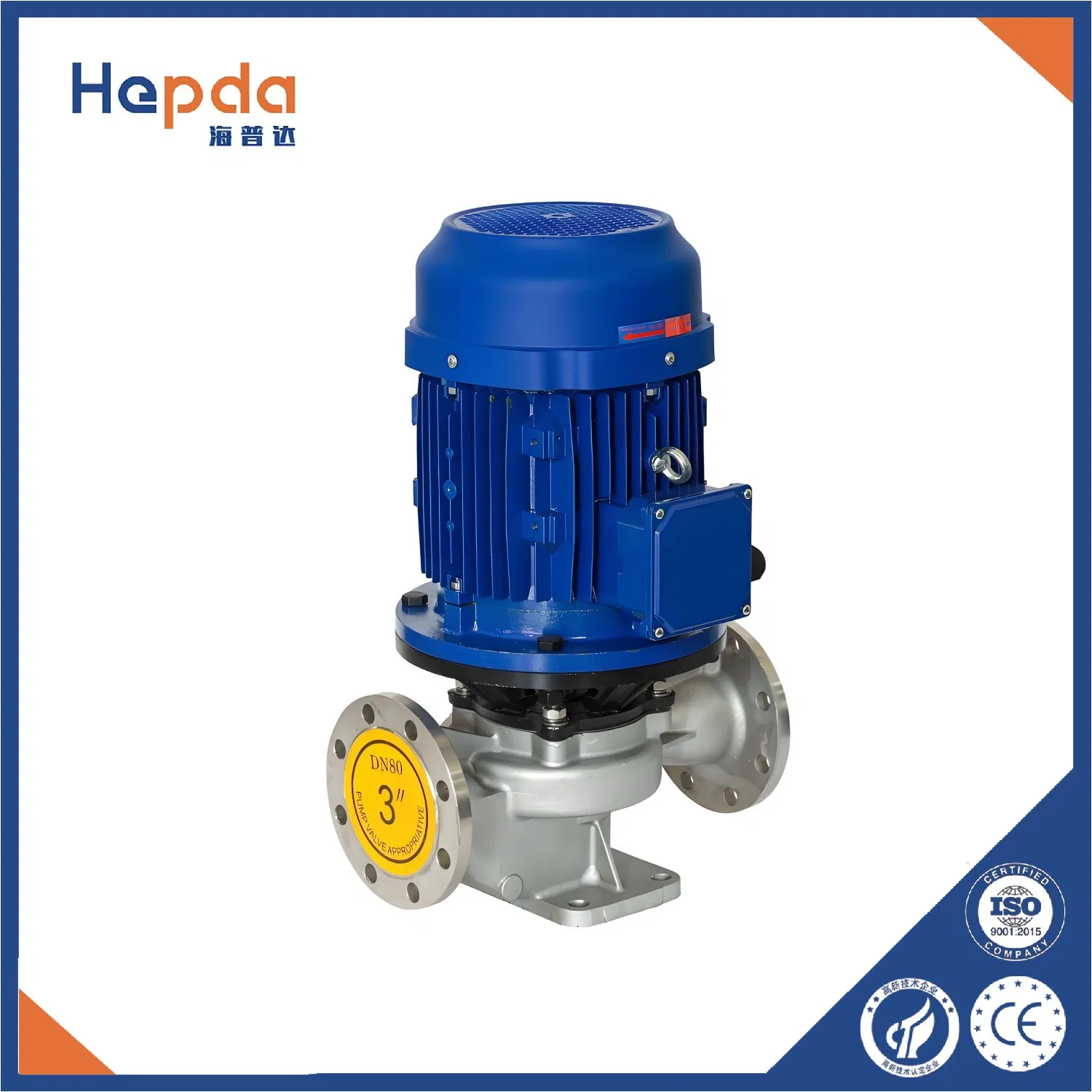

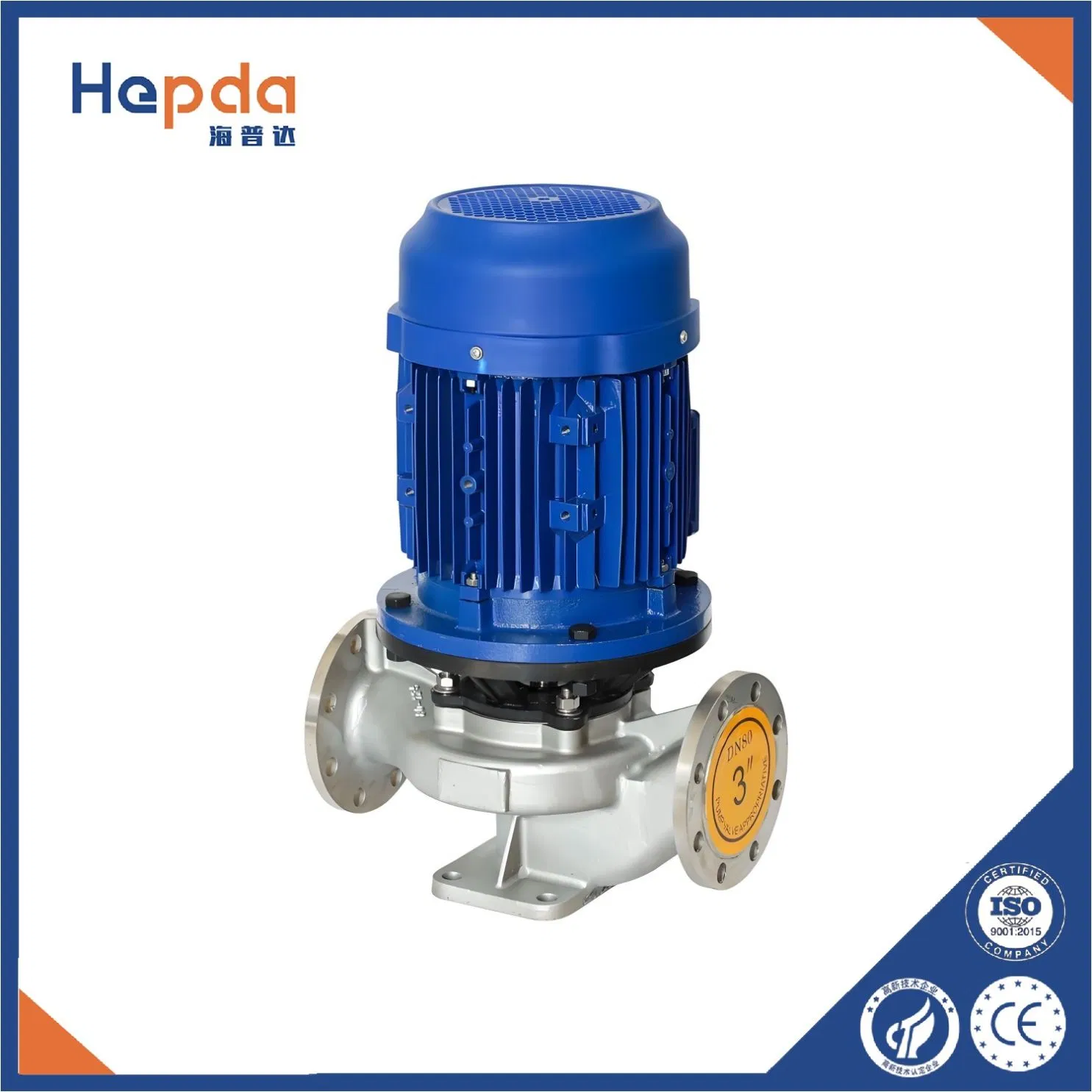

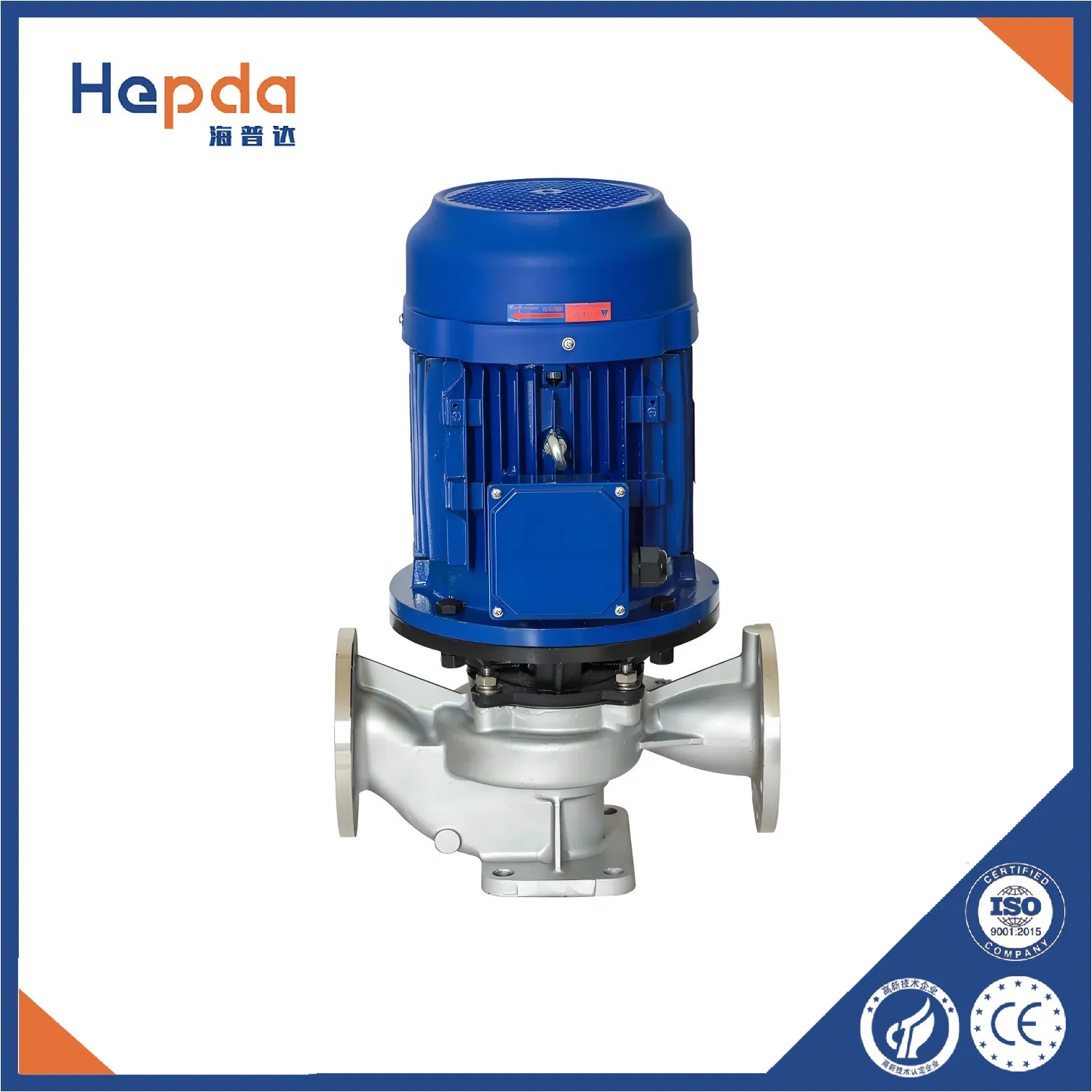

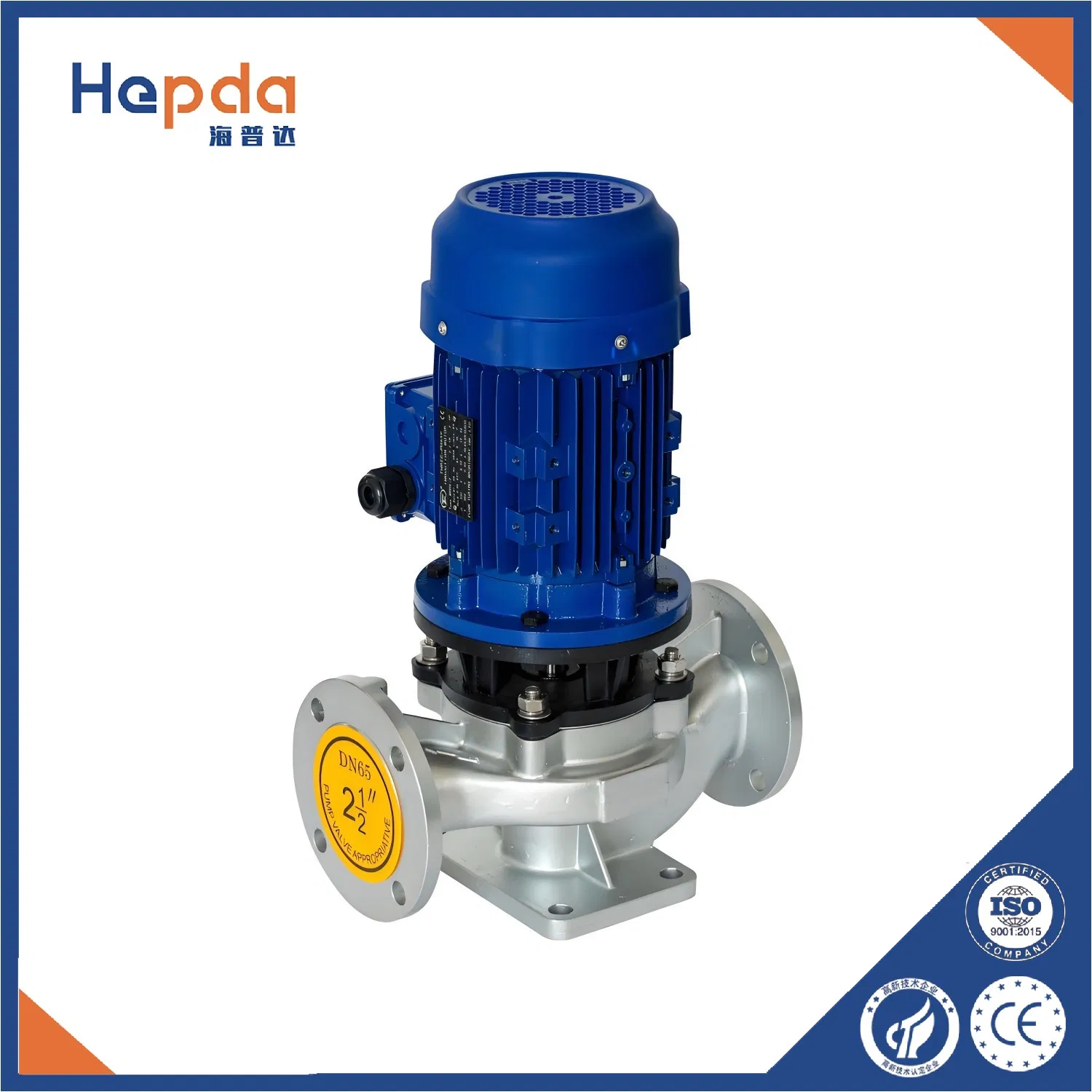

Corrosion-Resistant/Chemical Industry/Acid-Base Liquid Transportation Stainless Steel Vertical/Horizontal Single-Stage Pipeline Centrifugal Pump

Still deciding? Get samples of $ !
Order Sample

Product Description

📊 Basic Info.
Model NO.
HPDSG300-315S-4
Max. Head
10-30m
Max. Capacity
>400 L/min
Driving Type
Motor
Impeller Number
Single-Stage Pump
Working Pressure
Middle Pressure Pump
Material
Stainless Steel 304
Caliber
DN25-DN300
Power
1HP-75HP
Voltage
380/Customized
Package Size
500.00cm * 600.00cm * 800.00cm
Gross Weight
60.000kg
📸 Detailed Photos

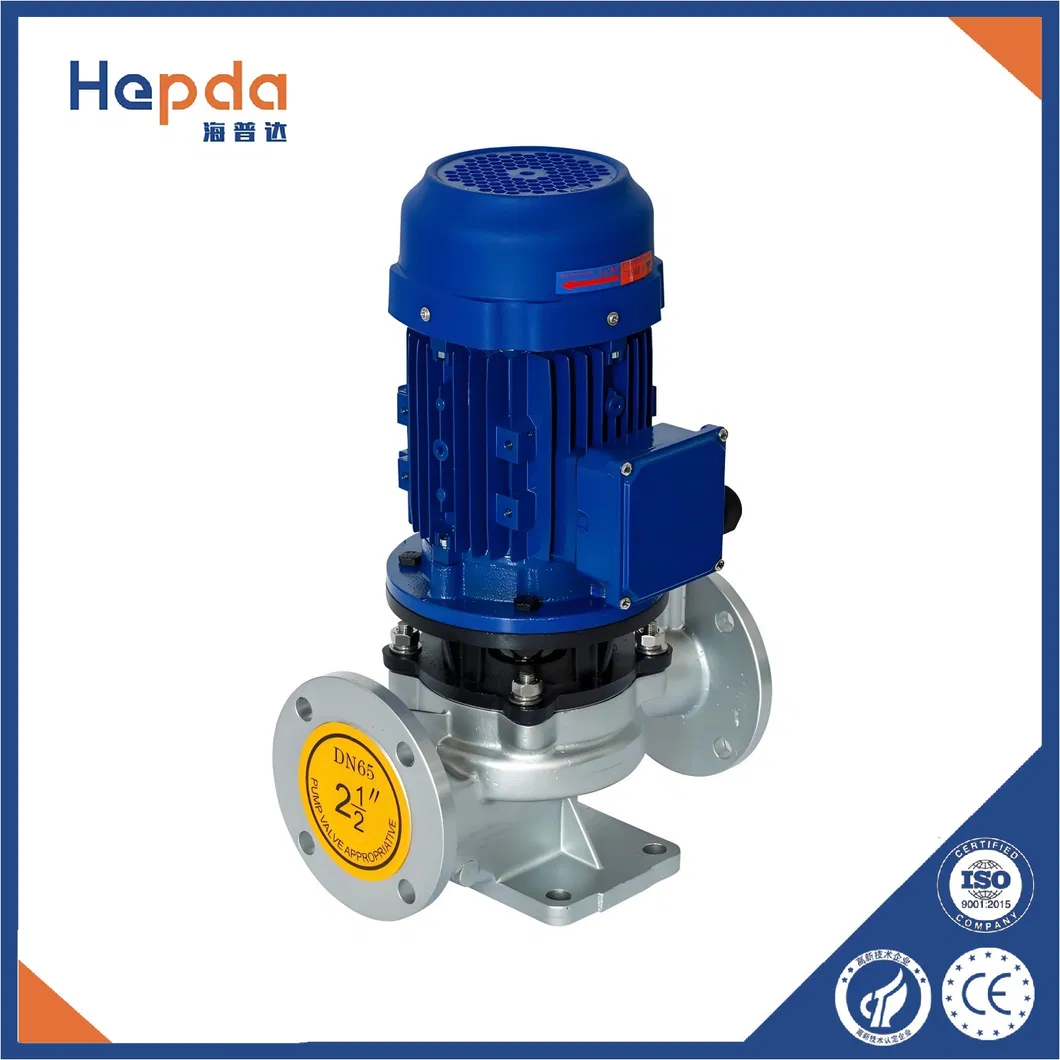

Detailed Photo 1

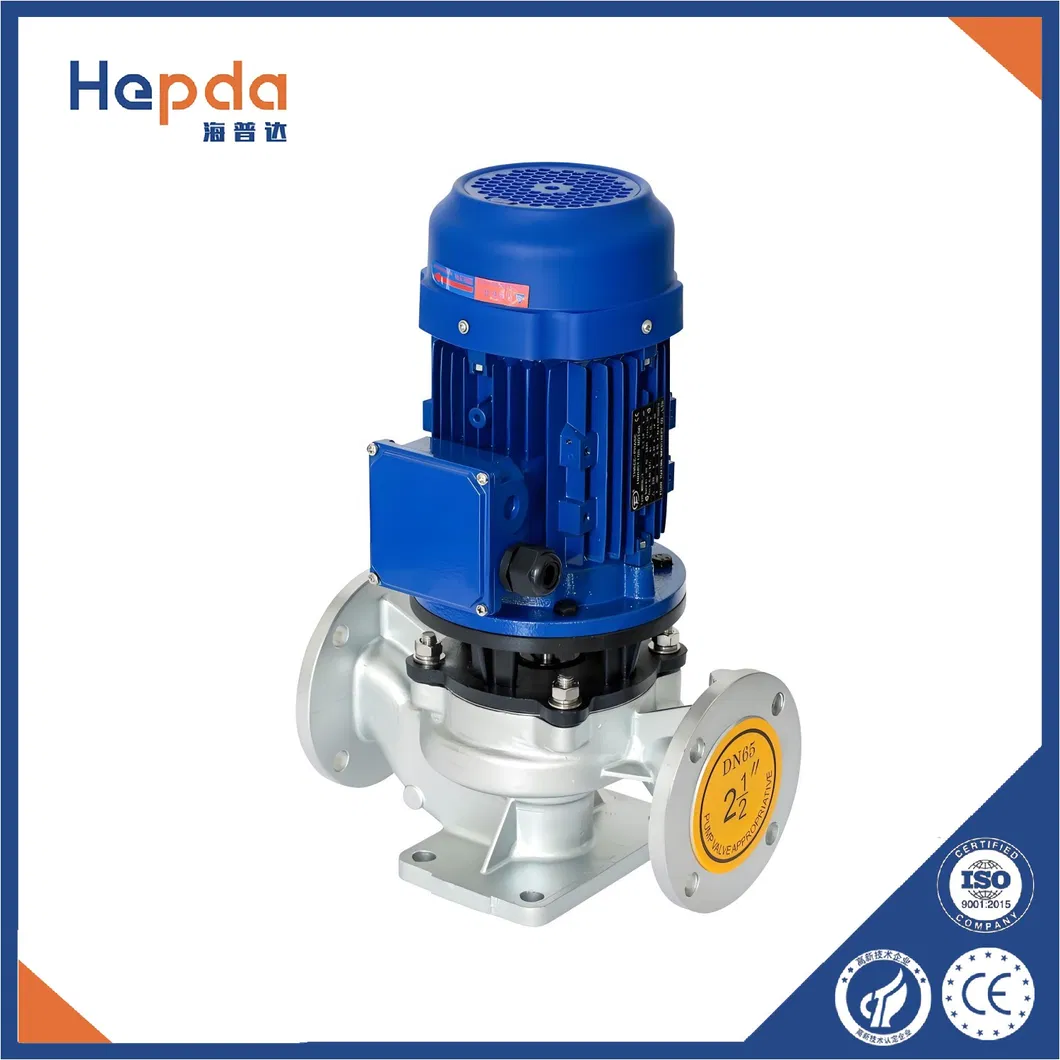

Detailed Photo 2
Detailed Photo 3
📝 Product Description

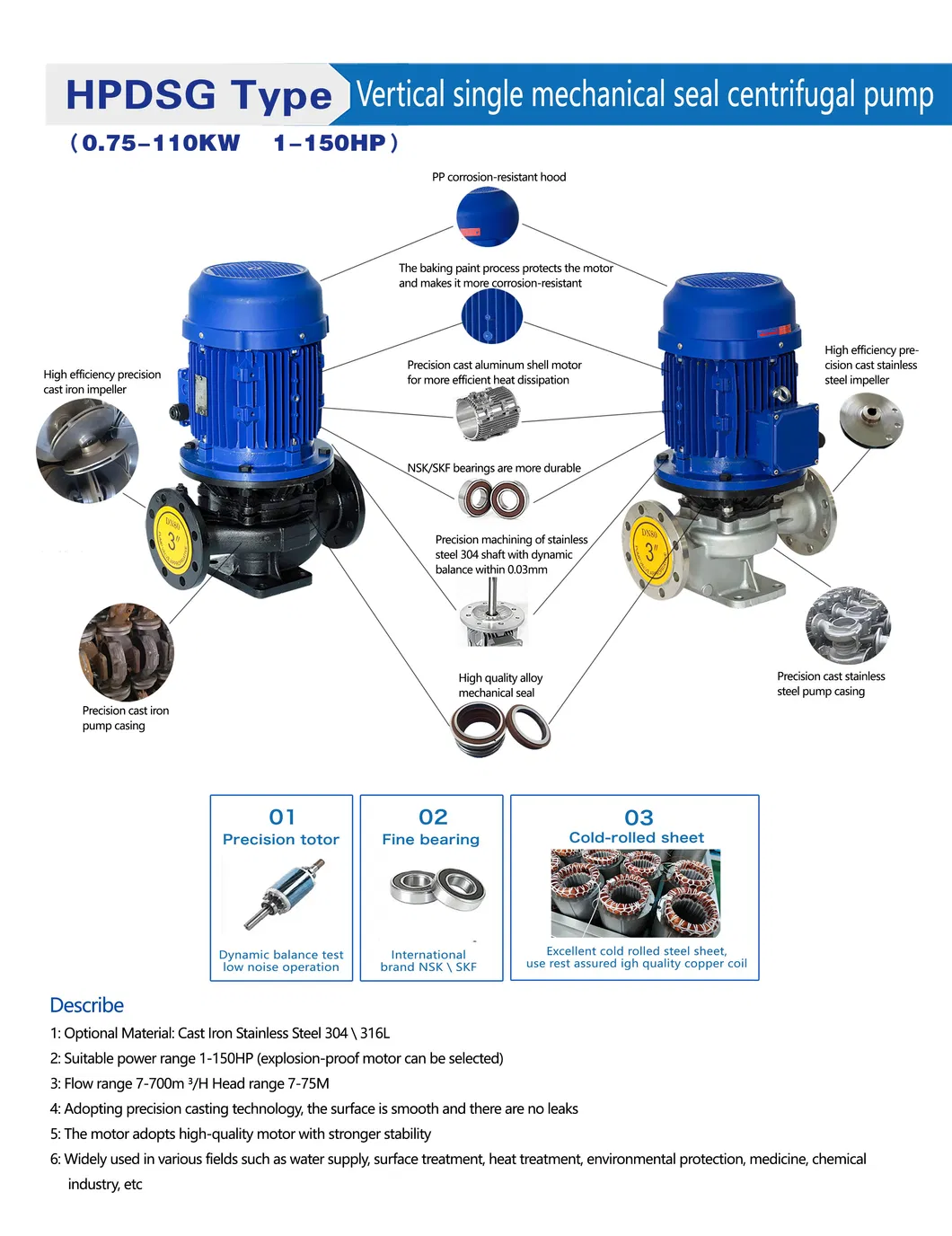

Product Description Diagram
⚙️ Product Parameters

Specification parameter table (2900 revolutions per minute)

Serial Number Model Horsepower (HP) Power (KW) Flow Rate (m³/h) Pressure (M) Caliber (mm) RPM Voltage Frequency (HZ)
125-12510.75420252900380V50
225-16021.5432252900380V50
332-12510.754.520322900380V50
432-16021.54.532322900380V50
532-20043548322900380V50
1040-20054650402900380V50
1340-250107.5780402900380V50
2150-2007.55.51350502900380V50
2450-25015111380502900380V50

Specification parameter table (1450 revolutions per minute)

Serial Number Model Horsepower (HP) Power (KW) Flow Rate (m³/h) Pressure (M) Caliber (mm) RPM Voltage Frequency (HZ)
150-20010.75612501450380V50
250-25021.5620501450380V50
565-25032.21220651450380V50
1180-20032.22513801450380V50
23100-2005450121001450380V50
37125-2501511100201251450380V50
🏢 Company Profile & Certifications
Company Office
Factory Workshop

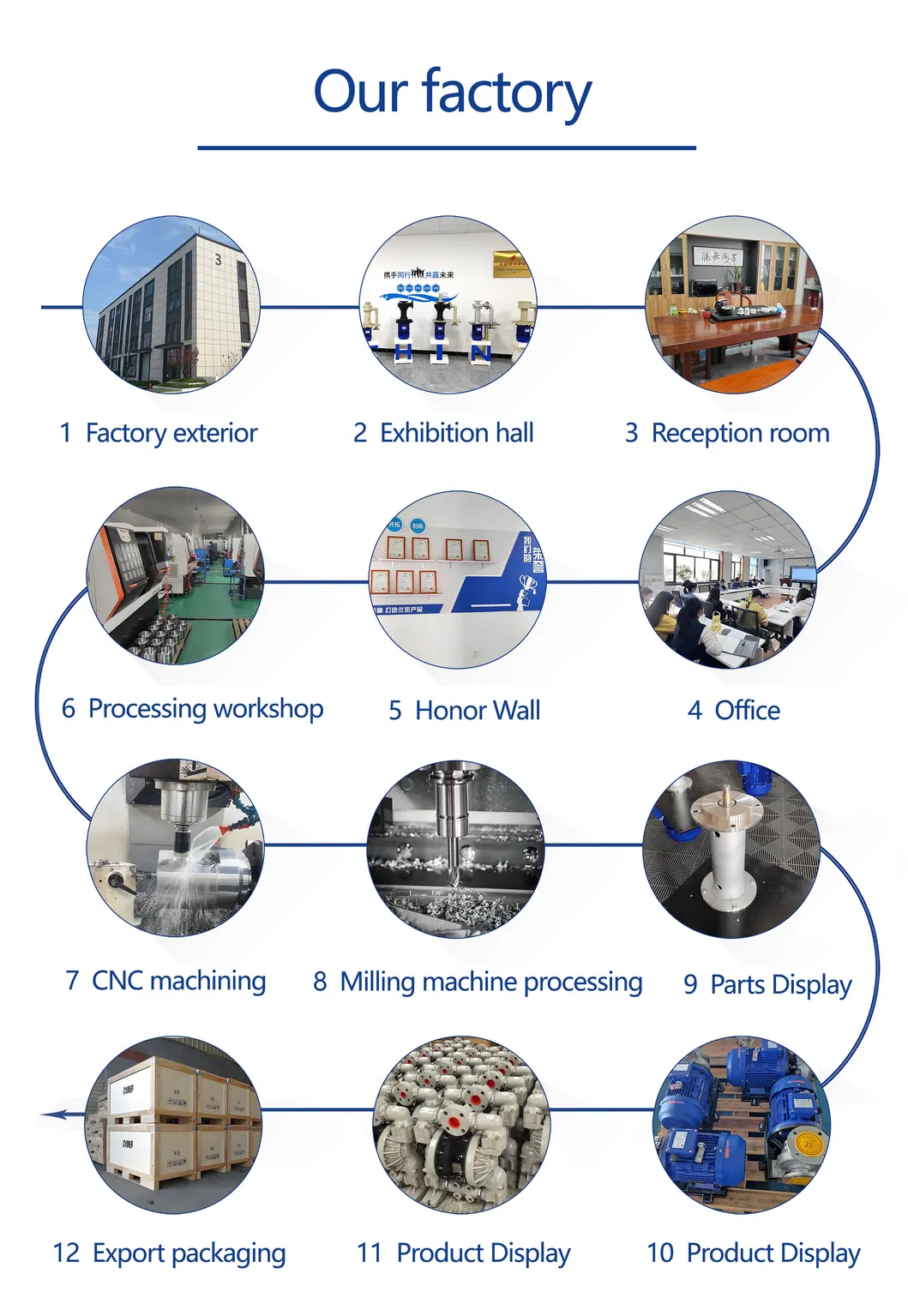

Production Line
Certification 1

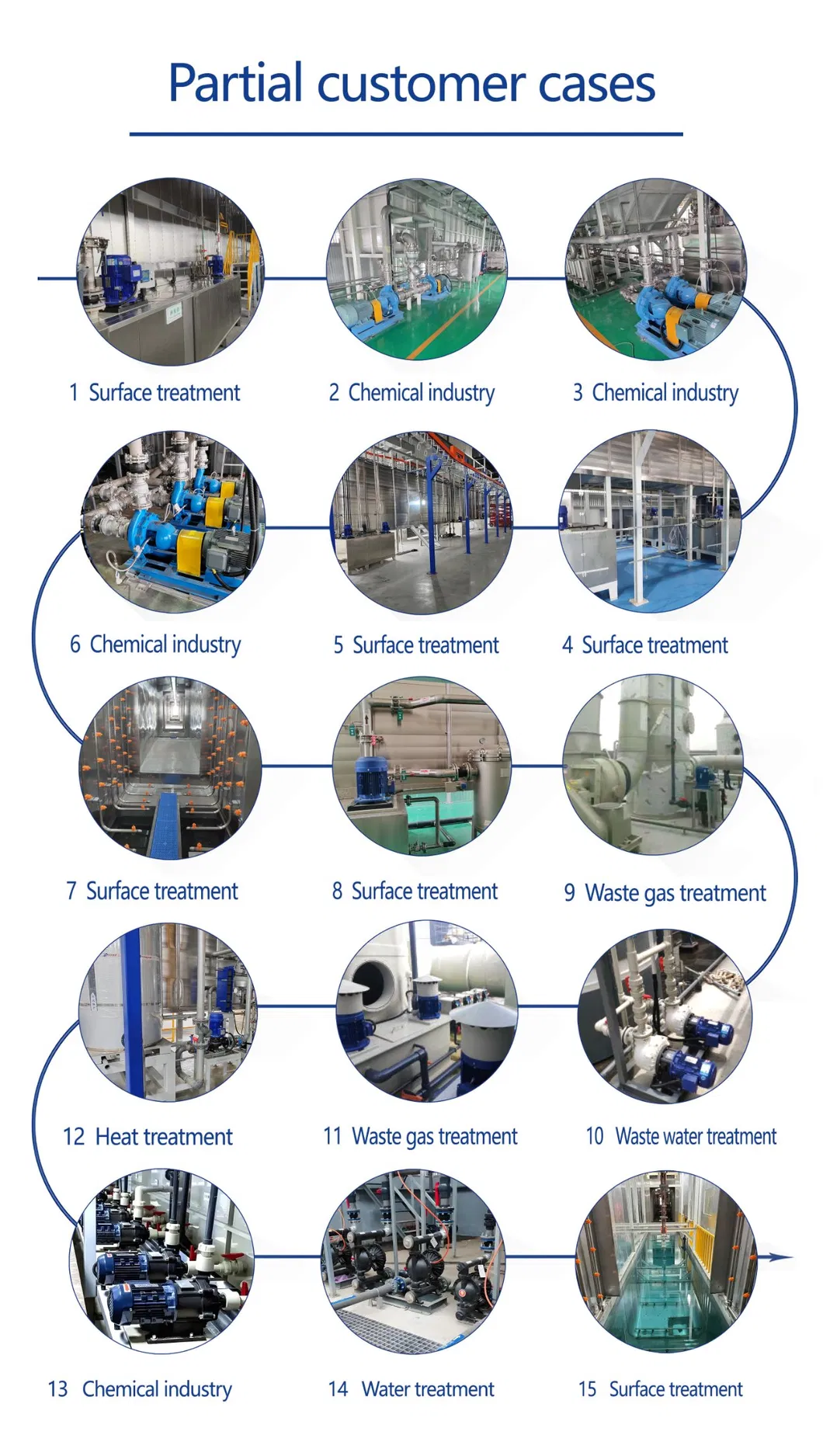

Certification 2
Our Advantages
Advantages List
FAQ
What kind of product packaging do you offer?
We provide standard export plywood packing for all our pumps to ensure safety during international transportation.
How long does it take to receive a quotation?
We usually provide a detailed quotation within 24 hours after receiving your inquiry. For urgent requests, please contact us directly.
What are your standard payment terms?
Normally, we require a 30% T/T deposit in advance, with the remaining 70% paid before shipment. We also accept L/C at sight.
What materials are available for your pump products?
We offer a wide range of materials including Stainless Steel SUS304/316L, FRPP, PVDF, Cast Iron, Aluminum Alloy, and Copper Alloy.
What is the typical manufacturing lead time?
Production time depends on order quantity and pump specifications, typically ranging from 30 to 120 days.
Can the voltage and frequency be customized?
Yes, we can customize the voltage (e.g., 380V) and frequency (50/60Hz) to meet the specific electrical requirements of your project.
