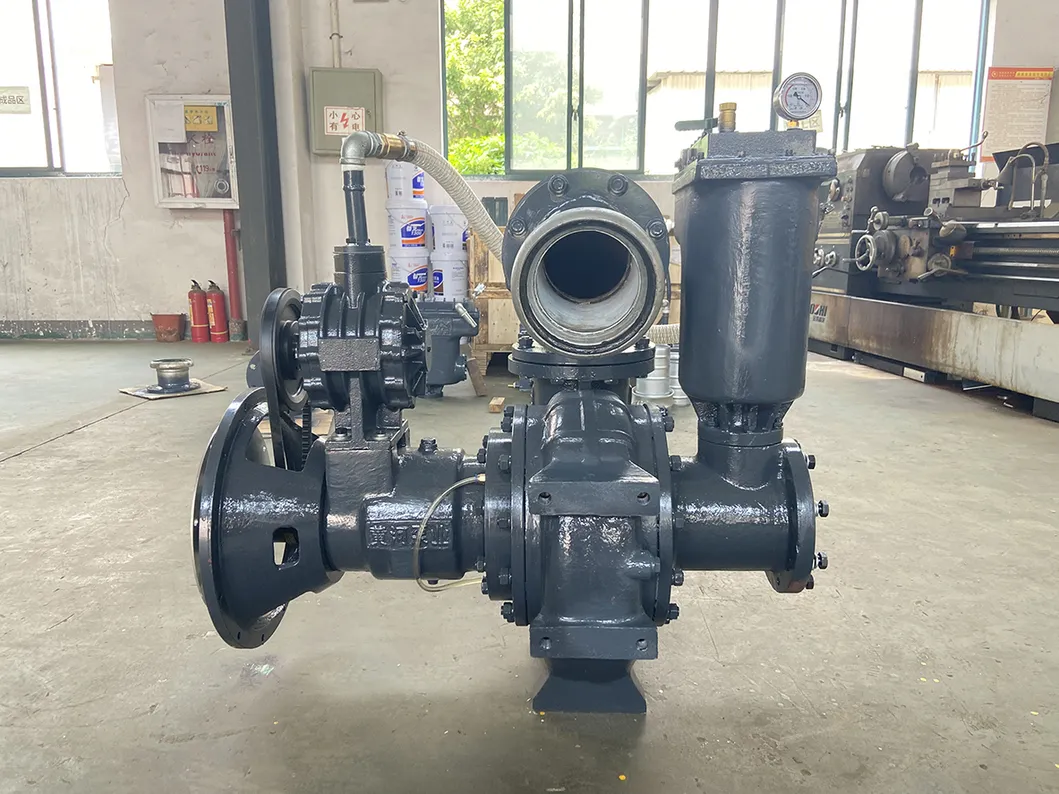

Vacuum self-priming pump
A pump is a machine used to pump high-energy liquids. This is a newly developed pump. Although the diameter of the pump is small, it has the effect of high flow rate, high head, and high suction. Easy to operate, one click quick start. It can solve problems such as farmland irrigation, urban drainage, and flood discharge.
▶Method of application
Points for attention:
| Model | Flow (m³/h) | Lift (m) | Suction height (m) | Speed (RPM) | Power (kw) |
|---|---|---|---|---|---|
| M6-20 | 160 | 20 | 9 | 2900 | 15 |
| M6-32 | 160 | 32 | 9 | 2900 | 22 |
| M6-20 | 200 | 20 | 9 | 1450 | 18.5 |
| M6-32 | 200 | 32 | 9 | 1450 | 30 |
| M6-50 | 200 | 50 | 9 | 1450 | 45 |
| M6-44 | 187 | 44 | 9 | 1450 | 37 |
| M6-32 | 160 | 32 | 9 | 1450 | 22 |
| M6-80 | 200 | 80 | 9 | 1450 | 90 |
| M6-70.5 | 182 | 70.5 | 9 | 1450 | 75 |
| M6-150 | 160 | 150 | 9 | 2900 | 110 |
| M6-142 | 150 | 142 | 9 | 2900 | 90 |
| M6-50 | 200 | 50 | 9 | 2900 | 45 |
| M6-44 | 187 | 44 | 9 | 2900 | 37 |
| M6-80 | 200 | 80 | 9 | 2900 | 75 |
| M6-70 | 187 | 70 | 9 | 2900 | 55 |
| M6-125 | 200 | 125 | 9 | 2900 | 110 |
| M6-110 | 187 | 110 | 9 | 2900 | 90 |
| M6-180 | 200 | 180 | 9 | 2900 | 250 |
