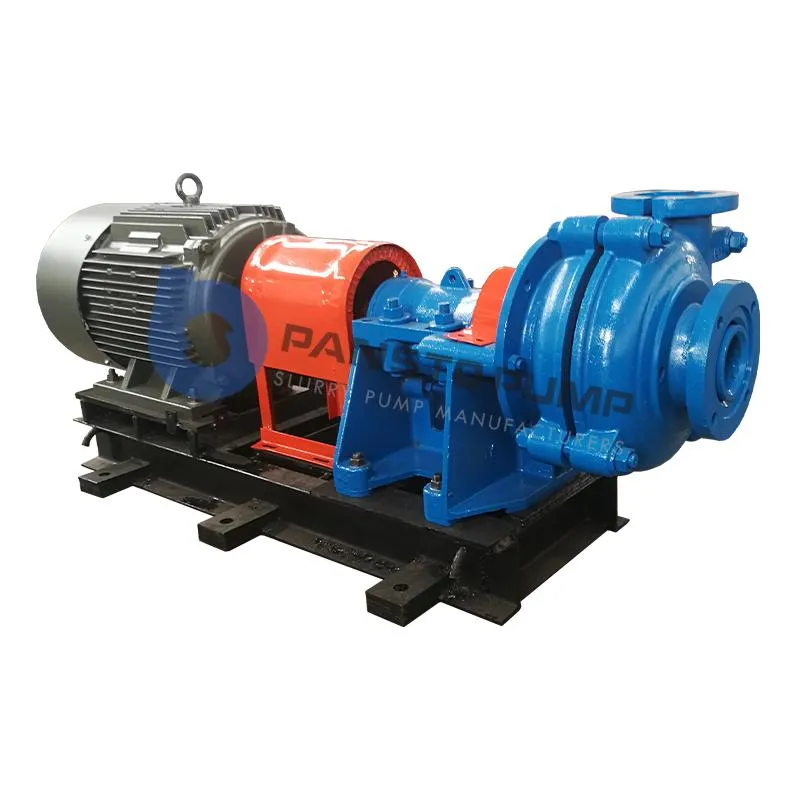

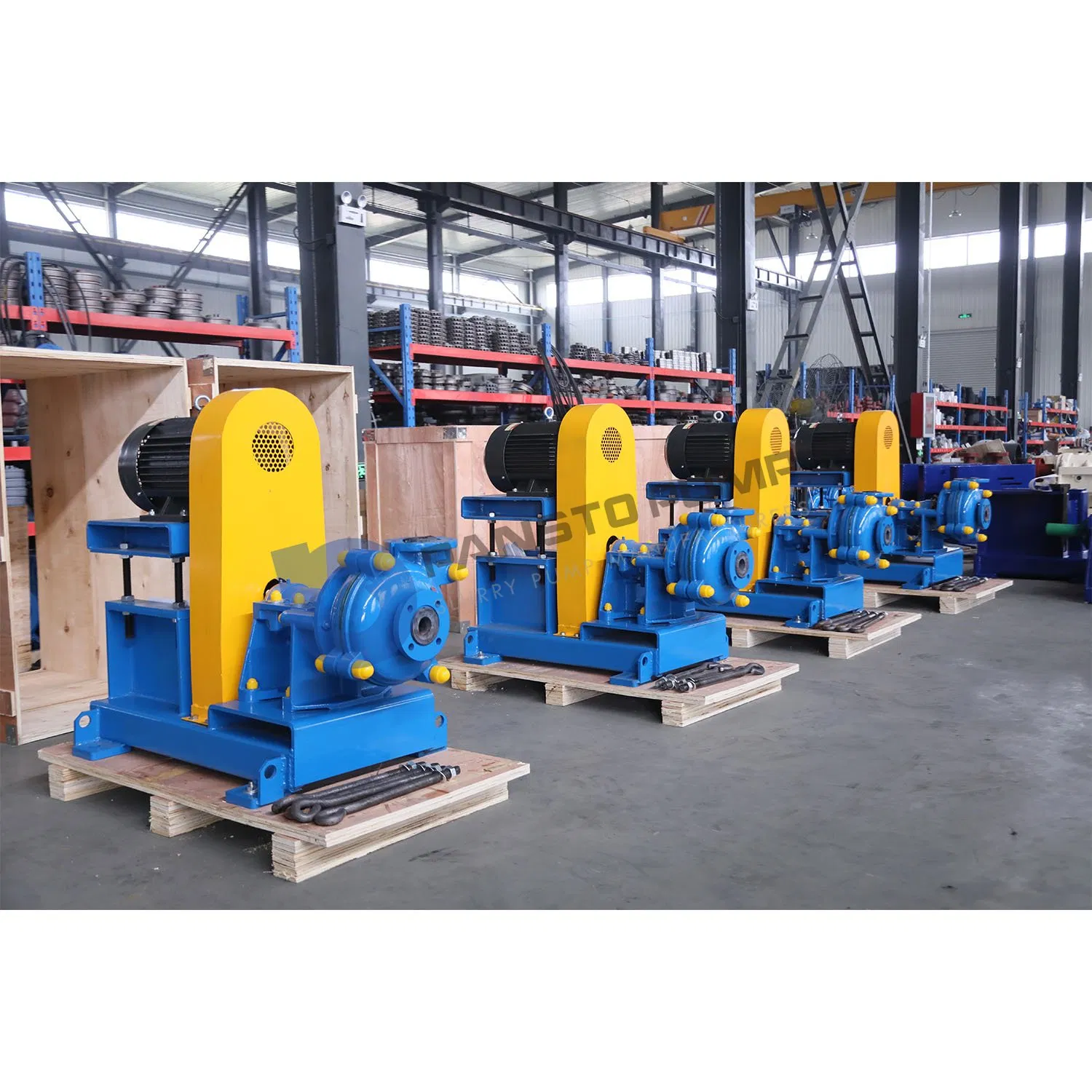

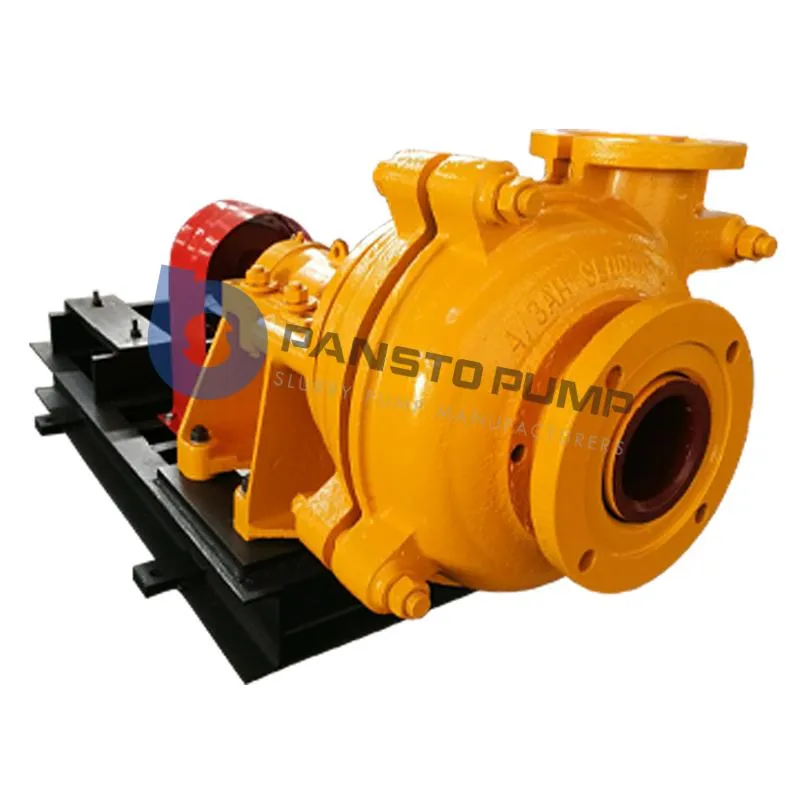

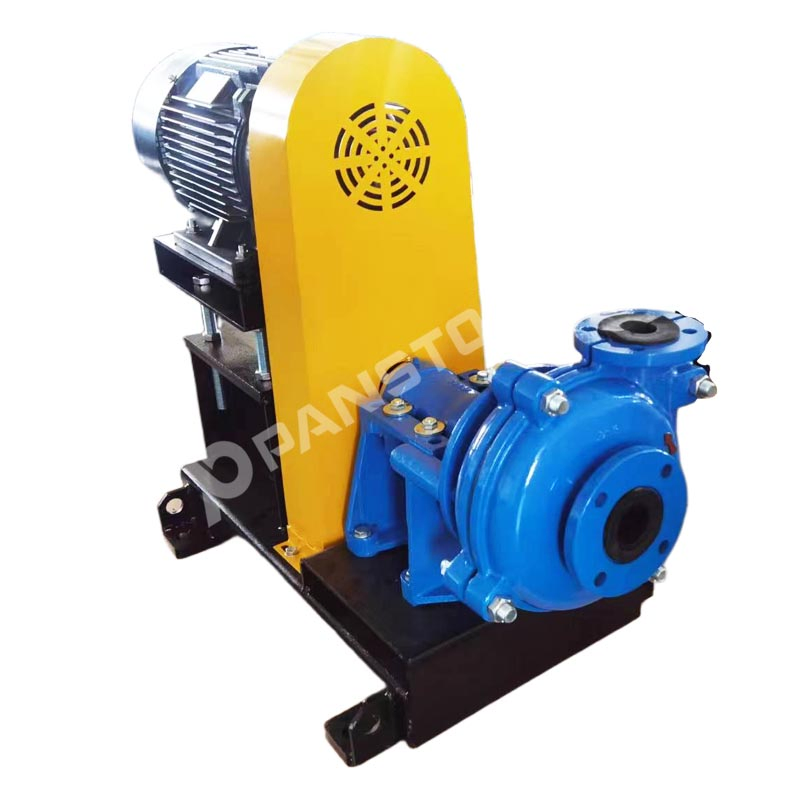

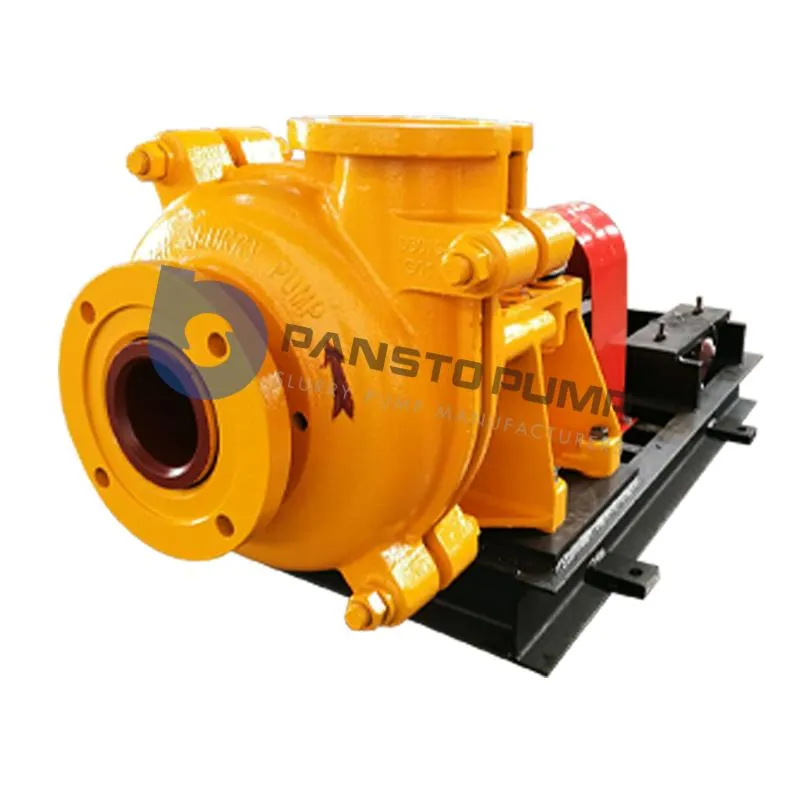

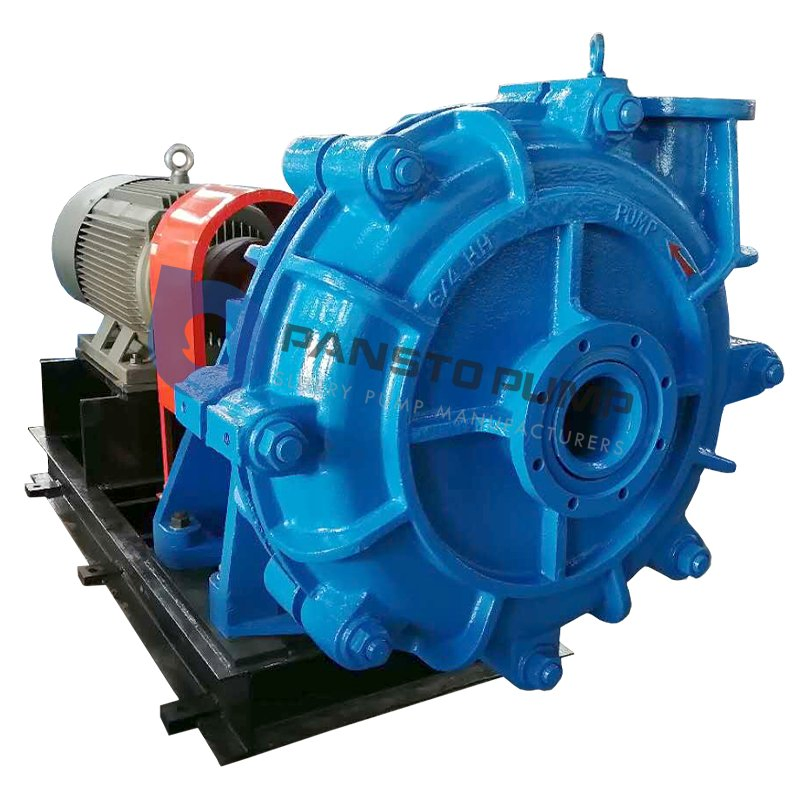

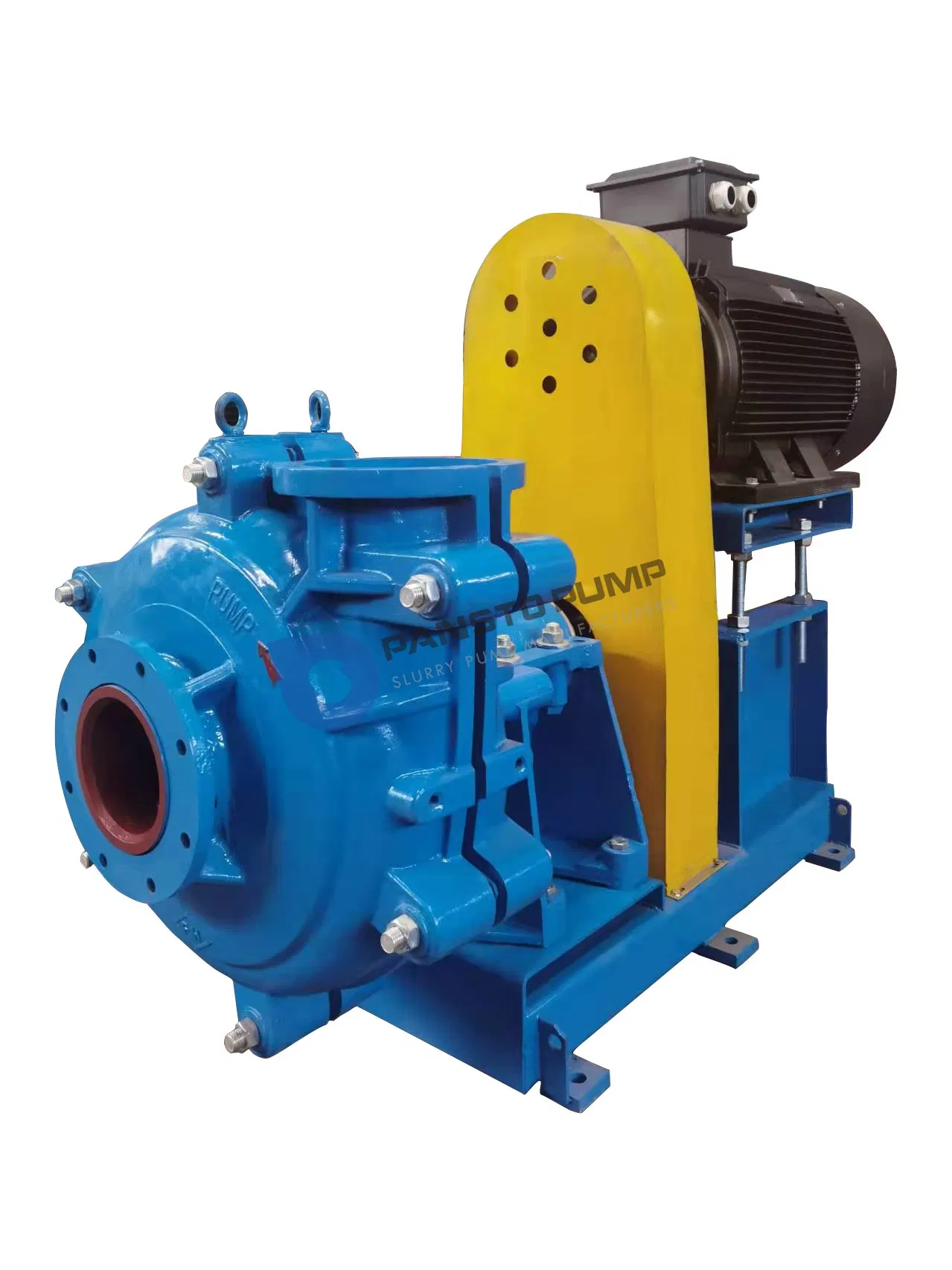

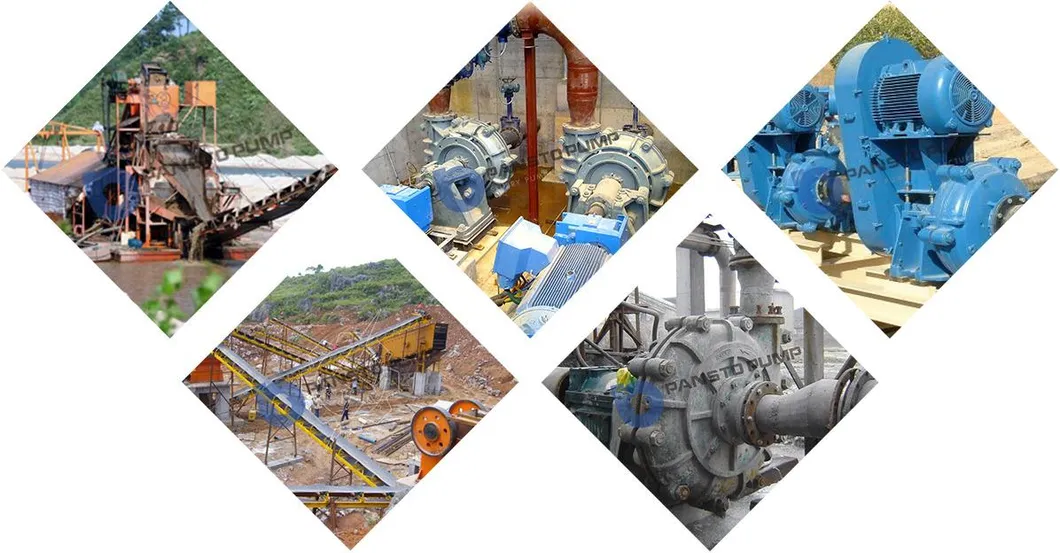

The horizontal slurry pump is a cantilever centrifugal pump, suitable for conveying abrasive or corrosive slurry. It is widely utilized in metallurgy, mining, petroleum, chemical industry, coal, electric power, river dredging, and municipal engineering.

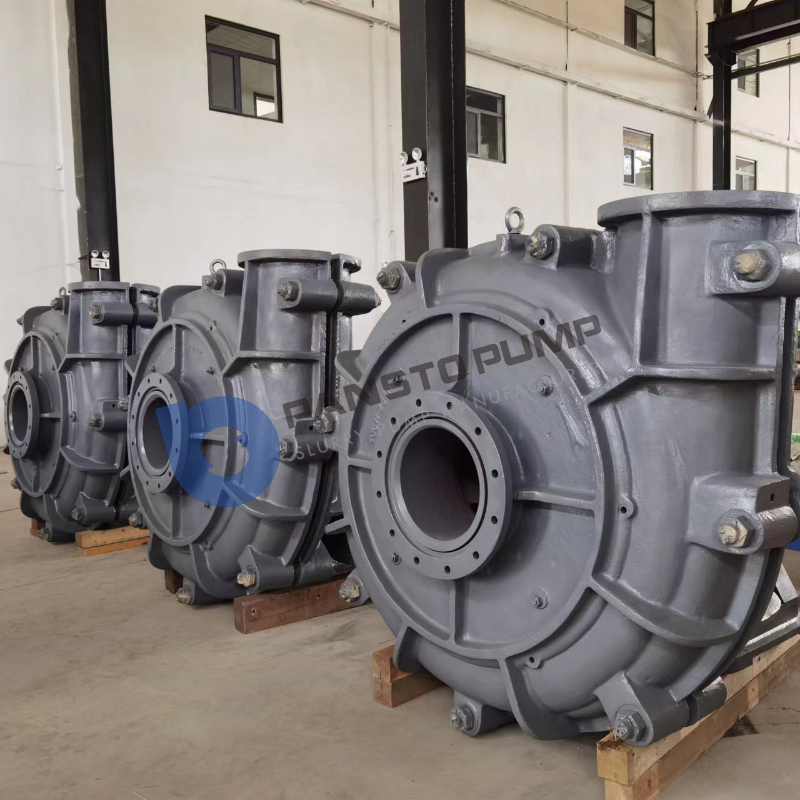

PH series pumps are equipped with thicker wear parts and heavy-duty frames, designed for transporting highly abrasive high-density slurry or lower-density high-head slurry. Within the maximum allowable working pressure range, multiple stages can be installed in series.
For specialized applications, the wetted parts can be constructed from rubber materials (PHJ models), making them ideal for conveying fine particles and corrosive liquids while maintaining the same robust transmission parts as the standard series.

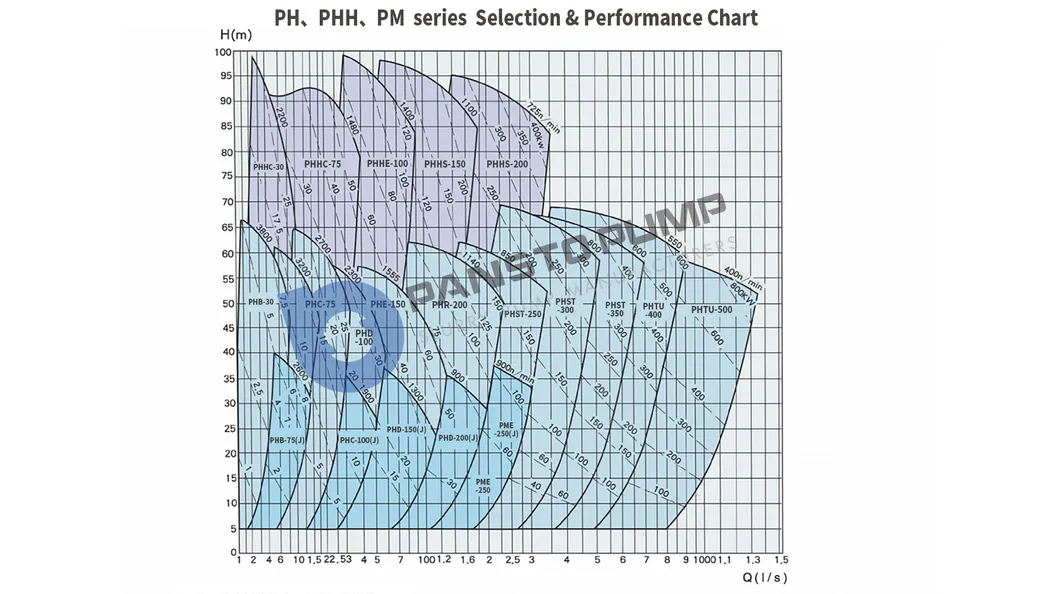

| Model | Power P(KW) | Clearwater Performance | |||||
|---|---|---|---|---|---|---|---|
| Flow Q(m³/h) | Head H(m) | Speed n(r/min) | Eff η% | NPSH(m) | Weight(Kg) | ||
| PHB-40 | 2.2-15 | 3.6-20 | 5-68 | 1200-3800 | 40 | 2-4 | 91 |
| PHB-50 | 2.2-15 | 7-48 | 7-62 | 1200-3200 | 45 | 3.5-8 | 118 |
| PHC-75 | 4-30 | 21-86 | 12-65 | 1300-2700 | 55 | 4-6 | 191 |
| PHC-100 | 5.5-30 | 50-150 | 9-45 | 1000-2000 | 71 | 4-6 | 263 |
| PHD-150 | 15-60 | 72-360 | 12-56 | 800-1550 | 65 | 5-8 | 626 |
| PHE-200 | 18.5-120 | 360-820 | 10-61 | 500-1100 | 72 | 2-9 | 1473 |
| PHTU-400 | 160-1200 | 1368-3000 | 11-60 | 250-550 | 79 | 4-10 | 10000 |

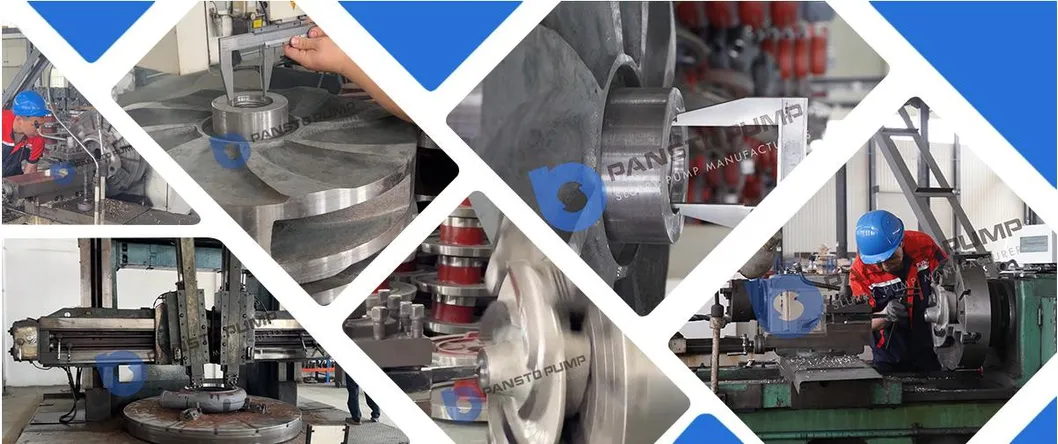

Our manufacturing facility features advanced foundry, machining, heat treatment, and assembly workshops. Materials are adjusted based on specific working conditions to enhance wear and corrosion resistance.
