| Model NO. | SOW250-390 |
| Max. Head | >150m |
| Max. Capacity | >400 L/min |
| Driving Type | Motor |
| Impeller Number | Single-Stage Pump |
| Working Pressure | Middle Pressure Pump |
| Influent Type of Impeller | Double-Suction Pump |
| Position of Pump Shaft | Horizontal Pump |
| Pump Casing Combined | Horizontal Split Pumps |
| Material | Cast Iron, Stainless Steel, Bronze |
| Driver | Electric Motor, Diesel Engine |
| Seal | Mechanical Seal, Packing Gland Seal |
| Origin | China |
| HS Code | 8413709990 |
| Package Size | 220.00cm * 190.00cm * 190.00cm |
| Package Gross Weight | 2200.000kg |
| Transport Package | Plywood Case |

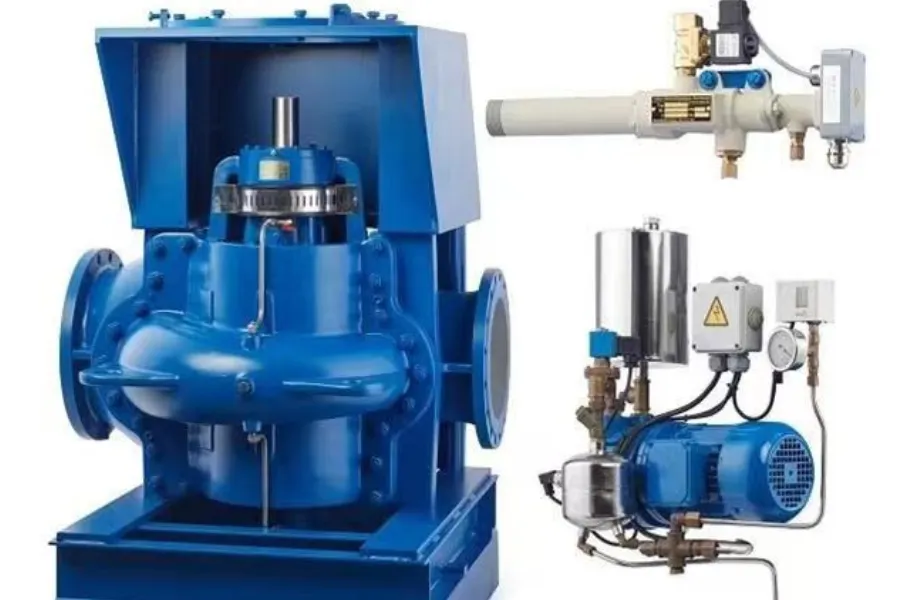

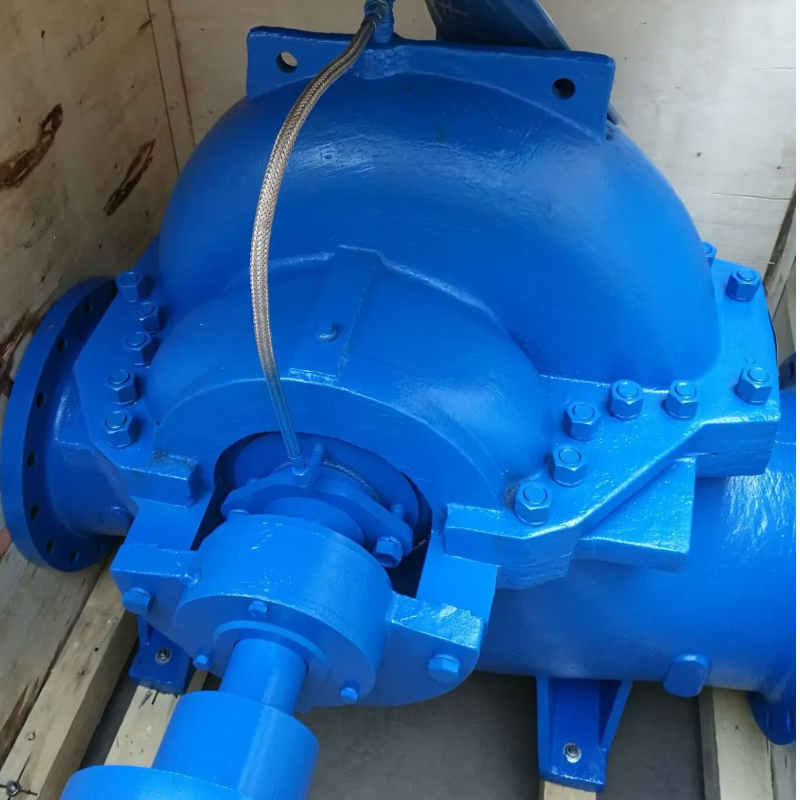

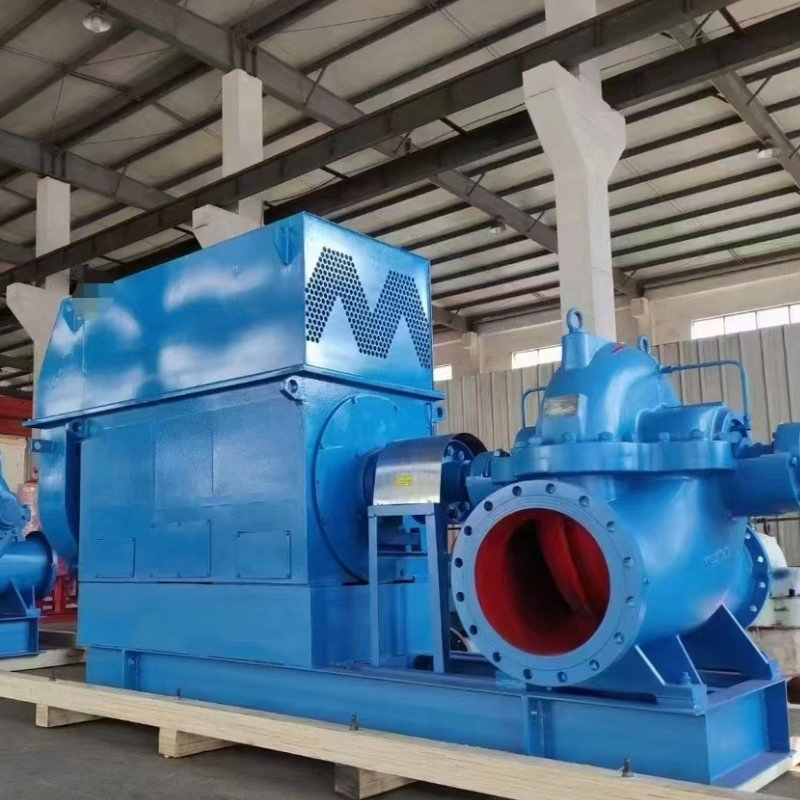

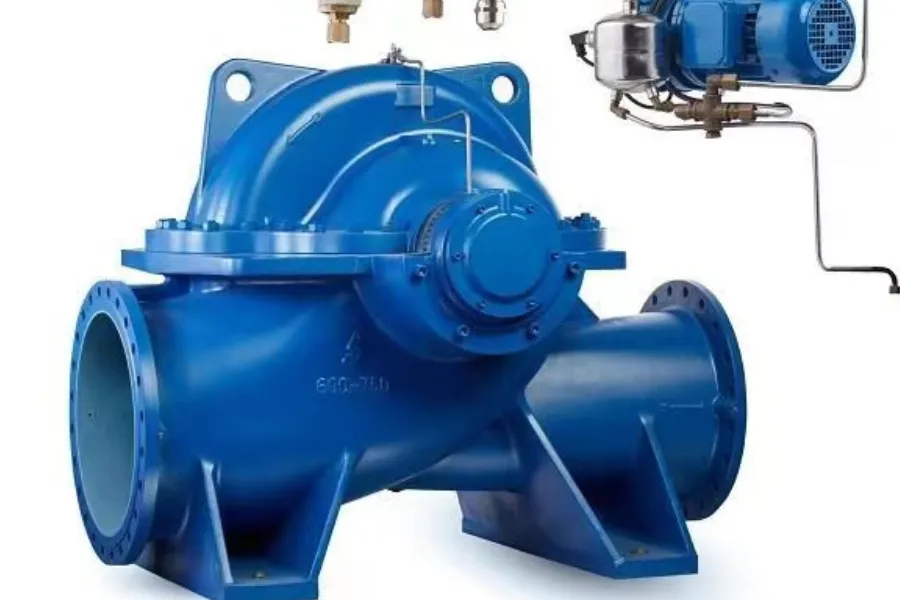

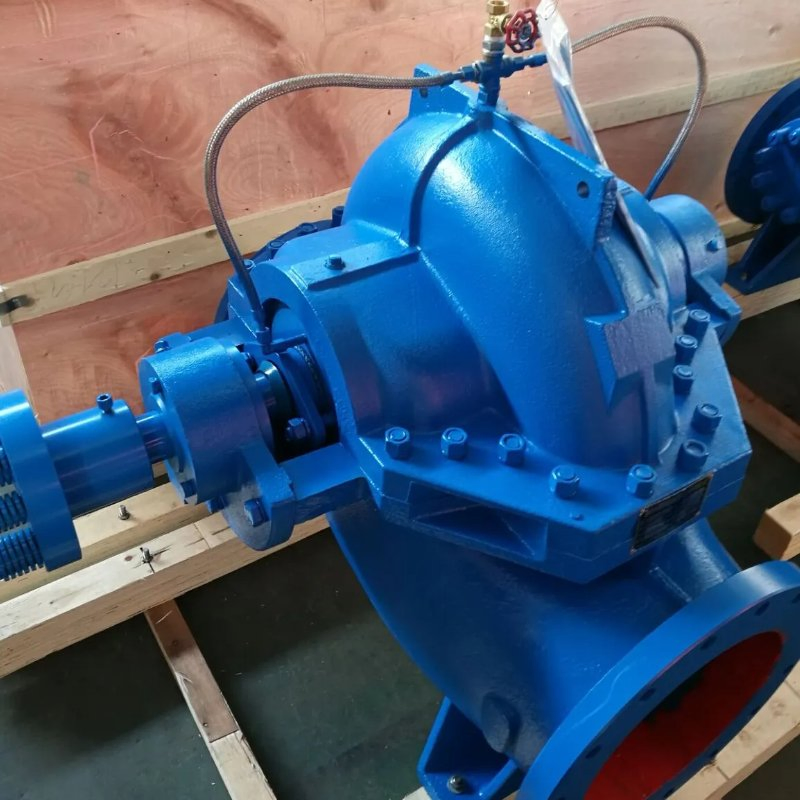

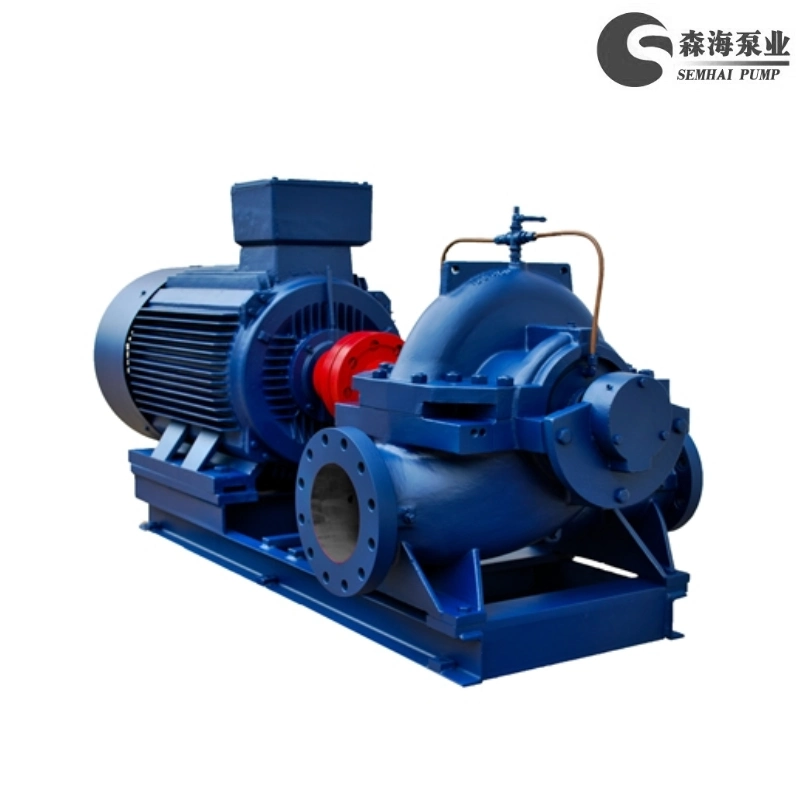

SOW series horizontal single-stage split-casing double-suction centrifugal pump is the latest generation of split-casing double-suction pump. It features a perfect spectrum, outstanding performance, and an innovative, reliable structure designed for easy maintenance and long service life.
With 46 models and 390 basic specifications, the series utilizes prime and modified impellers to meet diverse user requirements for flow and head. This series of pumps strictly adheres to ISO2548C, GB3216C, and GB/T5657 standards.
| Pump Speed | 298, 372, 490, 585, 740, 990, 1480 and 2950 rpm |
| Flow Range | 68 - 30,000 m³/hr |
| Head Range | 6 - 230 m |
| Temp Range | Medium ≤ 80°C, Ambient ≤ 40°C |
| Max Pressure | 1.0Mpa to 2.5Mpa (Special configuration) |
Between-the-bearings Design: Impeller is mounted on a shaft supported by bearings on both sides, ensuring stability.

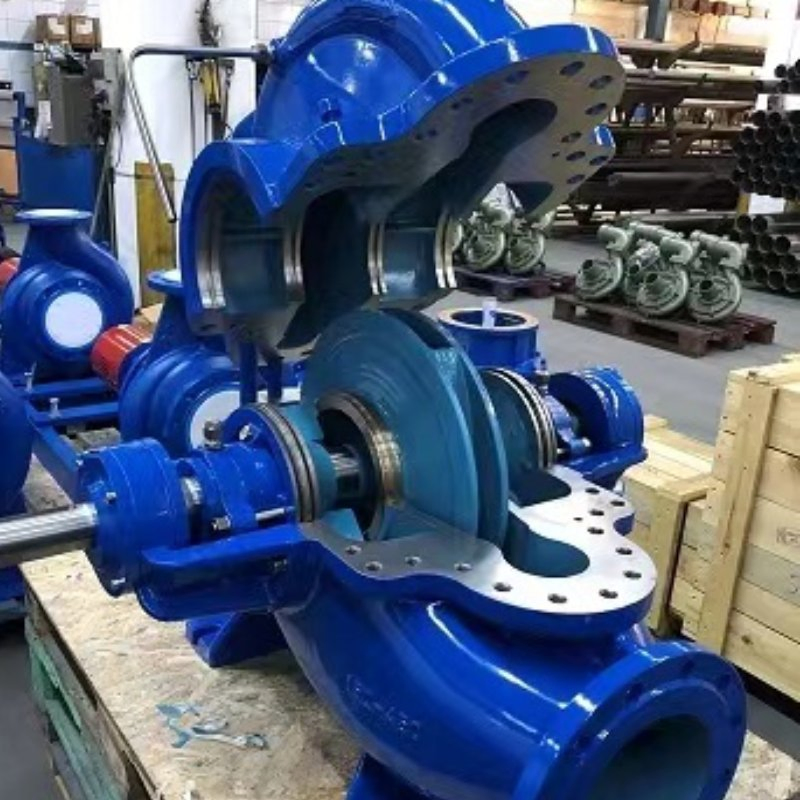

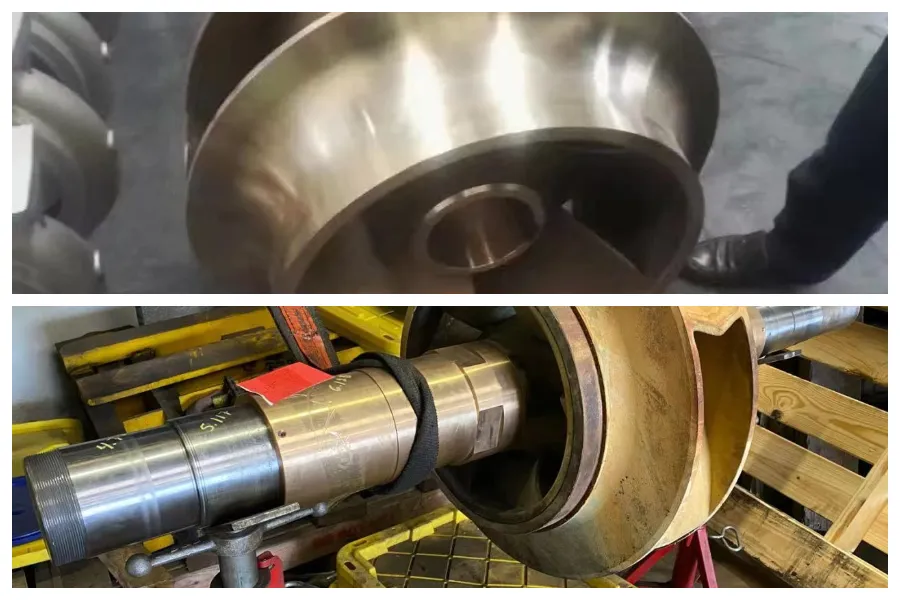

Double-suction Impeller: Dramatically reduces loads on the bearings compared to single-suction types. High-precision casting ensures performance.

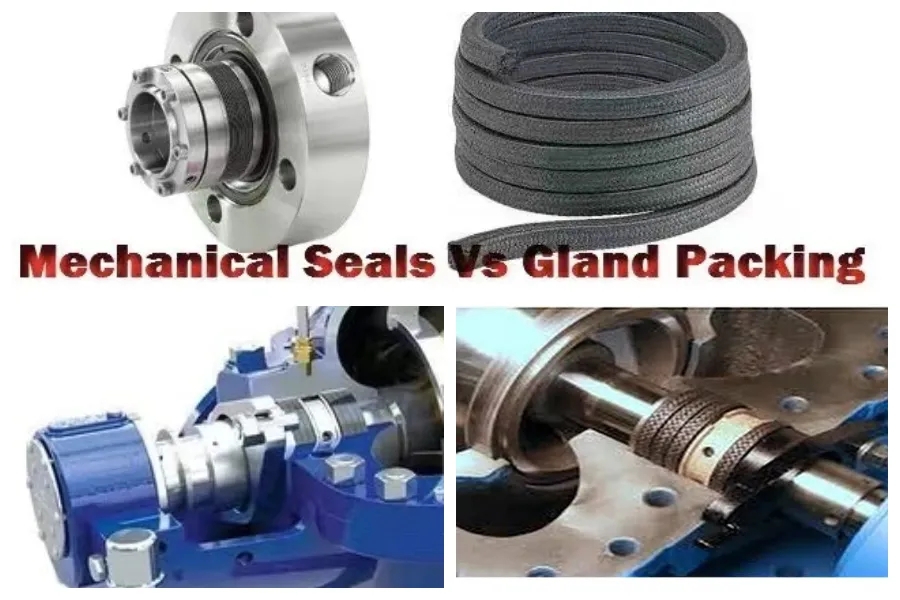

Sealing Solutions:
• Packing Seals: Traditional rope-like materials wrapping the shaft, cost-effective for standard applications.
• Mechanical Seals: Highly durable, designed to eliminate leakage in critical environments.

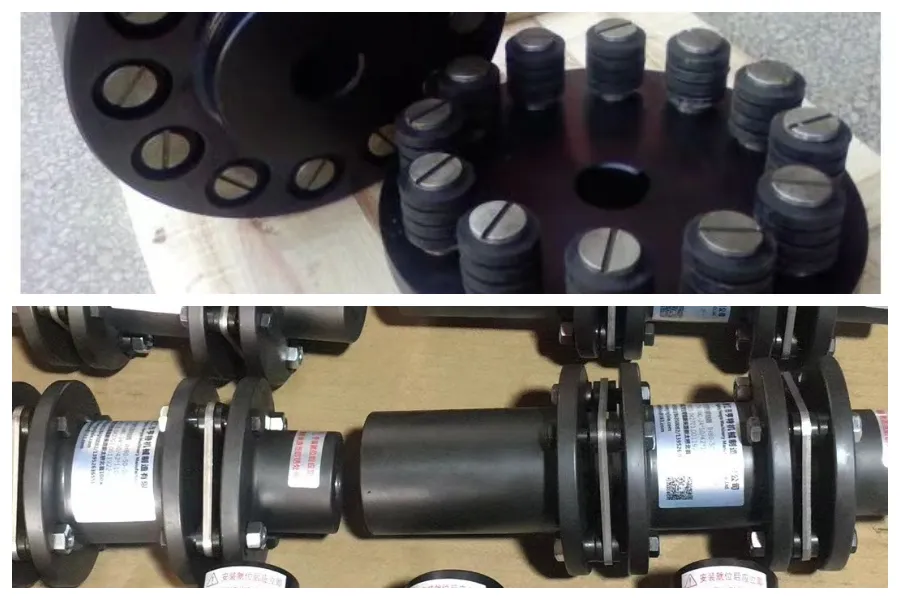

Flexible Couplings: Accommodate vibrations and thermal expansion. We use wear-resisting disc couplings or pin couplings to protect the shaft and bearings from premature wear.
This product is widely utilized across multiple industries:

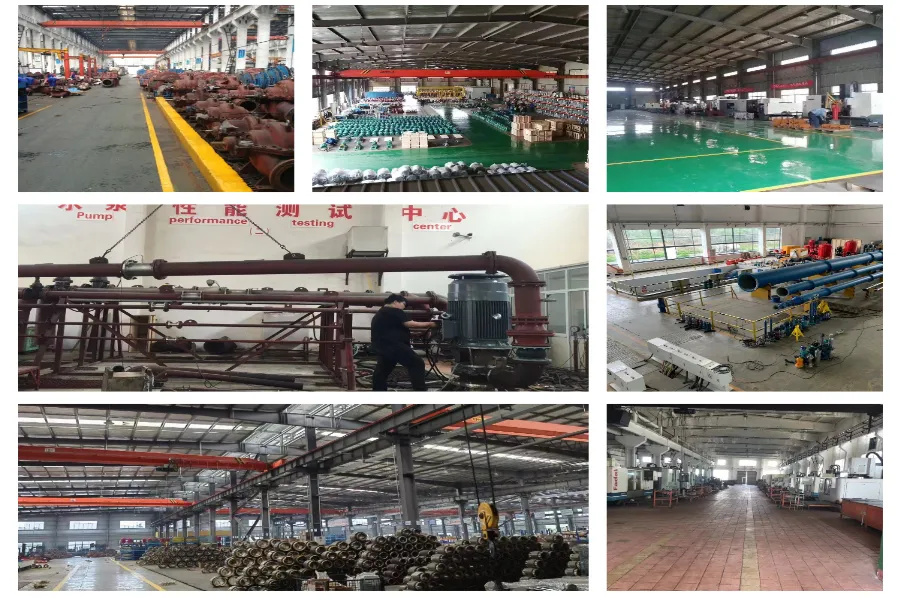

Professional Cooperation: Long-term relationships have been established with major pump-testing institutions, including National Quality Supervision centers and specialized Irrigation Machinery inspection centers to ensure consistent product quality.
