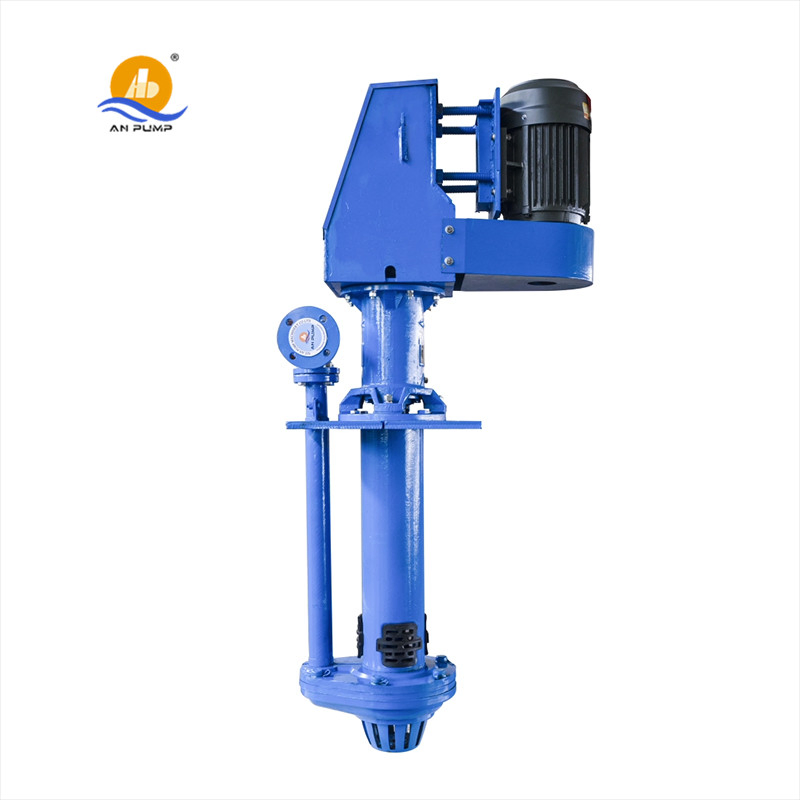

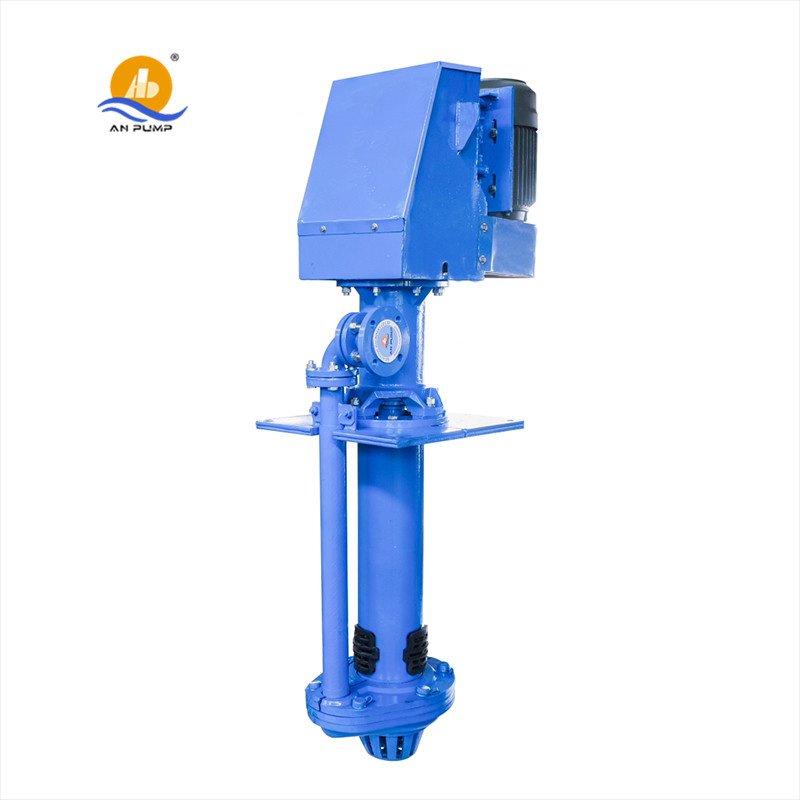

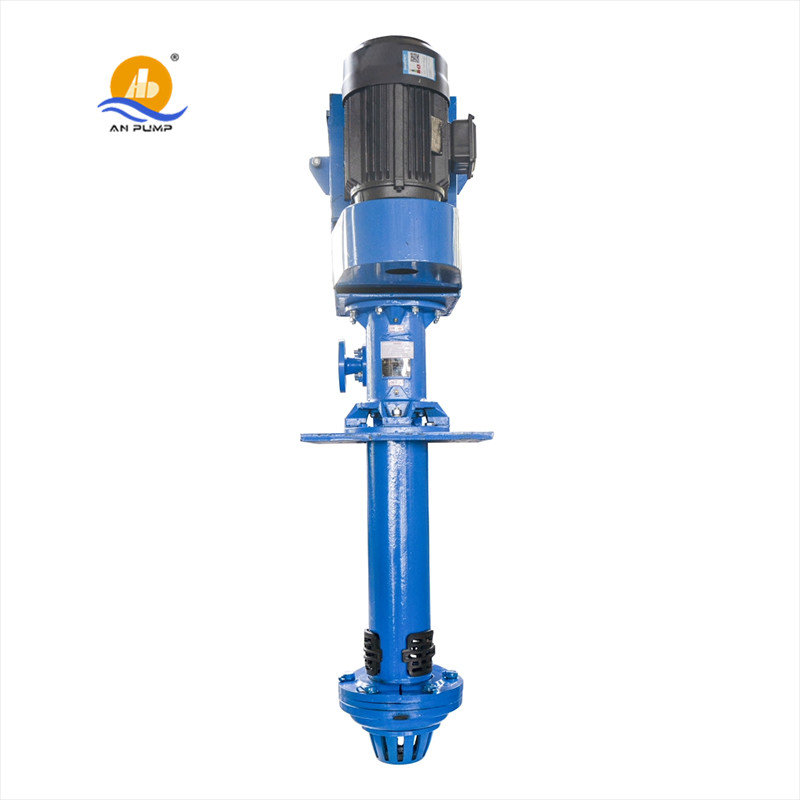

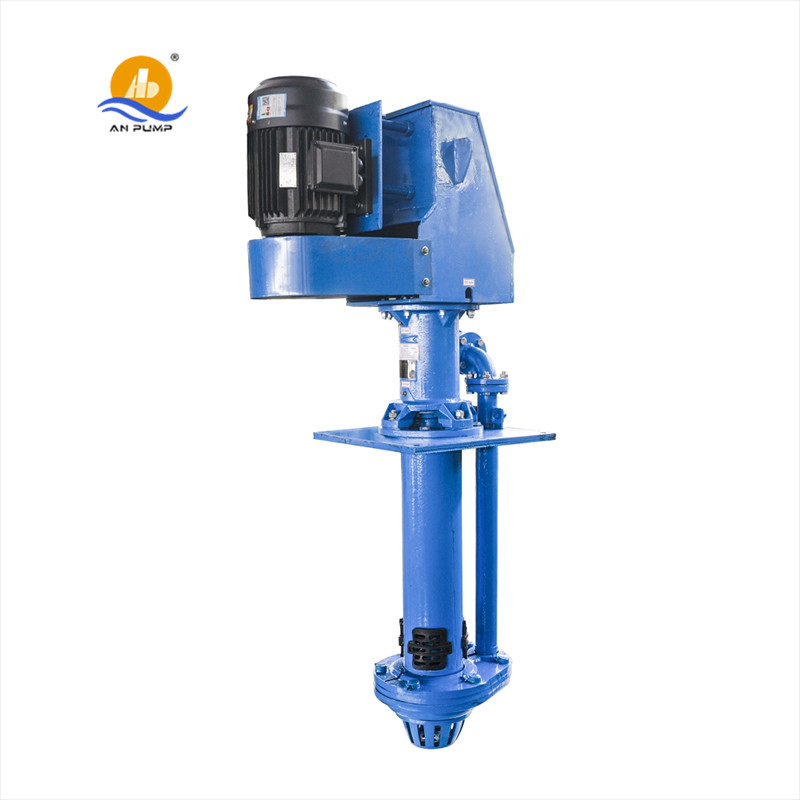

China Gold Mining High Capacity Vertical Sump Slurry Pump
China Gold Mining High Capacity Vertical Sump Slurry Pump
China Gold Mining High Capacity Vertical Sump Slurry Pump
China Gold Mining High Capacity Vertical Sump Slurry Pump
China Gold Mining High Capacity Vertical Sump Slurry Pump
1 / 5
China Gold Mining High Capacity Vertical Sump Slurry Pump
China Gold Mining High Capacity Vertical Sump Slurry Pump
China Gold Mining High Capacity Vertical Sump Slurry Pump
China Gold Mining High Capacity Vertical Sump Slurry Pump
China Gold Mining High Capacity Vertical Sump Slurry Pump

China Gold Mining High Capacity Vertical Sump Slurry Pump

Customization: Available
After-sales Service: 24X7 Hours of Service
Warranty: 12 Months Except The Flow Parts(Wetted Parts)
Send Inquiry

Product Description

Basic Information
Model NO.
vertical cantilever sump pump
Max.Head
80-110m
Max.Capacity
>400 L/min
Driving Type
Motor
Impeller Number
Single-Stage Pump
Working Pressure
High Pressure Pump
Influent Type
Single Suction Pump
Shaft Position
Horizontal Pump
Pump Casing
Horizontal Split Pumps
Impeller Type
Semi-Open
Usage
Pump, Pumps
Certificates
SGS, ISO, CE, BV, TUV
Shaft Seal
Packing Seal / Mechanical Seal / Expeller Seal
Driven System
Electric Motor or Diesel Engine or VFD
Production Capacity
300 Sets/Month
Packaging & Delivery
Package Size
100.00cm * 100.00cm * 100.00cm
Package Gross Weight
500.000kg
Package Type
Fumigated Wooden Case
Product Description
Type LBP and LBPR pumps are vertical centrifugal sump slurry pumps submerged in sumps for operation. They are specifically designed for delivering abrasive, large particle, and high-density slurry. These pumps eliminate the need for any shaft seal and sealing water, and can operate normally even during insufficient suction duties.

The LBP series features wet parts made of abrasive-resistant metal, while the LBPR series is lined with rubber, making them ideal for non-edge angle abrasion slurry. The 'L' extension shaft series is available for deep-level applications, featuring an added guide bearing for steady operation.

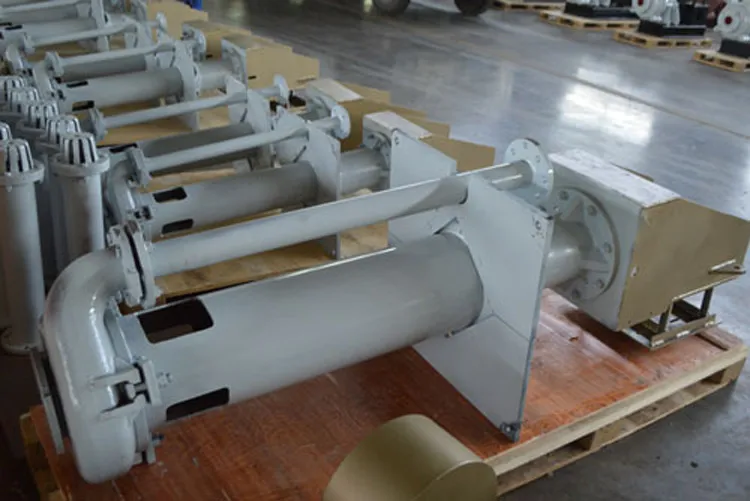

Vertical Sump Slurry Pump View 1

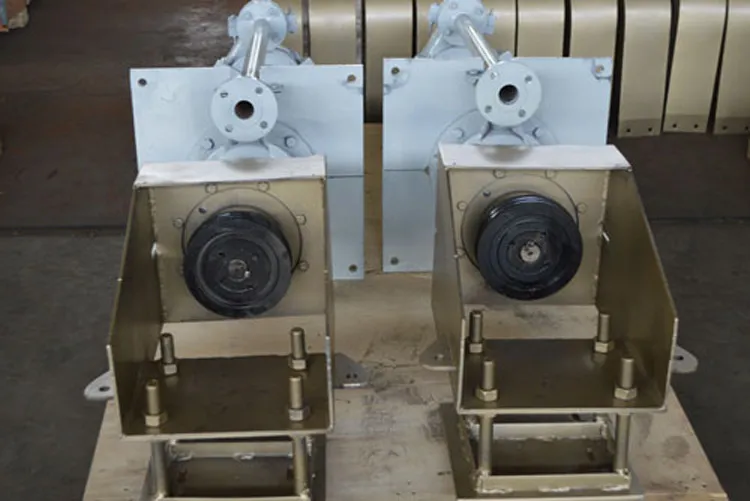

Vertical Sump Slurry Pump View 2

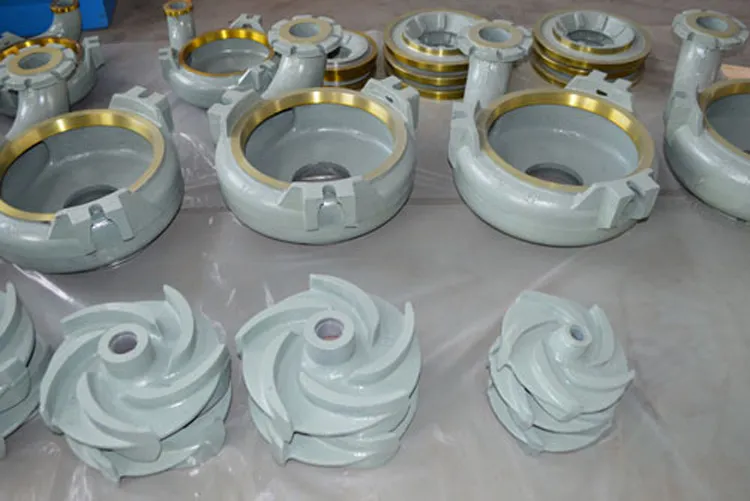

Vertical Sump Slurry Pump View 3

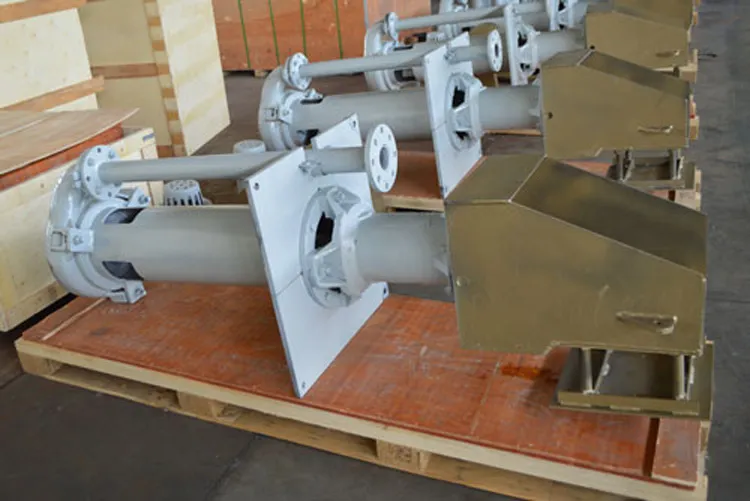

Vertical Sump Slurry Pump View 4

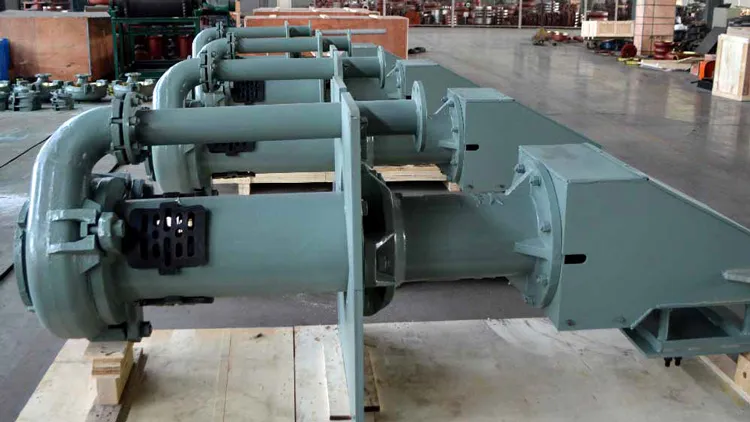

Vertical Sump Slurry Pump View 5
Product Features
  • ◈
    Flow Passage Components: Constructed with wear-resistant metal or rubber impellers depending on the application requirements.
  • ◈
    Bearing Components: Grease-lubricated. Shaft lengths and suction pipes can be customized according to the liquid height of the slurry pool.
  • ◈
    Advanced Sealing: Requires no shaft seal or seal water. Capable of working normally under insufficient suction volume conditions.
Technical Specifications
Type Material Capacity (m3/h) Head (m) Max Particle (mm) Speed (rpm) Max Power (kw)
Liner Impeller
40 LBPMetalMetal6-504-29121000-220015
40 LBPRubberRubber5.8-64.85-54121000-220015
65 LBPMetalMetal14-1204-3315700-150030
65 LBPRubberRubber10.8-1495-49.515700-150030
100 LBPMetalMetal15-3304-3732500-120075
150 LBPMetalMetal36-6485-3743500-1000110
200 LBPMetalMetal90-8286-4164400-850110
250 LBPMetalMetal40-12067-3664400-750200
Company Profile
Company Manufacturing Capability
Frequently Asked Questions
Are you an experienced manufacturer?
Yes, we have been specialized in centrifugal pumps manufacturing and marketing for over 32 years.
Which global markets do you export to?
We export to Europe, North & South America, South-East Asia, Africa, Oceania, and Middle East countries.
What information is needed for a precise quotation?
To select the most accurate model, please provide the pump capacity, head, medium type, operation situation, and required quantity.
Do you offer OEM or custom branding services?
Yes, printing your own brand on the pumps is totally acceptable according to international rules.
How quickly can I expect a response regarding pricing?
Our personalized service team will respond to all inquiries within 24 hours.
What are the available driving options for the pumps?
The pumps can be driven by Electric Motors, Diesel Engines, or Variable Frequency Drives (VFD) via Belt or Direct Coupling.
