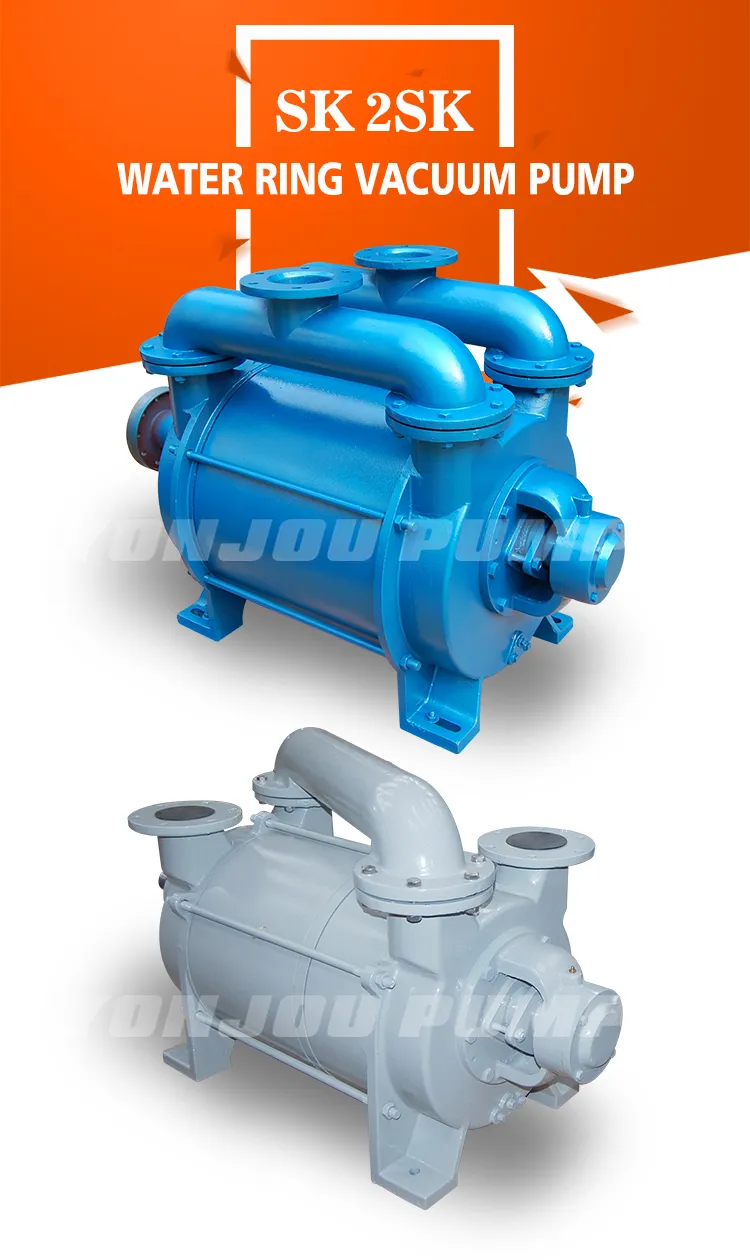

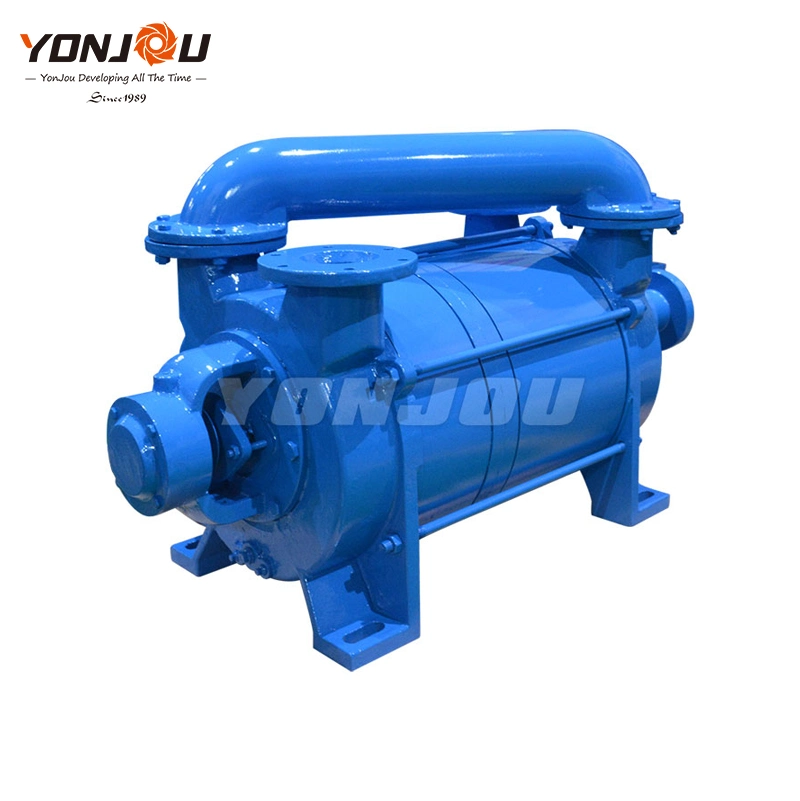

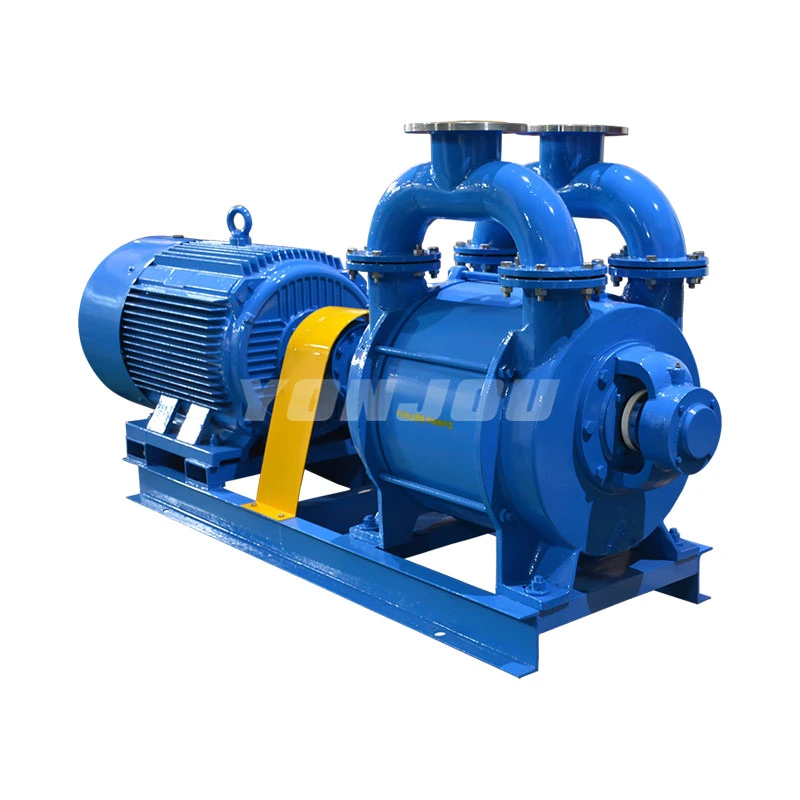

Models 2BV and SK are single stage liquid ring vacuum pumps, while Model 2SK is a double stage liquid ring vacuum pump.
The liquid-ring vacuum pump compresses gas by rotating a vaned impeller within a cylindrical casing. Liquid (usually water) forms a moving cylindrical ring against the inside of the casing via centrifugal acceleration. This creates a series of seals between impeller vanes, forming compression chambers. The eccentricity between the impeller and the casing axis results in cyclic volume variation, drawing in and compressing the gas.
| Model | Size | Ult. Vacuum (kpa) | Max Flow (M3/min) | Motor (KW) | Speed (Rpm) | Water (L/min) |
|---|---|---|---|---|---|---|
| 2BV-2060 | 25mm | 3.3 | 0.45 | 1.1 | 2880 | 2 |
| 2BV-2070 | 40mm | 3.3 | 1.33 | 3 | 2880 | 2.5 |
| 2BV-5110 | 50mm | 3.3 | 2.75 | 4 | 1450 | 7 |
| SK-1.5 | 70mm | 8.3 | 1.5 | 4 | 1440 | 15 |
| SK-6 | 80mm | 8.3 | 6 | 11 | 1440 | 30 |
| SK-20 | 150mm | 8.3 | 20 | 37 | 730 | 60 |
| 2SK-1.5 | 40mm | 3.3 | 1.5 | 7.5 | 1440 | 15 |
| 2SK-6 | 70mm | 3.3 | 6 | 15 | 1440 | 30 |
