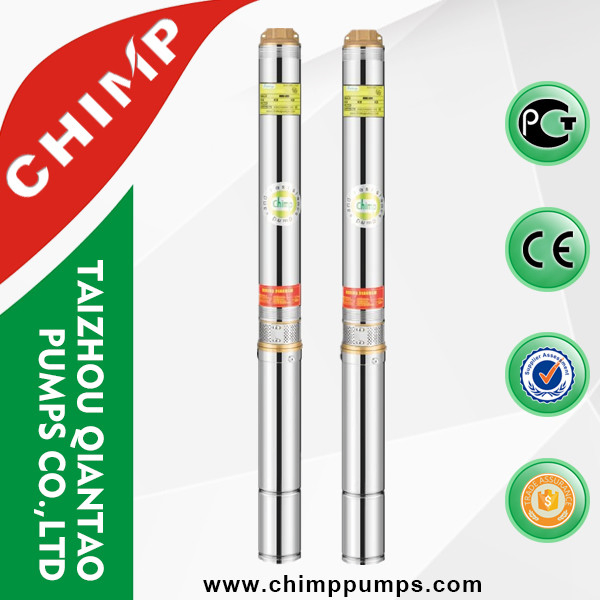

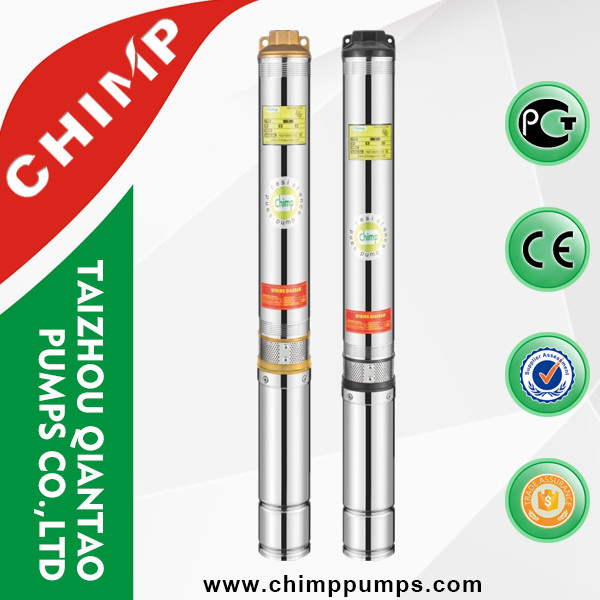

Chimp SD Series Multistage High Pressure Deep Well Submersible Electric Water Pump

Basic Specifications

Product Description

SD Series Multistage High Pressure Deep Well Submersible Electric Water Pump

Identification Code

4: Well diameter: 100mm(4")
SD: Pump name
M: Single motor (Three phase without M)
3: Capacity (m3/h)
06: Stage
0.55: Motor power code

Applications

• For water supply from wells or reservoirs.
• For domestic use, civil and industrial applications.
• For garden use and irrigation.

Operating Conditions

• Maximum fluid temperature up to +35ºC
• Maximum sand content: 0.25%
• Maximum immersion: 100M
• Minimum well diameter: 3.5"

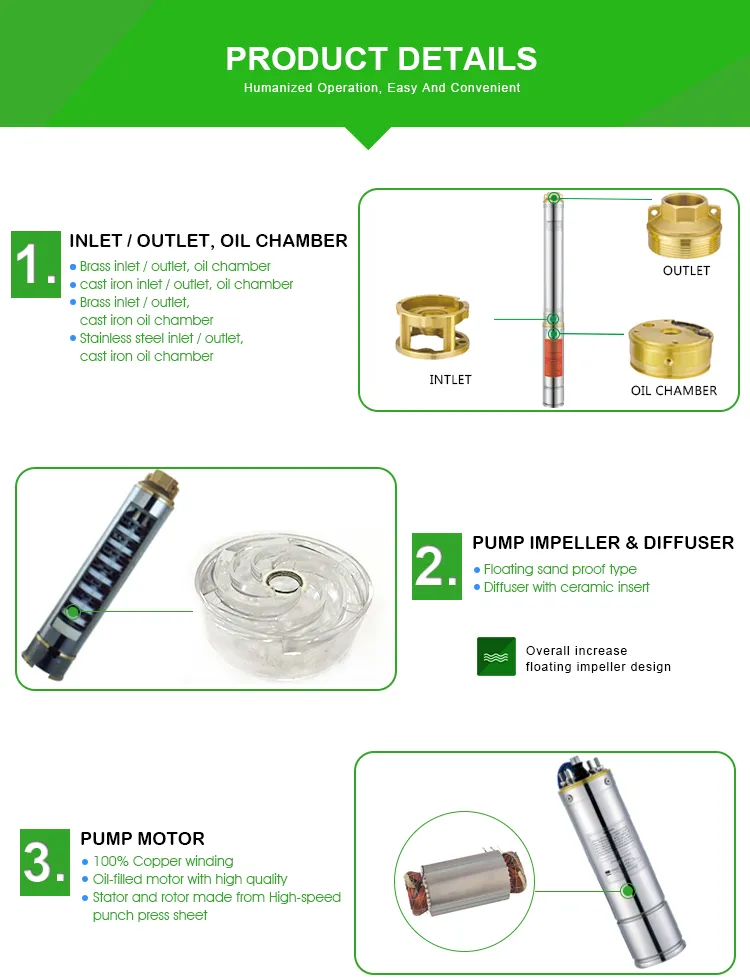

Motor and Pump

• Rewindable motor, full obturated screen motor
• Three phase: 380v-415v/50hz or 60hz
• Single phase: 220v-240v/50hz or 60hz
• Equip with start control box or digital auto-control box
• Pumps are designed by casing stressed; NEMA dimension standard

Options on Request

• Special mechanical seal
• Other voltages or frequency viable

Technical Data Performance
