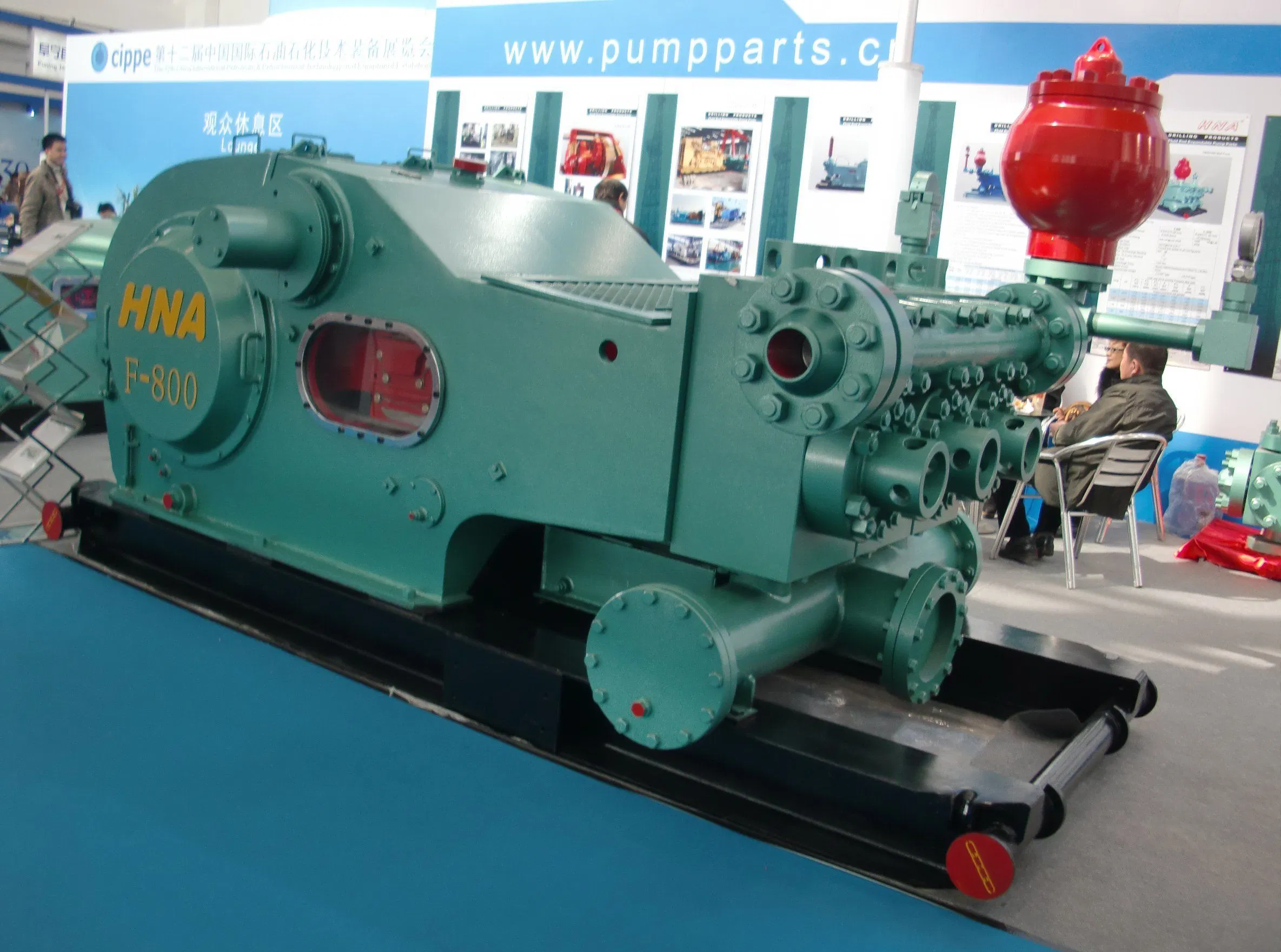

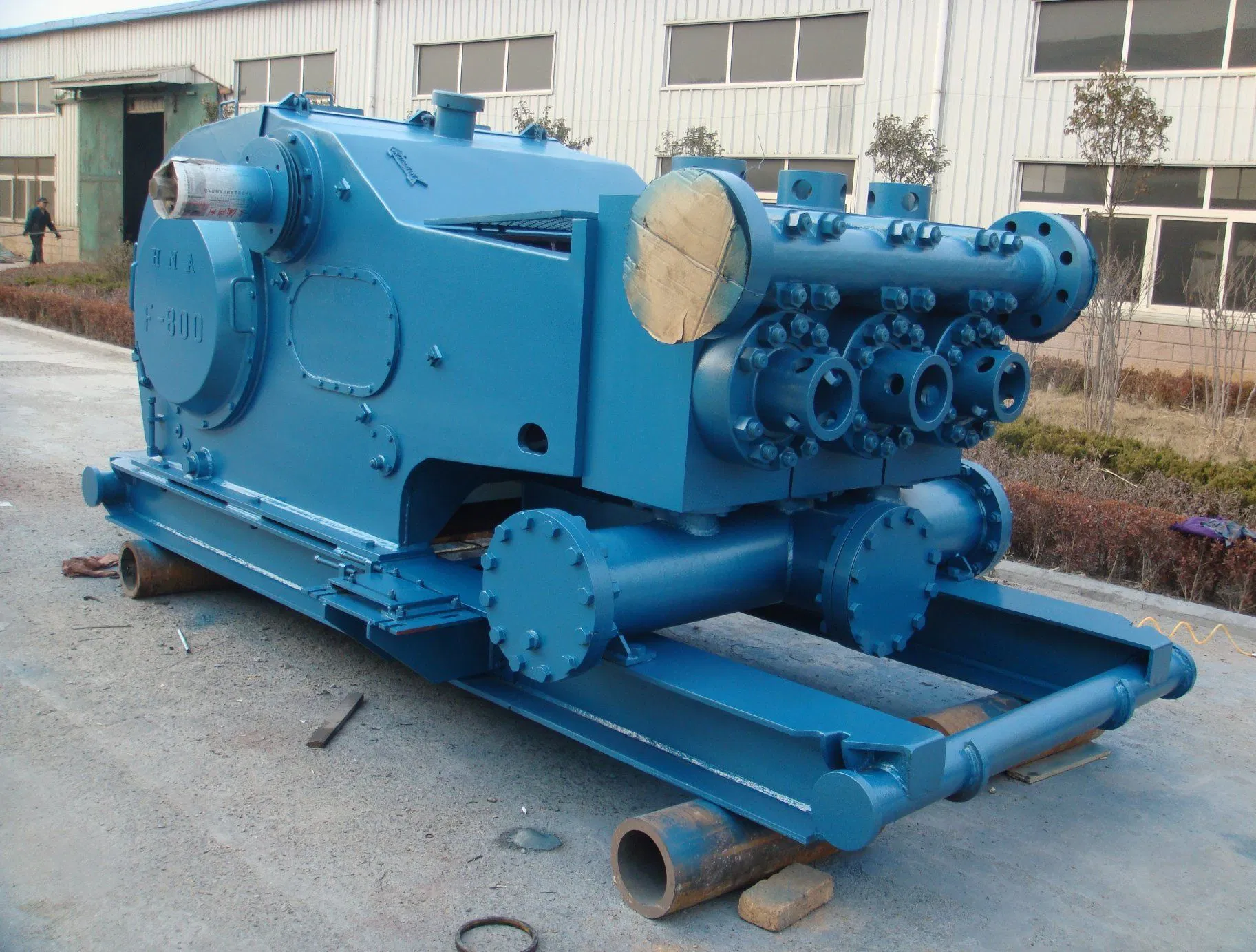

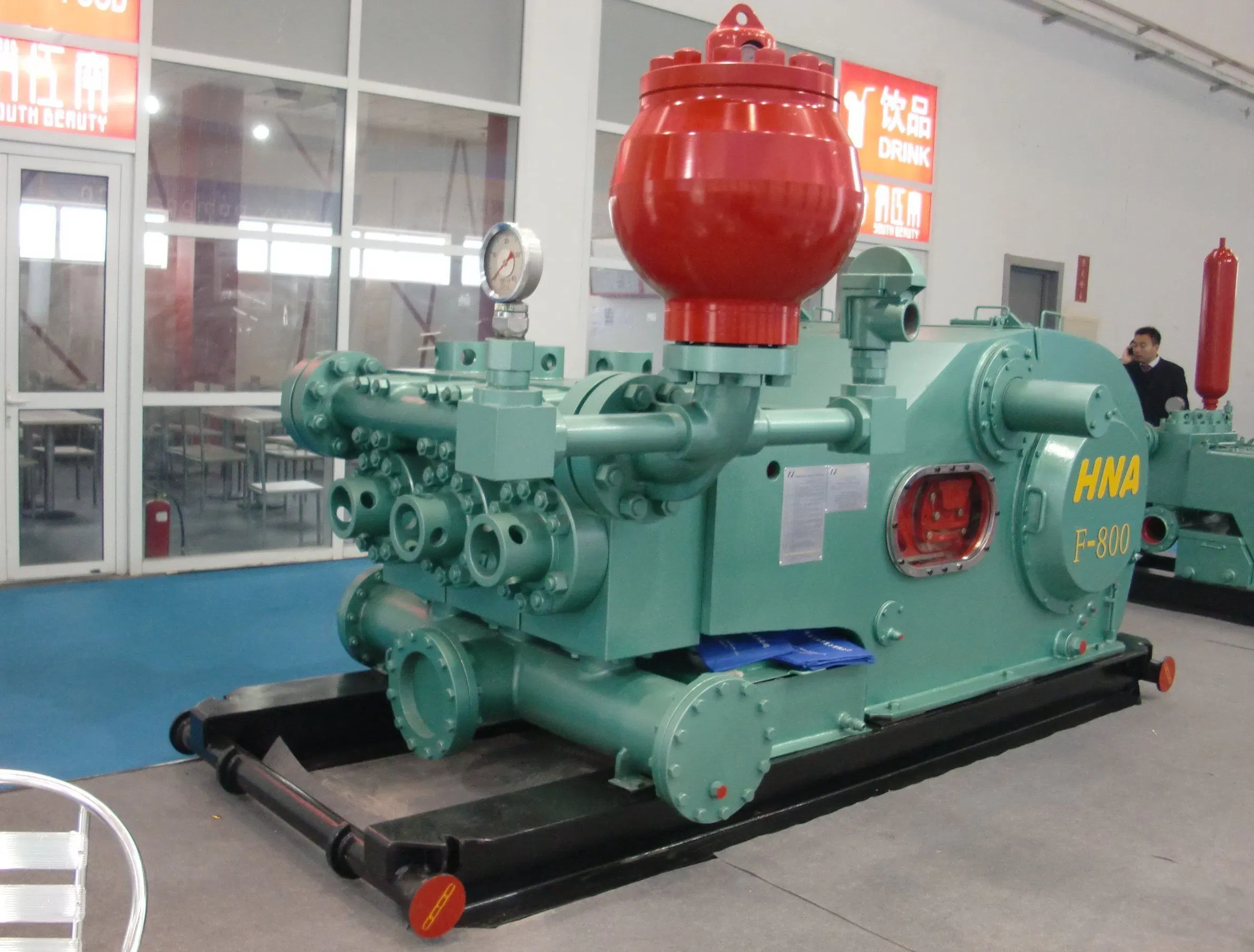

CE Marked Double Diaphragm Mud Pump for Slurry Transfer

Customization: Available
Structure: Multi Cylinder
Application: Petrochemical

Product Description

i

Basic Information

Model NO.F-1600HL
StandardStandard
Performance1600HP
PowerDiesel
TrademarkHNA
OriginChina
Production Capacity3000
📦

Packaging & Delivery

Package Size40.00cm * 40.00cm * 42.00cm
Package Gross Weight50.000kg
Transport PackageBy Sea

Our Advantages

Since 1997, our company has been an integrated engineering & manufacturing specialist & supplier recognized worldwide for its complete range of high-quality products of Mud Pump, Plunger Pump, Frac Pump & Spare Parts. We serve not only the O&G sector but also high-speed train, automobile, heavy & special trucks, mining, civil construction, and heavy machinery industries.
With over 20 years of expertise in designing & fabricating technology, we utilize state-of-the-art production and inspection equipment. Our global reputation as a one-stop supplier is built on 100% interchangeable products certified by API Q1, 7K, and ISO standards. Our cost-effective solutions help clients reduce procurement, operation, and maintenance costs.
By leveraging world-leading technology in high pressure, ceramic, compound alloy, and specialized surface treatments, we distinguish ourselves in the O&G Pump & Parts industry. We believe innovation and technology create the future.

Product Parameters

Pump Type Horizontal Triplex Single Acting Piston Pump Gear Type Herringbone gear
Rated input power 1,194Kw / 1,600Hp Gear ratio 4.206:1
Rated Stroke (SPM) 120 SPM Lubrication Forced and flashing
Stroke Length 305mm / 12" Valve Cavity API-7#
Suction Flange 305mm / 12" Discharge Flange 130mm / 5 1/8" (7,500Psi working)
Max. Working pressure 51.7MPa / 7,500 Psi Max. Diameter of Liner 190mm / 7.5"
Weight 29,535Kg / 65,199 lbs Overall Dimension 5,475X2,964X3,087mm
📷

Detailed Photos

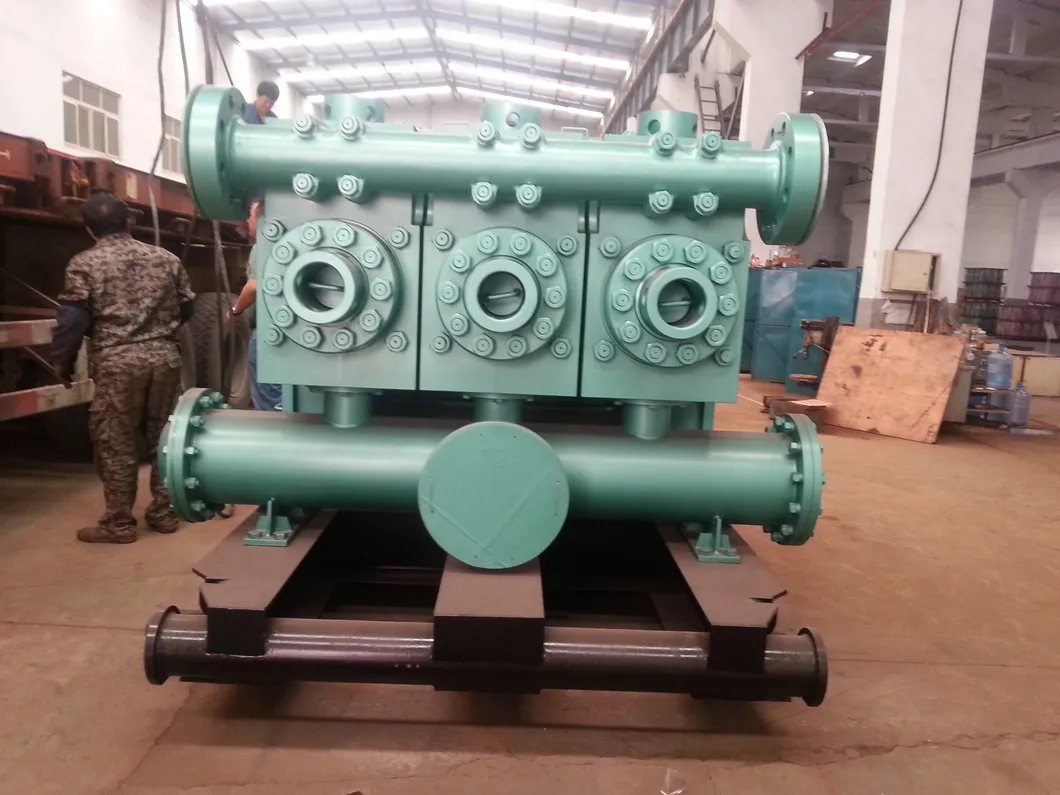

Mud Pump Details 1

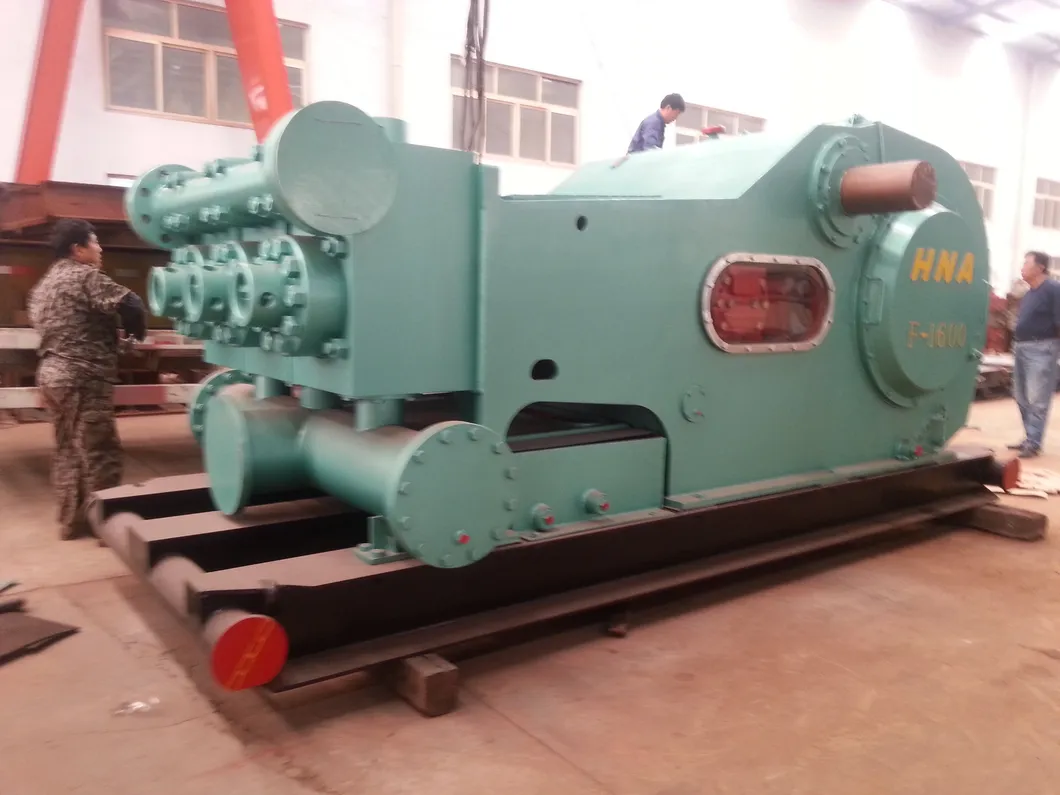

Mud Pump Details 2
Mud Pump Details 3
Mud Pump Details 4
🏢

Enterprise Display

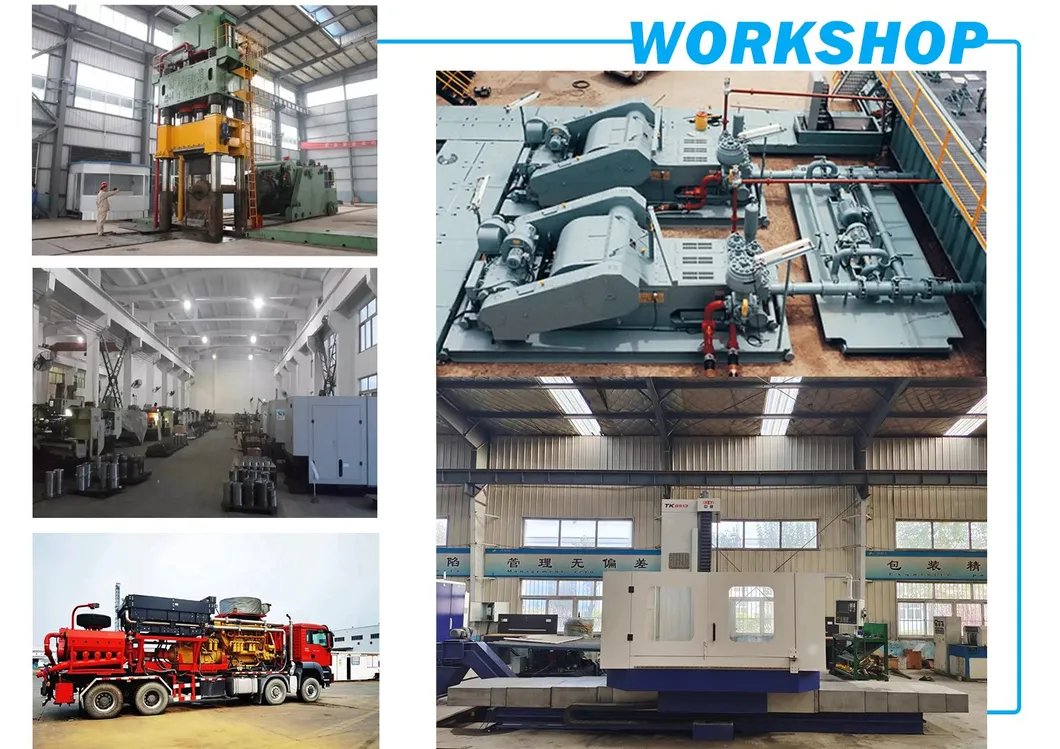

Factory View
Workshop
Equipment
Manufacturing
Inventory
📜

Certifications

Certificate 1
Certificate 2
Certificate 3
?

Frequently Asked Questions

How can I place an order?
You can contact us via email or social media to discuss order details or place an order online.
What are the payment terms for new clients?
For new clients, an advance payment of 30%-100% of the total amount is required. The balance is paid before delivery after your inspection.
What payment methods are accepted?
We accept T/T (Telegraphic Transfer) and L/C (Letter of Credit) as per the terms mentioned in the Proforma Invoice (PI).
What is the standard order procedure?
We discuss order and production details first, then issue a PI. Production begins after the deposit is received. We then coordinate shipment and balance payment upon completion.
How long does the production process take?
Depending on the items ordered and stock availability, production can take from a few days to several months.
When is shipment arranged?
Shipment is arranged once production is finished, shipping details are confirmed, and the balance payment has been settled.
