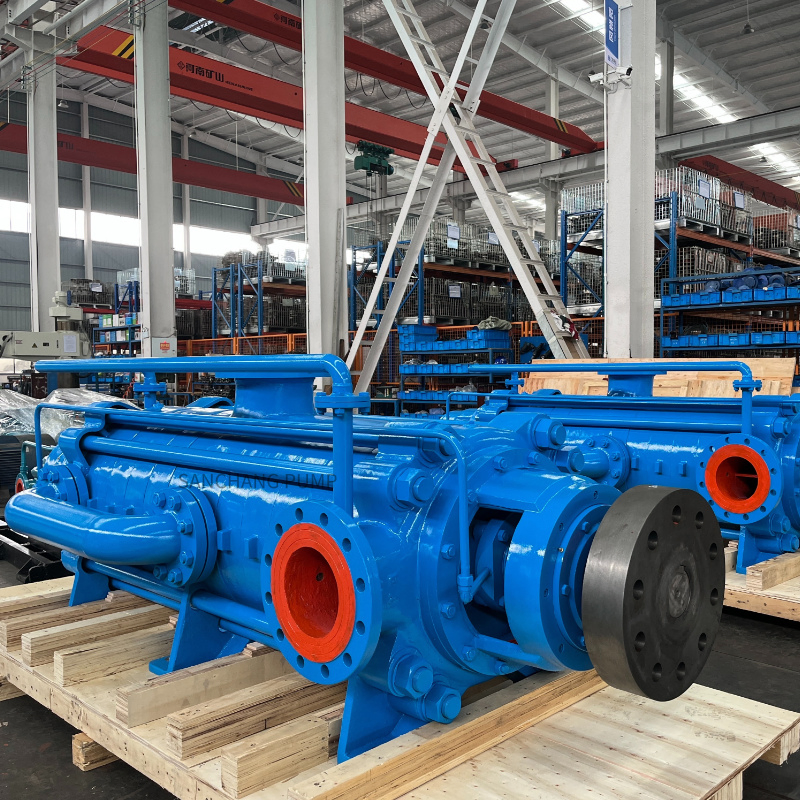

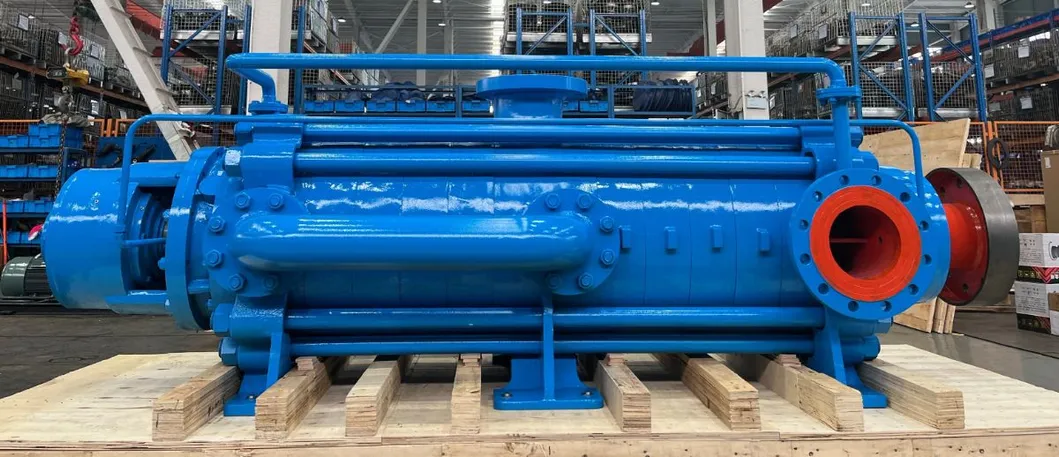

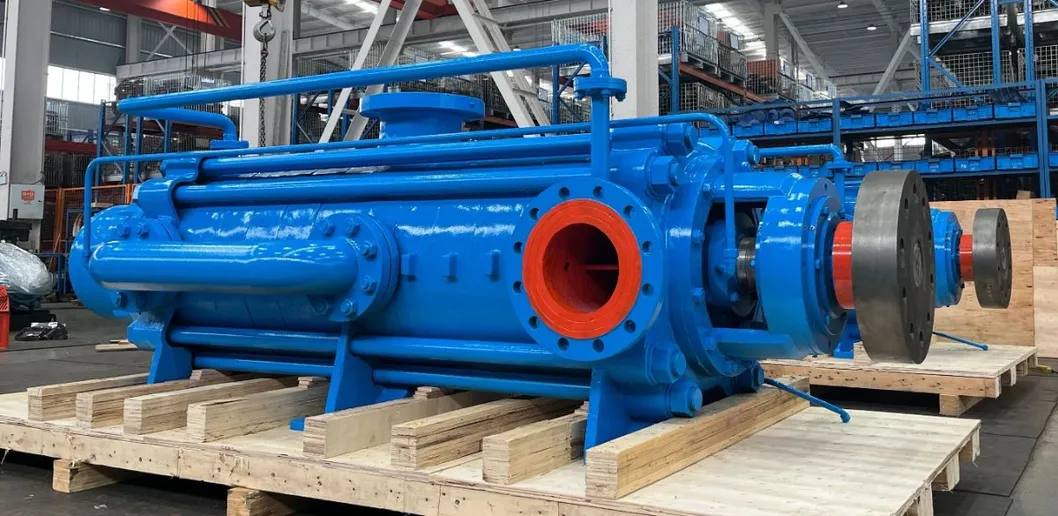

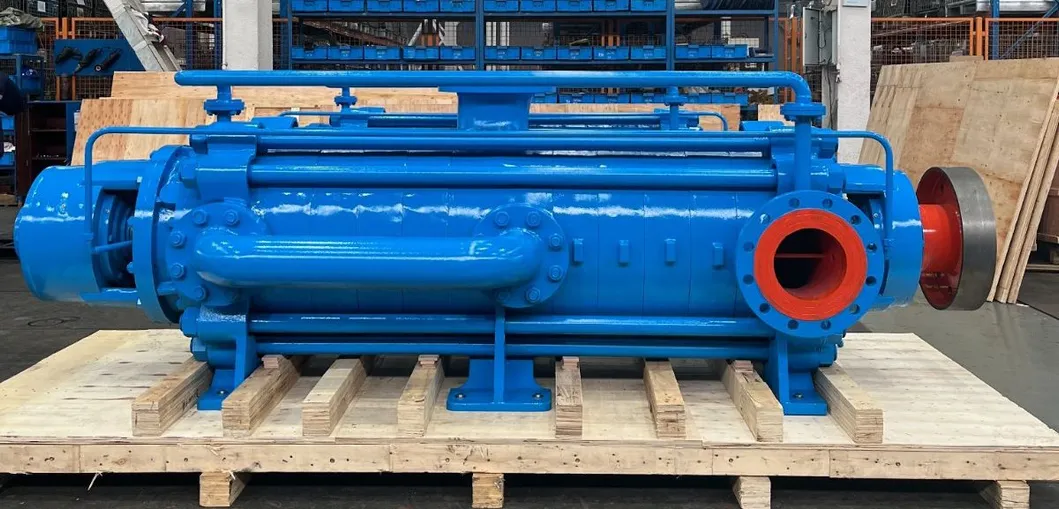

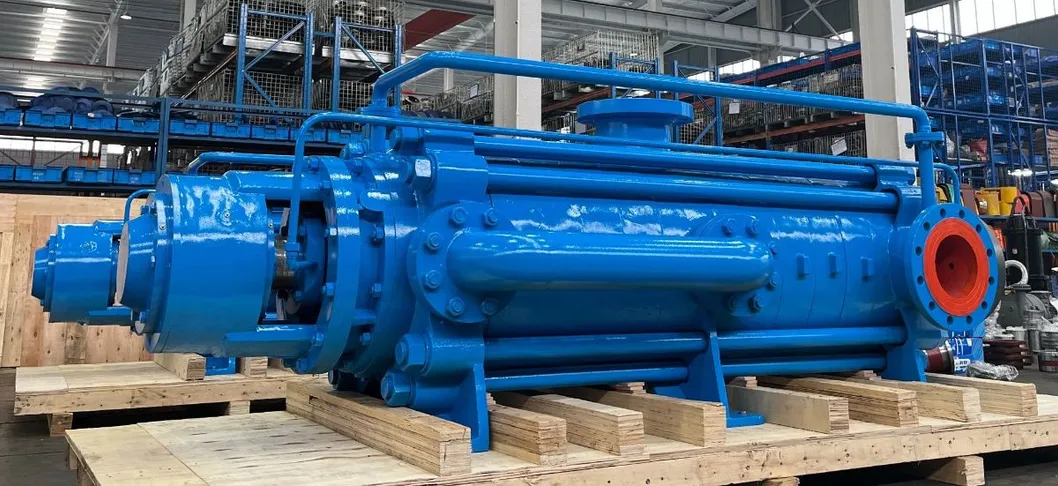

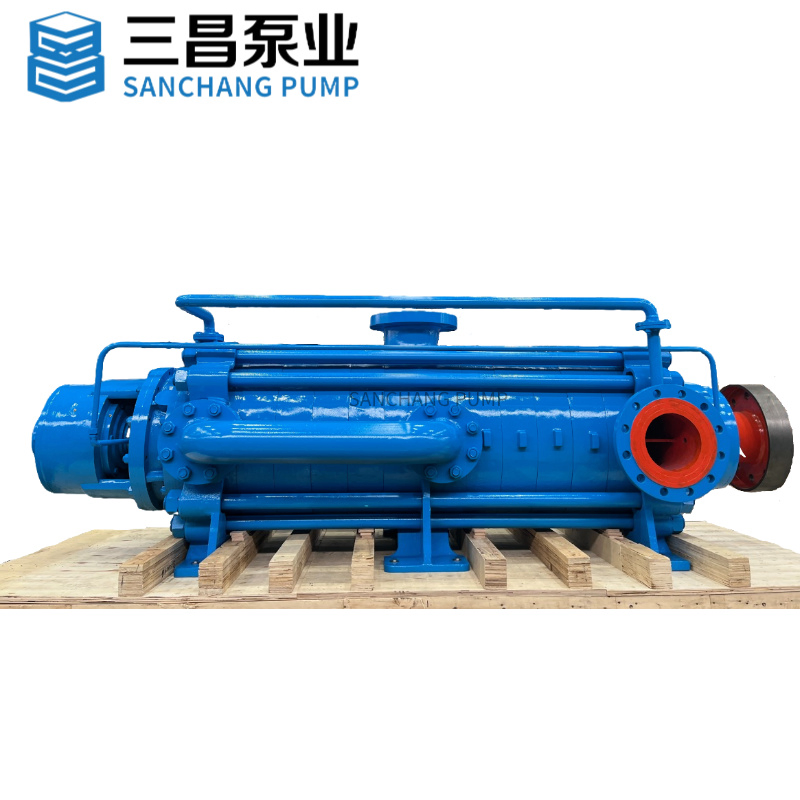

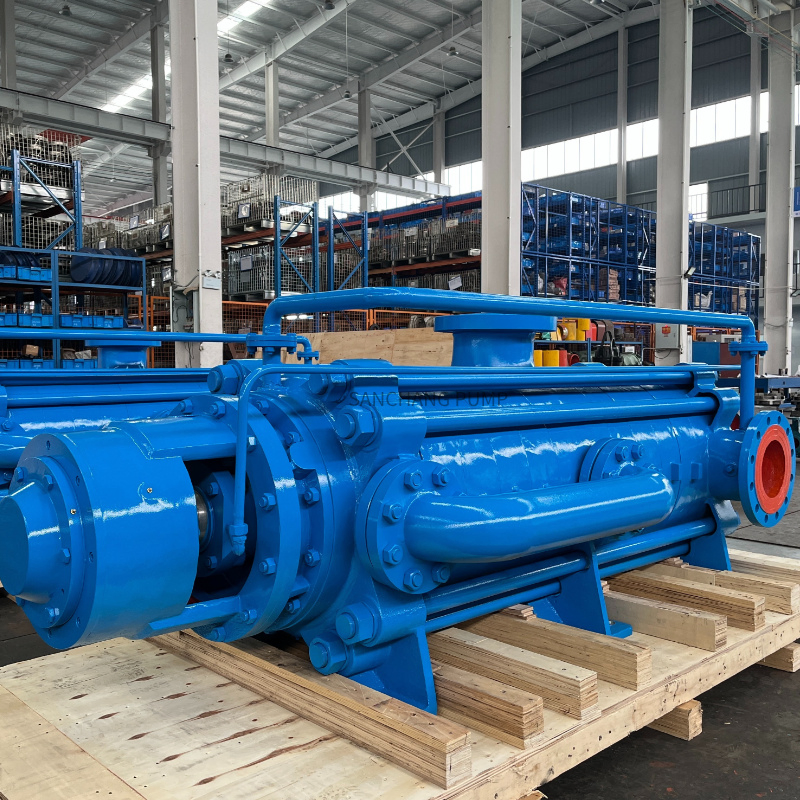

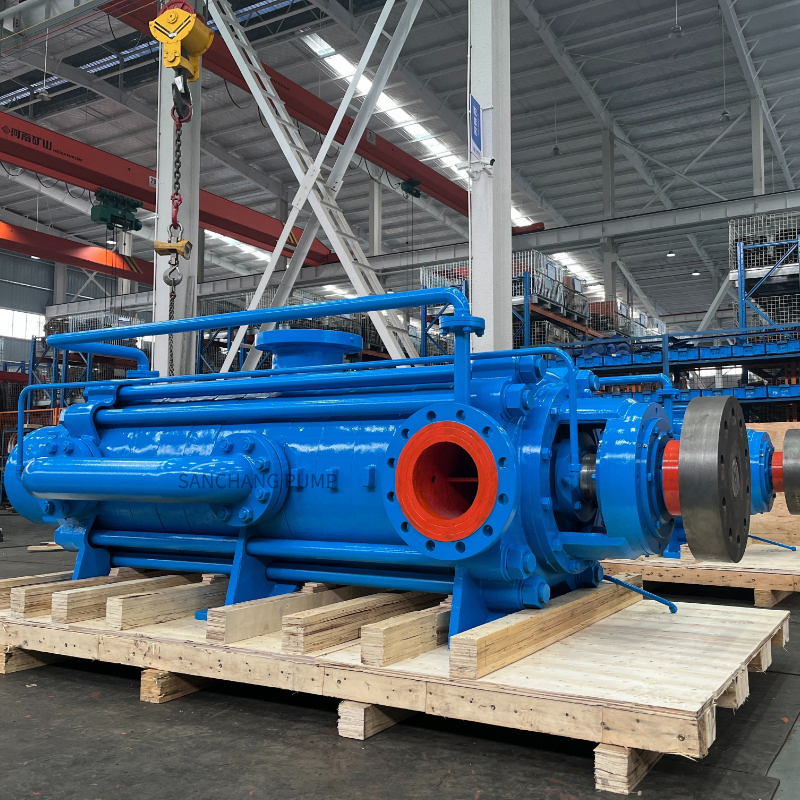

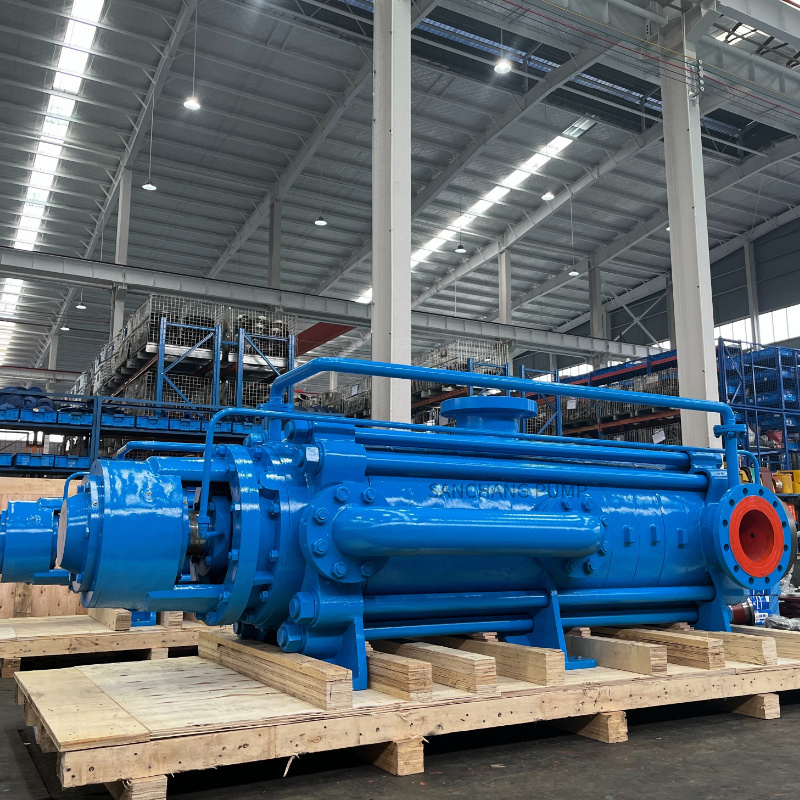

Horizontal centrifugal multistage pump can be utilised for a wide range of applications in the industrial and marine markets. This multistage pump is designed to pump low viscosity clean or slightly contaminated fluids without the presence of solid or fibrous particles. Common fluids pumped include fresh water, sea water and fuels (diesel, petrol and kerosene).
This multistage pump is capable of high pressures up to 55 bar and high flow rates of up to 1000m³/hr and is also very robust due to additional bearings being installed in the pump head, these remove strain away from the motor during operation.
| Feature | Specifications |
|---|---|
| Flow Rate | Up to 1000m³/hr |
| Head (Pressure) | Up to 550m |
| Inlet/Outlet Sizes | DN32 to DN250 |
| Operating Temperature | -10°C to +140°C |
| Drive Options | Electric Motor, Engine |

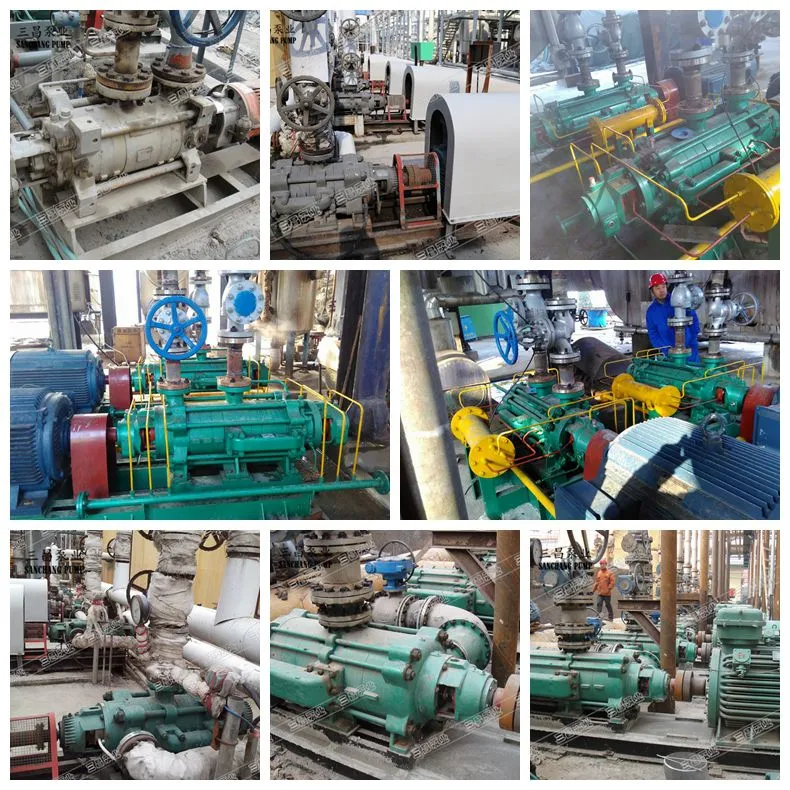

ZD multistage high pressure pumps apply to the transportation of liquids in fields including steel factories, mining, chemical plants, sewage water treatment, water cooling systems, refrigeration systems, liquid circulation, pressure boosting, sea water delivery, and irrigation.
| Parameter | Detail |
|---|---|
| Mechanical Seal | Graphite/Silicon Carbide/Tungsten Carbide |
| O-ring | EPDM/Vitons |
| Motor Type | TEFC Air-cooled, 3 Phase Asynchronous; Explosive proof options |
| Frequency | 50Hz, 60Hz |
| Capacity Range | 3.75 ~ 1100m³/h |
| Head Range | 50 - 1800m |
| Pump Model | Capacity (m³/h) | Head (m) | Motor Model | Power (kW) |
|---|---|---|---|---|
| ZD12-25*8 | 12 | 200 | Y160L-2 | 18.5 |
| ZD12-80*10 | 12 | 800 | Y280M-2 | 90 |
| ZD25-30*9 | 25 | 270 | Y200L2-2 | 37 |
| ZD46-30*4 | 46 | 120 | Y200L1-2 | 30 |
