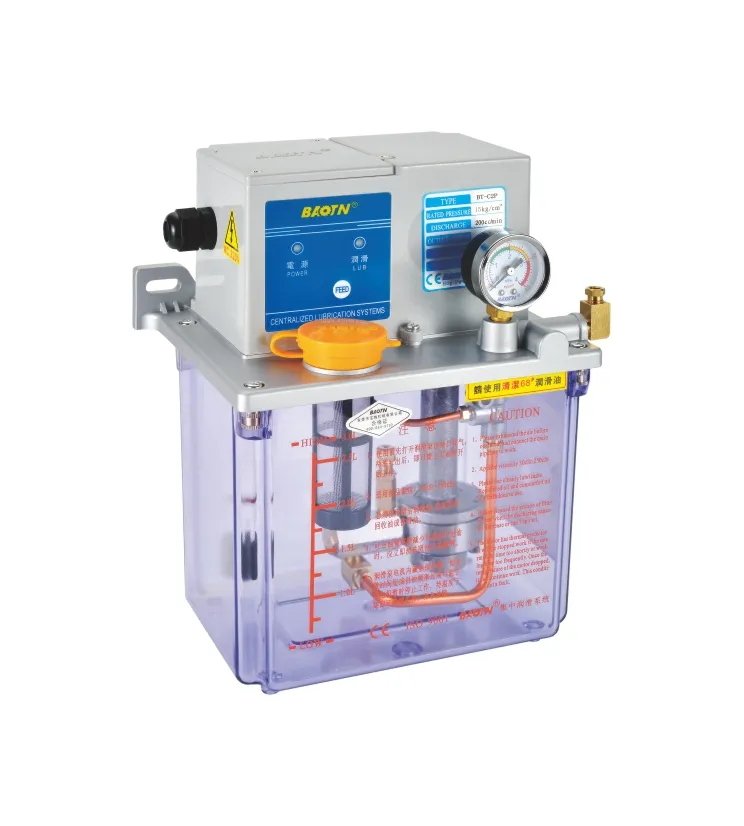

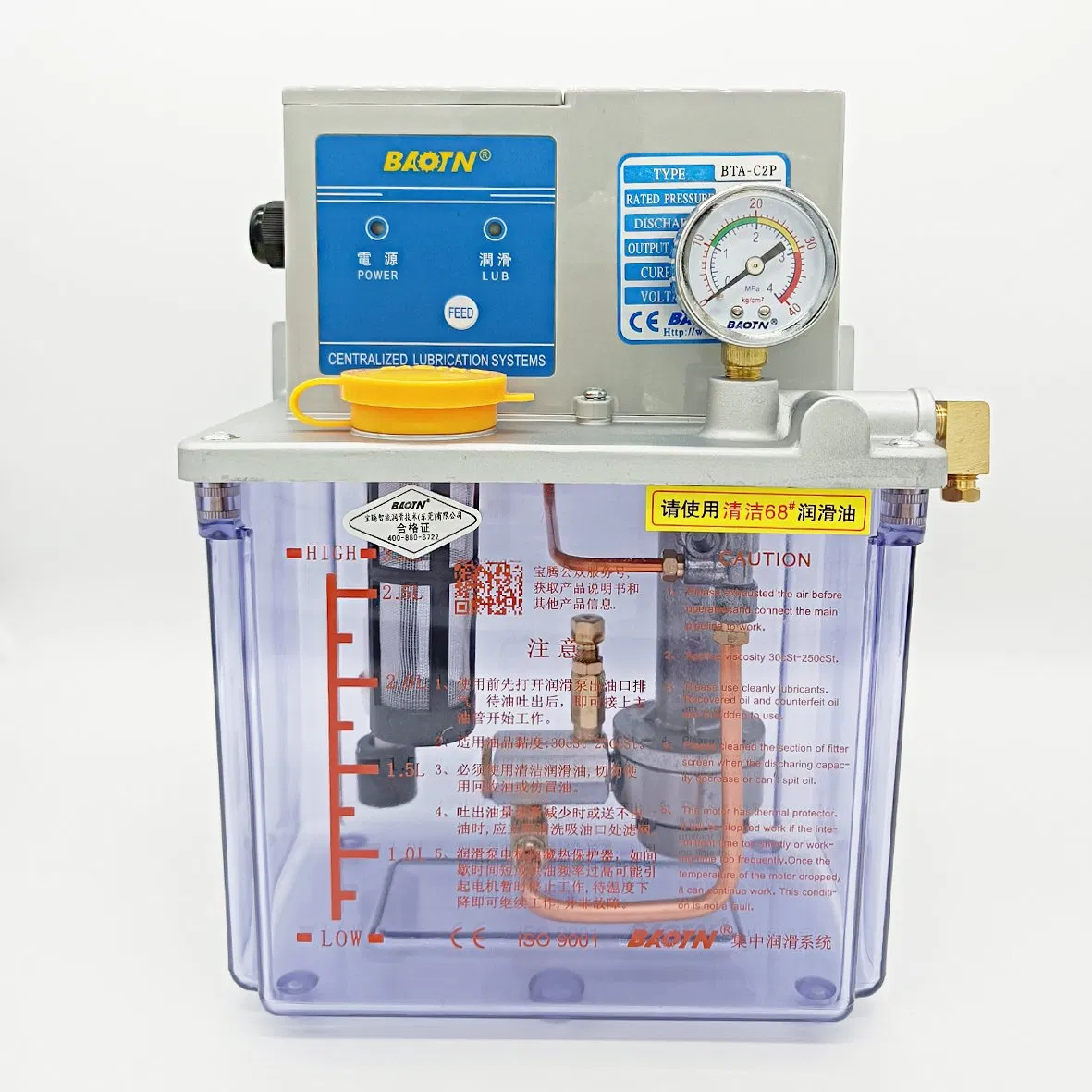

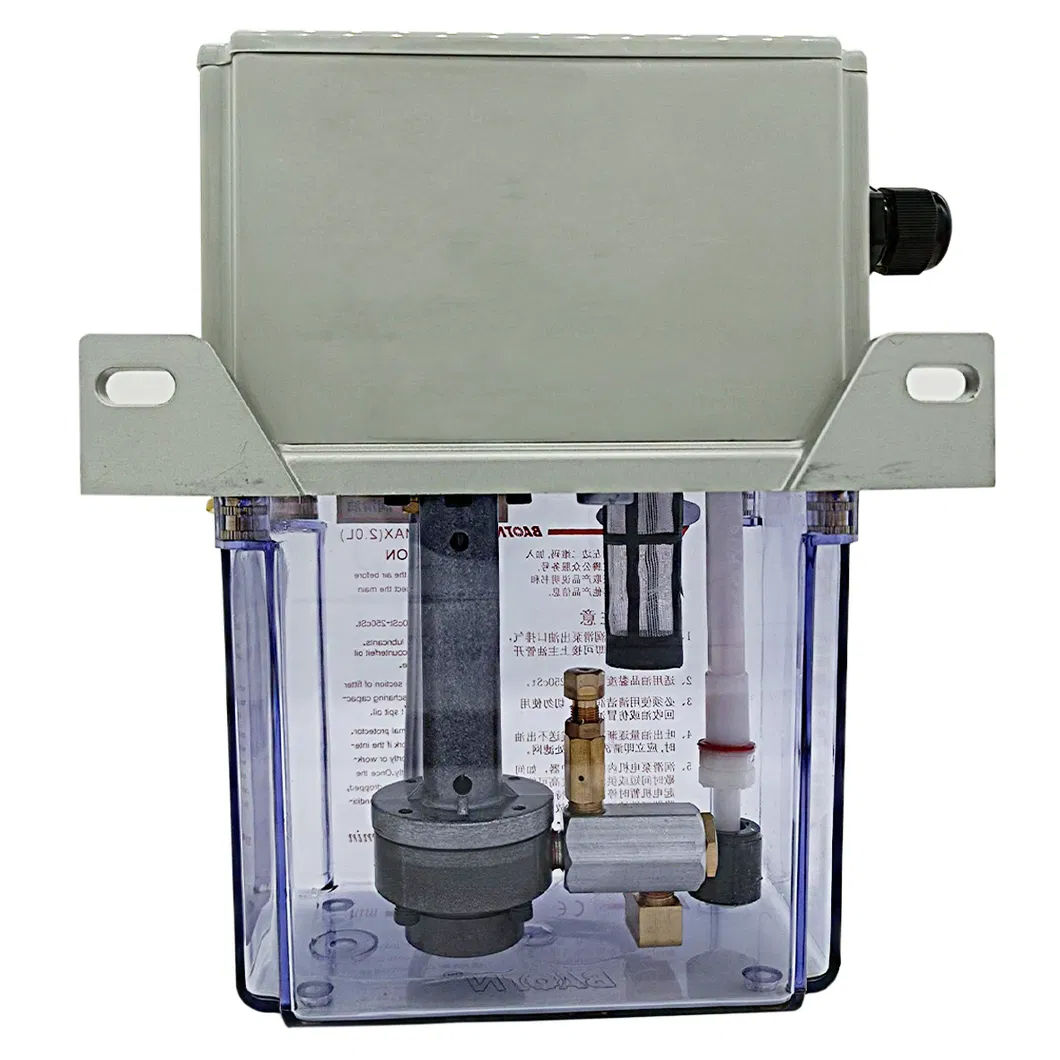

Basic Information
Model NO.:BTA-C2P3-126
Tooth Flank:Straight Tooth
Tooth Curve:Involute
Power:Electric
Type:Normal Line Gear Pump
Applications:Machinery Manufacturing
Certification:CE, ISO
Material Quality:Resin Oil Tank
Motor Type:110V/220V/DC24V
Package Size:32.00cm * 30.00cm * 30.00cm
Gross Weight:6.000kg
HS Code:8413602190
⚙️
Performance and Characteristics
Liquid level switch and pressure switch (optional) are provided. When oil volume or pressure is insufficient, abnormal signal is output.
The panel indicator light indicates power and lubrication status of the oil injection mold.
The system is provided with FEED key, and compulsory lubrication is applied.
Time setting: single maximum lubrication duration ≤2min, and intermittent time shall be 5 times of the lubricating time.
The motor is provided with self-protection to prevent high temperature and overload of motor.
The volumetric system is provided with decompression device, used with BFA /BFB/BFC/BFD/BFE/BFG distributor.
Overflow valve is provided to prevent damage by oil injector and pipeline.
Internal fuse is provided to prevent IC board and motor damaged by short circuit.
⭐
Manufacturing Advantages
We have developed into one of the professional manufacturers of mechanical centralized lubrication systems. We adhere to the strategic policy of integrity and quality. We produce a complete range of lubrication device series products with stable quality, including resistance type, volumetric type, circulation type, spray type, and progressive type oil and grease lubrication products.

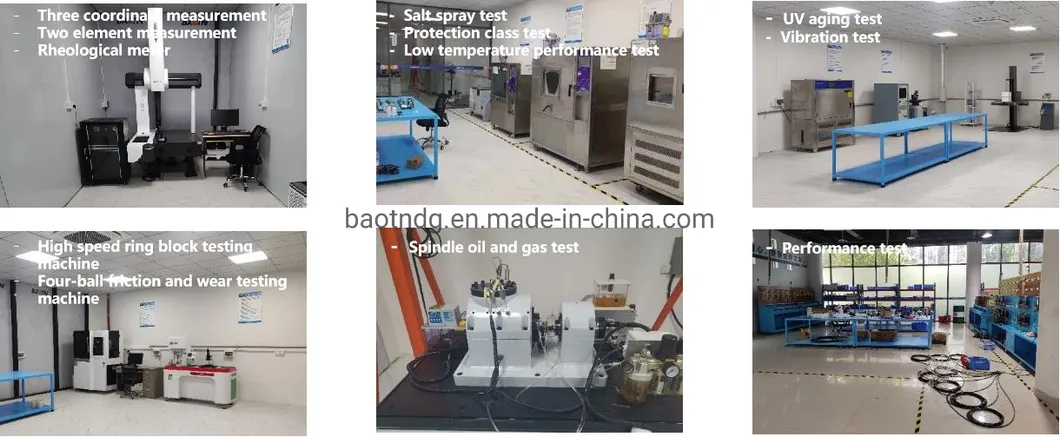

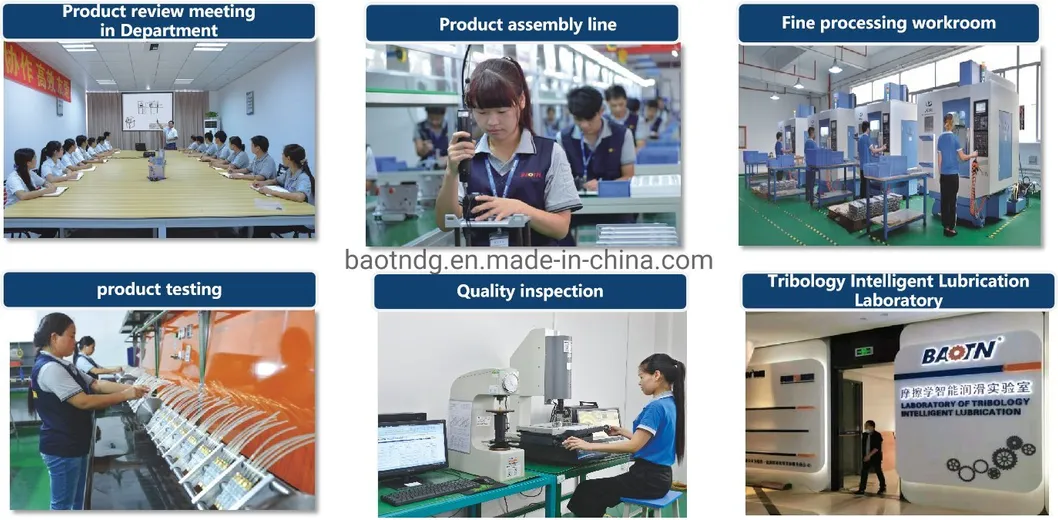

These systems are widely used in precision CNC equipment, stamping, printing, textile, elevator, mining, injection molding, die-casting, and new energy industries. With 16 years of experience in research, development, and manufacturing, we provide professional lubrication solutions to meet diverse customer requirements. Our production base utilizes advanced technology including German laser cutting machines and Japanese CNC punch presses to ensure a scientific quality assurance system and shortened production cycles.
❓
Frequently Asked Questions
How is the lubrication cycle controlled for the BTA-C2 series?
The BTA-C2 series is designed to be controlled by an external PLC system, allowing for precise integration into your machinery's automated cycles.
What safety features are integrated into the motor?
The motor is equipped with self-protection mechanisms to prevent high temperature and overload. Additionally, an internal fuse protects the IC board from short circuits.

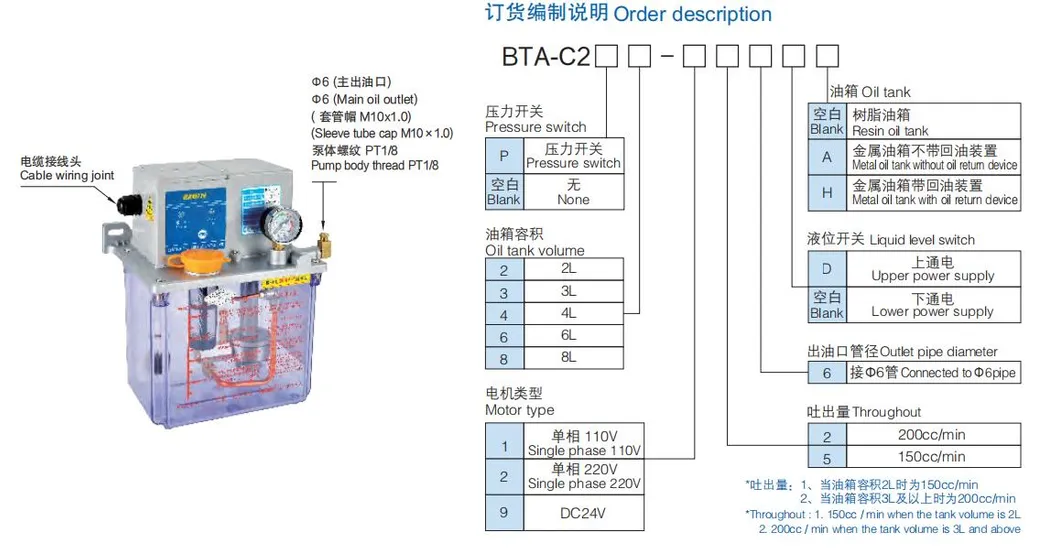

What are the available options for oil tank capacity and material?
Tanks are available in Resin (2L, 3L, 4L) and Metal Plate (4L, 6L, 8L) to suit different industrial requirements and durability needs.
Does the pump provide warnings for low oil levels?
Yes, a liquid level switch is provided as standard. It outputs an abnormal signal when the oil volume is insufficient.
What type of lubrication system is this pump compatible with?

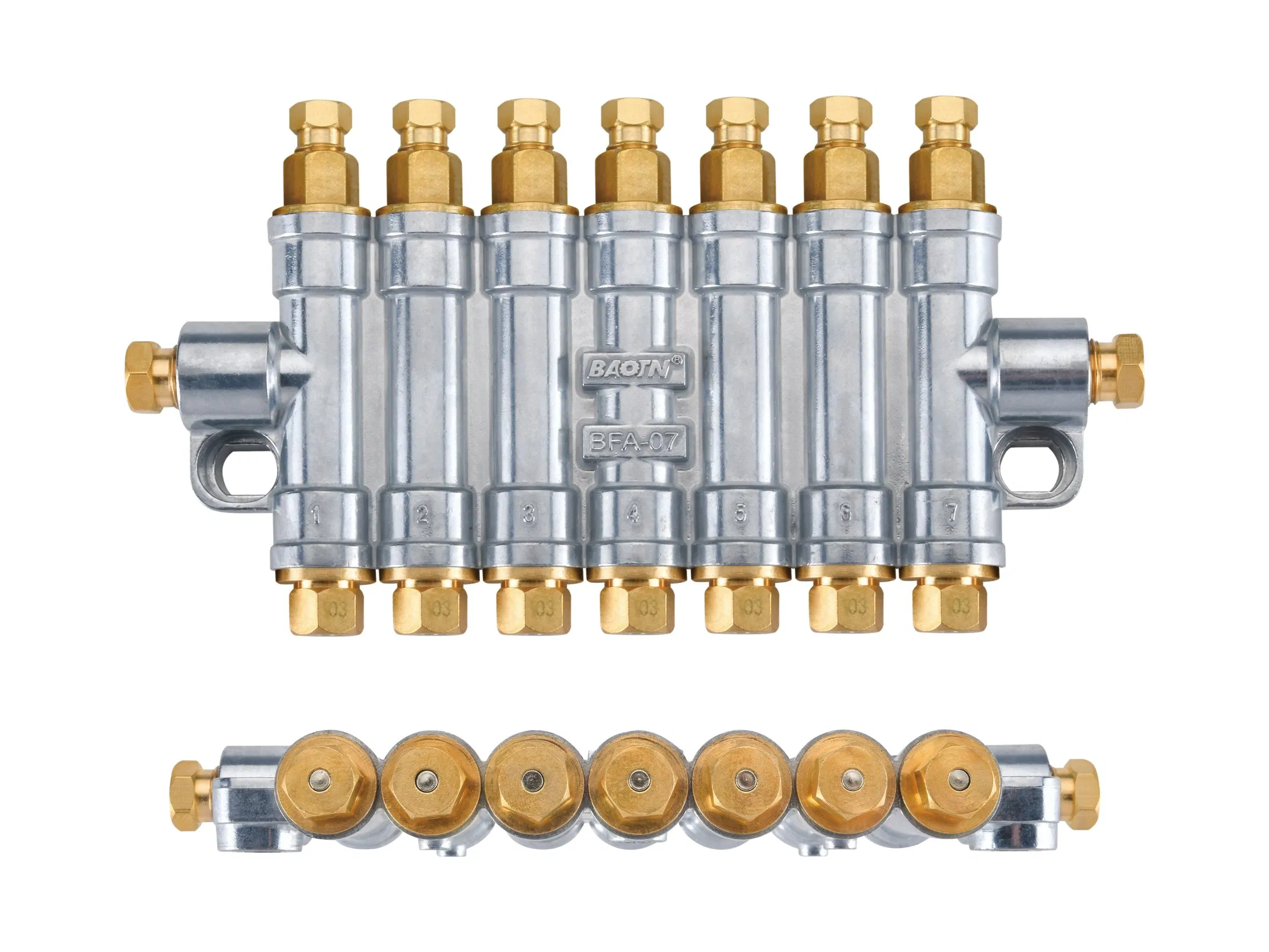

It is a volumetric system provided with a decompression device, making it ideal for use with BFA, BFB, BFC, BFD, BFE, and BFG type distributors.
What are the standard voltage options for this gear pump?
The pump supports multiple power configurations including AC 110V, AC 220V, and DC 24V.
