| Model NO. | Petrochemical Pump | Max. Head | >150m |
| Max. Capacity | >400 L/min | Driving Type | Motor |
| Material | As Customer Need | Structure | Single-stage Pump |
| Application | Clarified Water, Oil Transfer, Chemical | Industry | Oil Pumps |
| Media | Chemical Liquids | Performance | Explosion-Proof |
| Medium Temperature | -20 to 450°C | Capacity Range | 2.6-460m³/h |
| Seal Type | Packing or Mechanical Seal | MOQ | 1 Set |
| Package Size | 2100.00cm * 1200.00cm * 850.00cm |
| Package Gross Weight | 560.000kg |

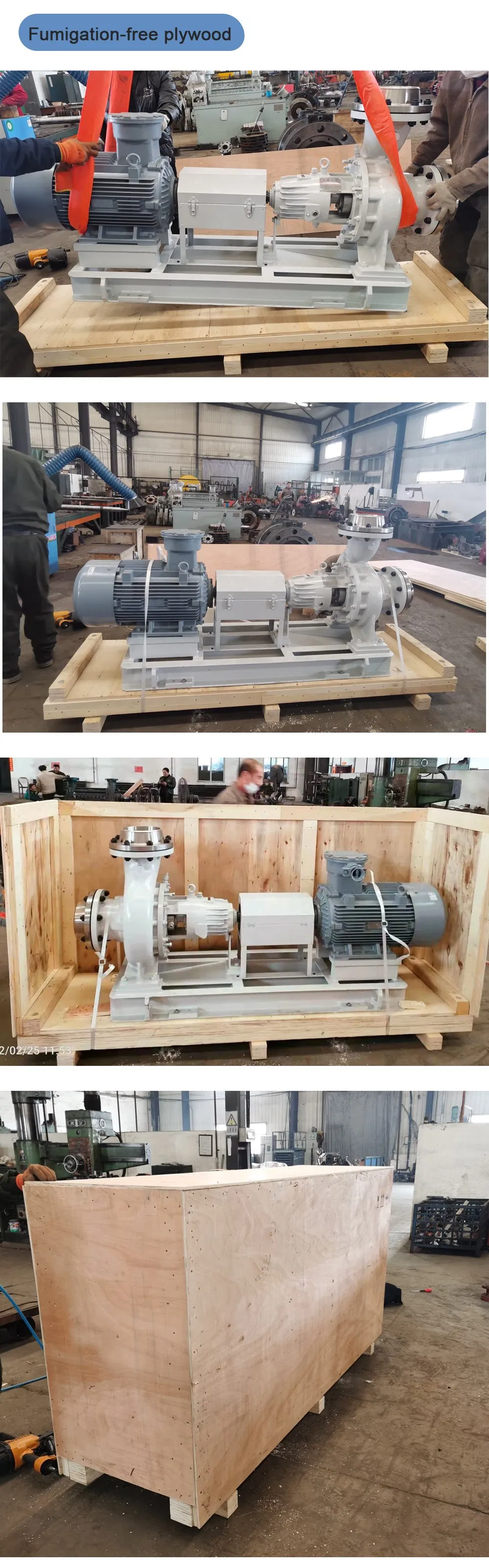

| Transport Package | Export Wooden Case |

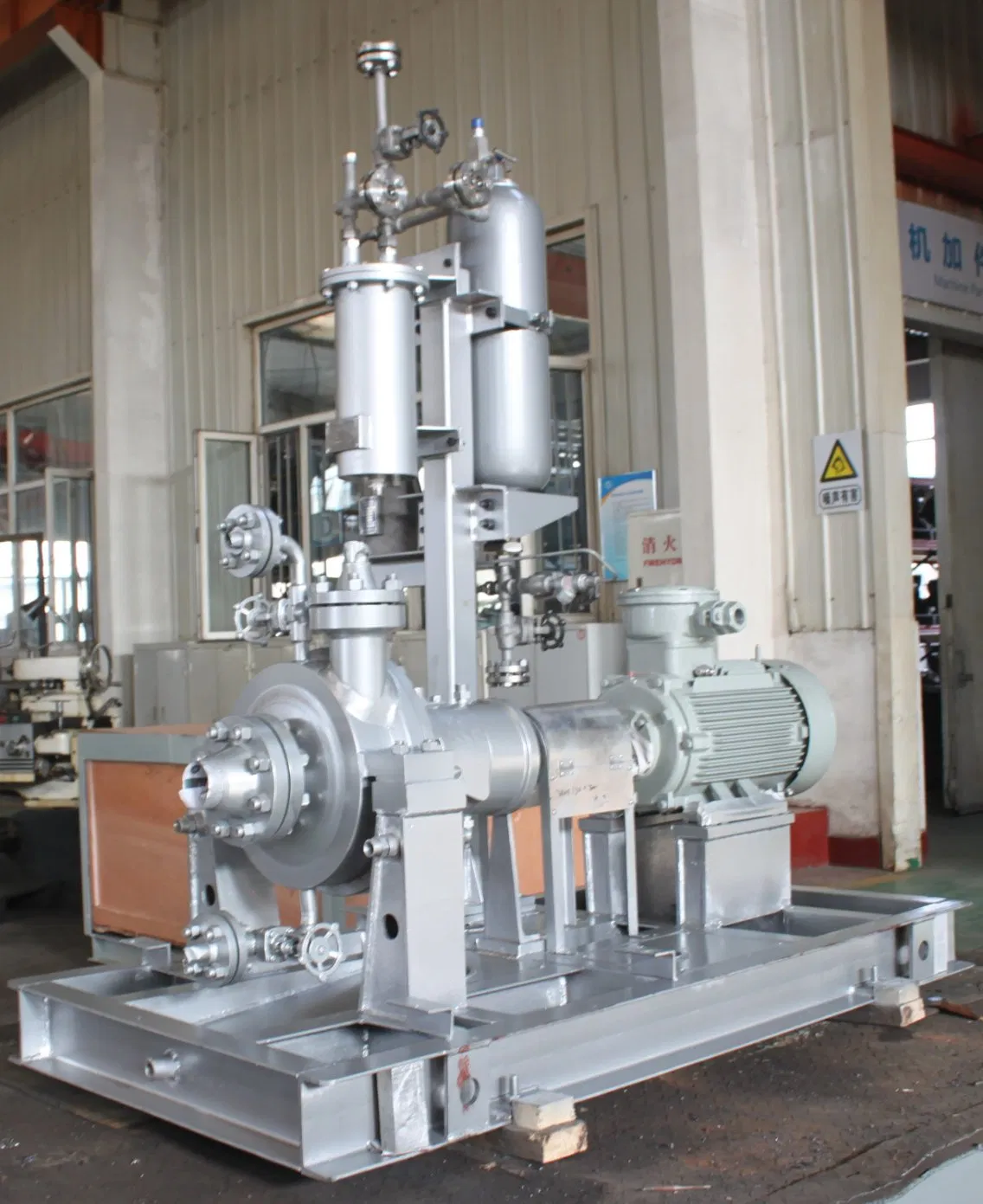

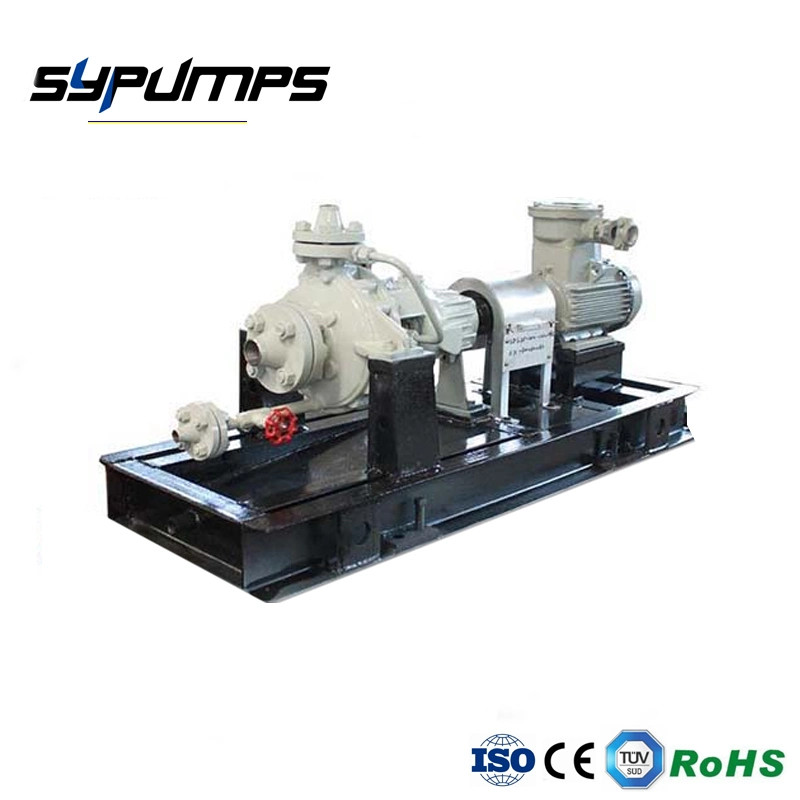

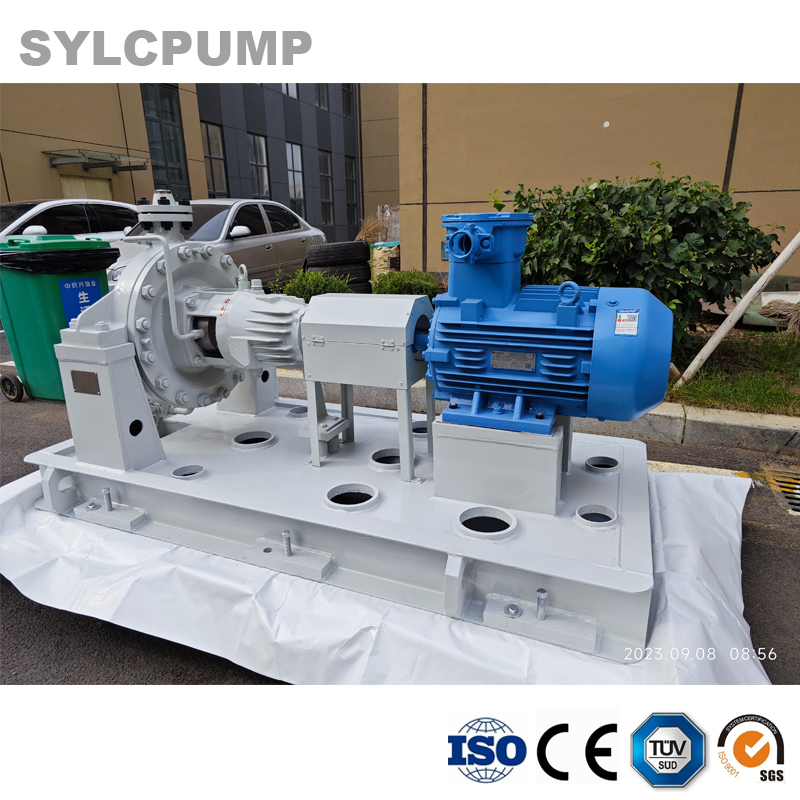

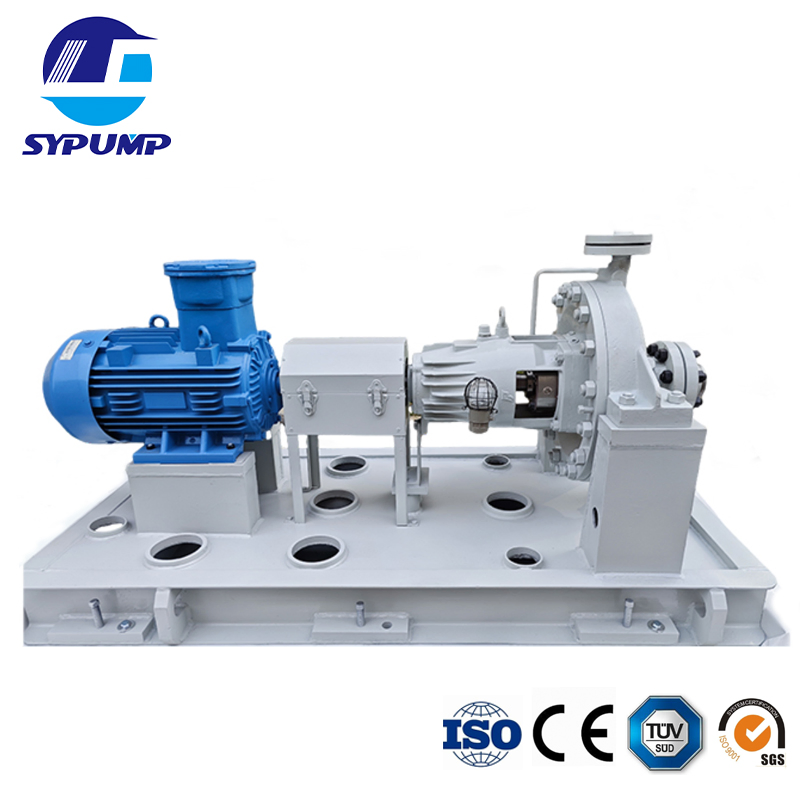

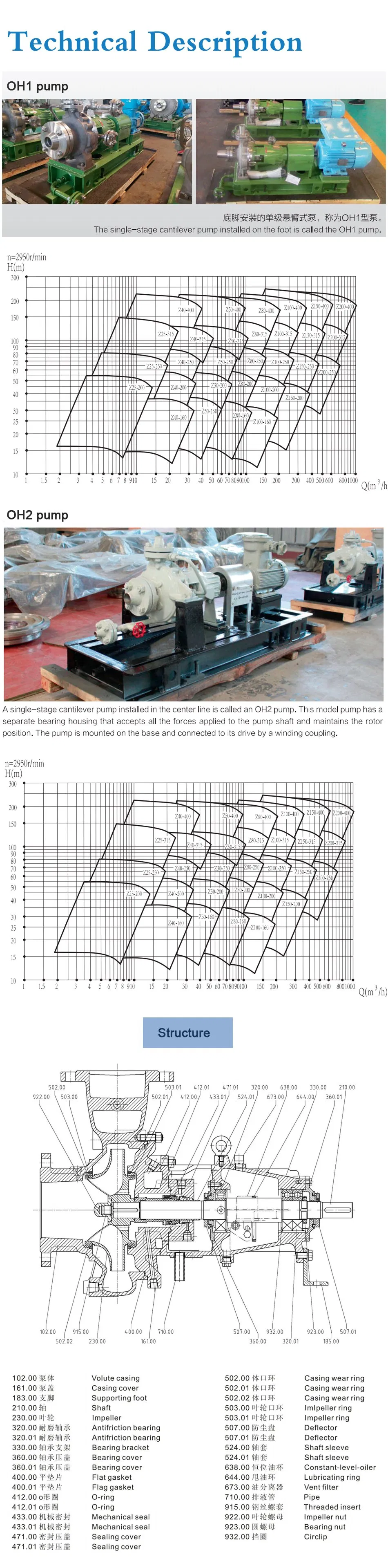

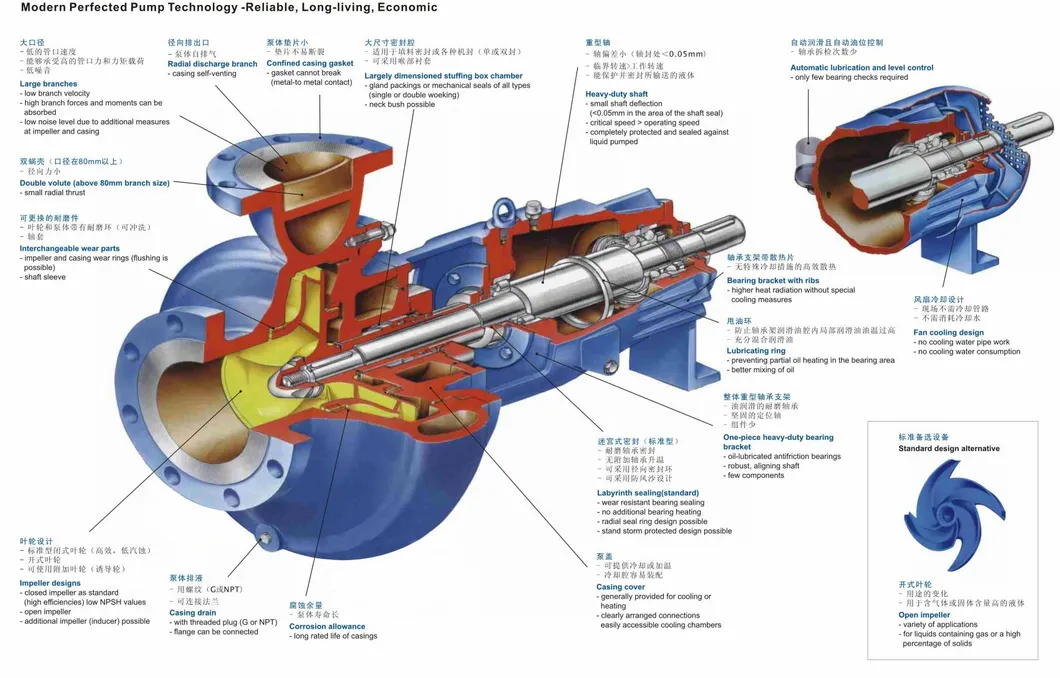

Pumps are single stage, horizontal, radically split volute pumps. The Casing is centerline supporting and equipped with a single radically impeller. It features axial inlet and radial outlet. The pump adopts a wear ring and balancing hole to realize hydraulic balance. The shaft seal adopts API682 Standard mechanical seal and flushing plan. Standard piping design is in accordance with national standards, which can cool the centerline supporting pump. The suction flange rating pressure grade is equal to the discharge flange. Pumps rotation is clockwise viewed from the motor end.
Medium transfer Liquid: Organic and inorganic acids (sulfuric, hydrochloric, phosphoric), alkaline solutions (sodium hydroxide, sodium carbonate), and various liquid petroleum products or corrosive materials.
| Parameter | Range |
|---|---|
| Capacity (Q) | 10-560m³/h |
| Head (H) | 11-260m |
| Temperature (T) | -20 to 450°C |

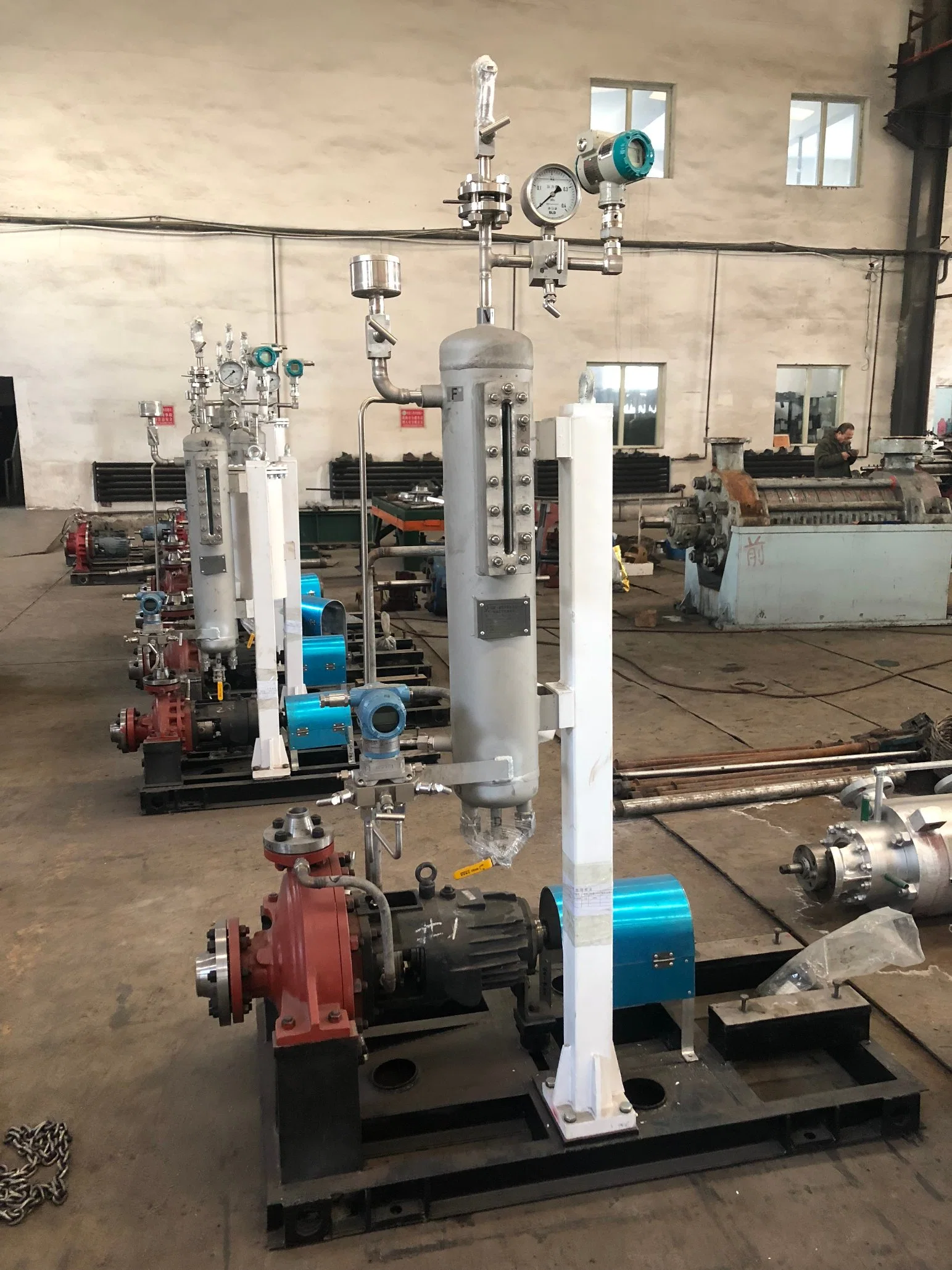

Seal Plans: P11, P23, P32, P11+61, P11+53A... (depending on liquid temperature and conditions).
Seal Brands: Colossus, John Crane, etc.
Motor Brands: Siemens, WEG, or reputable local brands.
