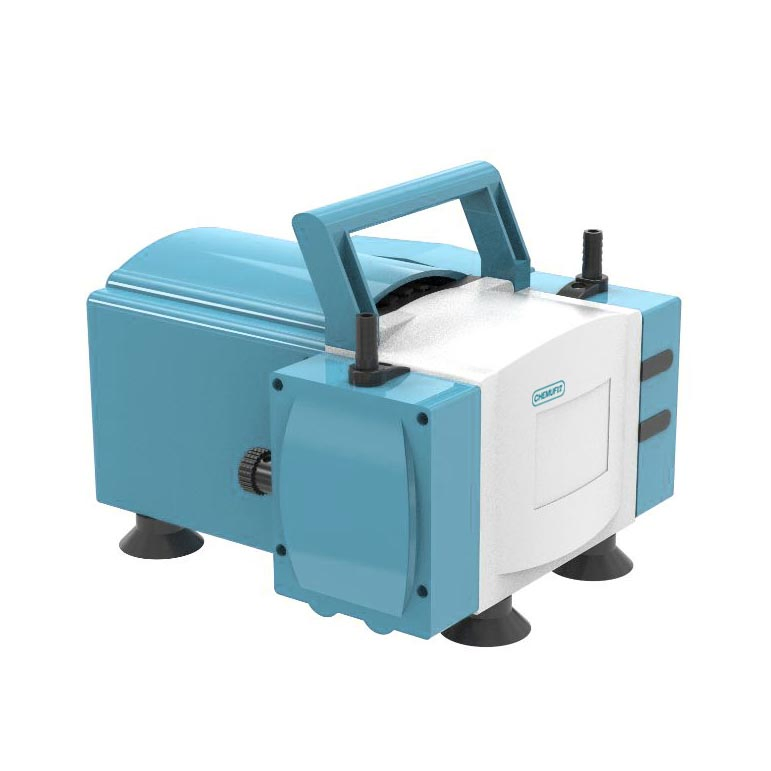

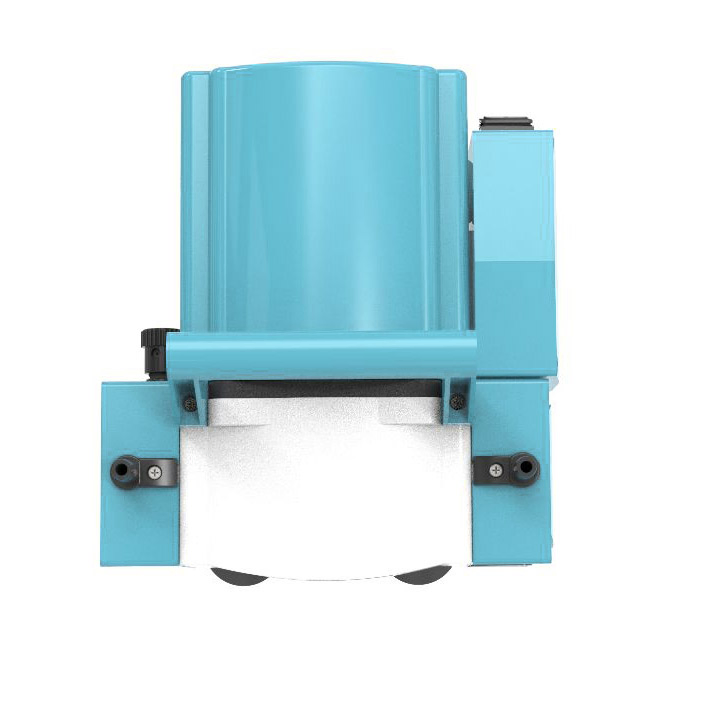

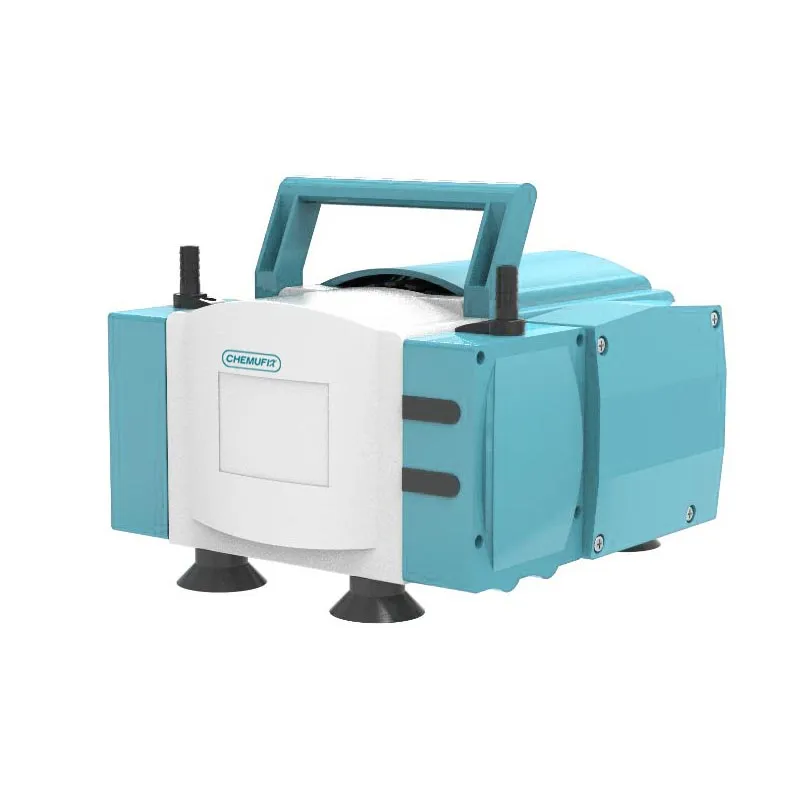

Anti-Corrosion Diaphragm Vacuum Pump, Can Be Used for Max 100L Rotovap

1 / 3

Anti-Corrosion Diaphragm Vacuum Pump, Can Be Used for Max 100L Rotovap

Customization:	Available
After-sales Service:	Free Spare Parts
Warranty:	One Year

Send Inquiry

Product Description

📋 Basic Info.

Model NO.

DP-633

Oil or Not

Oil Free

Vacuum Degree

High Vacuum

Pumping Rate

33L/Min

Ultimate Pressure

600PA/6mbar

Rated Power

200W

Voltage

200V 50Hz

Quantity of Pumped Air

1 or 2

Production Capacity

100 PCS/Month

✨ Main Features

🛡️

Excellent Corrosion Resistance: Diaphragms, valve plates, air chambers, and gas lines are made of PTFE/FFKM, suitable for complex chemical environments.

🌀

High Vacuum Performance: Achieves an ultimate pressure of 600 Pa for demanding applications.

🚀

Fast Pumping: High efficiency with a pumping rate of up to 33L per minute.

💪

Strong Power: Equipped with a 200W motor providing large output torque and stable speed.

🌡️

Low Temperature Rise: Advanced air duct design and large fan blades keep surface temperature below 50°C.

⚖️

Stable Operation: Special dynamic balancing treatment ensures low vibration and smooth running.

📦

Compact Design: New appearance design makes the pump smaller and lighter for easy integration.

⚙️ Technical Parameters

Parameter	Specification
Model	DP-633
Pumping Rate	33L/min
Ultimate Pressure	600pa/6mbar
Rated Power	200W
Voltage	200V 50HZ
Valve Material	FFKM
Diaphragm Material	PTFE + FKM
Gas Line Material	PTFE
Exhaust Diameter	7mm
Gas Ballast Material	PTFE + C
Weight	9.5kg

❓ Frequently Asked Questions

What materials are used for the corrosion-resistant parts?

The parts in contact with gases, such as the diaphragm, valve plates, and gas lines, are made from high-grade PTFE and FFKM for maximum chemical resistance.

Is the DP-633 vacuum pump oil-free?

Yes, this is an oil-free diaphragm vacuum pump, which ensures a clean vacuum environment and requires less maintenance.

Can this pump be used with a Rotary Evaporator?

Absolutely. The DP-633 is specifically designed for anti-corrosion applications and can be used with rotary evaporators (Rotovaps) up to 100L.

What is the gas ballast function used for?

The gas ballast function helps to prevent the condensation of vapors inside the pump head, which extends the life of the diaphragm and maintains vacuum efficiency.

How does the pump handle heat during long operations?

The pump features a specialized air duct design and large cooling fans, ensuring the pump body surface temperature remains below 50°C during operation.

Is the operation of the DP-633 noisy or unstable?

No, the transmission mechanism has undergone dynamic balancing treatment to minimize vibration and ensure stable, low-noise operation.
