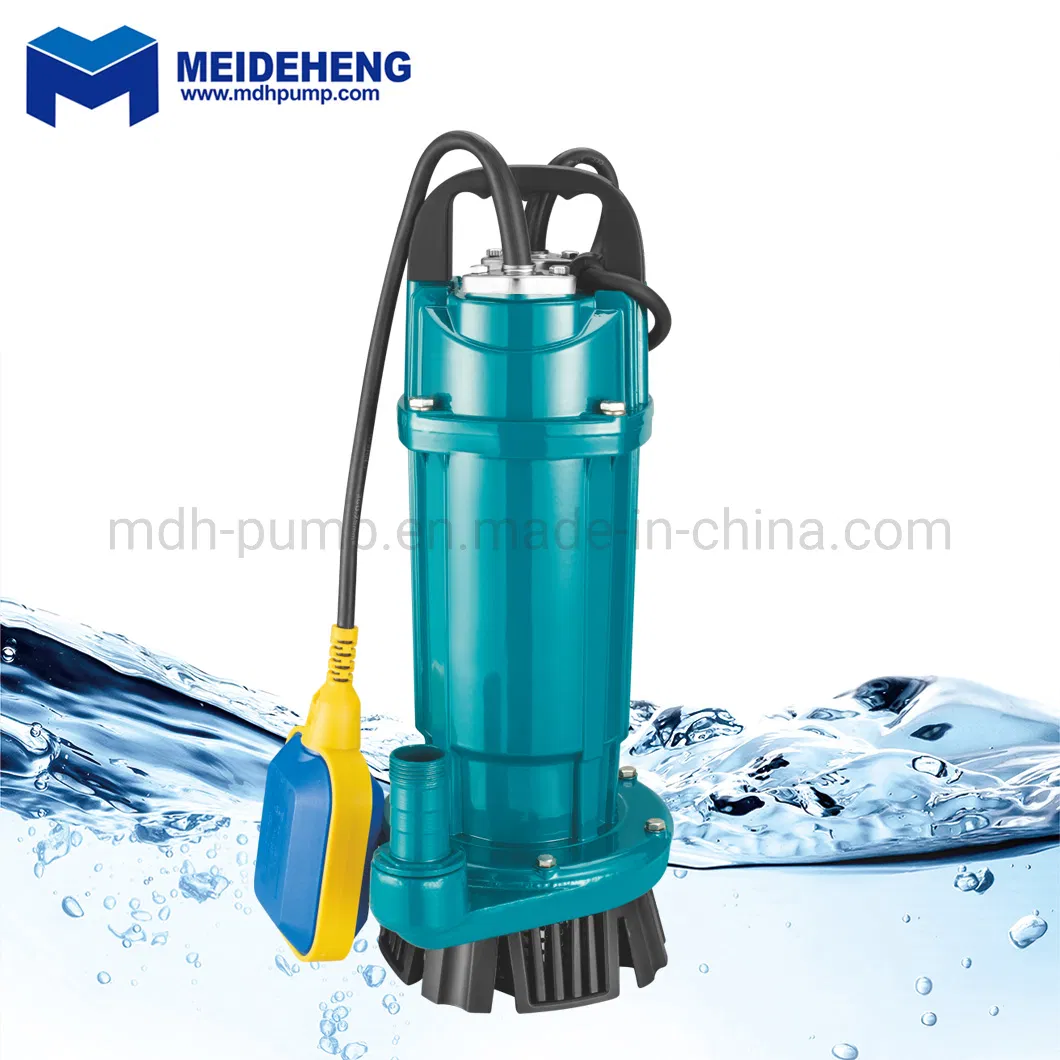

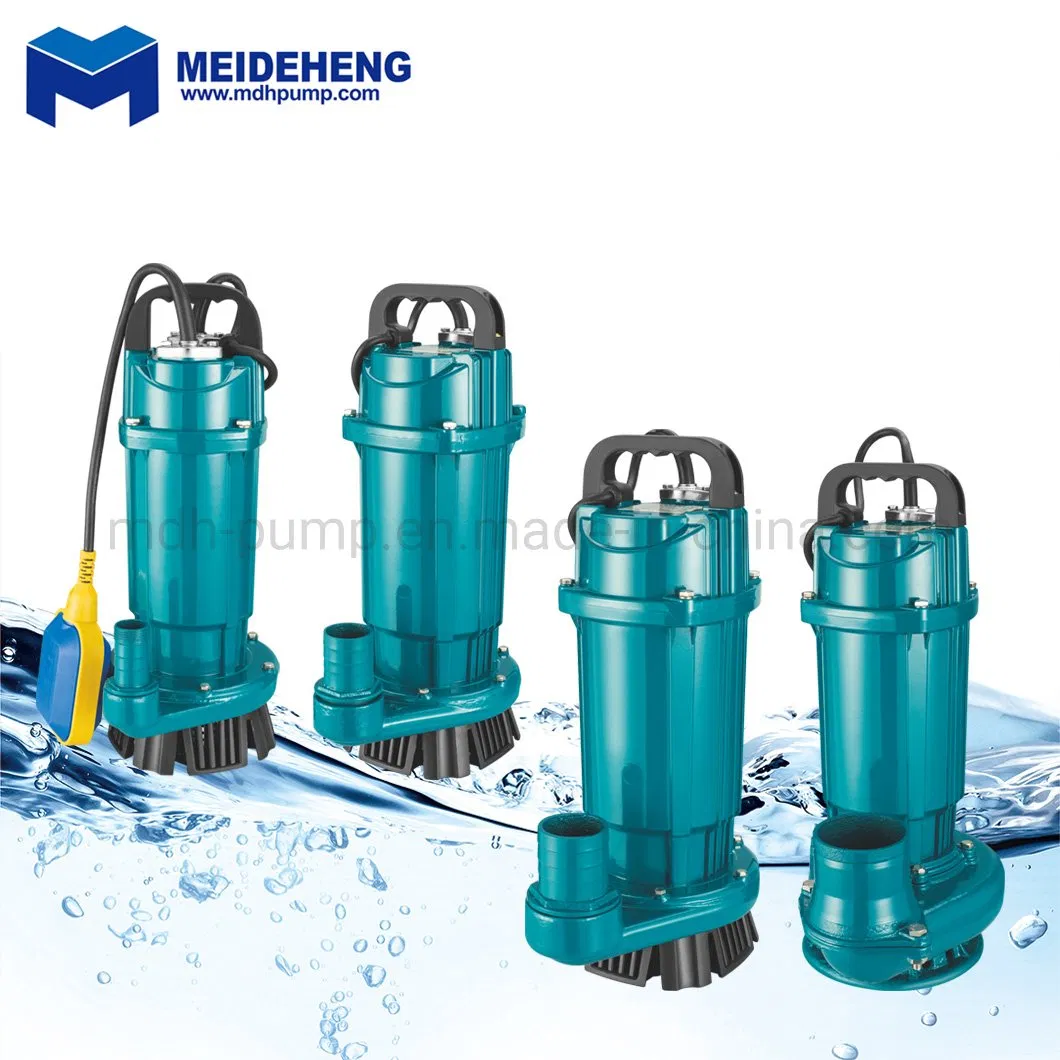

Aluminium Housing 220V AC 750W Qdx Submersible Clean Water Pump

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Info.
Model NO.
QDX1.5-32-0.75B
Driving Type
Motor
Material
Cast Aluminium
Structure
Single-stage Pump
Assembly
Liquid Pumps
Power
Electric
Start Up
Electric Pump
Type
Electric Water Pump
Application
Submersible Pump, Clarified Water Pump
Industry
Mechanical Pump
Media
Clean Water
Performance
Wear Pump
Theory
Centrifugal Pump
Certificate
Ce
Motor
Al or Copper Wire
Outlet
25mm
Popular Area
South Asia
Float Switch
with or Not
Impeller
Aluminum
HS Code
8413709190
Production Capacity
3000PCS/Day
Q(D)X Series Submersible pump
Qdx Submersible Clean Water Pump
Applications

For water supply from wells or reservoirs.

With small size and light weight, the QDX/QX Series pump is especially suitable for the rural wells water pumping, the farmland irrigation and drainage, garden watering, water spraying and households water supply, as well as other applications such as industry, aquaculture, construction sites and many other commercial applications.

Features
1. New-designed motor structure, longer service life.
2. Portable and durable aluminum alloy structure.
Operating Conditions
Liquid PH:
6.5-8.5
Max Liquid Temp:
+40ºC
Max Ambient Temp:
+40ºC
Max Immersion Depth:
5m
Max Sand Content:
0.1%
Suspended Solids:
Up to 0.2mm
Motor and Pump Specifications
Insulation class: B
Protection class: IP68
Pump body: Cast aluminum
Motor bracket: Cast iron
Impeller: Aluminum alloy or plastic
Motor shaft: Heat treated steel
Mechanical seal: Ceramic-Graphite, Silicon Carbide-Carbide alloy
Copper winding
2-pole induction motor
Single-phase: 220V-240V/50Hz
Three-phase: 380V-415V/50Hz
Technical Parameter & Structure

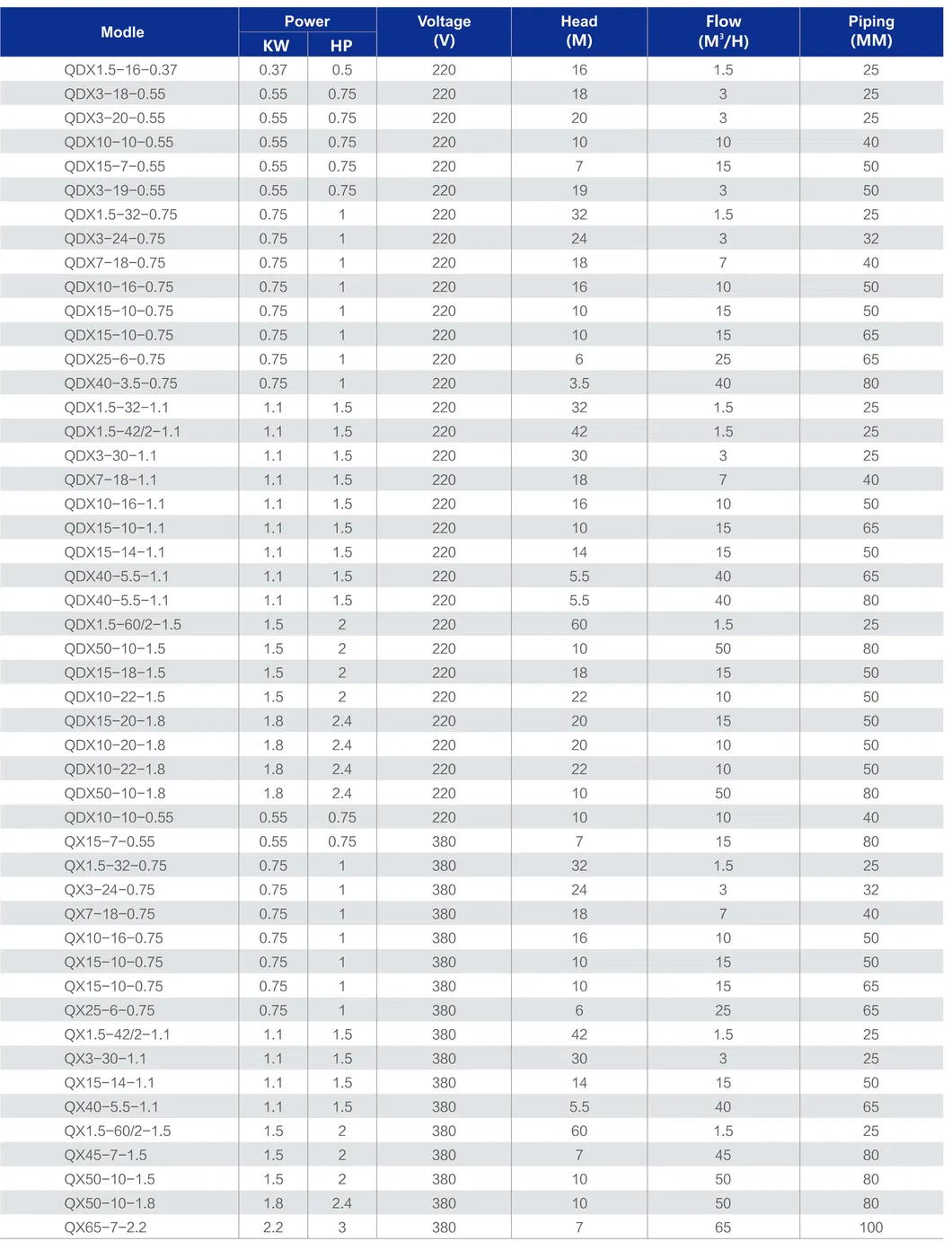

Technical Parameter

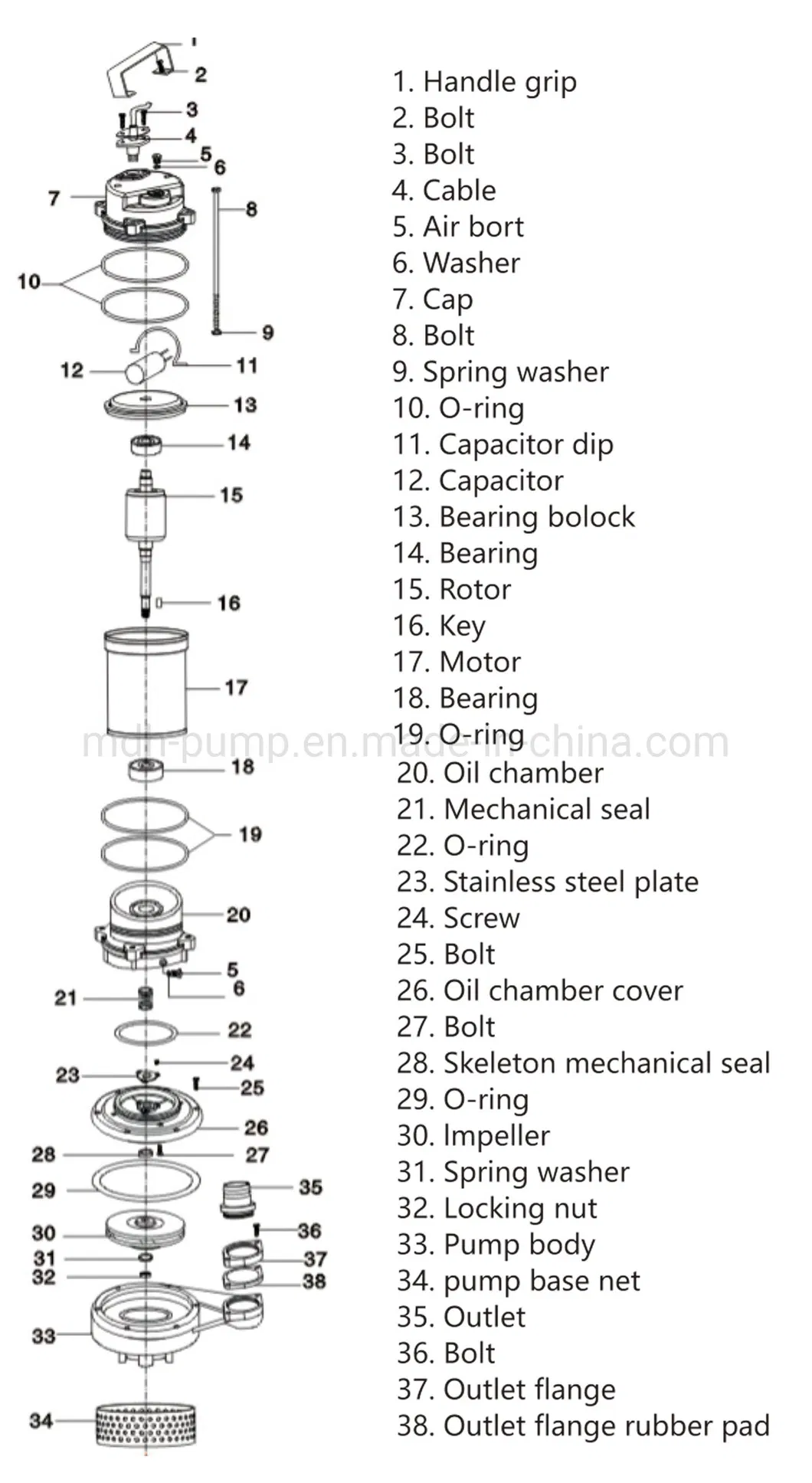

Structure Chart
Product View 1
Product View 2
Workshops

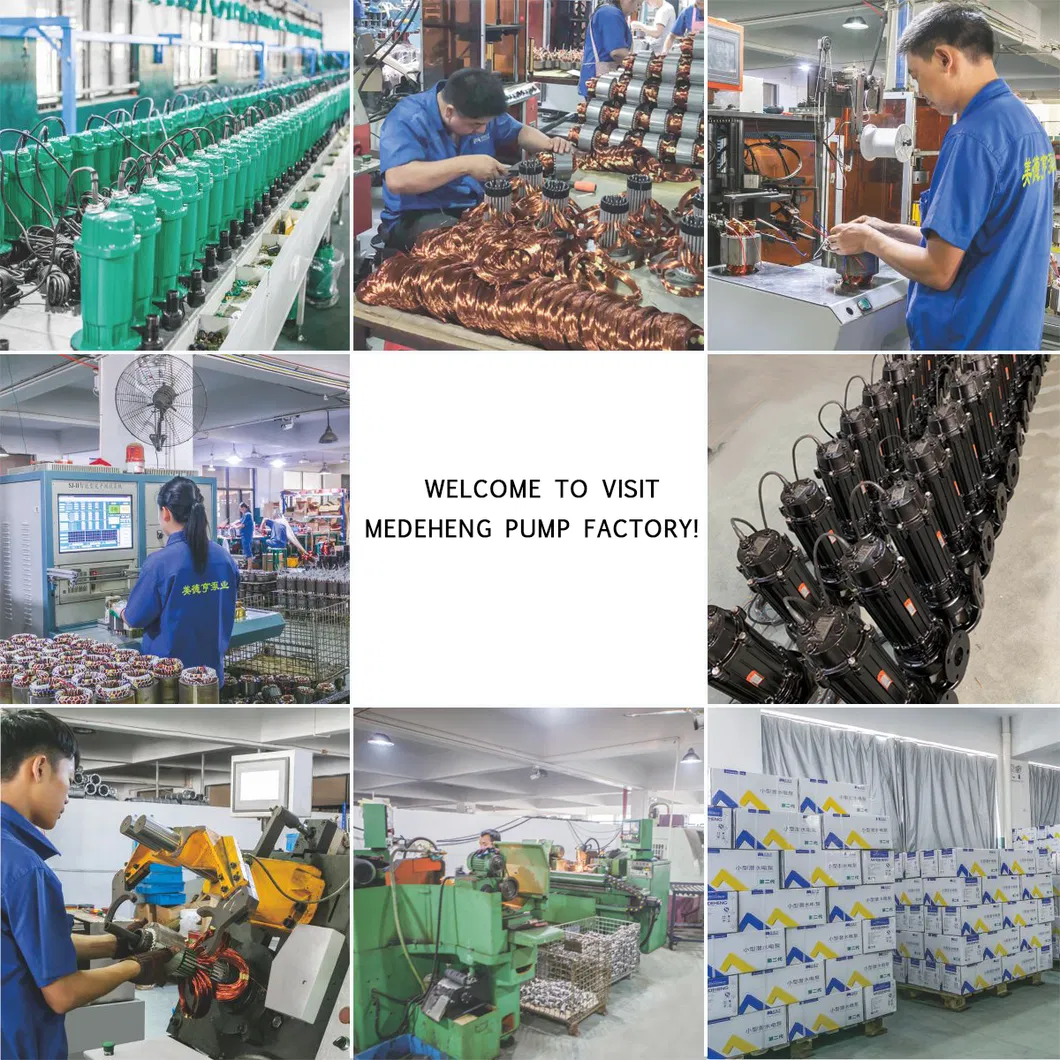

Workshop Environment
Production Process
Frequently Asked Questions
Q1: Are you a factory?
A: Yes. We are a pump factory with more than 20 years professional experience of manufacturing water pumps.
Q2: What is your MOQ of this pump?
A: Our MOQ is a full 20ft container, but we can accept a trial order to check the quality as the first cooperation.
Q3: Is it acceptable to make customers' own brand?
A: Sure, we can do OEM.
Q4: What is your payment term?
A: We usually do 30% T/T deposit and 70% against documents, or L/C at sight.
Q5: How long is your warranty?
A: One year!
Q6: What is the delivery time?
A: 25-30 days after receiving your L/C or T/T deposit.
