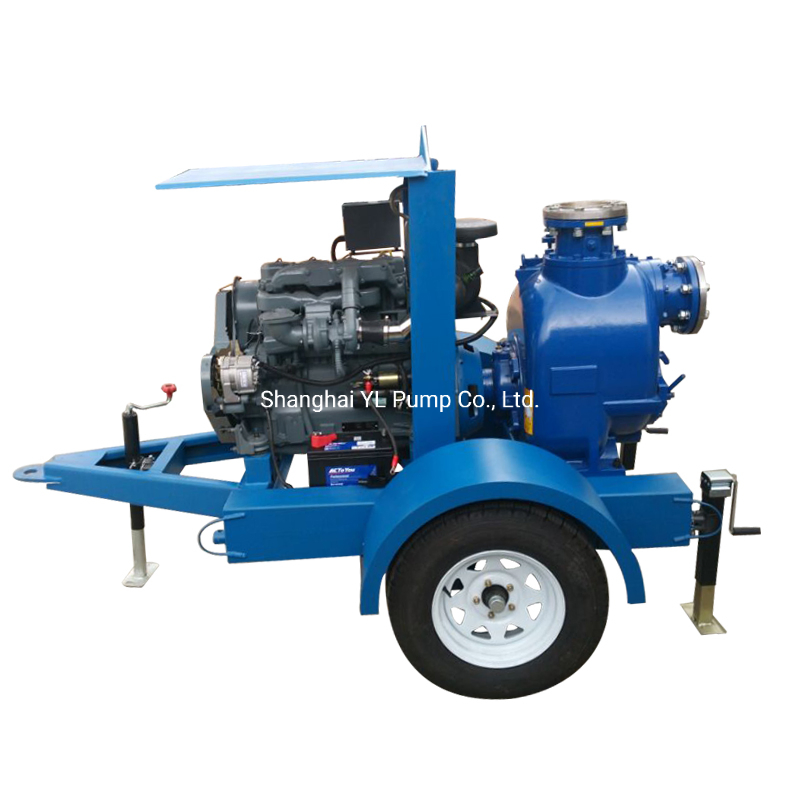

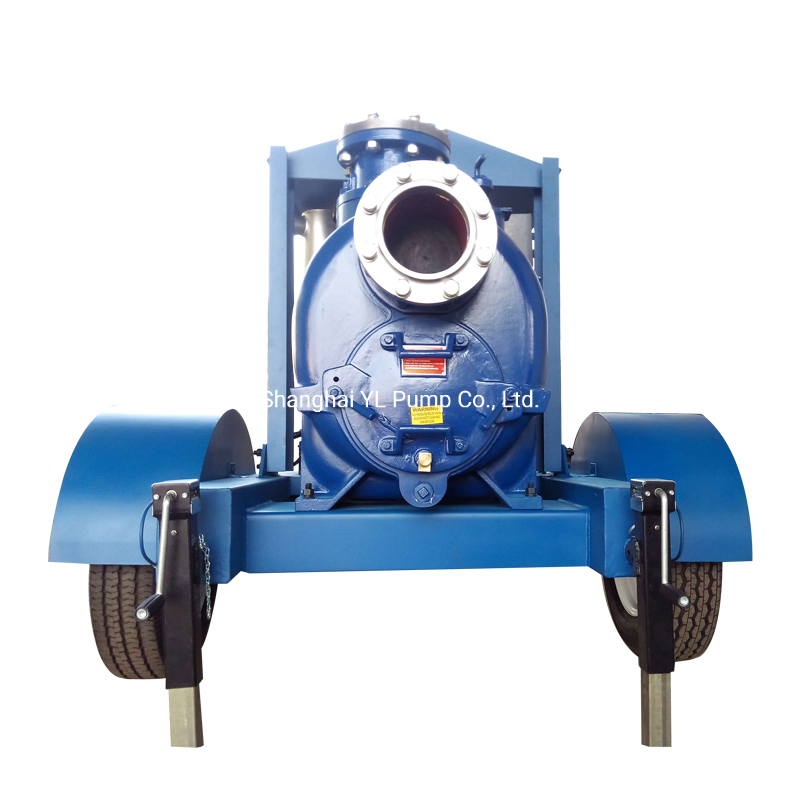

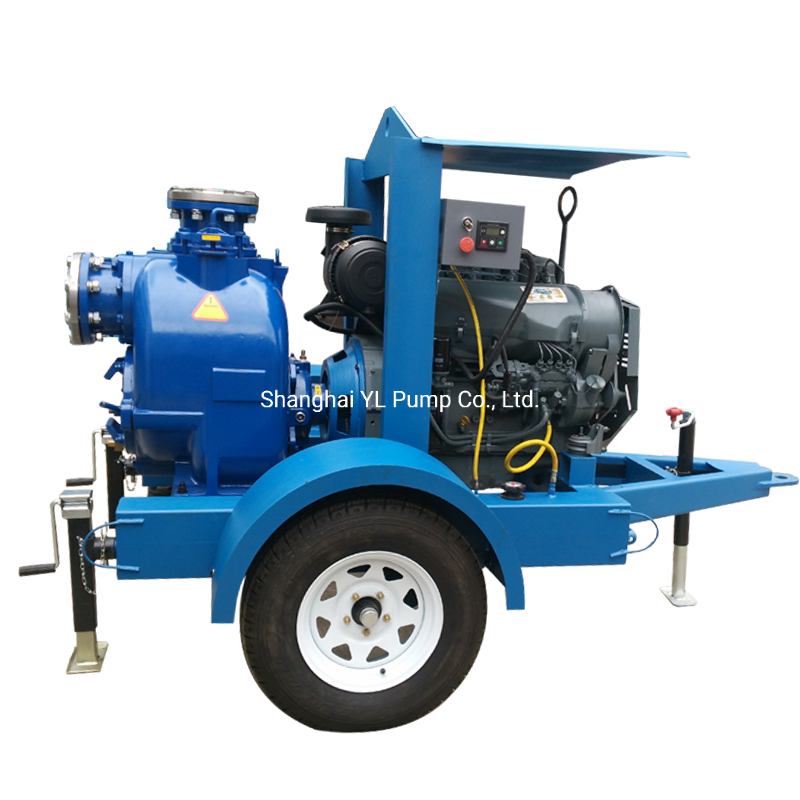

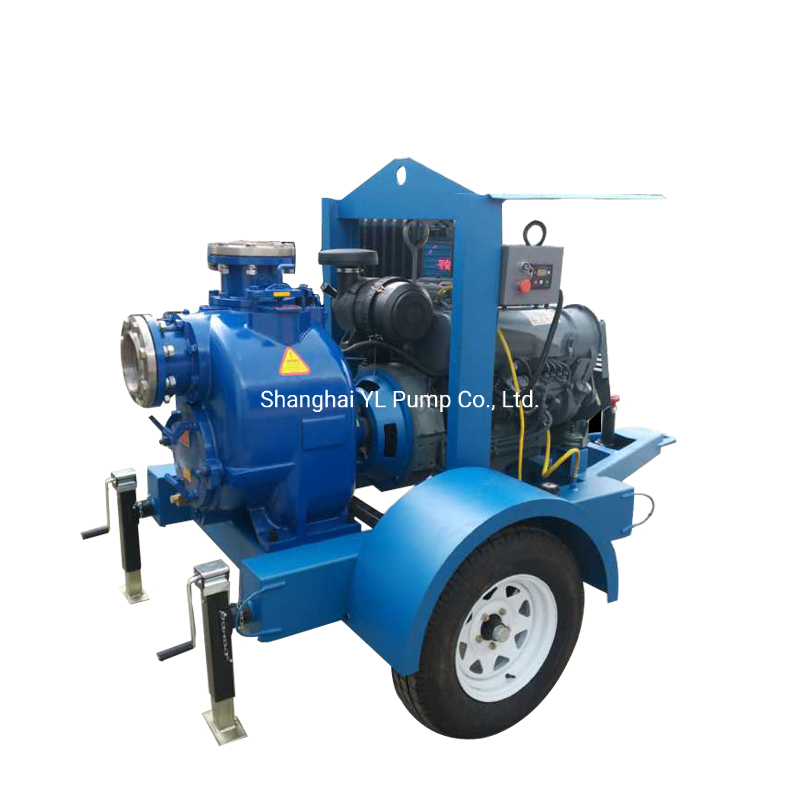

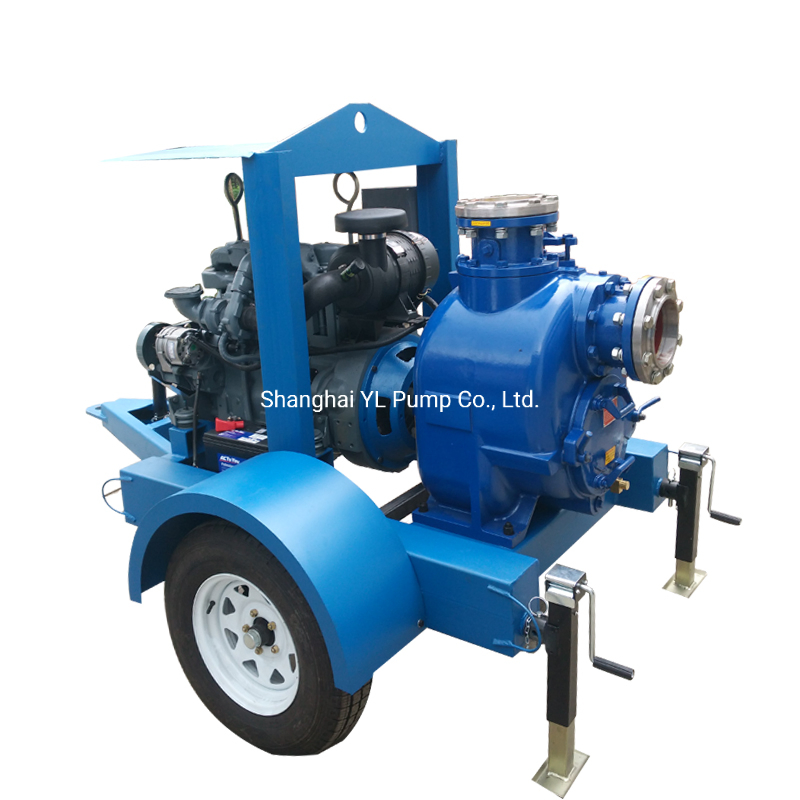

3 inch Diesel Engine Driven Self Priming Centrifugal Pump

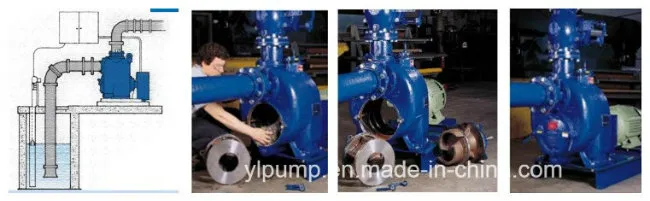

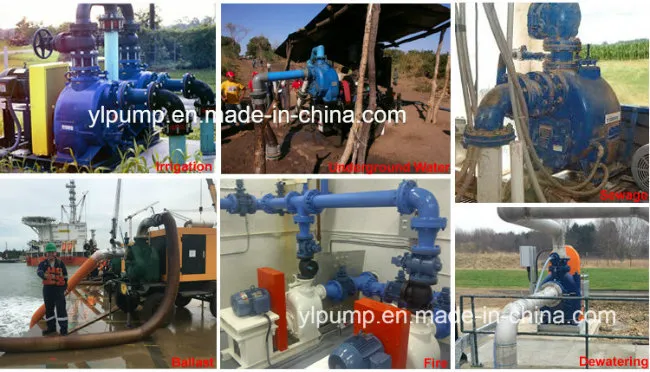

The self-priming centrifugal series is the standard for industrial and sewage application. The heavy duty construction and easy-to-service design have made these pumps the industry standard. The combination of different sized pumps, impeller trims, and speed variations ensure that the correct capacity pump will be matched to the exact requirements of your system. These pumps feature a large volute design that allows them to reprime automatically in a completely open system without the need for suction or discharge check valves.

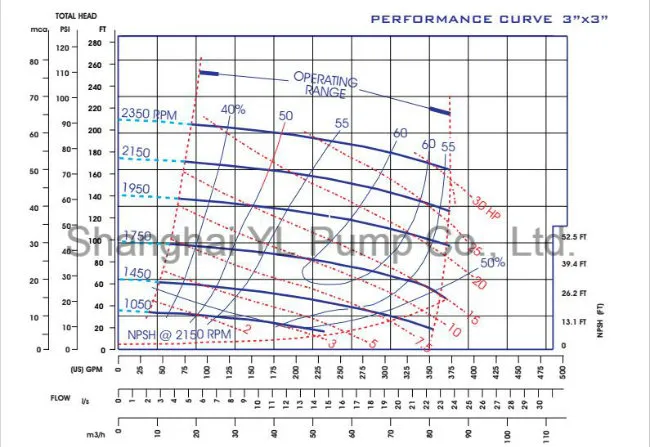

| Model | Rotation Speed (rpm) | Capacity | Head (m) | Power | Inlet & Outlet (mm) | Max. Solids (mm) | Max. Suction (m) | ||
|---|---|---|---|---|---|---|---|---|---|
| m3/h | l/s | KW | HP | ||||||
| JU-3 | 1050 | 30 | 11.1 | 10 | 2.2 | 3 | 80(3") | 20.63 | 2.3 |
| 1450 | 40 | 14.6 | 16 | 5.5 | 7.5 | 2.9 | |||
| 1750 | 50 | 18.1 | 25 | 11 | 15 | 4.5 | |||
| 1950 | 60 | 20.1 | 36 | 18.5 | 25 | 7.6 | |||
| 2150 | 70 | 22.2 | 44 | 22 | 30 | 7.6 | |||
| 2350 | 80 | 27.5 | 52 | 22 | 30 | 7.6 | |||

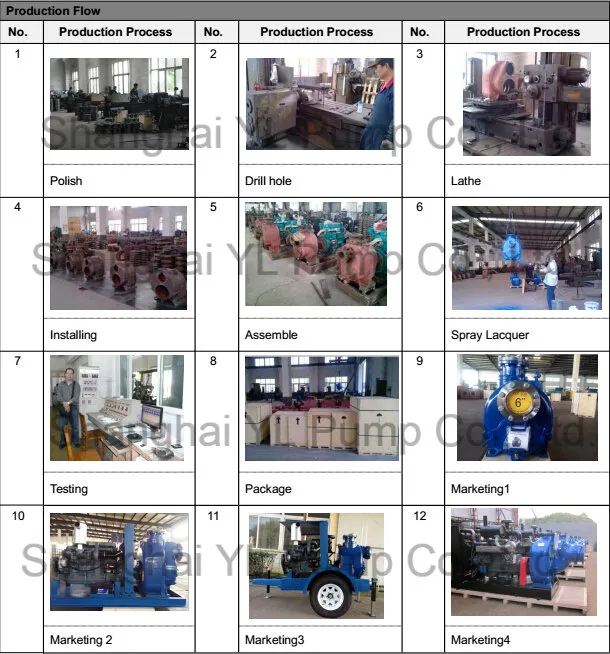

We provide timely delivery (approx. 25 working days for diesel sets) and robust plywood packaging suitable for ocean transport. Our warranty covers 12 months for the pump body and 3 months for core working parts. On-sales service includes photo/video updates of the production process.
