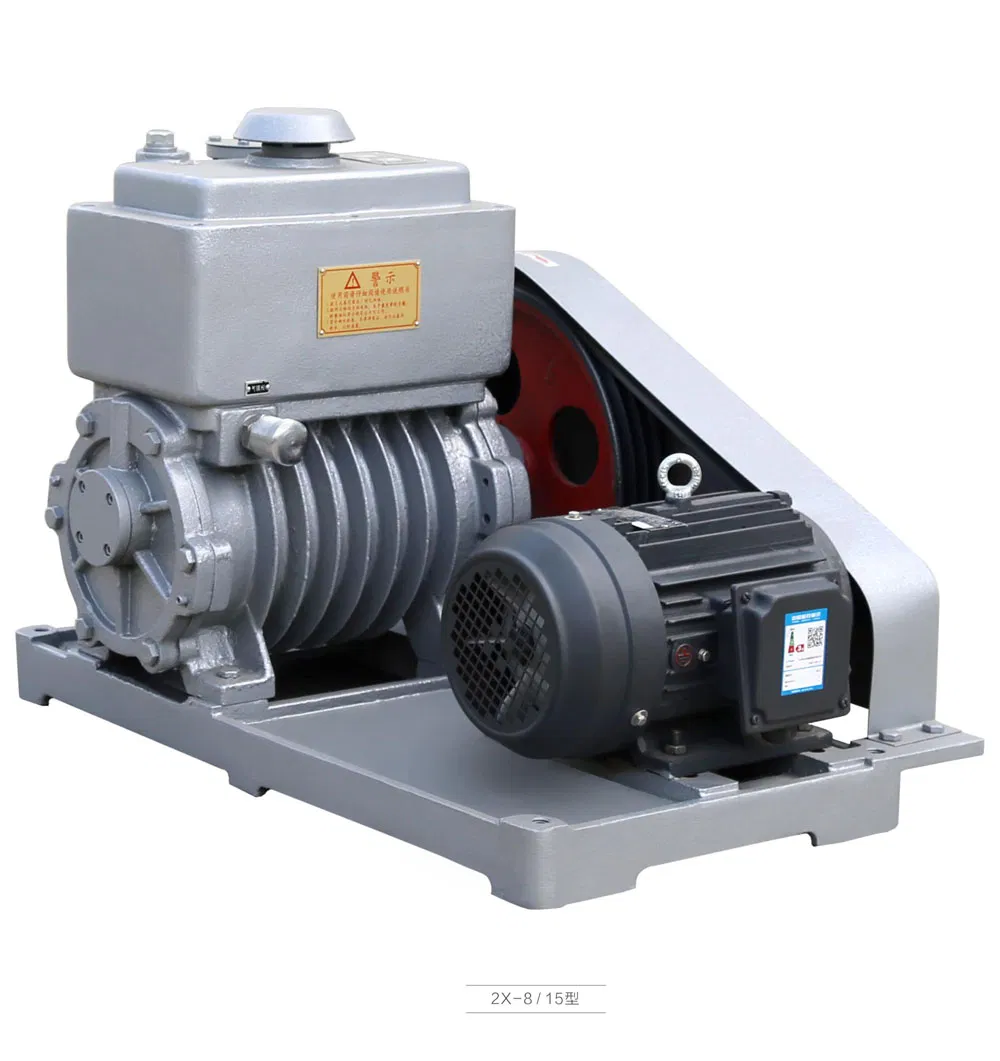

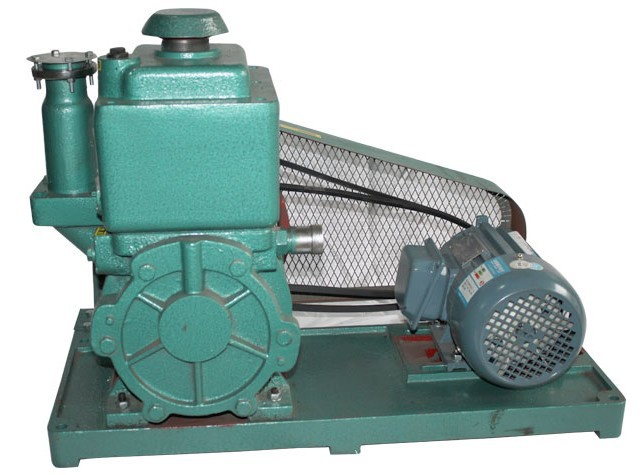

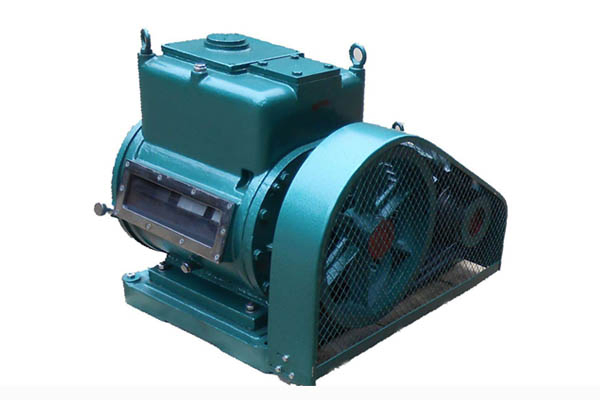

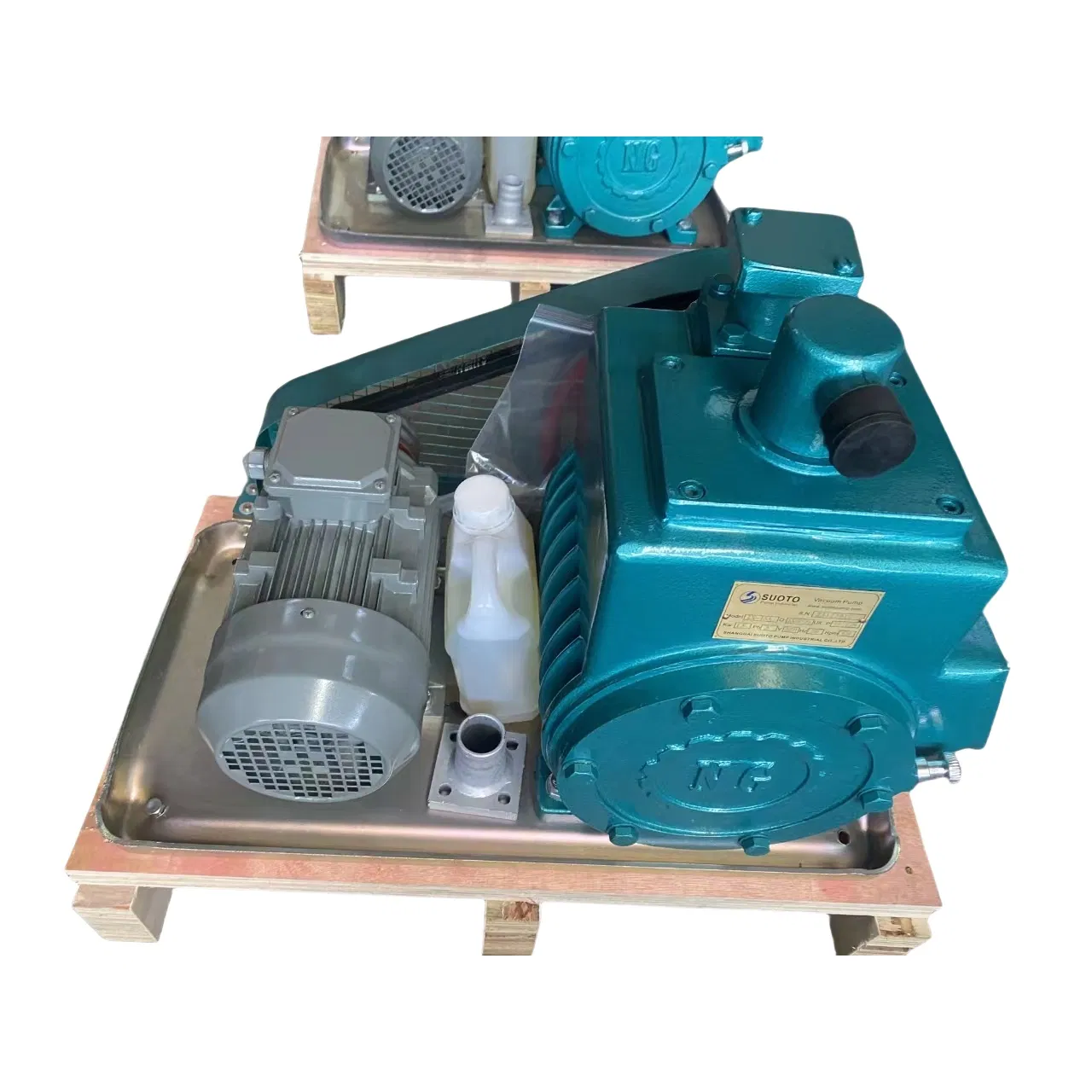

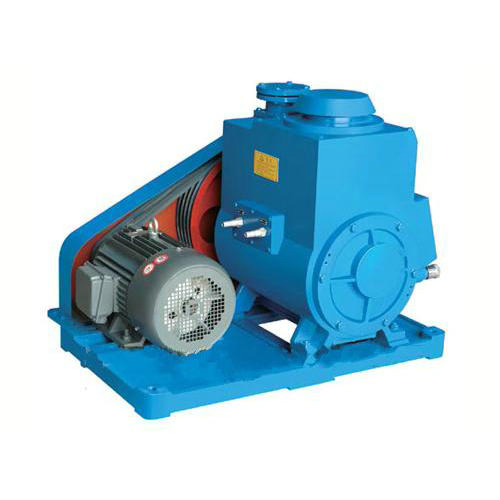

2X Series Aluminum Metal Diaphragm Vacuum Pump for Food Packaging Medicine
2X Sliding Vane Rotary Vacuum Pump is one of the basic equipment for obtaining vacuum for airtight containers by exhausting gas. It can be used alone, or used as the fore pump in front of the booster pump, diffusion pump, molecular pump, etc. This pump is applicable to the vacuum metallurgy, vacuum welding, vacuum impregnation, coating, vacuum drying, as well as the vacuum treatments in chemical and pharmaceutical industry, electric vacuum devices and other industries.
1. The pump can work within the ambient temperature range of 5~40 and under the inlet pressure less than 1330PA. It is also allowable for long-term continuous work.
2. The pump is neither applicable to pump the gases which have excessive oxygen content, poisonous and explosive feature, corrosive effects to metals and chemical reactions with oil of pumps, and dust particles, nor act as a transfer pump to transfer gas form one container to another.
3. The continuous working hours of the pump under the inlet air pressure of 6000PA shall not exceed 3min to avoid damages caused by oil injection or bad lubrication.
| Model | 2X-4A | 2X-8A | 2X-8 | 2X-15 | 2X-30A | 2X-70A |
|---|---|---|---|---|---|---|
| Pumping Speed (L/S) | 4 | 8 | 8 | 15 | 30 | 70 |
| Ultimate Pressure (≤ Pa) | ≤ 6× 10 -2 | |||||
| Motor Power (kw) | 0.55 | 1.1 | 1.1 | 2.2 | 3 | 5.5 |
| Temperature Rise | ≤ 4 Degrees C | |||||
| LW Noise dB(A) | ≤ 75 | ≤ 78 | ≤ 78 | ≤ 80 | ≤ 82 | ≤ 86 |
| Inlet Diameter (mm) | Φ 25 | Φ 25 | Φ 40 | Φ 40 | Φ 65 | Φ 80 |
| Weight (Kg) | 54 | 70 | 135 | 196 | 240 | 428 |

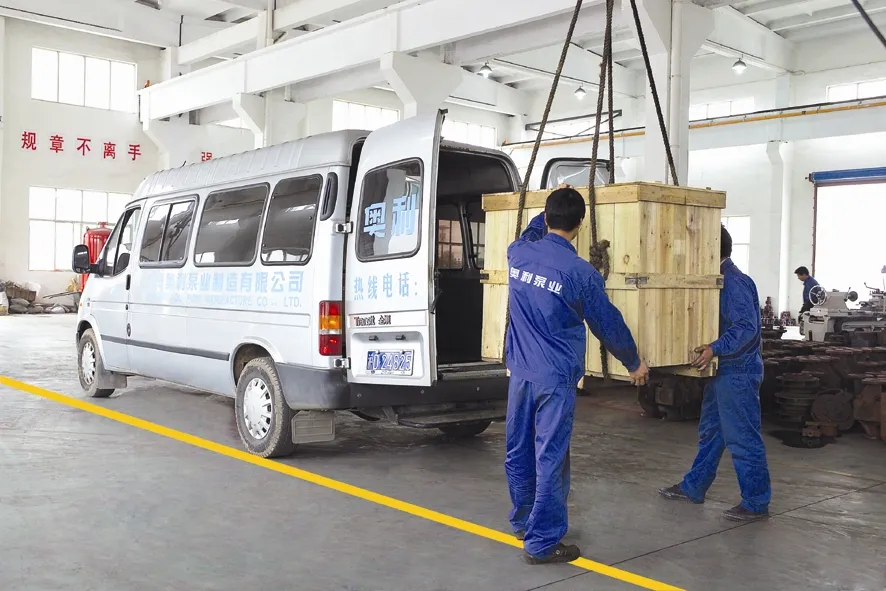

Packing Details: One pump in One plywood case
Delivery Details: 30 days after order confirmation
Standard package without original wood, no fumigation needed.

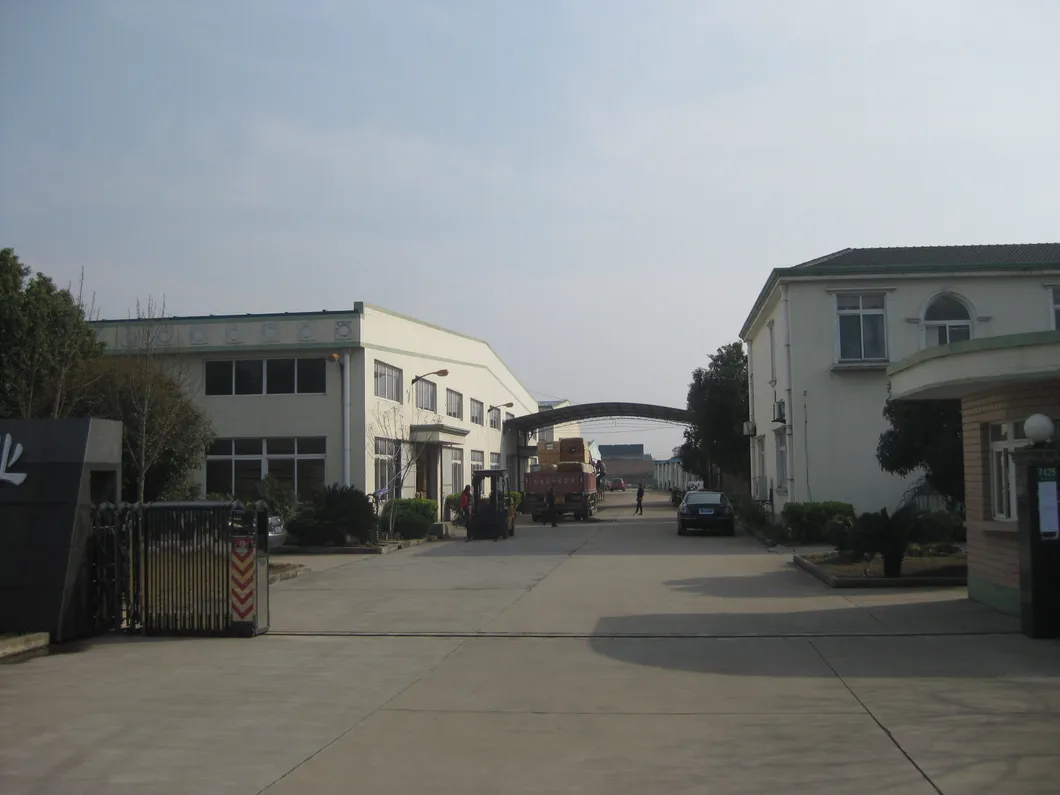

We are a professional pump manufacturer integrating R&D, manufacturing, sales and service of pumps. We have been committed to the innovation and development of various pumps. Our leading products include self-priming trash pump, centrifugal pump, submersible pump, diaphragm pump, vacuum pump, diesel pump, fire pump, etc.
