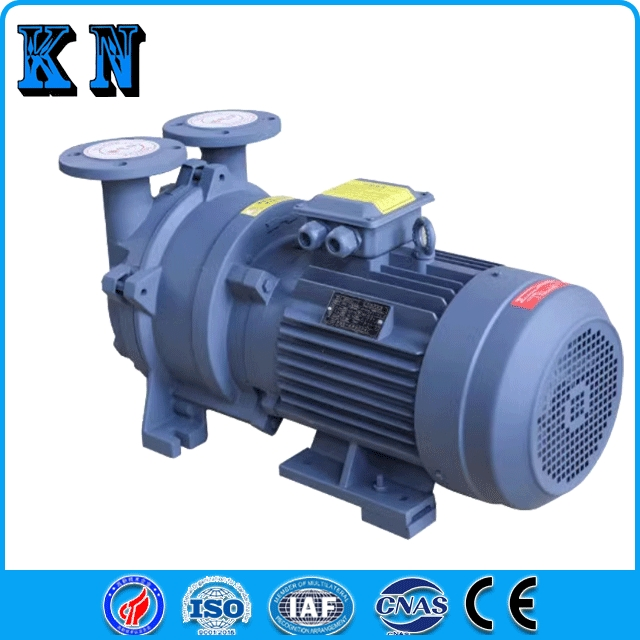

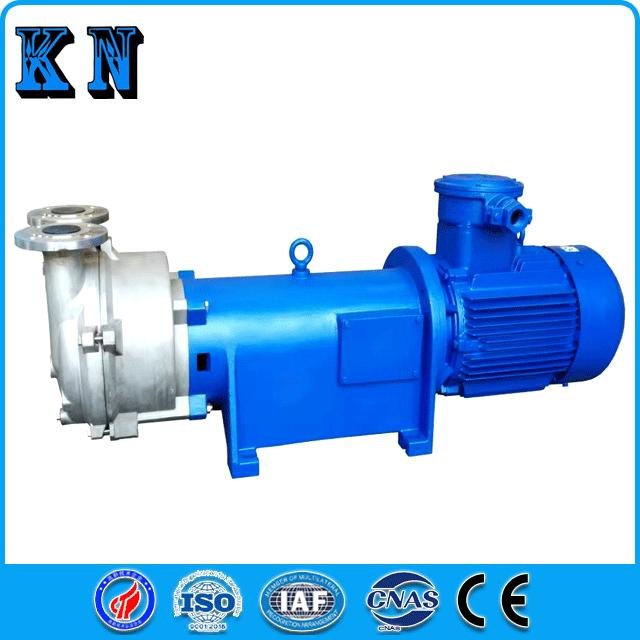

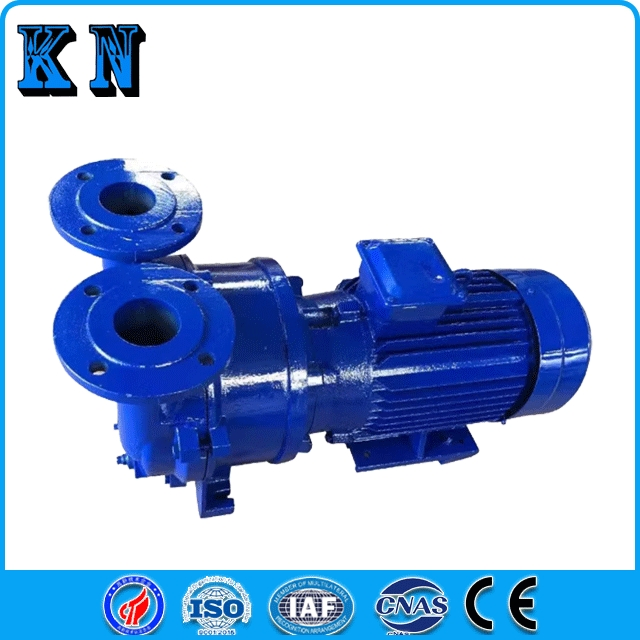

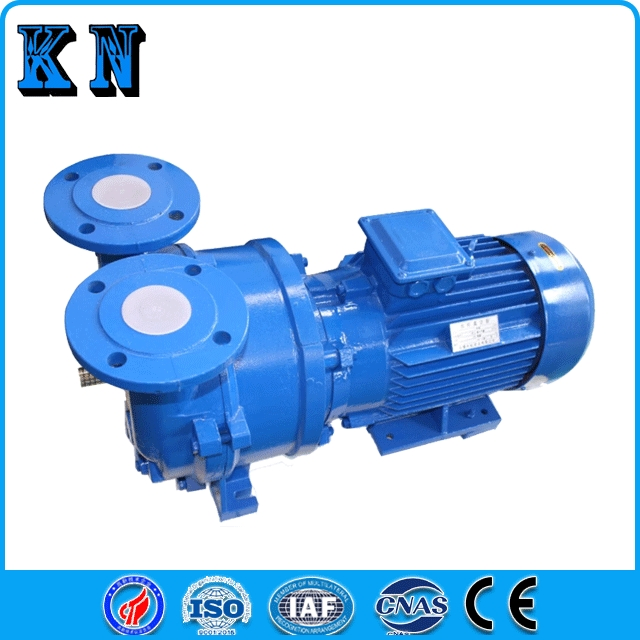

2BV5110 Steel Water Ring Vacuum Pump for Paper Making Chemical Industry

1 / 5

2BV5110 Steel Water Ring Vacuum Pump for Paper Making Chemical Industry

After-sales Service:	Lifetime Paid Service
Warranty:	One Year
Oil or Not:	Oil Free

Send Inquiry

Product Description

Basic Information

Model:2BV5110

Structure:Water Ring Vacuum Pump

Exhauster Method:Entrapment Vacuum Pump

Vacuum Degree:High Vacuum

Work Function:Mainsuction Pump

Conditions:Wet

Noise Level:66 dB

Power:5.5kw

Ultimate Vacuum:Less Than 0.001 Mbar

Material:Carbon Steel, Stainless Steel (Customizable)

HS Code:8414100090

Packaging & Delivery

Package Size:77.90cm * 44.00cm * 47.10cm

Gross Weight:117.000kg

Product Description

The 2BV series water ring vacuum pumps and compressor is mainly used for sucking gases and water vapor, particularly suitable for pumping pollution-free gas and steam. The suction pressure can reach 33mbar absolute pressure (97% vacuum degree).

When the water ring vacuum pump works for a long time under suction pressure close to the limit vacuum, it is necessary to connect with a cavitation resistant pipe to eliminate noise and protect the pump. This series is an energy-saving alternative to SK, 2SK, and reciprocating vacuum pumps.

⭐ Key Advantages

Compact Design: Direct motor connection saves space, making installation and maintenance easy.
High Quality Seal: Mechanical seal is provided as standard configuration.
Cavitation Protection: Interface for protection pipe automatically eliminates cavitation sound and protects the pump.
Corrosion Resistance: Equipped with stainless steel impellers as standard across the series.
Optimized Efficiency: Unique flexible exhaust port design prevents over-compression.

🚀 Typical Applications

Oil and Gas Recovery Biological Medicine Food Processing Single Crystal Furnace Vacuum Forming Vacuum Flame Refining Electronic Photovoltaic Semiconductor Synthesis

Technical Parameters

Type	Max Air Vol. (m³/min)	Limit Pressure (Pa)	Power (kW)	Speed (rpm)	Motor Grade	Water Cons. (L/min)	Noise dB(A)	Weight (kg)
2BV2060-EX	0.45	3300	1.1	2880	d II BT4	2	62	39
2BV2061-EX	0.87	3300	1.5	2880	d II BT4	2	65	45
2BV2070-EX	1.33	3300	2.2	2880	d II BT4	2.5	66	66
2BV5110	2.75	3300	4	1450	Ordinary	7	63	153
2BV5111	3.83	3300	5.5	1450	Ordinary	8.5	68	208
2BV5121	4.68	3300	7.5	1450	Ordinary	10	69	240
2BV5131	6.68	3300	11	1450	Ordinary	15	73	320

Product Gallery

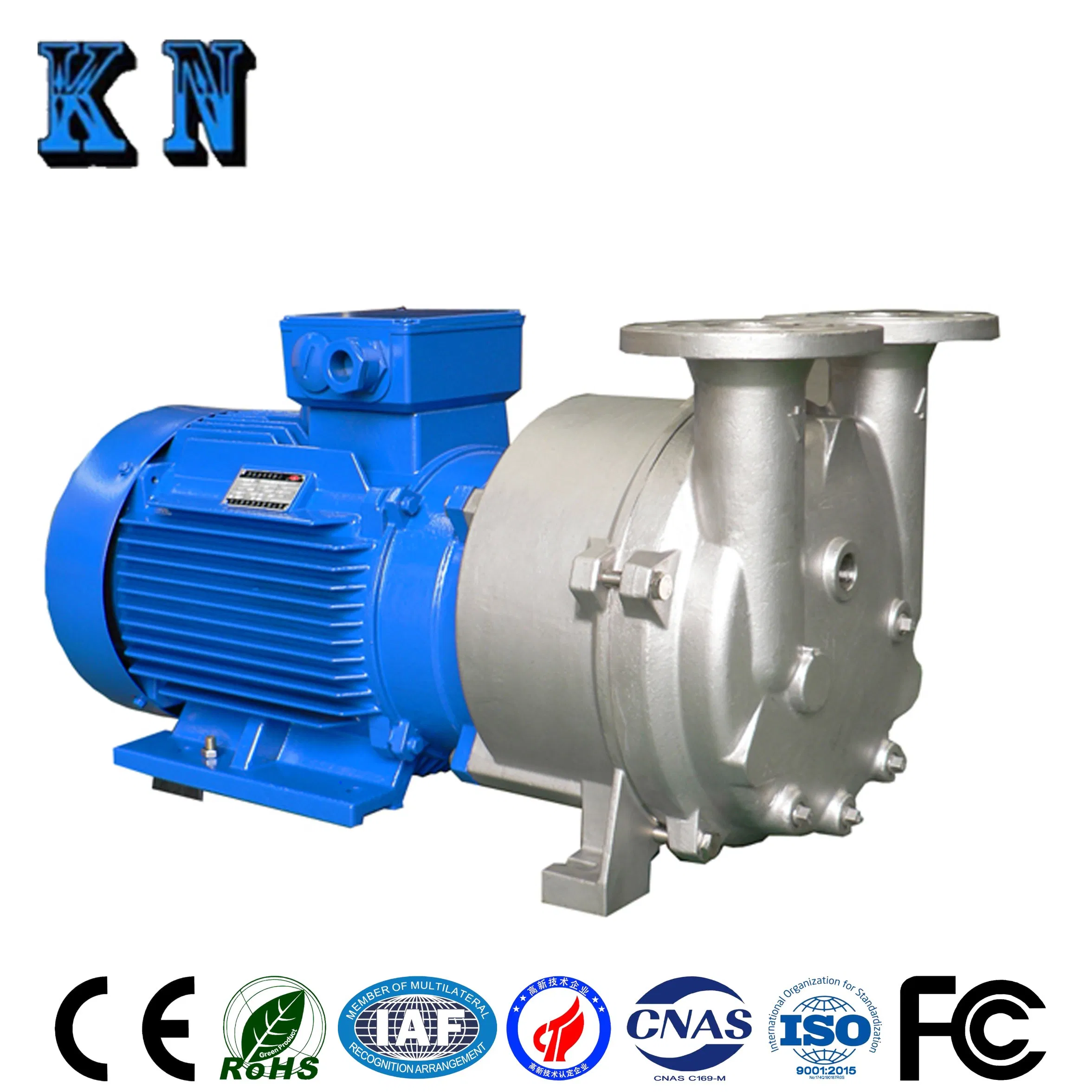

Stainless Steel Pump Unit

2BV5110 Steel Water Ring Vacuum Pump for Paper Making Chemical Industry

Product Description
