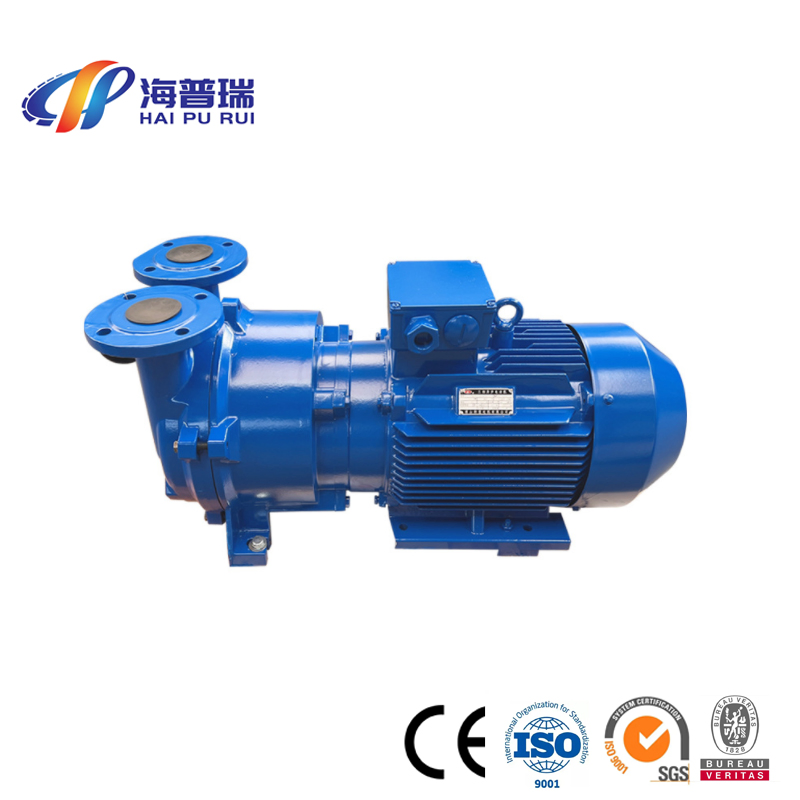

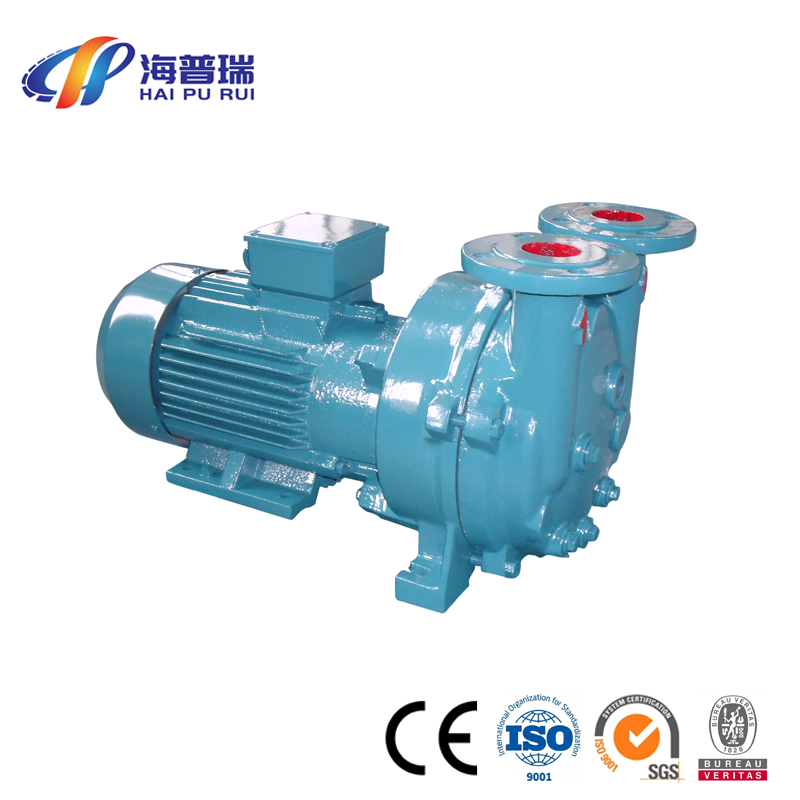

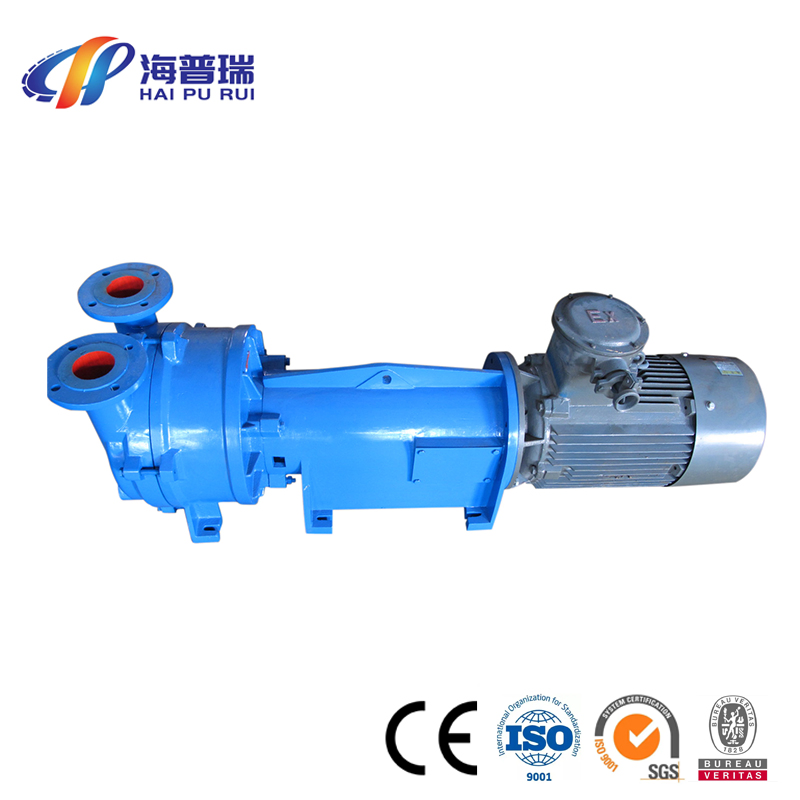

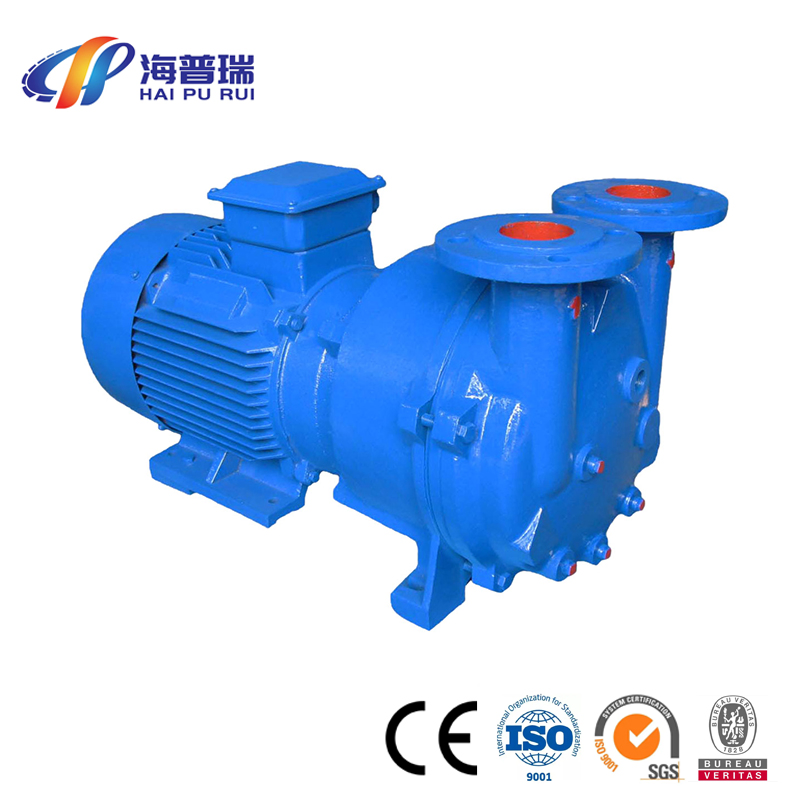

2BV Industrial Machinery, Medicine, Electronics, Food, Steel Water Ring Vacuum Pump
2BV Industrial Machinery, Medicine, Electronics, Food, Steel Water Ring Vacuum Pump
2BV Industrial Machinery, Medicine, Electronics, Food, Steel Water Ring Vacuum Pump
2BV Industrial Machinery, Medicine, Electronics, Food, Steel Water Ring Vacuum Pump
2BV Industrial Machinery, Medicine, Electronics, Food, Steel Water Ring Vacuum Pump
1 / 5
2BV Industrial Machinery, Medicine, Electronics, Food, Steel Water Ring Vacuum Pump
2BV Industrial Machinery, Medicine, Electronics, Food, Steel Water Ring Vacuum Pump
2BV Industrial Machinery, Medicine, Electronics, Food, Steel Water Ring Vacuum Pump
2BV Industrial Machinery, Medicine, Electronics, Food, Steel Water Ring Vacuum Pump
2BV Industrial Machinery, Medicine, Electronics, Food, Steel Water Ring Vacuum Pump

2BV Industrial Machinery, Medicine, Electronics, Food, Steel Water Ring Vacuum Pump

Customization: Available
After-sales Service: After Sales Service
Warranty: 12 Months
Send Inquiry

Product Description

📊

Basic Information

Model NO.
2BV
Oil or Not
Oil Free
Structure
Rotary Vacuum Pump
Exhauster Method
Entrapment Vacuum Pump
Vacuum Degree
High Vacuum
Work Function
Fore Pump
Working Conditions
Dry
Gas Capacity
200-2000m3/H
Power
1.5-1250kw
Material
304, 316, 2205, 2507, Others
Origin
China
Capacity
8000 Sets/Year
⚙️

Product Description

Water Ring Vacuum Pump - 2BV Series

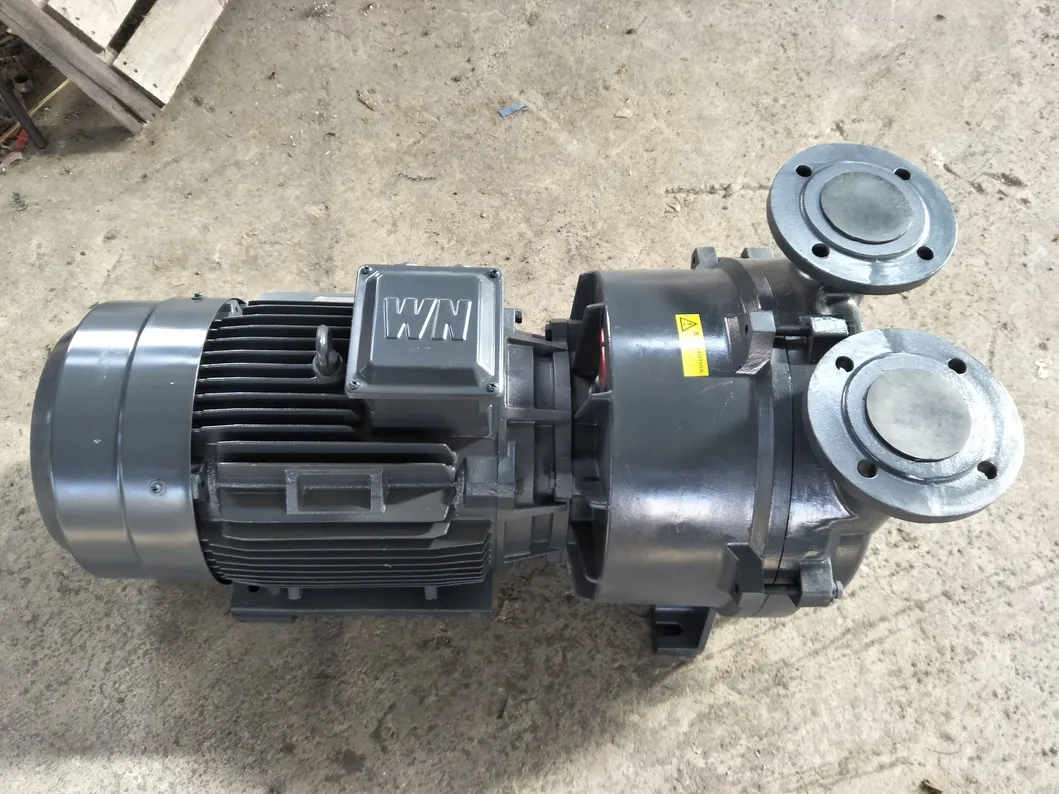

Water Ring Vacuum Pump

The 2BV series water ring vacuum pump is designed for pumping gas and water vapor. It can achieve an ultimate pressure of absolute 3300pa (97% vacuum). The working fluid can be recycled using the pumped medium to form a closed cycle system, achieving zero emissions and effective solvent recovery.

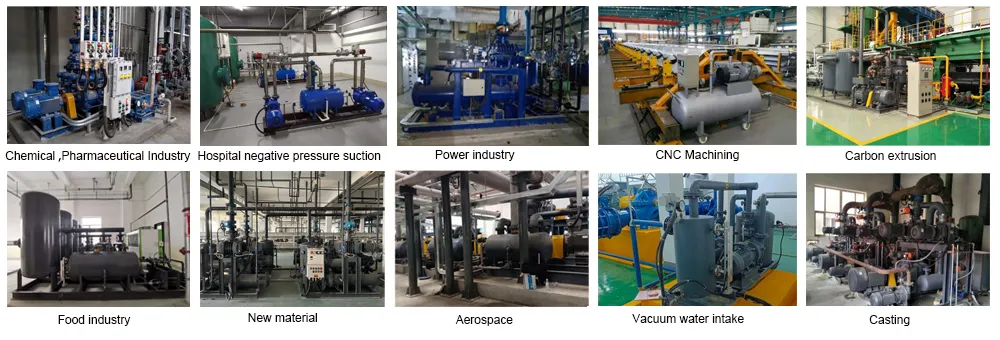

Performance Chart

Technical Parameters

Model Max Capacity (m3/h) Extreme Pressure (hPa) Speed (r/min) Power (Kw) Weight (Kg) Noise (dBA)
2BV2 060273328900.813162
2BV2 061523328901.453565
2BV2 070803328902.355666
2BV2 0711103328903.856672
2BV5 110165331440410363
2BV5 1212803314407.514969
🌟

Main Features

  • Space-Saving Design: Machine pump coaxial or direct connection design for easy installation and maintenance.
  • Leak-Free Operation: Equipped with high-quality mechanical seals as standard to completely eliminate leaks.
  • Cavitation Protection: Built-in interface to eliminate cavitation sound and protect the pump during high-vacuum operation.
  • Durable Materials: Optional stainless steel flow parts (SUS304, SUS316L, 2205, 2507, titanium) for acid and alkaline gas resistance.
  • Optimal Efficiency: Unique flexible exhaust port design prevents excessive compression across the vacuum range.

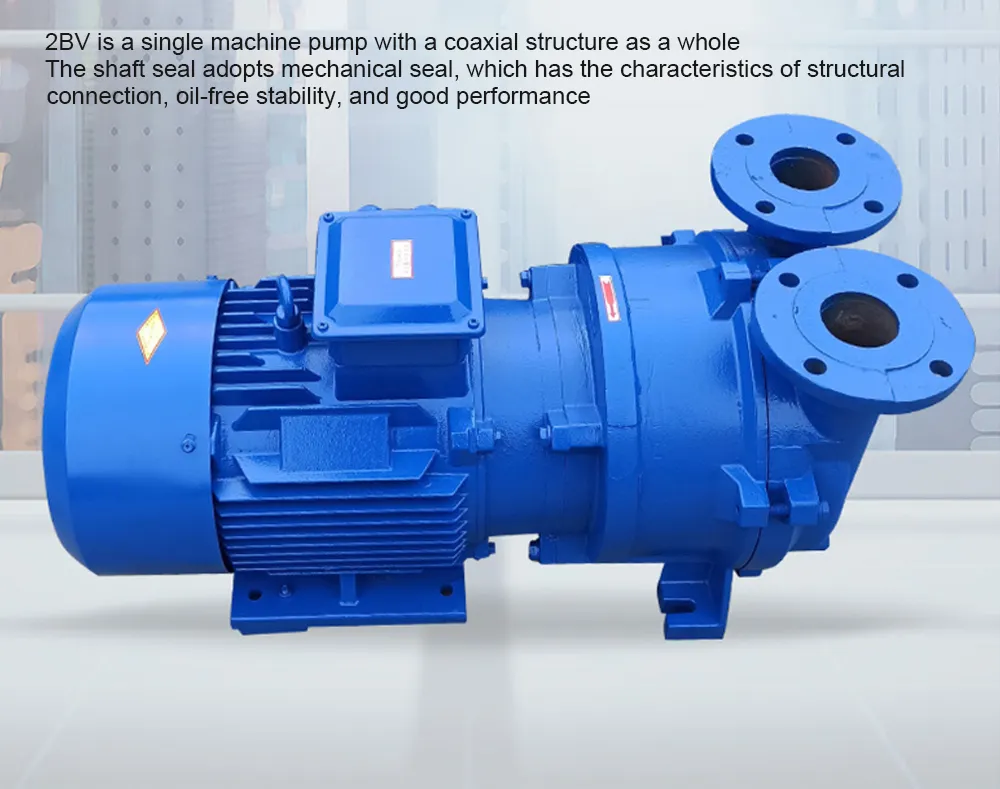

Structure Detail 1

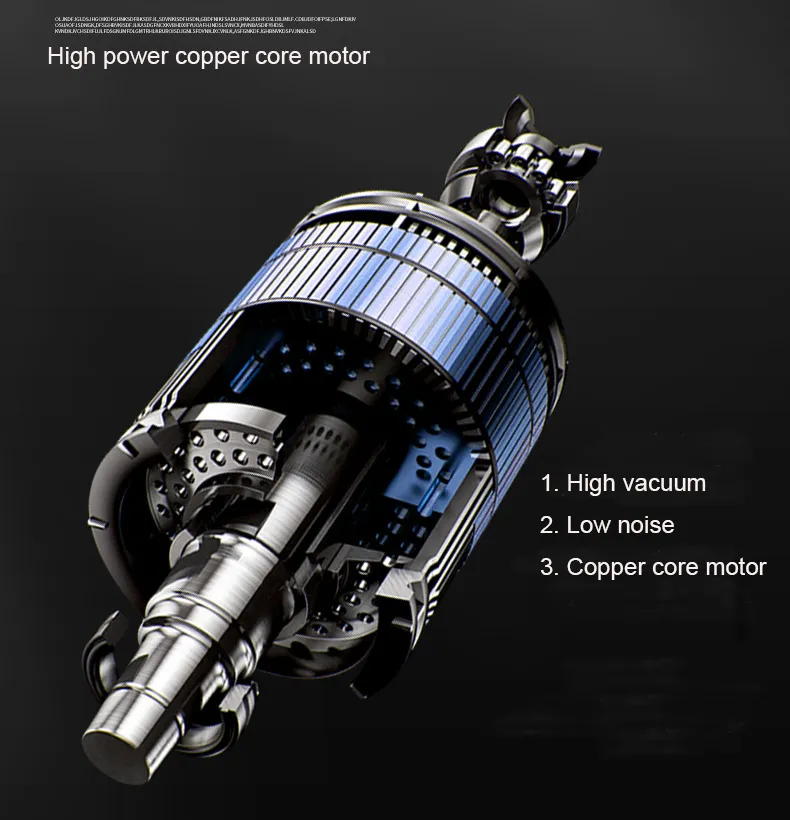

Structure Detail 2

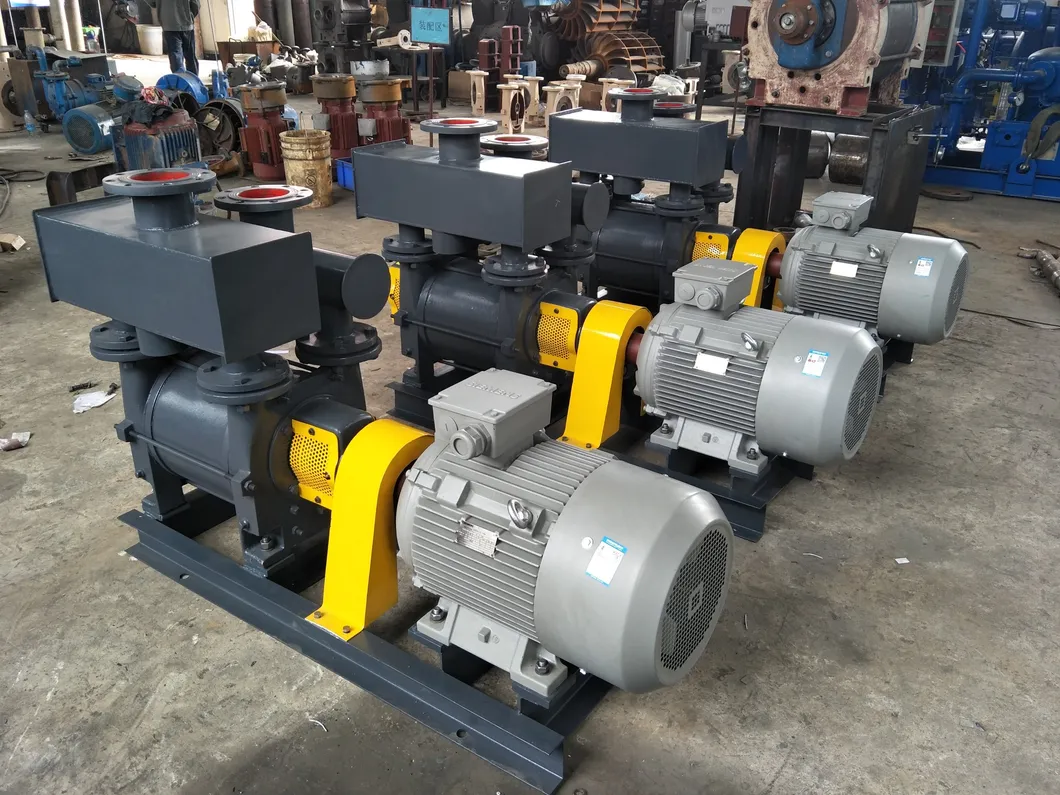

Structure Detail 3
🏭

Gallery & Manufacturing

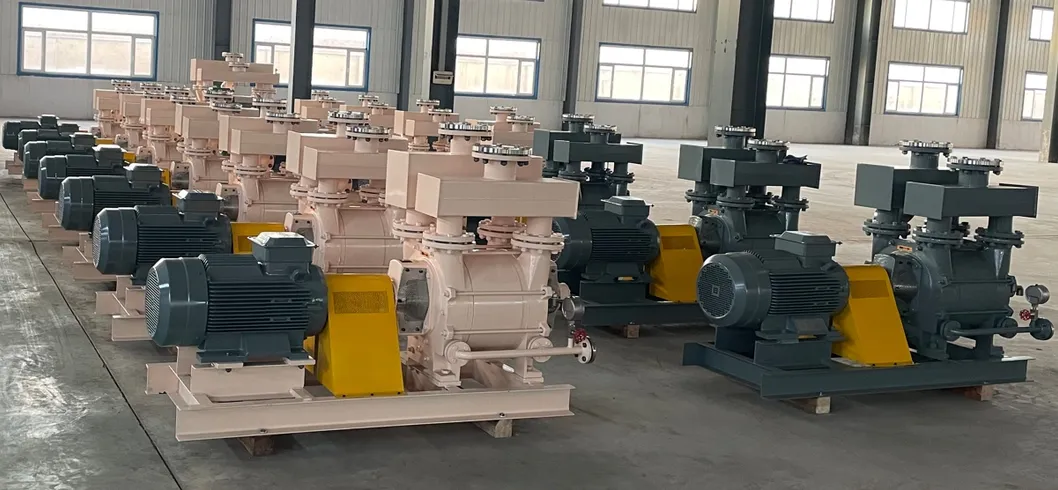

Material Selection

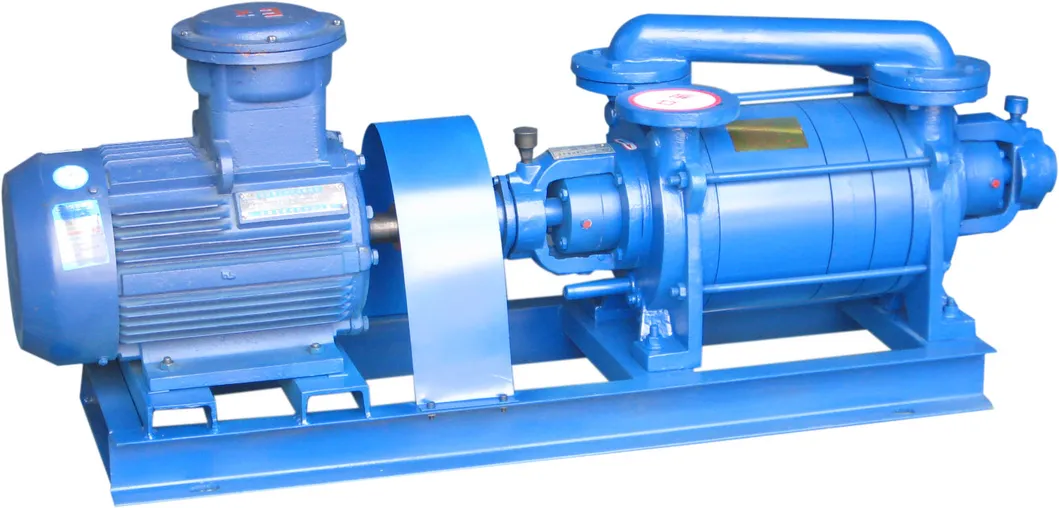

Product 1

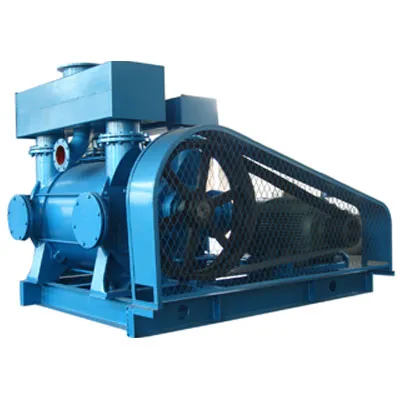

Product 2

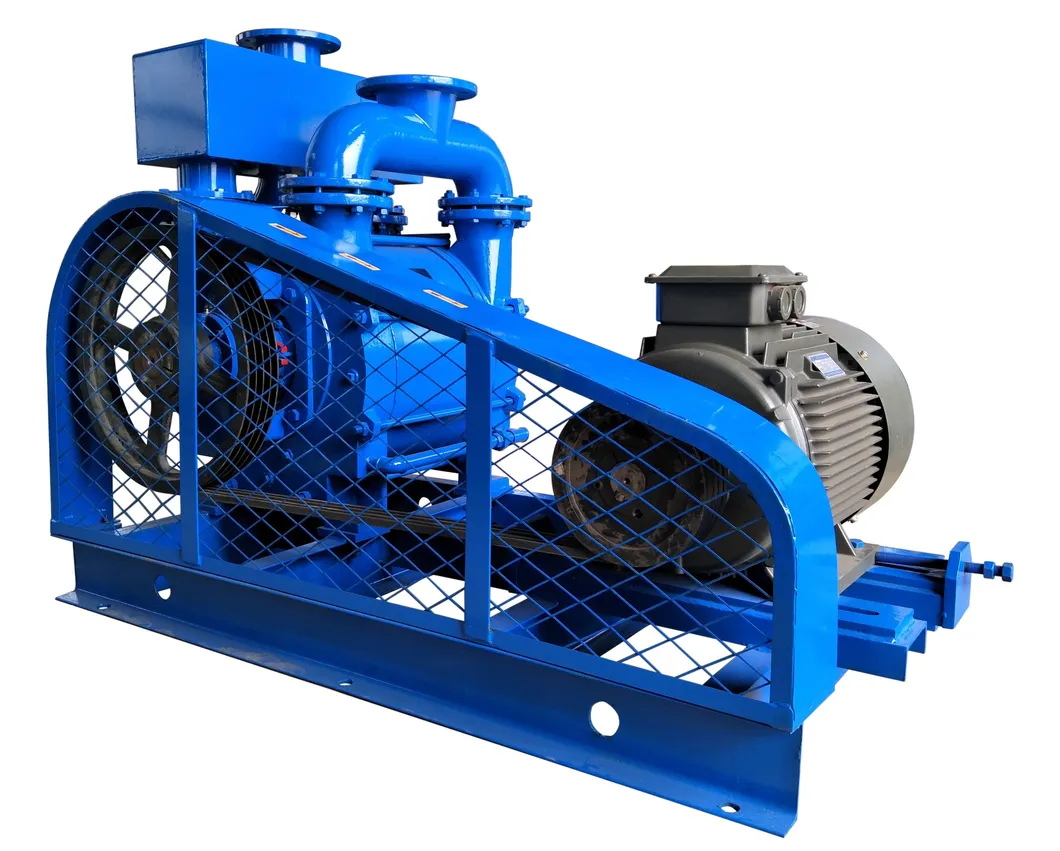

Product 3

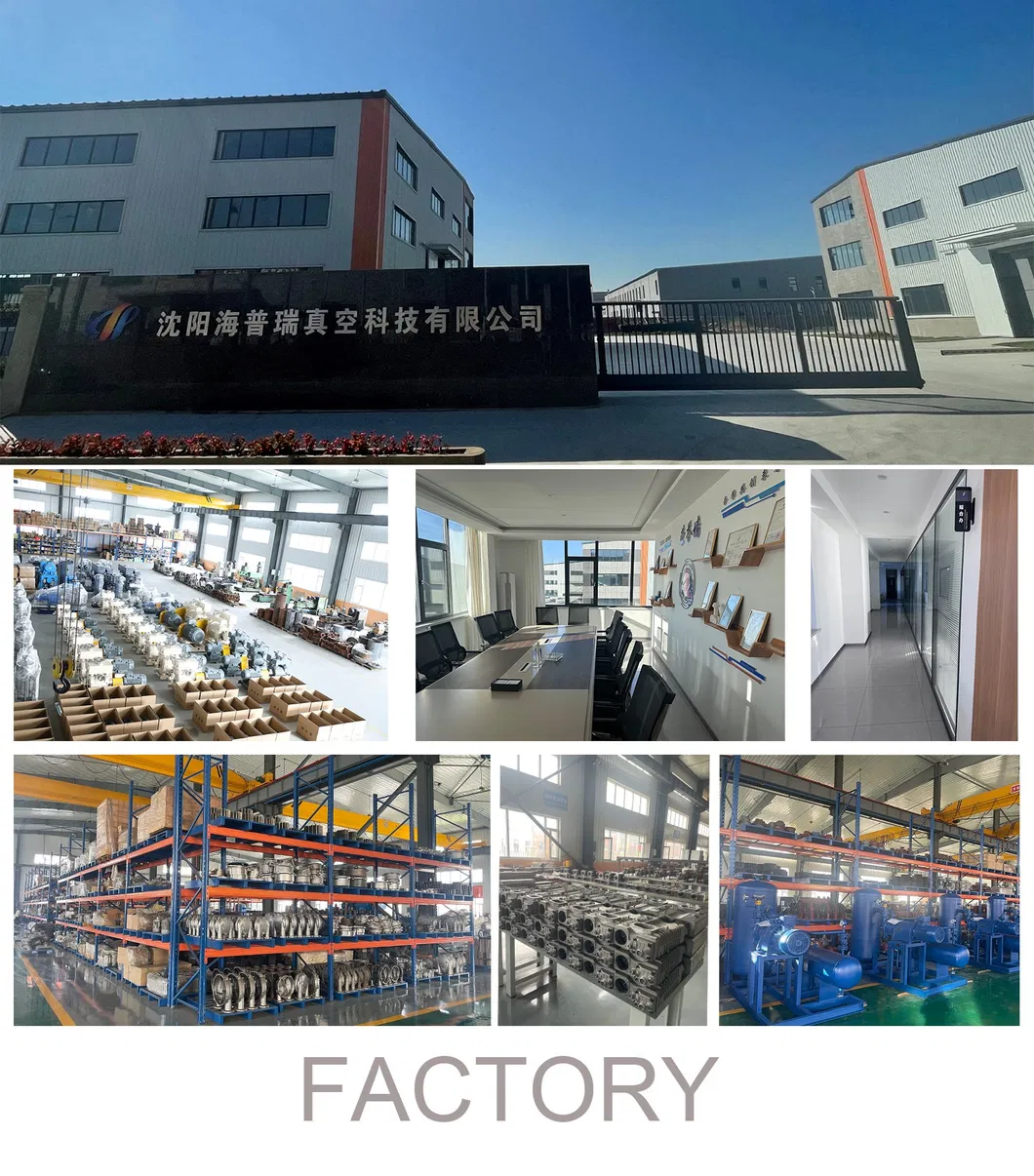

Factory Floor Patent Certificates
❓

Frequently Asked Questions

1. What is the ultimate pressure for the 2BV series vacuum pump? The 2BV series can reach an ultimate absolute pressure of 3300pa, which is approximately 97% vacuum.
2. Can this pump handle explosive or flammable gases? Yes, the 2BV2-EX and 2BV6 series are specifically designed for pumping explosive gases in hazardous environments.
3. What materials are available for corrosive media? We offer multiple material options including SUS304, SUS316L, 2205, 2507, and Titanium to handle acid and alkaline gases.
4. How does the cavitation protection work? The pump features a cavitation protection interface. When working near ultimate vacuum, opening the protection valve eliminates cavitation noise and protects internal components.
5. Can the 2BV series be used as a compressor? Yes, when configured as a compressor, the outlet pressure can reach up to 0.26Mpa absolute pressure.
6. What information is required for a formal quotation? Please provide the required pump capacity (m³/h or L/S), operating voltage (V), and frequency (Hz). A full data sheet is preferred.
