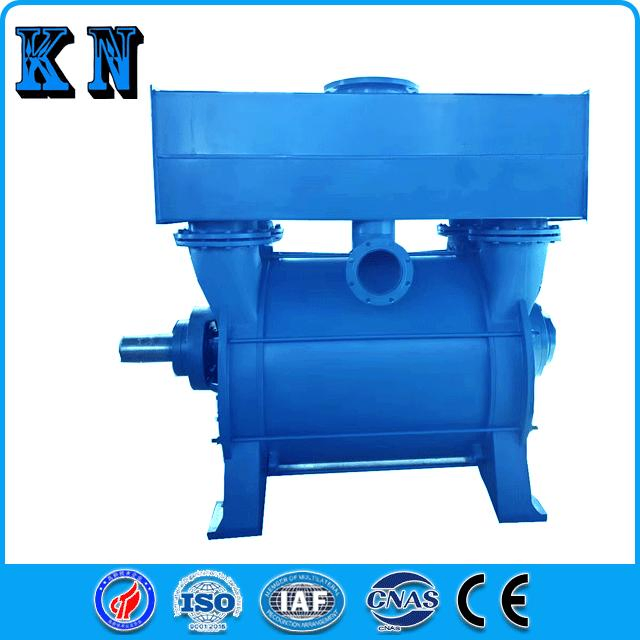

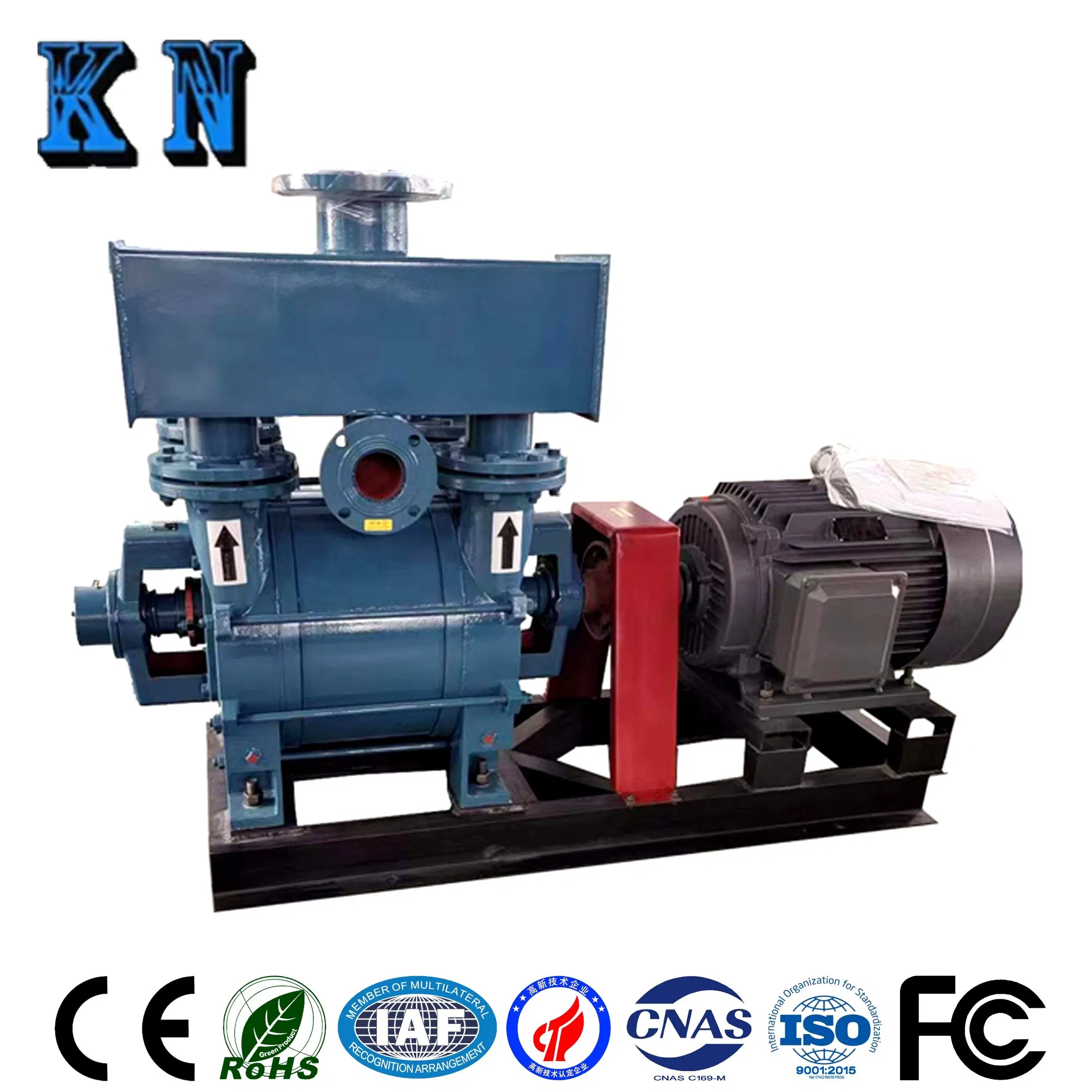

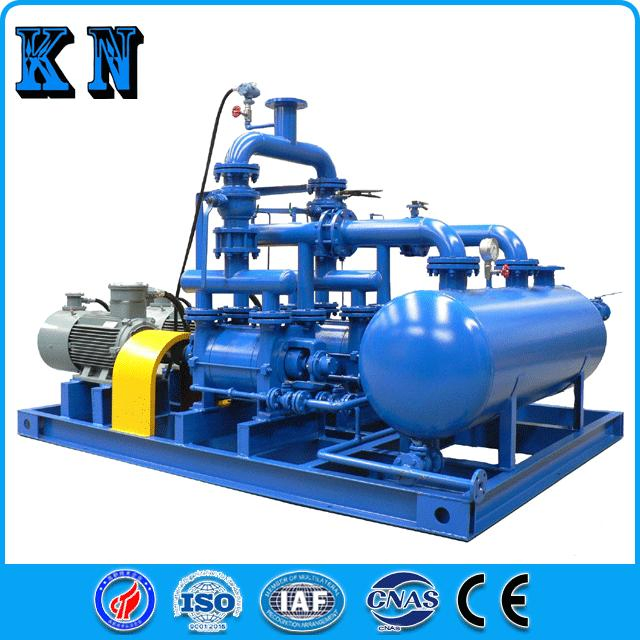

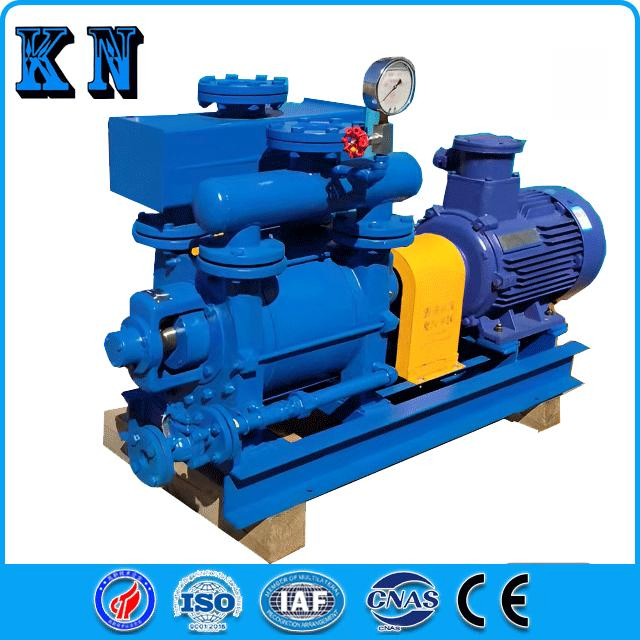

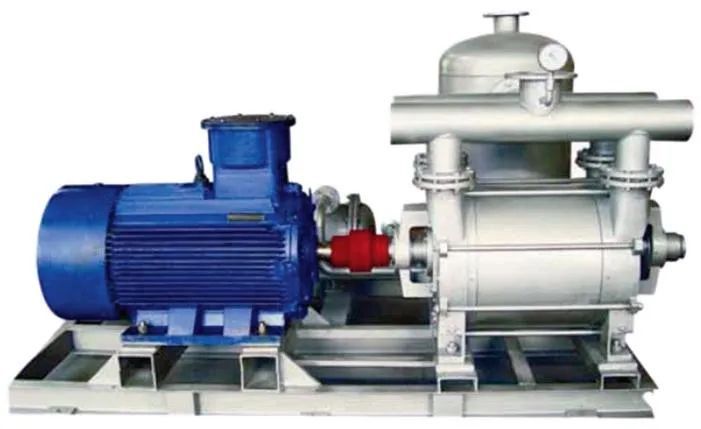

2BE1 series water ring vacuum pump is a high energy product developed in combination with imported technology. This series of vacuum pump is a single machine single action structure, which has the advantages of simple structure, convenient maintenance, reliable operation and high efficiency. It is usually used to suck air or other gases insoluble in water, free of solid particles and non-corrosive, so as to form a certain vacuum in a closed container. Equipped with a proper motor, it can suck flammable and explosive gas. With corrosion-resistant materials, it can suck corrosive gases to a certain extent.
This series is widely used in petrochemical, light industry, chemical industry, pharmaceutical, papermaking, metallurgy, building materials, electrical appliances, food, coal washing, beneficiation, fertilizer and other industries.
| Type | Revolution (r/min) | Max Shaft Power (kW) | Motor Power (kW) | Motor Model | Ultimate Vacuum (Pa) | Max Air Volume (m³/h) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| 2BE1 151 | 1450 | 10.8 | 15 | Y160L-4 | 3300 | 405 | 469 |
| 2BE1 152 | 1450 | 12.5 | 15 | Y160L-4 | 3300 | 465 | 481 |
| 2BE1 153 | 1450 | 16.3 | 18.5 | Y180M-4 | 3300 | 600 | 533 |
| 2BE1 202 | 1100 | 22 | 30 | Y200L-4 | 3300 | 850 | 940 |
| 2BE1 203 | 1100 | 33 | 45 | Y225M-4 | 3300 | 1270 | 1080 |
| 2BE1 252 | 832 | 49 | 55 | Y250M-4 | 3300 | 1850 | 1645 |
| 2BE1 253 | 740 | 54 | 75 | Y280S-4 | 3300 | 2450 | 1945 |
Deeply cultivate the vacuum technology, and research, develop and manufacture the vacuum equipment to provide the best solution in the vacuum field and make the vacuum application easier. Our products are widely used in vacuum drying, dehydration, kerosene vapor phase drying, vacuum impregnation, vacuum metallurgy, vacuum coating, evaporation, concentration, and oil/gas recovery.
Welcome to send your needs, we will provide you with the best service and greatest help!
