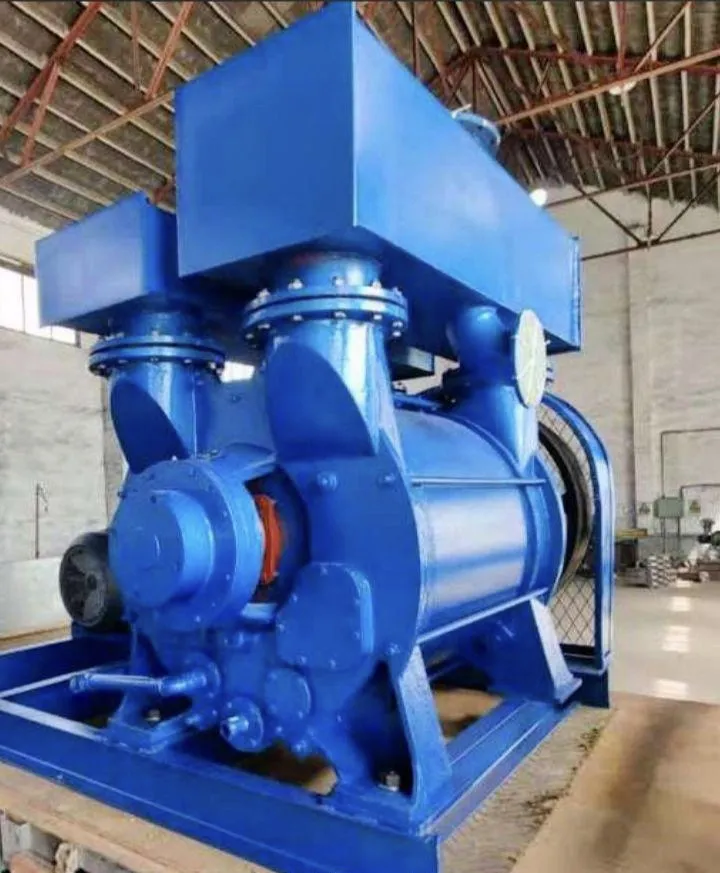

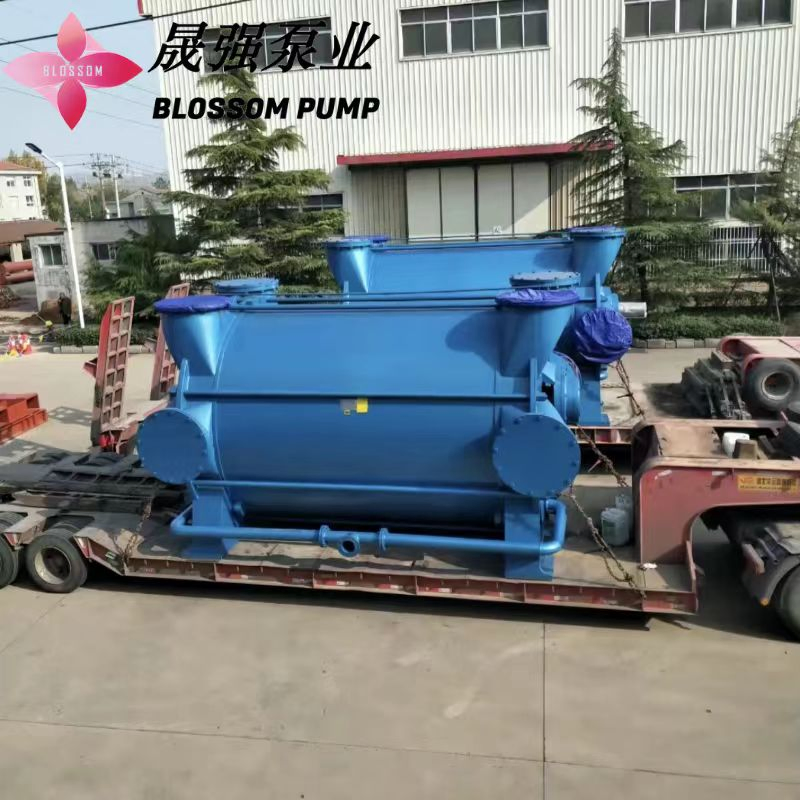

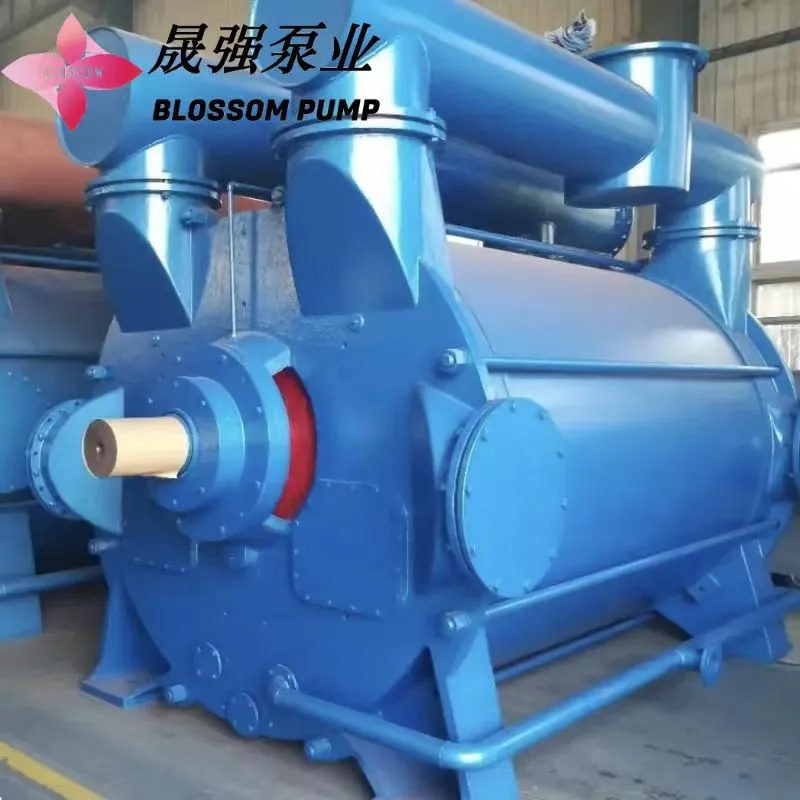

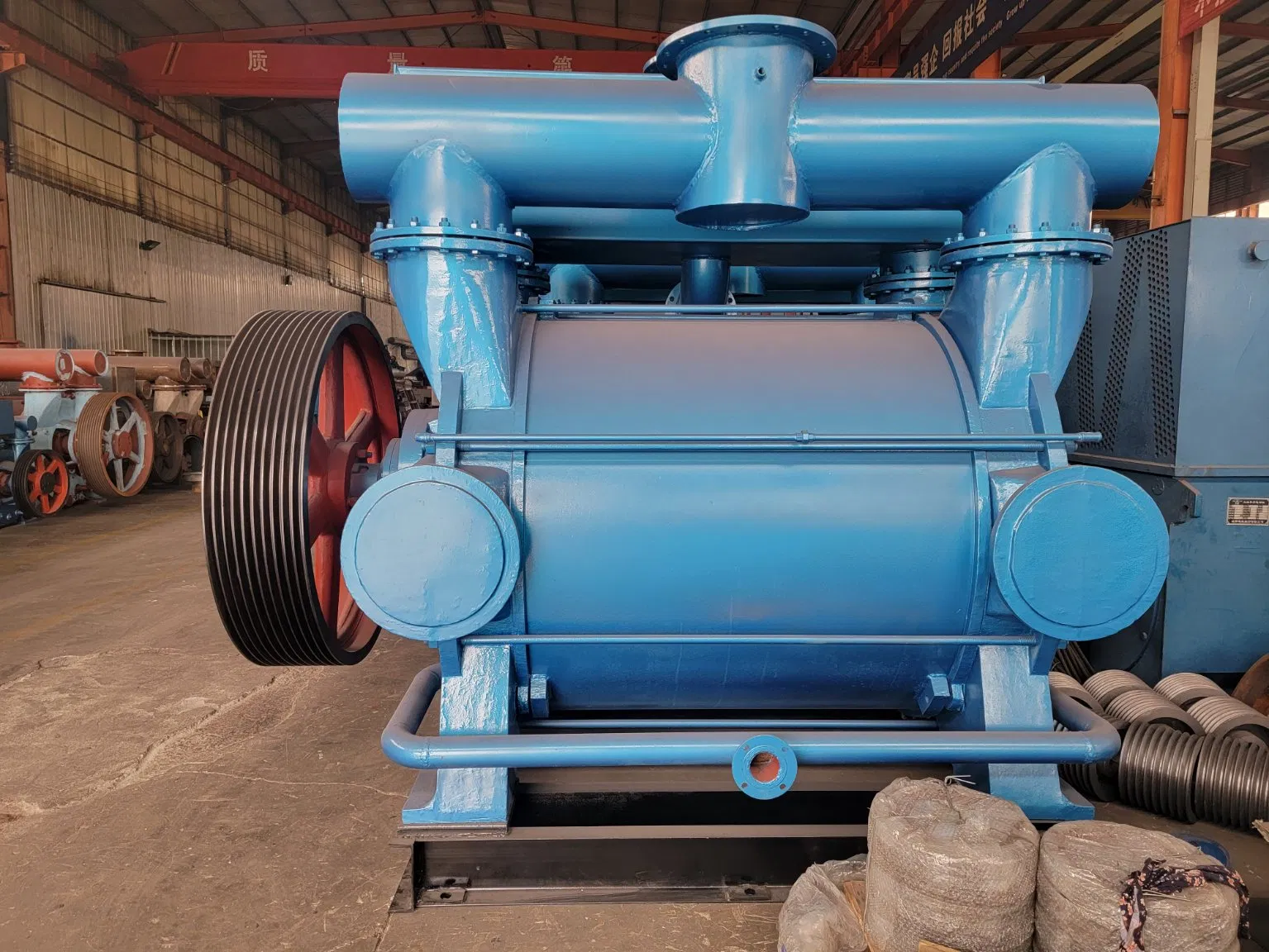

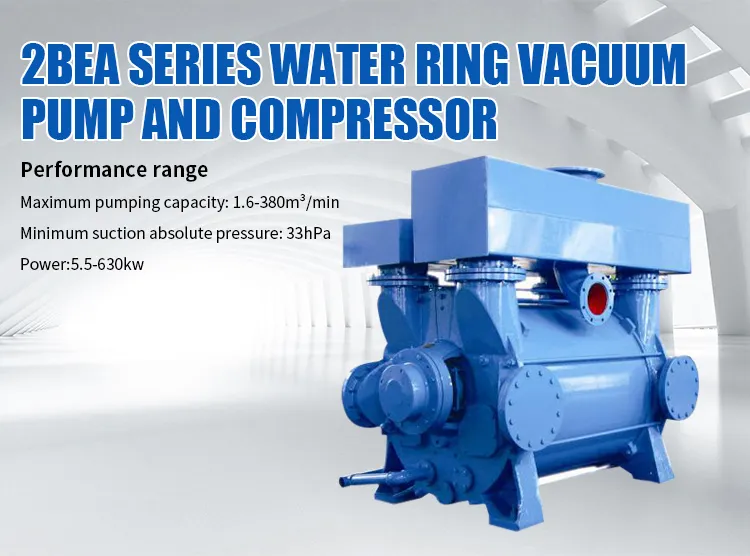

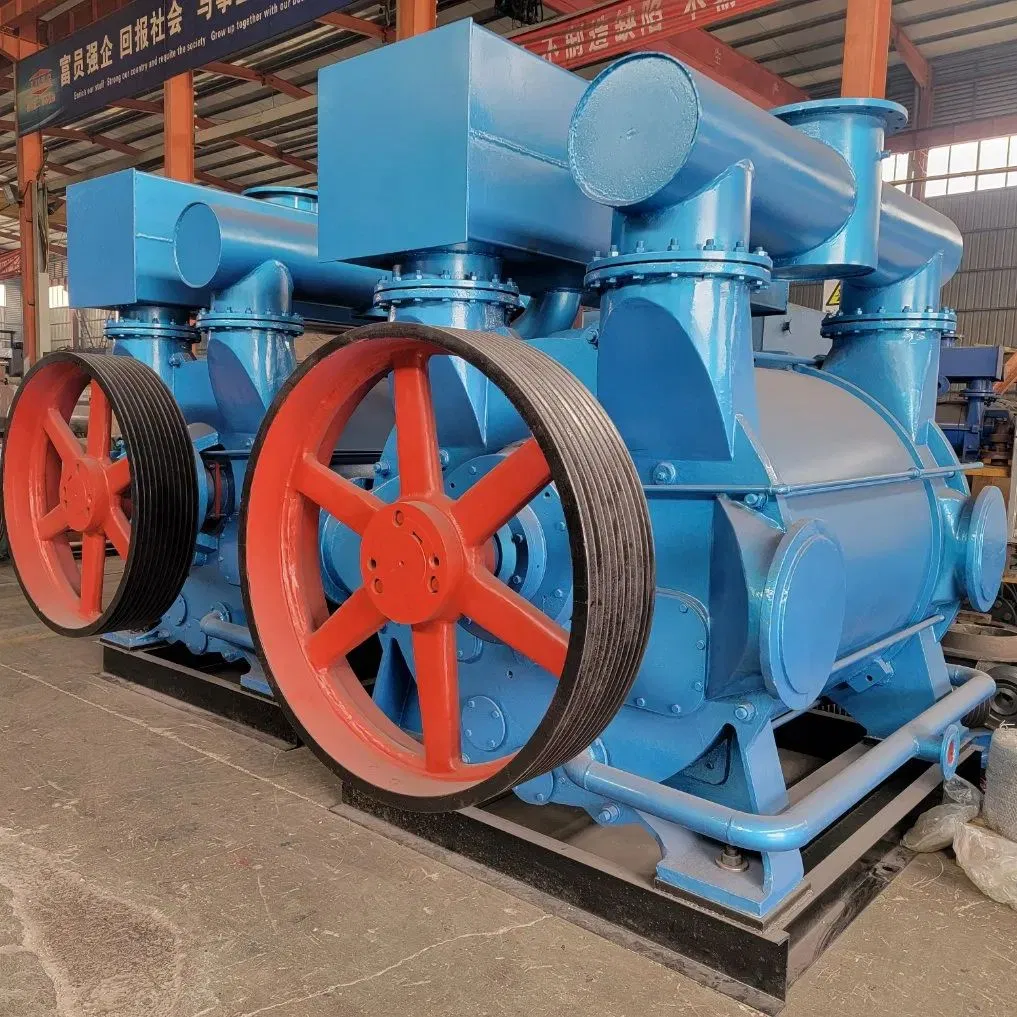

2BE series water ring vacuum pump and compressor are high-efficiency and energy-saving products developed through years of scientific research. Usually used for pumping gases without solid particles, insoluble in water, and non-corrosive, these pumps form vacuum and pressure in closed containers.
By utilizing alternative construction materials, they can be adapted to handle corrosive gases or use corrosive liquids as the working fluid. Widely used in papermaking, chemical, petrochemical, pharmaceutical, food, metallurgy, and mineral processing industries.
Key Performance Features:
| 2BEA SERIES | Specifications | |
|---|---|---|
| Minimum suction absolute pressure (hPa) | 33-160 | |
| Suction intensity (m³/min) | 60hPa | 3.95-336 |
| 100hPa | 4.58-342 | |
| 200hPa | 4.87-352 | |
| 400hPa | 4.93-353 | |
| Motor power (kw) | 11-560 | |
| Speed (rpm) | 197-1750 | |
| Weight (kg) | 235-11800 | |
| 2BEC SERIES | Specifications | |
|---|---|---|
| Minimum suction absolute pressure (hPa) | 160 | |
| Suction intensity (m³/min) | 60hPa | 63-1700 |
| 100hPa | 64-1738 | |
| 200hPa | 65-1785 | |
| 550hPa | 68-1830 | |
| Motor power (kw) | 75-2240 | |
| Weight (kg) | 2930-57500 | |
