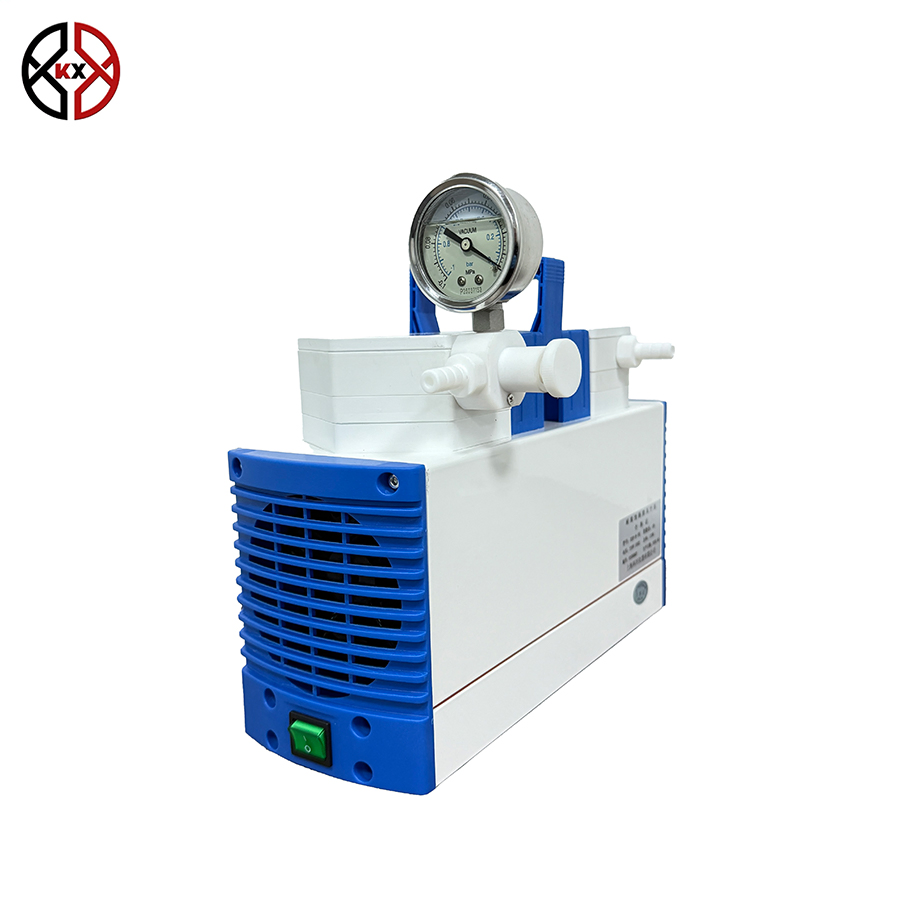

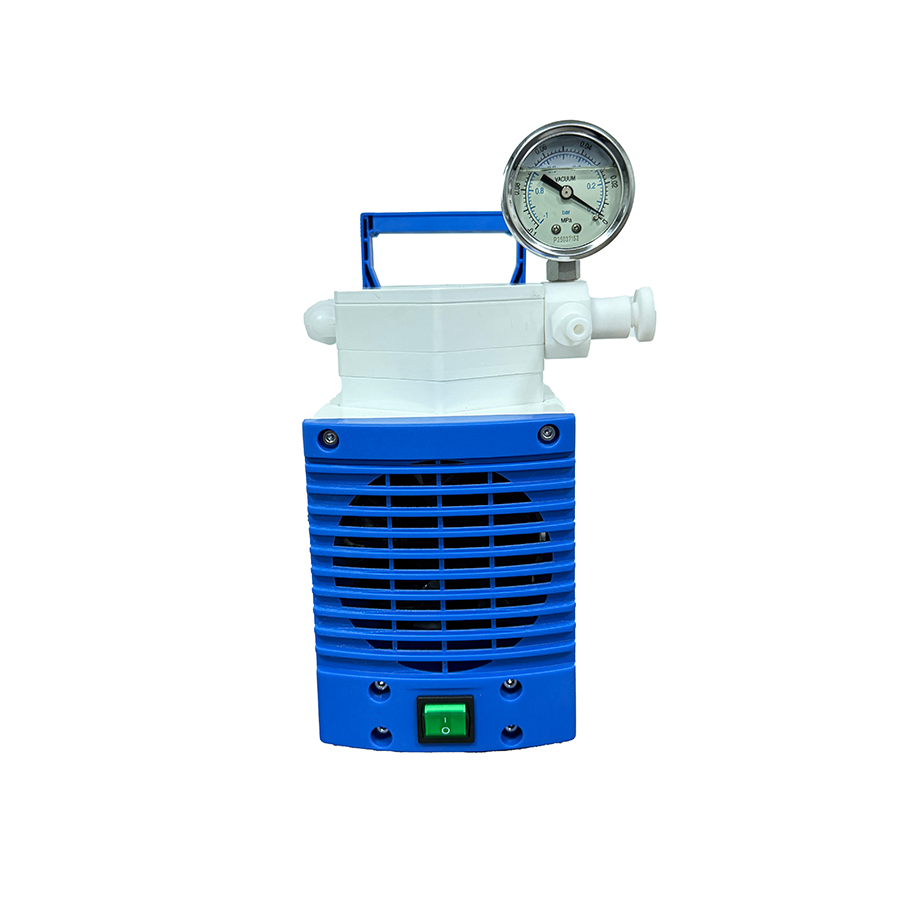

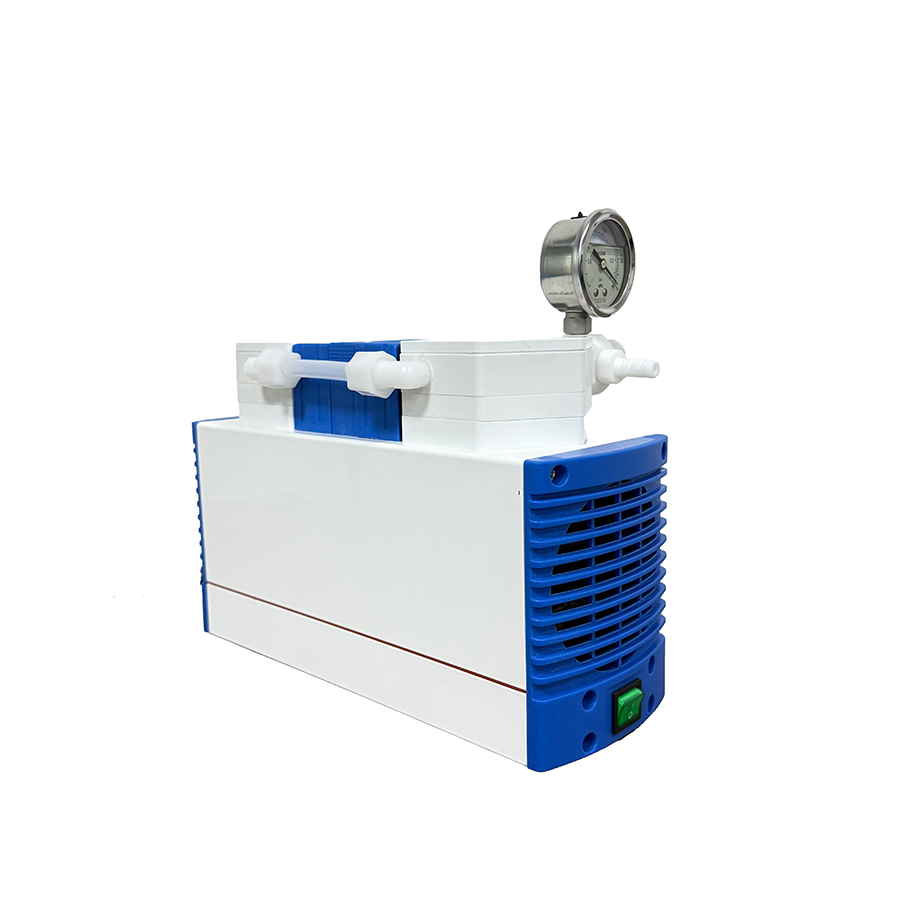

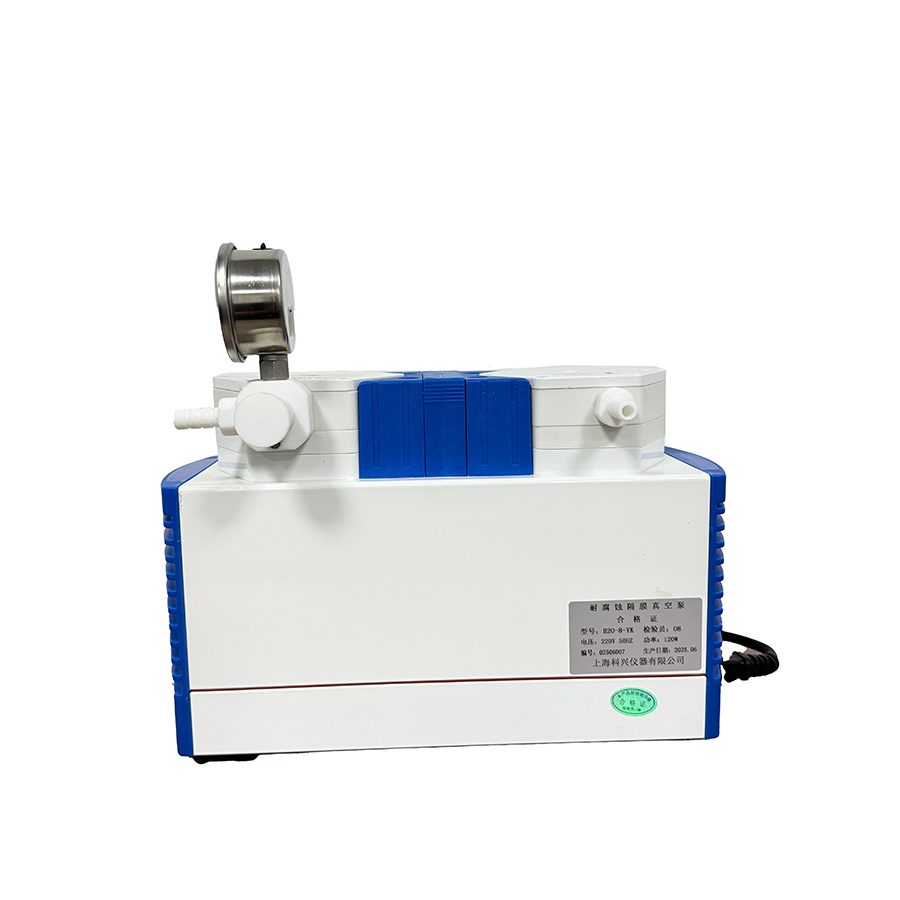

The working principle of a diaphragm vacuum pump involves an electric motor driving a mechanical device to cause the diaphragm to move back and forth, thereby changing the volume of the pump chamber to create a pressure difference. This process is entirely mechanical and does not require any working medium. It is widely used for extracting corrosive gases and provides negative pressure conditions for processes such as evaporation, distillation, crystallization, drying, biochemical reactions, and vacuum filtration.
| Product Model | GM-20 | GM-40 | GM-60 | GM-130 |
|---|---|---|---|---|
| Rated Voltage / Frequency | 220V/50Hz | |||
| Rating (Power) | 120W | 240W | 375W | 550W |
| Pump Head Type | Two-stage pump | |||
| Ultimate Vacuum | 10-18mbar (unladen) | 8-12mbar | ||
| Max Flow Rate | 20L/min | 40L/min | 60L/min | 130L/min |
| Interface Specs | 10mm | 12mm | ||
| Pump Head Material | PTFE composite diaphragm sheet material | |||
| Noise Level | Less than 70db | Less than 80db | Less than 55db | |
| Dimensions (LxWxH) | 315*165*210 | 330*170*210 | 360*295*225mm | 340*300*250 |

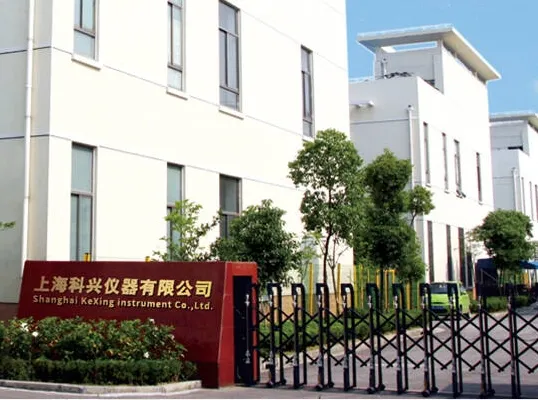

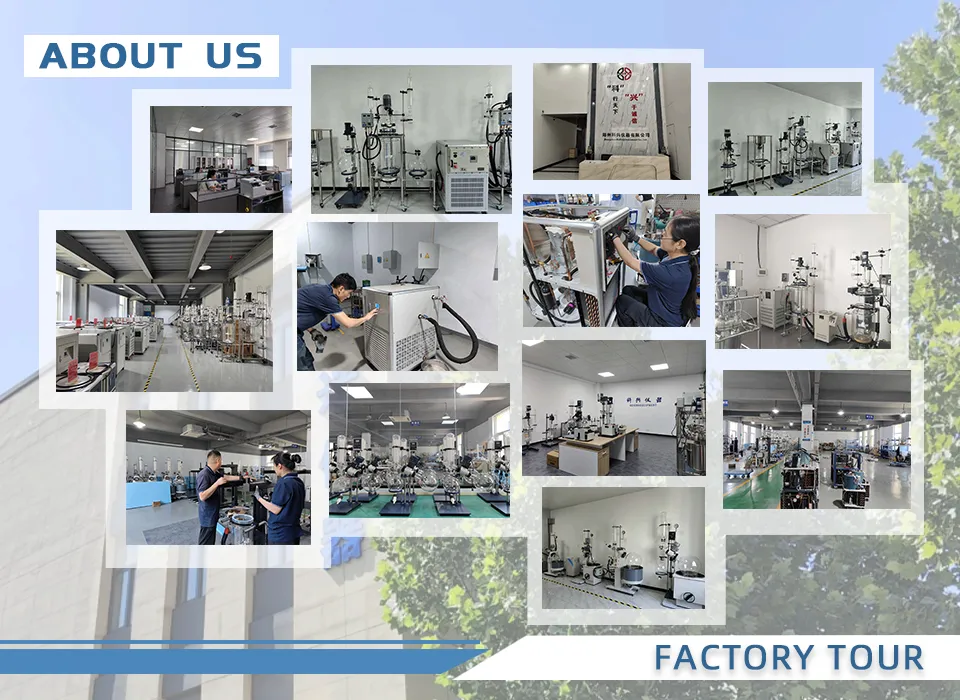

Established in 2007, we are a professional manufacturer engaged in the R&D, production, and sales of laboratory equipment. We specialize in laboratory instruments including glass reactors, rotary evaporators, high and low temperature circulators, and circulating water vacuum pumps.
With over ten years of industry experience, we have established a complete quality management system and a professional R&D team with strong technical force and stable product quality.
