This young energetic and innovative enterprise has strong R&D capacity, supporting OEM and ODM pump services, serving customers in more than 40 countries. Our pumps have been recognized for high quality and reliability across various global markets.

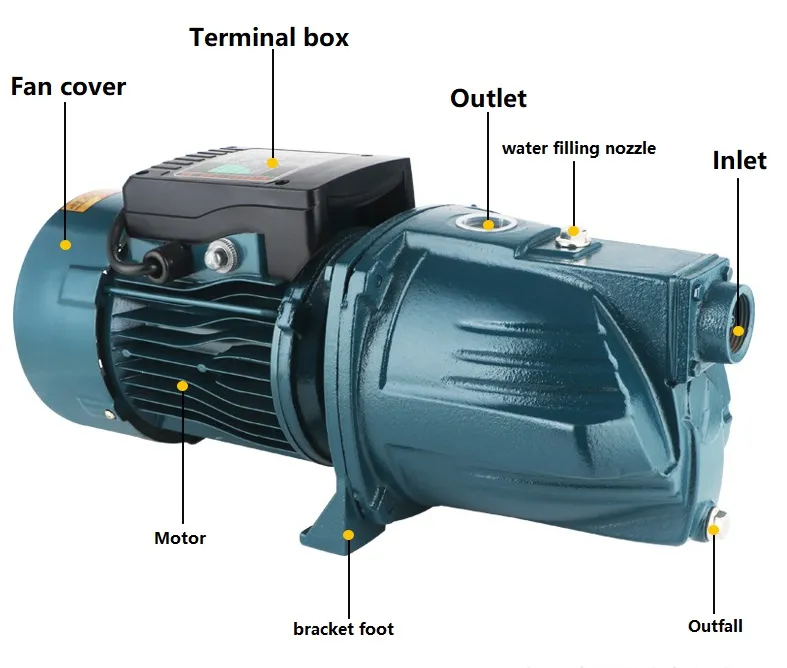

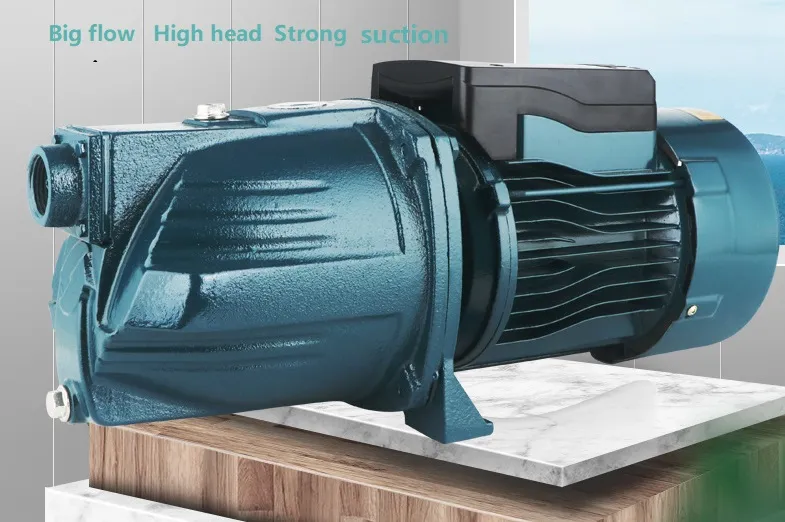

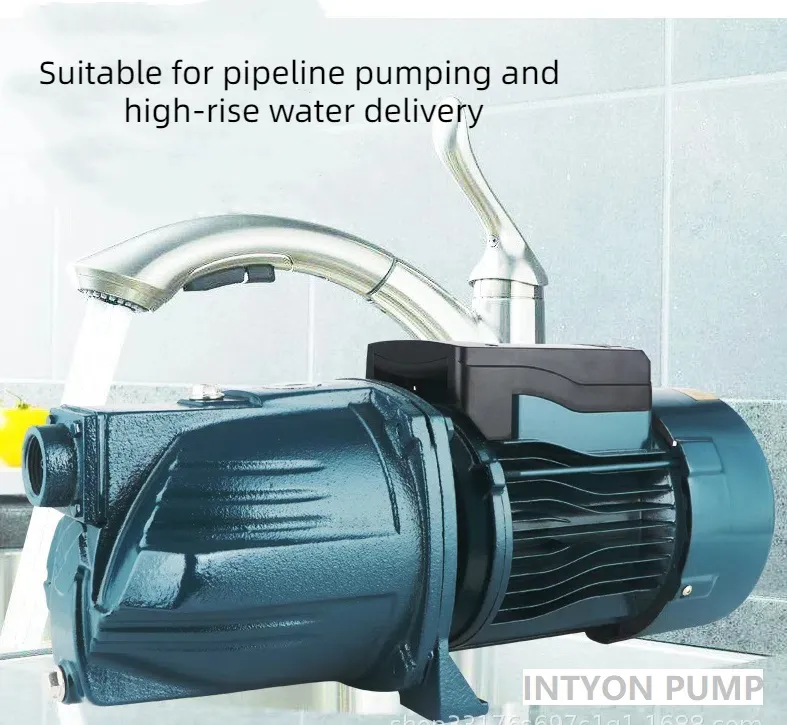

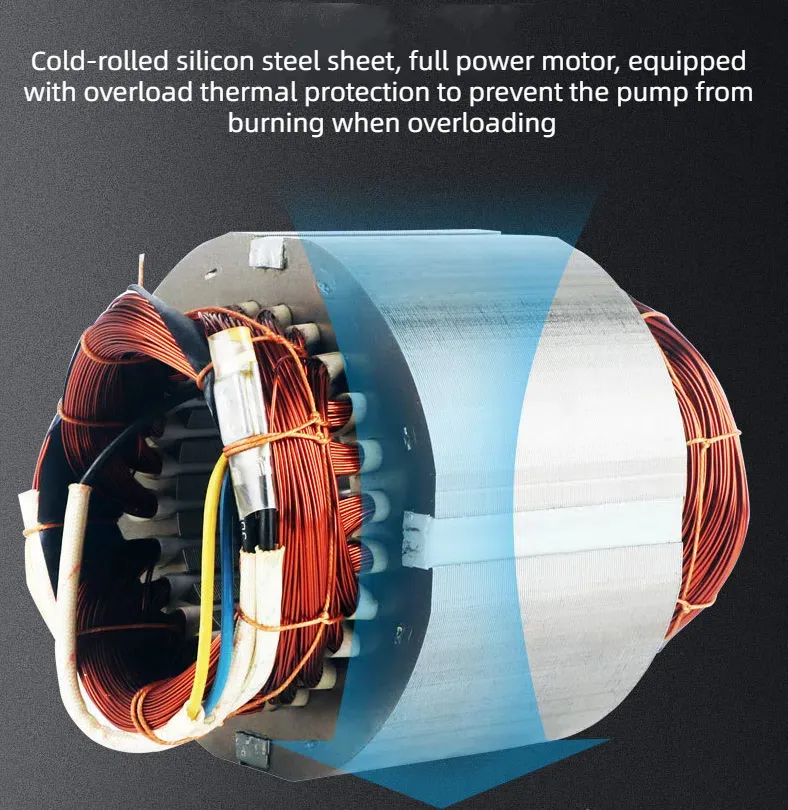

Product Features: JET self-priming pump is composed of three main parts: electric motor, seal, and water pump. The motor is a single-phase asynchronous motor. The pump features a centrifugal type impeller and radial guide vane structure. High-quality mechanical seals and O oil-resistant rubber rings are used for static sealing at fixed points.
Application: Ideal for high-efficiency and energy-saving household water use, underground pumping, water pressure boosting, garden irrigation, and vegetable shed water supply. Also suitable for industrial, mining, and aquaculture applications.
| MODEL | SPEED (rpm) | MAX FLOW (m³/h) | MAX HEAD (m) | MAX SUCTION (m) | VOLT (V) | INLET/OUTLET |
|---|---|---|---|---|---|---|
| 25JET19-0.75KW | 2900 | 3.5 | 39 | 9.8 | 220 | 25mm/1inch |
| 25JET30-1.1KW | 2900 | 3.5 | 40 | 9.8 | 220 | 25mm/1inch |
| 25JET30-1.5KW | 2900 | 3.5 | 48 | 9.8 | 220 | 25mm/1inch |
| 25JET45-2.2KW | 2900 | 5 | 50 | 9.8 | 220 | 25mm/1inch |
| 32JET-2.2KW | 2900 | 10 | 60 | 9.8 | 220 | 40mm/1.5inch |
