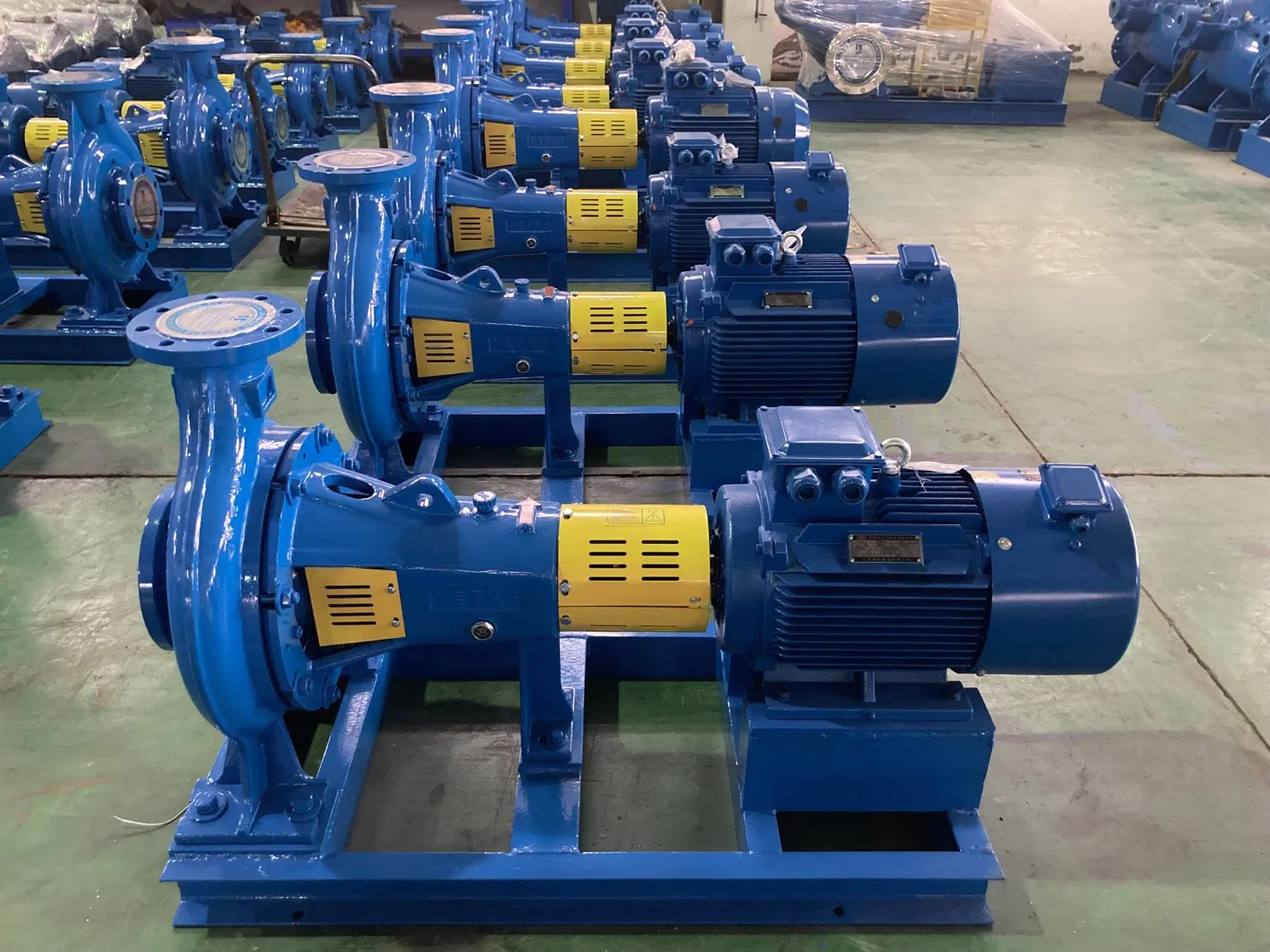

1.6MPa Chemical Centrifugal Pump Speed 1450r/Min, 2900r/Min

Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year

Product Description

Basic Information
Model NO.SA
Max. Head5-125m Optional
Max. Capacity0.3-400m³/H Optional
Driving TypeMotor
Impeller NumberSingle-Stage Pump
Working Pressure1.6MPa Max
Influent TypeSingle Suction
Pump Shaft PositionHorizontal
Impeller TypeSemi-Open
MaterialStainless Steel
CertificateISO9001 CE Eac
OriginChina
Product Description

The SA Series Chemical Centrifugal Pump is a highly efficient and reliable industrial pump designed for chemical applications. With its high-quality construction and durable materials, this pump is built to withstand the most demanding operating conditions.

Featuring a centrifugal design, this pump is capable of delivering high flow rates and maintaining consistent pressure, making it ideal for a wide range of chemical transfer and processing tasks. Whether you need to move corrosive liquids, acids, or solvents, the SA Series Chemical Centrifugal Pump is up to the task.

Key Features
  • Centrifugal pump design for high flow rates and consistent pressure
  • Constructed with high-quality materials for durability
  • Designed for chemical transfer and processing applications
  • Efficient design minimizes energy consumption and operating costs
Technical Diagrams

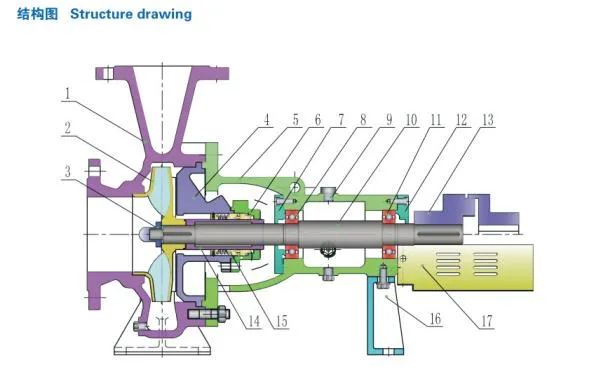

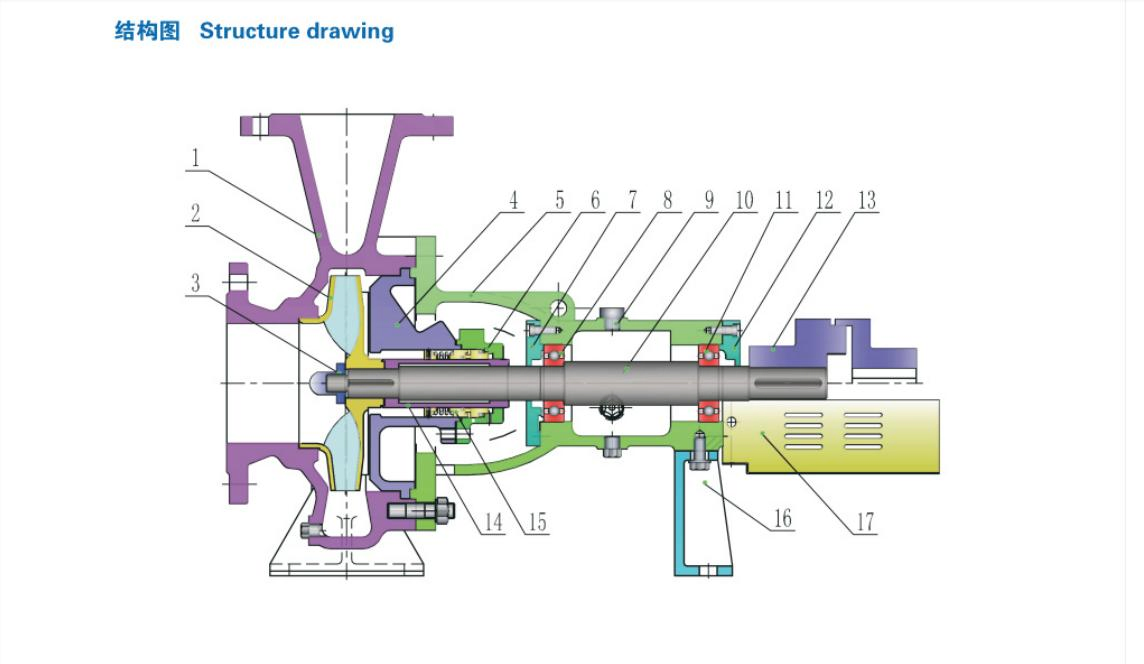

Structure drawing

Structure Drawing

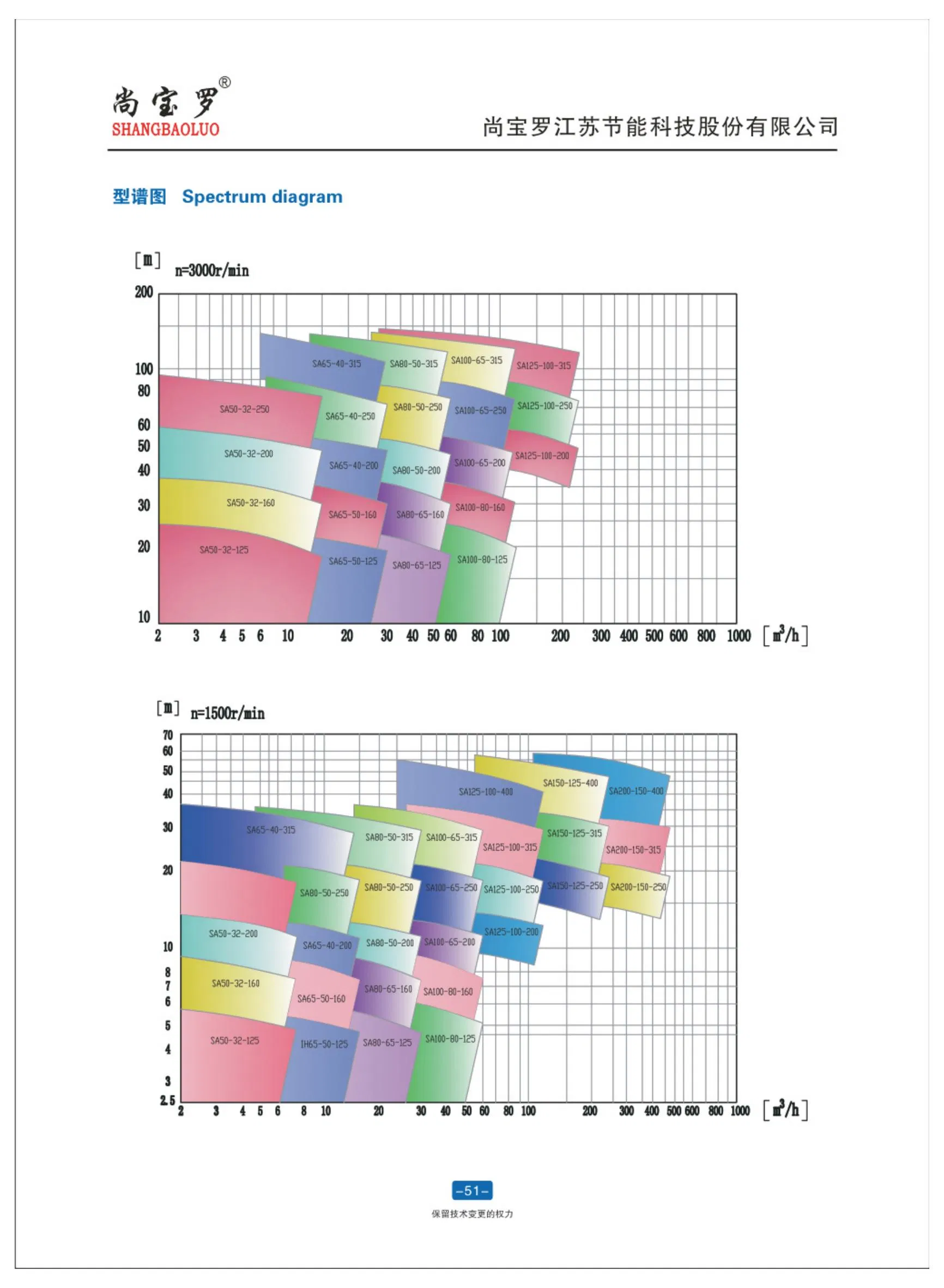

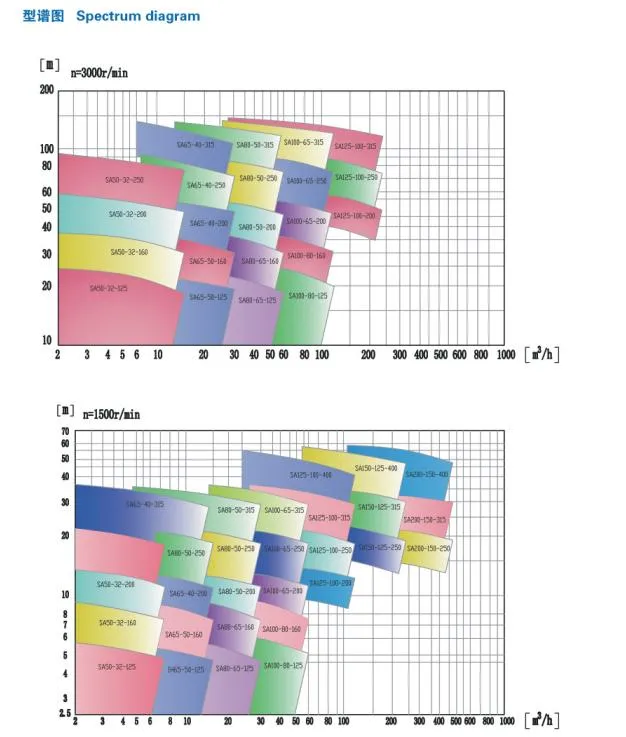

Spectrum diagram

Spectrum Diagram

Property Parameters

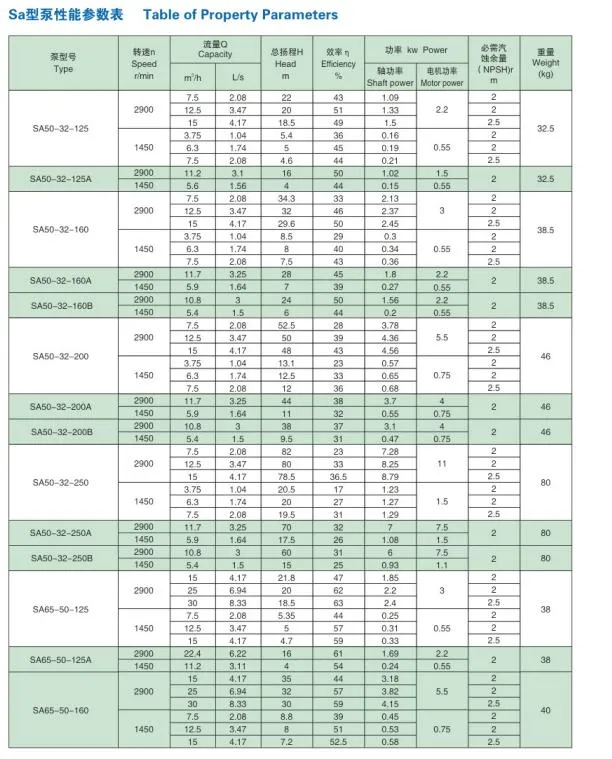

Parameter Table 1

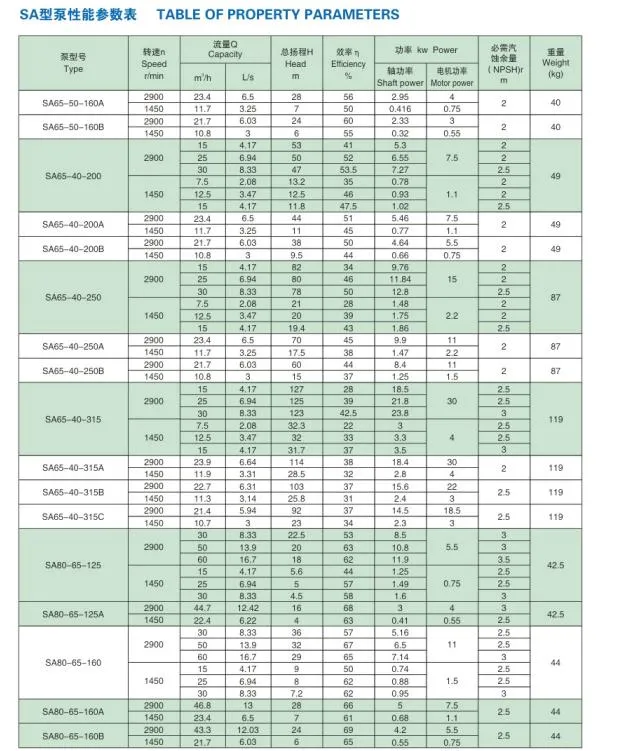

Parameter Table 2

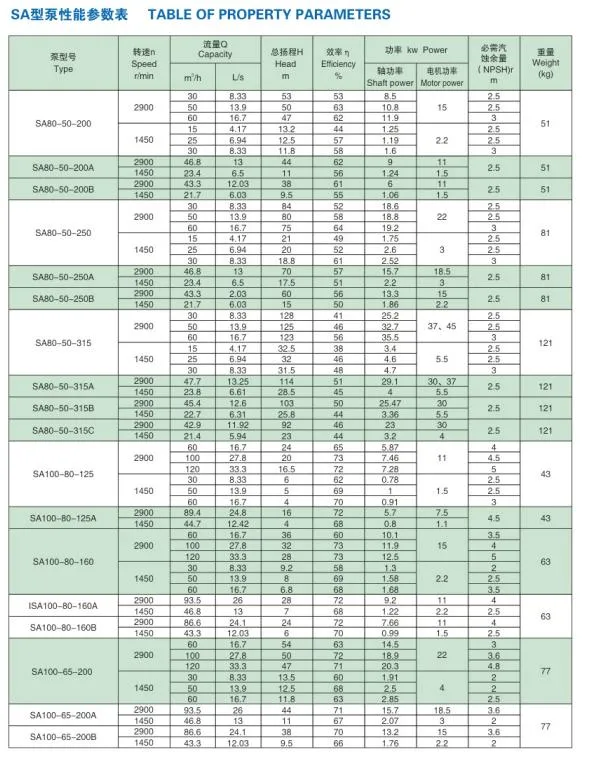

Parameter Table 3

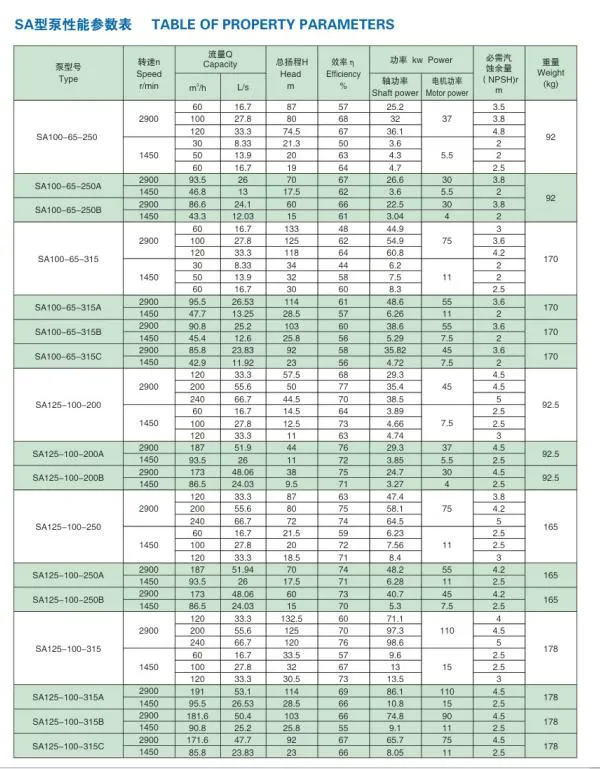

Parameter Table 4

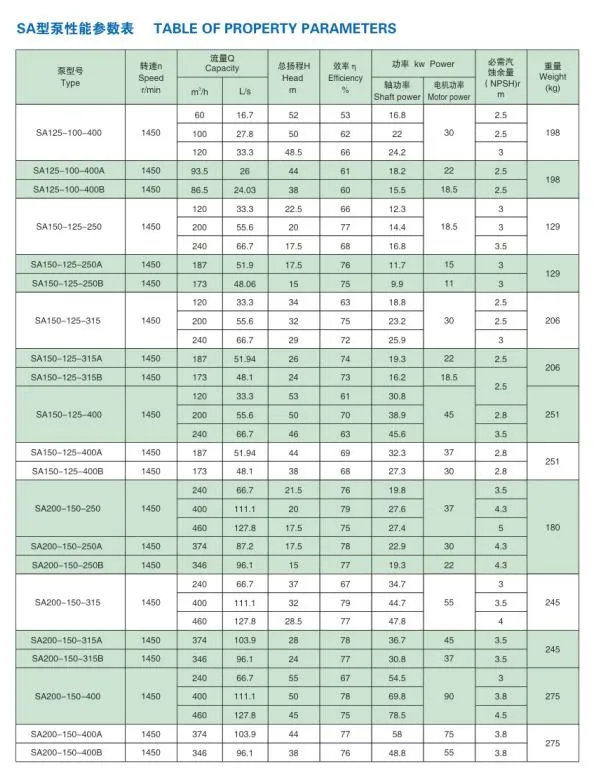

Parameter Table 5
Enterprise Qualifications

Our commitment to energy-saving technology and precision engineering has established us as a reputable manufacturer in the industrial pump industry.

Qualification 1
Qualification 2
Qualification 3
Qualification 4
Qualification 5
Qualification 6
Frequently Asked Questions
1. What types of fluids can the SA Series pump handle?
The SA Series is specifically designed for chemical transfer, capable of handling corrosive liquids, various acids, and industrial solvents safely and efficiently.
2. What is the maximum head and flow capacity?
This series offers a head range from 5m up to 125m and a capacity ranging from 0.3 to 400m³/H, depending on the specific model configuration chosen.
3. Is this pump energy efficient?
Yes, the centrifugal design is precision-engineered to minimize energy consumption while maintaining high performance, effectively reducing overall operating costs.
4. What material is the pump made of?
The primary construction material is high-grade Stainless Steel, ensuring excellent resistance to chemical corrosion and long-term durability in harsh environments.
5. Can this pump operate at high pressures?
Yes, the SA Series is rated for a maximum working pressure of 1.6MPa, making it suitable for many pressurized industrial applications.
6. What certifications do these pumps hold?
Our chemical centrifugal pumps are fully certified with ISO9001, CE, and EAC standards, meeting international safety and quality requirements.
