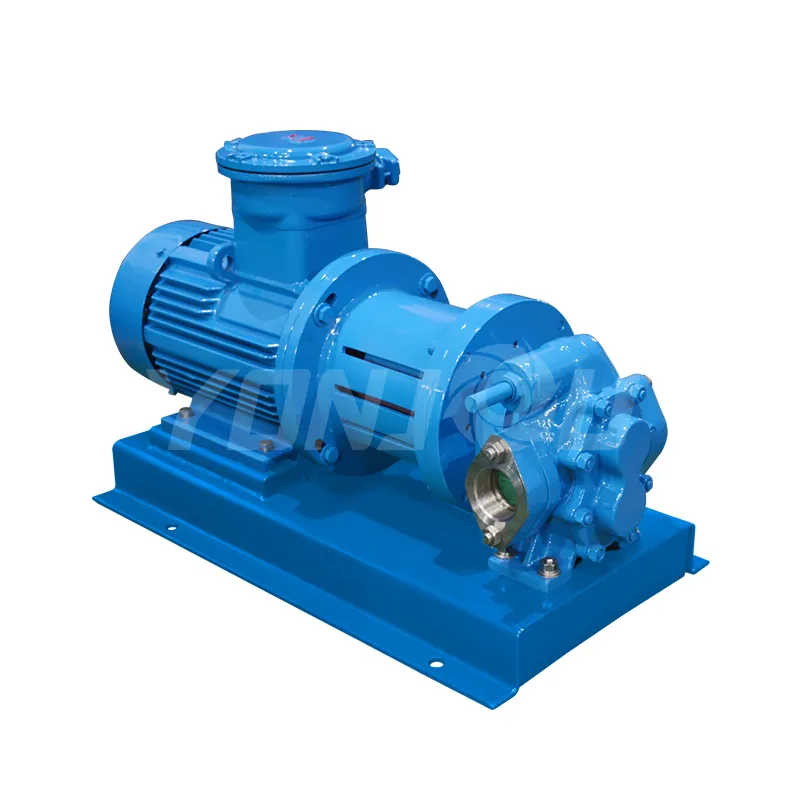

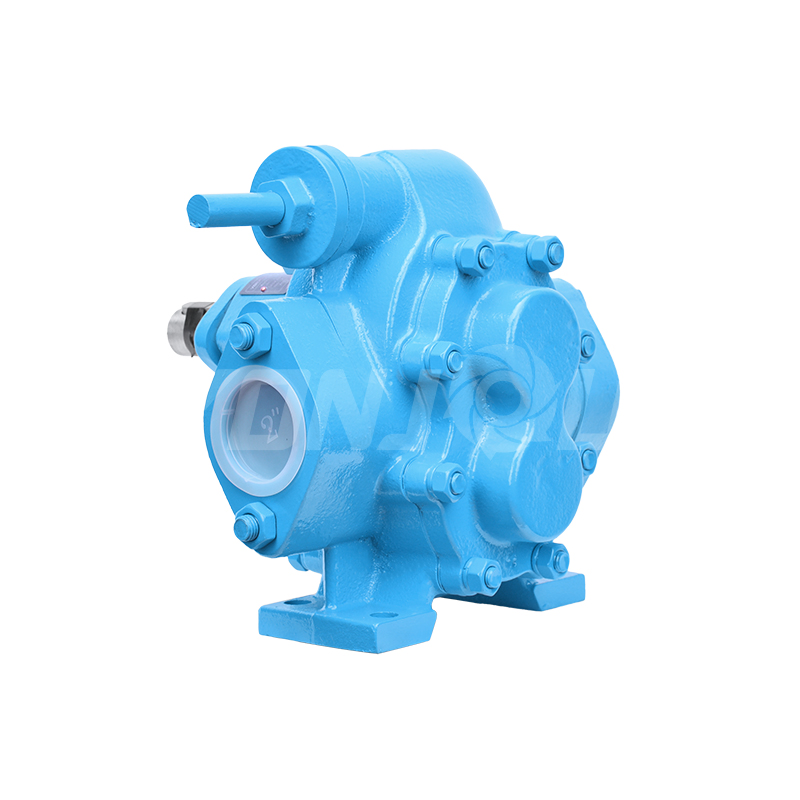

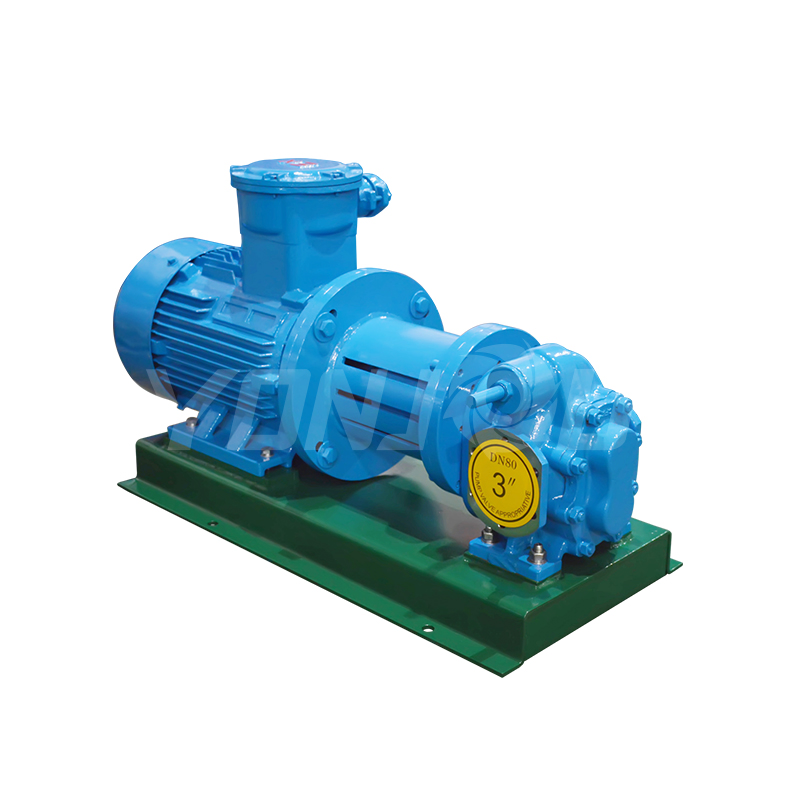

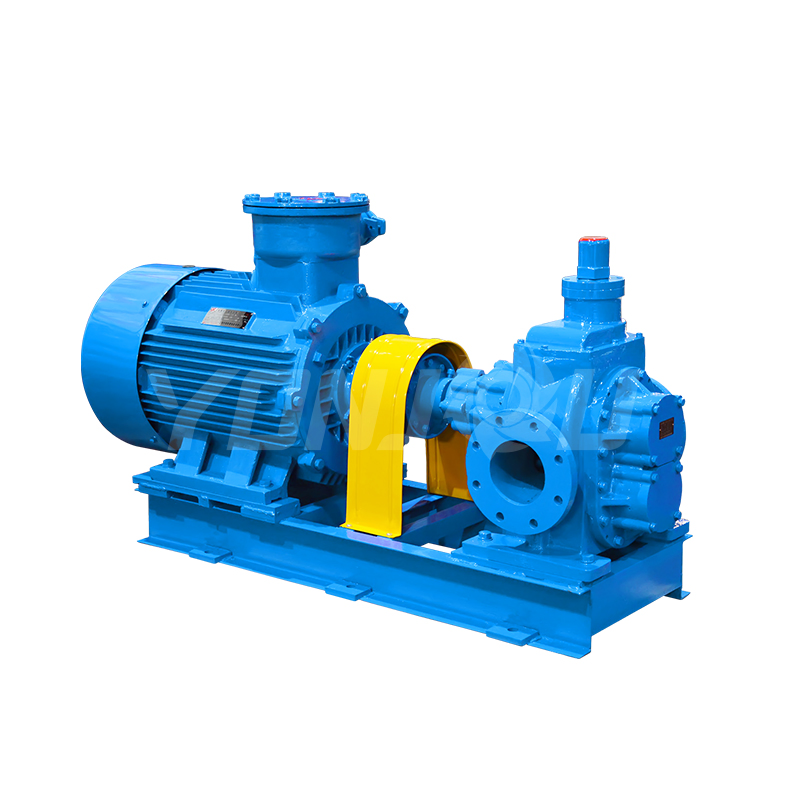

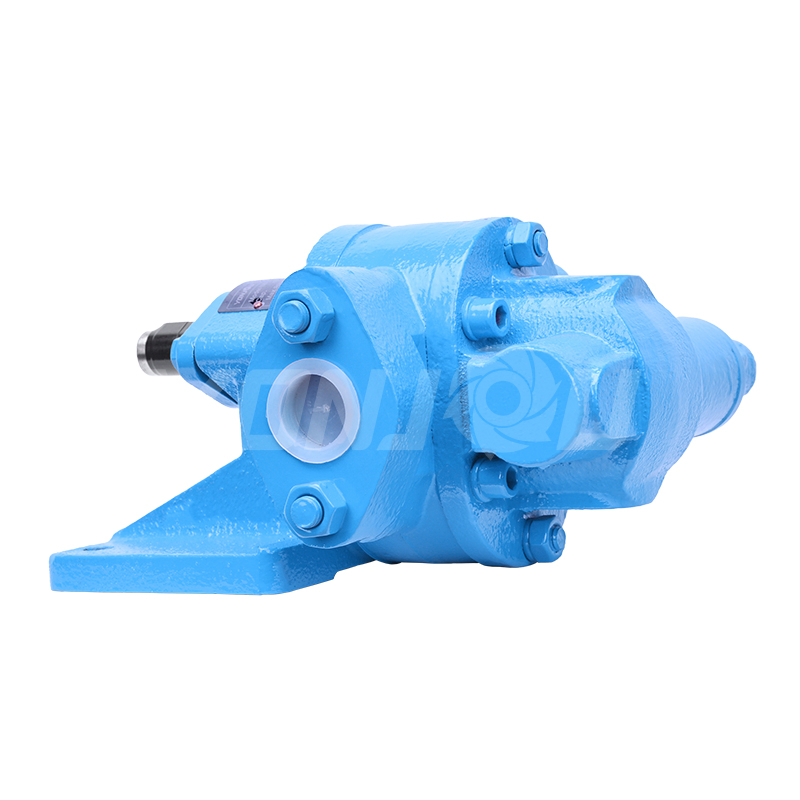

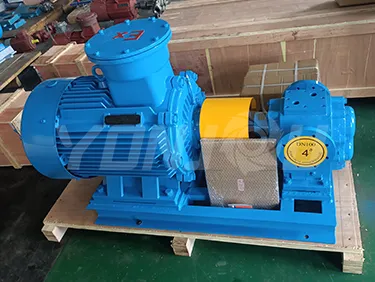

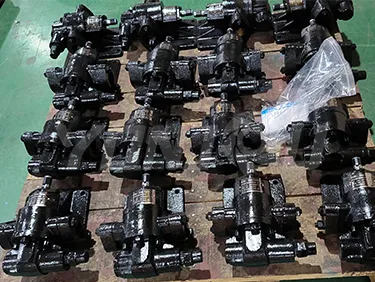

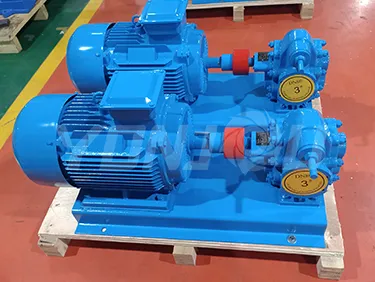

1. The KCB Electric Hydraulic Gear Oil Pump is specifically engineered for transferring light fuel oils including diesel, kerosene, and biodiesel. It is also highly capable of handling vegetable oil, motor oil, and glycerol.

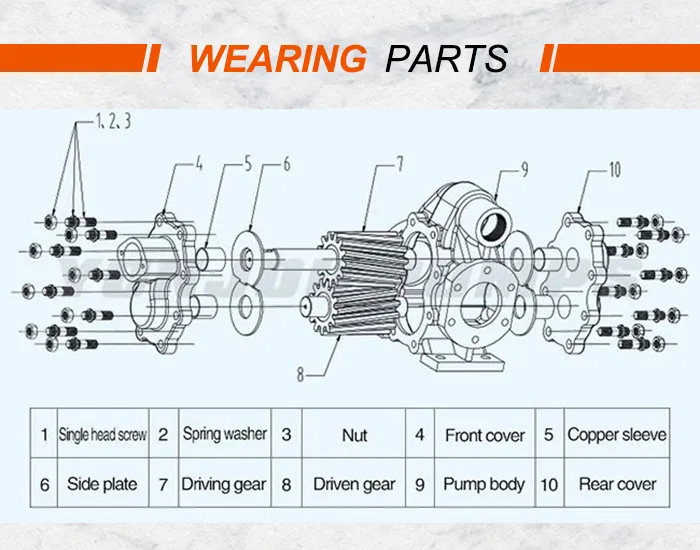

2. Featuring a helical gear design and a built-in by-pass valve, this pump is ideal for clean viscous liquids that do not contain abrasive or solid particles.
3. Designed for intermittent dry running, it allows for suction hose use to collect fluids from tanks. Note: Extended dry running should be avoided as oil is necessary for pump head lubrication.
| Working Principle | Double Gears |
|---|---|
| Pump Body Material | Cast Iron, SS304, SS316 |
| Gear Material | #45 Steel, Copper, SS304, SS316 |
| Temperature Range | Normal ≤ 70 C, Special ≤ 300 C |
| Driver Options | Motor engine, diesel engine |
| Power Specs | 220V-460V, 50hz/60hz |
| Max Flow Rate | 9600 L/min |
| Max Discharge Pressure | 1.45MPa |
| Connection Type | Quick couple, Thread, Flange |

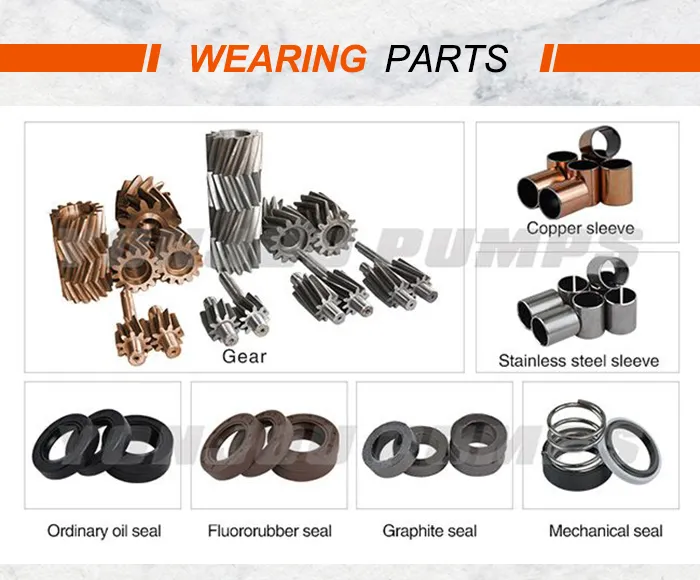

| Shaft Seal Type | Oil seal, Mechanical seal, Graphite seal |
| Model | Flow Rate (L/m) | Max Pressure (Mpa) | Max Power (kW) | Inlet/Outlet (mm) |
|---|---|---|---|---|
| KCB18.3 | 18.3 | 1.45 | 1.5 | 20 |
| KCB33.3 | 33.3 | 1.45 | 2.2 | 20 |
| KCB55 | 55 | 1 | 3 | 25 |
| KCB83.3 | 83.3 | 1 | 4 | 40 |
| KCB133 | 133 | 1 | 5.5 | 50 |
| KCB200 | 200 | 1 | 7.5 | 50 |
| KCB300 | 300 | 1 | 11 | 80 |
| KCB483.3 | 483.3 | 1 | 11 | 80 |
| KCB633 | 633 | 0.8 | 22 | 100 |
| KCB960 | 960 | 0.6 | 30 | 100 |
| KCB1200 | 1200 | 0.6 | 37 | 150 |
