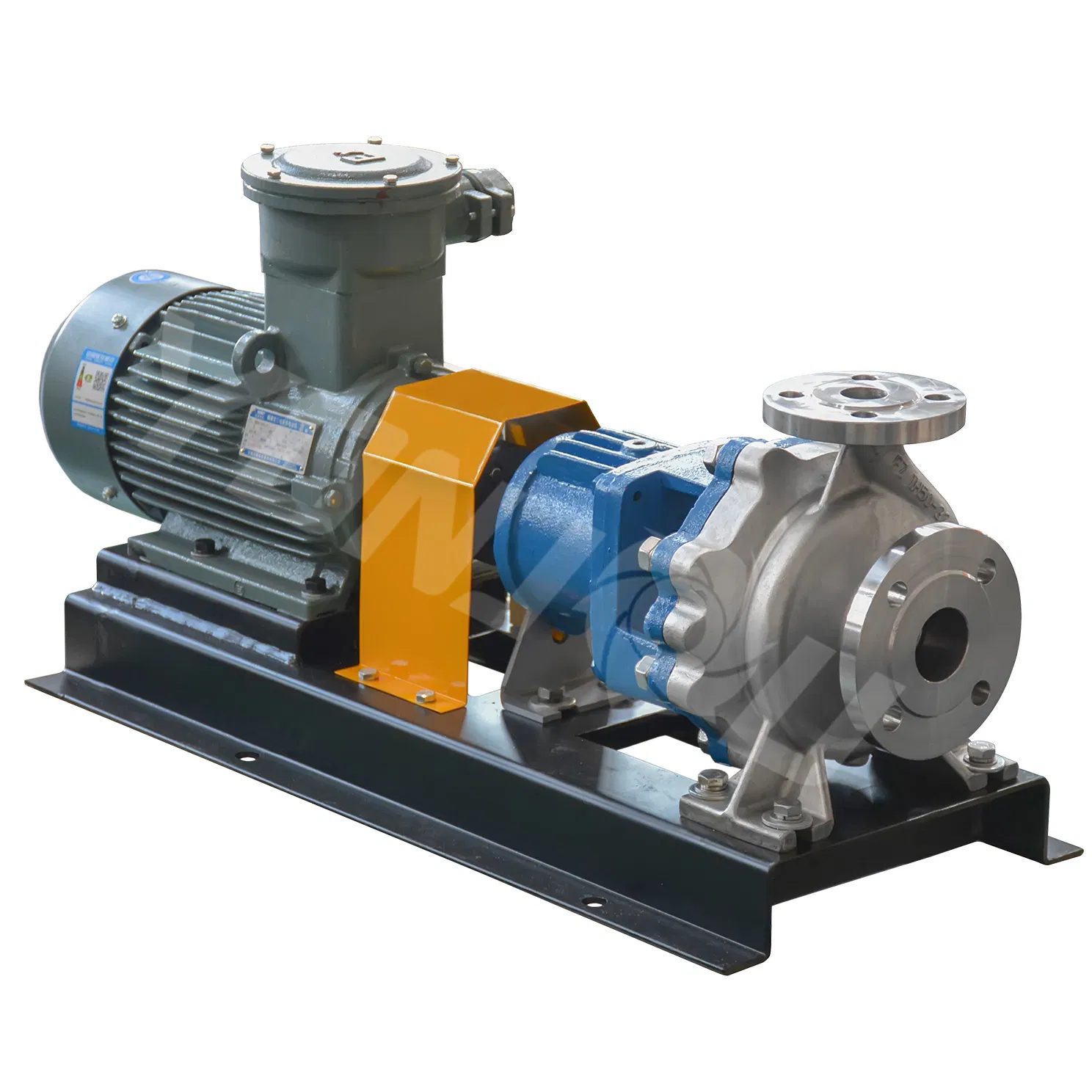

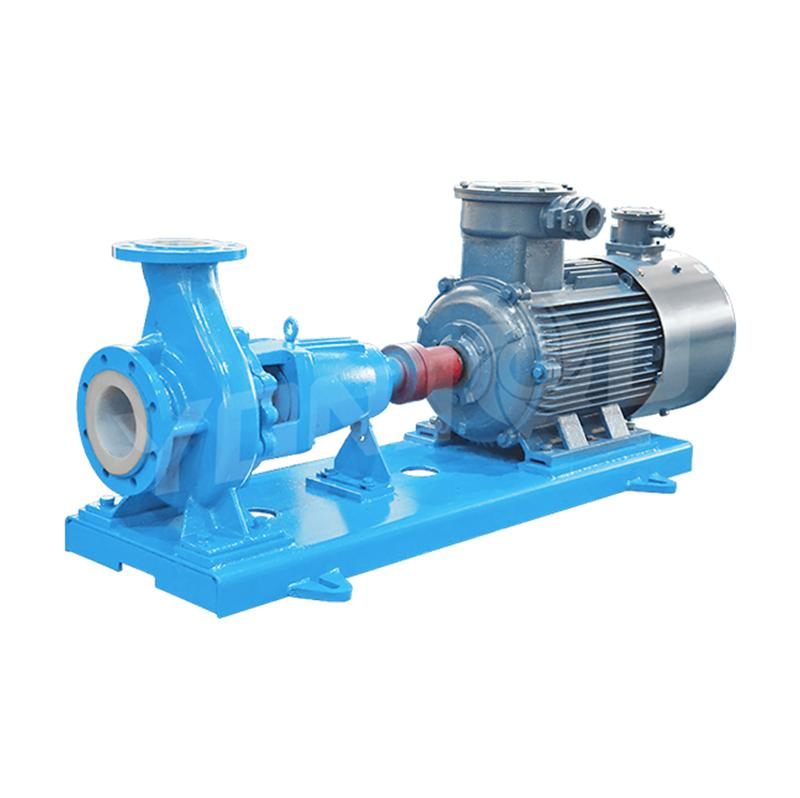

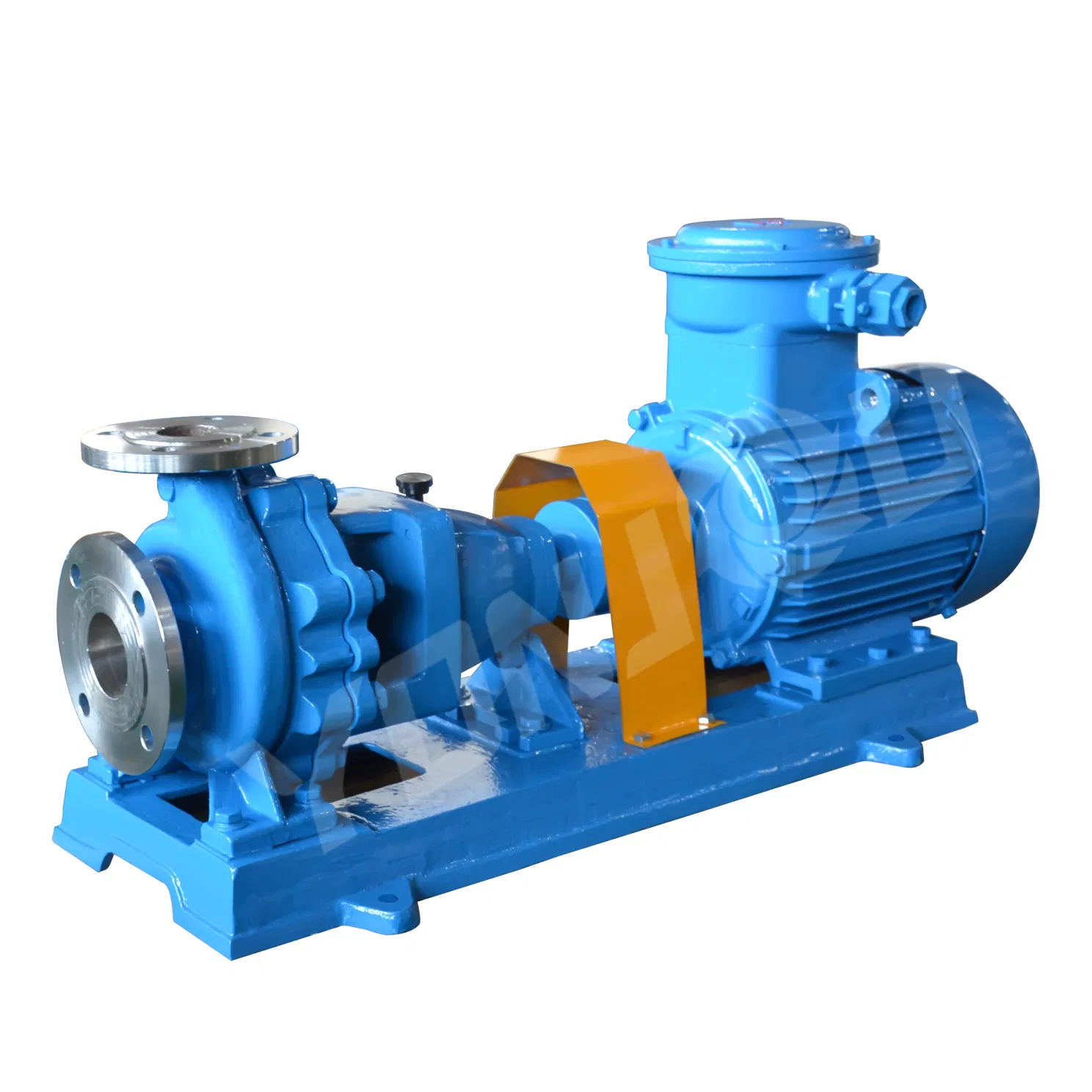

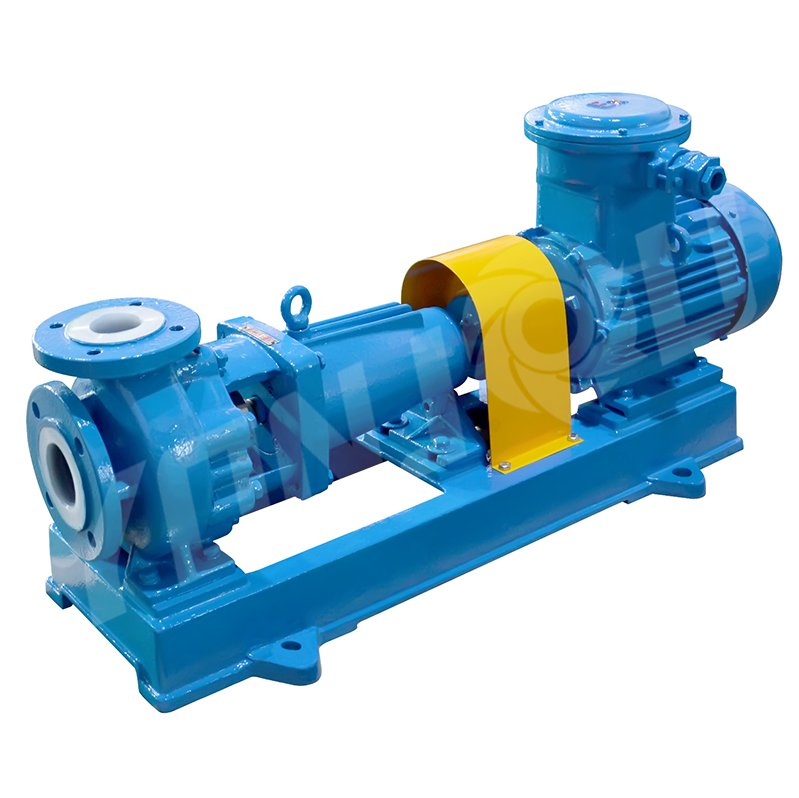

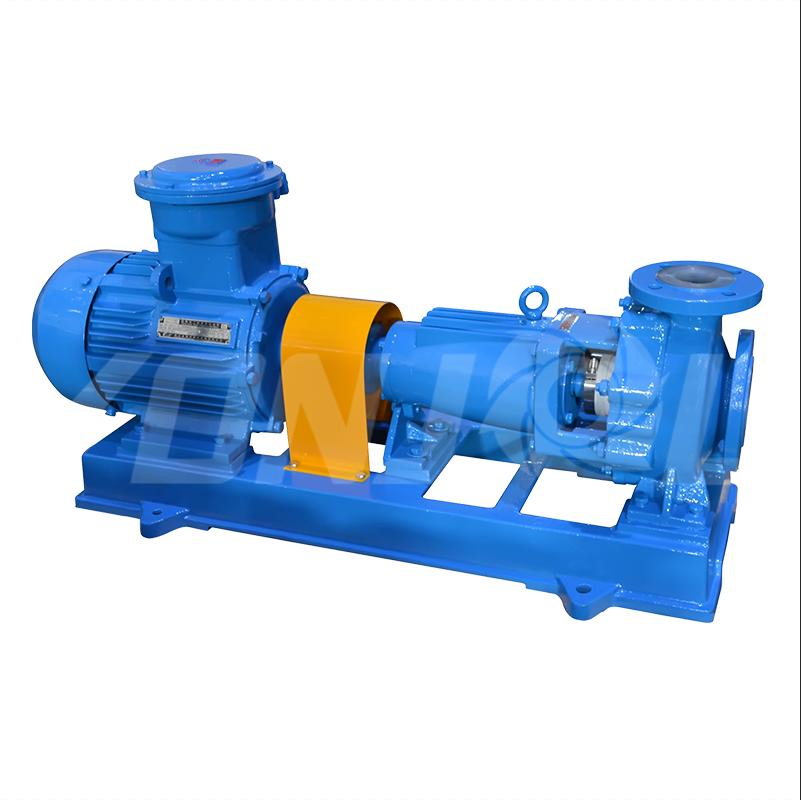

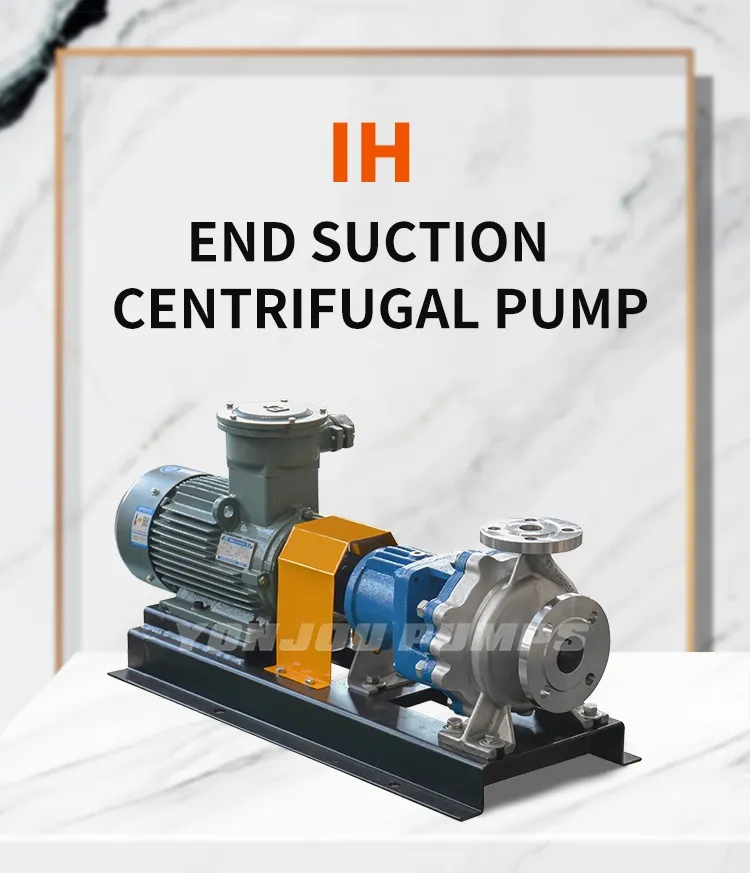

Ih High Volume End Suction Single Stage Stainless Steel Water Chemical Centrifugal Pump for Acid Feed Processing

1 / 5

Ih High Volume End Suction Single Stage Stainless Steel Water Chemical Centrifugal Pump for Acid Feed Processing

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.:IH

Max.Head:110m-150m

Max.Capacity:>400 L/min

Driving Type:Motor

Impeller Number:Single-Stage Pump

Working Pressure:Low Pressure Pump

Impeller Type:Single Suction Pump

Position:Horizontal Pump

Theory:Centrifugal Pump

Application:Pollution Discharge, Chemical Processing

Flow Rate:6.3-400 M3/H

Power:0.55-110 Kw

Product Description

💧

Used for industrial and urban water supplying, drainage, and agricultural irrigation.

🌡️

Handles liquid temperatures up to 80 ºC (Standard) or 150 ºC (IR model).

⚙️

Standard shaft seal is packing seal; mechanical seals are available as an option.

🔬

Suitable for metallurgy, textile, chemical, and printing industries.

Capacity:Up to 400m3/h

Inlet Diameter:50-150 mm

Outlet Diameter:32-125 mm

Turn Speed:1450/2900 r/min

Performance Parameters

Model	Capacity (m3/h)	Head (m)	Power (kW)	Efficiency (%)
50-32-125	12.5	20	2.2	60
50-32-160	12.5	32	3	54
50-32-200	12.5	50	5.5	48
65-50-125	25	20	3	69
65-40-200	25	50	7.5	60
80-65-160	50	32	7.5	73
100-80-160	100	32	15	78
125-100-250	200	80	75	78
200-150-315	400	32	45	79

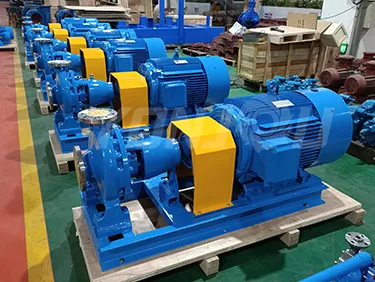

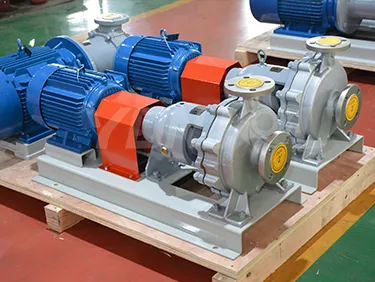

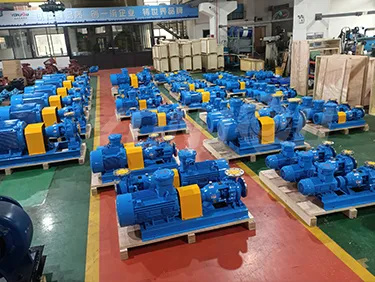

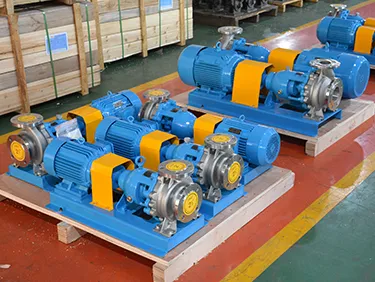

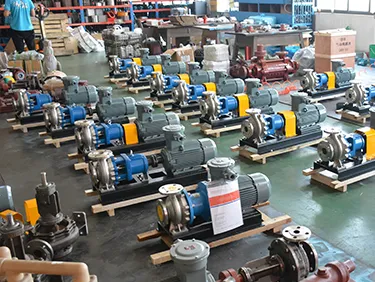

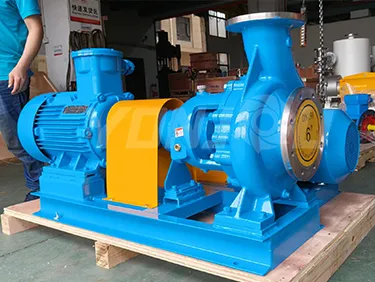

Product Display

Frequently Asked Questions (FAQ)

Q1: What is the maximum flow rate of the IH series centrifugal pump? A: The IH series centrifugal pump offers a high-volume capacity with a flow rate ranging from 6.3 up to 400 m³/h.

Q2: Can this pump handle high-temperature liquids? A: Yes, while the standard IH model handles up to 80 ºC, the IR single-stage hot water model can handle liquid temperatures up to 150 ºC with water-cooling mechanical seals.

Q3: What materials are suitable for processing with this pump? A: It is designed for water and liquids chemically similar to water, making it ideal for acid feed processing and chemical liquid transfer.

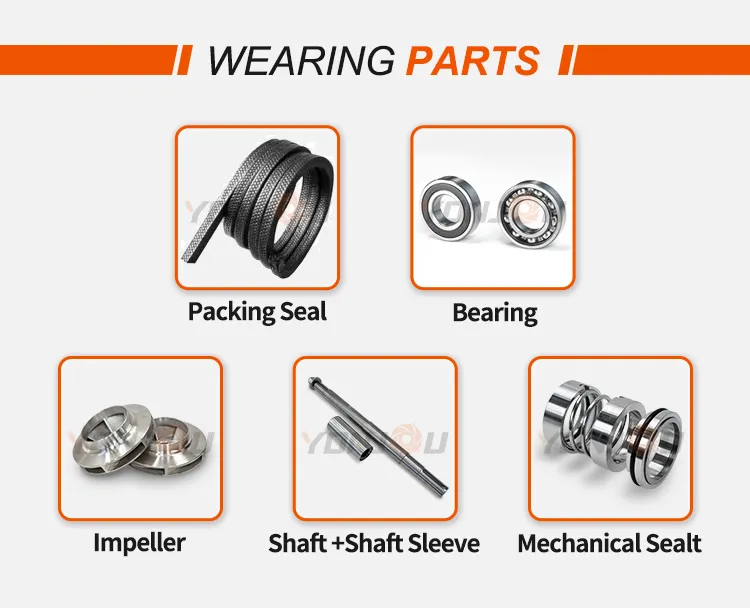

Q4: What types of shaft seals are available? A: Users can choose between standard packing seals or mechanical seals depending on the specific application requirements.

Q5: What are the main applications for the IH centrifugal pump? A: It is widely used in industrial and urban water supply, agricultural irrigation, metallurgy, textiles, and chemical processing.

Q6: What power options are available for these pumps? A: The power range is broad, from 0.55 kW up to 110 kW, and can be driven by either electric motors or diesel engines.
